VD TECH NVA0043VD.001 User manual
IMPORTANT
Satellite signals are required for this product to function in Navigation Mode. There
may be occasions within your home or building when the signal strength is limited
and Navigation Mode may not be possible. This is quite normal for products of this
type. If you experience difculty in receiving a signal in your car you may need to use
the external antenna (optional). You can check the number of satellite signals that
the unit is receiving and the strength of those signals by viewing the GPS Receiver
page, see "GPS Receiver" on page 8.
Safety
The Global Positioning System
The Global Positioning System (GPS) is a satellite based system that provides
location and timing information around the globe. GPS is operated and controlled
under the sole responsibility of the Government of the United States of America, who
are responsible for its availability and accuracy.
Using Your GoClever navigation in the Car
When using GoClever while driving it is essential that you drive with due care and
attention. Never modify the settings or program your navigation while driving. Only
look at the map when it is safe to do so. Only follow the GoClever instructions when
the road regulations allow you to do so.
When mounting the device in your car make sure that it does not obscure your view
or impede the operation of any driving controls.
Battery
Your navigation uses a Li-ion battery. Do not use it in humid, wet
or corrosive environments. Do not operate or store your device in
high temperatures (>60 C) or in direct sun light. Do not store in a
microwave or pressurised container. Do not pierce or break the battery
casing.
Failure to follow these cautions will invalidate the warranty and
may cause the battery to leak acid, become hot, explode or
ignite and cause injury or damage.
If you come into contact with leaked battery acid wash
thoroughly and seek medical attention.
The Li-ion battery contained in this unit must be recycled or disposed
of properly. Do not dispose of in household waste or burn.
Manual-N88.indd 1 2010-8-13 18:44:28
Getting Started
Please make sure that you read all of the information contained within this
user guide before contacting the customer helpline.
If you experience any problems, please check the Troubleshooting guide at
the back of this user guide before contacting the customer helpline.
In the Box
In the box you will nd
• Satellite Navigation System
• Built in Nand Flash for preploaded maps (Optional)
• SD memory card for map data (Optional)
• USB DC power lead with 5V car adapter
• Car Mounting Cradle
• USB cable to connect to your PC
• User Manuals
logo size : 8 mm ‘s high
"At full volume, prolonged listening to the portable audio device may damage the
user’s hearing"
According to USB agreement, max .value of current is 500mA.If you operate
Main unit vader the condition of bettery recharge,it will reduce the life of the
mainunit.
Manual-N88.indd 2 2010-8-13 18:44:28

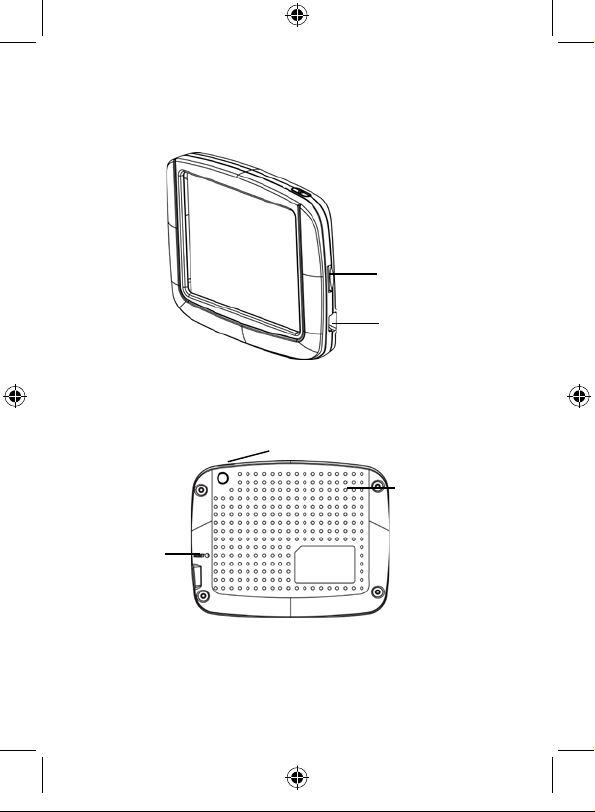

Control's Position
Reset
ON/OFF
Speaker
USB port
SD Card slot
Manual-N88.indd 3 2010-8-13 18:44:30
Charging the Battery
Before using yourdevice the battery will need to be charged. To maximize the
life of the battery the rst charge must fully charge the battery. We recommend
that you charge the unit for 5 hours in order to achieve the full charge. Subsequent
charge times may be shorter. Plug the mains adapter into the socket on the
rear of the unit marked 5V.
Plug the adapter into the mains supply and switch it on.
The red charging indicator on the front of the unit will light. When the unit is fully
charged the red indicator is extinguished.
We recommend that when you use GoClever navigation in your car, that you always
use the 12V cigarette adapter in order to maintain the battery level.
Installing the micro SD Memory Card(Optional)
Once the card is installed it does not need to be removed. If you need to remove
the card, switch the unit off rst, push the card in and it will eject from the slot.
When re-installing it can only be tted one way - contacts towards you and the cut-off
corner at the top as shown. Slide the card in and push fully home so that it clicks in
place.
It can support up to 8GB micro SD card.
Mounting the Unit in your Car
WARNING!
Device must be mounted in a location that does not obscure the drivers vision, impede
use of the car's controls or impede the operation of the car's airbags. Screw the car
mount into the back of the unit as shown below.
Car Adapter
When using your navigation in the car we recommend that you always use
the car adapter to power the unit, especially on long journeys. Plug the car adapter
into the socket marked 5V on the rear of the unit. Plug the other end on
the adapter into the car's 12V accessory socket. The illustration on the next
Manual-N88.indd 4 2010-8-13 18:44:30
Switching On
Firstly The GOCLEVER System logo is displayed.
page shows a typical installation. If possible x the power cable so that it does
not obscure instruments or controls and does not cause a tripping hazard.
Manual-N88.indd 5 2010-8-13 18:44:31

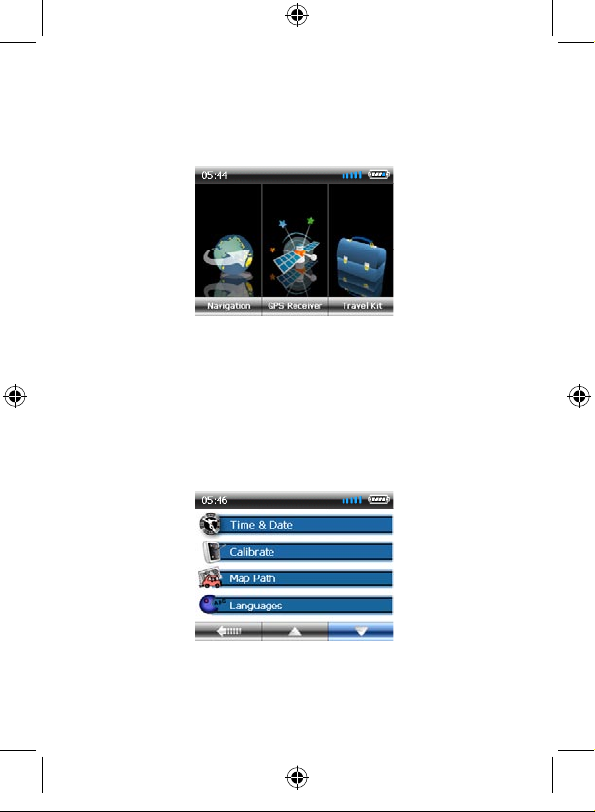

Then following page will be displayed. After a couple of seconds this page will be
replaced with the open page as shown below.
Settings
NOTE: You do not need to enter the SETTINGS menu before you start to navigate.
If you touch the Travel Kit icon the following page is displayed.
To exit this page, touch the arrow in the bottom left of the screen.
Manual-N88.indd 6 2010-8-13 18:44:32
Calibration
This function calibrates the unit to respond to your screen taps. You will only need to
use this function if the unit begins to respond inconsistently to your screen taps.
About
The About page is for information only. It will give the serial number, versionEN
numbers and the helpline number for the product.
GPS Receiver
NOTE: This page is for information only. You can view the number of satellite signals
the unit is receiving and also the strength of these signals. When the Open page is
displayed touch on the GPS RECEIVER icon. A page similar to that shown below will
be displayed.
Manual-N88.indd 7 2010-8-13 18:44:32
CPU MStar 400 MHz
Input Method Software Keyboard
Operating System Microsoft WinCE.NET.5.0 Core Version
Expansion Slot Micro SD card ( Support up to 8GB)
Antenna Ceramic Antenna ( 25mm x 25 mm ) Internal
Speaker Built-in 2.0W Mono (Internal)
USB USB Client / ActiveSync
Memory 64MB DDR2 Ram – 256MB/ 2G Nandash Rom
Dimension 98mmx 77.5mmx 13mm
Weight 110g
This page gives your current position in degrees longitude and latitude, your current
speed and the status of your position, i.e. Fixed 3D or Fixed Invalid etc. The compass
circle shows the satellites that the unit is receiving and the bar chart below shows
the strength of the signal from each of these satellites.
NOTE:
At least three GPS signals are required for the device to function. There may be
occasions within your home or building when the signal strength is limited and GPS
Receiver Mode may not be possible. This is quite normal of products of this type.
Your car may have an athermic heat reecting windscreen or windscreen heating
that prevents the GPS receiver acquiring a valid signal.
Function Hardware Specication
Manual-N88.indd 8 2010-8-13 18:44:32
