1. General description
The ekor.rtk unit is electronic equipment developed to
indicate the absence of voltage on medium-voltage (MV)
lines. It is for use in local or remote control installations
where information on the status of the lines is required.
The unit is built into the switchgear and uses the same
capacitive current signal as the ekor.vpis voltage
presence indicators to perform detection functions. Thus,
conventional medium-voltage line coupling systems such
as voltage transformers are not required, as it takes this
signal directly from the capacitor dividers installed in the
bushings.
The ekor.rtk unit is supplied duly installed, congured
and factory-tested, tted in the circuit-breaker and feeder
functions of cgmcosmos and cgm.3 system cubicles.

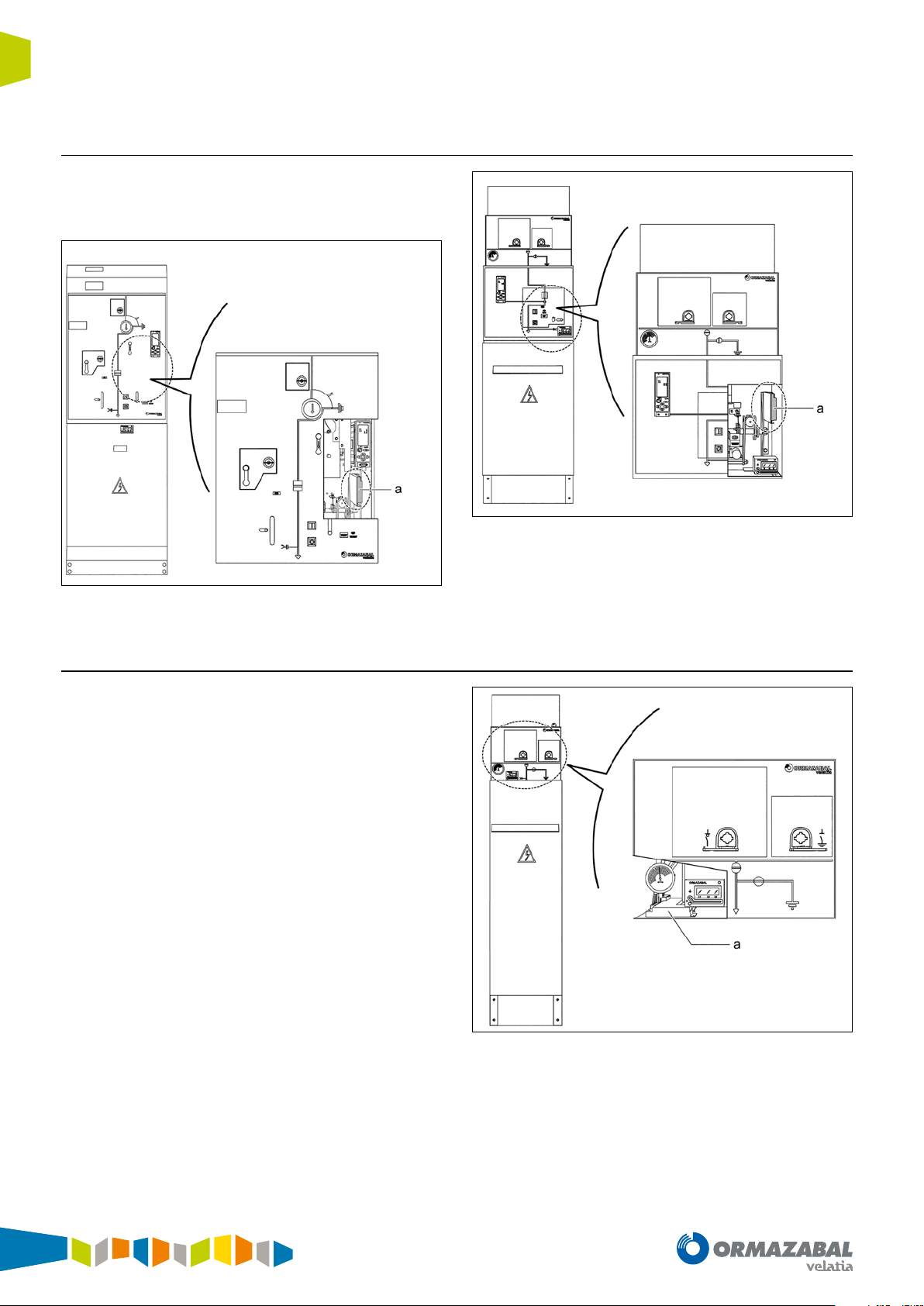

Figure 1.1. ekor.rtk unit with support for cgmcosmos-l cubicles
aekor.rtk
Figure 1.2. ekor.rtk unit with support for cgmcosmos-l cubicle
IG-094-EN version 09; 01/08/2019
4
General description General instructions
ekor.rtk: Setting and assembly
of the voltage detection unit

2. Functional characteristics
2.1. Operating voltages
The line voltage corresponds to the rated phase-to-phase
operating voltage.
In the event that ekor.rtk takes the capacitive signal from
the connecting set ormalink, the operating voltages are
the same:
System cgmcosmos
Line voltage
3.5 - 24 kV
Table 2.1. Cubicle operating voltages cgmcosmos
System cgm.3
Line voltage
3.5 - 36 kV
Table 2.2. Ubicle operating voltages cgm.3
For special applications contact Ormazabal.
2.2. Actuation times
The ekor.rtk voltage detection unit takes data from the
voltages of each phase every 1.25 ms. This calculate the
r.m.s. value of each voltage and compares it with certain
pre-dened values to determine whether the voltage is
above or below the set threshold.
Where the voltage is above the voltage presence indication
threshold, a time delay of 100 ms begins. After this time,
if the voltage has remained at a value above the threshold,
theelectromechanicalindicationrelayforthecorresponding
phase is opened.
When the line voltage is below the voltage absence
threshold, the relay sets at a time delay of 100 ms and closes
the indication contact of the corresponding phase.

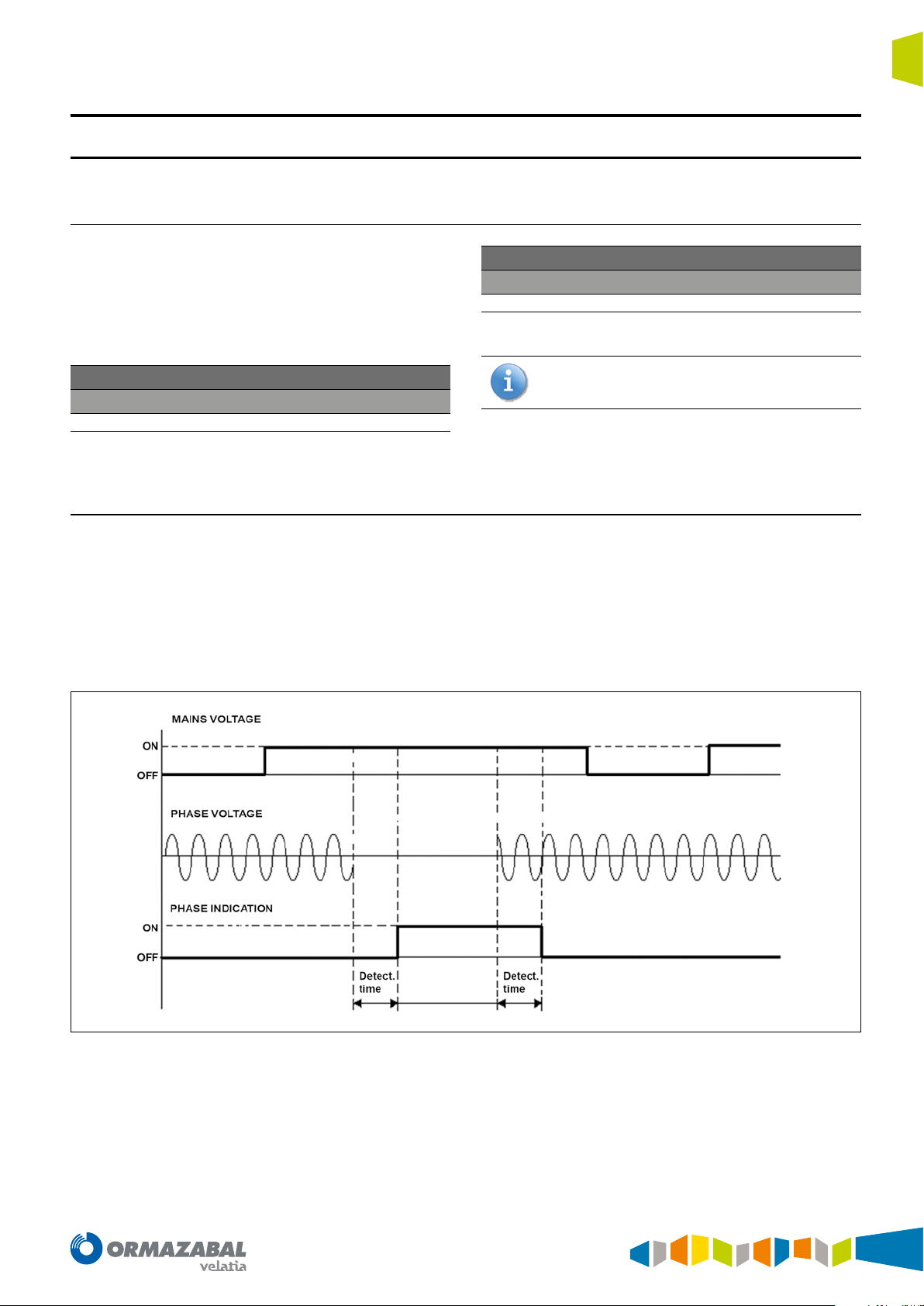

Figure 2.1. Diagram of times of output contact actuation
IG-094-EN version 09; 01/08/2019 5
General instructions
ekor.rtk: Setting and assembly
of the voltage detection unit
Functional characteristics

2.3. Input signals and output contacts
The ekor.rtk unit has three inputs, one for each line phase,
associated to the voltage measurement on each of the
cubicle’s bushings, allowing for the individual detection of
the presence or absence of voltage in each of the phases.
It also has three outputs associated to each of the
aforementioned inputs. The presence or absence of voltage
is indicated using volt-free contacts, one per phase.
The unit is also tted with another contact to indicate errors
or operating problems.
Figure 2.2. Diagram of the input signals and output contacts of the
ekor.rtk
The lack of external power to the relay means that all output
contacts are OFF.
The following table shows the statuses of the output
contacts and an explanation of their indication.
Output
contact
Contact
status Indication
L1 ON Voltage absent on phase L1
OFF Voltage present on phase L1
L2 ON Voltage absent on phase L2
OFF Voltage present on phase L2
L3 ON Voltage absent on phase L3
OFF Voltage present on phase L3
WD
ON Relay operational
OFF Relay not operational. Internal error or
lack of power
Table 2.3. Statuses of output contacts
In the event that ekor.rtk loses power, or breaks down,
all the indicating contacts switch OFF.
IG-094-EN version 09; 01/08/2019
6
Functional characteristics General instructions
ekor.rtk: Setting and assembly
of the voltage detection unit

2.4. Signalling logic for voltage presence and/or absence
The output contacts and the power supply to the unit are
accessible on a“J” terminal block for on-site connection.
The signalling logic for the absence and/or presence of
voltage depends on how the connections are made on the
output “J” terminal block.
The logic schemes that can be obtained are indicated
below:
2.4.1. Independent Logic
With this type of logic, the unit provides a contact that
indicates the absence and/or presence of voltage for
each phase. The terminals to be accessed to obtain the
information, according to this operating logic, are given in
the following gure:
Phase L1 indication: terminals J1-3 and J1-4
Phase L2 indication: terminals J1-5 and J1-6
Phase L3 indication: terminals J1-7 and J1-8

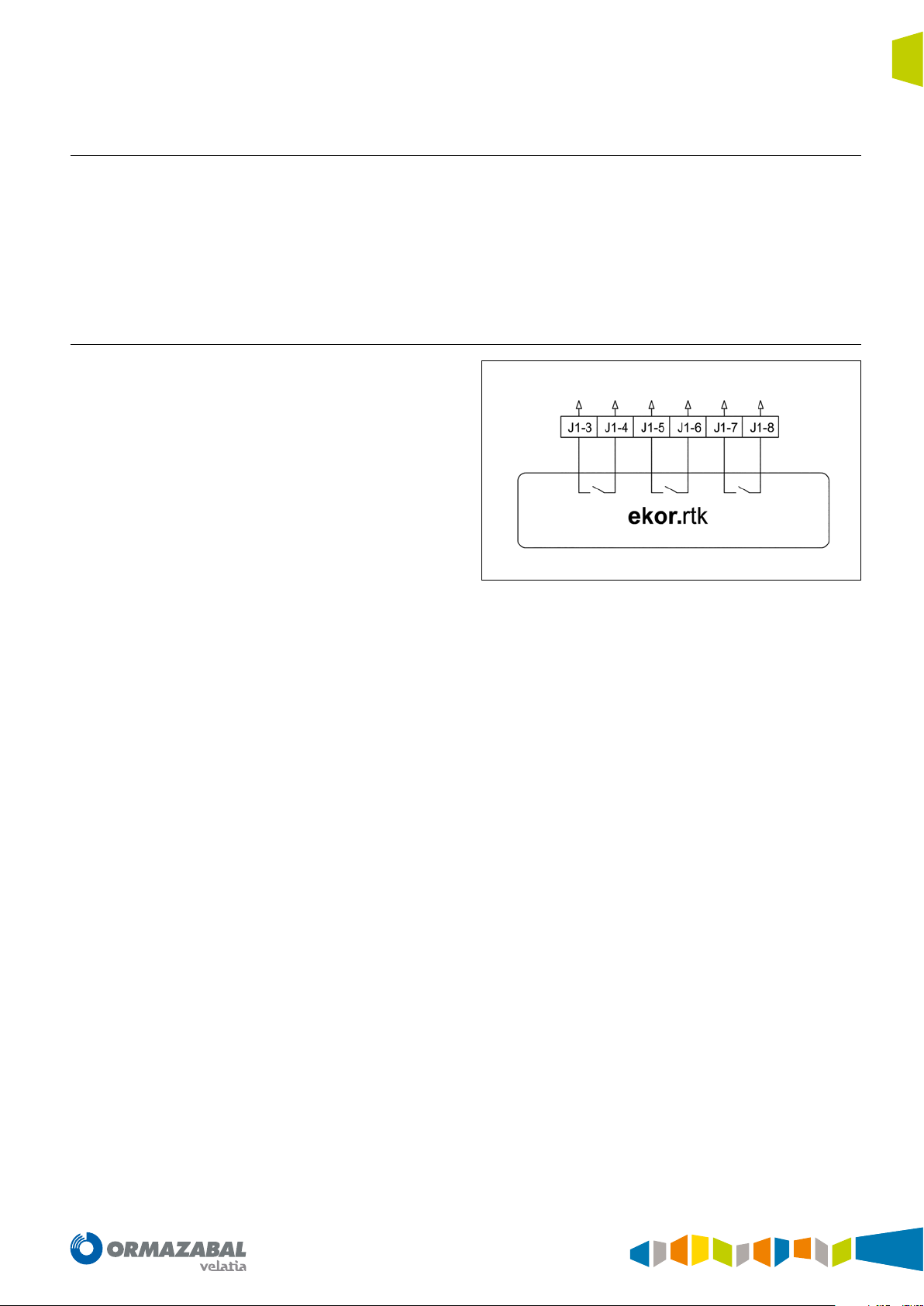

Figure 2.3. Terminals
IG-094-EN version 09; 01/08/2019 7
General instructions
ekor.rtk: Setting and assembly
of the voltage detection unit
Functional characteristics

2.4.2. Voltage absence AND Logic – Product (L1 x L2 x L3)
With AND logic, the unit terminal block provides the
information on the absence of voltage in the event of a
lack of voltage on all of the phases. Voltage presence (open
contact) on any of the phases causes the circuit to open
and, therefore, the unit indicates a voltage presence.
Conversely, voltage absence is only indicated if it occurs on
the three phases.The terminals to be accessed to obtain the
information, according to this operating logic, are given in
the following gure:
Indication according to AND logic: terminals J1-3 and J1-8
(jumpers between terminals J1-4 - J1-5 and terminals J1-6 - J1-7)

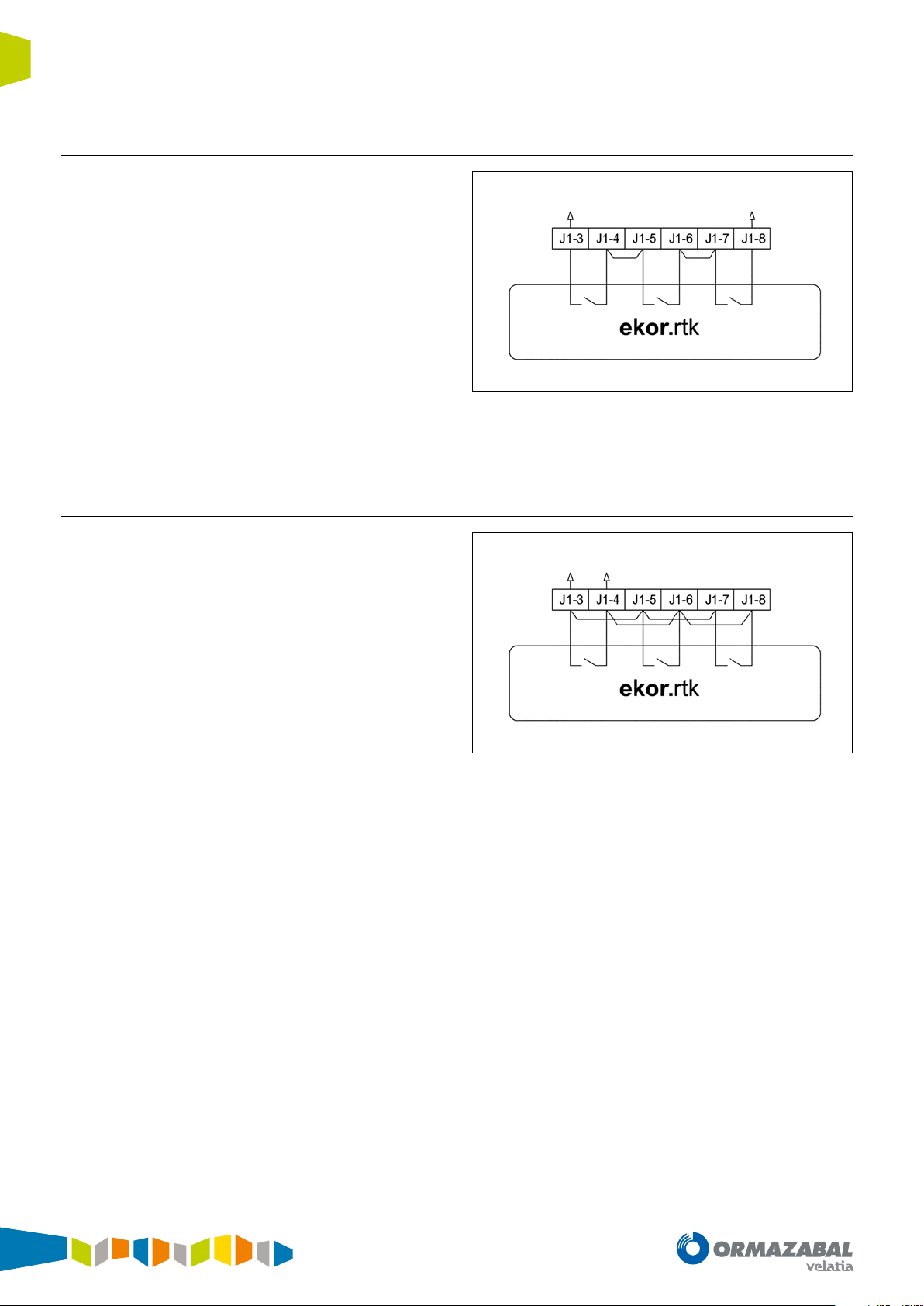

Figure 2.4. Terminals
2.4.3. Voltage absence OR Logic – Sum (L1 + L2 + L3)
With OR logic, the unit terminal block provides the
information on the absence of voltage in the event of
a lack of voltage on any of the three phases. Voltage
absence on any of the phases causes the ekor.rtk, unit to
indicate an absence of voltage (closed contact), while a
voltage presence is only indicated if MV is present on the
three phases. The terminals to be accessed to obtain the
information, according to this operating logic, are given in
the following gure:
Indication according to OR logic: terminals J1-3 and J1-4
(jumpers between terminals J1-3 - J1-5 - J1-7 and terminals J1-4 - J1-6 - J1-8)
Figure 2.5. Terminals
IG-094-EN version 09; 01/08/2019
8
Functional characteristics General instructions
ekor.rtk: Setting and assembly
of the voltage detection unit

3. Technical specifications
3.1. Rated values
• Line voltage:
- Detection values 3.5...36 kV
- Measurement tolerance ± 10 %
• Indication time:
- Time delay 50, 100 ms
- Time tolerance ± 10 ms
• Frequency: 50 Hz; 60 Hz
• Output contacts:
- Voltage 380 Vac, 230 Vdc
- Current 16 A (ac)
- Switching power 500 VA
(resistive load)
• Power supply voltage:
- AC 17 V...260 V
- DC 17 V...360 V
- Consumption < 2.5 W
• Temperature:
- Operation - 40 °C...+ 60 °C
- Storage - 40 °C...+ 70 °C
3.2. Mechanical design
• IP rating:
- Case IP47
- Terminals IP2X
- In cubicle IP3X
• Dimensions:
- See attached diagram 100 x 180 x 40 mm
• Weight: 0.3 kg
• Connection:
- Cable/Terminal 0.5...2.5 mm2
3.3. Insulation tests
• IEC 60255-5:
- Insulation resistance 500 Vdc: > 0,7 GW
- Dielectric rigidity 2 kVac; 50 Hz;
1 min
• Voltage pulses:
- Standard 5 kV; 1.2/50 µs;
0.5 J
- Dierential 1 kV; 1.2/50 µs;
0.5 J
IG-094-EN version 09; 01/08/2019 9
General instructions
ekor.rtk: Setting and assembly
of the voltage detection unit
Technical specifications

3.4. Electromagnetic compatibility
• IEC 60255-22-1:
- Damped wave 1 MHz 2.5 kV; 1 kV
• IEC 60255-22-2:
- Electrostatic discharges 8 kV
(IEC 61000-4-2, class IV)
• IEC 60255-22-3:
- Radiated elds 10 V/m
(IEC 61000-4-3, class III)
• IEC 60255-22-4:
- Bursts - Fast transients 2 kV
(IEC 61000-4-4)
• IEC 61000-4-5:
- Overvoltage pulses 4 kV; 2 kV
• IEC 61000-4-6:
- Induced radiofrequency 150 kHz...80 MHz
signals (EN 50082-2)
• IEC 61000-4-8:
- Magnetic elds 30 A/m; 50 Hz
(EN 50082-2)
• IEC 61000-4-12:
- Sinusoidal damped wave 2 kV; 1 kV
• EN 50081-2/55011:
- Radiated emissions Group 1, 150 kHz...30 MHz
Class A
3.5. Climatic tests
• IEC 60068-2-1:
- Slow changes. Cold - 40 °C; 960 min
• IEC 60068-2-2:
- Slow changes. Heat + 60 °C; 120 min
+ 70 °C; 960 min
• IEC 60068-2-30:
- Damp heat cycles + 40 °C; 92%;
5760 min
3.6. Mechanical tests
• IEC 60255-21-1:
- Sinusoidal vibration. Response 10-150 Hz; 1 g
- Sinusoidal vibration. Endurance 10-150 Hz; 2 g
• IEC 60255-21-2:
- Impacts. Response 11 ms; 5 g
• Impact. Endurance 11 ms; 15 g
• Shock. Endurance 16 ms; 10 g
IG-094-EN version 09; 01/08/2019
10
Technical specifications General instructions
ekor.rtk: Setting and assembly
of the voltage detection unit

4. Voltage detection relay ekor.rtk
4.1. Components of the unit ekor.rtk
The assembly required to install the ekor.rtk unit in a cubicle
consists of the four parts indicated below:
1. Voltage presence relay ekor.rtk.
2. Wiring from the cubicle bushing to the ekor.rtk relay.
3. Wiring from the ekor.rtk relay to the voltage presence
indicator ekor.vpis.
4. Support for attaching the ekor.rtk relay in the cubicle.
The necessary support for attaching the ekor.rtk voltage
detection relay depends on the type of cubicle in which it
is installed.
1Relay ekor.rtk
2Wiring from bushing to ekor.rtk relay
3Wiring from ekor.rtk relay to ekor.vpis
4Support for ekor.rtk relay in cgmcosmos-l feeder cubicles
5Support for ekor.rtk relay in cgmcosmos-v, cgm.3-v circuit-
breaker cubicles
6ekor.vpis voltage presence indicator

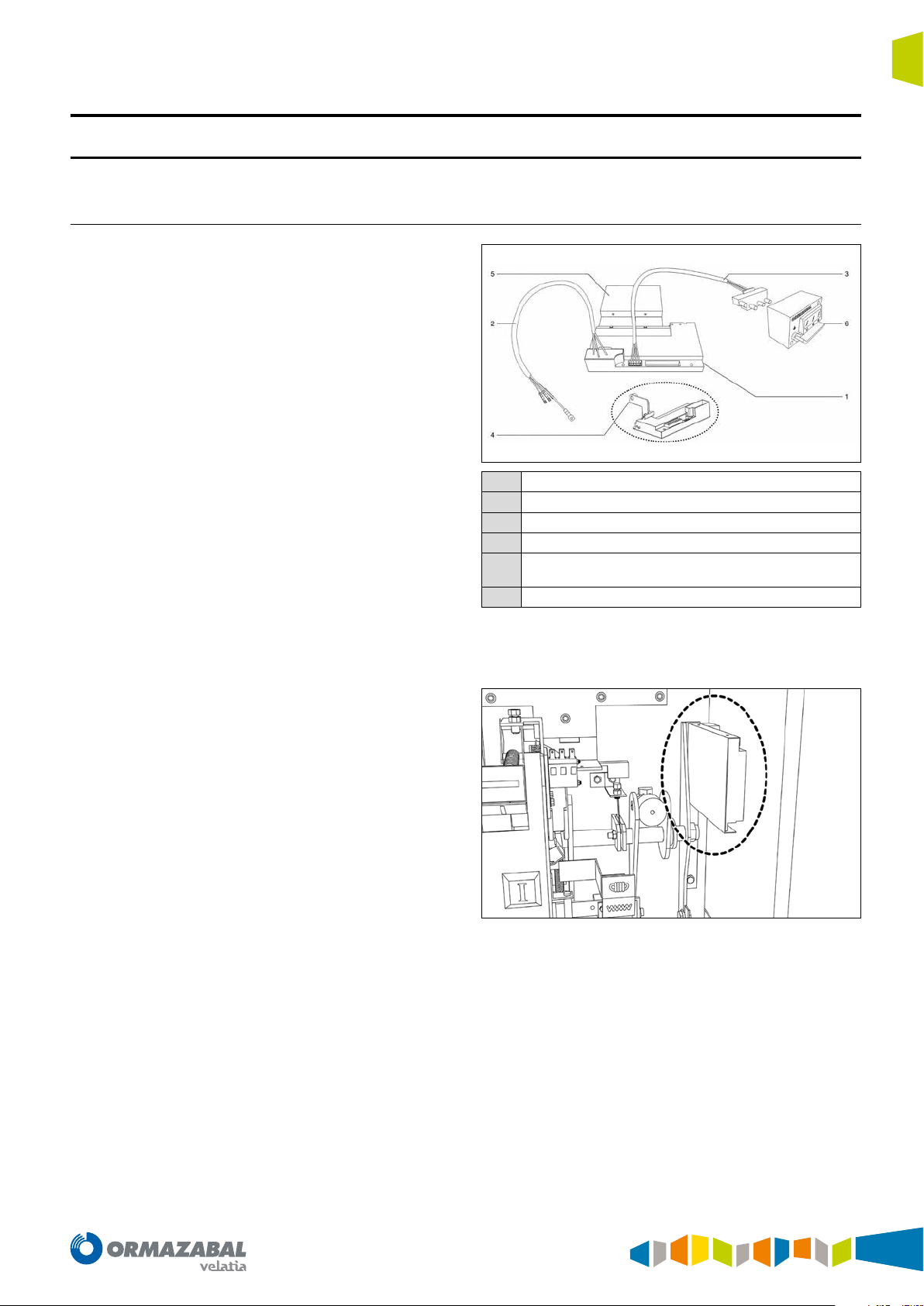

Figure 4.1. ekor.rtk unit with support for cgmcosmos-v, cgm.3-v
cubicles
In the lower central part, ekor.rtk with support for
cgmcosmos-l cubicles
Figure 4.2. Support for ekor.rtk in circuit-breaker cubicles (AV type)
IG-094-EN version 09; 01/08/2019 11
General instructions
ekor.rtk: Setting and assembly
of the voltage detection unit
Voltage detection relay ekor.rtk

4.2. Checking the ekor.rtk relay
To test the output contacts on the ekor.rtk, press the test
push-button installed on the unit for this purpose, as shown
in “Figure 4.3. Test push-button and indication LED”. The
three phase output contacts will change position while the
push-button is being pressed. The green power indication
LED will turn red during the test to inform the operator of
the status of the unit. Once the test is completed, the LED
will switch back from red (relay in test status) to green (relay
in operating status).
1Test push-button
2Indication LED

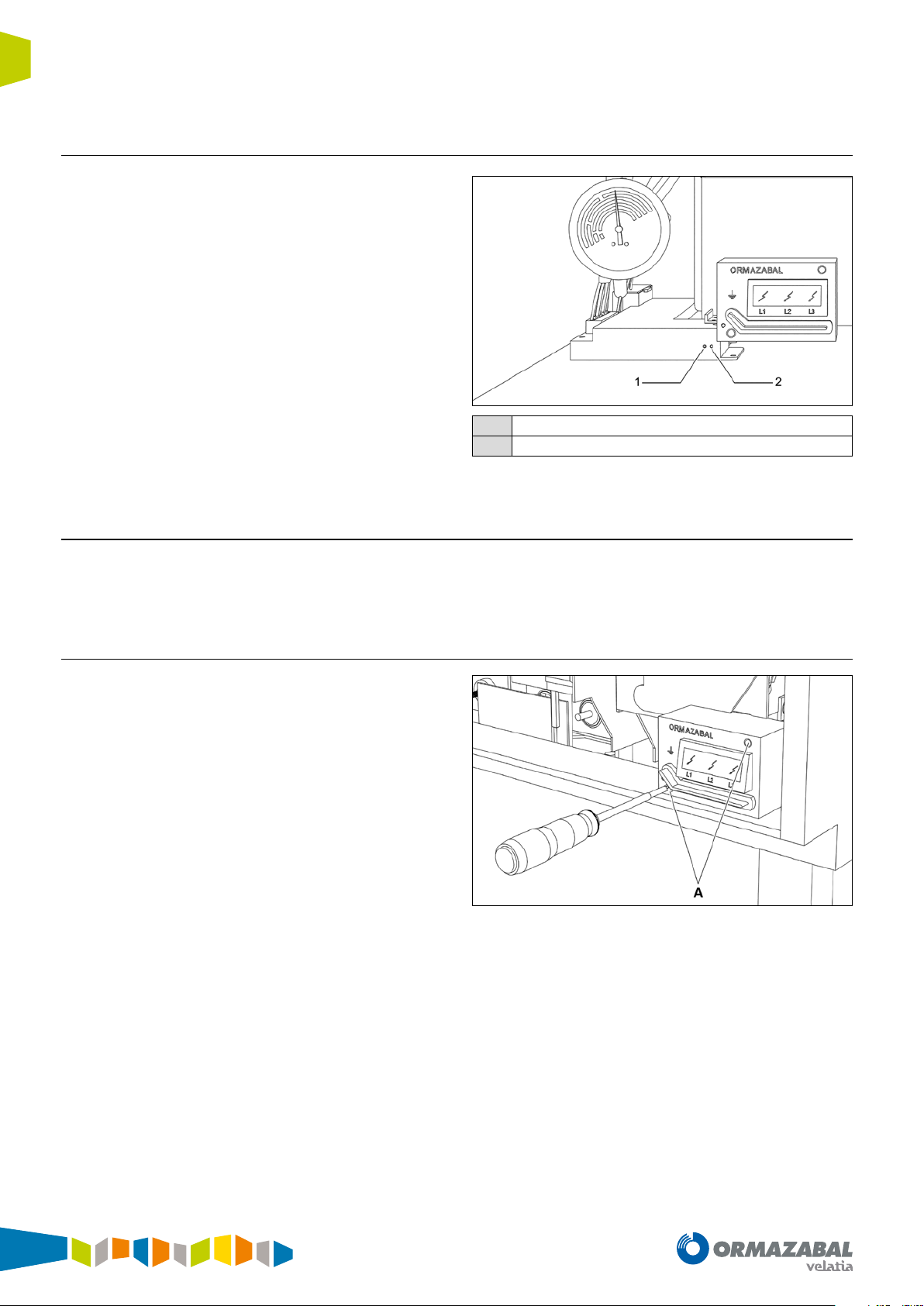

Figure 4.3. Test push-button and indication LED
4.3. ekor.rtk relay installation
To install an ekor.rtk relay in a cubicle, you must have the
ekor.rtk voltage presence relay assembly and the necessary
support, depending on the type of cubicle in which it is to
be tted.
4.3.1. General instructions for the ekor.rtk relay installation
1. Loosen and remove the 2 screws (A) securing the
ekor.vpis voltage presence indicator using a Philips
screwdriver and pull it outwards to remove.
Figure 4.4. Remove ekor.vpis indicator
IG-094-EN version 09; 01/08/2019
12
Voltage detection relay ekor.rtk General instructions
ekor.rtk: Setting and assembly
of the voltage detection unit

2. Remove the ekor.vpis voltage presence indicator
connector.
Figure 4.5. Remove ekor.vpis indicator connector
3. Connect the ekor.vpis voltage presence indicator
connector you have just removed to the appropriate
connector of the ekor.rtk relay.
Figure 4.6. Connect connector to ekor.rtk relay
4. Connect the ekor.rtk relay to the ekor.vpis, voltage
presence indicator using the cable supplied in the kit
(to the relay and to the indicator).
Figure 4.7. Connect the relay to the display using the supplied cable
5. Connect the terminations running from the ekor.rtk
relay to the user terminal block (see electrical diagram
Figure 6.1 on page 19).
The user terminal block is located in a certain position
depending on the cubicle used.
Figure 4.8. Connect the relay terminals to the user terminal block
IG-094-EN version 09; 01/08/2019 13
General instructions
ekor.rtk: Setting and assembly
of the voltage detection unit
Voltage detection relay ekor.rtk

4.3.2. Circuit-breaker cubicles (driving mechanism (R)AV)
In the functions of automatic circuit-breaker with driving
mechanism (R)AV, the ekor.rtk relay is located in the bottom
right part of the cubicle’s driving mechanisms area.
Figure 4.9. ekor.rtk in cubicles cgm.3-v ((R)AV)
Figure 4.10. ekor.rtk in cubicles cgmcosmos-v ((R)AV)
4.3.3. Feeder cubicles cgmcosmos-l
In cgmcosmos-l feeder cubicles, the ekor.rtk relay is located
below the manometer to the left of the ekor.vpis voltage
presence indicator, as shown in the following gure.
Figure 4.11. Location of the ekor.rtk relay in cgmcosmos-l cubicles
IG-094-EN version 09; 01/08/2019
14
Voltage detection relay ekor.rtk General instructions
ekor.rtk: Setting and assembly
of the voltage detection unit

4.3.4. Feeder cubicles cgm.3-l
In cgm.3-l feeder cubicles, the ekor.rtk relay is located at
the bottom right, below the ekor.vpis voltage presence
indicator.
Figure 4.12. ekor.rtk in cubicles cgm.3-l
IG-094-EN version 09; 01/08/2019 15
General instructions
ekor.rtk: Setting and assembly
of the voltage detection unit
Voltage detection relay ekor.rtk

4.4. Setting the parameters of the ekor.rtk relay
The relay is factory-set in line with installation data:
• Line operating voltage
• Actuation time
• Line frequency
For special applications contact Ormazabal.
SW1 and SW2 are used to dene the line operating voltage.
SW3 denes the actuation time and SW4 species the line
frequency.
The possible congurations obtained using selector S1 are
those shown below, depending on the system to which the
cubicle where the ekor.rtk relay is installed belongs.
Figure 4.13. Printed circuit board and selector S1 on the relay ekor.rtk
IG-094-EN version 09; 01/08/2019
16
Voltage detection relay ekor.rtk General instructions
ekor.rtk: Setting and assembly
of the voltage detection unit

cgmcosmos system cubicles with voltage presence
indication from the bushing:
SW1 SW2 Voltage SW3 Time SW4 Frequency
OFF X X 3.5 - 24 kV 100 ms X50 Hz
ON X
cgm.3 con system cubicles with voltage presence
indication from the bushing:
SW1 SW2 Voltage SW3 Time SW4 Frequency
OFF X X 3.5 - 24 kV 100 ms X50 Hz
ON X
cgmcosmos system cubicles with voltage presence
indication from the ormalink connecting set:
SW1 SW2 Voltage SW3 Time SW4 Frequency
OFF X X 3.5 - 36 kV 100 ms X50 Hz
ON X
cgm.3 system cubicles with voltage presence indication
from the ormalink connecting set:
SW1 SW2 Voltage SW3 Time SW4 Frequency
OFF X X 3.5 - 36 kV 100 ms X50 Hz
ON X
IG-094-EN version 09; 01/08/2019 17
General instructions
ekor.rtk: Setting and assembly
of the voltage detection unit
Voltage detection relay ekor.rtk

5. Connection diagram
APower supply
BOutputs
CBushing output
DIndicator ekor.vpis
EOutput contacts
FPower supply
GTest push-button
W0 Error output
Figure 5.1. Connection diagram of relay ekor.rtk
IG-094-EN version 09; 01/08/2019
18
Connection diagram General instructions
ekor.rtk: Setting and assembly
of the voltage detection unit

6. Electrical diagram
The following gure shows the electrical diagram
corresponding to the relay ekor.rtk. For greater detail, see
diagram 996235 for cubicles cgm.3, and diagram 996414,
for cubicles cgmcosmos, which are included with the unit.
APower supply
S-l1L1 output
S-l2L2 output
S-l3L3 output
BBushing cgm
W0 Error output
Figure 6.1. Connection diagram of relay ekor.rtk
IG-094-EN version 09; 01/08/2019 19
General instructions
ekor.rtk: Setting and assembly
of the voltage detection unit
Electrical diagram

7. Dimensions
Figure 7.1. Dimensions in mm for relay ekor.rtk
IG-094-EN version 09; 01/08/2019
20
Dimensions General instructions
ekor.rtk: Setting and assembly
of the voltage detection unit
