INSTRUCTION MANUAL
CD MINI SYSTEM
Model: VN3291MS

Important Safety Instructions ...................................................................................................3-5
Introduction ...............................................................................................................................6
............................................................................................................................7
Remote Overview ..................................................................................................................8
Audio System Setup.......................................................................................................................9
-Genaeral operation ..........................................................................................................10
-CD operation ..............................................................................................................11-12
-USB operation .................................................................................................................13
-FM T uner operation ..........................................................................................................14
-LINE In/AUX operation ......................................................................................................15
-Bluetooth operation ........... .. .. .. .. .. .. .. .. .. .. ............. .. .. .. .. .. .. .. .. .. .. .. ............. .. .. .. .. .1 6
Troubleshooting .......................................................................................................................17
Product Specification ...............................................................................................................18
Guarantee Card .......................................................................................................................19
CONTENTS
-2-
Panel Overview
Basic MINI System Operation

IMPORTANT SAFETY INSTRUCTIONS
-3-
Helpline
For Technical Assistance
Please call
0800 422 274
SYMBOLS
IMPORTANT SAFEGUARDS
When using any electrical apparatus always observe safety regulations and use basic safety
precautions to reduce the risk of fire, electric shock and personal injury, including the following.

-4-
IMPORTANT SAFETY INSTRUCTIONS
Read, Keep and Follow these instructions, heeding all Warnings.
Keep out of reach of young children. This apparatus is not suitable for use by young children or infirm persons without
supervision. Young children must be supervised to ensure that they do not play with the apparatus.
This appliance is not intended for use by persons (including young children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
WARNING. Do not insert any objects into any openings of an electrical apparatus.
WARNING. Do not touch any moving parts of any electrical apparatus.
WARNING! Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall
remain readily operable
WARNING. Do not use this apparatus near water. To avoid the risk of fire or electric shock, do not expose this apparatus to
rain or moisture. The apparatus shall not be exposed to dripping or splashes.
WARNING. No objects filled with liquid, such as vases, shall be placed on any electrical apparatus.
Do not immerse in any liquid whilst in use or in cleaning. Clean only with a damp cloth, dry with a dry towel. Do not use harsh
abrasives as these may damage plastic parts.
DO NOT block any ventilation openings. Keep away from curtains, newspapers and restricted areas. Install in accordance
with any specific manufacturer's instructions. Always allow a sufficient gap around the apparatus to avoid overheating.
DO NOT install near any heat sources such as radiators, gas heaters, stoves or other apparatus (including amplifiers) that
produce heat. Do not leave in direct sunlight.
WARNING. Do not place any naked flame source, such as lighted candles on any electrical apparatus.
WARNING! Connect to a suitable 220-240 ~ 50/60 Hz power supply only. If a class 1 product it must be connected to a
suitably earthed mains socket.
Always unplug from the power source when any electrical apparatus is not in use.
Do not abuse or damage a power cord. If any power cord is damaged, it must be replaced by the manufacturer, its service
agent or a similarly qualified person in order to avoid a hazard. A replaceable cord must be replaced with an authorised
replacement from an authorised service agent only.
Only use attachments/accessories specified by the manufacturer.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
When using any electrical apparatus always observe safety regulations and use basic safety precautions to reduce the risk of
fire, electric shock and personal injury, including the following.

-5-
IMPORTANT SAFETY INSTRUCTIONS
Unplug this apparatus during lightening storms or when unused for long periods of time.
Attention is drawn to the environmental aspects of disposing of any battery.
Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as when
the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate normally, or has been dropped.
Do not attempt to service any double insulated apparatus. Double insulated apparatus requires specialist servicing and
knowledge to retain the safety of the apparatus.
WARNING. Do not use any electrical apparatus outdoors. If any electrical apparatus is to be used outdoors, use a suitable
Isolating transformer or Electrical Safety Switch (RCD).
For household use only, this apparatus is not intended for commercial use.
This appliance is intended to be used in household and similar applications such as
- staff kitchen areas in shops, offices and other working environments;
- farm houses
- by clients in hotels, motels and other residential type environments
- bed and breakfast type environments
If the apparatus is provided with a replaceable or non replaceable Lithium battery, the following applies
- CAUTION: Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type.
Warning! Dispose of batteries according to the manufacturers instructions.
If this apparatus is to be used by a third party, please supply these instructions with it.
No liability will be accepted for any personal injury or damage caused by failure to follow these instructions.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.

-6-
INTRODUCTION
Features:
●Compatible with CD,MP3,CD-R and CD-RW.
●USB input for media playback.
●Full function remote control.
●FM stereo radio tuner.
Package Contents:
Thank you for purchasing this VEON audio product. Please read through this manual in full before
making any connections and/or operating this product. Please retain this manual for future reference.
Battery
User manual FM antenna Remote control

-7-
Front Panel
PRODUCT OVERVIEW
REAR PANEL:
1 STANDBY
2 PREVIOUS
3 NEXT
4 SOURCE
5 REPEAT
6 STOP
WARNING: Excessive sound pressure from earphones or headphones can cause hearing loss.
18 19
7 LINE IN
8 HEADPHONE
9 USB INPUT
10 VOLUME CONTROL
11 DISC TRAY
12 OPEN/CLOSE
3
5
2
1
4
6
9
7810
12
11
13
14
15
16
17
13 MUTE
14 EQ
15 FAST REWIND
16 FAST FORWARD
17 PLAY/PAUSE
18 FM ANTENNA JACK
19 SPEAKER OUTPUT

-8-
Insert the battery into the remote control. Point the remote control at the sensor on the front panel. The remote control works within a
reasonable proximity (4-5 Metres) and angle of the unit's sensor.
Note:
●Remove the battery when you do not intend to use the remote control for a long time.
●Weak batteries can leak and severely damage the remote control.

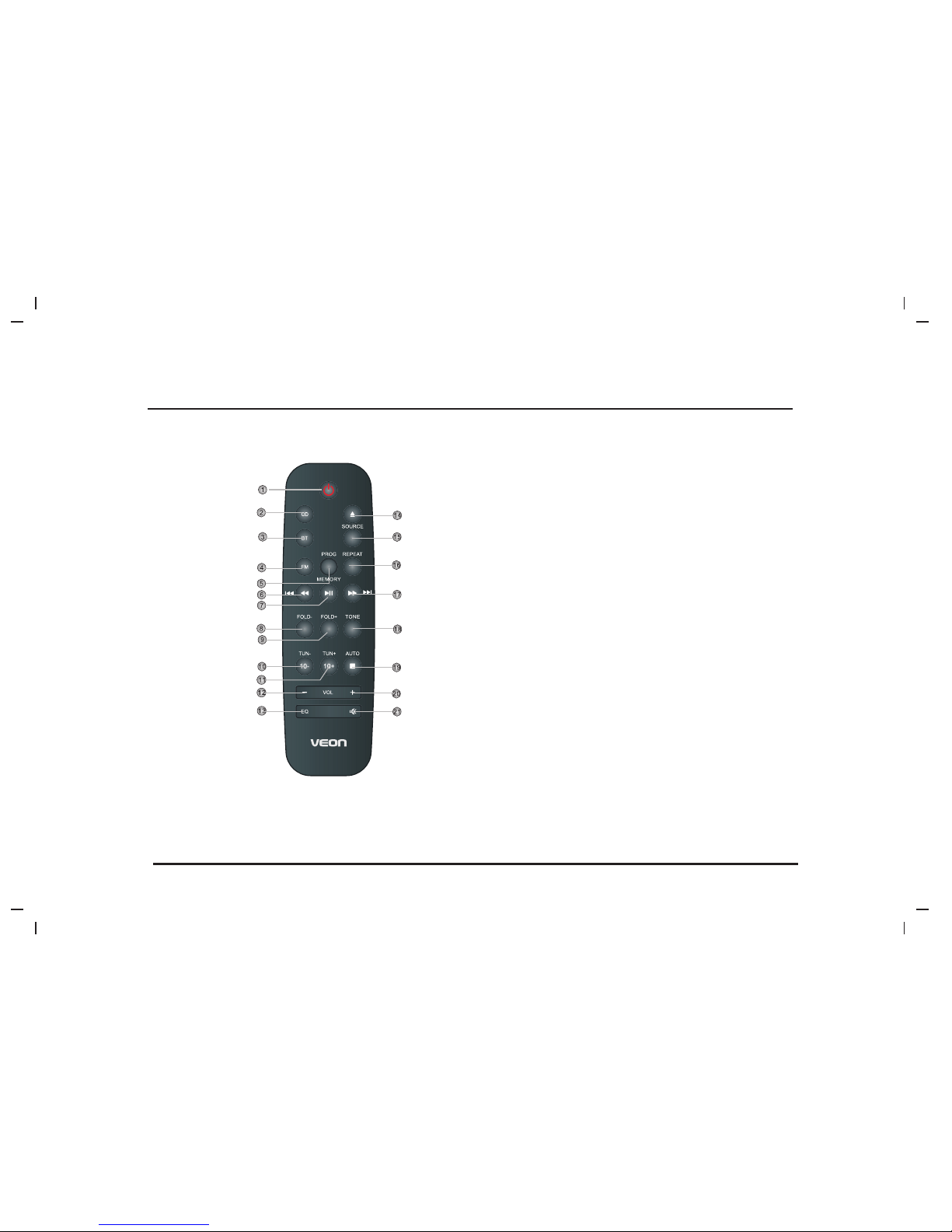

REMOTE CONTROL OVERVIEW
1 STANDBY
2 CD
3 BLUETOOTH
4 FM
5 PROG/MEMORY
6 FAST REWIND/
PREVIOUS
7 PLAY/PAUSE
8 FOLD-
9 FOLD+
10 10-/TUN-
11 10+/TUN+
12 VOLUME-
13 EQ
14 OPEN/CLOSE
15 SOURCE
16 REPEAT
17 FAST FORWARD/NEXT
18 TONE
19 STOP/AUTO
20 VOLUME+
21 MUTE

-9-
AUDIO SYSTEM SETUP
Connect the speakers to speaker output terminals with their attached speaker cables .
Amplifier Audio Input
CD Audio Output
Speaker
Speaker output
R L
Speaker Connection

-10-
BASIC MINI SYSTEM OPERATION
●Press to switch on the unit. Press it again to put the unit in standby mode.
STANDBY
●Press repeatedly to switch among CD,LINE IN,BLUETOOTH,USB and TUNER mode.
SOURCE
●Press to enter to FM tuner mode.
FM
CD
●Press to enter to CD mode.
EQ
●Press to switch the equalizer modes.
●Press to temporarily switch off the sound . Press it again to switch it on.
MUTE
VOL+ ●Press [VOLUME+] to turn up the volume.
VOL- ●Press [VOLUME-] to turn down the volume.
●Press to enter to BLUETOOTH mode.
BT
TONE
●Press to enter TONE settings adjust BASS and TREBLE using the volume control.
General Operation

-11-
BASIC MINI SYSTEM OPERATION
CD Operation
●Press to open or close the disc tray.
OPEN/CLOSE
●Press to stop a playback .
STOP
●Press to temporarily pause a playback. Press it again to resume the playback.
●Hold down for fast rewind playback .
●Press to return to the previous chapter/track.
●Hold down for fast forward playback .
●Press to skip to the next chapter/track.
10+
●Press this button for each time to increase ten tracks.(Only in MP3 mode)
●Press repeatedly to switch the repeat modes,PEPEAT ALL or TRACK.
REPEAT
10-
●Press this button for each time to decrease ten tracks.(Only in MP3 mode)

-12-
CD Operation-Continued
BASIC MINI SYSTEM OPERATION
FOLD+ ●Press to skip the next folder .(Only in MP3 mode)
FOLD- ● folder .Press to return to the previous (Only in MP3 mode)
PROGRAM
●
●
●
●
●
●
a. In CD playback mode,press the stop button first,then press program button to start the program operation.
b. The display will show"PR___",press the previous/next or 10+/- button to select the track that you want to be
programmed,and press the program button again to confirm.
c. Then the display will show the programmed track and skip to next program track setting.For example,"009 PR 06" means
the number 9 track was programmed as the number 06 track.
d. Repeat the above step b and c to set up reset track till the display show"FULL'.
e. Then press the play button to start the programmed playlist playing.
f. To cancel and remove the programmed playlist, press the stop button twice, or eject the CD disc.

-13-
USB Operation
BASIC MINI SYSTEM OPERATION
●Press SOURCE on the main unit repeatedly to enter to USB mode.
Basic USB operation:
This unit has a USB port located on the front terminal of the unit. The purpose of this input is to enable
MP3 playback from your USB STICK, FLASH DRIVE and/or MEMORY STICK. (THIS PORT IS NOT INTENDED
FOR CHARGING).
Insert your USB device, the micro system will recognize its connection if READING is displayed across the
display screen.
The mini system will automatically pick up any MP3 files located on the USB device and begin play back.
The mini system will automatically organize the playlist of the MP3 files.
Proceed to use PLAY/PAUSE, NEXT, PREVIOUS and STOP located on your remote and unit to control.
SOURCE

-14-
FM Tuner Operation
BASIC MINI SYSTEM OPERATION
TUN+/- ●TUN+: press to fine tune (increase) the frequency;
●TUN-: press to fine tune (decrease) the frequency.
●Hold down [TUN+/-] to increase/decrease the frequency continuously.
Manual Tuning an FM Frequency
AUTO
●Hold down to do auto scanning for the broadcasting radio channels, press it again to stop auto scanning.
Auto Tune FM Frequencies
MEMORY ●After tuning in a new frequency, press [MEMORY] then select a preferred station by pressing arrows [ ]/[ ], press
[MEMORY] again to confirm and save it as a preset station.
Manual Storing FM Frequencies
●Press to skip to the next preset station.
●Press to skip to the previous preset station.
Choosing Stored FM Frequency

-15-
SOURCE
●Press SOURCE on the main unit repeatedly to enter to LINE INPUT/AUX mode.
LINE IN/AUX operation
BASIC MINI SYSTEM OPERATION
LINE IN(3.5mm/AUX) input is located on the front panel of the micro system.Using the appropriate 3.5mm
connection connect to your selected device.

-16-
BLUETOOTH CONNECTION
SOURCE ●Repeatedly press SOURCE button to switch to BLUE(BLUETOOTH)mode.
Bluetooth Pairing Name:Veon VN3291MS
IMPORTANT:To make a bluetooth connection you MUST have an ENABLED bluetooth device such as laptop, smart
phone or computer. Not all external device are bluetooth enabled. Please check your devices manual to ensure
your selected device is bluetooth enabled.
Bluetooth Pairing Mode:The LED display will display “NO BT”.
BASIC MINI SYSTEM OPERATION
Bluetooth
Model: Veon VN3291MS
To make a bluetooth Connection:
To make a blurtooth connection the VEON micro system must be in
pairing mode. Once in pairing mode, use your selected device to
search and select the bluetooth pairing name (Veon VN3291MS). If
your device requested a pass code place used '0000'. Once a
connection has been made the LED display 'BT'.
To disable a bluetooth connection:Hold down the PLAY/PAUSE button
for about 5 seconds.

-17-
TROUBLESHOOTING
Symptom Check & Action
No Power Check if power cord is connected properly to the power outlet.
Check if main power button on the unit is switched on.
Remote not working
Remove obstacles between the remote and the appliance.
Ensure you are pointing the remote at the remote sensor on the appliance.
Check the batteries have been inserted properly.
Replace dead batteries.
Does not play
Disc has been loaded upside down, place disc with label side up.
Disc is not correct type for the player.
Disc is damaged or dirty.
Moisture may be condensed inside the player, remove disc and leave the unit on for 1 or 2 hours
before using.
Noise distorted The disc is dirty or damaged, clean the disc and try again.

-18-
PRODUCT SPECIFICATION
50WX2
Power supply
AC 100-240V~50/60Hz
Working
environment
Temperature -10~+35℃
Relative humidity 5%~90%
Frequency Response 70Hz~20kHz
THD+NOISE ≤ -60dB(1kHz)
S/N(A weight)
≥65dB(1kHz)
FM band Range 87.5MHz~108MHz
Power output (Max)
Power consumption 40W
Disc output
Tuner
Frequency response
±3dB(70Hz~20kHz)
Dynamic Range
＞70dB(1kHz)

Guarantee Card
This product is guaranteed against faulty materials and workmanship for a period of two years from the date
of purchase. The obligation to the purchaser under this warranty is limited to servicing the unit and replacing
defective parts when the product is returned freight prepaid to the retailer. This warranty becomes void if the
product has been tampered with, damaged by accident, damaged in any other way by improper use or has
been purchased second hand. All production orders have quality inspections. In the unlikely event of a
deficiency, please contact the retailer from which this product was purchased.
WARRANTY FOR PRODUCTS USED COMMERCIALLY LIMITED TO 90 DAYS
Type of Product: ____________________________________________________________________
Model No.: __________________________________ Purchase Date:_________________________
Product Purchased From: _____________________________________________________________
__________________________________________________________________________________
Your Name: ________________________________________________________________________
Address: __________________________________________________________________________
_______________________________________________ Phone Number: _____________________
IMPORTANT!
Please retain this warranty card along with your purchase receipt. Please do not post to the retailer or
importer. If service is required, both of these documents are to be returned with the product to your retailer,
otherwise a fee may be charged.
