VERDER CARBOLITE GERO EVA 12/600B Manual

Installation, Operation and Maintenance Instructions
1200°C E-Range Tube Furnace - EVA Model: 600mm
No Controller
EVA 12/600B + No Controller
MEN-EVA12600B-005_NOCTRL (30-01-2018)

Contents
This manual is for guidance on the use of the Carbolite Gero product specified on the
front cover. This manual should be read thoroughly before unpacking and using the
furnace or oven. The model details and serial number are shown on the back of this
manual. Use the product for the purpose for which it is intended.
1.0 Symbols and Warnings 4
1.1 Switches and Lights 4
1.2 General Warnings 4
1.3 Warning Labels 5
1.3.1 - Control Box layout and warning labels. 6
1.3.2 - Back of control box showing mains lead socket 6
2.0 Installation 7
2.1 Unpacking and Handling 7
2.2 Siting 7
2.3 Setting Up 7
2.3.1 Figure - Vertical tube furnace model mounted on its stand. 9
2.3.2 Figure - Assembling the stand. 9
2.3.3 Figure - Mounting the furnace onto the vertical stand. 9
2.3.4 Figure -Tube furnace positioned horizontally on the stand. 10
2.3.5 Figure - Exploded view showing how to fit the work tube in the EVA 11
2.3.6 Figure - Tube support 12
2.3.7 Figure - Tube support assembly 12
2.3.8 Figure - Tube support and end seal assembly 13
2.3.9 Figure - Tube support and end seal assembly 13
2.3.10 Figure - View showing how to support the work tube in a vertical ori-
entation. 14
2.4 Setting Up - Without a Stand 14

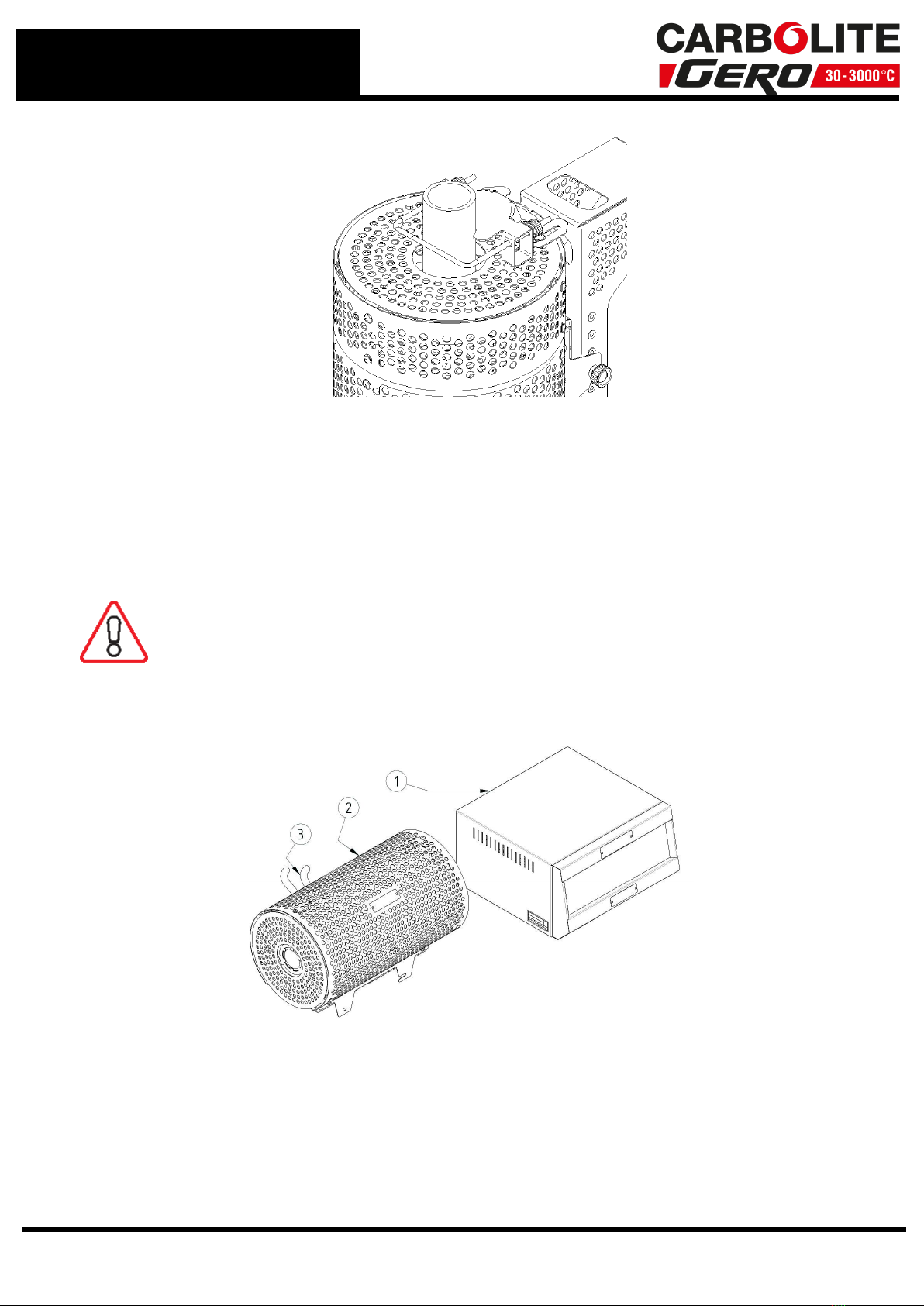

2.4.1 Figure - Tube furnace shown without a stand for customers own mount-
ing as an example. 14

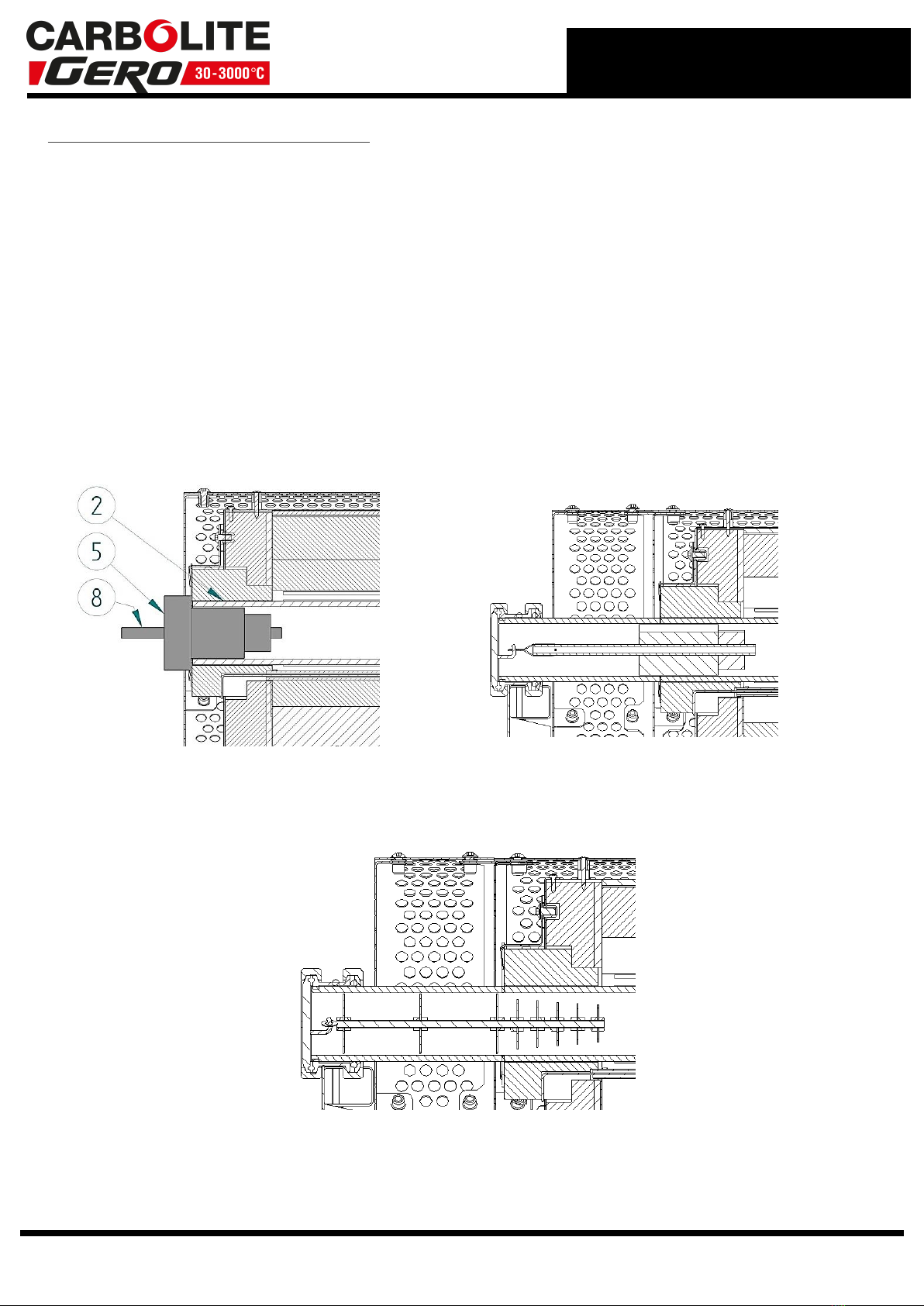

2.4.2 Figure - Cross-section view showing standard length work tube insu-
lation plug fitted 15
2.4.3 Figure - Cross-section view showing extended work tube insulation
plug fitted 15
2.4.4 Figure - Cross-section view showing an extended length work tube with
a radiation shield fitted 15
2.5 Electrical Connections 16
3.0 Temperature Controller 17
4.0 Operation 18
2

4.1 Operating Cycle 18
4.2 Safe Operation of the Furnace 18
4.3 General Operating Advice 19
4.4 Operator Safety 19
4.5 Tube Life 20
4.6 Pressure 20
4.7 Gas Tightness 20
5.0 Maintenance 21
5.1 General Maintenance 21
5.1.1 Cleaning 21
5.2 Calibration 21
5.3 After-Sales Service 21
5.4 Recommended Spare Parts and Spare Parts Kit 21
6.0 Repairs and Replacements 22
6.1 Safety Warning - Disconnection from Power Supply 22
6.2 Safety Warning - Refractory Fibre Insulation 22
6.3 Temperature Controller Replacement 22
6.4 Solid-state Relay Replacement 23
6.5 Thermocouple Replacement 23
6.6 Element Replacement 23
6.7 Fuse Replacement 24
7.0 Fault Analysis 25
A. Furnace Does Not Heat Up 25
B. Product Overheats 26
8.0 Wiring Diagrams 27
8.1 WA-11-30 27
8.2 WA-11-31 28
8.3 WA-12-30 29
8.4 WA-12-31 29
9.0 Fuses and Power Settings 30
9.1 Fuses 30
9.2 Power Settings 31
10.0 Specifications 32
10.1 Environment 32
Furnace drying out process 33
3

1.0 Symbols and Warnings
1.0 Symbols and Warnings
1.1 Switches and Lights
Instrument switch: when the instrument switch is operated the
temperature control circuit is energised.
Heat light: the adjacent light glows or flashes to indicate that power
is being supplied to the elements.
Heat switch: the switch disconnects power to the heating elements;
unless this switch is OFF there is a danger of electric shock when
inserting objects into the product.
1.2 General Warnings
DANGER – electric shock. Read any warning printed next to this
symbol.
WARNING: risk of fatal injury.
DANGER – hot surface. Read any warning printed next to this
symbol.
WARNING: all surfaces of a product may be hot.
DANGER – read any warning printed next to this symbol.
4

Caution – Double Pole/Neutral Fusing
1.3 Warning Labels
On the front control panel there are 2 warning labels as shown in Figure 1.3.1; they are
numbered 7 and 8. These warnings must be followed for the safe operation of this
furnace.
7- Warning label - Do not operate without a work tube.
The furnace must not be operated without the correctly sized work tube
and correspond work tube adaptors or it could be possible for an
operator to access electrically live element coils that could cause serious
injury or death.
8- Warning label - Switch off the furnace before loading and
unloading.
The furnace heaters must be switched OFF using the heater switch, item
2 in Figure 1.3.1, when the furnace is being loaded or unloaded. The
work tube can become electrically conductive at high temperatures,
presenting a possible hazard to the operator. If element failure is left
undetected the element could collapse onto the work tube.
5
1.0 Symbols and Warnings

1.0 Symbols and Warnings
Index to numbered items in Figure 1.3.1
and 1.3.2
1. Electrical supply switch - switches
electrical power ON and OFF to the
furnace.
2. Heater switch - switches electrical
power ON and OFF to the furnace
heating elements.
3. Heater ON light - indicates that the
furnace heating elements are ener-
gized.
4. Product rating label indicating the
product serial number and electrical
information.
5. Access holes to front panel fixing.
6. Warning label - Disconnect the
mains supply before removing this
cover.
7. Warning label - Do not operate
without a work tube.
8. Warning label - Switch OFF the fur-
nace before loading and unloading.
9. Electrical power lead socket.
10. Back panel fixing screws.
1.3.1 - Control Box layout and warn-
ing labels.
1.3.2 - Back of control box showing
mains lead socket
6

2.0 Installation
If the product has been transported or stored in humid conditions it
must be dried out completely before operating the furnace. Contact
Carbolite Gero Service for instructions.
2.1 Unpacking and Handling
When unpacking or moving the product, always lift it by its base or both ends of the
main body. Never lift it by the end insulation or by a work tube. It may take 2 or 3
people to lift the furnace, depending on the size and configuration.
NOTE: This product contains Refractory Ceramic Fibre (also known as
Alumino Silicate Wool - ASW). For precautions and advice on handling
this material see section 6.2.
2.2 Siting
Place the product on a level surface in a well ventilated area. Site away from other
sources of heat and on a non-flammable surface that is resistant to accidental spillage
or hot materials.
The surface on which the equipment is mounted should be stable and not subject to
movement or vibrations. The height of the mounting surface is important to avoid
operator strain when loading and unloading samples.
Ensure that there is free space around the sides and back of the product. Clear space is
required above the product to dissipate heat.
If the product is to be used in a process which could liberate hazardous gases, then it
should be installed together with a suitable fume extraction system.
Ensure that the product is placed in such a way that it can be quickly switched off or
disconnected from the electrical supply.
2.3 Setting Up
The vertical tub furnace models must have their stands assembled, the furnace
mounted on the stand and their work tubes fitted before they can be used.
Assembling the stand and mounting the furnace
Tools required: 4 mm Allen key.
The assembly of the vertical stand is as follows with reference to 2.3.1, 2.3.2 and 2.3.3.
Place the vertical stand base item (1) on the floor or bench on which it is to be
assembled.
7
2.0 Installation

2.0 Installation
lPosition the vertical stand upright (2) on the stand base in line with the fixing holder.
lSecure the stand upright to the base using the 6 x M6 dome cap screws (4) and wash-
ers (3) supplied.
lPartially screw in the top M6 screw knobs, 2 x (6) into the frame upright as shown in
2.3.3.
lHook the furnace onto the top screw knobs. This may take 2 people to lift the fur-
nace.
lFit the bottom screw knobs x 2 and tighten all four.
8

2.3.1 Figure - Vertical tube furnace model
mounted on its stand.
2.3.2 Figure - Assembling the
stand.
Index to numbered items in Figure 2.3.2 and
Figure 2.3.3
1. Vertical stand base
2. Vertical stand upright
3. Fixing screws M6 x 16 dome cap screw
4. Washer M6
5. Tube furnace
6. M6 screw knob
2.3.3 Figure - Mounting the fur-
nace onto the vertical stand.
9
2.0 Installation

2.0 Installation
Using the tube furnace horizontally
The furnace can be used either with the stand
vertically as shown in 2.3.3 or horizontally as
shown in 2.3.4.
To use horizontally simply tip the stand over
into the horizontal position making sure that
the flexible conduits are not trapped beneath
the frame. This may take 2 people to do on
the largest models.
The position of the furnace on the stand can
be adjusted if necessary.
Note: To prevent injury to the operator and
damage to the furnace this must only be
done when the furnace is switched OFF and is
cold. 2.3.4 Figure -Tube furnace posi-
tioned horizontally on the stand.
Fitting the standard length work tube in the furnace.
Tools required: 4 mm Allen key.
Note that the split tube furnace can only be used with the extended length work tube.
This is to allow the work tube to be held in place when the furnace is opened in the
vertical position. The diameter of the work tube is a customer order option and
therefore varies between tube furnaces. The fitting of the work tube is as follows with
reference to 2.3.5. Note that standard length work tubes are also referred to as tubes
suitable for working in air; they are 150 mm longer than the heated length of the
furnace (see the table in section 10.0). Read section 6.2 before fitting the work tube.
lRemove the top work tube end guard (item 8) hen remove the work tube adaptor fix-
ing bracket (4) that holds the work tube end stop (7) and the work tube adaptor (3)
in place.
Note (1) it might be easier to do this with the furnace in the horizontal position as
shown in 2.3.4.
Note (2) if a different work tube with a different outer diameter is being fitted it will
be necessary to fit new correctly sized work tube adaptors (3). In which case, both
end guards and work tube adaptor fixing brackets (4) will need removing.
lSlide the work tube into the furnace through the work tube adaptor (3) until it
reaches the opposite work tube bottom stop (7). Note that the work tube might be a
tight fit when it is new and may need to be twisted backwards and forwards slightly
as it slides in. For long work tubes it is important to support and line up the work tube
as it is pushed through the furnace. It may also take 2 people to perform this oper-
ation.
lReassemble the work tube end stop (7), work tube adaptor bracket (4) and the tube
end guard (8).
10

Index to numbered items in Figure 2.3.5
1. Tube furnace
2. Work tube adaptor (size dependent on work
tube diameter)
3. Work tube (size diameter customer option)
4. Work tube adaptor fixing bracket
5. Fixing screws M6 x 15
6. Washer M6
7. Work tube end stop (dependent on work tube
diameter)
8. Tube furnace end guard 2.3.5 Figure - Exploded
view showing how to fit the
work tube in the EVA
Fitting the extended work tube in a furnace
Tools required: 4 mm Allen key
The fitting of the work tube is as follows with reference to Figure 2.3.5. Extended work
tubes are 450 mm longer than the heated length of the furnace (see the table in section
10.0). Read section 6.2 before fitting the work tube.
Note it is easier to fit the work tube with the furnace in the horizontal position as shown
in figure 2.3.4.

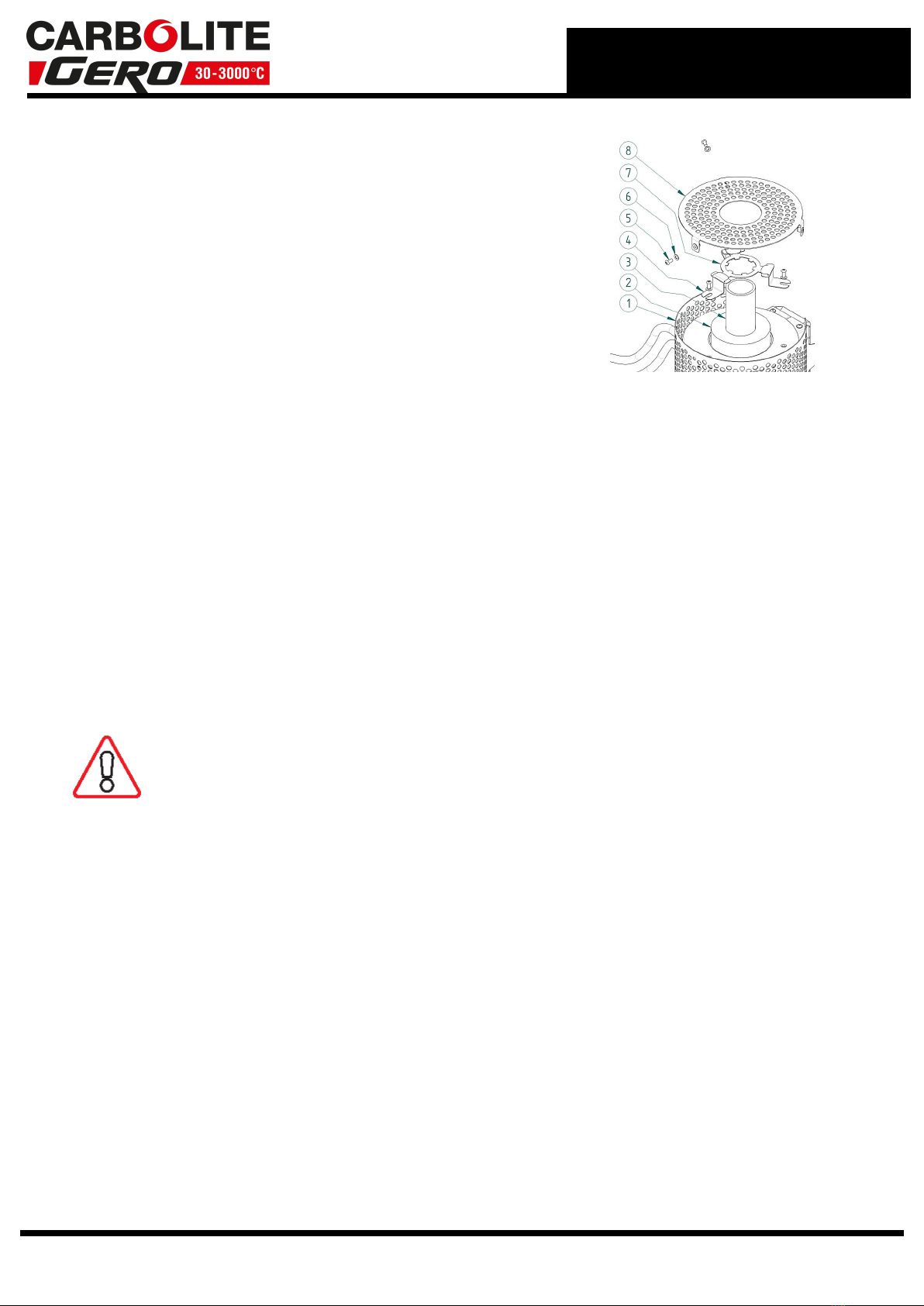

To fit the work tube in a vertical orientation follow the steps below. Omit the use of the
end seal if not required. The same tube support design will work with or without the
tube end seal in place.
WARNING - If clamps are used without an end seal, care should be
taken not to over tighten on to a bare tube, especially if the tube is
either quartz or thin wall section.
lBefore the extended work tube can be fitted, the work tube end stops for the stand-
ard length work tube must be removed from both ends of the furnace. This is done
by removing the furnace end guard (8) and the work tube adaptor brackets (4) to
release the work tube end stop. The guards and brackets should then be refitted.
lFit the tube support bracket, item 15, figure 2.2. Use supplied M6 button head
screws and supplied washers.
lFit the extended work tube guard, item 14, figure 2.2. Use supplied M6 button head
screws and supplied washers.
lRe-fit furnace end guard, item 13, figure 2.2. Use supplied M6 button head screws
and supplied washers.
lFit tube end seal assembly as shown in figure 2.2. refer to manual that was provided
with the replacement end seals or detailed fitting instructions.
lFit tube support bracket, item 7, figure 2.2. Use supplied M6 button head screws and
supplied washers.
lFinally, fit tube support collar, (5) using item (6) until the tube is secure enough for
use in a vertical arrangement. Fitting arrangement is shown in figure 2.2.
11
2.0 Installation

2.0 Installation
lFigure 2.2 - shows an exploded view of all the required parts.
lFigure 2.2 - shows the assembled parts as they would be used.
2.3.6 Figure - Tube support
2.3.7 Figure - Tube support assembly
12

2.3.8 Figure - Tube support and end seal assembly
2.3.9 Figure - Tube support and end seal assembly
For extra stability of the tube, repeat the assembly instructions above (as shown in
figure 2.3.10
13
2.0 Installation

2.0 Installation
2.3.10 Figure - View showing how to support the work tube in a vertical orientation.
2.4 Setting Up - Without a Stand
Any of the E-range vertical furnaces can be supplied without a stand for either wall
mounting (using wall bracket order option) or installation in customer's test
rig/mounting frame.
It is the customer’s responsibility to carry out a risk assessment on the
siting and mounting of the furnace and to ensure that it is operated in a
safe manner, see section 2.2 for the recommended siting instructions.
The fitting of the work tube is covered in the previous section.
2.4.1 Figure - Tube furnace shown without a stand for customers own mounting as
an example.
14

Index to numbered items in Figure 2.4.1
1. Control Box
2. Furnace Body
3. Connecting conduit between furnace and control box
Fitting the Optional Insulation Plugs and Radiation Shield
For optimum temperature uniformity, insulation plugs or radiation shields should be
placed in the work tube ends as shown below. With a standard work tube, the stem (8)
(see figure 2.4.2) of the insulation plug assembly lines up with the end of the work tube.
If a gas/vacuum end seal is fitted, either horizontally or vertically, the insulation plug
hooks onto the end seal hook; see figure 2.4.3.
Alignment of radiation shields is similar to that of insulation plugs, see below.
If a metal work tube is being used in the furnace, ensure that it is earthed. See the
safety warning in section 4.4.
2.4.2 Figure - Cross-section view show-
ing standard length work tube insulation
plug fitted
2.4.3 Figure - Cross-section view show-
ing extended work tube insulation plug
fitted
2.4.4 Figure - Cross-section view showing an extended length work tube with a radi-
ation shield fitted
15
2.0 Installation

2.0 Installation
Under no circumstances should any objects be placed on top of the product.
Always ensure that any vents on the top of the product are clear of any
obstruction. Always ensure all cooling vents and cooling fans (if fitted) are
clear of any obstruction.
2.5 Electrical Connections
Connection by a qualified electrician is recommended.
All furnaces in the range are single-phase and operate over the voltage ranges 100 to
110 volts or 200 - 240 volts. Check the rating label before connection, see "Warning
Labels" for location of rating label. To check that the OP.Hi setting is correct for the
appropriate voltage, or to change to another setting, follow the instructions in section
0.1.
The electrical supply should be fused at the next standard size equal to or higher than
the design current. Where a supply cable is supplied there are internal supply fuses, in
which case customer fusing is preferred but not essential. See section 9.0 for furnace
rating power, current and fusing information.
The external connection should be either a permanent connection to a fused isolator
supply or to a socket on a fused isolator supply; the isolating switch must operate on
both conductors. Make sure that the isolator switch is within easy reach of the furnace
operator.
Supply Terminal
Label
UK/ Europe
Cable Colour
USA/
Canada
Common
Cable
Colours
Supply Type
Live -
Neutral
Reversible or
Live - Live
1-phase
L Brown Red or
Black To live to either power conductor
N Blue White To neutral to the other power
conductor
PE Green/ Yellow
Green or
Green/
Yellow
To earth
(ground) to earth (ground)
Terminal Connection Details
16

3.0 Temperature Controller
If this product is fitted with a temperature controller, instructions are provided
separately.
17
3.0 Temperature Controller

4.0 Operation
4.0 Operation
4.1 Operating Cycle
This product is fitted with an instrument switch which cuts off power to the control
circuit.
Connect the product to the electrical supply.
Turn on the instrument switch to activate the temperature controller. The controller
illuminates and goes through a short test cycle.
Over-Temperature option only. If the digital over-temperature option has not yet
been set as required, set and activate it according to the over-temperature controller
instructions.
Switch on the heater switch, located on the instrument panel. Unless a time switch is
fitted and is switched off, the product will start to heat up. The Heat light(s) glow
steadily at first and then flash as the product approaches the desired temperature or a
program setpoint.
Over-Temperature option only. If the over-temperature circuit has tripped, an
indicator on the over-temperature controller flashes and the heating elements are
isolated. Find and correct the cause before resetting the over-temperature controller
according to the instructions supplied.
To switch off power to the heating elements, use the heater switch. To switch the
product off, use both the heater switch and the instrument switch. If the product is to be
left switched off and unattended, isolate it from the electrical supply.
4.2 Safe Operation of the Furnace
For the safe operation of this furnace the following warnings must be followed:
18

Explosive Materials
The furnace must not be used to heat materials which could explode, or
which could emit gases that could form explosive mixtures. If the safe
heating of a material is dependent on its temperature, only heat these
type of materials if the furnace has the optional over-temperature
protection device fitted. Ensure that the over-temperature device is
calibrated and set to an over-temperature safety limit that is sufficiently
large as to avoid any hazards. If in doubt, seek expert advice before
proceeding. Customers are responsible for carrying out their own risk
assessments on the heating of materials.
Do not operate without a work tube. The furnace must not be
operated without the correctly sized work tube and correspond work
tube adaptor. Otherwise, an operator can access electrically live
element coils that could cause serious injury of death.
Switch off the furnace before loading and unloading. The furnace
elements must be switched off using the heater switch, item 2 in
"Warning Labels", when the furnace is being loaded or unloaded. The
work tube can become electrically conductive at high temperatures. If
an element has failed and collapsed onto the work tube, the work tube
will become live causing serious injury or death.
4.3 General Operating Advice
Heating element life is shortened by overheating. Do not leave the
product at high temperature when it is not required. The maximum
temperature is shown on the product rating label and in section 10.0
towards the back of this manual.
Lightweight ceramic fibre insulation can easily be marked by accidental
contact. Some fine cracks may develop in the surface of the insulation
due to the progressive shrinkage of the insulation materials. Cracks are
not usually detrimental to the functioning or the safety of the product.
Clean up any spillages in the insulation, as these can increase the rate of degradation of
the insulation material.
4.4 Operator Safety
The ceramic materials used in the product manufacture become
electrically conductive to some extent at high temperatures. DO NOT
use any conductive tools within the product without isolating it. If a
metal work tube is used, it must be earthed (grounded).
19
4.0 Operation

4.0 Operation
Switch off the heater switch whenever loading or unloading the product.
The elements are isolated when the heater switch is OFF. This switch
cuts both sides of the circuit via a contactor.
4.5 Tube Life
A ceramic work tube may crack if work pieces are inserted
too quickly or at temperatures below 900 °C (when the
tube is more brittle). Large work pieces should also be
heated slowly to ensure that large temperature
differences do not arise.
Poor thermal contact should be encouraged between the
work piece and the tube; crucibles or boats should be of
low thermal mass and should have feet to reduce the
contact with the tube (fig. 4).
Do not set too high a heating or cooling rate. As tubes are susceptible to thermal shock
and may break. Tubes which extend beyond the heated part of the furnace are more at
risk. A general rule for maximum heating or cooling rate is 400 ÷ internal diameter in
mm to give (°C/ min); for 75 mm i/ d tubes this comes to 5 °C per minute. The
controller can be set to limit both the heating and cooling rate.
4.6 Pressure
Work tubes are not able to accept high internal pressure. When gas seals or similar
fittings are in use, the gas pressure should be restricted to a maximum of 0.2 bar (3
psi). A pressure of approximately half of that should normally be sufficient to achieve
the desired flow rate. The operator must ensure that the exhaust path from the tube is
not blocked, so that excess pressure does not occur.
A suitably regulated gas supply should always be used.
It is recommended that a pressure relief system should be used to avoid an over
pressurisation of the work tube.
Please note: A product should not be heated up if any valves that have been fitted are
closed to create a sealed volume. A sealed work tube should not be heated from cold
due to the pressure increase caused by the trapped air or gas expanding during the
heating process.
4.7 Gas Tightness
Work tubes of IAP material are impervious. Sillimanite may look similar but is porous.
Ensure that the correct tube material is in use before connecting and using gases other
than inert gases, such as nitrogen.
20
