VEVOR JBLJ11 User manual

Specification

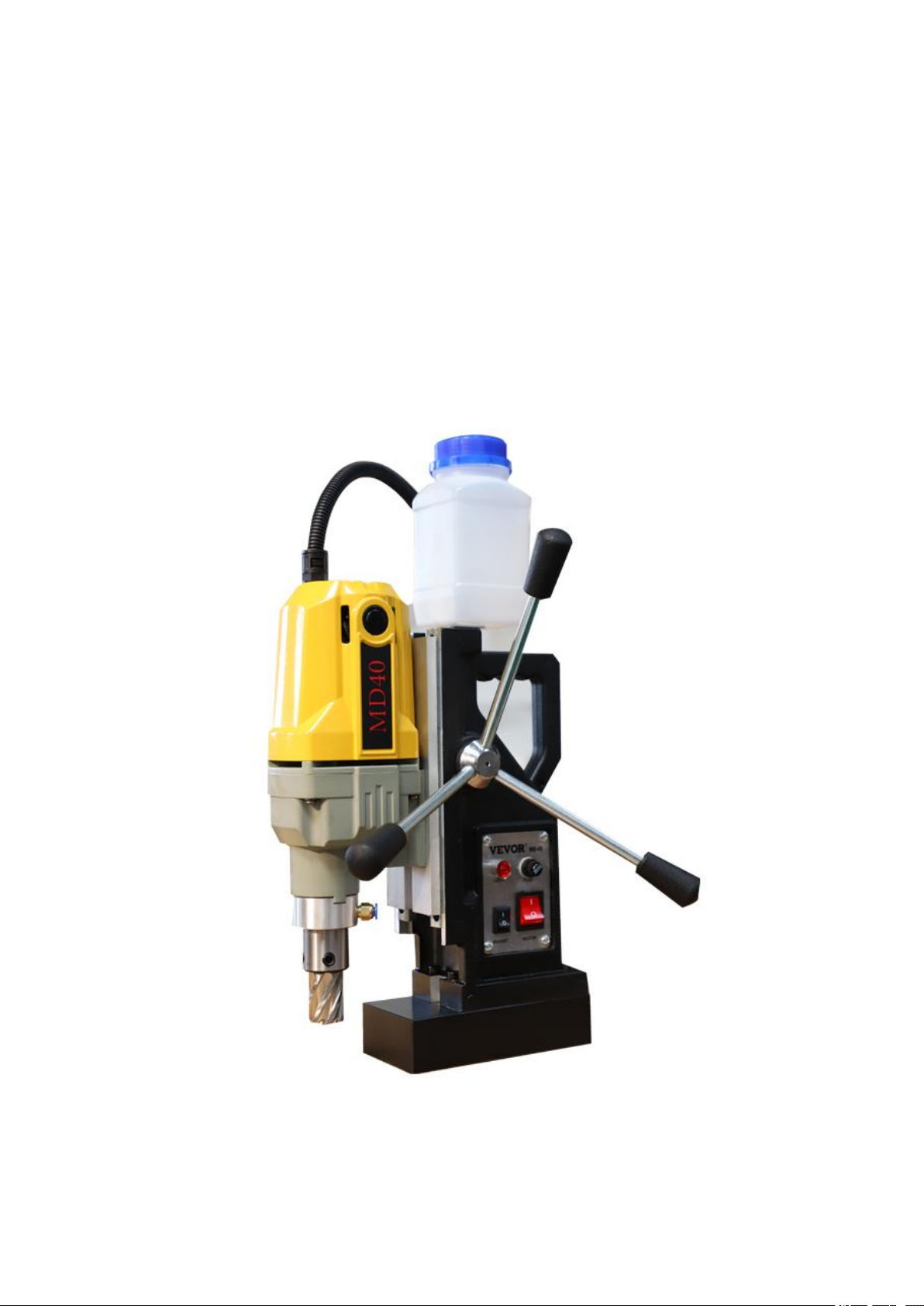

JBLJ11 Magnetic Drill
Vevor

Specification
Serial No.:
Model: Magnetic drilling machine
Motor rated power: 1100W
No load speed: 580rpm
Rotating direction: clockwise
Arbor bore: 19.05mm (3/T)dia.
Cooling supply: Internal Cooling
Voltage: AC 110V/220V
Freqency Range: 50 〜 60Hz
Magnet adhesion: 12000N
Max.Cutting dia.( annular cutter): 35mm (1-5/16")
Max cutting depth : 50mm (2 〃)
Stroke : 150mm
Weight: 11kg

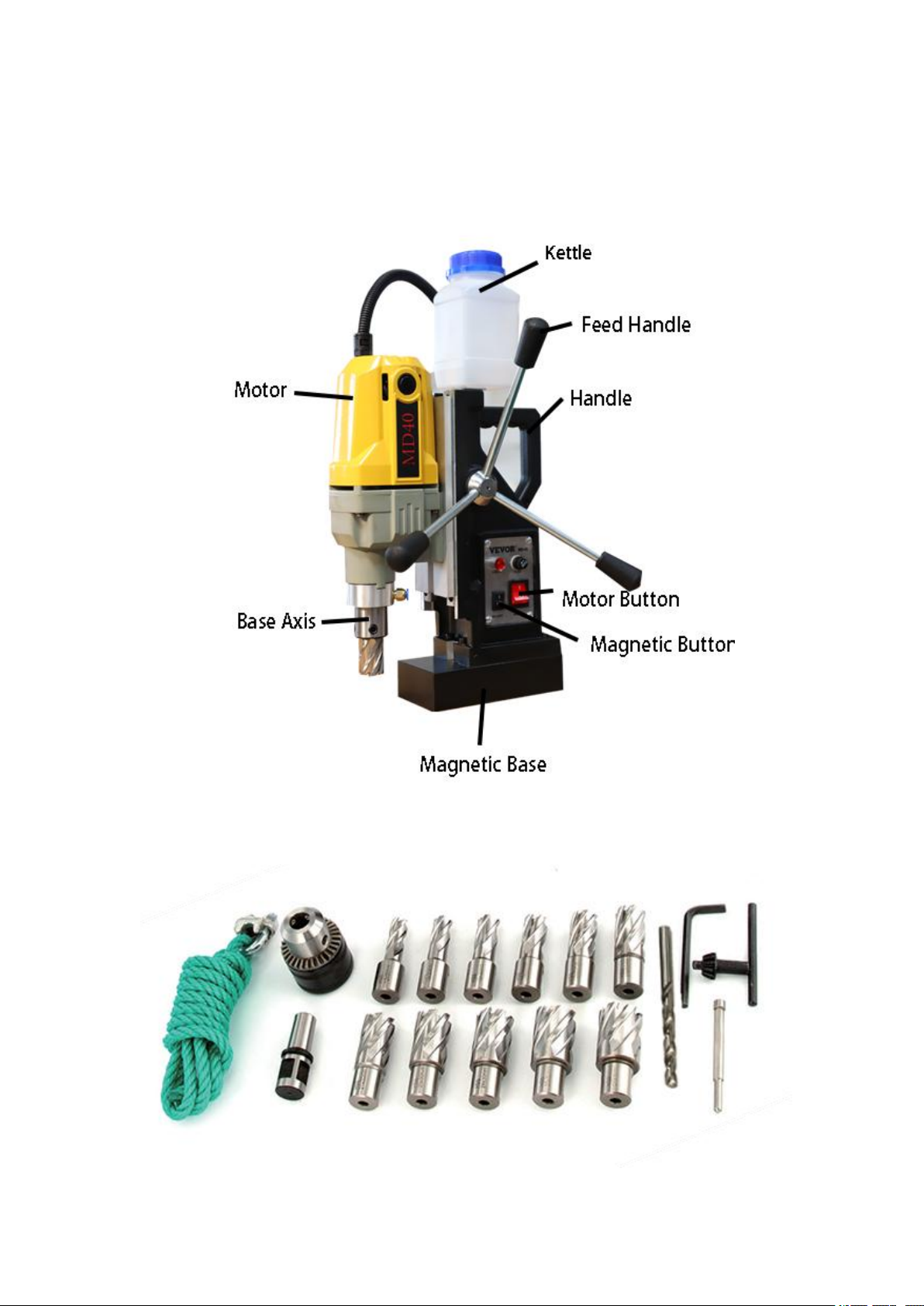

二、Parts Description

Twist Drill Bit Installation
1. Insert the arbor (D) into the spindle and secure it by attaching the set screws (G) and
tightening them with the M5 hex wrench (I).
Spindle
Arbor
2. Slide the chuck (C) onto the arbor until it is locked into place.
Arbor
Chuck
3. Loosen the chuck’s jaws by inserting the chuck wrench (E) into either hole on the chuck and
turning it counterclockwise.
Chuck
Chuck Wrench
Jaws
6

4. Mount your twist drill bit (not included) into the chuck and turn the chuck wrench clockwise
until the bit is locked in place.
ALWAYS remove adjustment wrenches before use.
Annular Cutter/Core Drill Bit Installation
1. Insert the pilot pin (H) into the top hole of your core drill bit (not included).
Pilot Pin
Core Drill Bit
2. Fit the bit onto the spindle, locking it in place by attaching the set screws (G) and tightening
them with the M5 hex wrench (I).
Spindle
Set Screw
Core Drill Bit
ALWAYS remove adjustment wrenches before use.
7

三、Operation Instructions
WARNING
Warning! Before using this device, be sure to read all the safety regulations and instructions
carefully to avoid fire, electric shock, or serious injury. Follow these safety measures strictly!
Meanwhile must follow workplace safety regulations, follow the relevant work safety regulations of
all countries.
Personal Protection
Operators should wear protective glasses, earmuffs, insulated shoes, and trouser legs must be tightened. Operators
with long hair must wear a working cap. It is forbidden to wear loose-fitting clothes, operate equipment with feet,
and remove the swarf with hands directly. It is also forbidden to take apart the machine and run maintenance on
the circuit board without permission.
Work place
1. Keep the working area clean at all times, messy work environments can cause accidents.
2. Don' t use drill machine in rain or wet environment, there is a risk of electrical leakage.
3. Use drill machine in a bright environment, not in a dark environment.
4. Don' t use drill machine near flammable material. The drill machine may produce sparks during
working, which may cause a fire or explosion.
5. Keep the drill machine away from children when working.
6. Except for the operator, others must not be close to the work area while the drill machine is
running.
Safety
1. Before starting, ensure that the power cord and plug are in good condition. If damage occurs,
stop and replace parts immediately.
2. Ensure that the power supply is in line with the requirements of the equipment, and that
safetyprotection measures such as grounding and leakage are provided.
3. The drilling tools must strictly follow the dimensions specified in this manual. The drilling
work-piece shall be made of material (such as an iron plate) that can be magnetized and
adsorbed.

The surface shall be smooth, and the thickness shall be between 10mm-75mm to ensure reliable
adsorption of the equipment.
4. A steel plate with less than a 10mm thickness cannot provide complete compatibility with
the rated magnetic adsorption. It is required to check the suction condition after magnetic
adsorption and confirm the adsorption before operation.
5. When the work-piece thickness is less than 10mm it is recommended to have one support iron
plate with a thickness greater than 10mm added at the bottom of the work-piece. In order to
improve the adsorption reliability of the magnetic base, the area of the support iron plate must
be greater than the area of the magnetic base; improper use of the support plate may lead to
accidents. If the support plate is too thin or insufficient in area, the drill machine will become
loose during adsorption, which will lead to accidents and serious faults.
6. Do not press too hard on the feed when cutting in order to prevent overload operation for
the magnetic drill, which will shorten the life of the magnetic drill. When drilling always pay
attention to the condition of the magnetic adsorption. When the magnetic adsorption
instability caused by excessive feed force is unstable, drilling operations must be stopped
immediately.
7. When the magnetic drill starts up or is shut down, the operating sequence of the motor and
magnetic switch should comply strictly.
8. The magnetic base cannot operate with a full load continuously. Continuous operation will
affect the lifetime of the magnetic base, and the temperature of the magnetic seat will increase,
leading to a potential fire. When the magnetic base produces a high temperature, do not touch
it. It will cause serious burns if touched. Turn the switch to the off position and pull the plug
out of the power supply when the magnetic base is not in use.
9. The motor cannot be continuously overloaded for more than 30 minutes, or it will generate
extreme heat, which will cause a fire; turn the switch to the off position when the motor is not
in use.
The equipment must be cut off before replacing the drill bit or adding
coolant. In case of drilling blockage, the motor power shall be turned
off immediately, but the magnetic base power supply will continue to
run. It is forbidden to shut down the power supply of the magnetic
base directly during drilling operations to prevent injuries to
personnel and equipment caused by the sudden loss of magnetic force
of the magnetic base.
10. When the magnetic drilling machine is suspended while(horizontal or
inverted) operating, it must be fixed with the device attached to the
equipment, to prevent the equipment from falling down due to the sudden

loss of power of the magnetic base .When drilling laterally or upside-down in
a magnetic base, a reasonable cooling method shall be selected. A liquid
cooling method shall not be used for cooling. Liquids are likely to infiltrate
into the equipment to cause damage or electricity leakage. A mist spray
cooling is recommended.
11. Only parts and tools provided or approved by the supplier can be used.
Even if other accessories or tools can be installed on the equipment, safety
is not guaranteed.
12. When drilling, you must pay attention to the hidden wiring, the gas pipe,
andthe water pipe. When it is possible to drill down to a hidden wire or a
live wire, insulating plastic or a rubber handle grip must be held.
13. Do not remove the drill bit, arbor, replace gears, or touch with the bare
hand if the spindle and tool are still rotating.
14. After drilling, do not remove iron filings by hand to prevent injury, even if
the equipment has stopped working.
15. When using the magnetic drill, welding operations are not allowed on
the same workpiece.
16. When changing working locations, do not pull the bellows and power
cable. Handle the machine by carrying from the handle.
17. After an operation, shut off the power, then unplug. Avoid damage to
the equipment caused by electricity.
18. The magnetic base will produce magnetic fields once starting the equipment.
The field may affect devices, such as watches, mobile phones, pacemakers, etc.
Cleaning and Maintenance
1. Inspect regularly whether the bolts of the magnetic drill are loose or have
fallen off. Make sure the gap of the spindle is not too large, the power
cable is in good condition, and the gap of slideway is not too large.
Maintenance is important.
2. The spark increases after the carbon brush is worn, please replace it by a

professional according to the wear condition of the carbon brush.
3. After three months of normal working conditions, change the lubricating
grease in gear box by a professional or technical personnel. Make sure all
the parts are fully lubricated.
4. Maintenance is made in our after-sales service department or designated
dealer. Self-disassembly for maintenance issues may reduce the life of the
machine if done incorrectly.
5. Clean the magnetic drill after working, scrub the slideway, and apply
lubricating oil for protection.
6. Wear goggles and protective gloves when cleaning with compressed air, and
protect other personnel in the work area.
7. Turn off the machine and pull the power plug out of the socket before carrying
out maintenance or cleaning.
Electrical aspects of maintenance, inspection, and repair can only be completed by a
qualified electrician according to their respective country's effective rules for
processing, inspection. Maintenance of circuit boards must be completed without a
power supply, adverting electrical accidents.
Environmental protection and waste disposal
1. Packaging material disposal
Packaging protects the drill machine from shipping damage;
Packaging materials are selected based on environmental and waste disposal
standards, so they can be recycled. Recyclable packaging materials help to
save raw materials and reduce generated waste. When packing materials
are no longer needed, they can be disposed according to local regulations.
2. Old electrical equipment disposal
The product should be processed in accordance with EC Directive 2002/96/EC-WEEE
(Waste Electrical and Electronic Equipment). If you have any questions, please contact the
local department for waste disposal.Grease can be disposed of in accordance to the
lubricant manufacturer's instructions.
3. Grease disposal
According to the lubricant manufacturers disposal instructions.

Magnetic suction indication
When the magnetic control button is opened, magnetic suction is about 70% of the
normal working state. This is called a magnetic half suction. After pressing the
control button of magnetic base, press the motor control button, then the drill
machine will be in a working state. The magnetic suction at its peak performance is
called magnetic full suction. The advantages of magnetic half suction and full
suction are to extend the service life of the machine and improve security.
Drilling Operation Tips
1. Locate with a pilot pin first within the center position marked or marker.
2. To start drilling, you must press the annular cutter slowly, allowing the cutter
to touch the steel plate carefully. The feed rate should be reduced by 1/3 when
the completion of a drilled hole is near.
The annular cutter should always be in the cooling state during cutting. The best cooling
method is with cooling device. Flow of the coolant should not be less than 47cc/min. For those
materials which create a large amount of fine powder, such as cast iron and cast copper,
coolant can not be used. Compressed air can be used instead for chip removal.
3. Pay attention to whether chips are winding. Withdraw the cutter and remove
the chip to avoid cutter damage due to squeezing.
4. In the case of the slug sticking in the inner bore, adjust the bit blade by
tapping cutter body with a metalloid bar till the slug drops off. Never use
hard objects to tap the edges of teeth to prevent damage to the sharpening
edges.
5. Slug sticking occurs due to the following :
rouble spots
Solution

Edges of teeth dull or damage
Replace with a new
cutter
Gap of slideway is too large
Reduce gap of slideway
Cooling is not sufficient
Increase the flow of
coolant
Feeding too large or too hard when
drilling through steel plate s
Slow down
Spring of arbor breaks
Replace new spring
6. In order to avoid the influence of magnetic suction, clear out the iron filings and
clutter at the bottom of the magnetic base before drilling.
