VEVOR BC-145WS User manual

Technical Support and E-Warranty Certificate www.vevor.com/support
DRAWER FRIDGE FREEZER
USER MANUAL
MODEL: BC-145WS / BC-145WD / BCD-145WD
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

- 1 -
BEFORE USE THE REFRIGERATOR, PLEASE READ AND FOLLOW
ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Have product questions? Need technical support? Please feel free to
contact us: Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
CHAINSAW
SHARPENER JIG KIT

- 2 -
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
SPECIFICATIONS
Model
BC-145WS
BC-145WD
BCD-145WD
Voltage /
Frequency
AC115V 60Hz
AC115V 60Hz
AC115V 60Hz
Amperage
1.0A
1.0A
1.0A
Product
Type
Service Fridge
Service Fridge
Service Fridge
Freezer
Input Power
87W
87W
87W
Capacity
145L（UP:74L，
Down:71L）
138L（UP:16 bottles
Red Wine
，Down:68.5L）
138L（UP:69.5L，
Down:68.5L）
Refrigerant
R600a
37g
R600a
37g
R600a
45g
T° zone
Zone T°
1~10℃
34~50°F
UP 5~22℃
UP 41~72°F
DN 1~5℃
DN 34~41°F
UP 3~10℃
UP 37~50°F
DN -18~3℃
DN 0~37°F
(Width x
Depth x
Height)
23.5’ x 22’ x
32.2’~34.2’
595 x 560 x
820~870mm
23.5’ x 22’ x
32.2’~34.2’
595 x 560 x
820~870mm
23.5’ x 22’ x
32.2’~34.2’
595 x 560 x
820~870mm

- 3 -
IMPORTANT SAFETY RULES
Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precaution,
including the following:
·Read all instructions before using the refrigerator.
·Plug into a grounded 3-prong outlet, do not remove grounding prong, do not
use an adapter, and do not use an extension cord.
·Replace all panels before operating.
·It is recommended that a separate circuit, serving only your appliance be
provided. Use an outlet that cannot be turned off by a switch.
·Never clean appliance parts with flammable fluids. These fumes can create a
fire hazard or explosion. And do not store or use gasoline or other flammable
vapours and liquids in the vicinity of this or any other appliance. The fumes can
create a fire hazard or explosion.
·Before proceeding with cleaning and maintenance operations, make sure the
power line of the unit is disconnected.
·Do not connect or disconnect the electric plug when your hands are wet.
·Unplug the appliance or disconnect power before cleaning or servicing. Failure
to do so can result in electrical shock or death.
·Do not attempt to repair or replace any part of your appliance unless it is
specifically recommended in this material. All other servicing should be referred
to a qualified technician.
·To prevent a child from being entrapped, Keep out of reach of children and not
in the vicinity of refrigerator.
·Before you throw away your old refrigerator, take off the door but leave the

- 4 -
shelves in place so that children may not easily climb inside.
·Never allow children to operate, play with, or crawl inside the appliance.
·To ensure proper ventilation for your appliance, the front of the unit must be
completely unobstructed. Choose a well-ventilated area with temperatures
above 60°F (16°C) and below 90°F (32°C). This unit must be installed in an
area protected from the element, such as wind, rain, water spray or drips.
·The appliance should not be located next to ovens, grills or other sources of
high heat.
·The appliance must be installed with all electrical, water and drain connections
in accordance with state and local codes. A standard electrical supply (115 V
AC only, 60 Hz), properly grounded in accordance with the National Electrical
Code and local codes and ordinances is required.
·Do not kink or pinch the power supply cord of appliance.
·It is important for the appliance to be levelled in order to work properly. You may
need to make several adjustments to level it.
·Do not use solvent-based cleaning agents of abrasives on the interior. These
cleaners may damage or discolour the interior.
·Do not use this appliance for other than its intended purpose.
For your safety observe the following recommendations.
·This appliance contains a small quantity of R600a refrigerant which is
environmentally friendly, but flammable. It does not damage the ozone layer,
nor does it increase the greenhouse effect.
·During transportation and installation, ensure that the tubing of the refrigerant
circuit is not damaged.
·when handling, moving and use of the refrigerator or freezer to avoid either
damaging the refrigerant tubing or increasing the risk of a leak.
·Avoid using or manipulating sharp objects near by the appliances.
·Leaking refrigerant can ignite and may damage the eyes.
·In the event any damage does occur, avoid exposure to open fires and any
device which creates a spark. Disconnect the appliance from the mains
FLAMMABLE REFRIGERANT

- 5 -
power.
·Thoroughly ventilate the room in which the appliance is located for several
minutes.
·Notify Customer Service for necessary action and advice.
·The room for installing the appliance must be at least 1 cubic metre per 8
grams of refrigerant. The refrigerant quantity contained in this appliance is
listed above in grams; it is also noted on the Rating Plate of the appliance.

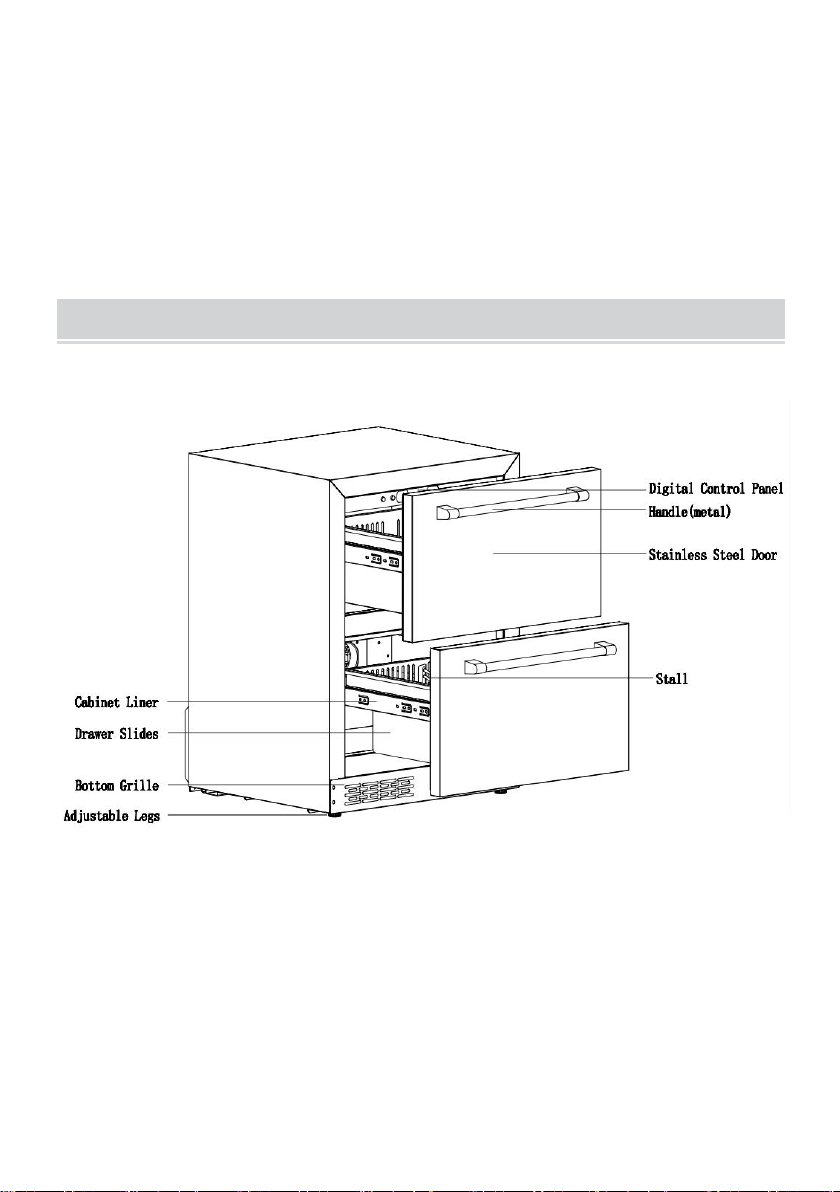

PARTS AND FEATURES
BC-145WS & BCD-145WD

- 6 -
BC-145WD
PREPARATION AND INSTALLATION
Preparation
—Allow 24 hours before switching on the refrigerator. During this time we
recommend that you leave the door open to clear any residual odors.
—The location you have selected for your refrigerator should:
·Be unencumbered and well ventilated
·Be well away from any heat source and direct sunlight
·Not be too damp (laundry, pantry, bathroom etc.)
·Have a flat floor
·Have a standard and reliable electricity supply (standard socket to country
standards, linked to the ground), it is not recommended to use a multi-socket or
extension lead
·Have a surge protector fitted to the electrical outlet
·Away from the microwave oven. Certain microwave ovens do not have wave
interference shield. When placed within 1 meter vicinity of the wine cabinet,
they may affect the operation of the refrigerator.

- 7 -
·Avoid locating the unit in moist areas, like a garage.
—The unit should be placed where the ambient temperature is proper. If the
temperature is above or below this range, it will affect the performance of the unit.
Placing in cold or hot temperature conditions may cause cellar's temperatures
fluctuating, and it will not reach the ideal one.
Installation
—Read the instruction manual.
—Unpack and remove all of the protection and adhesive strips from the
packaging around and inside the refrigerator.
—The refrigerator must be positioned such that the plug is accessible. Release
the power cord. Move your refrigerator to its final location. The refrigerator should
be installed in a suitable place where the compressor will not be subject to
physical contact.
—Leveling your refrigerator: Units must be leveled before loading your drinks.
The unit is equipped with 4 adjustable feet to facilitate easy leveling. It’s
recommended that you tighten the back feet to the maximum and adjust the front
feet to level the unit.
Built-in Instructions
—“built-in” refrigerators and beverage centers are front venting but are not
designed to be fully integrated behind a joinery door.

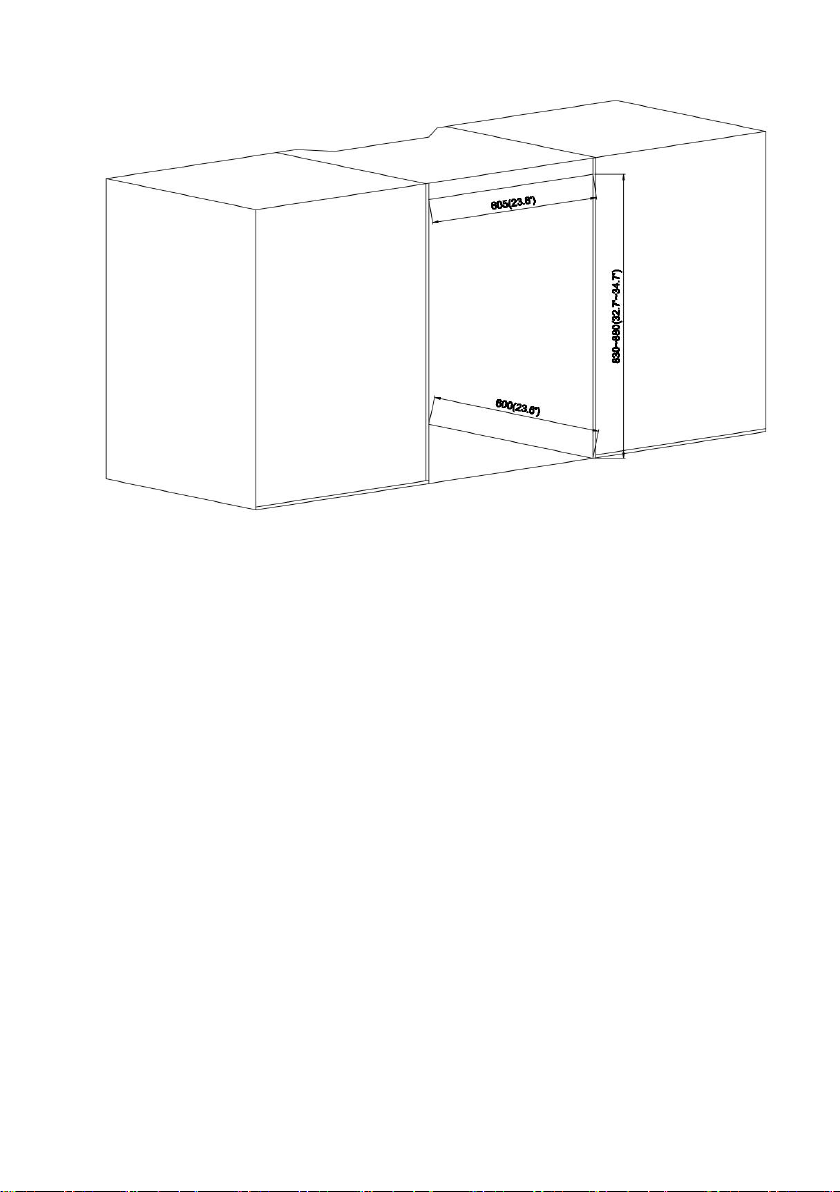

—Please follow the installation diagram when installing a built-in unit. No less
than the minimum installation dimension or it will affect the venting of refrigerator.

- 8 -
—“built-in” units draw air from right of ventilation frame and expel through left of
ventilation frame under the front door.
—“built-in” refrigerators and beverage centers have a power switch located on
the control panel so power point location is not critical.
—The unit requires a standard 120 volt power point.
—The power cord is 1 m in length and is fixed on the right side at the back when
looking from front of refrigerator.
—As with most appliances of today, the refrigerator has sensitive electronic
components which are susceptible to damage through lightning and electricity
supply faults. It is therefore advised to use a power surge protector to avoid
problems of this nature.
—Air vent on door must be provided for any built-in wine unit when a wood door is
installed in front of the unit.
Electrical Connection
Improper use of the grounded plug can result in the risk of electrical shock. If the
power cord is damaged, have it replaced by an authorized service center.
This appliance should be properly grounded for your safety. The power cord of

- 9 -
this appliance is equipped with a three-prong plug which mates with standard
three prong wall outlets to minimize the possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the
power cord supplied. For personal safety, this appliance must be properly
grounded.
This appliance requires a standard 115/120 Volt AC ~/60Hz electrical ground outlet
with three-prong. Have the wall outlet and circuit checked by a qualified electrician
to make sure the outlet is properly grounded. When a standard 2-prong wall outlet
is encountered, it is your responsibility and obligation to have it replaced with a
properly grounded 3-prong wall outlet. The cord should be secured behind the
appliance and not left exposed or dangling to prevent accidental injury.
The appliance should always be plugged into its own individual electrical outlet
which has a voltage rating that matches the rating label on the appliance. This
provides the best performance and also prevent overloading house wiring circuits
that could cause a fire hazard from overheated. Never unplug the appliance by
pulling the power cord. Always grip the plug firmly and pull straight out from the
receptacle. Repair or replace immediately all power cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion
damage along its length or at either end. When moving the appliance, be careful
not to damage the power cord.
Extension Cord
Because of potential safety hazards under certain conditions, it is strongly
recommended that you do not use an extension cord with this appliance. However,
if you must use an extension cord it is absolutely necessary that it be a
UL/CUL-Listed, 3-wire grounding type appliance extension cord having a
grounding type plug and outlet and that the electrical rating of the cord be 115 volts
and at least 10 amperes.
OPERATING THE UNIT
Initial Use

- 10 -

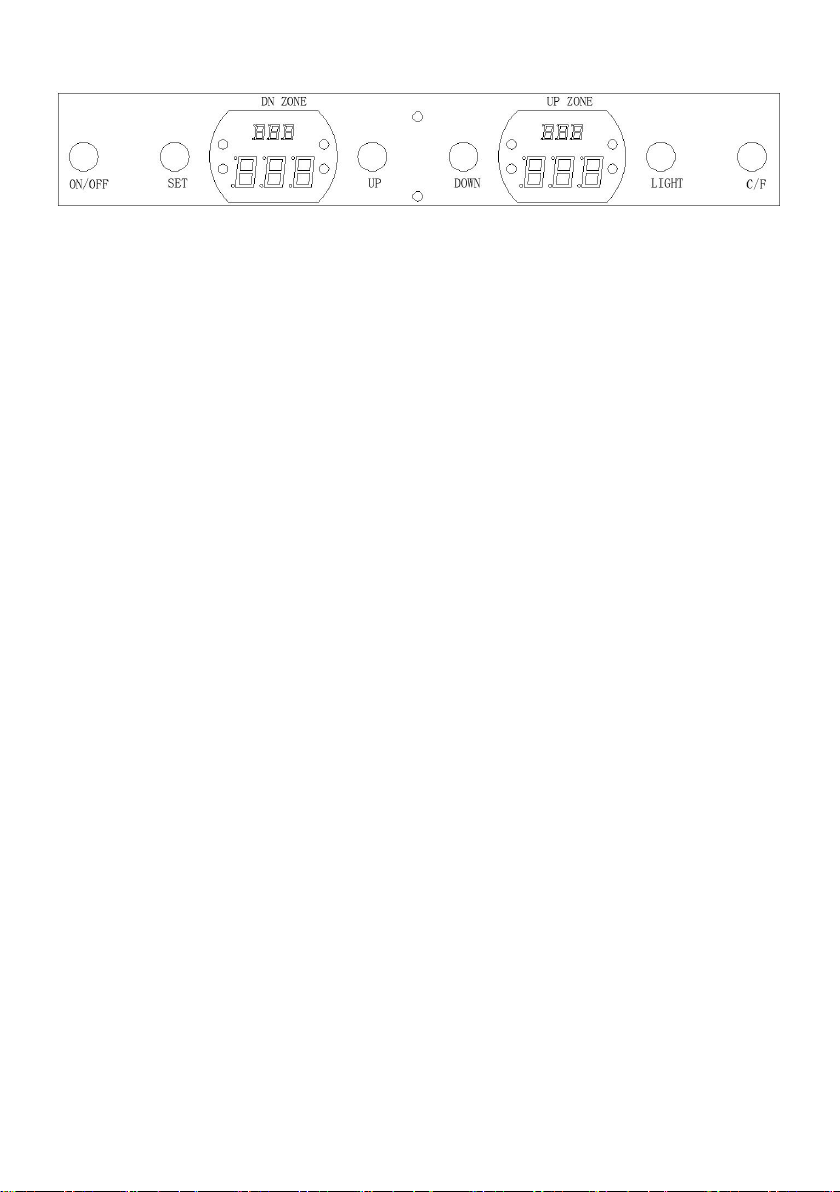

Plug in and switch on the refrigerator by pressing on the power button for a few
seconds.
When you use the refrigerator for the first time (or restart the refrigerator after
having it shut off for a long time), there will be a few degrees variance between the
temperature you have selected and the one indicated on the LED readout. This
is normal and it is due to the length of the activation time. Once the refrigerator is
running for a few hours everything will stabilize.
IMPORTANT: If the unit is unplugged, power is lost, or turned off, wait 3 to 5
minutes before restarting the unit. The refrigerator will not start if you attempt to
restart before this time delay.
Control Panel Lock
The unit is equipped with an automatic control panel lock function. This function
will prevent any unwanted changes to your temperature or power settings. The
lock function will activate automatically 5 seconds after the last time a button is
pushed on the control panel.
To unlock the control panel lock, press and hold both the UP and DOWN buttons
for 5 seconds the control panel will beep and blink once indicating that the control
panel is active and the settings can be changed. You must unlock the control panel
every time you want to set the temperature, change the display setting (°F/°C) turn
on or off the light and to power off the refrigerator.
Control Panel For The Refrigerator
Single Zone

- 11 -
Double Zone
·ON/OFF: Power On / Power Off
·SET: Down-Room Temperature / Up-Room Temperature
·UP: Set Temperature Increase +
·DOWN: Set Temperature Decrease -
·LIGHT: Light On / Light Off
·℃/°F : Celsius ℃/ Fahrenheit °F Switch
To control the temperature:
BC-145WS: The up digital chamber indicates the setting temperature, ranging
from 1℃~10℃（34℉-50℉），when temperature is set between 1℃~10℃，the
indicator corresponding the chamber on the up side will flash. The digital tube on
the down chamber indicates the actual temp inside the refrigerator, ranging from
0~37℃(32℉~99℉).
BC-145WD: The up digital chamber indicates the setting temperature,Left ranging
from 1℃~5℃(34℉~41℉), Right ranging from 5℃~22℃(41℉~72℉), when
temperature is set between 1℃~5℃, or 5℃~22℃ ，the indicator corresponding
the chamber on the up side will flash. The digital tube on the down chamber
indicates the actual temp inside the refrigerator, ranging from 0~37℃(32℉-99℉)
(refrigetator)；
BCD-145WD: The up digital chamber indicates the setting temperature,Left
ranging from -18℃~3℃( 0℉~37℉), Right ranging from 3℃~10℃( 37℉~50℉),
when temperature is set between -18℃~3℃, or 3℃~10℃，the indicator
corresponding the chamber on the up side will flash. The digital tube on the down
chamber indicates the actual temp inside the refrigerator, ranging from 0~37℃
(32℉-99℉) ( refrigetator )；ranging from -18~37℃( 0℉-99℉) (freezer).
The user can re-set temp inside the refrigerator based on actual requirement, after
start working, the refrigerator will keep on refrigerating till it reaches the set temp,

- 12 -
and work around setting temp within range of ± 2°. Under the circumstances of
power stop or cutting in the process of normal operation, the last setting figure can
be automatically memorized by the refrigerator.
Light ON/OFF: There is a light on the top of refrigerator.The light is controlled by
door pressure switch.
For the single temp fridge,when both drawers are closed, the light goes off
automatically, and when either drawer is pulled out, the light goes on.
For the double temp refrigerator, the light goes off automatically when the top
drawer is closed, lights go on when the top drawer is pulled out.There is no light
inside the bottom drawer.
To change the temperature display: The temperature displayed can be in
Fahrenheit or Celsius. Press the ℃/°F button to switch between °F and °C.
Service and Preservation Temperature
We recommend that the refrigerator be installed in a place where the ambient
temperature is 1ºC ~ 32ºC(34ºF ~ 89ºF). If it is used for a short time, the
refrigerator can also be placed in an environment of 43℃. However, if the ambient
temperature is higher than 32℃, the refrigerator performance may be affected. For
example, the internal temperature may fluctuate and the refrigerator may fail to
reach the set temperature.
Temperature Settings
IMPORTANT: The LED displays by default the actual internal air temperature.
The temperature settings are pre-set at the factory as follows. In the event of a
power interruption, all previous temperature settings are automatically erased and
it will revert to the pre-set temperature settings. The electrical board of all models
comes with memory function.
It is important to understand that there is a difference between the air temperature
inside the refrigerator and the actual temperature of the drinks: You will need to
wait approximately 3 hours before noticing the effects of temperature adjustment
due to the critical mass within a full refrigerator.

- 13 -
Factory setting temperature
BC-145WS: Factory temperature set at 41℉(5℃).
BC-145WD: The factory temperature in the upper zone is set at 54℉(12℃); The
factory temperature in the lower zone is set at 41℉(5℃).
BCD-145WD: The factory temperature in the upper zone is set at 41℉(5℃); The
factory temperature in the lower zone is set at 5℉(-15℃).
CARE INSTRUCTIONS
Operation Anomalies
Ensure that there is power to the electrical supply plug by connecting another
electrical appliance to it. Check fuse, if any. Make sure that the door is closed
properly.
If the unit appears to be malfunctioning, unplug it and contact your after sales
service. Any intervention on the cold circuit should be performed by a refrigeration
technician who should carry out an inspection of the circuit sealing system.
Similarly, any intervention on the electrical circuit should be performed by a
qualified electrician.
IMPORTANT: Any intervention performed by a non-authorized technician by will
lead to the warranty being considered as null and void.
Power Failures
In the event of a power interruption, all previous temperature settings are
automatically preservation and it will revert to a pre-set temperature setting.

- 14 -
TROUBLESHOOTING GUIDE
You can solve many common refrigerator problems easily, saving you the cost of a
possible service call. Try the suggestions below to see if you can solve the
problem before calling the servicer.
PROBLEM
CAUSE POSSIBLE
The unit does
not operate.
Not plugged in. The appliance is turned off.
The circuit breaker tripped or the fuse is broken.
The unit is not
cold enough.
Check the temperature control setting. External environment may
require a higher setting. The drawer door is opened too often.
The drawer door is not closed completely.
The drawer door gasket does not seal properly.
Turns on and
off frequently.
The room temperature is hotter than normal. A large amount of contents
has been added to the refrigerator. The drawer door is opened too often.
The drawer door is not closed completely. The temperature control is not
set correctly. The drawer door gasket does not seal properly.
The light does
not work.
Not plugged in. The circuit breaker tripped or a blown fuse.
The LED Light is out of order. The door pressure switch is out of order.
Vibrations.
Check to assure that the unit is level.
The unit seems
to make too
much noise.
The rattling noise may come from the flow of the refrigerant, which is
normal. As each cycle ends, you may hear gurgling sounds caused by the
flow of refrigerant in your refrigerator. Contraction and expansion of the
inside walls may cause popping and crackling noises.
The unit is not level.
The door will
not close
properly.
The unit is not level.
The door Drawer slide screw loose.
The Drawer slide inside debris stuck.
The drawer slide track is broken.
Made in China

Support and E-Warranty Certificate
ww.vevor.com/support
