Vezco VZ-TVI-5MP360R User manual

HD Fisheye Camera
User Manual
www.vezcocctv.com

User Manual
Thank you for purchasing our product. If there are any questions,
or requests, please do not hesitate to contact the dealer.
This manual applies to the HD Fisheye Camera.
This manual may contain several technical incorrect places or
printing errors, and the content is subject to change without
notice. The updates will be added to the new version of this
manual. We will readily improve or update the products or
procedures described in the manual.
Privacy Notice
Surveillance laws vary by jurisdiction. Check all relevant laws in
your jurisdiction before using all this product for surveillance
purpose to ensure that your use of this product conforms.
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to
comply with the limits for a digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to
correct the interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.

2. This device must accept any interference received, including
interference that may cause undesired operation
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized
European standards listed under the Low Voltage
Directive 2014/35/EU, the EMC Directive 2014/30/EU.
2002/96/EC (WEEE directive): Products marked
with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment,
or dispose of it at designated collection points. For more
information see: www.recyclethis.info.
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific battery
information. The battery is marked with this
symbol, which may include lettering to indicate
cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling,
return the battery to your supplier or to a designated collection
point. For more information see: www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards
requirements.

Ba
1Introduction
1.1 Product Features
This series of camera adopts high performance sensor and
advanced circuit board design technology. It features high
resolution, low distortion, and low noise, etc. It is suitable for
surveillance system and image process system.
5 Megapixel high-performanceCMOS
HD TVI output, up to 5Megapixeles resolution
0.01Lux @ (F1.2,AGC ON), 0 Lux with IR
IR cut filter with autoswitch
OSD menu
Built-in microphone, 1-ch audiooutput
1.2 Overview
Camera Body
Photoconductive
Resistance Microphone
Lens
Audio Cable (Red)
HD TVI Cable (Gray)
12V DC Power Cable
se Plate

2Installation
Before you start:
Please make sure that the device in the package is in good
condition and all the assembly parts areincluded.
Make sure that all the related equipment is power-off during
theinstallation.
Check the specification of the products for the installation
environment.
Check whether the power supply is matched with your
required output to avoiddamage.
Please make sure the wall is strong enough to withstand three
times the weight of the camera and the mounting.
If the wall is the cement wall, you need to insert expansion
screws before you install the camera. If the wall is the wooden
wall, you can use self-tapping screw to secure the camera.
If the product does not function properly, please contact your
dealer or the nearest service center. Do not disassemble the
camera for repair or maintenance byyourself.
2.1 Ceiling Mounting
Steps:

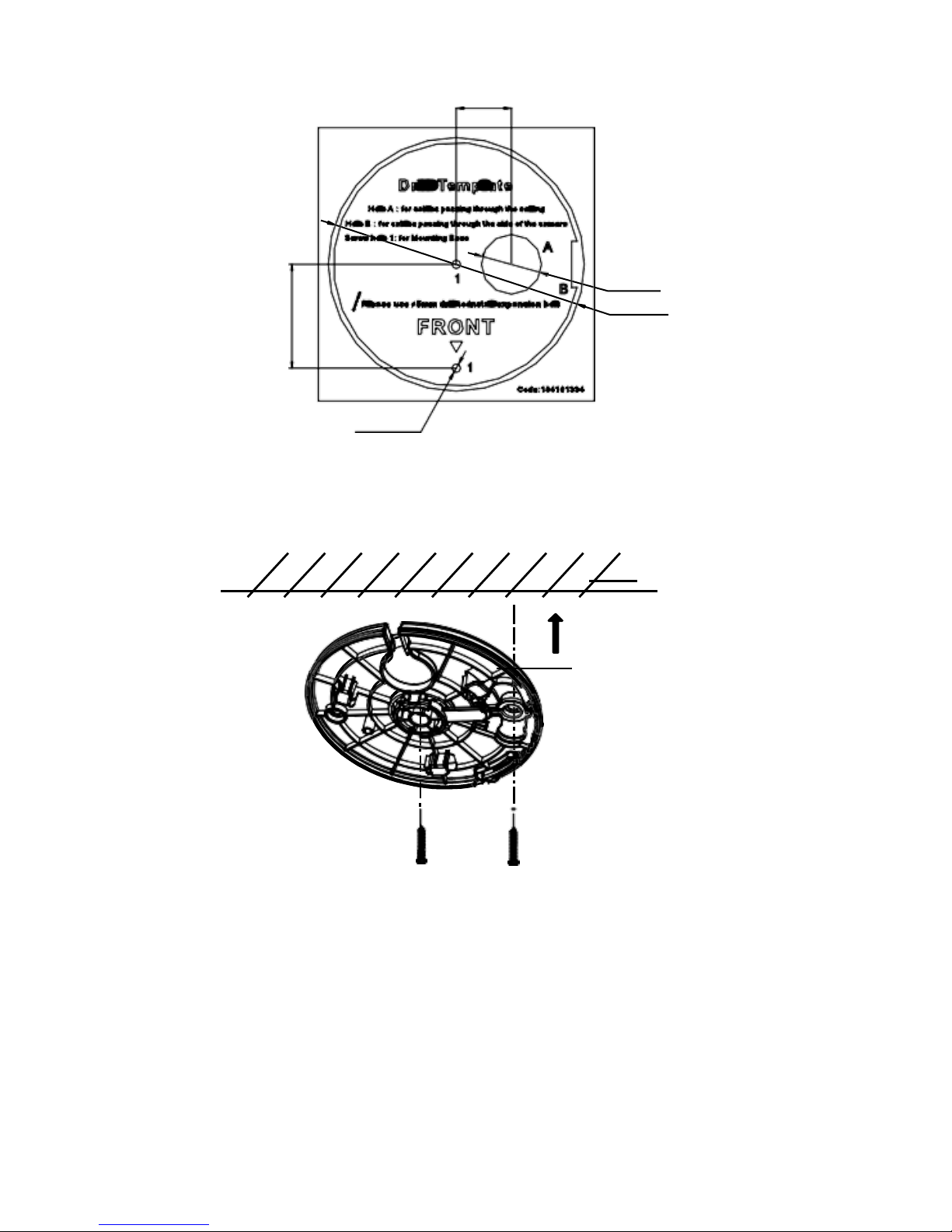

1. Drill two screw holes and the cable hole according to the
supplied drill template.

φ 24
φ102
2-φ3.4
22
2. Align the screw holes and cable hole on the drill template and
the base plate, and then fix the base plate to the ceiling with
the two suppliedscrews.
Ceiling
Base Plate
Notes:
● For cement wall, you need to use the expansion screw to fix the
mount.
● For wooden wall, you can just use the self-tapping screw to fix the
mount.
3. Route the cables through the cable hole or the side opening
according to the actual needs, and connect the corresponding
41.75

cables including power cable, network cable, audio and alarm
cables, etc.

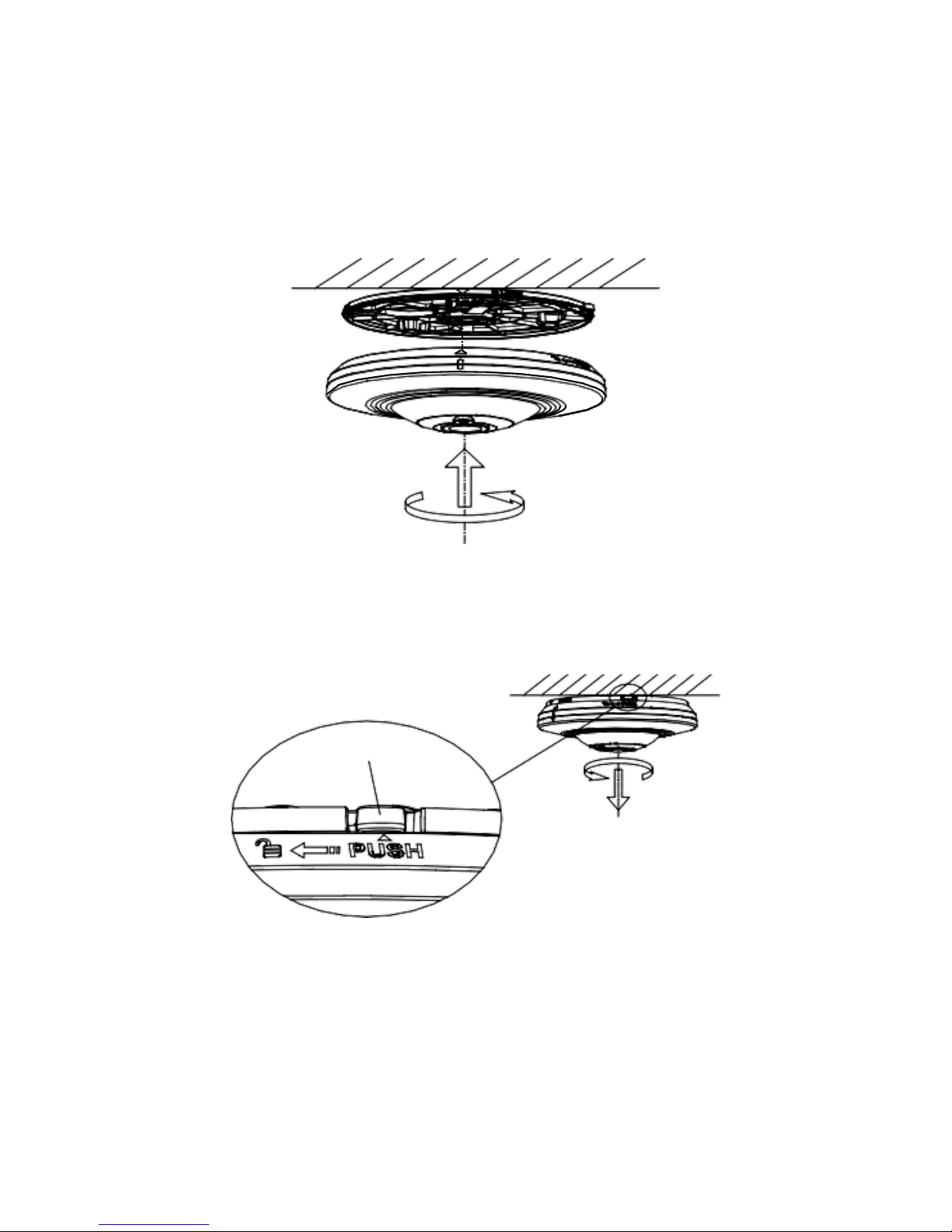

4. Align the triangle mark on the camera and base plate, and
then rotate the camera clockwise until it is locked up by the
three bayonet joints on the base plate.
5. Todisassemble the camera: Press the Push button on the base
plate, rotate the camera anticlockwise, and then you can
remove the camera from the base plate.
6. To adjust the view angle: Rotate the camera body clockwise or
anticlockwise with the base plate, and then you can adjust the
camera to the desired viewangle.
PUSH

15° 15°
2.2 Wall Mounting with a Slant Mounting Base
Before you start:
You need to purchase a slant mounting base separately if this
mounting method is selected.
Steps:
1. Drill two screw holes and the cable hole according to the
supplied drill template.
2-26
φ24
φ102
2-φ3.4
2. Fix the slant mounting base to the wall with the screws.
83.5
41.75

Wall
Mounting Base
3. Align the screw holes on the slant mounting base and the base
plate, and then secure the base plate on the slant mounting
base with the two suppliedscrews.
4. Route the cables through the cable hole or the side opening
according to the actual needs, and connect the corresponding
cables including power cable, network cable, audio and alarm
cables, etc.
5. Align the triangle mark on the camera and mounting base, and
then rotate the camera clockwise until it is locked up.
6. The installation iscomplete.

7. Todisassemble the camera: Press the Push button on the base
plate, rotate the camera anticlockwise, and then you can
remove the camera from the base plate.
PUSH

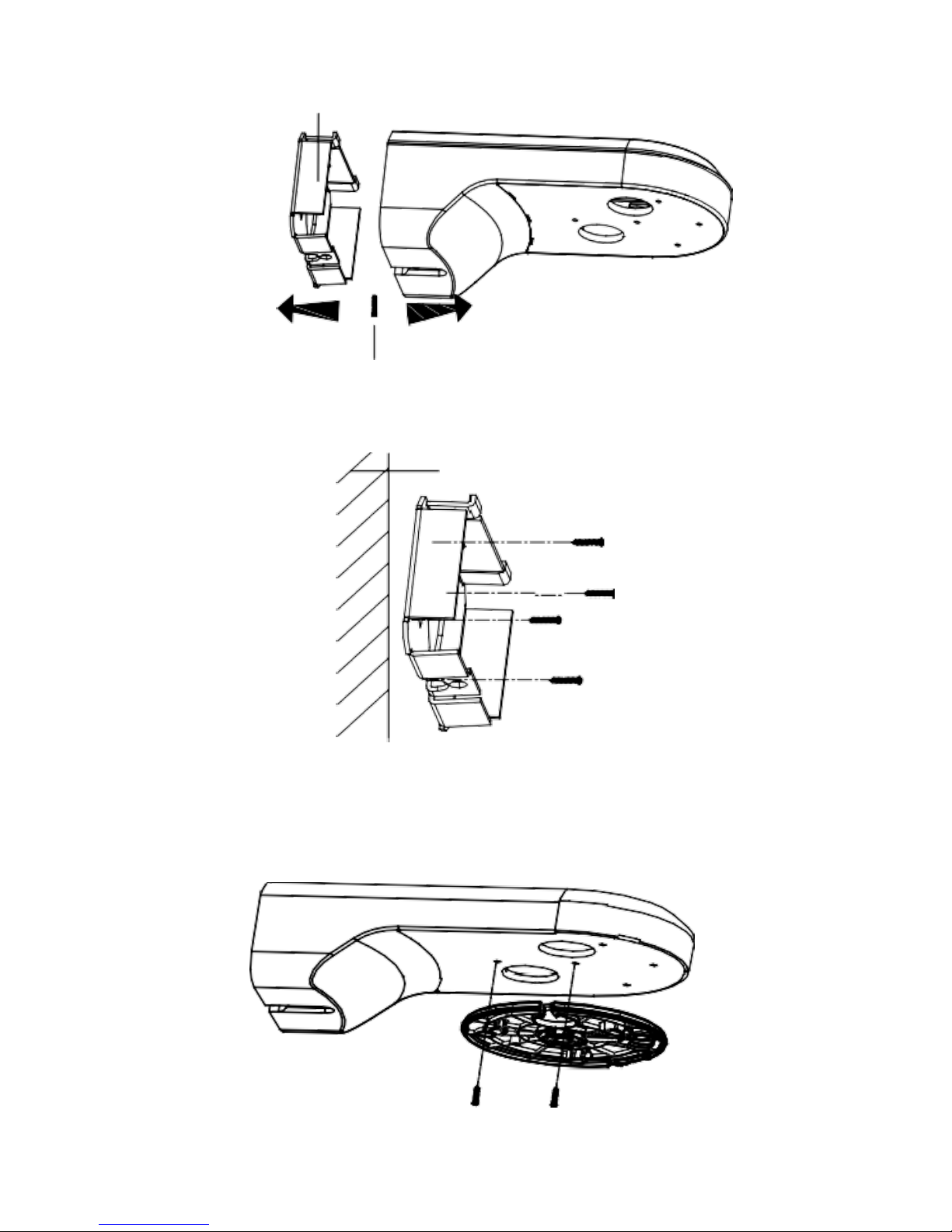

2.3 Wall Mounting with a Bracket
Before you start:
You need to purchase the bracket separately if this mounting
method is selected.
Steps:
1. Unfasten and remove the screw marked in the figure, and then
disassemble thebracket.

Mounting Base
Screw
2. Fix the mounting base to the wall with the screws.
Wall
3. Align the screw holes on the bracket and the base plate, and
then secure the base plate on the bracket with the two
supplied screws.

4. Route the cables through the cable hole according to the
actual needs, and connect the corresponding cables including
power cable, network cable, audio and alarm cables, etc.
5. Align the triangle mark on the camera and base plate, and
then rotate the camera clockwise until it is locked up by the
three bayonet joints on the base plate.
6. Re-install the main body of the bracket to the mounting base,
and fix it with the screw.
7. Todisassemble the camera, refer to the Step 5 in Section 2.1.
8. Toadjust the view angle, refer to the Step 6 in Section 2.1.

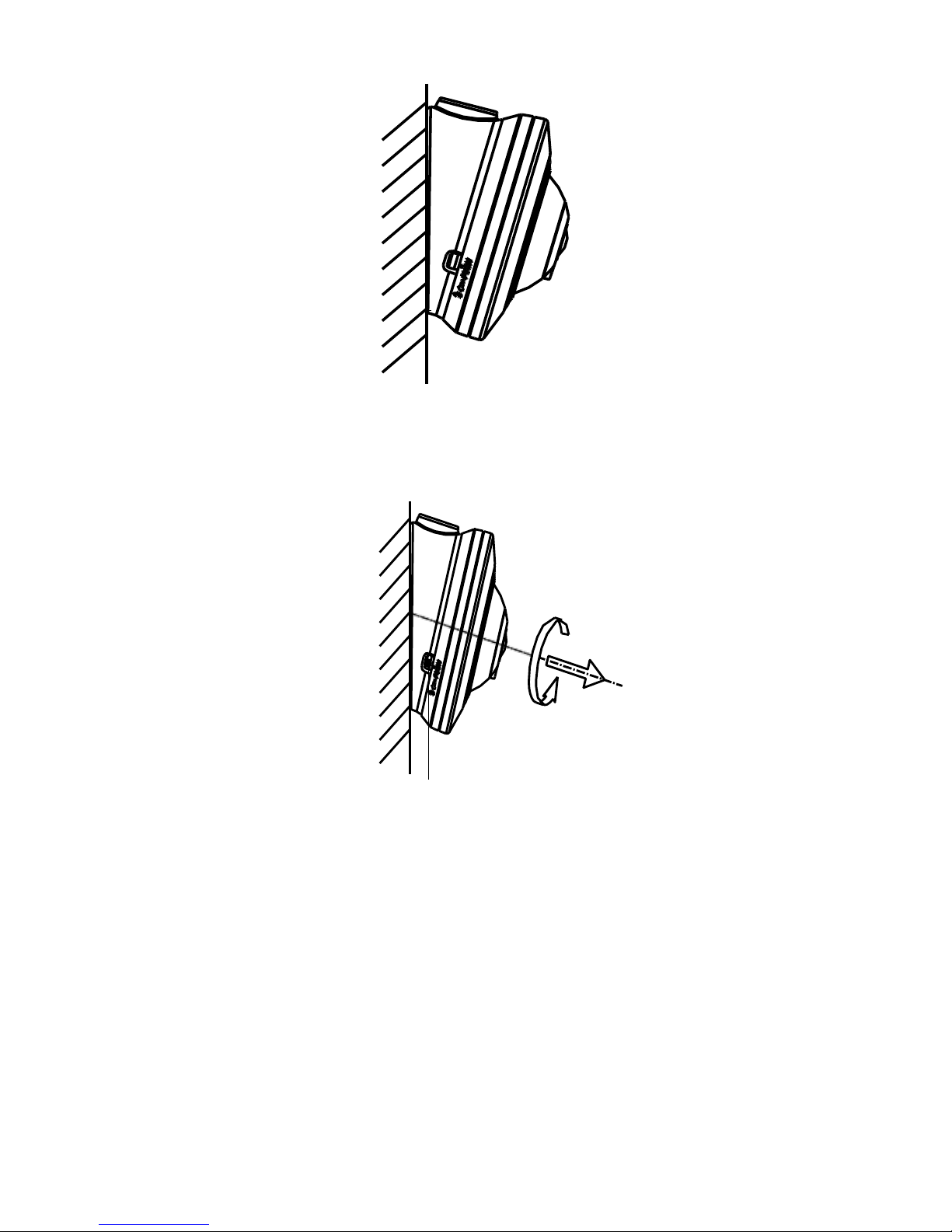

2.4 Pendant Mounting with a Bracket
Before you start:
You have to purchase the bracket separately if this mounting
method is selected.
Steps:
1. Fix the pendant bracket to the wall with the supplied M6×65
screws.
2. Aim the screwed hole on the camera at the top of the pendant
bracket, and then rotate the camera until it is secured tightly.

3. Loosen the knob on the bracket and adjust the camera body to
get the desired surveillance angle. Tighten the knob on bracket
to secure thecamera.
on the Bracket
3Operation
3.1 Menu Description
Setup
INSTALLATION
MAIN MENU
FACTORY
DEFAULT
CEILING
MOUNTING
DEFAULT
WALL
MOUNTING
DEFAULT
DAY&NIGHT INFRARED
B/W
VIDEO
SETTINGS
SHARPNESS
EXIT
PANORAMA
PANORAMA
COLOR
MONITOR
4 PTZ
4 PTZ
AUTO
FISHEYE & 3 PTZ FISHEYE & 3 PTZ
LSC
VIDEO.
OUT
ANNULAR
MINI-FISHEYE & 1 PTZ
ANNULAR & 2 PTZ
Knob

Notes:
● With a camera controller (purchased separately) or calling the preset
No. 95 of DVR you can select the menu and adjust the parameters.
● Move the cursor up/down/left/right with PTZ control panel to select
the menu item.
● Press the OK key or click Iris+ to confirm a selection.
3.2 INSTALLATION
The installation allows user to select different working
environments. If the camera is parallel to the ground, select
ceiling mounting as installation mode. If the camera is vertical to
the ground, select wall mounting as installation mode.

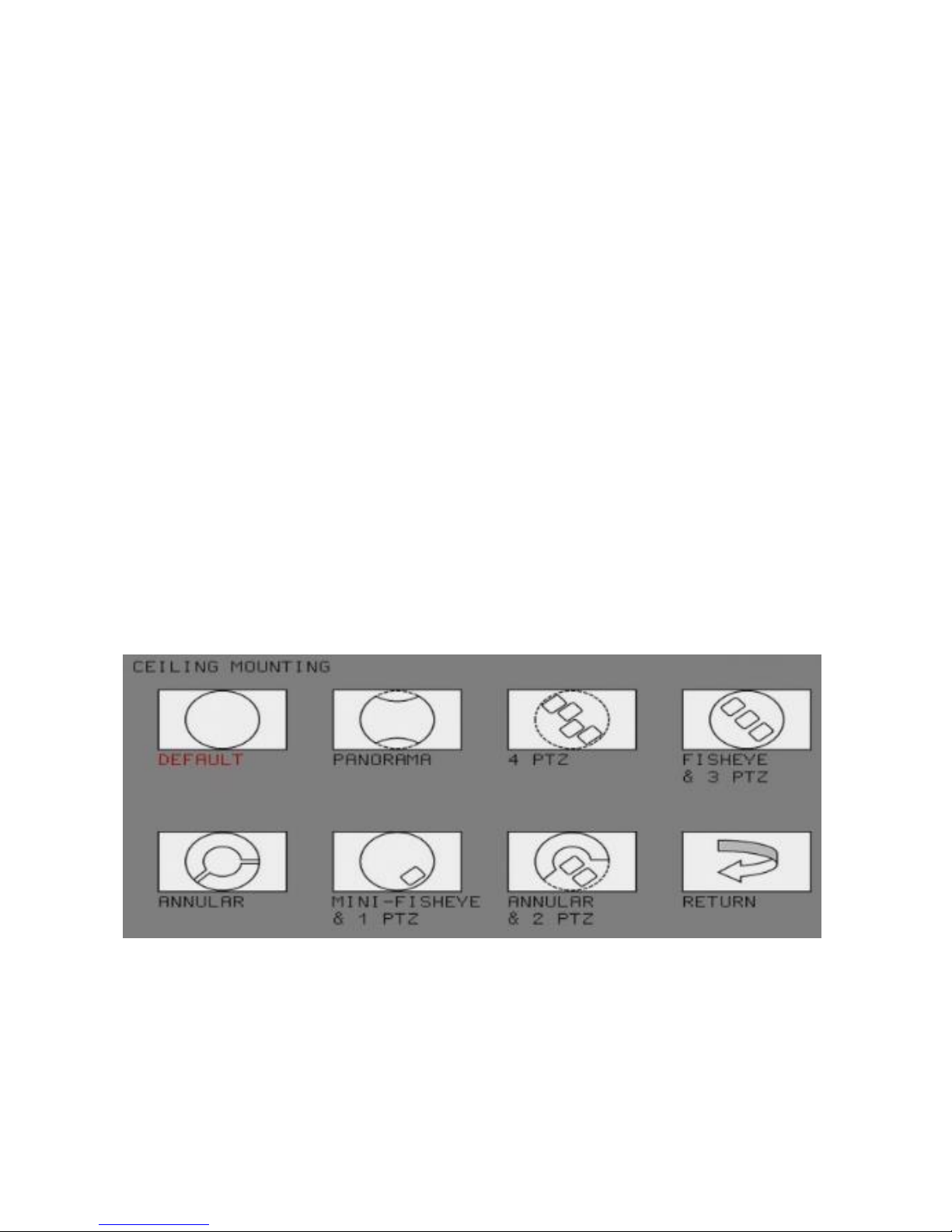

3.2.1 Ceiling Mounting
Ceiling mounting includes DEFAULT, PANORAMA, 4 PTZ, FISHEYE
& 3 PTZ, ANNULAR, MINI-FISHEYE & 1 PTZ, and ANNULAR & 2
PTZ.
Notes:
Any scene mode will be saved after being selected. The scene mode will be
the same once the device is powered off.

DEFAULT
Select DEFAULT to play live view in original view.
PANORAMA
Select PANORAMA to play live view after dewraping.
4PTZ
Select 4 PTZ to play live view in 4 PTZ panel mode.
Move the cursor to select the PTZ panel to adjust and confirm.
Click up-left or up-right to rotate the PTZ panel. Click Zoom +/- to
zoom in/out the image.
FISHEYE & 3 PTZ
Select FISHEYE & 3 PTZ to play live view in one fisheye view and 3
PTZ panel mode.
4 Panel PTZ
PTZ PANEL 1
PTZ PANEL 2
PTZ PANEL 3
PTZ PANEL 4
SAVE & EXIT
RETURN

ANNULAR
Select ANNULAR to play live view in two annular panels of
after-dewraping image.
MINI-FISHEYE & 1 PTZ
Select DEFAULT to play live view in one fisheye mode and one
PTZ panel view.
You can control the PTZ of the PTZ panel view.
ANNULAR & 2 PTZ
Select ANNULAR to play live view in one annular panels of
after-dewraping image and two PTZ panel views.
4.1.1 Wall Mounting
Wall mounting includes DEFAULT, PANORAMA, 4PTZ, and
FISHEYE &3 PTZ.
ANNULAR
ANNULAR PANEL 1
ANNULAR PANEL 2
SAVE & EXIT
RETURN

DEFAULT
Select DEFAULT to play live view in original view.
PANORAMA
Select PANORAMA to play live view after dewraping.
4 PTZ
Select 4 PTZ to play live view in 4 PTZ panel mode.
Move the cursor to select the PTZ panel to adjust and confirm. Click
up-left or up-right to rotate the PTZ panel. Click Zoom +/- to zoom in/out
the image.
FISHEYE & 3 PTZ
Select FISHEYE & 3 PTZ to play live view in one fisheye view and 3
PTZ panel mode.
4.2 MAIN MENU
4.2.1 DAY & NIGHT
Select DAY/NIGHT mode from AUTO/ COLOR/ BW.
MAIN MENU
DAY & NIGHT AUTO/COLOR/BW
INFRARED ON/OFF
VIDEO SETTING
RESET MAIN MENU
SAVE & EXIT
RETURN

AUTO
The image switches between color mode and black/white mode
automatically.
COLOR
The image is colored in day mode all the time.
B/W
The image is black and white all the time.
4.2.2 INFRARED
Turn on/off the INFRARED by moving the cursor.
4.2.3 VIDEO SETTING
BRIGHTNESS
This feature is used to adjust brightness of the image. The value
ranges from 0 to 100.
CONTRAST
This feature enhances the difference in color and light between
parts of an image. The value ranges from 0 to 100.
VIDEOSETTING
BRIGHTNESS
CONTRAST
SATURATION
50
50
50
RETURN

SATURATION
This feature is used to adjust color saturation of the image. The
value ranges from 0 to 100.
4.2.4 RESET MAIN MENU
Select RESET MAIN MENU to reset all parameters of main menu
to the default value.
4.2.5 SAVE & EXIT
Select SAVE & EXIT to save the settings and exit the menu.
3.4 FACTORY DEFAULT
Select RESET MAIN MENU to reset all settings of camera to the
default value.
3.5 EXIT
Select EXIT to exit the menu.
