Videology SFT-07019 User manual

Doc # INS-07019 rev A Issue Date: 07/22/2011
Revision: A Preliminary Page 1 of 42
Prior to Using This Document: Videology reserves the right to modify the information in this
document as necessary and without notice. It is the user’s responsibility to be certain they possess the
most recent version of this document by going to www.videologyinc.com, searching for the model
number, and comparing revision letters on the respective document, located in the document’s footer.
For technical assistance with this product, please contact the supplier from whom the product was
purchased.
Videology Imaging Solutions, Inc. USA Videology Imaging Solutions, B.V. Europe
37M Lark Industrial Parkway
Greenville, RI 02828
Tel: [phone]
Fax: [phone]
www.videologyinc.com
Neutronenlaan 4
NL-5405 NH Uden, Netherlands
Tel: [phone]
Fax: [phone]
www.videology.nl
USB Photo ID Cameras
Instruction Manual
Videology Viewers
SFT-07019 and SFT-07019-WHQL
TWAIN Data Source SFT-10011
IMAGING SOLUTIONS INC.
Ori
g
inal E
q
ui
p
ment Manufacture
r
20/21K13XUSB-C
20/21K14XUSB-C
20/21K15XUSB-C
All cameras shown with optional lens
24B1.3XUSB-C 24C1.3XUSB
60V002USB-C 20/21K758USB
24C7.38USB 20/21K758USB-SYS

Doc # INS-07019 rev A Issue Date: 07/22/2011
Revision: A Preliminary Page 2 of 42
License Agreement (Software):
This Agreement states the terms and conditions upon which Videology Imaging Solutions, Inc. USA and
Videology Imaging Solutions, B.V. Europe (hereafter referred to as "Videology®") offer to license to you
the software together with all related documentation and accompanying items including, but not limited
to, the executable programs, drivers, libraries, and data files associated with such software.
The Software is licensed, not sold, to you for use only under the terms of this Agreement.
Videology grants to you, the purchaser, the right to use all or a portion of this Software provided that the
Software is used only in conjunction with Videology's family of products.
In using the Software you agree not to:
Decompile, disassemble, reverse engineer, or otherwise attempt to derive the source code for any
Product (except to the extent applicable laws specifically prohibit such restriction);
Remove or obscure any trademark or copyright notices.
Limited Warranty (Hardware and Software):
ANY USE OF THE SOFTWARE OR HARDWARE IS AT YOUR OWN RISK. THE SOFTWARE IS PROVIDED FOR
USE ONLY WITH VIDEOLOGY'S HARDWARE. THE SOFTWARE IS PROVIDED FOR USE "AS IS" WITHOUT
WARRANTY OF ANY KIND, TO THE MAXIMUM EXTENT PERMITTED BY LAW, VIDEOLOGY DISCLAIMS ALL
WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY, QUALITY AND FITNESS FOR A PARTICULAR
APPLICATION OR PURPOSE. VIDEOLOGY IS NOT OBLIGATED TO PROVIDE ANY UPDATES OR UPGRADES
TO THE SOFTWARE OR ANY RELATED HARDWARE.
Limited Liability (Hardware and Software):
In no event shall Videology or its Licensors be liable for any damages whatsoever (including, without
limitation, incidental, direct, indirect, special or consequential damages, damages for loss of business
profits, business interruption, loss of business information, or other pecuniary loss) arising out of the use
or inability to use this Software or related Hardware, including, but not limited to, any of Videology's
family of products.

Doc # INS-07019 rev A Issue Date: 07/22/2011
Revision: A Preliminary Page 3 of 42
Table of Contents
1.Document History .................................................................................................................5
2.Overview .............................................................................................................................5
2.1.The Videology USB Camera Family........................................................................................................................5
2.2.Contents............................................................................................................................................................5
3.Features ..............................................................................................................................6
3.1.24C7.38USB.......................................................................................................................................................6
3.2.20/21K758USB-C................................................................................................................................................6
3.3.20/21K758USB-SYS ............................................................................................................................................6
3.4.20/21K1XXUSB-C ...............................................................................................................................................7
1.1.24B1.3XUSB-C ...................................................................................................................................................7
1.1.24C1.3XUSB.......................................................................................................................................................7
1.1.60V002-C ..........................................................................................................................................................7

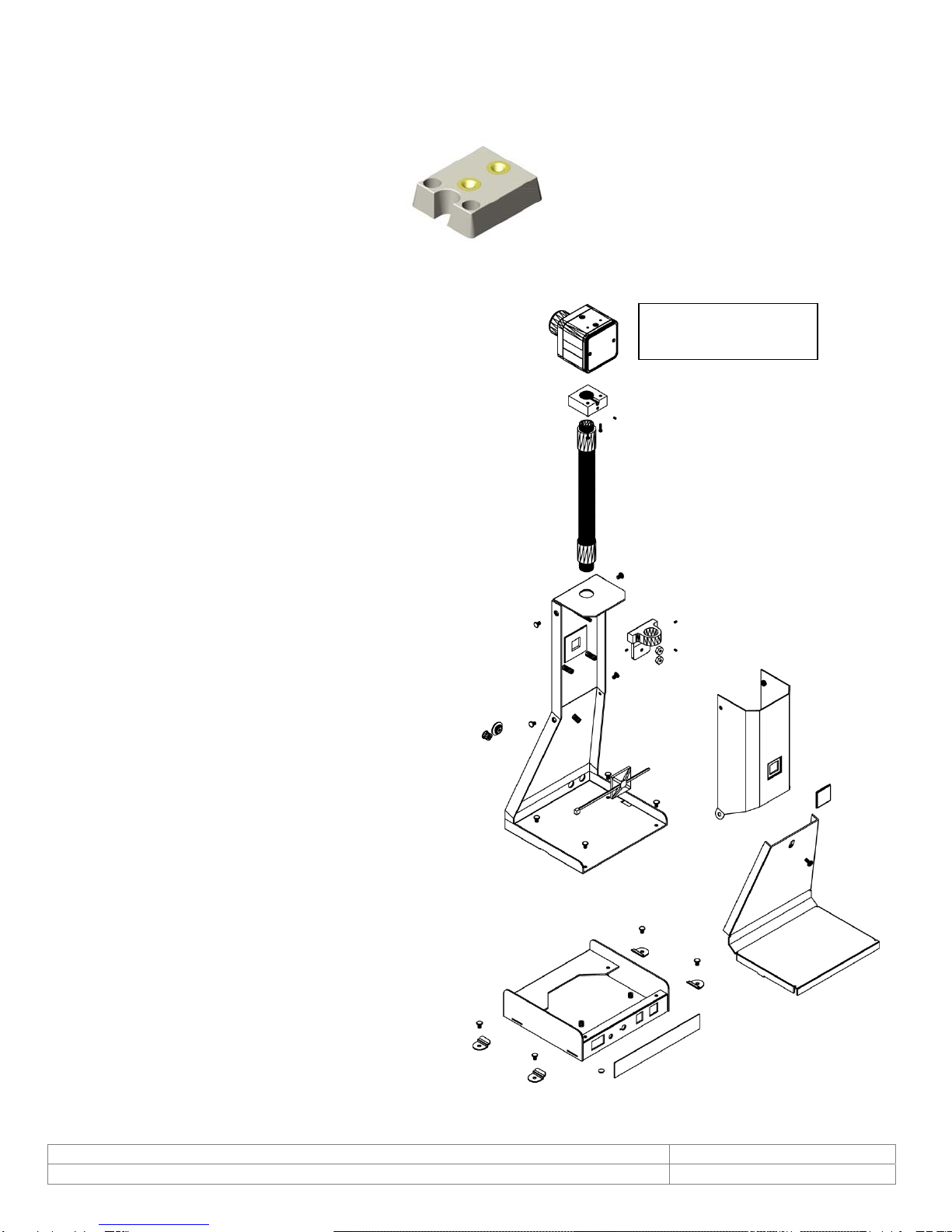

4.Mounting Method ..................................................................................................................8
5.Minimum System Requirements ..............................................................................................9
6.Viewer and USB Driver Installation ........................................................................................ 10

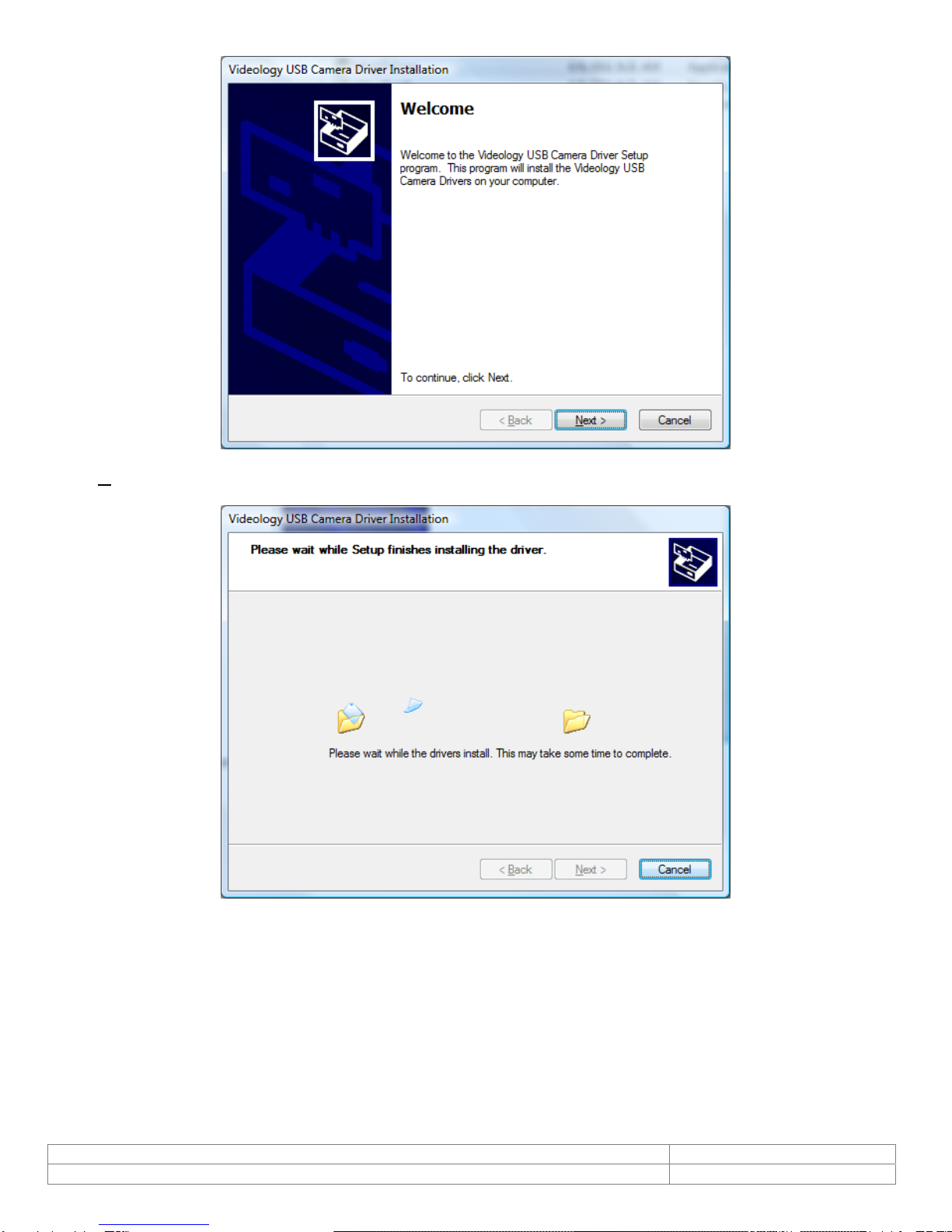

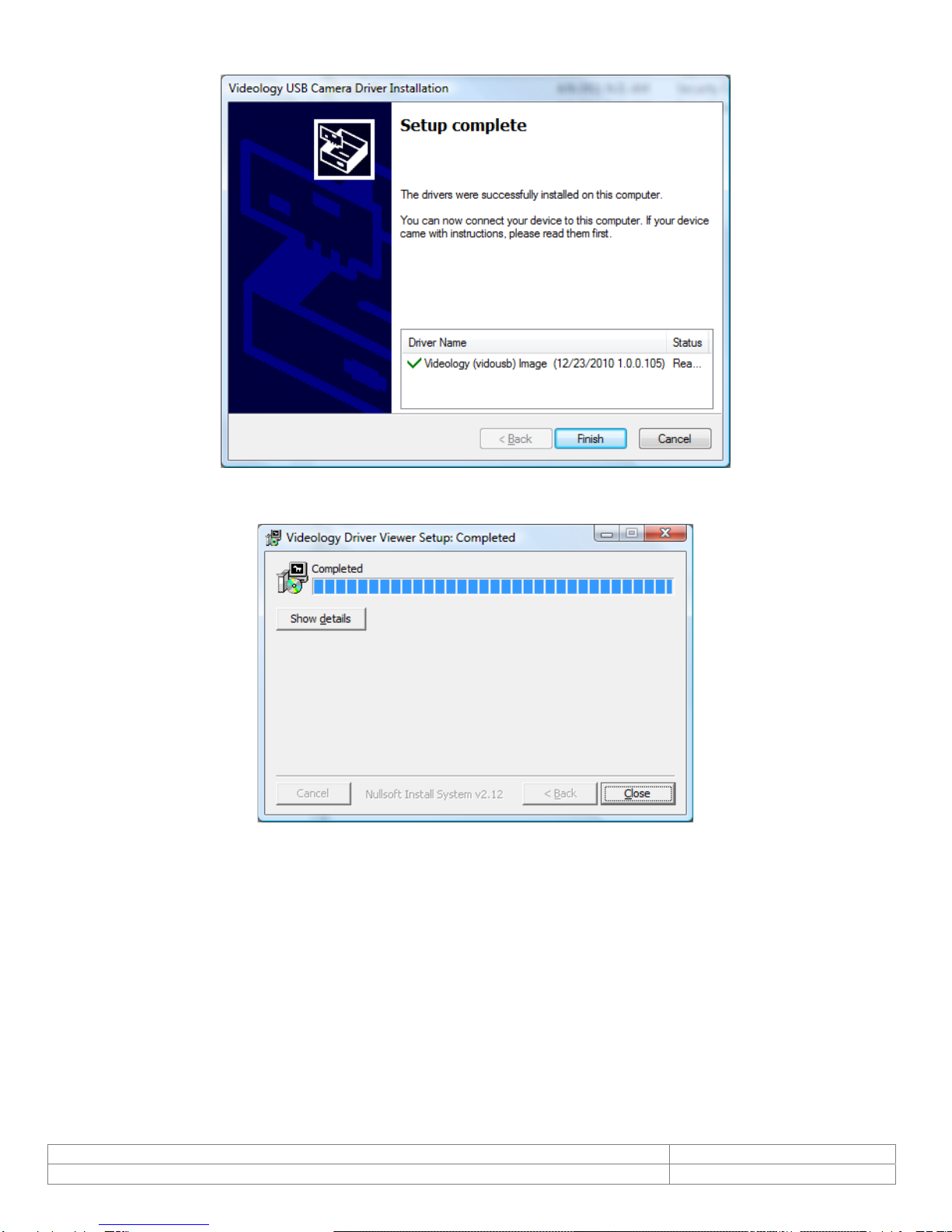

6.1.Viewer Installation (All Models)...........................................................................................................................10
7.TWAIN Installation .............................................................................................................. 14
8.Using the Videology Viewer................................................................................................... 15
8.1.MODELS 2XK1XXUSB-C ..................................................................................................................................16
8.1.1.Using the Control Panel .................................................................................................................................16
8.1.2.Shutter Mode ...............................................................................................................................................17

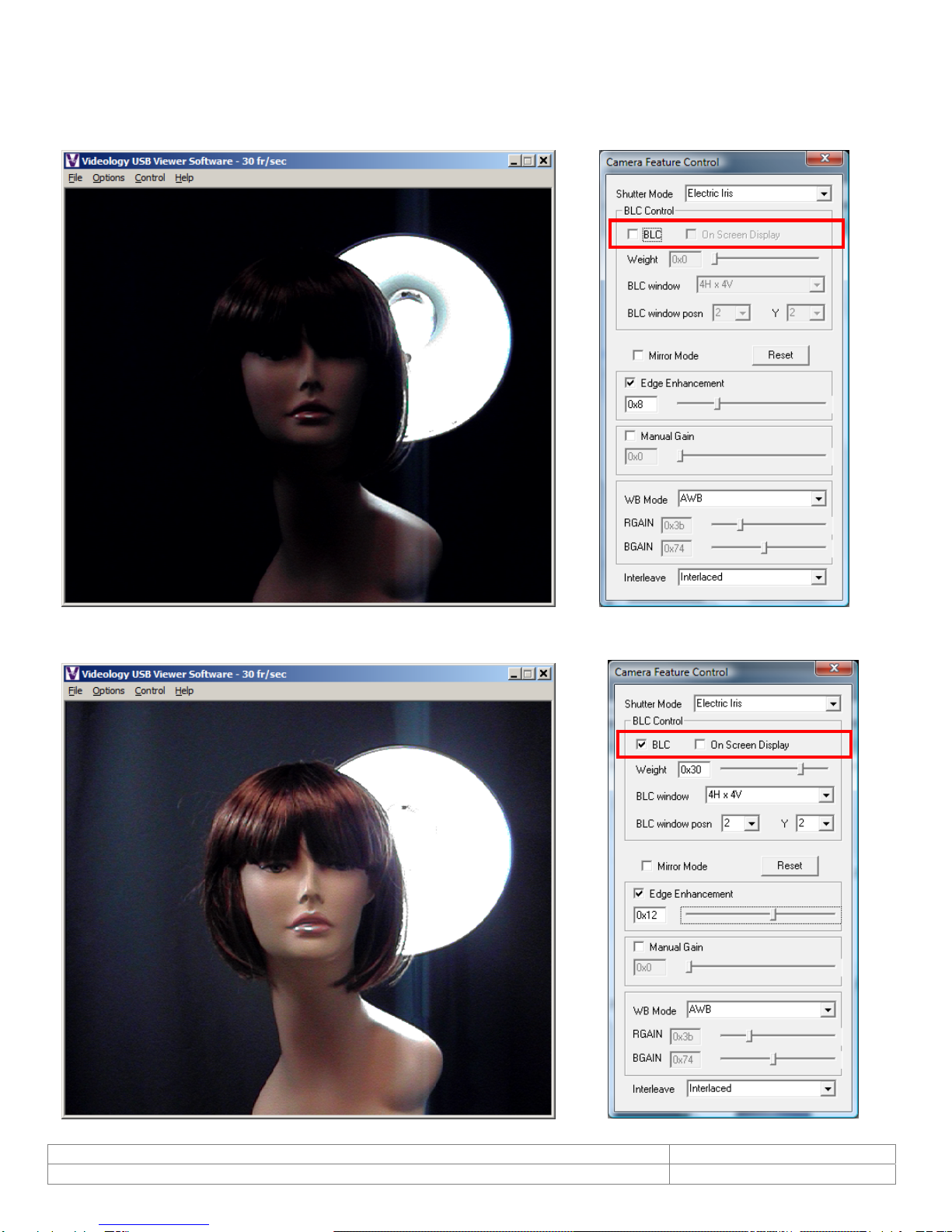

8.1.3.Back Light Compensation (BLC Control)...........................................................................................................17
8.1.4.Mirror Mode .................................................................................................................................................19
8.1.5.Reset ..........................................................................................................................................................19

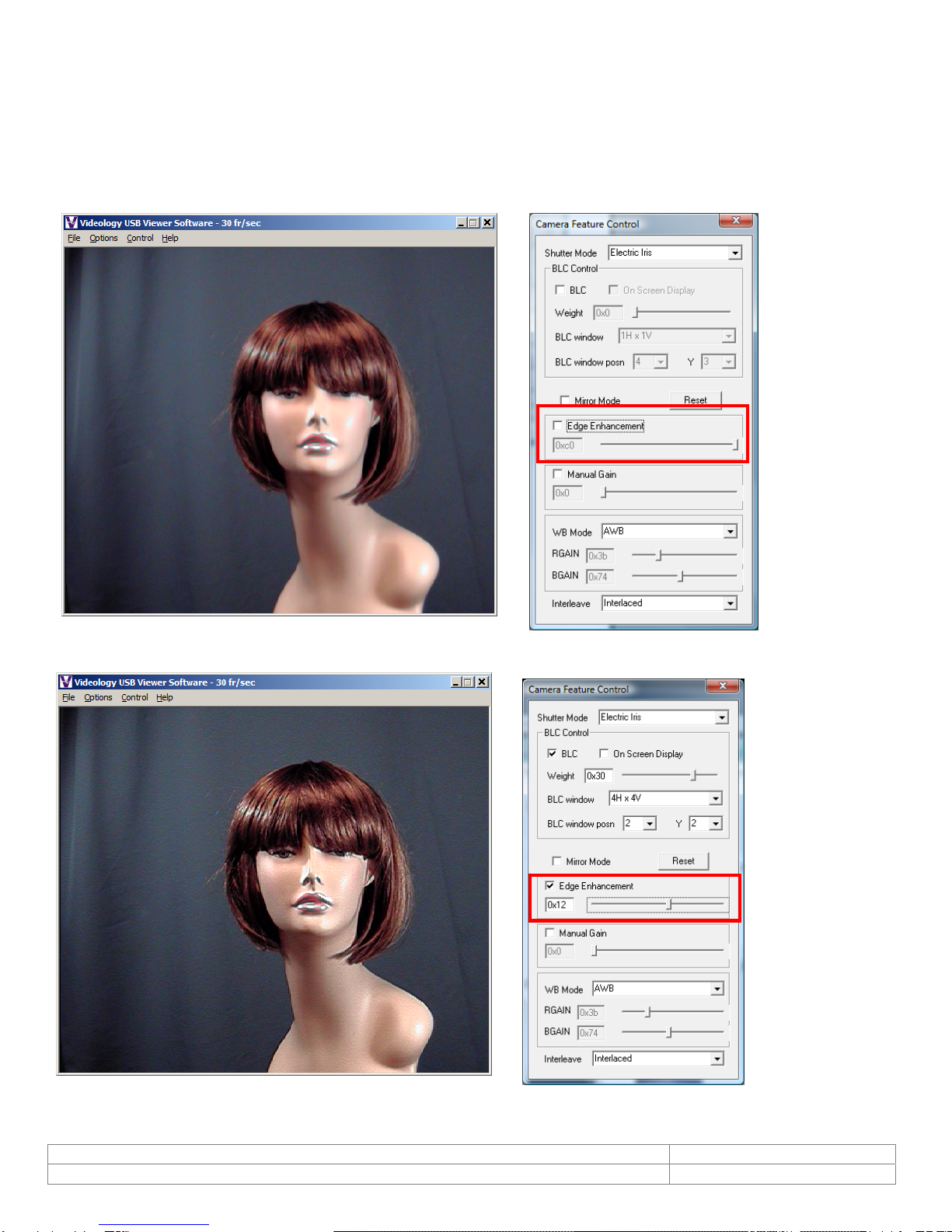

8.1.6.Edge Enhancement .......................................................................................................................................20
8.1.7.Manual Gain.................................................................................................................................................21
8.1.8.White Balance (WB) Mode..............................................................................................................................22
8.1.9.Advanced Options.........................................................................................................................................23
8.1.9.1.Isochronous and Bulk transfer modes. ....................................................................................................23
8.1.10.Still Image Capture (Snap Feature).............................................................................................................24
8.2.MODEL 24B1.3XUSB-C....................................................................................................................................25
8.2.1.Camera Settings...........................................................................................................................................25
8.2.1.1.Video Capture Filter Properties ...............................................................................................................25
8.2.1.2.Gain Control ........................................................................................................................................26
8.2.1.3.Shutter Speed......................................................................................................................................26
8.2.1.4.Mirror and Flip Mode .............................................................................................................................26
8.2.2.Capture Format ............................................................................................................................................27
8.2.2.1.Video Capture Pin Properties..................................................................................................................27
8.2.3.Advanced Options.........................................................................................................................................29
8.2.3.1.Isochronous and Bulk transfer modes. ....................................................................................................29
8.2.3.2.Still Image Capture (Snap Feature).........................................................................................................30
8.2.4.Control........................................................................................................................................................30
8.2.5.Help (About Menu)........................................................................................................................................30
8.3.MODEL 24C1.3XUSB .......................................................................................................................................31
8.3.1.Camera Settings...........................................................................................................................................31
8.3.1.1.Video Capture Filter Properties ...............................................................................................................31
8.3.1.2.24C13 Properties..................................................................................................................................31
8.3.1.3.Parameters..........................................................................................................................................32
8.3.1.3.1.Shutter Speed.................................................................................................................................32
8.3.1.4.Gain Control ........................................................................................................................................32
8.3.1.5.Gamma Correction................................................................................................................................32
8.3.1.6.Mirror and Flip Mode .............................................................................................................................33
8.3.1.7.Mains Freq...........................................................................................................................................33
8.3.1.8.Saturation Slider ..................................................................................................................................33
8.3.1.9.White Balance......................................................................................................................................33
8.3.1.10.Mode ..............................................................................................................................................33
8.3.1.11.Manual White Balance.......................................................................................................................33
8.3.1.12.Edge Enhancement...........................................................................................................................33
8.3.1.13.Back Light Compensation (BLC Control) ..............................................................................................33
8.3.2.Capture Format ............................................................................................................................................34
8.3.2.1.Video Capture Pin Properties..................................................................................................................34
8.3.3.24C13 Zoom/Pan Properties...........................................................................................................................36
8.3.4.Advanced Options.........................................................................................................................................37
8.3.4.1.Isochronous and Bulk transfer modes. ....................................................................................................37
8.3.5.Restart Graph...............................................................................................................................................38
8.3.6.Factory Reset ...............................................................................................................................................38
8.3.7.Still Image Capture (Snap Feature).................................................................................................................39
8.3.8.Control........................................................................................................................................................39

Doc # INS-07019 rev A Issue Date: 07/22/2011
Revision: A Preliminary Page 4 of 42
8.3.9.Help (About Menu)........................................................................................................................................39
9.ALL MODELS - Using the TWAIN Interface............................................................................... 40
10.Troubleshooting............................................................................................................... 40
10.1.Focus Issues.....................................................................................................................................................40
10.2.Noisy or Grainy Video........................................................................................................................................40
10.3.Poor Color Reproduction ....................................................................................................................................40
10.4.Dark faces........................................................................................................................................................40
10.5.Reflections .......................................................................................................................................................41
10.6.Video display shows a green or black color...........................................................................................................41
10.7.Video display appears inoperable or exhibits a slow frame rate ...............................................................................41
10.8.An incomplete or scrambled video display on USB 1.1 port.....................................................................................41
10.9.Cannot see video ..............................................................................................................................................41
11.Contact Information ......................................................................................................... 42

Doc # INS-07019 rev A Issue Date: 07/22/2011
Revision: A Preliminary Page 5 of 42
1. Document History
2. Overview
2.1. The Videology USB Camera Family
Videology USB Cameras provide a quick and easy means of displaying and capturing high quality video
and images on any USB 2.0 equipped desktop or laptop computer running a supported Microsoft®OS.
Designed with flexibility in mind, each camera model has its own distinct advantage, whether speed,
resolution, image quality, sensitivity or price. Because they are USB based, there is no need for a frame
grabber. Instead, a single USB cable provides power, video frames, control and data transfer.
All cameras share the same simple, powerful API allowing easy migration from one camera to
another.
SDKs are available for OEMs (for an additional fee).
Housings: Mechanical design options can be quoted for OEMs
This fixed lens camera family can utilize any CS mount lens. The lens may be changed out for a more
optimal focal length. Varifocal lenses allow a wider range of focal lengths within one lens.
Note: Use a Megapixel lens with the Megapixel 24C7.38USB camera in order to maintain the full
resolution.
2.2. Contents
This camera package has two CDs in it.
1. SFT-07019-WHQL (WDM device drivers are Microsoft®digitally certified)
oor SFT-07019 (Videology Viewer software and USB drivers)
2. SFT-10011 (TWAIN data source)
To check for updated software, please go to www.videologyinc.com/download.htm
The Videology viewer (SFT-07019-WHQL) can operate this camera family without a need for any third
party software. It will auto recognize which camera is plugged in and show the corresponding controls and
features for that camera.
Note: All cameras stream video and have a still capture mode.
Many users wish to utilize a Photo ID card software management platform. In this case a separate TWAIN
driver is needed (SFT-10011). ALL third party software packages allow a camera to be recognized thru
their TWAIN (or Scanner) drop down camera source choices. This TWAIN interface is recommended as the
primary method to integrate with the Videology camera.
If the software photo ID management program has a standards based DirectShow compliant interface, the
camera will work with that interface. However, we have found many third party software platforms do not
conform to DirectShow on all operating systems.
Revision Issue Date Reason CN#
Rev A 07-22-11 Manual updated for all camera models.
For software SFT-07019 rev 1.0.110, SFT-07019-WHQL rev 1.0.105.
Added TWAIN Instructions - SFT 10011 rev 2.1.11
11-0075

Doc # INS-07019 rev A Issue Date: 07/22/2011
Revision: A Preliminary Page 6 of 42
3. Features
3.1. 24C7.38USB
USB, Megapixel Color Housed Camera
1.3 megapixel progressive scan sensor
7.5fps at full 1280 x 1024 resolution uncompressed
Still image capture with streaming video
USB 2.0 bus provides power and camera control
Software Development Kit available
Software
oWDM device drivers digitally signed by Microsoft under Windows XP, Vista and
Windows 7 (SFT-07019-WHQL)
oDirectX/DirectShow compliant
oTWAIN compliant
FIPS 201 compliance (in conjunction with appropriate software)
Linux driver (in development)
3.2. 20/21K758USB-C
USB, High Resolution Color Housed Camera
CCD sensor provides optimal image quality
Still image capture with streaming video
USB 2.0 bus provides power and camera control
Software Development Kit available
Software
oWDM device drivers digitally signed by Microsoft under Windows XP, Vista and
Windows 7 (SFT-07019-WHQL)
oDirectX/DirectShow compliant
oTWAIN compliant
FIPS 201 compliance (in conjunction with appropriate software)
Linux driver (in development)
3.3. 20/21K758USB-SYS
USB, High Resolution Color Camera for Photo Identity Systems
CCD sensor provides optimal image quality
Still image capture with streaming video
Flexible gooseneck arm allows for easy camera control
Small footprint saves table space
Megapixel and flash options
USB 2.0 bus provides power and camera control
Software Development Kit available
Software
oWDM device drivers digitally signed by Microsoft under Windows XP, Vista and
Windows 7 (SFT-07019-WHQL)
oDirectX/DirectShow compliant
oTWAIN compliant
FIPS 201 compliance (in conjunction with appropriate software)
Linux driver (in development)

Doc # INS-07019 rev A Issue Date: 07/22/2011
Revision: A Preliminary Page 7 of 42
3.4. 20/21K1XXUSB-C
USB Board Cameras
20K13XUSB-C B&W, High Resolution USB 2.0 Board Camera
20K14XUSB-C Color, Standard Resolution USB 2.0 Board Camera
20K15XUSB-C Color, High Resolution USB 2.0 Board Camera
All-Digital Design Uses Camera Board’s Digital (D1) Output For Input To USB Board
CCD Sensor Provides Optimal Image Quality
USB 2.0 Bus Provides Power To Camera
Camera Control Over USB
Software
oMicrosoft digital certification for WDM device drivers are available under
Windows XP, Vista and 7 (SFT-07019-WHQL)
oDirectShow compliant
oTWAIN compliant (requires Videology’s TWAIN data source for Windows Vista
and 7 operating systems)
1.1. 24B1.3XUSB-C
CMOS, USB 2.0, 1.3 Megapixel Sensor, B&W Single Board Camera
Progressive Scan, 1.3 Megapixel CMOS Sensor (Square Pixels)
Sensor Is Optically Centered Within Lens Mount Holes
Streaming Video or Single Frame Capture via Hardware/Software
Triggerable Instantaneous Snap Shots
24fps At Full 1280 x 1024 Resolution Un-compressed Video
Simplified Cabling - Video, Power & Full Camera Control Over A Single USB Cable
Extended Integration Time (>0.5 sec.)
WDM Driver, DirectX Compatible
Support For Windows 2000, XP, & Vista Operating Systems, Linux (Coming Soon)
Complete SDK Available
Microsoft Certification in Process
1.1. 24C1.3XUSB
CMOS, USB 2.0, 1.3 Megapixel Sensor, Color Board Camera
Progressive Scan, 1.3 Megapixel Sensor
7.5fps At Full 1280 x 1024 Resolution uncompressed
Simplified Cabling - Video, Power & Full Camera Control Over A Single USB Cable
WDM Driver, TWAIN, DirectX Compatible
Support For Windows XP & Windows Vista Operating Systems
Complete SDK Available
I²C Control Available
1.1. 60V002-C
USB Digitizer Board Inputs (multiplexed): 1x composite video, 1x S-video
Video formats: NTSC/EIA, PAL/CCIR
Output: USB 2.0, uncompressed image data streams
Max resolution (NTSC/ EIA): 704 x 480 at 30Hz
Max resolution (PAL/CCIR): 768 x 576 at 25Hz
Software
oMicrosoft digital certification for WDM device drivers are available under
Windows XP, Vista and 7 (SFT-07019-WHQL)
oDirectShow compliant
oTWAIN compliant (requires Videology’s TWAIN data source for Windows Vista
and 7 operating systems)

Doc # INS-07019 rev A Issue Date: 07/22/2011
Revision: A Preliminary Page 8 of 42
4. Mounting Method
The cameras (20K758USB and 24C7.38USB)are fitted with a ¼-twenty screw thread so that any
common tripod can be used.
The 20K758USB-SYS has a unique stand
that integrates the camera with a stand that
can withstand a 40 degree tilt and still
stabilize upright. The camera cannot
dissemble from the stand, as it is totally
integrated with cabling that threads within
the assembly.
The cable neatly emerges from the base of
the stand (eliminating the potential to
entwine around a tripod’s legs or to pull the
camera down if accidentally twisted).
Tabs are provided to attach the base of the
stand to a table, thereby fully immobilizing
the stand.
20K758USB-SYS
exploded assembly
¼-twent
y
mount

Doc # INS-07019 rev A Issue Date: 07/22/2011
Revision: A Preliminary Page 9 of 42
5. Minimum System Requirements
A PC with USB 2.0 compatible port.
MAC is not supported.
USB 1.1 is not supported.
Preview only
PIII- 1.1GHz or above
128MB of RAM (256MB preferred)
Windows XP/2000 for USB2.0
DirectX/DirectShow 9.0c or later
Windows XP Service Pack 1 (Service Pack 2 Preferred) Windows 2000 Service Pack 4
Preview and capture at the same time
Full D1 MPEG 2 - P4 – 2.4GHz or above
640 x 480 MPEG 2 - P4 – 2.0GHz or above
352 x 288 MPEG1 - P4 – 1.5GHz or above
Hard Disk - 5400RPM or above (7200RPM preferred)
128MB of RAM (256MB preferred)
Windows XP/2000 for USB2.0
DirectX/DirectShow 9.0c or later
Windows XP Service Pack 1 (Service Pack 2 Preferred) Windows 2000 Service Pack 4
Verify system has the latest USB 2.0 host driver from Microsoft® only.
Verify that USB host controller chipset is Microsoft certified.
This product is not guaranteed to operate with a USB 2.0 host driver or application from OWC
(Other World Computing).

Doc # INS-07019 rev A Issue Date: 07/22/2011
Revision: A Preliminary Page 10 of 42
6. Viewer and USB Driver Installation
Note: SFT-07019-WHQL WDM device drivers are Microsoft®digitally certified
Please install the software first.
Do not connect the camera to the computer before installing the software.
6.1. Viewer Installation (All Models)
Insert the CD labeled USB Viewer Software (SFT-07019 or SFT-07019-WHQL). Click the executable file
named SetupVid.exe.
Videology's viewer software automatically checks which operating system is running and loads the
appropriate drivers (32bit or 64bit).
The following screen will appear:
If you wish to install the viewer in a location other than the default directories, click on the Browse button
and specify the desired location, otherwise click on the Install Button and the following screens will
appear:
