Vidy V-IRN3HD-B User manual

V-IRN3HD-B Color Camera
Weatherproof IR Color Camera
Specification
Packing List
No Name Model Number
1. Weatherproof IR Color Camera VG-AFIR3H-B 1
2. User Guide VG-AFIR3H-B 1
Franchiser：
Notes:Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
Model V-IRN3HD-B
Pick up Element 1/3" SONY 1.3Megapixel CMOS Sensor
Effective Picture Elements
(H×V) 1305(H) X1049(V)
Resolution 720P
Minimum Illumination 0.01Lux /F1.2
S/N Ratio More than 50dB
Scanning System 2:1 interface
Synchronous System Internal, Negative sync.
Auto Electronic Shutter NTSC: 1/60s~1/100, 000s, PAL: 1/50s~1/100,000s
Gama Characteristic 0.45
IR Distance 40 Meters (with ￠5X42PCS Infrared LED)
IR Status Under 10Lux by CDS
IR Power On CDS AUTO Control
Video Output 1Vpp, 75Ω
Auto Gain Control Auto
Power/Current DC12V (+/-10%)/500mA
Lens 2.8-12mm Manual Zoom Lens
Dimension (mm) 291(W) x 90(H) x 93(D)
Weight (g) 1600
Storage Temperature -30~+60℃ RH95% MAX
Operating Temperature -10~+50℃ RH95% MAX

INTRODUCTION
Congratulations on your purchase of this product.
This User Guide suits V-IRN3HD-B product. We adopt the
latest CMOS technical of sensor and driver. The most at-
tractive characteristics are small and easy hidden, suits
the elevator and corridor. In addition, it owns the charac-
ters of high definition and stability, strong anti-jamming,
rich and real color. Fixing and using this model are con-
venient too. It is very good for you to apply to your CCTV
system.
Please read this instruction manual carefully to en-
sure proper use of the product.

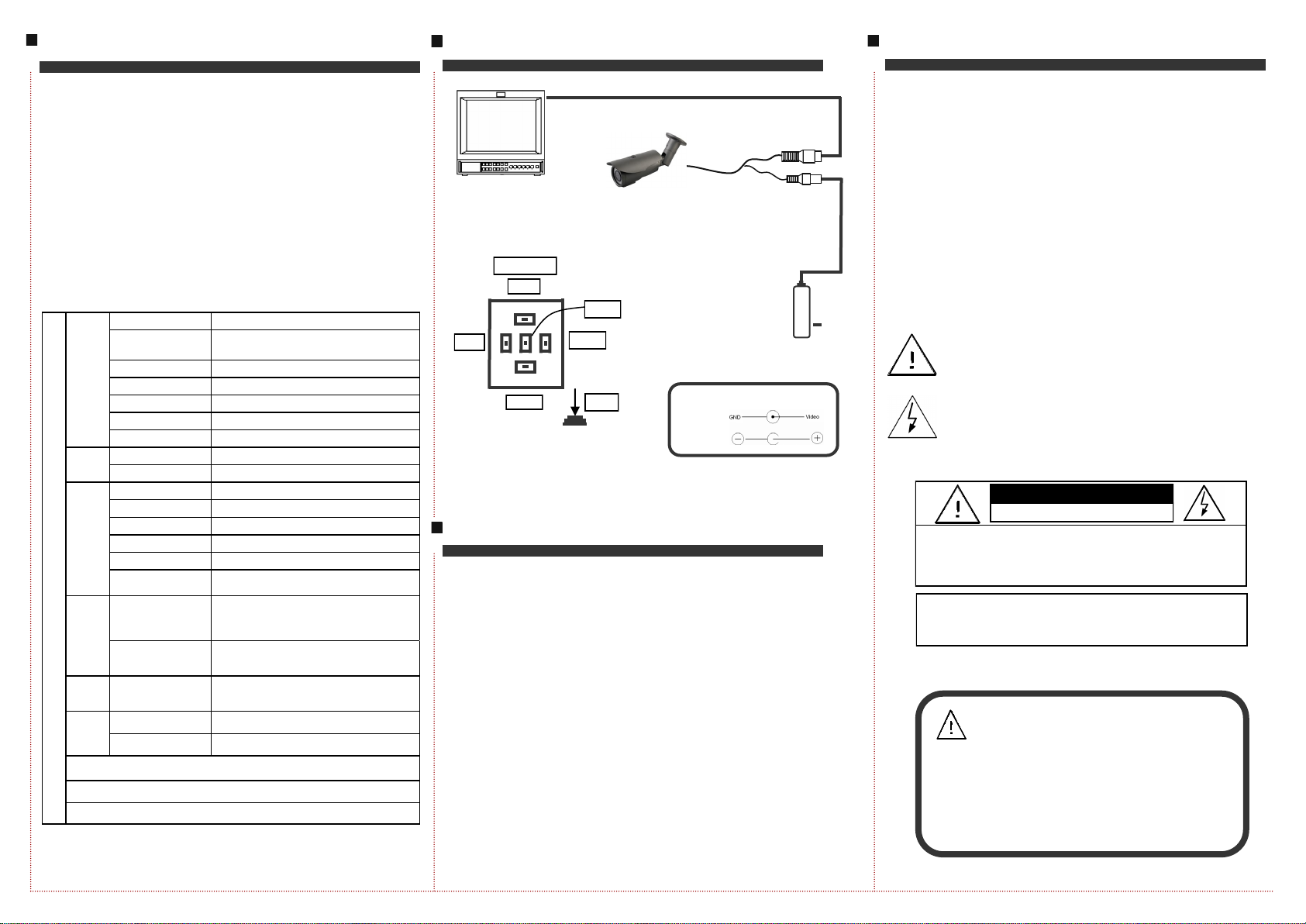

CONNECTING
BRIEF OF PRODUCT
* Sensor (CMOS)
Adopt SONY 1/3"CMOS Sensor.
* Auto Gain Control (AGC)
Built-in auto gain control (AGC) circuit. The color camera
can get high definition picture in low Lux condition.
* Scanning Mode
NTSC or PAL mode.
*Water Resistance
IP66
* OSD SETTING
DC12V Power Supply
Monitor
V-IRN3HD-B
TROUBLE AND SOLUTION
Link wire rule：
Power
Video
Note:
● Please note the camera’s operating temperature and its using
environment requirement. Avoid using the camera at too high
or too low temperatures. The operating temperature is -
30~+60℃. (Recommendatory operating temperature is -
10~+50℃.)
● Never make the camera face the sun or bright object. Other-
wise, it will damage the CMOS.
● Do not mount the camera near by the radiator or heater.
1. No Picture after providing power
. May be the power supply voltage abnormity, please check the power
supply voltage and pole whether exactitude.
. Please check all the connecting cable and monitors whether be connected
correctly or not.
2. The picture level direction have flowing interference ripples
. May be caused by the power supply AC ripples, it need filter the wave of the
power supply.
. Check the monitor and peripheral equipments used.
3. The picture background color changes continuously
. The fluorescent lamp’s electromagnetic field cause color roll. This is proper
phenomenon of the cameras.
. Reduce the fluorescent lamp numbers or increase the distance between the
camera and the fluorescent lamps can improve it.
. Use power supply external sync. camera can solve it.
4. The picture smear too mass
. The power supply’s voltage unstable.
. Connecting cables not connect correctly or have high impedance.
The symbol is intended to alert the user to the presence of
The symbol is intended to alert the user to the presence of
important operating and maintenance (servicing)
Instructions in the literature accompanying the appliance.
uninsulated ‘dangerous voltage’ within the product’s
enclosure that may be of sufficient Magnitude to consti-
a risk of electric shock to persons.
Video
DC12V
CAUTION:
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK
DO NOT REMOVE COVER OR BACK NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
RISK OF ELECTRIC. DO NOT OPEN
CAUTION: TO PREVENT ELECTRIC SHOCKS AND RISK OF
FIRE HAZARDS, DO NOT USE OTHER THAN
SPECIFIED POWER SOURCE.
OSD
SET
3D-NR ON/OFF
AE MODE GLOBAL/CENTER/CENTERWEIGHT/BLACK
LIGHT/FRONT LIGHT/DISTINGUISH
IMAGE ENHANCE SHARPNESS/CONTRAST/SATURATION
MIRROR ON/OFF
FLIP ON/OFF
BRIGHTNESS 0.10.20......250
ZOOM IN 50. 60. 70. 80. 90. 100
DAY&NI
GHT
AUTO
IR-CUT
WB
AWB-PRO
AWB-TEMPORAL
AWB-AI
AWB-SZ
AWB-GW
AWB-CCT
ZONE
MASK-
ING
COLOR MOSAIC/WHITE/YELLOW/CYAN/GREEN/
MAGENTA/RED/BLUE/BLACK
AREA NO.0 - AREA
NO.7
DIREC-
TION
AREA NO.0 - AREA
NO.3
ENGLISH
LAN-
GUAGE CHINESE
LOAD DEFAULT
SOFT VERION
SAVE&EXIT
MENU
UP
DOWN
RIGHT
LEFT
PRESS
KEY BOARD
