Vikträ LAKER SHED 40 User manual

× 150
× 70
× 15
× 850
× 120
× 70
4×405×70
4×506×1401,4×40
M8×70
Ø 3 mm
Ø 4 mm
Ø 5 mm
Ø 8 mm
1/35
LAKER SHED 40
PREPARE THE GROUND, UNWRAP THE PACKAGE,
LAY OUT THE COMPONENTS, FIND THE TOOLS.
2/35
LAKER SHED 40
MAKE SURE THAT THE FOUNDATION
IS INSTALLED ON A LEVEL SURFACE.
CHECKING ALL DIRECTIONS,
INCLUDING CORNER TO CORNER. 2%
LAY OUT THE FOUNDATION BEAMS
AND SQUARE IT BY MEASURING
FROM CORNER TO CORNER. AC
DB
AB=CD
0°
IFB2
IFB5
IFB3 IFB1
IFB4
× 19
6×140Ø 5 mm
3/35
LAKER SHED 40
ATTACH FOUNDATION BEAMS
WITH SCREWS.
3%
× 13
6×140
Ø 4 mm
Ø 5 mm
× 3
5×70
4/35
LAKER SHED 40
LAY OUT THE BOTTOM LOGS,
ATTACH TO THE FOUNDATION.
THE WALL LOGS WILL HANG OVER
THE FOUNDATION BEAMS BY
APPROXIMATELY 5MM. THIS OVERHANG
IS DESIGNED AS A RAIN DRIP. 4%
6×140
B LG-1
2 BL-1
A LG-2
3 BL-1
5×70
5mm
C LG-1
1 BL-1
Ø 4 mm
× 3
6×140Ø 5 mm
× 6
5×70
5/35
LAKER SHED 40
5%
ATTACH THE FIRST ROW OF
WALL LOGS INTO THE BOTTOM
LOGS WITH SCREWS.
3 LG-12
6×140
5×70
2 LG-2 1 LG-10
6/35
LAKER SHED 40
7%
AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP EACH
WALL LOG IN PLACE USING A HAMMER AND THE
HITBLOCK PROVIDED, TO TIGHTEN THE LOGS.
HITBLOCK
7/35
LAKER SHED 40
8%
SLIDE THE DOOR IN,
ATTACH THE HANDLE.
CD4R 4 LOGS IN PLACE
8/35
LAKER SHED 40
17%
DON`T FORGET TO
TIGHTEN THE LOGS AFTER
EVERY 3-4 ROWS.
A LG-1
A LG-1
A LG-3
3 LG-10
HITBLOCK
9/35
LAKER SHED 40
SLIDE THE WINDOWS IN,
ATTACH THE HANDLES.
18%
CDW1
10/35
LAKER SHED 40
32%
C LG-3
C LG-2
17 LOGS IN PLACE
1 LG-14
2 LG-4
1 LG-12 1 LG-11
2 LG-5
A LG-4
B LG-2
× 8
6×140Ø 5 mm
11/35
LAKER SHED 40
33%
INSTALL THE CEILING BEAMS AND
ATTACH THEM WITH SCREWS.
CB1
Ø 4 mm
× 12
5×70
12/35
LAKER SHED 40
34%
INSTALL THE BEAMS AND
ATTACH WITH SCREWS.
31CM
CB2
× 3
6×140Ø 5 mm
13/35
LAKER SHED 40
36%
ATTACH THE TOP LOG
WITH LONG SCREWS.
C LG-4
2 LG-3
3 LG-9
1 LG-13
B LG-3
A TL-1
3 LG-11
× 5
6×140Ø 5 mm
14/35
LAKER SHED 40
40%
INSTALL THE GABLES WITH LONG SCREWS
TO THE WALL LOGS ON THE FRONT AND
REAR WALLS.
C TL-1
GABLE
GABLE
1 LG-9
2 LG-1
2 LG-6
B TL-1
× 9
6×140Ø 5 mm
15/35
LAKER SHED 40
41%
INSTALL THE ROOF PURLINS AND
ATTACH THEM WITH SCREWS.
RFR
RFB1
RFB2
× 14
6×140Ø 5 mm
16/35
LAKER SHED 40
42%
ATTACH THE ROOF BEAMS
WITH SCREWS.
RBM2
RBM1
RBM1
RBM4
× 405
4×50
17/35
LAKER SHED 40
PLACE THE FIRST ROOFBOARD FLUSH WITH
THE END OF THE PURLINS AND ATTACH
WITH SCREWS.
SAW THE LAST BOARD
TO MAKE IT FIT. 43%
RB2
RB3
RB1
× 44
4×40
18/35
LAKER SHED 40
72%
FOR THE FASCIA TRIMS INSERT
SCREWS AFTER EVERY 0,5 METERS.
RR1
RR2
× 44
4×40Ø 3 mm
19/35
LAKER SHED 40
75%
EAVES EDGES GO ON TOP
OF THE ROOFING*.
*(NOT INCLUDED)
RF
EE
×4
4×40Ø 3 mm
20/35
LAKER SHED 40
76%
ATTACH ROMBS WITH SCREWS.
ROMB

Popular Garden House manuals by other brands

Luoman Lillevilla Liekune Assembly and Maintenance

Luoman

Luoman Lillevilla Liekune Assembly and Maintenance

GARDY SHELTER 22196 Assembly instructions

GARDY SHELTER

GARDY SHELTER 22196 Assembly instructions

Sentry Buildings the Lakewood 12' x 18' Assembly Book

Sentry Buildings

Sentry Buildings the Lakewood 12' x 18' Assembly Book

WoodLife Garden 5X4M installation instructions

WoodLife Garden

WoodLife Garden 5X4M installation instructions

Palmako FR44-4738 installation manual

Palmako

Palmako FR44-4738 installation manual

ALLAN'S Christie Junior Workshop Instructions for assembly

ALLAN'S

ALLAN'S Christie Junior Workshop Instructions for assembly

Palmako 108615 installation manual

Palmako

Palmako 108615 installation manual

Luoman Lillevilla Puula Assembly and Maintenance

Luoman

Luoman Lillevilla Puula Assembly and Maintenance

Biohort HighLine Assembly manual

Biohort

Biohort HighLine Assembly manual

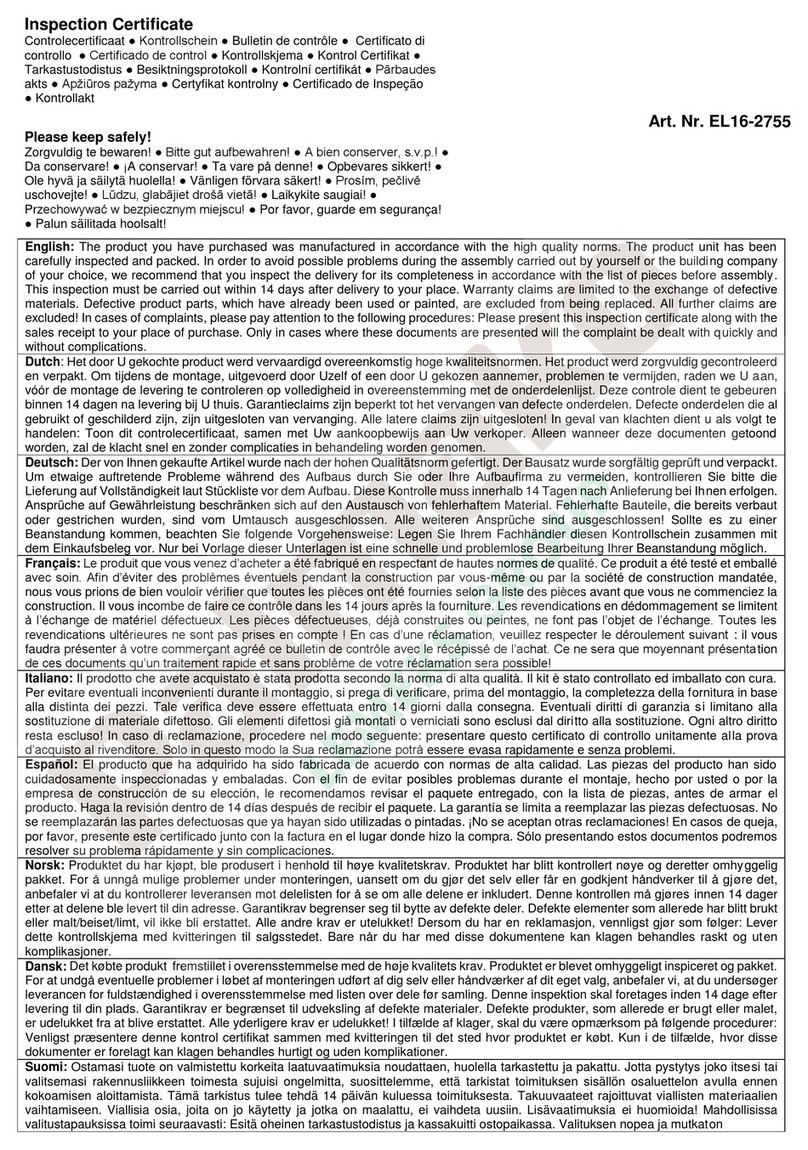

Lemeks Palmako EL 16-2755 installation manual

Lemeks

Lemeks Palmako EL 16-2755 installation manual

Mercia Garden Products 03WES1208-V2 General instructions

Mercia Garden Products

Mercia Garden Products 03WES1208-V2 General instructions

Décor et Jardin 76535SZ00 Assembly Notice

Décor et Jardin

Décor et Jardin 76535SZ00 Assembly Notice

Luoman Lillevilla 442 Assembly and Maintenance

Luoman

Luoman Lillevilla 442 Assembly and Maintenance

Mercia Garden Products OSB APEX General instructions

Mercia Garden Products

Mercia Garden Products OSB APEX General instructions

Luoman Lillevilla 100 C-4 Assembly and Maintenance

Luoman

Luoman Lillevilla 100 C-4 Assembly and Maintenance

Lemeks Palmako Irene FRT44-5357-2 installation manual

Lemeks

Lemeks Palmako Irene FRT44-5357-2 installation manual

forest-style MARIA 002713 Building instructions

forest-style

forest-style MARIA 002713 Building instructions

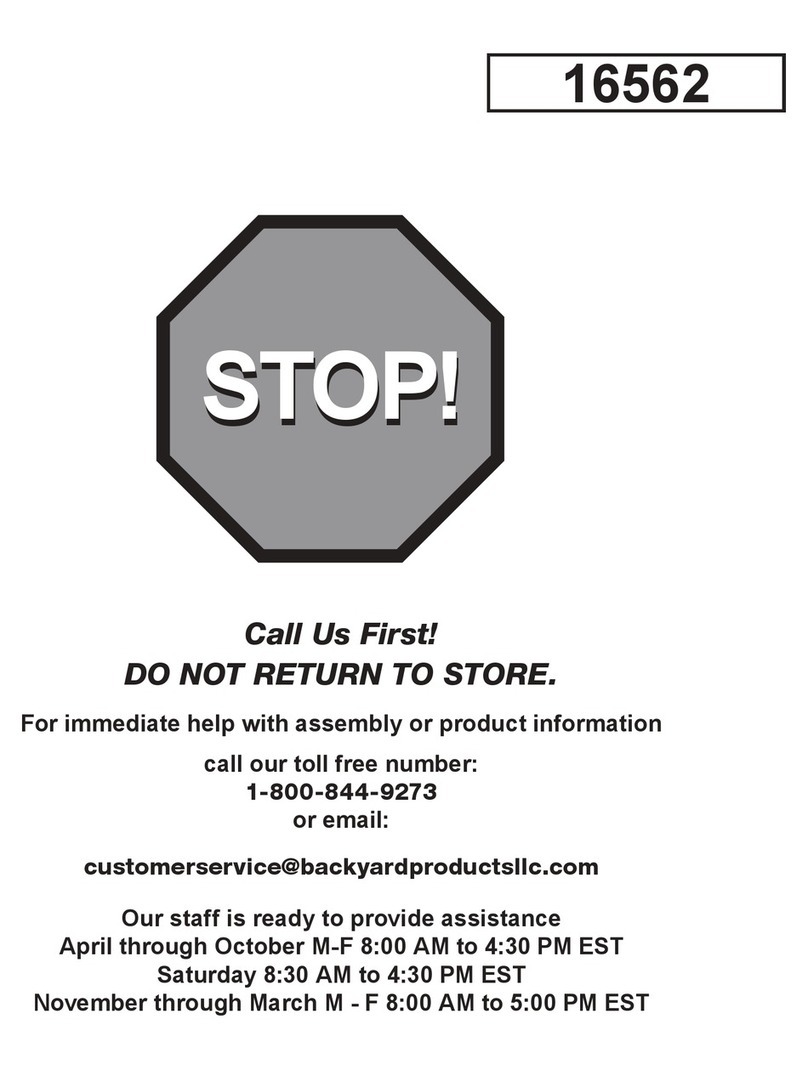

Yardline OAKRIDGE 8 x 12 Assembly manual
