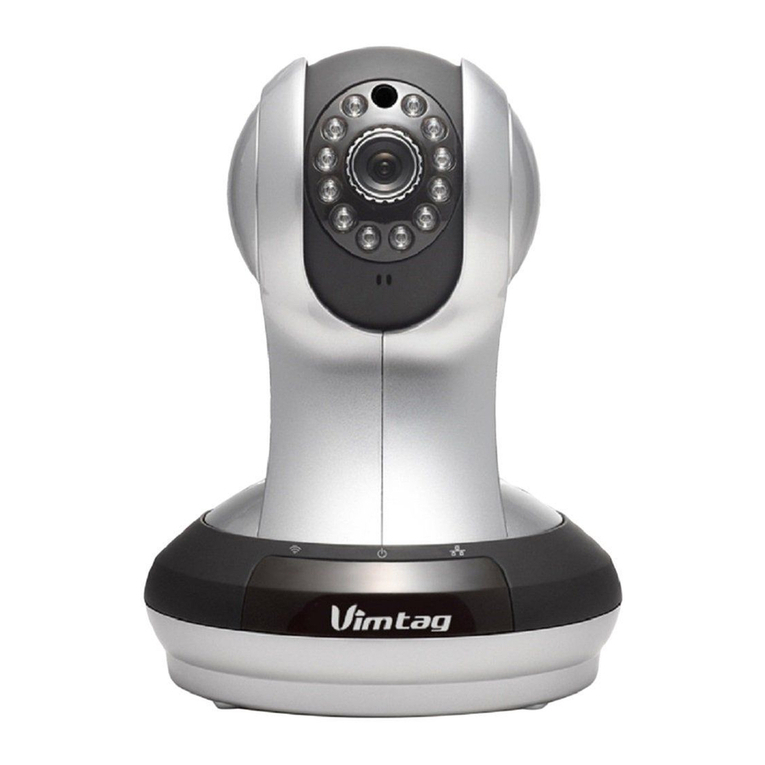

Vimtag VT-361 User manual

Cloud Camera User Manual
1
I
IP
P
C
Ca
am
me
er
ra
a
(
(H
HD
D
C
Cl
lo
ou
ud
d
C
Ca
am
me
er
ra
a)
)
Manual
Note: In order to protect your privacy, please modify machine factory password after landing, please
properly keep the username and password.
Manual version:
version
date
description
V1.0
2013/5/30
/
V1.1
2013/11/27
Adds to the account number and the admin password of
single camera and RESET reset indication

Cloud Camera User Manual
2
1. Product overview
1.1. Packing list
·One Cloud camera
·A piece of Ethernet cable
·A 5 v power adapter
·A piece of quick install guide
·A set of stent and installation kit
·A piece of wireless antenna
·A piece of warranty card
Note: Using the product un-rated voltage power supply, may result in equipment damage, and do not enjoy the
warranty.
If there are omissions as above items, please contact the dealer.
1.2. System Requirements
Computer
·Equipped with Microsoft Windows ® 7, Vista ®, XP ®, Mac OS or Linux computer
·CPU clocked at 1.3G or higher, at least 128MB of RAM
·Internet Explorer 7 or over, Firefox 3.5 or later, Safari 4 and Chrome 8.0 or over.
·Already have 10/100 Ethernet or WIFI wireless network
Phone:
·IOS System Requirements ios5.0 or above
·Android System Requirements android2.1 or above

Cloud Camera User Manual
3
1.3.Functional features.
·Supports H. 264 stream, suitable for local, and cross-platform Internet access;
·Using CMOS sensor, 1280 * 720, 640 * 640 * 360, 640, 160 * 90 real-time video coding;
·Support smart phone watching realtime video, support Android smartphones/IPHONE/IPAD device, ensure
smooth image. (25 frames image transmission, can watch 720 p HD images);
·P2P technology No configuration plug and play (don't need to do port mapping, DNS, IP address Settings)
·Using the intelligence transmission technology (adaptive bandwidth, dynamic code rate adjustment, voice
priority, jitter buffer).
·Support two-way voice intercom, Adopt the telecommunication level of signal processing, ( echo cancellation,
noise suppression, Voice balance, Comfort noise sound and silence suppressionund )
·Support remote firmware upgrade.
·Support multiple users access to equipment management
·QR code, each machine has a unique ID and password.
·Financial level encryption protection (using RSA/DH/DES, MD5, SHA/CRC/BASE64 encryption algorithm).
·Support cloud storage service.
·Support alarm linkage/push (alarm linkage photograph/videorecording and external output alarm linkage, the
client, SMS alarm, etc.)
·Support Motion Detenction and external alarm detector, the implementation of the comprehensive protection;
·Support multiple types of browsers to watch video, such as IE/Firefox/Safari, Chrome, etc;
·Support for Flash Player, Quicktime, Realplayer, VLC, Mplayer players such as direct access to the camera.
·Support Pan-Tilt, level of 320 °, 120 °rotation;
·Built-in IR LED, 10 meters of night vision, Whole day monitoring; Support the IRCUT, day/night switch filter,
unbiased color images
·The built-in wifi module, flexible form a wireless monitoring environment;
·Maximum support 32 gb SD card storage, can achieve store photos and videos;
·Support POE power supply,meet the IEEE 802.3 standard.(optional)

Cloud Camera User Manual
4
1.4.Hardware View Overview
Note: Long press the reset button for 5 seconds, the STATE2 lights will be kept flashing, the successful
reduction,restore factory Settings.

Cloud Camera User Manual
5
2. installation
2.1. hardware interface connection diagram:
I/O alarm input (G, IN): the corresponding alarm input port connected to external alarm probe (such as
magnetometer, infrared, smoke feeling alarm probe) must be an alarm probe normally open type. When alarm
occurs when the switch is closed, the probe, triggering the network video alarm, and according to the user setting
function of alarm; the "G" interface connected with an external probe public end, "signal end IN" interface
connected with an external probe.
I/O alarm output (1A, 1B): 1) the corresponding alarm output port is connected with the external alarm equipment
(such as the alarm loudspeaker, sound and light alarm equipment, alarm equipment required) is normally open
type, when alarm occurs, the user sets the alarm output port I/O, camera alarm outlet switch is closed, the trigger
external alarm equipment; 2) alarm output is just a role switch, no level. The user protection, no alarm, 1A, 1B
two interface is "off" state, when the alarm output, 1A, 1B two interface will be "closed" state. Power two
interface alarm output alarm device can control the on / off to achieve the alarm.
Note: the alarm output a maximum voltage and current with 120VAC/1Aor 24V DC/1A.
2.2.Wall or ceiling installation:
A) Choose the suitable wall or ceiling as installation location.
The mounting bracket has two circular mounting holes.
Equipped with a screw and by a suitable tool, the mounting bracket
Fixed to the wall or ceiling.

Cloud Camera User Manual
6
B) Put the camera on the tray of holder, camera Screw thread hole
Aim at bracket screws on the tray, tighten the screws by hand
3. Landing
3.1.Cameras landing:
Refer to "Quick Installation Guide."
4. Parameters
Specification
IPC1
Image sensor
sensor
1/4" CMOS sensor
Resolution
1280 * 720 pixels (1,000,000 pixels)
Lens
f: 3.6mm, F:2.0
Minimum
illumination
0.1Lux
Perspective
60 degrees
Audio
frequency
Input / Output
Built-in MIC and SPEKER, two-way voice intercom
Audio
compression
AAC
Video
Video
Compression
H.264
Lighting
frequency
50Hz, 60Hz
Image Frame
Rate
1-30fps
Resolution
1280*720,640*360 ,320*180,160*90
White balance,
backlight
compensation
Automatic
Night Vision
12 IR LEDs, IR distance: 10 meters
Network
Ethernet
One 10/100Mbps RJ-45 Interface
Support
Agreement
TCP/IP、UDP/IP、HTTP、DHCP、RTSP、RTMP、MUTP
Wireless
standards
WIFI(IEEE802.11b/g/n)
Supports IP
Static IP address, dynamic IP addresses

Cloud Camera User Manual
7
address
Alarm
Alarm
Detection
Motion Detection
Alarm
Notification
Support phone alarm, etc.
External alarm
External alarm input / output
Hardware
Interface
Memory Cards
Micro SD card (supports up to 32GB)
Power supply
DC 5V/2.0A and POE power supply (optional), power consumption <8
Watts
Audio input /
output interface
An audio output jack, an audio input jack
Button
A reset button, a function button
Wireless
Interface
1 WIFI external antenna interface
External alarm I
/ O
External alarm I / O port
Other
PT rotation
angle
Horizontal: 320 °& Vertical: 120 °
LED indication
Power / network signal / function indicator
Environment
Operating
Temperature
0°~ 55°C (32°F ~ 131°F)
Humidity
10% ~ 80% RH(No condensation)
Storage
temperature
-10°C ~ 60°(14°F ~ 140°F)
Specification
Size(L*W*H)
112(L) *114(W) *157mm(H)
Weight
400g(With stand)
Authenticate
Certificate
RoHS,CE,FCC
