GPS Tracking Device
Model NO.: VG03F/G
User Manual
Notes:.................................................................................................................................................2
1. Product Introduction....................................................................................................................3
2. Characteristics.............................................................................................................................4
2.1 POWER LED (power/working status) ...................................................................................4
2.2 GPS LED(GPS status indicator) ...........................................................................................4
2.3 GSM LED（GSM status indicator）.....................................................................................4
2.4.Specifications........................................................................................................................5
2.5 Device outlet specification.....................................................................................................5
2.6 Device wiring diagram...........................................................................................................6
3. Method of installation..................................................................................................................7
3.1. Preparation before installation .............................................................................................7
3.2 Installation.............................................................................................................................7
4. Web based tracking online activation........................................................................................7
5. SMS Configuration.......................................................................................................................8
6. Trouble shooting........................................................................................................................11

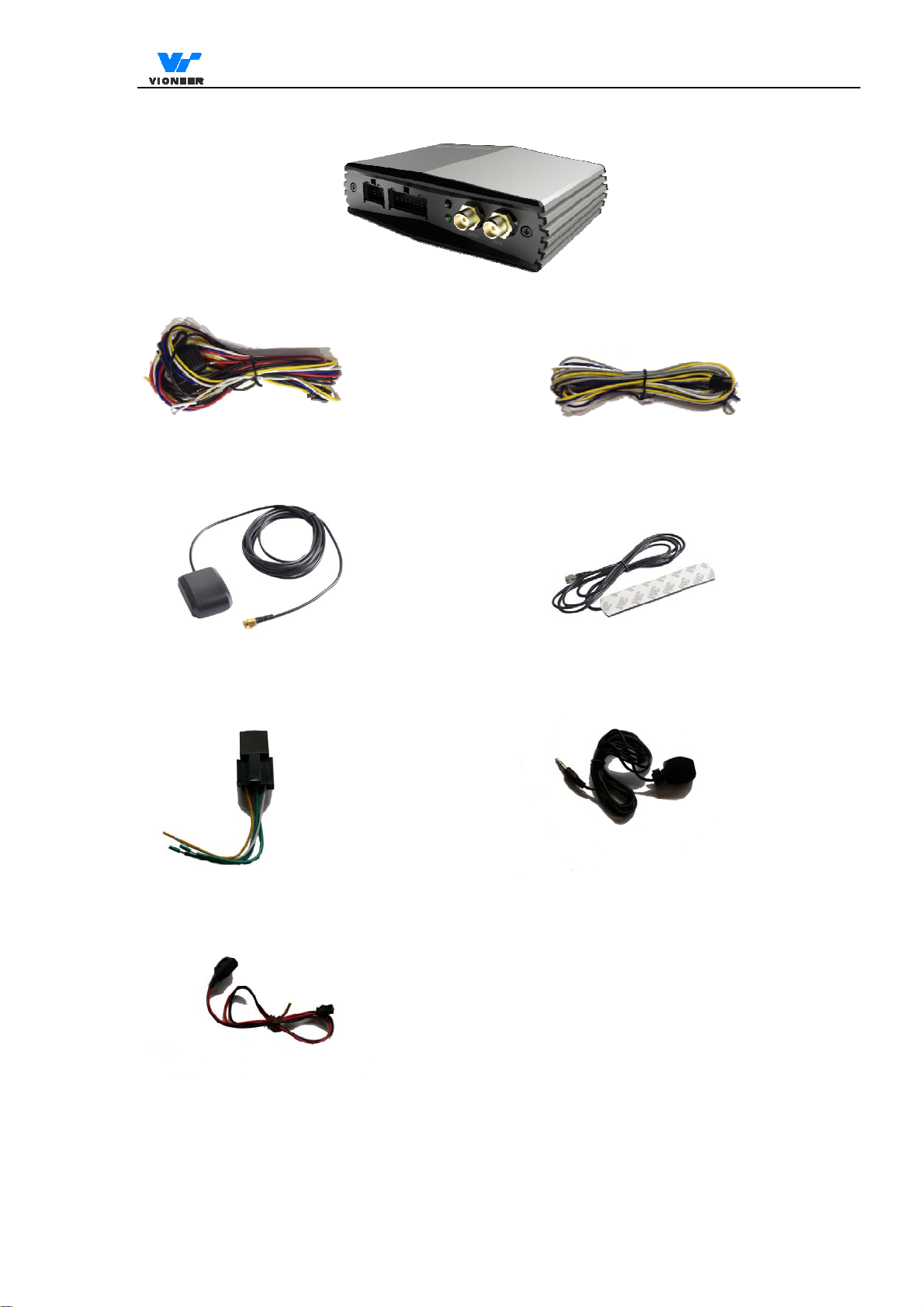

7. Standard Accessories ...............................................................................................................12

VIONEERGROUPCO.,LTD C/N：VG-19060102
Add.: Room 1801, Building 2A, Kasia plaza city, Longgang district, Shenzhen. Service mail: [e-mail]
Copyright © 2019 VIONEER GROUP.All rights reserved.
2
Notes:
Please mount the device steadily on the flat place before using;
Please make sure the voltage value is right before connecting with battery, and placing the wires
to where shouldn’t be trodden;
Please power off when plugging or taking out of any module or connector;
Please keep the device dry and don’t let any liquid fall into the device in case any damage
caused in the device or circuit;
If any problem caused as follows, please turn to professional technician:
When power wire, keyboard, or socket are damaged;
When liquid infiltrating into the device;
When the device work unusually or cannot resume to normal even operated according to the
instruction;
When the device cannot work as usual after falling, throwing or breaking;
When there is obvious damage in the device.

VIONEERGROUPCO.,LTD C/N：VG-19060102
Add.: Room 1801, Building 2A, Kasia plaza city, Longgang district, Shenzhen. Service mail: [e-mail]
Copyright © 2019 VIONEER GROUP.All rights reserved.
3

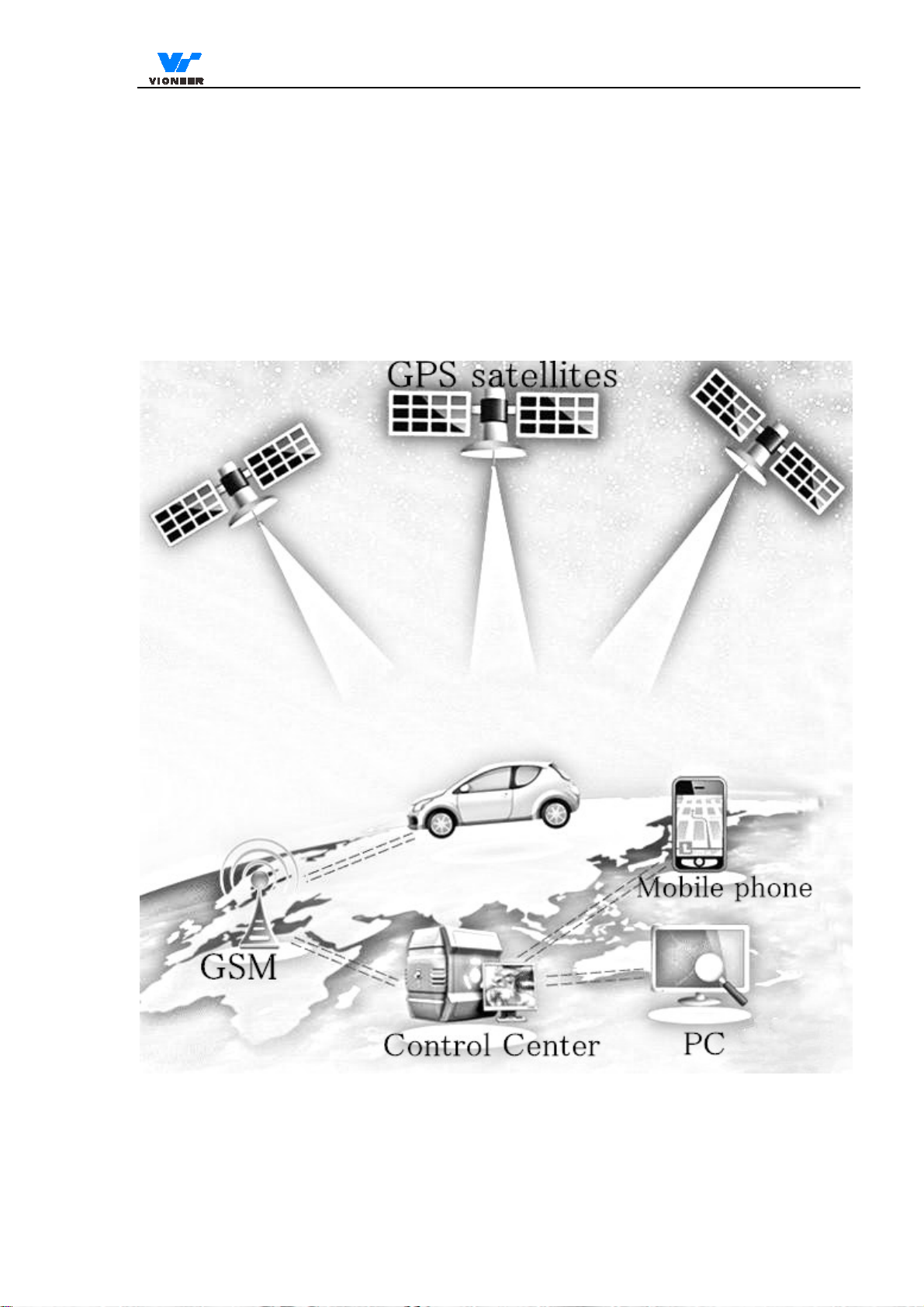

1. Product Introduction
GPS Tracking device mainly consists of two parts such as GPS module and GSM module. GPS
module is for getting location data from satellite, and GSM module is for transferring data to server
so that people can check the information via PC or mobile phone. Our GPS Tracking device, with the
best quality, stable performance and versatile functions，can be applied to various kind of fleet
management like construction trucks, rental cars, logistics vehicles and public transportation,
anti-theft system and security purpose.

VIONEERGROUPCO.,LTD C/N：VG-19060102
Add.: Room 1801, Building 2A, Kasia plaza city, Longgang district, Shenzhen. Service mail: [e-mail]
Copyright © 2019 VIONEER GROUP.All rights reserved.
4
2. Characteristics
1) Metal Shell;
2) External antenna;
3) Track by SMS or GPRS;
4) Real time tracking at intervals;
5) Resend data from signal dead zone;
6) Voice monitoring;
7) SOS alarm;
8) Low power alarm;
9) Overspeed alarm;
10) Geo-fence alarm;
11) Illegal start alarm;
12) Parking alarm;
13) Idling alarm;
14) Tired driving alarm;
15) Fuel or temperature monitoring;
16) History playback;
17) Mileage statistics;
18) Reports statistics;
19) Remotely update firmware.
20) 1 Serial port for RFID (entrance records, driver identification) or fuel sensor
2.1 RED LED (power/working status)
LED Status Meaning
Alway keep on Working normally
Continuously in dark state Power off/Internal fault
2.2 BLUE LED(GPS status indicator)
LED Status Meaning
Fast Flashing (bright 0.1s dark 2.9s) GPS located
Slow flashing(bright 1s dark 2s) Searching GPS signal
Continuously in dark state Power off/Internal fault
2.3 GREEN LED（GSM status indicator）
LED Status Meaning
Fast Flashing (bright 0.1s dark 2s) GSM working
Slow flashing(bright 1s dark 2s) Start GSM
Continuously in dark state Power off/Internal fault
Alway keep on Dialing out /talking

VIONEERGROUPCO.,LTD C/N：VG-19060102
Add.: Room 1801, Building 2A, Kasia plaza city, Longgang district, Shenzhen. Service mail: [e-mail]
Copyright © 2019 VIONEER GROUP. All rights reserved.
5
2. Specification:
Items Parameters
GSM Module Quectel M35
GSM Frequency 850/900/1800/1900 MHZ
LBS Positioning Accuracy 100-500m
GSM Antenna External
GPS Chipset U-blox 7020
GPS Sensitivity -159 dBm
GPS Frequency L1, 1575.42 MHZ
Channels 20 channels examine track
GPS Positioning Accuracy 5-10m, 2D RMS
GPS Antenna External
Speed Accuracy 0.1m/s
Time Accuracy Synchronize with GPS
GPS Data WGS-84
Hot Start <1s
Warm Start <38s
Max Altitude 18000m
Max Speed 515m/s
Gravity Acceleration <4g
Working Voltage 8VDC～50VDC
Working Current 50Ma~160Ma
Operating Temperature -20℃—70℃
Humidity 5%—95%
Size 96mm × 55mm × 26mm
Simcard Normal simcard
Battery Rechargeable lithium polymer battery 380mAh
Internal battery Standby >4h
Input 3pcs (including ACC detection)
Output 2pcs
Serial port 1pc
2.5 Device outlet specification
Line No. Specification Color Instruction
1. 2 microphone red/black Connect to Microphone
3 4 Power Black(V-) red (V+) Connect to vehicle storage battery
5 ACC white Connect to ACC ignition
6 Motor yellow Connect to relay control line
7.8 SOS button red, black Connect SOS button

VIONEERGROUPCO.,LTD C/N：VG-19060102
Add.: Room 1801, Building 2A, Kasia plaza city, Longgang district, Shenzhen. Service mail: [e-mail]
Copyright © 2019 VIONEER GROUP. All rights reserved.
6

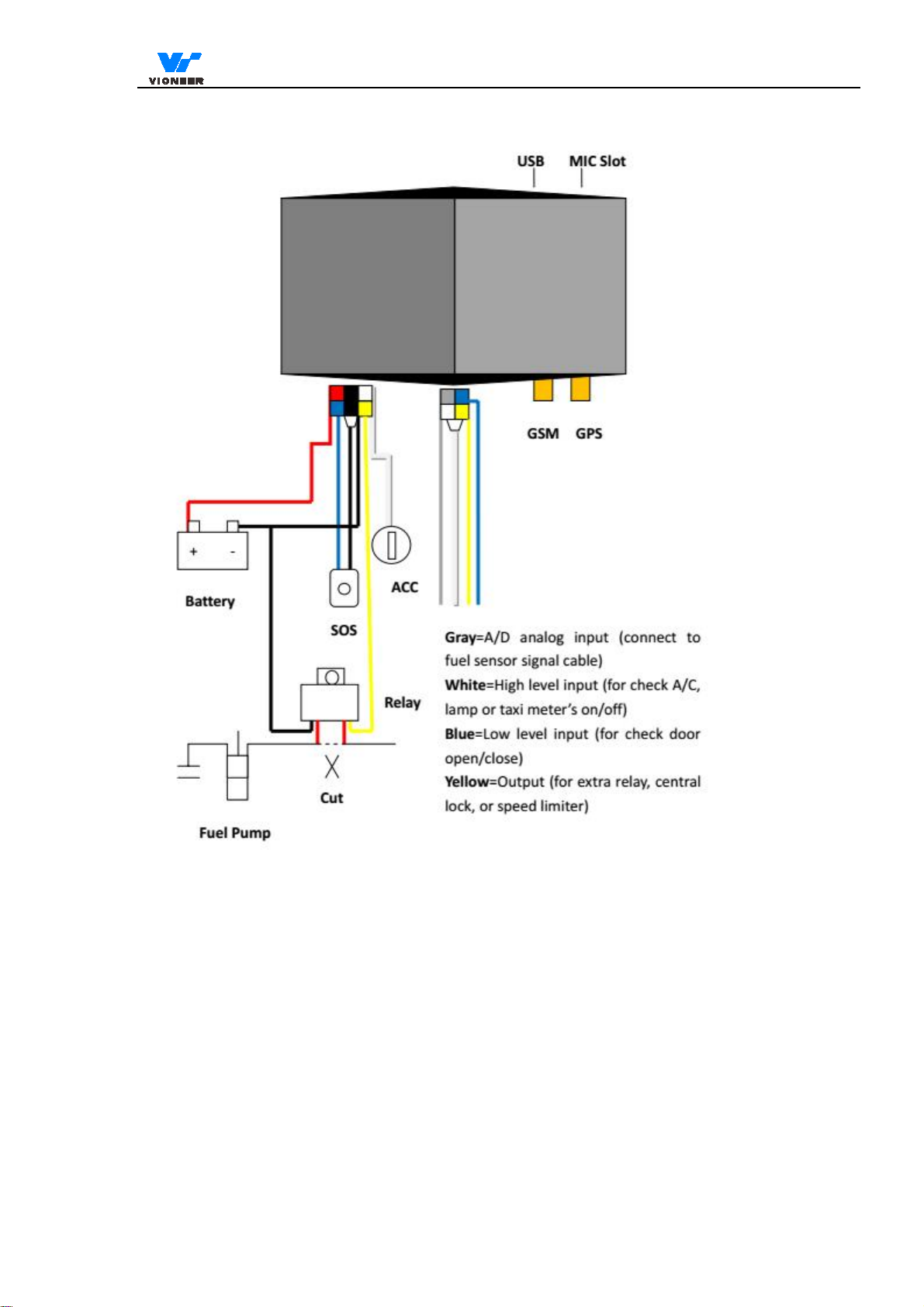

2.6 Device wiring diagram

VIONEERGROUPCO.,LTD C/N：VG-19060102
Add.: Room 1801, Building 2A, Kasia plaza city, Longgang district, Shenzhen. Service mail: [e-mail]
Copyright © 2019 VIONEER GROUP. All rights reserved.
7
3. Method of installation
3.1. Preparation before installation
3.1.1 Open the packing box to check whether the type of device is correct and whether the
accessories are included, or else please contact your distributor.
3.1.2 Choose SIM card: each device needs to insert a GSM SIM card.
Please refer to the distributor’s suggestions to choose the SIM card.
3.1.3 Installing SIM card into the tracker, open the device with screwdriver and put the SIM card into
the tracker (do not insert the SIM card backwards).
Note:
Power off before installing or removing the SIM card
The SIM card should have GPRS credit
Ensure the SIM card is able to send and receive SMS
3.2 Installation
The device installation is covert. Please refer installation to an auto electrical contractor.
NOTE:
3.2.1 To prevent theft of the device, it should be installed as covertly as possible. Covertly installation
is suggested.
3.2.2 Avoid placing the device close to higher power electrical devices, such as reversing radar,
anti-theft device or other vehicle communication equipment;
3.2.3 The device should be fixed into position with cable ties or wide double-side tape.
3.2.4 The device has built-in GSM antenna and GPS antenna. During installation, please make sure
the receiving side is upwards sky without metal object above the device to interfere with GPS
reception. The following places are suggested for installation:
-shelter in the decorated board below the front windshield;
-shelter around the front instrument panel (non-metallic material face);
-in the decorated board below back windshield;
4. Web based tracking online activation
The GPRS web based tracking platform allows real time tracking with the latest Google maps.
Service platform login website : www.farknowgps.com
1. Set IP and PORT
SMS command format ：
ss,apn,user_name,user_code,ip,port,system number,password
E.g.:
ss,cmnet, , , 47.254.193.12,9999, 13862626201,123456
Notes:

VIONEERGROUPCO.,LTD C/N：VG-19060102
Add.: Room 1801, Building 2A, Kasia plaza city, Longgang district, Shenzhen. Service mail: [e-mail]
Copyright © 2019 VIONEER GROUP. All rights reserved.
8
If no username and password, please leave it blank without space,
e.g: ss, apn,, ,IP,Port ,system number,Password
the system number on the platform should be the 11digital number ,start from 13
eg: 13862626201
5. SMS Configuration
Function Command Notes
Change
Password pwd,old_pwd,new_pwd Eg : pwd,123456,666666
Default password is 123456
Replied SMS:
Config OK=Set successfully
Config failed=fail to set
Set SOS Alert
Numbers service,phone1,phone2,phone3,password Eg:
service ,13512345001,13512345002,1351
2345003,123456,
If configured OK, when press SOS button,
the device will sent notification SMS to the
preset 3 numbers.
SOS alert content: Your vehicle triggered
emergency alarm, now the location of the
car is http://maps.google.com/maps?q=
Latitude, longitude
Delete SOS Alert
Numbers service, , , ,password If you want to delete any one of the three
numbers, please leave it in command blank
without space.
Eg: (Delete All)
service, , , ,123456
You can choose to delete some or all the
SOS alert numbers.
Checking
Parameters param,password Eg: param,123456
Replied SMS: TCP, APN, APN user name,
APN password, port, system number
if the password is worng, it will reply: Get
status failed.
Remotely Restart Restart,password
Eg: restart,123456 The device will restart after 1min after receiving this command,
Recover Default
Password ResetPwd Eg: resetpwd Password will be recovered to default password if set successfully.
Check GPS
Location tgoogle,password Eg: tgoogle,123456 The device will reply with Google link after receiving the command

VIONEERGROUPCO.,LTD C/N：VG-19060102
Add.: Room 1801, Building 2A, Kasia plaza city, Longgang district, Shenzhen. Service mail: [e-mail]
Copyright © 2019 VIONEER GROUP. All rights reserved.
9
Disable Engine disable eng, password
Eg: disable eng,123456 The device will disable the engine of the car after receiving the command in the
condition that the speed of car is under
15km/h
Enable Engine enable eng,password
Eg: enable eng,123456 The device will enable the engine after receiving the command
Voice Monitoring tap,password
Eg: tap,123456
The device will call back to the phone
number who sent the command
Enable Defence
arm,password Eg: arm,123456 Config OK=Set successfully Config failed=fail to set
If defence enabled, you are able to get
illegal start alarm when ignition is on.
Disable Defence disarm,password
Eg: disarm,123456
Config OK=Set successfully
Config failed=fail to set
Online
Configuration ss,apn,user_name,user_code,ip,port,id, password
Eg:
ss,cmnet,,,47.254.193.12,9999,131888888
88,123456
Config OK=Set successfully
Config failed=fail to set
Check Stauts status,password
Eg: status,123456
Replied SMS:
GSM=31
GPRS=1
GPS=10
ACC=N0
SPEED=120
ACCON=30S
ACCOFF=120S
VCC=12V
IMEI=356823031234501
If the password is worng, it will reply: Get
status failed
Check Sevice GetService,password The device will reply with the service

VIONEERGROUPCO.,LTD C/N：VG-19060102
Add.: Room 1801, Building 2A, Kasia plaza city, Longgang district, Shenzhen. Service mail: [e-mail]
Copyright © 2019 VIONEER GROUP. All rights reserved.
10
Number Eg: getservice,123456 numbers
Enable Auto
Answer Call
(Voice
Monitoring)
AUDIO-EN,password
Eg: audio-en,123456 Config OK=Set successfully Config failed=fail to set
Disable Auto
Answer Call AUDIO-DIS,password Eg: audio-dis,123456 Config OK=Set successfully Config failed=fail to set
Recover to
Default Settings Reset,password Eg:Reset,123456 It will recover the IP to be 211.154.139.208, port to be 7000, APN to
be cmnet
Set Interval interval,x1,x2,password
Eg: interval,30,100,123456
30=ACC ON 100=ACC OFF
X1=ACC ON interval (second),
X2=ACC OFF interval (second).
Enable sleep
mode sleep enable,password Eg: sleep enable,123456
Config OK=Set successfully
It’s for save battery purpose
Diable sleep
mode sleep disable,password Eg: sleep disable,123456 Config OK=Set successfully
Enable Limit for
Voice monitoring, LisLimit,ON,password Eg: LisLimit,ON,123456 It will limit the voice monitoring phone number within the preset SOS alert
number
Disable Limit for
Voice monitoring LisLimit,OFF,password Eg: LisLimit,OFF,123456 Default setting
