vita VACUMAT 6000 M User manual

VITA VACUMAT®6000 M
VITA shade, VITA made.
Operating manual
VITA Farbkommunikation
VITA Farbkommunikation
VITA shade control
VITA shade reproduction
VITA shade communicationVITA shade determination
Date of issue: 11.15

3
VITA VACUMAT®6000 M
Table of contents
1 Introduction 4
2 Scope of delivery 5
2.1 Control unit VITA vPad 5
2.2 Accessories (can be purchased separately) 5
3 Technical Information 6
4 Technical Data 6
4.1 Dimensions/weights 6
4.2 Electrical data 6
4.2.1 Furnace 6
4.2.2 Vacuum pump 6
5 Intended use 7
6 Safety information 7
6.1 Pictograms 7
7 Ambient conditions 8
8 Safety functions 8
9 Installation and first use 9
9.1 Installation location 9
9.2 Device connections 9
9.3 Status display 10
9.4 Fuses 10
9.5 Information about the identification plates 10
9.6 Connecting the device to the mains voltage 11
9.7 Switching off the device, or stopping its operation 11
10 Cleaning the furnace 12
10.1 Cleaning firing for the firing chamber 12
10.2 Firing chamber insulation 12
11 CE mark 12
12 Fan 12
13 Mains power supply failure 13
14 Warranty and liability 13
14.1 Spare parts 13
14.2 Service 13
15 Alphabetic table of contents 14

4
VITA VACUMAT®6000 M
1 Introduction
Dear Customer,
Thank you for your decision to buy a VITA VACUMAT 6000 M.
The long tried and tested heating system for ceramic firing devices using a
quartz/Kanthal firing muffle and newly developed insulating material in the
firing chamber ensures you many years of uniform firing results with all ceramic
materials.
The high-quality temperature control and automatic temperature adjustment
ensures a precision of plus/minus 1°C.
This device has been designed in accordance with the latest technological
benchmarks and complies with all international safety standards. Nevertheless,
incorrect use can be dangerous – please read this operating manual and bear in
mind the information provided.
Reading and understanding this operating manual will help you maintain
safety, reduce expenses as a result of repairs and downtime and increase the
reliability and service life of the device. All of the illustrations and drawings in
this operating manual are intended for general explanatory purposes and are
not authoritative for the detailed construction of the device.
The operating manual must always be kept close to the device. It must be read
and followed by all persons responsible for performing tasks such as operation,
troubleshooting during operation and cleaning and servicing (maintenance,
inspection, repairs), either with or on the device.
We hope that you will find using the VITA VACUMAT 6000 M to be an
enjoyable and successful experience.
Copyright
These operating instructions must be treated as confidential. They should only
be used by authorized persons. They may only be transmitted to third parties
with the written consent of VITA Zahnfabrik H. Rauter GmbH & Co. KG.
All documentation is protected by copyright.
The transmission and reproduction of documents, even excerpts, and the use
and communication of their content are not permitted without express written
authority.
Violations are an offense and liable to compensation.
We reserve all rights to exercise intellectual property rights.

5
VITA VACUMAT®6000 M
2 Scope of delivery
Device supplied in a special box with:
• 1 firing furnace VITA VACUMAT 6000 M lacquered (anthracite,
crimson, sky blue, deep black, turquoise blue, standard white)
or stainless steel
Item No.
• 1 network cable, 200 cm
• 1 VITA vacuum tubing, 200 cm D33218
• 1 firing platform D23294
• 1 bar light status display D47225
• 1 furnace tweezers D20191
• 1 firing tray G B009NU
• 1 firing trays A+B+C B018U
• 1 VITA VACUMAT 6000 M Operating Manual 1626
• 1 VITA VM concept brochure 1218
2.1 Control unit VITA vPad
The VITA VACUMAT 6000 M can be equipped with the following control units:
• VITA vPad comfort with 7” LED color touch screen, photo viewer, memory
for 500 firing programs for control of 1 or 2 VITA VACUMAT 6000 M / VITA
VACUMAT 6000 MP and VITA ZYRCOMAT 6000 MS.
• VITA vPad excellence with 8,5“ LED color touch screen, photo viewer,
memory for 1000 firing programs for control of 1 to 4 VITA VACUMAT
6000 M / VITA VACUMAT 6000 MP and VITA ZYRCOMAT 6000 MS.
An additional switchbox and connection cable is required for the operation
of 2 or more VITA VACUMAT 6000 M / VITA VACUMAT 6000 MP or
VITA ZYRCOMAT 6000 MS with a VITA vPad comfort or VITA vPad
excellence control unit. You will need the VITA MultiPump and the
VITA vPad excellence for operation with a VITA Vacuum Pump for
up to 4 VITA VACUMAT 6000 M or VITA VACUMAT 6000 MP.
Please read the information in the operating manual of the
corresponding VITA vPad control unit.
2.2 Accessories (can be purchased separately):
• VITA VACUMAT 6000 M side panels, 2 pcs. per set
• VITA Vacuum Pump: 230/240 Volt, 50/60 Hz, 115 Volt, 50/60 Hz
or 100 Volt/60 Hz.
• FDS (Firing Data System) firing data administration program for PC
• VITA number set (magnetic, numbers 1-4)
• VITA Switchbox for operating multiple furnaces
• VITA MultiPump for supplying up to four firing furnaces with only one
VITA Vacuum Pump

6
VITA VACUMAT®6000 M
3 Technical information
With VITA VACUMAT 6000 M, you can benefit from:
• Innovative firing technology and high-tech materials inside the firing
chamber for even better homogenous heat distribution
• A firing muffle with maximum durability ("Made in Germany") and reliable
electronics for consistently excellent firing results
• Numerous monitoring and service programs to maximize working comfort,
safety and time savings, including:
– automatic prevention of condensation in the firing chamber
(VITA AntiCon)
– automatic temperature adjustment to +/-1 °C at the start of each
program (VITA AutoAdjust)
– automatic cleaning function (VITA SpecialClean)
– controlled rapid cooling and energy-saving night mode
(VITA Energy Efficiency)
• Operate up to four furnaces using just a single VITA vPad control unit
• Use the VITA MultiPump to supply up to four furnaces with only one
vacuum pump
• Reduce your energy bills up to 70 % with VITA Energy Efficiency
• With the VITA vPad, all your information is stored in one location – program
parameters, integrated working instructions for the VITA materials,
patient photos, as well as all data related to the firing process
• Automatic service cycle monitoring ensures the stability of your devices
• Intelligent menu navigation on all VITA vPads makes intuitive furnace
operation easier
• Optical operating status display
4 Technical Data
4.1 Dimensions / weights
• Width: 230 mm
• Depth: 325 mm
• Height: 444 mm
• Housing, weight: lacquered steel 13 kg, stainless steel 15 kg
• Firing chamber inner diameter: 90 mm, height: 55 mm
• Firing chamber temperature: max. 1200 °C
4.2 Electrical data
4.2.1 Furnace
• Electrical connection: 230 Volt AC, 50 Hz
or 100/110 Volt AC, 50/60 Hz
• Power consumption: max. 1500 Watt
4.2.2 Vacuum pump
• Electrical connection: 230 Volt, 50/60 Hz
or 100/110 Volt, 50/60 Hz
• Power consumption: max. 200 Watt
• Final vacuum: < 960 mbar
• Dimensions: 320 x 110 x 220 mm
• Weight: approx. 6.4 kg

7
VITA VACUMAT®6000 M
5 Intended use
Basic information on the instrument design
The device is designed according to the state of the art and recognized safety
standards. However, if it is used inappropriately, hazards for the health and
safety of the user or third parties may arise as well as the risk of damaging the
device and other material property.
Unauthorized modes of operation
Operation of the device with power sources, products, etc., which are subject
to hazardous materials regulations, using equipment modified by the user, or
operation that could have any negative impact on the health of the operating
personnel, is not permitted.
Authorized modes of operation
The operation of the device is only permitted if this operating manual has
been completely read and understood and the procedures described in it have
been observed. Any other or additional use, e.g., processing of products other
than those intended as well as handling of hazardous materials or substances
injurious to health, is considered to be contrary to the recommended use. The
manufacturer/supplier will not be liable for any damage resulting from such
unauthorized use. The risk of such use is borne exclusively by the user.
6 Safety information

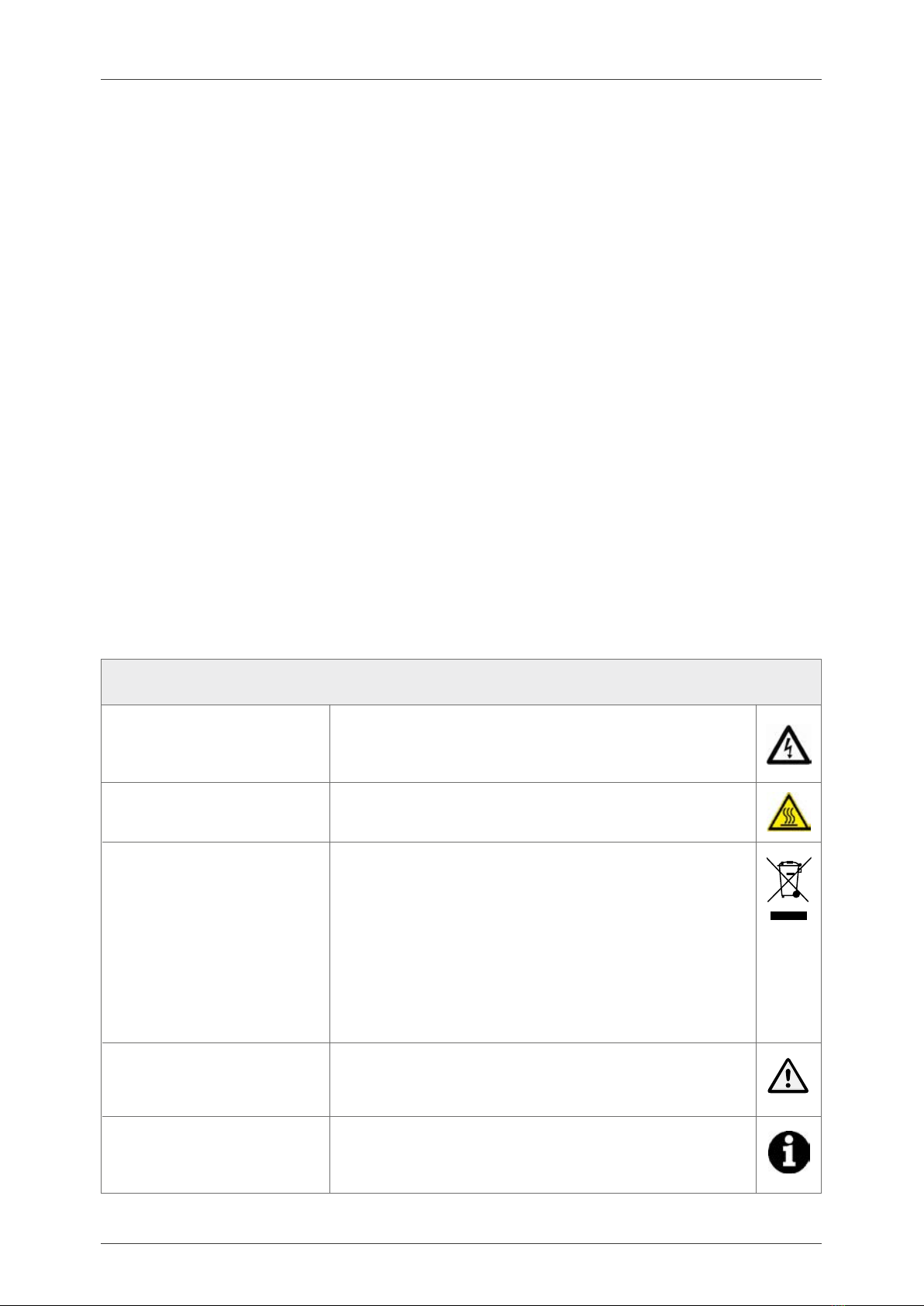

6.1 Pictograms
9.2 Hazardous voltage This pictogram warns the user about hazardous voltage.
Before opening the unit, always disconnect the device from the
mains current by unplugging the AC adapter.
Hot surface This pictogram warns the user about hot surfaces that can cause
burns.
Separate disposal Dispose of electrical and electronic equipment separately, not with
household waste.
The black bar under the "wheeled bin" symbol indicates that the
device was placed on the market after August 13, 2005.
Please note that the device is subject to European Community
Directive 2002/96/EC (WEEE) and the national laws valid in your
country. Contact your dealer if you need to dispose of the device.
Note This pictogram warns of hazardous situations with possible injury to
persons or damage to devices.
Information This pictogram points to useful pieces of advice, explanations and
supplements regarding the handling of the equipment.

8
VITA VACUMAT®6000 M
7 Ambient conditions
• Use indoors
• Ambient temperature: 2°C to 40°C
• Relative humidity 80% at 31°C
• Max. altitude: 3800 m above sea level sea level (standard elevation zero,
NHN).
• Fluctuations in nominal voltage:not greater than plus/minus 10% of the
nominal voltage.
8 Safety functions
The furnace is operated with a
VITA vPad comfort or
VITA vPad excellence
and has the following safety and monitoring features:
• automatic prevention of condensation in the firing chamber
(VITA AntiCon)
• automatic temperature adjustment to +/-1 °C every time
a program is started (VITA AutoAdjust)
• Automatic cleaning function (VITA SpecialClean)
• Controlled fast cooling and energy-saving night mode
(VITA Energy Efficiency)
• Temperature sensor monitoring
• Temperature monitoring
• Vacuum monitoring
• Power failure protection
• Lift monitoring

9
VITA VACUMAT®6000 M
9 Installation and first use
9.1 Installation location
• Install the device in a dry, heated room. The distance to the closest wall
should be at least 25 cm (see also Section 7. Ambient conditions).
• When the temperature is below 15°C (e.g., after transport), leave the
device to stand for approx. 30 minutes at room temperature before using it
for the first time.
• Ensure that the surface where the device is installed is heat-resistant.
The radiation and heating of the device is within a non-hazardous range.
Nevertheless, heat sensitive surfaces of furniture and veneers could
become somewhat discolored over time due to the constant influence
of heat.
• Prevent direct sunlight from coming into contact with the device.
• Do not place any flammable objects in the vicinity of the device. Do not
place the VITA vPad control unit directly in the heat radiation area of the
firing chamber.
• Do not set up the device in such a way that it makes it difficult to press the
main switch and pull out the power supply cord.
Before using for the first time, read the corresponding operating manual for
the control unit.
9.2 Device connections
Status display
(see sect. 9.3)
Connection for control unit
VITA vPad comfort,
VITA vPad excellence
or switchbox
Connection for VITA vPad easy
Vacuum hose connection
Device fuses (see Section 9.4)
Connection for vacuum pump
(see sect. 4.2.2)
Mains power supply connection
Main switch

10
VITA VACUMAT®6000 M
9.3 Status display
The optical status display shows the following operating modes:
• Green – device in standby operation
• Blue – program active
• Red – error
Read the corresponding operating manual for the VITA vPad.
9.4 Fuses
On the back of the device (see Section 9.2) there are 2 fuses for the device.
The identification plates show information about the fuse ratings used in
the device. Fuses with other ratings must not be used.
230 volt model
T 8 H 250 V
100/110 volt model:
T 15 H 250 V
The manufacturer is not liable for accidents to the user occurring
when the device is open!
Never operate the device in any case without the firing platform installed.
In continuous operation (max. final temperature, max. firing time), some parts
of the firing chamber may reach high temperatures (above 70°C). Do not reach
into the open firing chamber when the device is switched on. There is a risk
of touching electrically live as well as hot parts.
9.5 Information about the identification plates
Hazardous voltage
This pictogram warns the user about hazardous voltage. Before
opening the unit, always disconnect the device from the mains
current by unplugging the AC adapter.
Residual voltage
After the back plate has been removed, a residual voltage of up to
400 volts may still be present in components in the area of the power
supply unit on the circuit board, even when the device is switched off.
Note Do not place any objects in the area of the lift plate.
When the device is switched on, the lift will move down to the
lower position. For setting down firing objects, use the laterally
extendable storage plates.

11
VITA VACUMAT®6000 M
9.6 Connecting the device to the mains voltage
Important! Before first use, please read Section 6 Safety
Information!
For information about the connections, refer to Section 9.2
• Attach the connection cable to the VITA vPad control unit and the furnace.
• Plug in the status display
• Connect the vacuum pump, electrical connection and tubing connection.
• Connect the device to the mains power supply using the mains power
cable supplied.
Important! Avoid electrical multiway socket outlets with
extensions, as there is a risk of fire with overload.
• Switch on the device at the main switch. The lift moves to the lower
position.
• Clean or wipe the lift plate and the lift plate gasket (dust particles from
the insulation are deposited during transportation of the device).
• Attach the firing socket to the lift plate.
Important! Never operate the device at any time without the firing
platform installed!
9.7 Switching off the device, or stopping its operation
When the device is not in operation, the lift should be moved into the
firing chamber and the device must be switched off at the main switch
(see Section 9.2).
Closing the firing chamber protects the insulation and prevents moisture
absorption.
Please read the operating instructions for the VITA vPad used.

12
VITA VACUMAT®6000 M
10 Cleaning the furnace
Before each cleaning operation, remove the power supply plug!
It is not necessary to clean the inside of the firing chamber.
Cleaning the casing of the firing chamber at regular intervals with a damp cloth
contributes to its operating safety.
In all cleaning work, you must never use any detergents or flammable
liquids.
10.1 Cleaning firing for the firing chamber
Consult the operating manual of the VITA vPad for information about the
cleaning firing.
10.2 Firing chamber insulation
The firing chamber contains ceramic mineral fibers as insulation material
(Index No. 650-017-00-08), which is classified as a CAT 2 carcinogen
(Annex VI, EC 1272/2008).
When working with the firing chamber or exchanging the firing muffle, fiber
dust may be discharged.
Exposure to this dust can potentially be carcinogenic on inhalation and result in
irritation of the skin, eyes and respiratory organs. When exchanging the firing
muffle, please proceed as follows:
• Wear long-sleeved protective clothing
• Wear safety goggles as well as protective gloves
• Use a dust vacuum system or wear a FFP 2 respirator.
Once work has been completed, rinse the dust from unprotected skin using cold
water. Wash workwear separately from everyday clothing.
11 CE mark
With the CE mark, a legally binding declaration is made to the effect that the
device corresponds to the essential requirements of European Community
Directive 2006/95/EC (Low-Voltage Directive) as well as European Community
Directive 2004/108/EC (EMC Directive).
12 Fan
The device is equipped with a fan. The fan is temperature-controlled.
Activation, deactivation and speed of the fan are controlled automatically.
The fan prevents excessive heating of the device and contributes to the overall
operating safety. If the fan fails, an error message is shown on the display
(For information about this, refer to the Error Messages section for the
VITA vPad operating manual).
For safety reasons, the device should not be operated without a fan.
The upper cover of the firing chamber and the openings in the rear cover
must not be closed or blocked.

13
VITA VACUMAT®6000 M
13 Mains power supply failure
The instrument is equipped with power supply failure protection. This
component prevents a program interruption and any incorrect firing in the
event of a brief failure of the mains power supply. The power failure protection
is activated as soon as the mains power supply fails when a firing program is
running.
Mains voltage failure time less than approx. 15 sec.
The program continues to run and is not interrupted. The display is out of
order during this period. Once mains power is supplied again and the program
interruption is over, the running program reappears in the display.
Mains voltage failure time longer than approx. 15 sec.
The program is interrupted and the display is out of order. Once mains power is
supplied again, the display indicates that there was a power failure.
Important! Once mains power is supplied again, the time required
for the VITA vPad to switch back on again is approx. 20 sec.
14 Warranty and liability
The warranty and liability are based on the terms and conditions stipulated in
the contract.
In the event of software modifications without the knowledge and
approval of VITA Zahnfabrik H. Rauter GmbH & Co. KG, all liability and
warranty claims are invalidated.
14.1 Spare parts
Spare parts must comply with the technical requirements specified by the
manufacturer. This is always ensured when using original VITA spare parts.
14.2 Service
For more information on the device, go to our homepage at:
http://www.vita-zahnfabrik.com
Software updates are available as downloads under Documents & Media /
Download Center / Product Information /
Software Updates.
An option to register is also provided via the Service / Update Messenger
so that the latest information on the device is automatically emailed to you
via the Update Messenger.
In case of technical questions regarding the instrument or regarding repair
services and warranty provisions, contact us at:
Email: [e-mail]
Tel. [phone] / 562 -105, -106, -101

14
VITA VACUMAT®6000 M
S
Safety functions 8
Safety information 7
Scope of delivery 5
Service 13
Spare parts 13
Startup 11
Status display 9, 10
Switching off the device 11
T
Technical data 6
Technical information 6
U
Unauthorized modes of operation 7
V
VITA vPad comfort 5
VITA vPad excellence 5
A
Accessories 5
Ambient conditions 8
Authorized modes of operation 7
C
CE mark 12
Cleaning the device 12
Cleaning work 12
Connecting the device to the
mains voltage 11
Copyright 4
D
Device connections 9
Dimensions/weights 6
Disposal 7
E
Electrical data 6
F
Fan 12
Fuses 10
G
General description 6
Guarantee 13
I
Identification plates 10
Installation and first use 9
Installation location 9
Installation plates 10
Intended use 7
L
Liability 13
M
Mains power supply failure 13
Mains voltage failure time 13
P
Pictograms 7
Power failure protection 13
15 Alphabetic table of contents

VITA Zahnfabrik H.Rauter GmbH & Co.KG
Spitalgasse 3 · D-79713 Bad Säckingen · Germany
Tel. [phone] · Fax [phone]
Hotline: Tel. [phone] · Fax [phone]
www.vita-zahnfabrik.com · [email protected]
facebook.com/vita.zahnfabrik
Please note: Our products must be used in accordance with the instructions for use.
We accept no liability for any damage resulting from incorrect handling or usage. The
user is furthermore obliged to check the product before use with regard to its suitabi-
lity for the intended area of application. We cannot accept any liability if the product
is used in conjunction with materials and equipment from other manufacturers that
are not compatible or not authorized for use with our product. Furthermore, our
liability for the accuracy of this information is independent of the legal basis and, in
as far as legally permissible, shall always be limited to the value as invoiced of the
goods supplied, excluding value-added tax. In particular, as far as legally permissible,
we do not assume any liability for loss of earnings, indirect damages, ensuing
damages or for third-party claims against the purchaser. Claims for damages based
on fault liability (culpa in contrahendo, breach of contract, unlawful acts, etc.) can
only be made in the case of intent or gross negligence. The VITA Modulbox is not
necessarily a component of the product.
Date of issue of this information: 11.15
After the publication of these information for use any previous versions become
obsolete. The current version can be found at www.vita-zahnfabrik.com
VITA VACUMAT®6000 M is CE marked within the meaning of EC Guideline 2006/95/EC,
2004/108/EC and 2011/65/EC.
1626_1E – 1115 (X.) S – Version (04)
With the unique VITA SYSTEM 3D-MASTER, all natural
tooth shades can be systematically determined and
perfectly reproduced.
