VIZIO
QUICK
START
GUIDE
FULL USER MANUAL AVAILABLE AT VIZIO.COM
MODEL
E390-A1
LED TV
SLIM FRAME
FULL HD

• OnlypowerofthemarkedvoltagecanbeusedforyourTV.Anyothervoltagethanthespeciedvoltagemaycausereor
electricshock.
• Donottouchthepowercordduringlightning.Toavoidelectricshock,avoidhandlingthepowercordduringelectricalstorms.
• UnplugyourTVduringalightningstormorwhenitwillnotbeusedforlongperiodoftime.ThiswillprotectyourTVfrom
damageduetopowersurges.
• DonotattempttorepairorserviceyourTVyourself.Openingorremovingthebackcovermayexposeyoutohighvoltages,
electricshock,andotherhazards.Ifrepairisrequired,contactyourdealerandreferallservicingtoqualiedservicepersonnel.
• WARNING:KeepyourTVawayfrommoisture.DonotexposeyourTVtorainormoisture.IfwaterpenetratesintoyourTV,unplug
thepowercordandcontactyourdealer.Continuoususeinthiscasemayresultinreorelectricshock.
• DonotuseyourTVifanyabnormalityoccurs.Ifanysmokeorodorbecomesapparent,unplugthepowercordandcontactyour
dealerimmediately.DonottrytorepairyourTVyourself.
• Avoidusingdroppedordamagedappliances.IfyourTVisdroppedandthehousingisdamaged,theinternalcomponentsmay
functionabnormally.Unplugthepowercordimmediatelyandcontactyourdealerforrepair.ContinueduseofyourTVmaycause
reorelectricshock.
• DonotinstallyourTVinanareawithheavydustorhighhumidity.OperatingyourTVinenvironmentswithheavydustorhigh
humiditymaycausereorelectricshock.
• FollowinstructionsformovingyourTV.EnsurethatthepowercordandanyothercablesareunpluggedbeforemovingyourTV.
• WhenunpluggingyourTV,holdtheAC/DCpoweradapter,notthecord.Pullingonthepowercordmaydamagethewiresinside
thecordandcausereorelectricshock.WhenyourTVwillnotbeusedforanextendedperiodoftime,unplugthepowercord.
• Toreduceriskofelectricshock,donottouchtheconnectorwithwethands.
• Insertbatteriesinaccordancewithinstructions.Incorrectpolaritiesmaycausethebatteriestoleakwhichcandamagethe
remotecontrolorinjuretheoperator.Donotexposebatteriestoexcessiveheatsuchassunshine,reorthelike.
• Ifanyofthefollowingoccurs,contactthedealer:
-Thepowercordfailsorfrays.
-LiquidspraysoranyobjectdropsintoyourTV.
-YourTVisexposedtorainorothermoisture.
-YourTVisdroppedordamagedinanyway.
-TheperformanceofyourTVchangessubstantially.
• Thisapparatusshallnotbeexposedtodrippingorsplashingandnoobjectsllwithliquids,suchasvases,shallbeplacedon
theapparatus.
• Themainsplugorappliancecouplerisusedasthedisconnectdevice,thedisconnectdeviceshallremainreadilyoperable.
• CAUTION-Theseservicinginstructionsareforusebyqualiedservicepersonnelonly.Toreducetheriskofelectricshock,do
notperformanyservicingotherthanthatcontainedintheoperatinginstructionsunlessyouarequaliedtodoso.
 Thelightningashwitharrowheadsymbolwithinanequilateraltriangleis
 intendedtoalerttheusertothepresenceofuninsulatedDANGEROUSVOLTAGE
 withintheproduct’senclosurethatmaybeofsufcientmagnitude
 toconstituteariskofelectricalshocktopersons.
 Theexclamationpointwithinanequilateraltriangleisintendedtoalerttheuser
 tothepresenceofimportantoperatingandmaintenance(servicing)instructions
 intheliteratureaccompanyingtheproduct.
YourTVisdesignedandmanufacturedtooperatewithindeneddesignlimits.Misusemayresultinelectricshockorre.Toprevent
yourTVfrombeingdamaged,thefollowinginstructionsshouldbeobservedfortheinstallation,use,andmaintenanceofyourTV.
ReadthefollowingsafetyinstructionsbeforeoperatingyourTV.Keeptheseinstructionsinasafeplaceforfuturereference.
Toreducetheriskofelectricshockorcomponentdamage,switchoffthepowerbeforeconnectingothercomponentstoyourTV.
• Readtheseinstructions.
• Keeptheseinstructions.
• Heedallwarnings.
• Followallinstructions.
• Donotusethisapparatusnearwater.
• Cleanonlywithadrycloth.
• Donotblockanyventilationopenings.Installinaccordancewiththemanufacturer’sinstructions.
• Donotinstallnearanyheatsourcessuchasradiators,heatregisters,stoves,orotherapparatus(includingampliers)that
produceheat.
• Protectthepowercordfrombeingwalkedonorpinched,particularlyatplugs,conveniencereceptacles,andthepointwhere
theyexitfromtheapparatus.
• Onlyuseattachments/accessoriesspeciedbythemanufacturer.
• Useonlywiththecart,stand,tripod,bracket,ortablespeciedbythemanufacturer,orsoldwiththeapparatus.
Whenacartisused,usecautionwhenmovingthecart/apparatuscombinationtoavoidinjuryfromtip-over.
• Unplugthisapparatusduringlightningstormsorwhenunusedforlongperiodsoftime.
• Referallservicingtoqualiedservicepersonnel.Servicingisrequiredwhentheapparatushasbeendamagedinanyway,
suchaswhenthepower-supplycordorplugisdamaged,liquidhasbeenspilledorobjectshavefallenintotheapparatus,the
apparatushasbeenexposedtorainormoisture,doesnotoperatenormallyorhasbeendropped.
• UnplugthepowercordbeforecleaningyourTV.
• WhenmovingyourTVfromanareaoflowtemperaturetoanareaofhightemperature,condensationmayforminthehousing.
WaitbeforeturningonyourTVtoavoidcausingre,electricshock,orcomponentdamage.
• AdistanceofatleastthreefeetshouldbemaintainedbetweenyourTVandanyheatsource,suchasaradiator,heater,oven,
amplieretc.DonotinstallyourTVclosetosmoke.OperatingyourTVclosetosmokeormoisturemaycausereorelectric
shock.
• Slotsandopeningsinthebackandbottomofthecabinetareprovidedforventilation.ToensurereliableoperationofyourTV
andtoprotectitfromoverheating,besuretheseopeningsarenotblockedorcovered.DonotplaceyourTVinabookcaseor
cabinetunlessproperventilationisprovided.
• NeverpushanyobjectintotheslotsandopeningsonyourTVcabinet.DonotplaceanyobjectsonthetopofyourTV.Doingso
couldshortcircuitpartscausingareorelectricshock.NeverspillliquidsonyourTV.
• YourTVshouldbeoperatedonlyfromthetypeofpowersourceindicatedonthelabel.Ifyouarenotsureofthetypeofpower
suppliedtoyourhome,consultyourdealerorlocalpowercompany.
• DonotapplypressureorthrowobjectsatyourTV.Thismaycompromisetheintegrityofthedisplay.Themanufacturer’s
warrantydoesnotcoveruserabuseorimproperinstallations.
• Thepowercordmustbereplacedwhenusingdifferentvoltagethanthevoltagespecied.Formoreinformation,contactyour
dealer.
• Whenconnectedtoapoweroutlet,powerisalwaysowingintoyourTV.Tototallydisconnectpower,unplugthepowercord.
• Thelightningashwitharrowheadsymbolwithinanequilateraltriangleisintendedtoalerttheusertothepresenceof
un-isolated,dangerousvoltagewithintheinsideofyourTVthatmaybeofsufcientmagnitudetoconstituteariskofelectric
shocktopersons.
• Donotoverloadpowerstripsandextensioncords.Overloadingcanresultinreorelectricshock.
• ThewallsocketshouldbeinstallednearyourTVandeasilyaccessible.
h

IMPORTANT SAFETY INSTRUCTIONS

DO YOU HAVE QUESTIONS?
LET US HELP!
YOUR PRODUCT INCLUDES FREE LIFETIME TECH SUPPORT
Phone:
Email:
Web:
[phone] (TOLL-FREE)
[e-mail]
www.VIZIO.com/support
Hours of operation:
Monday - Friday:
5 am TO 9 pm
(pST)
Saturday - Sunday:
8 am TO 4 pm
(pST)
The VIZIO support team is highly trained
and is based in the United States.
We can help with:
• New Product Setup
• Connecting Your Devices
• Technical Problems
• And More
We speak English • Se habla Español • Nous parlons Français

HELP VIZIO REDUCE PAPER WASTE.
DOWNLOAD THE FULL USER MANUAL AT
VIZIO.COM/SUPPORT
PACKAGE CONTENTS
This Quick Start GuideRemote Control
with Batteries
VIZIO LED HDTV with Stand
Power Cord
6 x M4 14mm
Phillips Screws

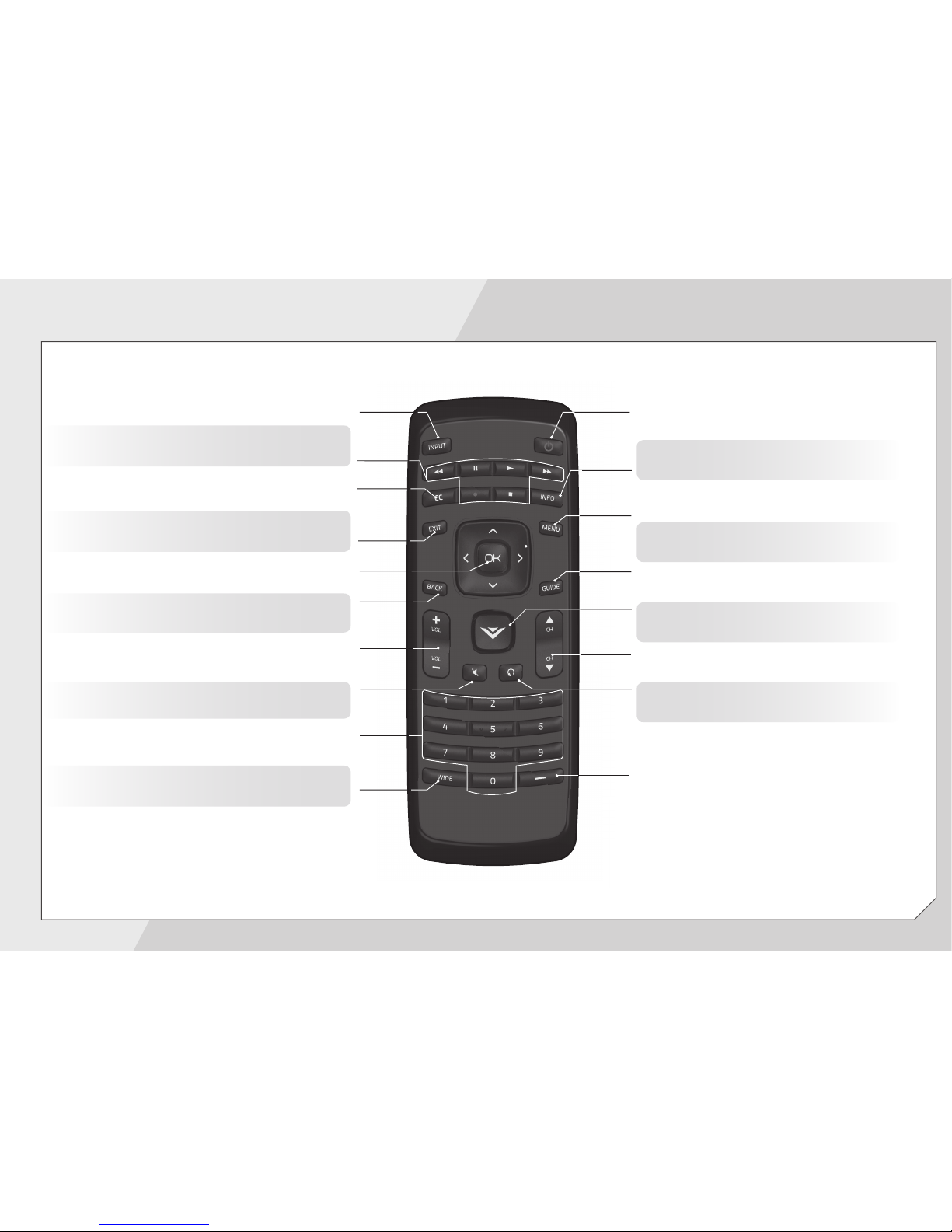

USING THE REMOTE
INPUT
Change the currently-displayed input.
ARROW
Navigate the on-screen menu.
EXIT
Close the on-screen menu.
CLOSED CAPTIONS
Open the closed caption menu.
A/V CONTROLS
Control USB media player.
WIDE
Change the display mode.
MUTE
Turn the audio off or on.
BACK
Go to the previous on-screen menu.
POWER
Turn TV on or off.
MENU
Display the on-screen menu.
INFO
Display the info window.
DASH
Use with number pad to manually enter
a digital sub-channel. (For example,
18-4 or 18-5.)
CHANNEL UP/DOWN
Change the channel.
GUIDE
Display the info window.
LAST
Return to the channel last viewed.
NUMBER PAD
Manually enter a channel.
VOLUME UP/DOWN
Increase or decrease loudness of the audio.
OK
Select the highlighted menu option.
V BUTTON
Open the USB media player.

INSTALLING THE BASE
Using a phillips screwdriver, tighten three (3)
of the included screws into the holes as shown above.
Place the TV screen-down on a clean, flat surface. To
prevent scratches or damage to the screen, place the TV
on a soft surface, such as carpet, rug, or blanket.
Align the neck piece with the bottom of the TV and slide it
into place as shown above.
1 2

Place the TV on a stable, level surface.Align the base with the neck and tighten three (3) of the
included screws into the base with phillips screwdriver.
34

FIRST-TIME SETUP
Remove the battery cover by pressing gently on the V
logo and sliding away from the remote.
Insert the included batteries.
Gently slide the battery cover back into place.
2
Connect the power cord to the back of the TV.
Plug the power cord into an electrical outlet.
1

If you have an external antenna or a cable connection that
extends from a wall outlet, connect it to the TV with an
RF/Coaxial cable.
4
Turn the TV on by pressing the Power button on the
remote.
The Setup App is displayed.
Use the Arrow buttons on the remote to highlight your
preferred language and press OK.
Back of TV
Coaxial
Cable
3

5
Use the Arrow buttons on the remote to highlight Home
Mode Setup and press OK.
6
Use the Arrow buttons on the remote to highlight your
time zone and press OK.
Next, use the Arrow buttons on the remote to turn
daylight saving time On or Off.

7

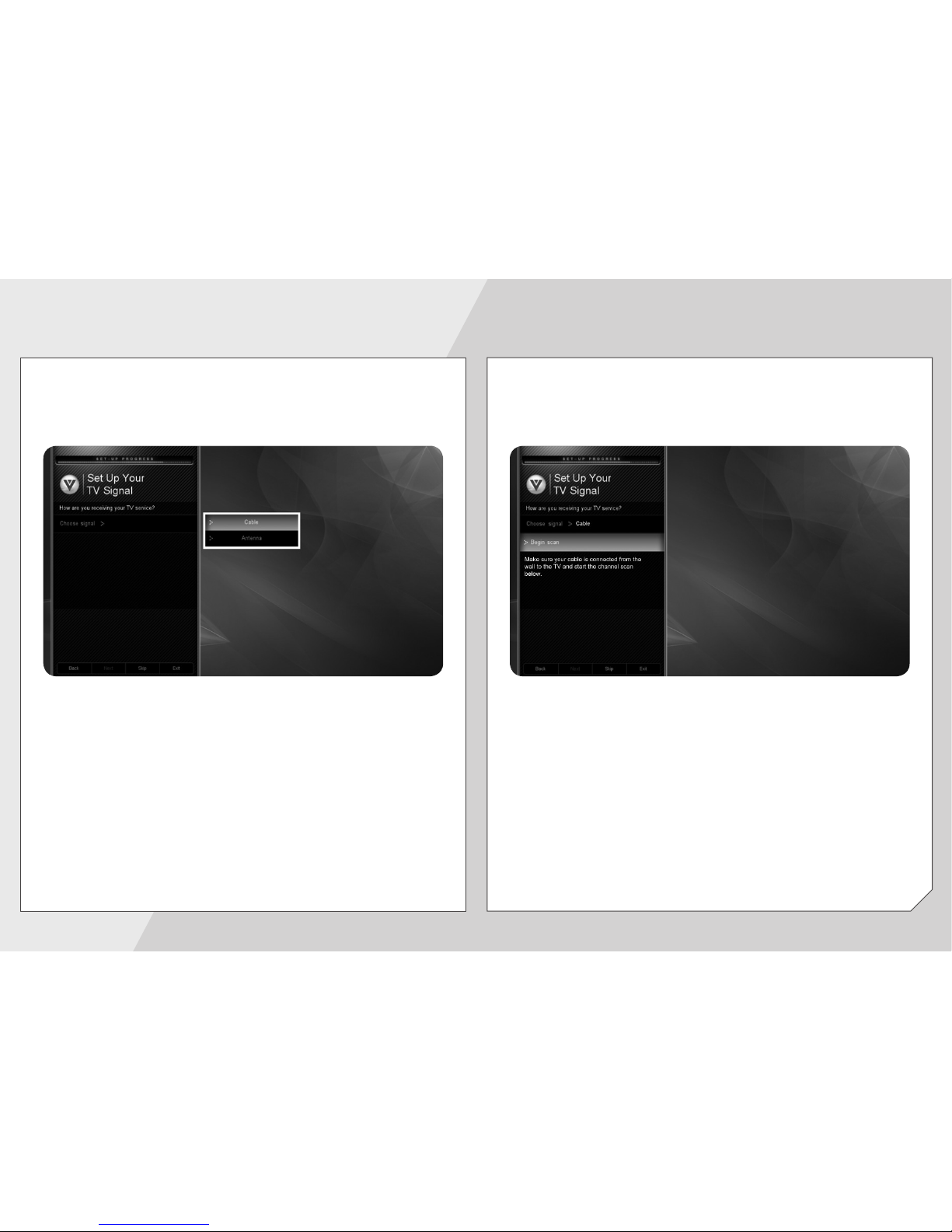

Answer the on-screen questions about your TV
connection using the Arrow and OK buttons on the
remote.
8
Highlight Begin scan and press OK.
When you have finished the channel scan, highlight Exit
to Live TV and press OK.
The First-Time Setup is complete.

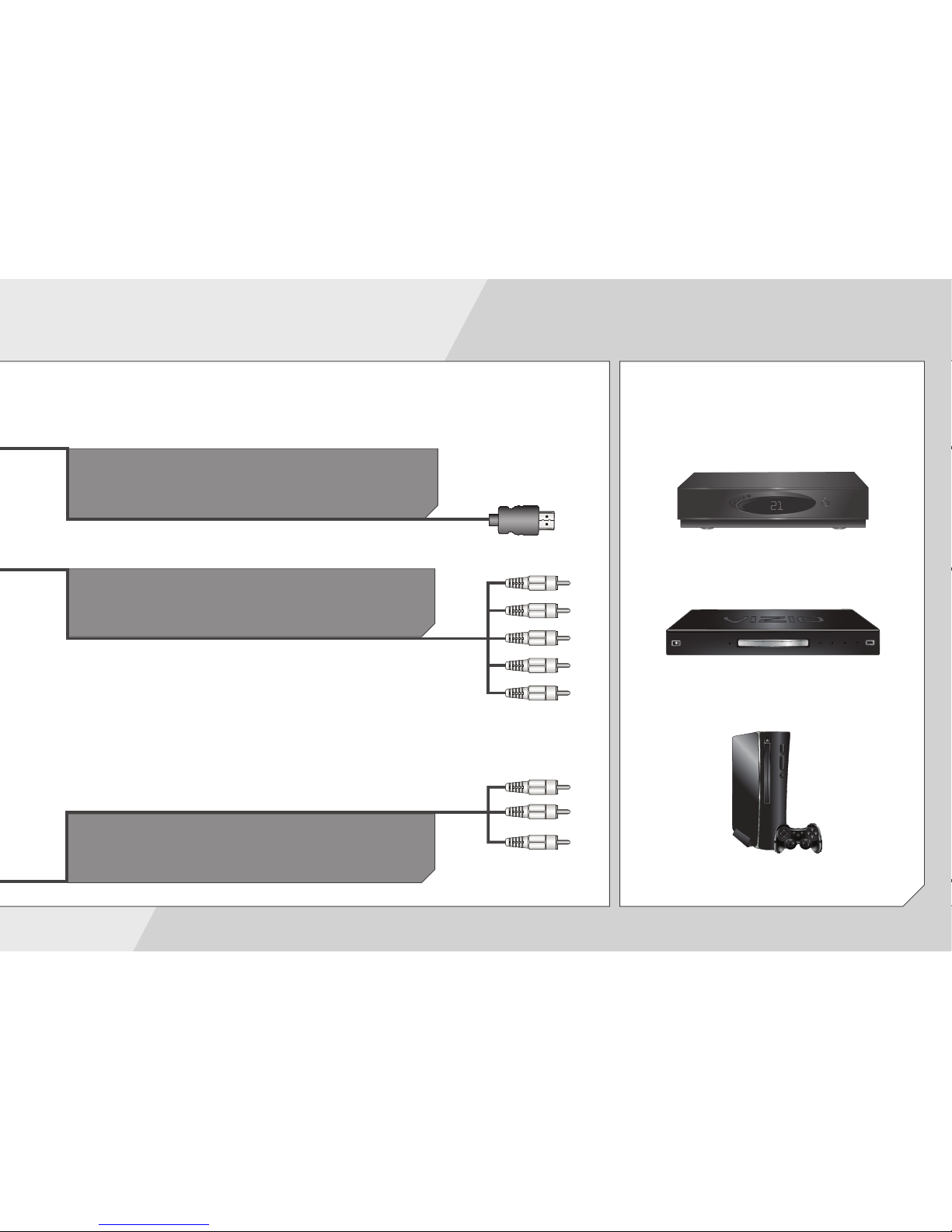

CONNECTING YOUR DEVICES

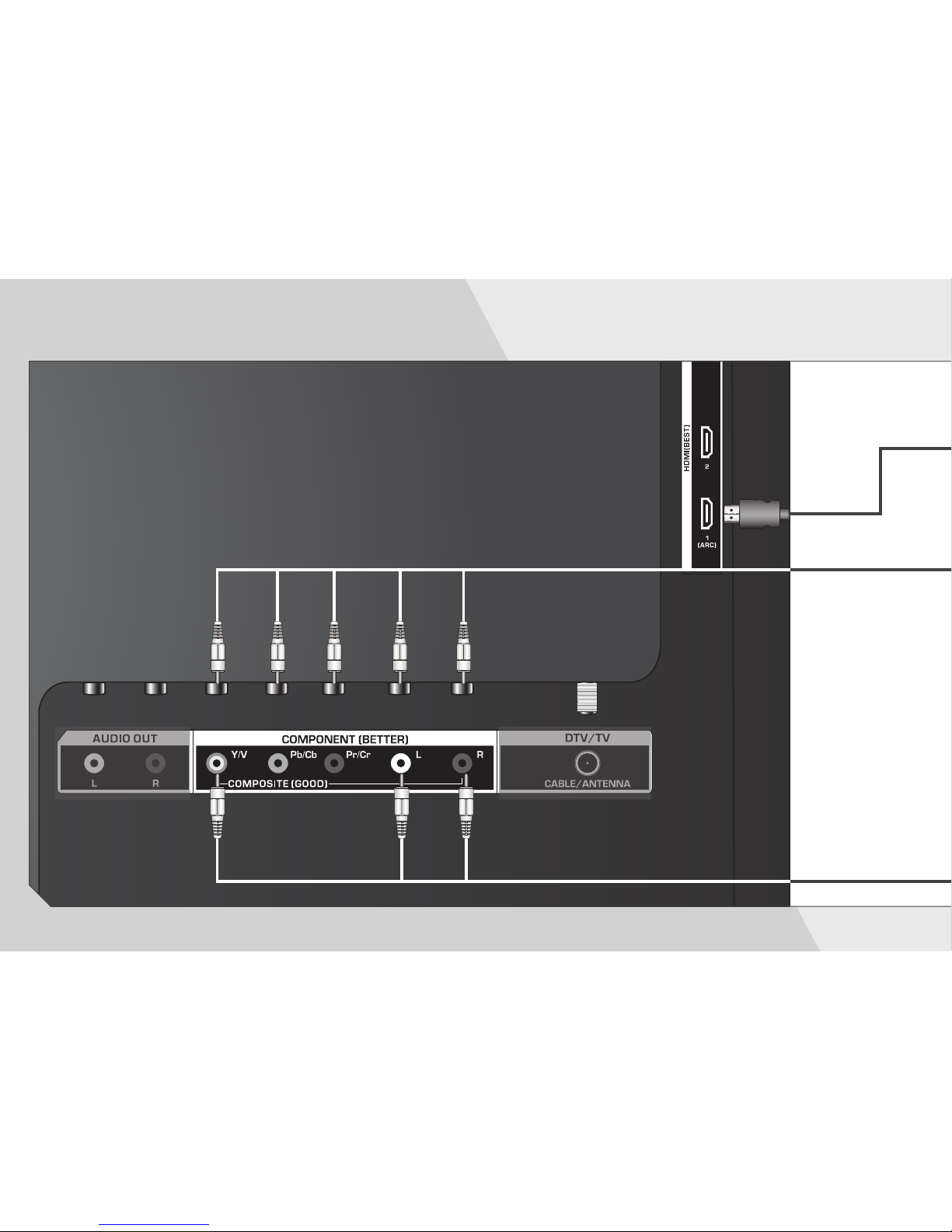

BACK OF TV
Match
colored connectors
to colored ports.

Choose ONE connection type for each device.
(Cables are not included.)
GOOD
AV CABLE • ANALOG
• VIDEO (480i)*
• STEREO AUDIO
BETTER
COMPONENT CABLE • ANALOG
• HD VIDEO (1080i)*
• STEREO AUDIO
BEST
HDMI CABLE • DIGITAL
• HD VIDEO (1080p)*
• HD AUDIO
Game Consoles
Blu-ray™or DVD Players
Cable or Satellite Boxes
Commonly-connected devices:
Match colored connectors
to colored ports.
* Maximum Resolution

LEGAL / COMPLIANCE
FCC Class B Radio Interference Statement
NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy, and if not installed and used in accordance with
theinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno
guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause
harmful interference to radio or television reception, which can be determined by turning the
equipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreof
thefollowingmeasures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiver
isconnected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptany
interferencereceived,includinginterferencethatmaycauseundesiredoperation.
Notice
Thechangesormodicationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould
voidtheuser’sauthoritytooperatetheequipment.
ShieldedinterfacecablesandAC powercord,ifany,mustbeusedinordertocomplywiththe
emissionlimits.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modicationtothisequipment.Itistheresponsibilitiesoftheusertocorrectsuchinterference.
FCC warning
Changesormodicationsnotexpresslyapprovedbythepartyresponsibleforcompliancewiththe
FCCRulescouldvoidtheuser’sauthoritytooperatethisequipment.
Caution
AlwaysuseanAC/DCpoweradapterthatisproperlygrounded.UsetheACcordslistedbelowfor
eacharea.
USA:UL
Canada:CSA
Germany:VDE
UK:BASE/BS
Japan:ElectricApplianceControlAct
TROUBLESHOOTING
• Be sure the power cord is securely connected to the TV
and to a working electrical outlet.
• Press the Power button on the remote or on the side of
the TV.
There is no power.
There is a picture, but no sound.
• Press the Volume Up button on the remote or on the
side of the TV.
• Press the Mute button on the remote or on the side of
the TV. Be sure mute is OFF.
• Select Menu > Audio. Be sure TV Speakers is set to ON.
There are black bars on the top/bottom/sides of the picture.
• Select MENU > Wide, then select Wide or Zoom.
• Be aware that some TV channels add black bars to the
picture.
The TV displays “No Signal.”
• Ensure your connected devices are turned on.
• Press the INPUT button on the remote and select
the input to which your device is connected
(HDMI, Composite, etc.).

LIMITED WARRANTY
ON PARTS AND LABOR
CoversunitspurchasedasnewinUnitedStatesandPuertoRicoOnly.
VIZIOprovidesawarrantytotheoriginalpurchaserofanewProductagainstdefectsinmaterials
andworkmanshipforaperiodofone(1)yearofnon-commercialusageandninety(90)daysof
commercialuse.If a Product covered by thiswarrantyisdeterminedtobedefective within the
warrantyperiod,VIZIOwilleitherrepairorreplacetheProductatitssoleoptionanddiscretion.
Toobtainwarrantyservice,contactVIZIOTechnicalSupportviae-mail:T[email protected]or
viaphoneat877MYVIZIO(877.698.4946)from5:00AMto9:00PMMondaythroughFridayand
8:00AMto4:00PMSaturdayandSunday,PacicTime,orvisitwww.VIZIO.com.PRE-AUTHORIZA-
TIONMUSTBEOBTAINEDBEFORESENDINGANYPRODUCTTOAVIZIOSERVICECENTER.Proofof
purchaseintheformofapurchasereceiptorcopythereofisrequiredtoshowthataProductis
withinthewarrantyperiod.
Parts and Labor
There will be no charge for parts or labor during the warranty period. Replacement parts and
ProductsmaybeneworrecertiedatVIZIO’soptionandsolediscretion.Replacementpartsand
Productsarewarrantedfortheremainingportionoftheoriginalwarrantyorforninety(90)days
fromwarrantyserviceorreplacement,whicheverisgreater.
Type of Service
DefectiveProductsmustbesenttoaVIZIOservicecentertoobtainwarrantyservice.VIZIOisnot
responsiblefortransportationcoststotheservicecenter,butVIZIOwillcoverreturnshippingtothe
customer.PRE-AUTHORIZATIONISREQUIREDBEFORESENDINGANYPRODUCTTOAVIZIOSERVICE
CENTERFORWARRANTYSERVICE.
ProductreturnstoVIZIO’sservicecentersmustutilizeeithertheoriginalcartonboxandshipping
material or packaging that affords an equal degree of protection.VIZIO Technical Support will
provideinstructionsforpackingandshippingthecoveredProducttotheVIZIOservicecenter.
Limitations and Exclusions
VIZIO’sone-yearlimitedwarrantyonlycoversdefectsinmaterialsandworkmanship.Thiswarranty
doesnotcover,forexample:cosmeticdamage,normalwearandtear,improperoperation,improper
voltage supply or power surges, signal issues, damages from shipping, acts of God, any type
of customer misuse, modications or adjustments, as well as installation and set-up issues or
anyrepairsattemptedbyanyoneotherthan byaVIZIOauthorizedservicecenter.Products with
unreadable or removed serial numbers, or requiring routine maintenance are not covered.This
oneyearlimitedwarrantydoesnotcoverProductssold“ASIS”,“FACTORYRECERTIFIED”,orbya
non-authorizedreseller.
THEREARENOEXPRESSWARRANTIESOTHERTHANTHOSELISTEDORDESCRIBEDABOVE.ANY
IMPLIEDWARRANTIES,INCLUDINGANYIMPLIEDWARRANTYOFMERCHANTABILITYANDFITNESS
FORAPARTICULARPURPOSE,SHALLBELIMITEDINDURATIONTOTHEPERIODOFTIMESETFORTH
ABOVE.VIZIO’STOTALLIABILITYFORANYANDALLLOSSESANDDAMAGESRESULTINGFROMANY
CAUSEWHATSOEVERINCLUDINGVIZIO’SNEGLIGENCE,ALLEGEDDAMAGE,ORDEFECTIVEGOODS,
WHETHER SUCH DEFECTS ARE DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE
PURCHASEPRICEOFTHEPRODUCT.VIZIOSHALLNOTBERESPONSIBLEFORLOSSOFUSE,LOSS
OFINFORMATION ORDATA,COMMERCIALLOSS,LOSTREVENUE OR LOST PROFITS,OROTHER
INCIDENTALORCONSEQUENTIALDAMAGES.SOMESTATESDONOTALLOWLIMITATIONSONHOW
LONGAN IMPLIEDWARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES,SOTHEABOVELIMITATIONSOREXCLUSIONSMAYNOTAPPLYTOYOU.THISWARRANTY
GIVESYOUSPECIFICLEGALRIGHTS,ANDYOUMAYALSOHAVEOTHERRIGHTS,WHICHVARYFROM
STATETOSTATE.THISWARRANTYISSUBJECTTOCHANGEWITHOUTNOTICE.
CHECKWWW.VIZIO.COMFORTHEMOSTCURRENTVERSION.
Personal Data
IfyourVIZIOproductiscapableofstoringpersonaldataandotherinformation,ALLCONTENTSAND
INFORMATIONWILLBEDELETEDINTHECOURSEOFSOMEIN-HOMEANDALLSHIP-INWARANTY
SERVICE.Ifthisoccurs,yourproductwillberestoredtoyouconguredasoriginallypurchased.You
willberesponsibleforrestoringallapplicabledataandpasswords.Recoveryandreinstallationof
userdataisnotcoveredunderthisLimitedWarranty.Inordertoprotectyourpersonalinformation,
VIZIOrecommendsthatyoualwaysclearallpersonalinformationfromtheunitbeforeitisserviced,
regardlessoftheservicer.
Zero Bright Pixel Defect Guarantee
Thispolicycovers“zerobrightpixel”defectsforthedurationofthelimited“ONEYEARWARRANTY”
onselectnewproductpurchases.Todetermineifthisguaranteeappliestoyourproduct,referto
the“DETAILS”tabofthemodel’sproductinformationpage(www.VIZIO.com)orlookforthe“zero
brightpixel”guaranteeonthebox.

VIZIO
QUICK
START
GUIDE
© 2012 VIZIO INC. ALL RIGHTS RESERVED.
120823CH-NC
