USER MANUAL
Model: E390i-B1E
VIZIO

This product qualifies for ENERGY STAR in the “factory
default” setting and this is the setting in which power
savings will be achieved. Changing the factory default
picture settings or enabling other features will increase
power consumption that could exceed the limits necessary
to qualify for ENERGY STAR rating.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS Licensing Limited.DTS,
the Symbol, & DTS and the Symbol together are registered
trademarks, and DTS Studio Sound is a trademark of
DTS, Inc. © DTS, Inc.All Rights Reserved.

THANK YOU FOR CHOOSING VIZIO
And congratulations on your new VIZIO HDTV.
To get the most out of your new VIZIO product, read these
instructions before using your product and retain them for future
reference. Be sure to inspect the package contents to ensure
there are no missing or damaged parts.
PRODUCT REGISTRATION
To purchase or inquire about accessories and installation services
for your VIZIO product, visit our website at www.VIZIO.com or call
toll free at [phone].
We recommend that you either:
• Register your VIZIO product at www.VIZIO.com
• Complete and mail the enclosed registration card
Extended Warranties
For peace of mind, and to protect your investment beyond the
standard warranty,VIZIO offers on-site extended warranty service
plans. These plans provide additional coverage during the
standard warranty period. To purchase an extended warranty
service plan, visit www.VIZIO.com.
WHEN READING THIS MANUAL
When you see this symbol, please read the
accompanying helpful tip.
IMPORTANT SAFETY INSTRUCTIONS
Your TV is designed and manufactured to operate within defined
design limits. Misuse may result in electric shock or fire.To prevent
your TV from being damaged, the following instructions should
be observed for the installation, use, and maintenance of your
TV. Read the following safety instructions before operating your
TV. Keep these instructions in a safe place for future reference.
• To reduce the risk of electric shock or component
damage, switch off the power before connecting other
components to your TV.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong.The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched;
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
• Only use attachments/accessories specified by the
manufacturer.
When you see this symbol, please read the
accompanying important warning or notice. It is
intended to alert you to the presence of important
operating instructions.

source indicated on the label. If you are not sure of the
type of power supplied to your home, consult your dealer
or local power company.
• Do not apply pressure or throw objects at your TV.
This may compromise the integrity of the display.The
manufacturer’s warranty does not cover user abuse or
improper installations.
• The power cord must be replaced when using different
voltage than the voltage specified. For more information,
contact your dealer.
• When connected to a power outlet, power is always
flowing into your TV.To totally disconnect power, unplug
the power cord.
• The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of un-isolated, dangerous voltage within the
inside of your TV that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
• Do not overload power strips and extension cords.
Overloading can result in fire or electric shock.
• The wall socket should be installed near your TV and
easily accessible.
• Only power of the marked voltage can be used for your
TV. Any other voltage than the specified voltage may
cause fire or electric shock.
• Do not touch the power cord during lightning.To avoid
electric shock, avoid handling the power cord during
electrical storms.
• Unplug your TV during a lightning storm or when it will not
be used for long period of time.This will protect your TV
from damage due to power surges.
• Do not attempt to repair or service your TV yourself.
Opening or removing the back cover may expose you to
high voltages, electric shock, and other hazards. If repair
is required, contact your dealer and refer all servicing to
qualified service personnel.
• Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer,or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when
unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in
any way, such as when the power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally or has been
dropped.
• Unplug the power cord before cleaning your TV.
• When moving your TV from an area of low temperature
to an area of high temperature, condensation may form
in the housing. Wait before turning on your TV to avoid
causing fire, electric shock, or component damage.
• A distance of at least three feet should be maintained
between your TV and any heat source, such as a radiator,
heater, oven, amplifier etc. Do not install your TV close to
smoke. Operating your TV close to smoke or moisture may
cause fire or electric shock.
• Slots and openings in the back and bottom of the
cabinet are provided for ventilation.To ensure reliable
operation of your TV and to protect it from overheating,
be sure these openings are not blocked or covered. Do
not place your TV in a bookcase or cabinet unless proper
ventilation is provided.
• Never push any object into the slots and openings on
your TV cabinet. Do not place any objects on the top of
your TV. Doing so could short circuit parts causing a fire
or electric shock. Never spill liquids on your TV.
• Your TV should be operated only from the type of power


• WARNING: Keep your TV away from moisture. Do not
expose your TV to rain or moisture. If water penetrates into
your TV, unplug the power cord and contact your dealer.
Continuous use in this case may result in fire or electric
shock.
• Do not use your TV if any abnormality occurs. If any
smoke or odor becomes apparent, unplug the power
cord and contact your dealer immediately. Do not try to
repair your TV yourself.
• Avoid using dropped or damaged appliances. If your
TV is dropped and the housing is damaged, the internal
components may function abnormally. Unplug the power
cord immediately and contact your dealer for repair.
Continued use of your TV may cause fire or electric
shock.
• Do not install your TV in an area with heavy dust or high
humidity. Operating your TV in environments with heavy
dust or high humidity may cause fire or electric shock.
• Follow instructions for moving your TV. Ensure that the
power cord and any other cables are unplugged before
moving your TV.
• When unplugging your TV, hold the AC/DC power
adapter, not the cord. Pulling on the power cord may
damage the wires inside the cord and cause fire or
electric shock. When your TV will not be used for an
extended period of time, unplug the power cord.
• To reduce risk of electric shock, do not touch the
connector with wet hands.

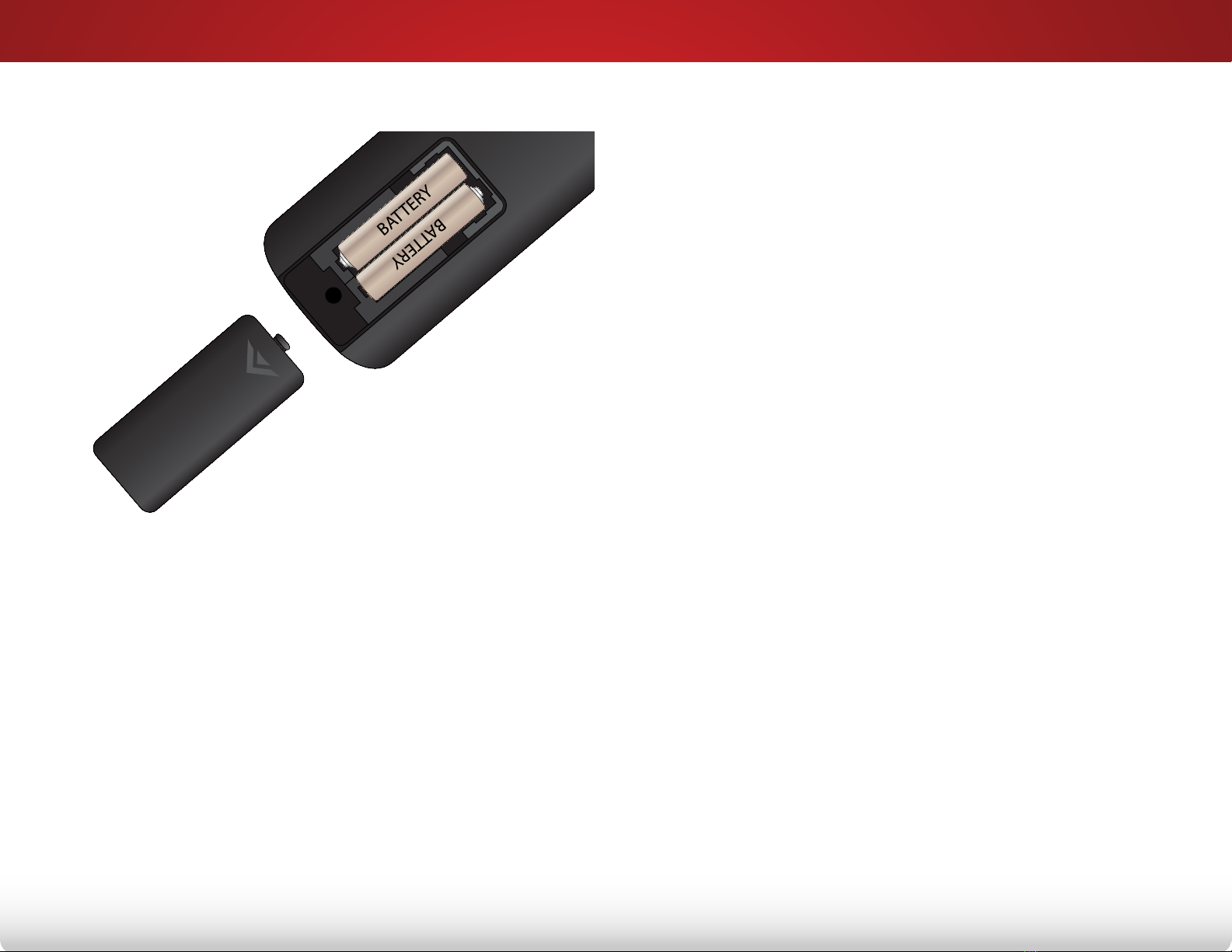

• Insert batteries in accordance with instructions. Incorrect
polarities may cause the batteries to leak which can
damage the remote control or injure the operator. Do not
expose batteries to excessive heat such as sunshine, fire
or the like.
• If any of the following occurs, contact the dealer:
- The power cord fails or frays.
- Liquid sprays or any object drops into your TV.
- Your TV is exposed to rain or other moisture.
- Your TV is dropped or damaged in any way.
- The performance of your TV changes substantially.
• This apparatus shall not be exposed to dripping or
splashing and no objects fill with liquids, such as vases,
shall be placed on the apparatus.
• The mains plug or appliance coupler is used as the
disconnect device, the disconnect device shall remain
readily operable.
• CAUTION - These servicing instructions are for use by
qualified service personnel only.To reduce the risk of
electric shock, do not perform any servicing other than
that contained in the operating instructions unless you
are qualified to do so.
• The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated DANGEROUS VOLTAGE within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electrical shock to persons.
h

TELEVISION ANTENNA CONNECTION
PROTECTION
If an outside antenna/satellite dish or cable system is to be
connected to the TV, make sure that the antenna or cable system
is electrically grounded to provide some protection against
voltage surges and static charges.
Article 810 of the National Electrical Code, ANSI/NFPSA 70,
provides information with regard to proper grounding of the
mast and supporting structure, grounding of the lead-in wire to
an antenna discharge unit, size of the grounding conductors,
location of antenna discharge unit, connection to grounding
electrodes, and requirements of the grounding electrode.
Ground Clamp Antenna Lead In Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductors
(NEC Section 810-21)
Ground Clamps
Power Service Grounding Electrode
System
(NEC ART 250, part H)
Electric Service Equipment
Lightning Protection
For added protection of the TV during a lightning storm or when
it is left unattended or unused for long periods of time, unplug
the TV from the wall outlet and disconnect the antenna or cable
system.
Power Lines
Do not locate the antenna near overhead light or power circuits,
or where it could fall into such power lines or circuits. Remember,
the screen of the coaxial cable is intended to be connected to
earth in the building installation.

Table of Contents
1
Installing the TV ................................................ 3
Inspecting the Package Contents .....................................3
Installing the TV...................................................................4
Installing the TV Stand .....................................................4
Installing the TV on a Wall................................................6
Controls and Connections .............................. 7
Back Panel..........................................................................7
Side Panel...........................................................................8
Front Panel..........................................................................9
Remote Control ..................................................................10
Replacing the Batteries ...................................................11
Connecting Your Devices................................. 12
Connecting A Device .........................................................12
Connecting a Device - Audio and Video Cable Types ...13
Connecting an Audio Device ............................................15
Connecting an Audio Device - Audio Cable Types ...........16
Connecting an Audio Device - ARC...................................17
Without HDMI ARC............................................................17
With HDMI ARC .................................................................17
Connecting to your Network ..............................................18
Connecting to a Wired Network (Best) ...........................18
Connecting to a Wireless Network ..................................18
Completing the First-Time Setup...................... 19
Using the On-Screen Menu .............................. 21
Navigating the On-Screen Menu .......................................21
Changing the Input Source ...............................................22
Changing the Screen Aspect Ratio ...................................22
Viewing Video with the Menu Open ..................................23
Adjusting the Picture Settings ............................................24
Adjusting the Advanced Picture Settings........................25
Adjusting the Professional Picture Settings......................26
Adjusting the Color Tuner Settings ..................................26
Creating a Custom Picture Mode ...................................29
Renaming a Custom Picture Mode .................................30
Locking and Unlocking the Custom Picture Modes........30
Deleting a Custom Picture Mode ....................................31
Adjusting the Audio Settings ..............................................32
Changing the Equalizer Settings.....................................33
Deleting the Custom Audio Mode...................................33
Setting Timers......................................................................34
Setting the Sleep Timer ....................................................34
Setting the Auto Power Off Feature..................................34
Using the Network Connection Menu................................35
Connecting to a Wireless Network ..................................35
Changing the Manual Setup Settings.............................35
Finding MAC Addresses for Network Setup .....................36
Connecting to a Hidden Network ...................................36
Setting Up the Tuner............................................................37
Selecting a Tuner Input ....................................................37
Scanning for Channels....................................................37
Adding New Channels ....................................................38
Skipping Channels...........................................................39
Listening to Alternate Audio ...............................................40
Changing the Analog Audio Language .........................40
Changing the Digital Audio Language...........................40
Setting Up Closed Captioning ...........................................41

2
Changing the Appearance of Digital Closed Captions. 41
Renaming Devices on the Input Menu ..............................43
Changing the TV Settings...................................................44
Viewing System Information ............................................44
Changing the On-Screen Menu Language....................45
Setting the Time & Local Settings.....................................45
Using the Parental Controls .............................................46
Accessing the Parental Controls Menu...........................46
Enabling or Disabling Program Ratings...........................46
Locking and Unlocking Channels ...................................46
Blocking and Unblocking Content by Rating..................47
Changing the Parental Control Passcode ......................47
Resetting the Content Locks............................................47
Adjusting the CEC Settings..............................................48
Turning the Power Indicator On or Off.............................48
Using the Reset & Admin Menu..........................................49
Restoring the TV to Factory Default Settings....................49
Using the Guided Setup Menu........................................49
Using Guided Setup.........................................................49
Using the Info Window ........................................................50
Using the USB Media Player ............................. 51
Using the USB Media Player................................................51
Preparing Your USB Drive to Play USB Media....................51
Playing USB Media ...........................................................51
Removing the USB Drive from the TV................................51
Using VIZIO Internet Apps Plus® (V.I.A. Plus)...... 55
Using the V.I.A. Plus App Dock ............................................55
Using the Hot Keys............................................................55
Using the Fullscreen V.I.A. Plus Apps Window.....................56
Fullscreen V.I.A. Plus Apps Window Overview .....................57
Customizing the V.I.A. Plus Apps Window ...........................58
Adding an App to the My Apps Tab ................................58
Deleting an App from the My Apps Tab ..........................58
Moving an App in My Apps .............................................59
Troubleshooting & Technical Support.............. 60
Specifications................................................... 63
Limited Warranty............................................... 65
Legal & Compliance........................................ 66

3
1
Installing the TV
INSPECTING THE PACKAGE CONTENTS
Before installing your new TV, take a moment to inspect the
package contents. Use the images below to ensure nothing is
missing or damaged.
Power Cord
PACKAGE CONTENTS
3 x M4 12mm
Phillips Screws
VIZIO LED HDTV Quick Start GuideRemote Control
with Batteries
2 x M6 12mm
Phillips Screws

1
4
INSTALLING THE TV
After removing the TV from the box and inspecting the package
contents you can begin installing the TV.Your TV can be installed
in two ways:
• On a flat surface, using the included stand
• On a wall, using a VESA-standard wall mount (not
included)
Installing the TV Stand
Your TV includes a stand designed to support the weight of the
TV and keep it from falling over.However, the TV can still fall over if:
• It is placed on an uneven, unstable, or non-level surface
• It is pushed, pulled, or otherwise improperly moved
• If an earthquake occurs and the TV is not properly
secured
TV ON STAND
To install the base:
1. Place the TV screen-down on a clean, flat surface.To prevent
scratches or damage to the screen, place the TV on a soft
surface such as a blanket.

1
5
4. Align the stand with the bottom of the TV and slide it into
place as shown.
5. Using a Phillips screwdriver, tighten two (2) M6 12mm screws
into the back of the TV to secure the stand to the TV.
6. When you are finished, place the TV on a stable,
level surface.
2. Align the base with the neck piece and slide it into place as
shown.
3. Using a Phillips screwdriver, tighten three (3) M4 12mm
screws into the bottom of the base to secure it to the neck
piece.

1
6
Installing the TV on a Wall
To mount your TV on a wall, you will need a wall mount. Consult
the information below to find the appropriate mount for your TV
model:
Installing a TV on a wall requires lifting.To prevent
injury or damage to the TV, ask someone to help you.
E390i-B1E
Screw Size: M4
Hole Pattern: 200mm (V) x 200mm (H)
Weight w/o Stand: 16.42 lbs
Be sure the mount you choose is capable of supporting the
weight of the TV. After you have determined that you have the
correct mount for your TV, you can begin the installation.
To install your TV on a wall:
1. Disconnect any cables connected to your TV.
2. Place the TV face-down on a clean, flat, stable surface.
Be sure the surface is clear of debris that can scratch or
damage the TV.
3. Remove the base by loosening and removing the screws.
4. Attach your TV and wall mount to the wall, carefully following
the instructions that came with your mount.
Use only with a UL-listed wall mount bracket rated for the
weight/load of this TV.

2
7
Controls and Connections
Ethernet - Connect an Ethernet cable from home network.
Coaxial - Connect coaxial cable an antenna, or from a cable or
satellite box.
Optical Audio Out - Connect an optical/SPDIF audio device, such as
home audio receiver.
Stereo Audio Out - Connect an RCA audio device,such as sound bar.
HDMI - Connect an HDMI device.
Component/Composite - Connect a component or composite device.
USB - Connect a USB thumb drive to play photos, music, or videos.
HDMI - Connect an HDMI device.
BACK PANEL
Note: The image shown here is for illustrative purposes only and may be subject to change.
The actual number of ports and their locations may vary, depending on the model.

2
8
SIDE PANEL
Power/Input - Press once to turn on the TV.
Press once to access the Input menu.
Press and hold to turn off the TV.

2
9
FRONT PANEL
REMOTE SENSOR & POWER INDICATOR
When using the remote, aim it directly at this sensor.
The power indicator flashes on when the TV turns on, then goes out after several seconds.
To keep the power indicator on as long as the TV is on, see
“Turning the Power Indicator On or
Off” on page 48.
FRONT PANEL

2
10
REMOTE CONTROL
INPUT
Change the currently-displayed input.
ARROW
Navigate the on-screen menu.
EXIT
Close the on-screen menu.
CLOSED CAPTIONS
Turn closed captions on or off.
A/V CONTROLS
Control USB media player.
WIDE
Switch the display mode.
MUTE
Turn the audio off or on.
BACK
Go to the previous on-screen menu.
POWER
Turn the TV on or off.
MENU
Display the on-screen menu.
INFO
Display the info window.
DASH
Use with number pad to manually
enter a digital sub-channel.
(For example, 18-4 or 18-5.)
CHANNEL UP/DOWN
Change the channel.
GUIDE
Display the info window.
LAST
Return to the channel last viewed.
NUMBER PAD
Manually enter a channel.
VOLUME UP/DOWN
Increase or decrease loudness of
the audio.
OK
Select the highlighted menu option.
V BUTTON
Open the V.I.A. Plus Dock.
APP LAUNCHER
Quickly launch the pictured App.
REMOTE CONTROL

2
11
Replacing the Batteries
1. Remove the battery cover.
2. Insert two batteries into the remote control. Make sure that
the (+) and (-) symbols on the batteries match the (+) and
(-) symbols inside the battery compartment.
3. Replace the battery cover.

3
12
Connecting Your Devices
CONNECTING A DEVICE
BETTER
COMPONENT CABLE
• ANALOG
• HD VIDEO (1080i)*
• STEREO AUDIO
BEST
HDMI CABLE • DIGITAL
• HD VIDEO (1080p)*
• HD AUDIO
GOOD
AV CABLE • ANALOG
• VIDEO (480i)*
• STEREO AUDIO
* Maximum Resolution
Game Console
Cable/Satellite Box
DVD/Blu-ray Player
Your TV can be used to display output from most devices.
1. Verify that your device has a video port that matches an
available port on the TV (HDMI, Component, etc.).
2. Turn the TV and your device off.
3. Connect the appropriate cable (not included) to the TV and
the device.
4. Turn the TV and your device on. Set the TV’s input to match
the connection you used (HDMI-1, HDMI-2, etc.).
BACK OF TV
Note:The image shown here is for illustrative purposes only and may be subject to change.
The actual number of ports and their locations may vary, depending on the model.
BETTER
COAXIAL CABLE • ANALOG
• HD VIDEO (1080i)*
• STEREO AUDIO

3
13
COAXIAL CABLE
Coaxial cables are the traditional way of connecting
antennas and cable television signals to your TV.
Coaxial cables carry both audio and video signals
through a single connector.
AV CABLE
AV cables (or Composite cables) are the traditional
way of connecting your devices to your TV. Video
signals are sent over the yellow connector while audio
is sent over the red and white connectors.
GOOD BETTER
COMPONENT VIDEO
Y L R
• HD Video Resolutions up to 1080i
• Analog Connection
• Audio and Video Signals
• Video Resolutions up to 480i
• Analog Connection
• Audio and Video Signals
CONNECTING A DEVICE - AUDIO AND VIDEO CABLE TYPES

3
14
HDMI CABLE
HDMI is the intelligent, all-digital interface that delivers
bothdazzlingqualityandunmatchedeaseofuse.HDMI
technology transmits crystal-clear digital video along
with multi-channel surround audio. HDMI-connected
devices have the ability to automatically adjust
themselves for optimal viewing.
COMPONENT CABLE
Component cables are designed to carry high
definition video signals along with additional
audio connections. Colors are delivered with color
information split up three different ways over three
connectors for video (separated into Red, Blue and
Green signals) and the left and right audio connectors
(Red and White).
BETTER
COMPONENT VIDEO
R L Pr/Cr Pb/Cb Y
HDMI
HDMI
• HD Video Resolutions up to 1080p
• HD Audio
• Digital Connection
• Audio and Video Signals
• HD Video Resolutions up to 1080i
• Analog Connection
• Audio and Video Signals
BEST
