Vizio XVT3D650SV User manual

XVT3D650SV - QUICK START GUIDE
THEATER 3D
LED LCD HDTV

IMPORTANT SAFETY INFORMATION FOR VIEWING 3D CONTENT
You may experience discomfort while watching 3D content. You may feel symptoms of eye strain, vision fatigue, color or
depth distortion, motion sickness, nausea, dizziness, disorientation, or other discomforts. If you experience any of these
symptoms, stop watching and take a break for at least thirty minutes before resuming. If the symptoms are severe or
continue even after you have stopped watching 3D content, consult a doctor.
Take care to monitor children’s watching of 3D content.Children (including teenagers) may be more at risk of experiencing
discomfort while watching 3D content and less likely to report symptoms. Monitor children’s 3D content viewing and
watch for signs of discomfort.
Some viewers may be susceptible to epileptic seizures or strokes when viewing 3D images, even if those conditions
have not been previously diagnosed. If you or anyone in your family has a history of seizures or strokes, or if you have
any other reason to think you or someone under your supervision may be susceptible to epileptic seizures or strokes,
consult a doctor before watching 3D content.
Even if you do not experience any of the above symptoms, take regular breaks from watching 3D content.

VIZIO 65” Theater 3D HDTV with Stand
Bluetooth®Remote Control
with Batteries
Power Cord Cleaning ClothUser Guide and
Quick Start Guide
Safety Cable
XVT3D424SV / XVT3D474SV / XVT3D554SV
QUICK START GUIDE
XVT3D424SV / XVT3D474SV / XVT3D554SV
QUICK START GUIDE
PACKAGE CONTENTS
Basic Theater 3D Glasses (2)
Premium Theater 3D Glasses (2)

USING THE BLUETOOTH®REMOTE CONTROL
Device Power/Standby: Turn external device on or off.
Input: Change input device.
A/V Controls: Control external device.
List: Display list of available channels.
Exit: Close on-screen menu.
OK: Select highlighted menu option.
Back: Go to previous menu screen.
VIA: Start VIZIO Internet Apps.
Volume Up/Down: Increase or decrease volume.
Mute: Turn sound off or on.
3D: Activate 3D content.
Power/Standby: Turn the TV on or off.
Info: Display program information and time.
Menu: Display on-screen menu.
Arrow: Navigate on-screen menu or episode guide.
Guide: Display episode guide.
VIA Shortcuts: Control VIZIO Internet Apps (see diagram).
Channel Up/Down: Change channel up or down.
Last: Return to previous channel.
Number Pad: Enter a channel.
QWERTY Keypad: Enter letters and numbers.

Device Power/Standby
Input
A/V Controls
List
Exit
OK
Back
VIA
Volume Up/Down
Mute
3D
Number Pad
Last
Channel Up/Down
VIA Shortcuts
Guide
Arrow
Menu
Info
Power/Standby
QWERTY KeypadArrow
Move/Delete App from VIA Dock
Change Screen Size
(when VIA Sidebar is open)
View Settings for Active App
Exit App/Exit VIA Dock
VIA Shortcuts

12
BEFORE THE FIRST-TIME SETUP

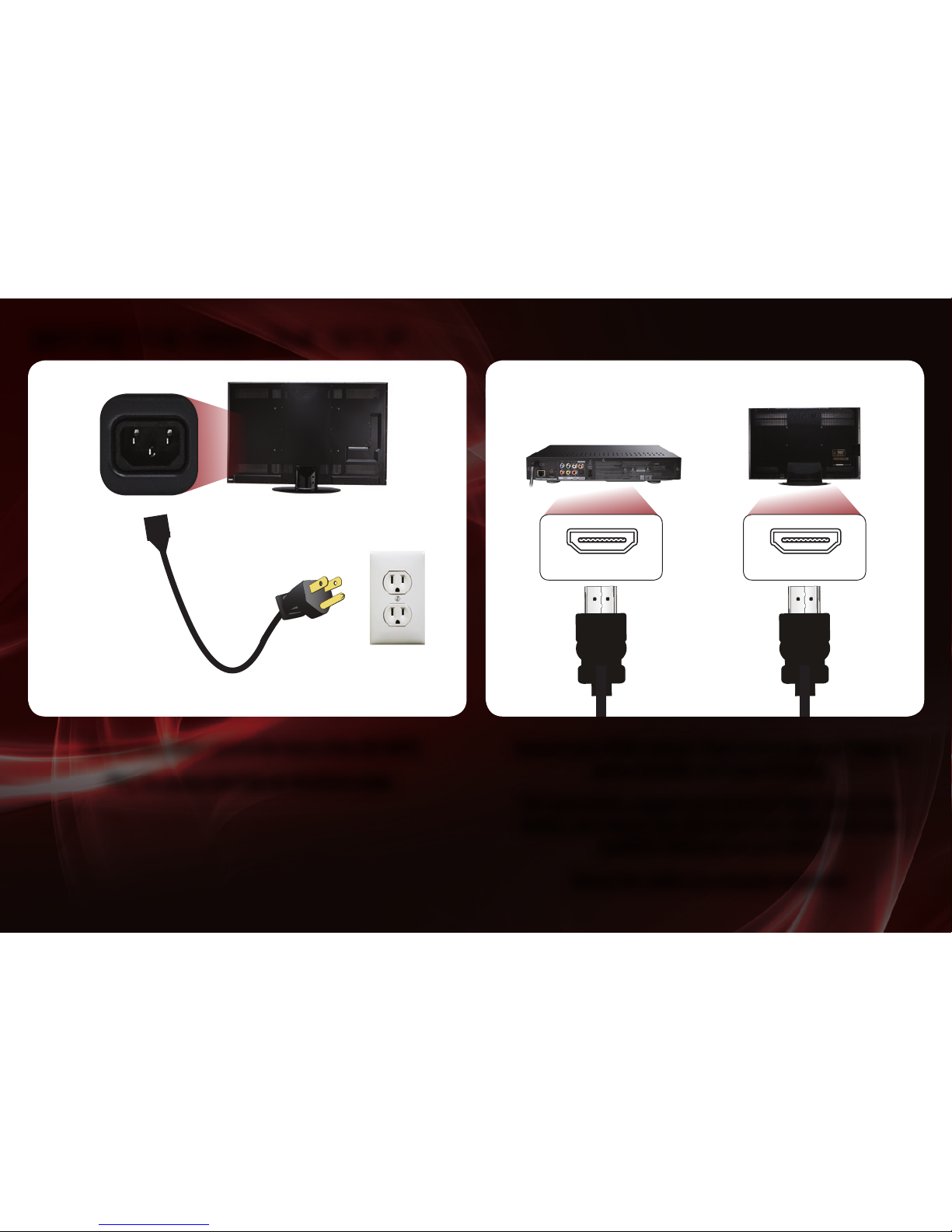

Connect the power cord to the back of the 3D HDTV.
Plug the power cord into an electrical outlet.
Connect your HDMI devices. These include Blu-ray™ players,
game consoles, and cable TV boxes.
For each device, connect one end of an HDMI cable to the
device, and connect the other end of the HDMI cable to an
available HDMI port on your HDTV.
Ensure the cables are securely connected.
HDMI HDMI

3
Remove the battery cover by pressing gently on the arrow and
sliding away from the remote.
Correctly insert the batteries. The +and -symbols on the
batteries must correspond to the +and -symbols inside the
battery compartment.
Replace the battery cover by gently sliding it back into place.
4
Place the TV on a stable, flat surface.

COMPLETING THE FIRST-TIME SETUP

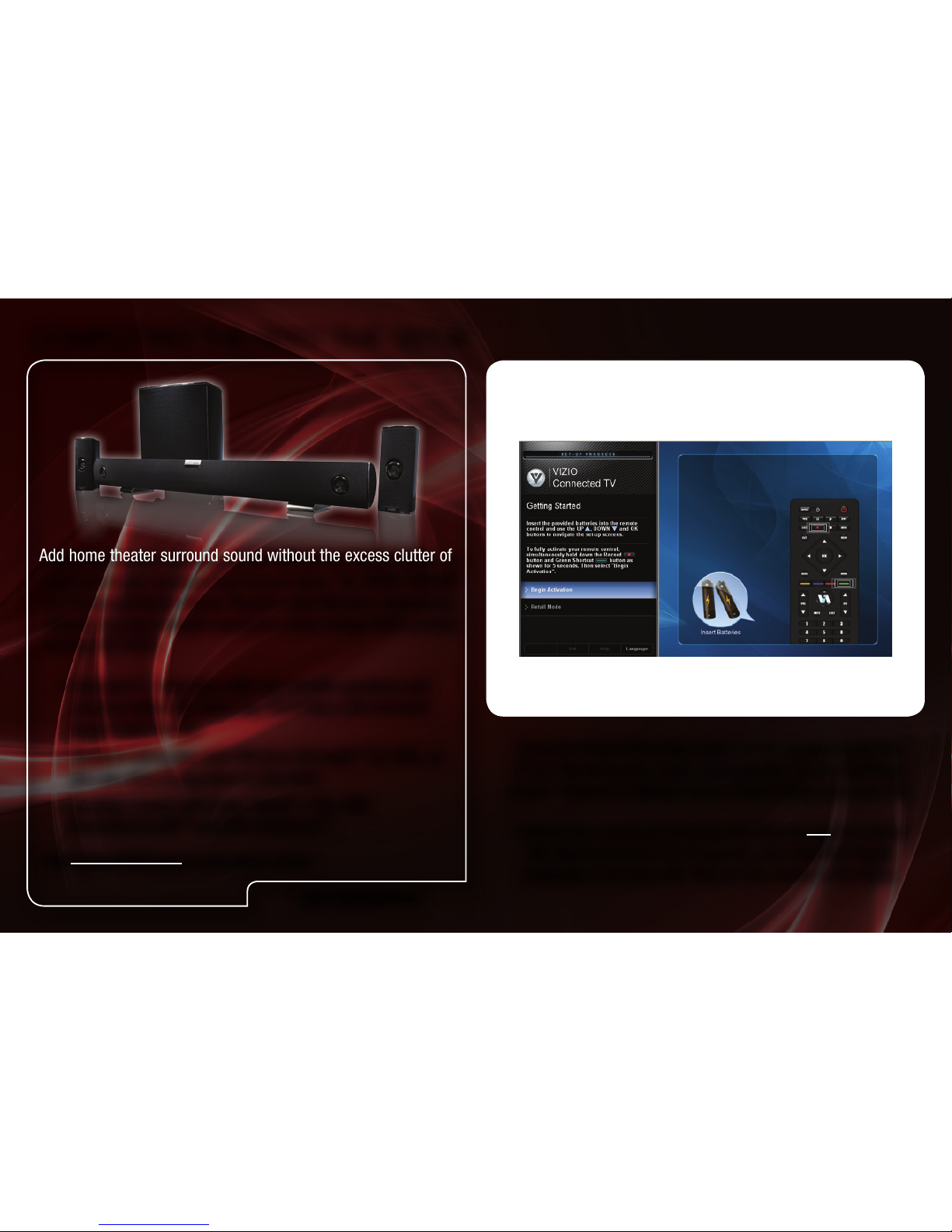

Add home theater surround sound without the excess clutter of
front and center speakers and excess wires. The VIZIO VHT510
5.1 Surround Sound Home Theater with Wireless Subwoofer
delivers big home theater sound in a sleek design that’s perfect
for your 3D HDTV:
•Universal 5.1 soundbar with rear satellite speakers and
wireless subwoofer turns any HDTV into a full surround
sound home theater
•Wireless subwoofer uses Wireless HD Audio™2.4 GHz, so
you can place it anywhere in the room
•Premium sound with Dolby Digital®, DTS, SRS
CircleCinema HD™and SRS TruVolume™.
Visit www.VIZIO.com to purchase online.
Press the Power/Standby button on the remote to turn the
TV on. The Setup App starts automatically. Use the Up/Down
Arrow buttons to highlight Home Mode Setup and press OK.
Activate the remote by pressing both Record and the Green
VIA Shortcut button for 5 seconds, then highlight Begin
Activation and press OK. Wait for the remote to be found.
1
VIZIO RECOMMENDS

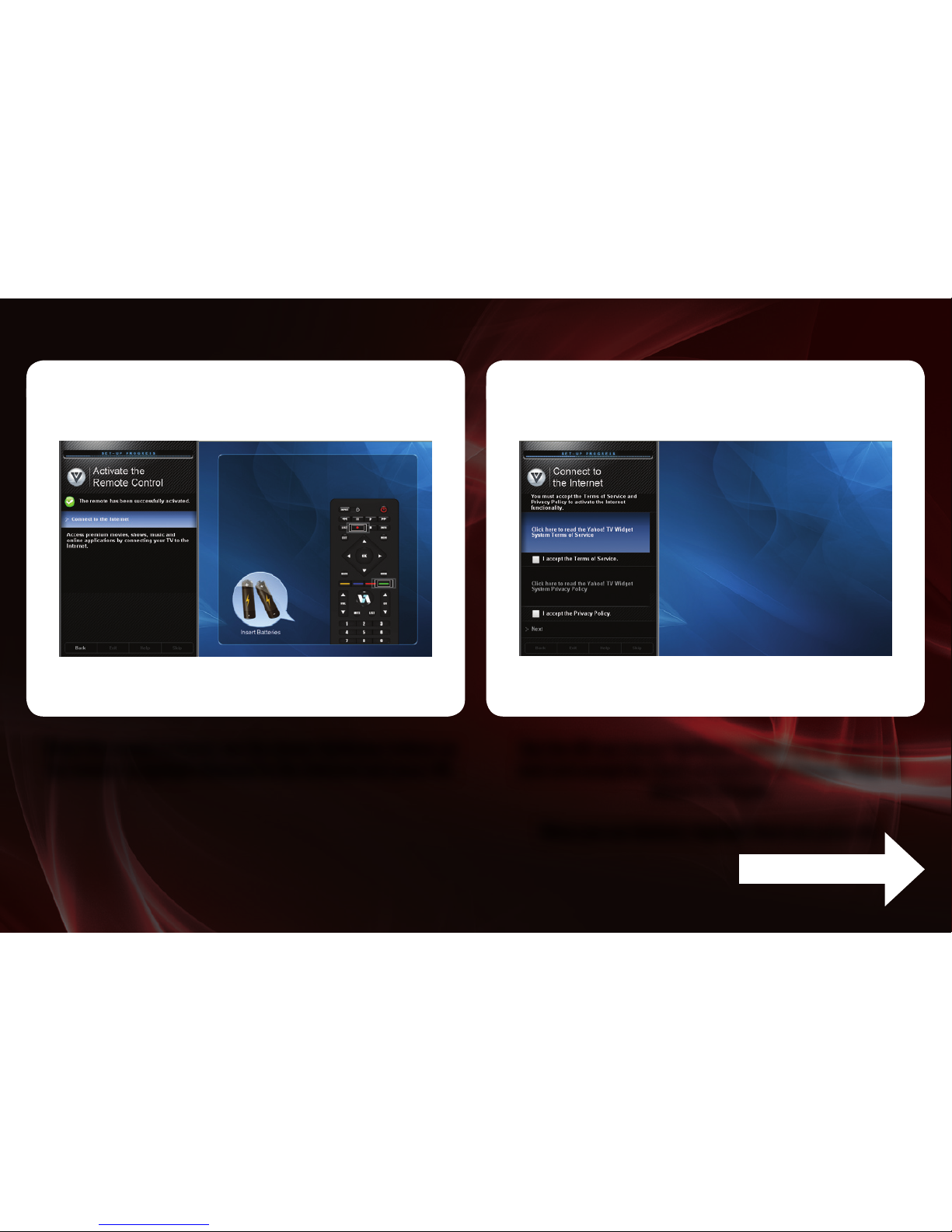

When the remote is found, use the Arrow Up/Down buttons on
the remote to highlight Connect to the Internet and press OK.
Use the OK and Arrow Up/Down buttons on the remote to
read and accept the Terms of Service and Privacy Policy for
Yahoo! TV Widgets.
When you are finished, highlight Next and press OK.
Turn Page to Step 4
2 3

Enter your First Name, Last Name, Phone Number, ZIP Code,
and E-mail Address using the QWERTY Keypad on the remote.
Highlight Next and press OK.

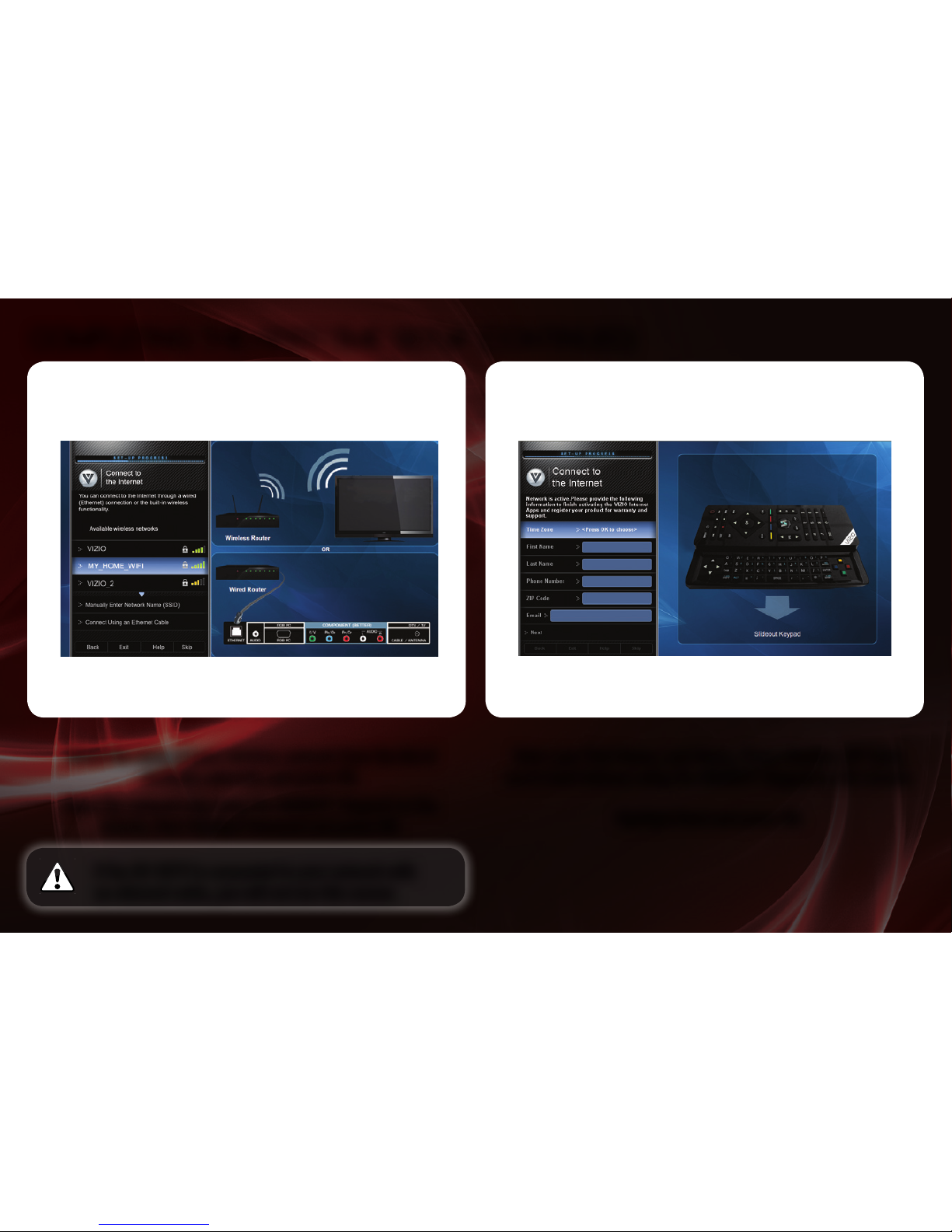

Select the name of your wireless network from the list of
available networks and press OK.
Enter the network key using the QWERTY Keypad on the
remote, then highlight Connect and press OK.
COMPLETING THE FIRST-TIME SETUP (CONTINUED)
54
If the 3D HDTV is connected to your network with
an ethernet cable, you will not see this screen.

Choose the input to which your TV signal is connected.
Answer the on-screen questions about your TV connection
using the Arrows and OK button on the remote.
Choose the device you would like to connect.
Answer the on-screen questions about your TV connection
using the Arrows and OK button on the remote.
When you have finished adding devices, highlight Exit to Live
TV and press OK.
6 7

1
Ensure your device has one of the above ports.
Turn your device and the TV off.
Connect your devices using the connection chart on the next
page. This chart shows the most common connections. If you
would like to see additional connection options, see Connecting
Your Devices in the user manual.

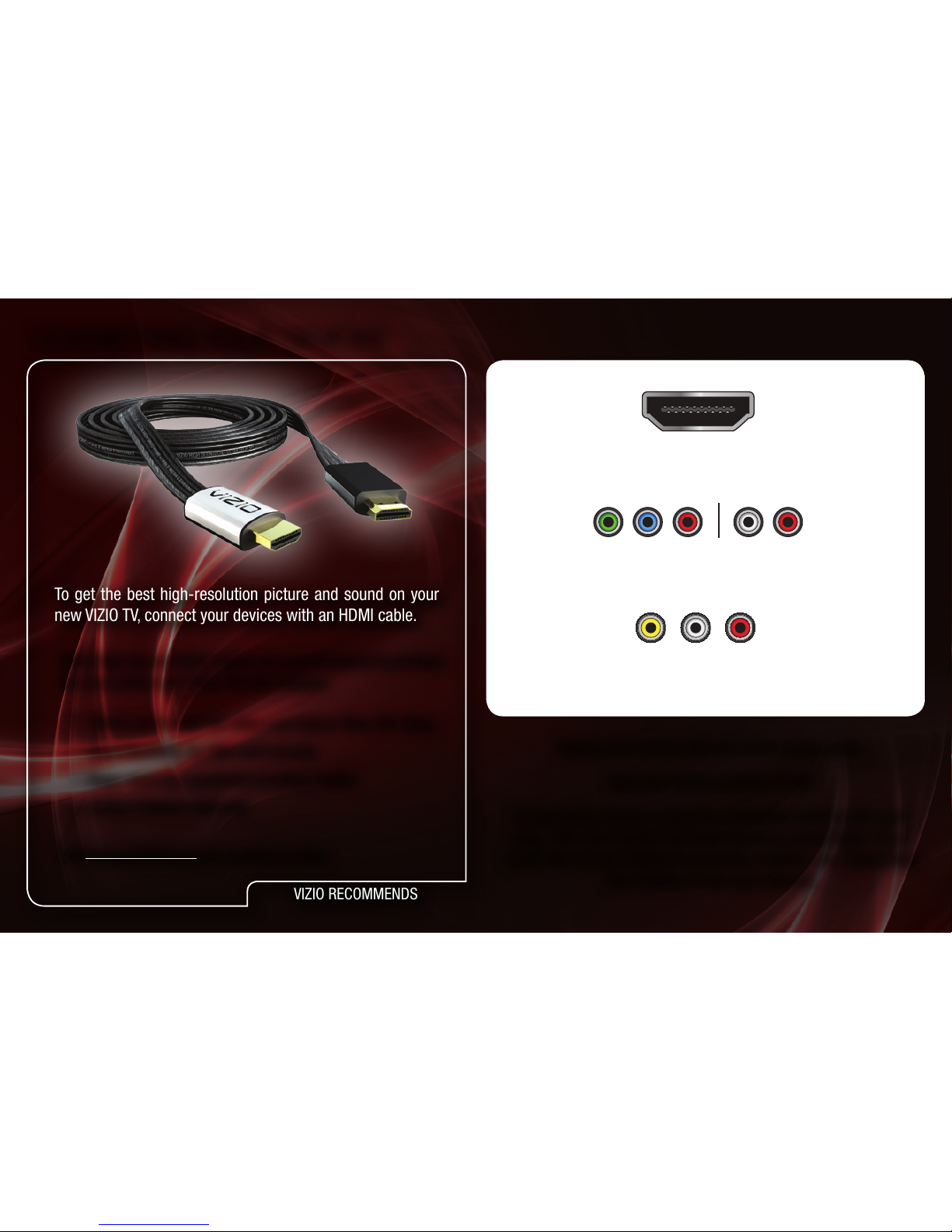

HDMI
Component
Composite AV
VIZIO RECOMMENDS
To get the best high-resolution picture and sound on your
new VIZIO TV, connect your devices with an HDMI cable.
VIZIO High Speed HDMI Cables are manufactured to produce
the best picture on VIZIO TVs and feature:
•1080p and for full HD video and future Ultra-HD video
•Great flexibility for thin wall mounts
•Stays securely connected at sharp angles
•Limited lifetime warranty
Visit www.VIZIO.com to purchase online.
CONNECTING YOUR DEVICES

High Speed HDMI Cable*
Composite AV Cable*
Component Video Cable*
Audio Cable*
Y
CB/PB
CR/PR
L
R
L
R
VIDEO
HDMI
Y
CB/PB
CR/PR
L
R
L
R
VIDEO
HDMI
Good Picture
(2D Only)
Best Picture
(3D-Ready)
Better Picture
(2D Only)
2
Blu-ray/DVD Player, Game Console,
or other Device
OR
CHOOSE ONE:
OR
Back of TV
*Not Included

USING VIZIO INTERNET APPS
Press the VIA button on the remote.
1
VIA Button
VIZIO RECOMMENDS

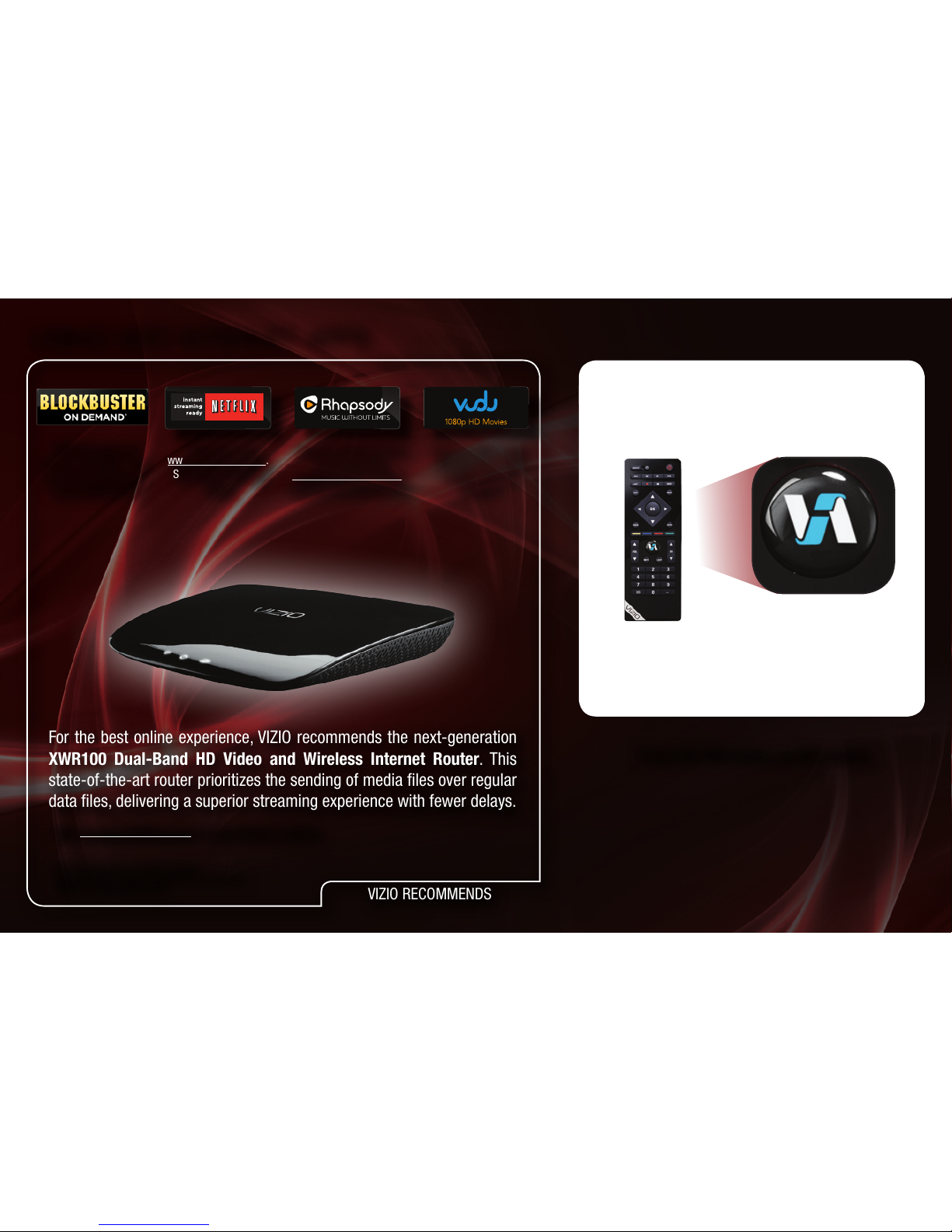

For the best online experience, VIZIO recommends the next-generation
XWR100 Dual-Band HD Video and Wireless Internet Router. This
state-of-the-art router prioritizes the sending of media files over regular
data files, delivering a superior streaming experience with fewer delays.
Visit www.VIZIO.com to purchase online.
FREE Trial! Go to
www.netflix.com/VIZIO.
See Terms of Use for
details.
Listen to millions of songs
on demand. Go to
www.rhapsody.com/VIZIO
to get your free 30-day trial.*
Activate VUDU on your
VIZIO VIA TV to receive
a FREE 1080p HD
RENTAL.**
†See www.blockbuster.com/VIZIO for details.
*US only. Credit Card required. See site for complete terms.
**VUDU account activation required.
FREE Entertainment
bundle worth $25+ when
you activate Blockbuster
on your VIZIO VIA TV.†

To start an App, use the Left/Right Arrow buttons to highlight
an App from the App Bar and press OK.
The highlighted App is in the lower left corner of the screen.
Once you have started an App, use the Arrow, OK, and VIA
Shortcut buttons on the remote to control the App.
2 3
Highlighted App
To use VIZIO Internet Apps, the 3D HDTV must be set up with a high-speed internet connection. If you did not set up
your network during First-Time Setup, see Setting Up Your Network Connection in the User Guide.
Move/Delete App from VIA Dock
Change Screen Size
(when VIA Sidebar is open)
View Settings for Active App
Exit App/Exit VIA Dock

VIZIO RECOMMENDS
VIEWING 3D CONTENT
Ensure your 3D Blu-ray player and TV are off.
Press the Power/Standby button on the remote
to turn the TV on.
Press the INPUT button and select the input to which the
Blu-ray player is connected (HDMI-1, HDMI-2, etc).
To view high-definition 3D content on your 3D HDTV, you will
need:
•A 3D Blu-ray™ player
•A Blu-ray 3D™disc
•VIZIO Theater 3D Glasses
•A 3D-ready HDMI cable connecting the 3D Blu-ray player
to the 3D HDTV
For a superior 3D experience, pair your 3D HDTV with the
VIZIO 3D Blu-Ray Player.
Go to www.VIZIO.com to purchase online.
1
Input Power/Standby

Turn your 3D Blu-ray player* on.
Insert your Blu-ray 3D disc* into your 3D Blu-ray player.
Select the Play Movie option in the Blu-ray 3D disc’s main
menu.
The 3D HDTV asks if you would like to watch the movie in 3D.
Select Yes and press OK.
Put on your VIZIO Theater 3D glasses and enjoy Theater 3D!
2 3
*Blu-ray Player/Disc Not Included

HELP TOPICS
The picture quality
seems low.
•Viewhigh-denition(HD)programswhenpossible.
•Ensureallcablesaresecurelyconnected.
I cannot view 3D content.
•Ensureyouhavea3DBlu-ray™player, VIZIO Theater 3D glasses, and a Blu-ray 3D™disc.
•Turnyour3DHDTVand3DBlu-rayplayeroff.Turnthe3DBlu-rayPlayeronrst,thenturnthe3DHDTVon.
Try to play your Blu-ray 3D™movie again.
•Ensureyour3DBlu-rayplayer’s3DsettingisEnabled/Auto. (Devices differ, see your player’s user guide.)
I cannot return to
the Setup App.
•Theon-screenmenuhasguidedsetup.PressMENU, then select Help > Guided Setup.
•Remember,anyoftheTVsettingscanbeadjustedusingtheon-screenmenu.SeeUsing the On-Screen
Menu in the User Guide.
There is no power.
•EnsurethepowercordissecurelyconnectedtotheACsocketontheTVandaworkingelectricaloutlet.
•PressthePower/Standby button on the remote or press the Jag Wheel on the left side of the TV.
•Trypluggingthepowercordintoadifferentelectricaloutlet.
There is a picture,
but there is no sound.
•PresstheVolumeUpbuttonontheremote,orturntheJagWheelontheleftsideoftheTV.
•PresstheMUTE button on the remote to ensure Mute is off.
•PressMENU, then select TV Settings > Audio. Ensure TV Speakers is set to On.

I cannot access VIZIO
Internet Apps, or my Apps
are not working correctly.
•PresstheVIA button on the remote.
•EnsuretheTVisconnectedtoyournetwork.SeeConnecting to Your Network in the User Guide.
•PresstheGreenVIAShortcutbuttontodisplaythehelpscreenforanApp.
My 3D content is displayed
as two separate images. •EnableSBS(side-by-side)3DMode.PressMENU > 3D > SBS.
The TV does not respond
when I press buttons
on the remote control.
•Insertnewbatteriesintotheremote.
•EnsurenoobjectsareblockingtheTV’ssensor.(ThesensorisonthefrontoftheTV,inthelowerleftcorner.)
•Activateyourremote.SeeActivating the Bluetooth Remote Control in the User’s Guide.
There are black/gray
bars on the top/bottom/
sides of the picture.
•SettheTVtoWideorZoomMode.PressMENU, then select Wide.
•Adjustthevideosettingsofyourexternaldevice(Blu-ray™or DVD player).
•IfusingtheRGB(computer)input,ensureyouareusingasupporteddesktopresolution.
•Sometelevisionchannelsaddblackbarstothepicture.
The TV displays “No Signal”
•Ensureyourconnecteddevicesareturnedon.
•PresstheINPUT button on the remote and select the input to which your device
is connected (HDMI, Composite, etc).

TRADEMARKS SHOWN ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. IMAGES USED ARE FOR ILLUSTRATION PURPOSES ONLY. VIZIO, THE V LOGO, WHERE VISION MEETS VALUE,
AND OTHER VIZIO TRADEMARKS ARE THE INTELLECTUAL PROPERTY OF VIZIO INC. PRODUCT FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
© 2011 VIZIO INC. ALL RIGHTS RESERVED.
110203ST-B
