VOGUE BAR FRIDGE FREEZER 86L
354088

NAMES OF THE PARTS
1
Thank you for purchasing our products and thank you for placing your
confidence in us.
Please read this manual carefully before using. Follow instructions and keep
it for future reference.
Please follow the operating instructions and safety notices in the manual.
If any trouble arises please do not fix the appliance yourself, please contact
your retailer.
Names of the parts .......................................................................
Safety warnings ...........................................................................
Installation instructions ................................................................
Operation instructions..................................................................
Packing and moving.....................................................................
Maintenance................................................................................
Defrost........................................................................................
Disconnecting the appliance.........................................................
User notifications.........................................................................
Troubleshooting tips.....................................................................
Specifications and parameters......................................................
Packing list..................................................................................
Install the handles........................................................................
CONTENTS
1
2
3
3
4
4
5
5
5
6
7
8
9
The under counter fridge freezer you purchased maybe an improved model which
may not be completely consistent with this manual. However the functions and
operating methods will not have changed.
When using this fridge freezer for the first time please leave upright for 24 hours
before plugging in, remove the adhesive tapes from the drawers, shelves, egg tray,
and the drain tube plug.
Do not pull or push the drawers and shelves fiercely during use in case of damage.
Adjust the temperature control as high as you can accept, This will save the
energy consumption.
Don’t open the refrigerator door continually if It will prevent it from working efficiently.
Please keep the combination of drawers and shelves of the fridge freezer consistent
with its original design.
1
2
3
4
5
6
8
7
Bottle guard

2 3
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
11.
SAFETY WARNINGS
NOTICE:
For ensure your personal safety, please follow the points below:
Do stop the power only by pulling the power plug out of the socket directly but not by
the wire.
Do not damage the refrigerant circuit.
This appliance is not intended for use by persons(including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Keep ventilation opening, in the appliance enclosure or in the built in structure,clear
of obstruction.
The circuitry for refrigerator must be isolated. The area of cross section of wire must
2
be larger than 0.75mm . The power plug should have its own socket, the socket must
be ground as adapter may cause the socket to overheat.
Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.This appliance is intended to be used in household and similar applications
such as
-staff kitchen areas in shops, offices and other working environments;
-farm houses and by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
Before you throw away your old refrigerator or freezer.
- Take off the doors;
- Leave the shelves in place so that children may not easily climb inside.
Do not use electrical appliance inside the food storage compartments of the appliance,
unless they are of the type recommended by the manufacture.
The voltage and frequency of this product should be 220-240V;50Hz. Please contact
the retailer if the wire is damaged and do not plug in.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
When gas leaks from its container, don't pull the plug, out or in, for it may
arouse sparks and cause a fire.
1.
Don't place bottled beverage in the freezer, so as to prevent breaking.
Don't splash water on the rear of the appliance, for it may cause malfunction
or electric shock.
2.
3. Don’t store flammable materials such as, benzene, LP gas and glue etc
in the fridge freezer.
4.

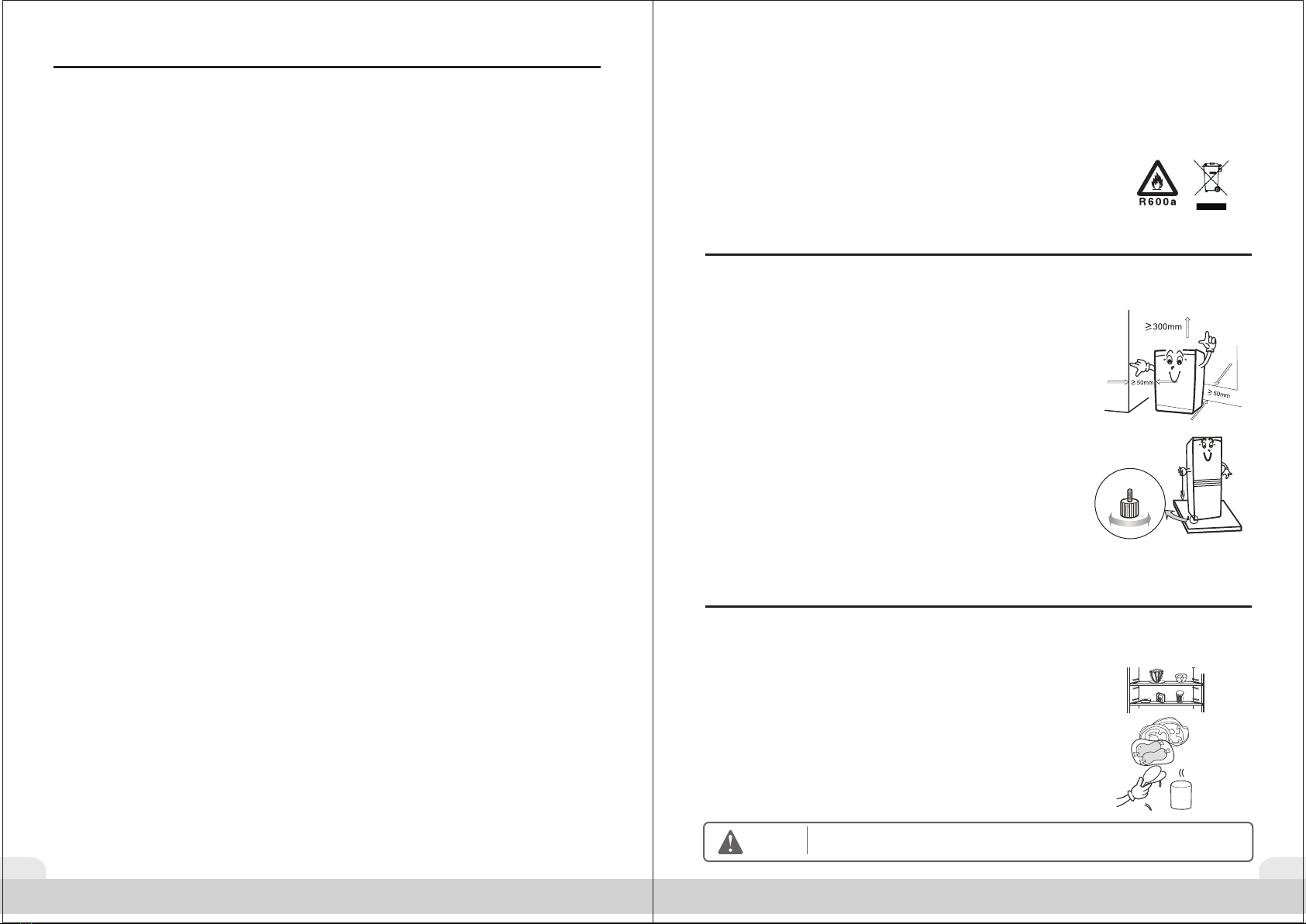

The Fridge freezer should be located on a completely flat surface , Leave 5~10 cm
between each side of the appliance and the wall, and leave 30 cm between the top
of the appliance and the work surface.
Choose a location which is not exposed to sunlight ,
high temperature or humid , as humidity maycause stain.
pull out the bottom panel before installation.
The appliance can be adjusted by rolling its two legs in
front the bottom when it is unstable. Rolling in clockwise
can rise up the machine.
The location should be firm and flat. An unsecure
position may cause noise and vibration:
(a)The noise may be increased if the floor is not firm.
(b) Put a sheet under the appliance for solving the heat
emission if you need to position on carpet.
Make sure the adjustable legs are clung to the floor,
and set the appliance to slope backwards slightly to keep the doors tightly closed.
PLACEMENT OF FOOD
INSTALLATION INSTRUCTIONS
OPERATION INSTRUCTIONS
1.
2.
3.
4.
5.
6.
There should always be some space between items inside for air circulation.
Food should be to avoid becoming
dry or with odour.
kept in sealed packages
Hot food should be cooled down before placing into the
appliance. Otherwise, interior temperature and electronic
consumption will increase.
Reducing the frequency of the door opening can efficiently
slow down the electronic consumption.
Do not use any electronic equipment inside the appliance.
Warning
1.
2.
3.
4.
It is better not to place objects on top of the appliance which are magnetic, heavy
or filled with water. Electronic components may not work steadily if water gets inside.
5.
The refrigerant of this product is R600a,which is inflammable. So,make sure not to
damage the cooling system during the transportation and installation.
DISPOSAL:Appliances contain insulation gases and
refrigerants that must be disposed of correctly and in
line with current legislation. If you have any doubt
please contact your local authority for instructions .
6.
7.
Do not store object which is costly or impressible to temperature and , e.g. serum,
bacterin and so on.

54
INSTRUCTION FOR USAGE
Unpack , repack and carry
Please memorize the position of each accessory of the appliance
when unpacked, repack the product and check it carefully before
transportation.
Do not lift or pull the door or the door handle during transportation.
When moving, the appliance can not be sloped over 45 degrees
(the angle to the vertical direction). Please avoid strong vibration
and hit.
PACKING AND MOVING
1.
2.
3.
The appliance should be maintained and cleaned frequently. For your safety,
please pull the plug out of the socket before the cleaning.
Interior maintenance
Clean the interior of the appliance with clean warm water, wipe and dry with a
clean cloth. Do not use detergents abrasive powders or highly perfumed
cleaning products .
Door storage
It is easy to damage the door storage area please clean carefully.
Outer maintenance
Wipe when dusty with a piece of dry cloth. Do not use abrasive products.
MAINTENANCE
1.
2.
3.
The temperature of the refrigerator can be manually adjusted
by the thermostat control. The number shown on the dial does
not represent the temperature. The larger the number the lower
the interior temperature will be. 0 stands for off. Turn the dial
to 4 when in normal use. Adjust the dial to 7 for a lower interior
temperature and 1 for a higher.
The appliance is equipped with a screwing lamp or a long life LED interior light.
(Screwing lamp can be replaced by professionals. Long life LED is
non-replaceable.)
4.
Do not use any other equipment or method to push the
defrost process. It may destroy the cooling system.
DEFROST
You will need to defrost the freezer when the ice exceeds 3-5mm. Take all the
foods out of the compartment unplug the appliance. Open the doors and allow the
ice to melt wipe with a dry cloth.
DISCONNECTING THE APPLIANCE
In a general condition, do not stop the appliance in case of affecting
its life. After unplugging the power, please leave at least 5 minutes
before resumption.
USER NOTIFICATIONS
Attention
Do not splash water on the refrigerator, as it will cause oxidation and malfunction.
Electronic component such as on/off button should be wiped dry.
Cleaners such as soap powder, abrasive cleaning powder, alkali cleansers, chemical
cloth, thinner, alcohol, acid petroleum productand hot water should not be used to
clean the refrigerator as they may damage the painted cover and plastics.
Smear can damage the interior plastic component, so wipe it as soon as possible.
1.
2.
3.
Discontinuation during power failure
After power failure, do not put additional food in the appliance and reduce the frequency
of door opening.Make several ice cubes and put in a container if you know about
the power failure beforehand and put in the top of the fridge .
1.
Discontinuation during vacation
Please remove all perishable food from the fridge before short vacation and shut
door firmly, If you have a long vacation remove all food and turn off the power.
After defrosting, clean the appliance wipe dry and leave the doors open .
2.
Stop using
If the appliance has stopped working for a long period of time, Please unplug and
clean the appliance, The door should be kept open in order to prevent unpleasant
smells caused by food .
3.
After power failure, even in summer, the refrigerator can store food normally for several
hours.
Please check the points below after maintenance:
(1) Is there any damage or loss of the electronic wire ?
(2) Can the plug be put in the socket reliably and smoothly?
(3) Is the plug heating unconventionally?
4.

The frame of the appliance will be warm during working by the defrost pipeline inside
it.
Please check the points above first.
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
4.
76
Heavy frost occurs on the rear of the appliance
Putting humid or hot food into the appliance may cause this problem. Or it may be
caused by heavy environment moisture.
Disgusting odour happens
Food with strong odour should be packed tightly before being put inside the appliance.
Please check whether there is any deteriorated item or whether the liners are left dirty
for a long time.
Water leaks from the bottom of the refrigerator
The drain tube is jammed. Please use a proper tool to solve it.
The follow cases are not malfunction
Moisture may form dew on the outside of the product during the
humid season, just
get it wiped.
The flow of refrigerant through the pipeline coil can cause a noise.
It is normal that the sides of product get warm as a result of the cooling pipeline
working.
5.
6.
7.
1.
2.
The compressor keeps working for a long period
The environment temperature may be too high. The doors may be opened frequently
or even they are left open. The temperature control knob setting in (4-7) state may
increase the working time of compressor.
4.
TROUBLESHOOTING TIPS
The refrigerator work
It may not be connected to the power supply(plug, power cut or fuse); Voltage is too
low.
does not
The refrigerator does not work efficiently as expected
It may be caused by heavy frost, or by warm temperature setting,or by frequently
opening the door.
It is making an unusual noise
It may be caused by an imbalance please check all feet are of equal size and
the ground surface is flat .
1.
2.
3.
3.
Please get rid of the gasket of the door before the disposal.
The disposed apparatus should be handled by professional
staff, as it may be harmful to the environment.
Warning
INSTALL THE HANDLES
2. Prepare a cross screwdriver.
3. Make sure the three screw holes in the shake hands are aligned with those
in the door, and then respectively screw them together.
The right side one is suggested to be preferred to be screwed down.
1. Take out accessory from packing bags: two handles, two shake handle covers,
and six screws.
Handle Base Handle Cover Screw Socket Head Wrench
4. Install handle cover on the handle.
Tips for the Steps to Install:
(1) Buckle the handle on the left side first.
(2) Buckle the handle on the left side.
(3) Buckle the middle part of the handle tightly in the end. And a click can be
heard if the handle is properly installed.

8
PACKING LIST
Note: Products are subject to improve from time to time, any
changes in parts without further notice.
Vegetable crisper 1pcs
1pcs
Steel Shelf
Owner's manual 1copy
NumberParts
Rod
Crisper glass shelf
1pcs
1pcs
SPECIFICATIONS AND PARAMETERS
Climate class
Electric shock protection type
Capacity (L) Freezer
Freezer
Refrigerator
Voltage (V)
Frequency (Hz)
Current (A)
Voice [dB(A)]
Energy consumption (kW.h/24h)
Refrigerant
Net Weight (Kg)
Dimension (mm)
Width
Depth
Height
SN/N/ST
I
60
220-240
50
0.6
R600a/30g
26.5
Refrigerator 0~8
487
592
893
<42
22
0.510
Interior
temperature ( C)
o
Two star section 4
9
<-18
