Voxx Invision HR8D User manual

HR8D
REAR SEAT VIDEO HEADREST SYSTEM
8” MONITOR WITH BUILT-IN DVD PLAYER
Owner’s Manual
TM
TM

2

1
HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
Contents
CONGRATULATIONS..............................................................................................................................................2
CAUTIONS..................................................................................................................................................................2
PRODUCT FEATURES.............................................................................................................................................3
QUICK START GUIDE..............................................................................................................................................4
REMOTE CONTROL BATTERY INSTALLATION .............................................................................................6
HEADPHONE BATTERY INSTALLATION..........................................................................................................7
BATTERY CAUTIONS AND WARNINGS ...........................................................................................................7
FRONT PANEL CONTROLS...................................................................................................................................8
REMOTE CONTROL OPERATION ....................................................................................................................10
SYSTEM MENU .....................................................................................................................................................14
SYSTEM SETUP MENUS.....................................................................................................................................14
DVD PLAYBACK SETTINGS AND ADJUSTMENTS....................................................................................18
DVD REGION CODES..........................................................................................................................................22
AV INPUTS, OUTPUTS AND HDMI/MHL AND USB PORT INFORMATION ......................................23
GAME CONTROLLER OPERATION .................................................................................................................25
TROUBLESHOOTING ..........................................................................................................................................27
SPECIFICATIONS ..................................................................................................................................................29
COMPLIANCE INFORMATION.........................................................................................................................30
NOTES ......................................................................................................................................................................31
TABLE OF CONTENTS
© 2014 VOXX Electronics Corp. All rights reserved. This manual, or any portion thereof,
may not be reproduced without the express written permission of VOXX Electronics Corp.

2
HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
Thank you for purchasing the HR8D Rear Seat Video Headrest System. Before operating this
system read this manual thoroughly and retain it for future reference.
CONGRATULATIONS
Patented, refer to www.voxxintl.com/company/patents
The Rear Seat Video Headrest System is
set-up and adjusted with easy to use menus
that are accessed using the remote control or
the buttons on the front panel.
The two-channel wireless Infrared (IR)
headphones have an A-B switch that allows
the users to select the audio from either M1
on “CH A” or M2 on ”CH B”.
The M1 monitor will only respond to the
remote control when the Monitor Select“M1”
button is pressed.
The M2 monitor will only respond to the
remote control when the Monitor Select“M2”
button is pressed.
The HR8D Rear Seat Video Headrest System
has two replacement video monitor
headrests referred to as either “M1” or “M2”
in this manual. The system allows the users
to watch the same DVD/Video Source on
both monitors simultaneously or individual
DVD/Video sources on either monitor.
The full function wireless remote control
operates either monitor by selecting the
Monitor Select “M1” or “M2” button.
Each headrest has an 8” LCD monitor with a
built-in DVD player that allows the user
to select from several sources (DVD/
USB, HDMI®/MHL®, M1/M2, A/V-IN
and GAME*). Each monitor has a built-
in infrared audio transmitter channel.
* GAME Optional
Safety Precaution
For safety reasons, when changing a video
disc, it is recommended that the vehicle
not be in motion, and that you do not allow
children to unfasten safety belts to change a
disc or make any adjustments to the system.
System adjustments can be accomplished
using the remote control, while safety belts
remain fastened. Enjoy your entertainment
system but remember that the safety of all
passengers remains the number one priority.
CAUTION
Always run the vehicle’s engine while using
the HR8D Rear Seat Video Headrest System.
Using this system without running the
engine can result in battery drainage. To
avoid the risk of battery drainage, please
remember to turn system OFF when the
vehicle is not in use for long periods of time.
Important Notice
An LCD Panel and/or Video Monitor may be
installed in a motor vehicle and visible to the
driver if the LCD Panel or Video Monitor is
used for vehicle information, system control,
rear or side observation or navigation. If
the LCD Panel or Video Monitor is used for
television reception, video or DVD play,
the LCD Panel or Video Monitor must be
installed so that these features will only
function when the vehicle is in “park” or
when the vehicle’s parking brake is applied.
An LCD Panel or Video Monitor used for
television reception, video or DVD play that
operates when the vehicle is in gear or when
the parking brake is not applied must be
installed to the rear of the driver’s seat where
it will not be visible, directly or indirectly, by
the operator of the motor vehicle.
CAUTIONS

3
HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
The HR8D Rear Seat Video Headrest System
consists of:
1. Two matching Headrests with 8-inch
Color TFT-LCD Display Screens
(800x4800)16:9 aspect ratio.
2. Two Infrared (IR) Transmitters for
listening to the audio signal through
Wireless IR Headphones.
3. Two wireless Infrared (IR)
Headphones equipped with
volume control and an A/B switch
to select between “M1” and “M2”.
NOTE:The wireless IR headphones must
be used within a line of sight from the
transmitter as infrared transmission,
like visible light, travels only in an
unrestricted line of sight.
4. One wireless 100 channel FM
transmitter for listening to audio (from
the M1 Monitor only) through the
vehicle’s FM radio by tuning to one of
100 frequencies. Locate an unused
FM frequency on the radio and set
the FM modulator to that frequency.
NOTE: Whenever the FM transmitter
is active, regular radio reception may
be poor. Turn the FM transmitter o to
allow normal radio reception.
5. USB Input, used to connect a USB
memory device. This input will also
charge a USB device that contains a
battery.
6. Sources - DVD, USB, A/V-IN, M1 (or M2),
HDMI or Game (optional).
7. HDMI/MHL Input, is used to connect
a device with an HDML/MHL output.
NOTE: Requires an HDML/MHL enabled
device and a special HDML/HML
adapter. Contact your HDML/MHL
device supplier for the adapter. (see
page 23 for more information)
8. Remote Sensors on the front panels.
9. Two full function remote controls
to operate either headrest by
selecting “M1” or “M2”.
PRODUCT FEATURES
10. Controls & Indicators on the Front and
Top Panels.
• POWER
• SOURCE (S)
• PLAY/PAUSE ( )
• STOP/ EJECT (n )
• ENTER ( )
• LEFT / PREVIOUS ( / )
• DOWN (q)
• UP (p)
• NEXT / RIGHT ( / )
• USB Connector
• HDMI/MHL INPUT
11. OSD (On Screen Display) menus.
12. MVGP1 Game Pack (Optional):
The Game Pack consists of fty four 32-
bit games (six dual players). Includes 2
Game Controllers (P1 & P2), see pages
25 and 26 for more information.
When the Game Pack is installed, either
monitor can be designated as “Player
1”. Selection is based on a “rst come,
rst serve” basis. The second monitor
will automatically become “Player 2”,
see page 25 for more information.

4
HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
QUICK START GUIDE
1. Press the Power button on the top of the
front panel or on the remote control.
The power indicator will be dimly lit.
2. Insert a DVD, CD, or MP3 disc (label
toward user) into the disc slot located
on top of the M1 monitor. The disc
player will pull the disc in automatically.
NOTE: Do not force the disc in the slot.
The monitor must be in DVD mode to
accept a disc.
3. Tilt the Screen to a comfortable viewing
position. The screen has a built-in stop.
Do not force it past this stop, otherwise
damage will occur.
4. Each wireless IR headphone has an
”A-B” switch used to select the audio
from either the “M1” or “M2” monitor.
When sitting in front of the M1 screen,
use the CH A setting. When sitting in
front of the M2 screen, use the CH B
setting.
• Set the headphone to the
proper channel and press the
Power On/O button to turn
the headphones ON. The power
indicator will light up red.
NOTE: Turn the volume down to its
lowest setting before putting the
headphones on.
5. When the DVD menu appears, select
the menu item using the UP/DOWN
buttons and press the Enter or Play
button.
6. If audio playback through the
vehicle radio is preferred, use the FM
transmitter ON/OFF button on the
remote control. Set the vehicle radio to
the channel selected on the M1 monitor.
If interference with a local radio station
occurs, set the FM modulator to one
of the other 100 radio frequencies
using the Channel Select button on
the remote control or front panel.
NOTE: To operate the M1 screen, press
M1 button on the remote control. To
operate the M2 screen, press the M2
button on the remote control.
7. To turn OFF either the M1 or M2
monitor, press and hold the Power ON/
OFF button for 5 seconds.

5
HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
For the best disc operation, it is important
that you read this section completely.
DVD Region Coding
DVD discs are coded by region. These region
codes must match in order for the DVD to
play. If the codes do not match, the DVD
will not play. The HR8D region code is set to
Region 1. Playback of a disc from any other
region will not work in the HR8D.
Types of Discs the HR8D Will Play
• DVD-Video: DVD containing video.
• CD-DA: CD containing musical or sound
content only.
• CD-Video: CD contains video only.
• CD-R/RW: CD contains audio les (for
example, a CD-R with downloaded MP3
les), MPEG, or JPEG les.
NOTE: The following discs will NOT play in
the HR8D: Optical disc- CD-1, CD-ROM, and
DVD-ROM Mini disc- CDG (audio only, not
graphics), Blu-ray.
Loading and Playing Discs
Before loading a disc, make sure that it is
compatible with the player.
Press the POWER button to turn the system
ON. Load the disc (label facing the user) into
the disc slot. The disc will load automatically
and begin to play.
NOTE: Some discs may start at the root
menu, where play must be selected to start
movie.
NOTES on Discs
• Do not touch the disc surface. Handle the
disc by the edge.
• It is important that discs are clean prior to
use.
• If disc is not clean, use a commercially
available cleaning cloth to gently wipe
the disc from the center out. (Figure 1)
NOTE: Do not use solvents such as
benzene, thinner, cleaners, or antistatic
spray intended for analog discs.
• Keep discs protected in their cases or
disc magazines when not in use. Do not
subject discs to heat or high temperature.
Avoid leaving discs in a parked vehicle or
on a dashboard or rear tray.
• Do not use discs that have aftermarket
paper or plastic labels or stickers attached.
The following malfunctions may result
from using such discs:
• Inability to eject a disc (due to a label
or sticker peeling o and jamming the
eject mechanism).
• Inability to read audio data correctly
(i.e. playback skipping, or no playback)
due to heat shrinking of a sticker or
label causing a disc to warp.
• Use only standard, round discs. If you
insert irregular, non-round, shaped discs
they may jam in the DVD player or not play
properly.
Figure 1
GENERAL OPERATING INSTRUCTIONS

6
HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
REMOTE CONTROL BATTERY INSTALLATION
Installation of the Remote Control Battery
Figure 2
Figure 3 Figure 4
Each remote control comes with a battery already installed with a Pull Tab to prevent battery
discharge. Remove the Pull Tab before attempting to use the remote control. (Figure 2)
NOTE: The remote control will only operate with the HR8D Rear Seat Video Headrest System.
It is not a universal remote control and will not control other equipment.
Remote control
Back View
Protective Pull Tab (Clear Plastic)
(1) (2) (1)
1. While holding the remote control,
insert thumbnail into the battery door
side notch (1) and index ngernail into
battery door upper notch (2) and slide
battery holder open. (Figure 3)
2. Install one CR2025 battery (1). (Figure 4)
NOTE: Make sure that the proper polarity
(+ or -) is observed.
3. Slide the battery holder back into the
remote control until it locks. (Figure 4)
CR2025
3V
CR2025
3V

7
HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
Each wireless IR headphone requires two AAA batteries.
1. Locate the battery compartment cover on the left earphone.
2. While holding the left earphone in one hand, press down on the battery compartment
cover and slide it UP and OFF in the direction shown. (Figure 5)
3. Insert two AAA batteries, carefully following the markings inside to ensure the batteries
are inserted properly ( “+”and“-” ends in the correct positions).
4. Replace the battery compartment cover. (Figure 5)
Installation of the Headphone Batteries
HEADPHONE BATTERY INSTALLATION
Figure 5
• Always keep the monitors, remote
controls and headphones clean and dry.
• Always seek qualied personnel to
perform repairs to the system or
individual components of the system.
Never attempt your own repairs.
• Do not drop remote controls and
headphones or expose to strong
impacts.
• Do not expose monitors, remote controls
and headphones to direct sunlight for
extended periods of time.
• Always ensure that the batteries are
correctly installed in the remote controls
and headphones with the positive and
negative sides in the directions as shown
in the battery compartment.
• Use one CR2025 (3V) Lithium battery
(160mAh) in the remote controls
NOTE: Do not use dierent types.
• Use two AAA (1.5v) Alkaline batteries in
each of the headphones.
NOTE: Do not use dierent types.
• Do not use old batteries in the remote
controls or headphones.
• When the batteries fail to function, replace
them immediately.
• Remove the batteries if the remote
controls and headphones are not used for
a month or longer.
• Keep all batteries out of the reach of
children. Should a battery be swallowed,
immediately consult a doctor.
• When disposing of used batteries, please
comply with governmental regulations
or environmental rules that apply in your
area.
BATTERY CAUTIONS AND WARNINGS
Cautions and Warnings

8
HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
Figure 6
FRONT PANEL CONTROLS
1. DVD disc insertion slot
2. IR TRANSMITTER and IR SENSOR
IR Transmitter: Used to broadcast audio
signal to the wireless IR headphones.
IR Sensor: Used to receive signals from
the remote control.
3. PLAY/PAUSE ( ) Button
This button is used to start playback of
the disc or pause a disc.
4. SOURCE (S) Button
This button is used to select the DVD/
USB, M1/M2, A/V IN, HDMI/MHL or GAME
(optional) sources.
5. STOP / EJECT (n) Button
This button is used to stop the
playback of the disc or USB
in use and to eject the disc.
6. HOME / MENU SELECT ( ) Button
This button is used to access the system
menu. Used to execute a selected setting
or menu option.
7. USB PORT
This port is used to connect a USB
device for playback of content. To
view content, select “USB” as the video
source and insert the USB device. The
USB device will start automatically.
NOTE: This input will also charge a USB
device that contains a battery.
8. HDMI/MHL INPUT
For connection of device with HDMI/
MHL output.
NOTE: Requires a HDMI/MHL enabled
device and a special HDMI/MHL adapter.
Contact your HDMI/MHL device supplier
for adapter.
1
12
13
10
8
6
5
7
9
2
3
16
4
11
14
15

9
HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
FRONT PANEL CONTROLS (continued)
9. JACK COVERS
Used to protect and cover the HDMI jack
and USB port when not in use.
10. DOWN (q) Button
This button is used to navigate through
menu selections in downward direction.
11. UP (p)Button
This button is used to navigate through
menu selections in upward direction.
12. NEXT / RIGHT ( / ) Button
Press and hold this button to skip to the
next chapter or track during playback
of a disc. This button is also used to
navigate through menu selections.
13. LEFT / PREVIOUS ( / ) Button
Press and hold this button to skip to
the previous chapter or track during
playback of a disc. This button is
also used to navigate through menu
selections.
14. POWER INDICATOR
Bright Red when OFF and dimly lit when
ON.
15. 8-inch TFT LCD Display Screen
(800 x 480)
16. POWER Button
• Press and release this button to turn
the monitor ON.
• Press and hold this button for 3 to 5
seconds to turn the monitor OFF.

10
HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
REMOTE CONTROL OPERATION
Figure 7
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
14

11
HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
REMOTE CONTROL OPERATION (continued)
1. POWER ( )
Press this button to turn the system ON
and OFF. (Figure 7)
2. SOURCE (SRC)
Press this button to display the MAIN
MENU. Use the UP/DOWN/LEFT/
RIGHT Arrow buttons to highlight
a source then press enter to select.
(Figure 7)
3. Monitor Select (M1 and M2)
Press this button to select a
monitor to control. (Figure 7)
M1- Press to control the M1 monitor.
M2- Press to control the M2 monitor.
4. SCAN BACKWARD ( )
Press this button to search in the backward
direction. Press this button repeatedly to
change the search speed from 2, 4, 8, and
16 times the normal speed. (Figure 7)
5. SCAN FORWARD Button ( )
Press this button to search in the forward
direction. Press this button repeatedly to
change the search speed from 2, 4, 8, and
16 times the normal speed. (Figure 7)
6. TV
Refer to Item 12.
7. PREVIOUS ( )
When a disc has more than one Chapter,
Track, or File, you can move to another
Chapter/Track/File. Press this button
briey during play to skip back to the
previous Chapter for DVD-video or
Track/File for MP3, CD, etc. (Figure 7)
8. NEXT ( )
When a disc has more than one Chapter,
Track, or File, you can move to another
Chapter/Track/File. Press this button
briey during play to skip forward to the
next Chapter for DVD-video or Track/File
for MP3, CD, etc. (Figure 7)
9. PLAY ( )
Press this button to initiate play mode
when a disc is loaded in the disc
compartment. (Figure 7)
10. SYSTEM MENU
This button is used to make system setup
adjustments. See pages 14 - 17 for details.
(Figure 7)
11. UP/DOWN/LEFT/RIGHT Arrows
Use these buttons to navigate the menu
selections on the screen. (Figure 7)
12. DISPLAY
Press the TV button (4) and the
DISPLAY button to show monitor
status, modulator status, IR Transmitter
status, M1/M2 ID, Source status.
NOTE: The TV button is pressed the remote
control will not control DVD functions
until the DVD button is pressed again.
Press the DVD button (30) and the
DISPLAY button to show current disc
information while the disc is playing.
In DVD mode, press the DVD button
(30) and the DISPLAY button (12) to
show current disc information. Press
once to show the Title/Chapter/Play
Time information. Press a second
time to show the OSD Subtitle/Audio
Language. Press a third time to show the
Title/Chapter/Time status remaining.
Press the DVD button and hold the
DISPLAY button for 3 seconds to enter the
GO TO mode (change the Disc Title, Disc
Chapter, and Play Time). Press the LEFT or
RIGHT button to select the Title, Chapter
or Play Time. Use the numeric buttons to
enter the desired Title/Chapter/Play Time
selection. (Figure 7)
13. ENTER (OK)
Press this button to make an OSD
selection. (Figure 7)
14. SETUP
PressthisbuttontonavigatetheDVDSetup
Menu. Please refer to the following pages
to congure the system: General Setup
Page, Audio Setup Page, Preference Page,
and Password Setup Page. (Figure 7)
NOTE: Unit must be set to DVD source.
15. REPEAT
Press this button to switch the
repeat mode options of CHAPTER,
TITLE, ALL and cancel while playing
DVD-video. Other disc types such
as CD have two repeat modes that
can be selected: TRACK and ALL.
(Figure 7)
16. A-B REPEAT
Allows user to repeat the playback from
point A to point B of a DVD. Press the
A-B button once to select a starting point
(A) and again to select a end point (B).
The DVD will only play the selection from
point A to point B. Press the A-B button
again to cancel selection and return to
normal playback of the DVD. (Figure 7)

12
HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
Figure 8
REMOTE CONTROL OPERATION (continued)
21
22
23
24
25
26
27
28
29
30
31
32
17 18 19 20

13
HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
REMOTE CONTROL OPERATION (continued)
26. MUTE ( )
Press this button to mute the sound
transmitted to the headphones and the
FM Modulator. “MUTE” will be displayed
on the screen. Pressing the button again
restores sound to the previously set level.
(Figure 8)
27. DISC MENU
This button acts as a compound button
that calls the RETURN or DISC MENU
function. Short press the DISC MENU
button to enter RETURN mode and
go back to the DVD Menu while the
disc is playing. Press PLAY to return to
the Title/Chapter. Long press the DISC
MENU button to access the menu of
the DVD playing. Press PLAY to start
at the beginning of the disc. (Figure 8)
NOTE: These buttons can be used with
the PIX button for adjusting the picture
controls.
28. STOP ( )
Press this button to stop playback of
disc. (Figure 8)
29. PAUSE ( )
Press this button to pause the playback
of a disc. Pressing pause again or
pressing the Play button will resume
normal playback. (Figure 8)
30. DVD Source
Not used on this model.
31. DVD Mode Select
Press this button to control DVD
functions. (Figure 8)
32. EJECT ( )
Press this button to eject the disc from
the disc slot. (Figure 8)
17. SUB-T (DVD MODE ONLY)
If the DVD playing has dierent
subtitle options, press this button to
display and select the desired available
subtitle language. (Figure 8)
NOTE: The subtitle selections vary from
disc to disc.
18. ZOOM
Press this button to enlarge the
picture when playing a DVD disc.
Press repeatedly to change the zoom
from 2x, 3x, 4x, 1/2, 1/3, 1/4 and OFF.
(Figure 8)
19. AUDIO (DVD MODE ONLY)
Press this button to display and select
the available AUDIO languages. Each
time you press the button, the audio
language changes. (Figure 8)
NOTE: The audio languages vary from
disc to disc.
20. NUMBERS
Allows the user to select tracks on a
disc during playback or changing the
parental control. (Figure 8)
21. FM Modulator Channel Select (C)
(M1 Monitor only)
Not applicable on this model. (Figure 8)
22. FMM ON/OFF ( ) (M1 Monitor only)
This button is used to turn the wireless
FM Modulator ON and OFF. (Figure 8)
23. IRT ON/OFF
This button is used to turn the Infrared
Transmitter ON and OFF for the Wireless
IR Headphones. Pressing M1 then the
IRT ON/OFF button will control the IR
Transmitter for M1. Pressing M2 then
the IRT ON/OFF button will control the IR
Transmitter for M2. (Figure 8)
24. PIX
This button is used to make picture
adjustments. Use the UP or DOWN
direction buttons to select BRIGHTNESS,
CONTRAST, COLOR, TINT, or RESET. Use
the UP or DOWN buttons to adjust the
setting. The OSD will automatically
disappear if no adjustments are made
within 6 seconds. (Figure 8
25. VOLUME DOWN ( - ) or UP ( + )
Not applicable on this model. (Figure 8)

14
HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
System Sub-Menus
1. Press the SYSTEM MENU button on the
remote control (Figure 10) or press and
hold the HOME / MENU SELECT button
on the front panel of the unit (Figure 11)
to display the SYSTEM MENU. (Figure 12)
2. Use the UP and DOWN direction
buttons to select the desired setting
in the MAIN MENU screen and press
the ENTER button or SOURCE button
to select the Sub-Menu screen.
NOTE: Selected items in the MAIN MENU
and the Sub-Menus will be highlighted in
orange.
3. Use the UP, DOWN, LEFT and RIGHT
direction buttons to select an item in
the Sub-Menu screen and then press the
ENTER button to select.
4. To exit MAIN MENU screen or the
Sub-Menu screens at anytime, press the
SYSTEM MENU button on the remote
control or the SOURCE button on the
front panel.
Source
The SOURCE button on the remote control
or on the front panel allows the user to
change the AV source between DVD, USB,
HDMI/MHL, AV-IN, M1/M2, GAME. When the
SOURCE button is pressed the MAIN MENU
(Figure 9) screen appears allowing the
user to select a desired source or select the
setting to go to the SYSTEM MENU.
The SYSTEM MENU allows the user to
personalize the HR8D Rear Seat Video
Headrest System settings. This menu is
accessed by selecting the gear ( ) icon
in the MAIN MENU and is used in the
initial setup to adjust the picture quality
and customize adjustable functions.
Once the initial settings are customized,
they will remain the same until modied
or reset to the factory default settings.
NOTE: SYSTEM MENU changes are best
made without a DVD inserted into the unit.
This section describes how to adjust and set
settings using the ve setup screens:
Using the System Menu
Navigating and selecting available settings
in the SYSTEM MENU is accomplished using
the Remote Control buttons (Figure 10), or
the Front Panel buttons (Figure 11).
Follow the steps outlined in this section
to select and customize each of the ve
adjustable Sub-Menu functions and a
Settings option listed above in the MAIN
MENU, refer to the sections that apply.
NOTE: The SYSTEM MENU will disappear if
no adjustments are made within 6 seconds.
Figure 11
S
HOME
/ MENU
SELECT
BUTTON
(M1) and HR8D (M2) Main Menu
Figure 9
Figure 10
SYSTEM
MENU
BUTTON
OK
BUTTON
UP, DOWN,
LEFT, &
RIGHT
DIRECTION
BUTTONS
SOURCE
BUTTON

15
HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
PICTURE CONTROL
HR8D (M1) and HR8D (M2)
Picture Control Menus
PICTURE CONTROL from the Front Panel:
1. Press and hold the HOME/ MENU SELECT
button on the front panel of the unit to
show the SYSTEM MENU.
2. Use the UP and DOWN direction buttons
to select Picture Control and press the
ENTER button to enter the sub-menu.
(Figure 12)
3. Use the UP and DOWN direction buttons
to select one of the ve selections in
the Sub-Menu (Brightness, Contrast,
Color, Tint and Reset). Using the
LEFT and RIGHT direction buttons, adjust
the level of the picture setting chosen.
NOTE: Levels are set from “0” to “32”
for Brightness, Contrast and Color. The
levels for Tint is set from “-16” to “+16” .
There is no Tint Control in PAL Mode.
4. Select Reset to return the picture setting
controls back to factory defaults.
PICTURE CONTROL from the Remote
Control:
1. Select “M1”or“M2”on the remote control
and press the PIX button to enter Picture
Control.
2. Press the OK button
3. Use the UP and DOWN direction buttons
to select one of the ve selections in the
Sub-Menu (Brightness, Contrast, Color,
Tint and Reset).
SYSTEM SETUP MENUS
Figure 12
4. Using the LEFT and RIGHT direction
buttons, adjust the level of
the picture setting chosen.
NOTE: Levels are set from “0” to “32”
for Brightness, Contrast and Color. The
levels for Tint is set from “-16” to “+16”.
There is no Tint Control in PAL Mode.
5. Select Reset to return the picture setting
controls back to factory defaults.
FM CHANNEL
Wireless FM Modulator (WFMM) Channel
Select from the Front Panel
1. Press and hold the HOME/MENU
SELECT button on the front panel of the
M1 unit to show the MAIN MENU.
2. Use the UP and DOWN direction
buttons to select WFMM (Wireless
FM Modulator) and press the ENTER
button to enter the sub-menu.
(Figure 13)
3. Use the UP, DOWN, LEFT and RIGHT
direction buttons to select the best
channel/frequency from a four page list
of one hundred frequencies then press
the ENTER button to enter selection.
4. When a channel/frequency is selected,
the Wireless FM Modulator screen will
display the selected channel/frequency.
NOTE: The FMM menu is only available
on the “M1” monitor.

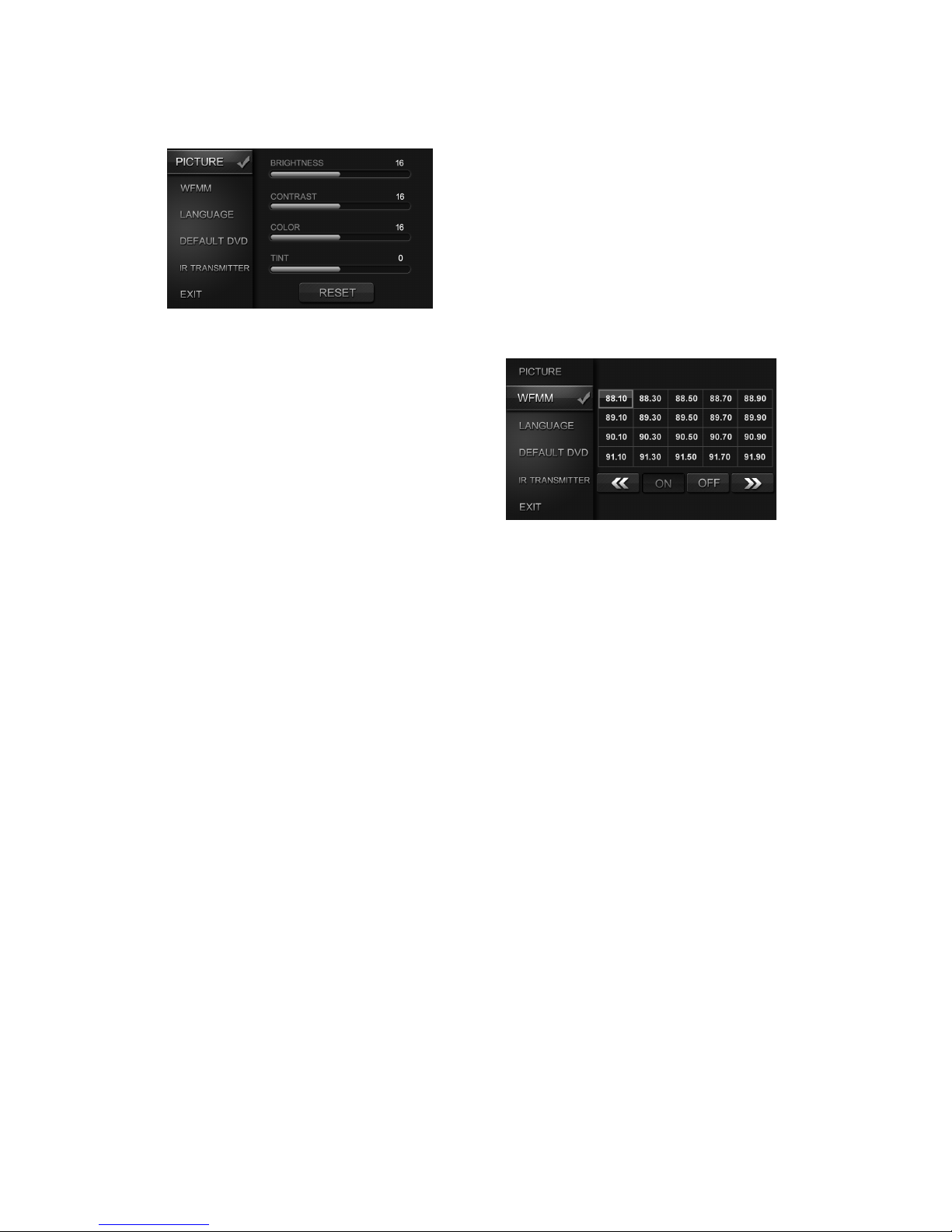

Figure 13
WFMM Channel/Frequency Menu

16
HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
Selecting the FM Channel from the
Remote Control:
1. Select “M1” on the Remote Control.
2. Press the SYSTEM MENU button
then use the UP and DOWN direction
buttons to select WFMM Wireless FM
Modulator and press the ENTER button
to enter the Wireless FM Modulator
sub-menu.
3. Use the UP, DOWN, LEFT and RIGHT
direction buttons to select the best
channel/frequency from a ve page
list of one hundred frequencies
then press the MENU/SELECT
button to enter selection.
NOTE: When a channel/frequency is
selected, the Wireless FM Modulator
screen will display the selected channel/
frequency.
WIRELESS FM MODULATOR ON/OFF
Direct Access Button on the Remote
Control:
1. Press the FMM ON or OFF button on
the remote control to turn the Wireless
FM Modulator ON or OFF. When ON is
selected, the channel/frequency the
system is set to will be displayed on the
lower lefthand side of the main screen.
When OFF is selected, FMM OFF will be
displayed on the lower left-side of the
main screen. (Figure 14)
LANGUAGE
LANGUAGE from the Front Panel:
1. Press and hold the HOME/ MENU
SELECT button on the front panel of the
unit to show the Main Menu.
2. Use the UP and DOWN direction
buttons to select Language and press
the ENTER button to enter the sub-
menu. (Figure 15)
3. Use the UP and DOWN direction
buttons to select the desired language
then press the ENTER button to save
the setting.
LANGUAGE from the Remote Control
4. Select “M1” or “M2” on the Remote
Control.
5. Press the SYSTEM MENU button then
use the UP/DOWN direction buttons
to select Language and press the OK
button to enter the Language sub-
menu.
6. Use the UP and DOWN direction
buttons to select the desired language
then press the OK button to save the
setting.
SYSTEM SETUP MENUS (continued)

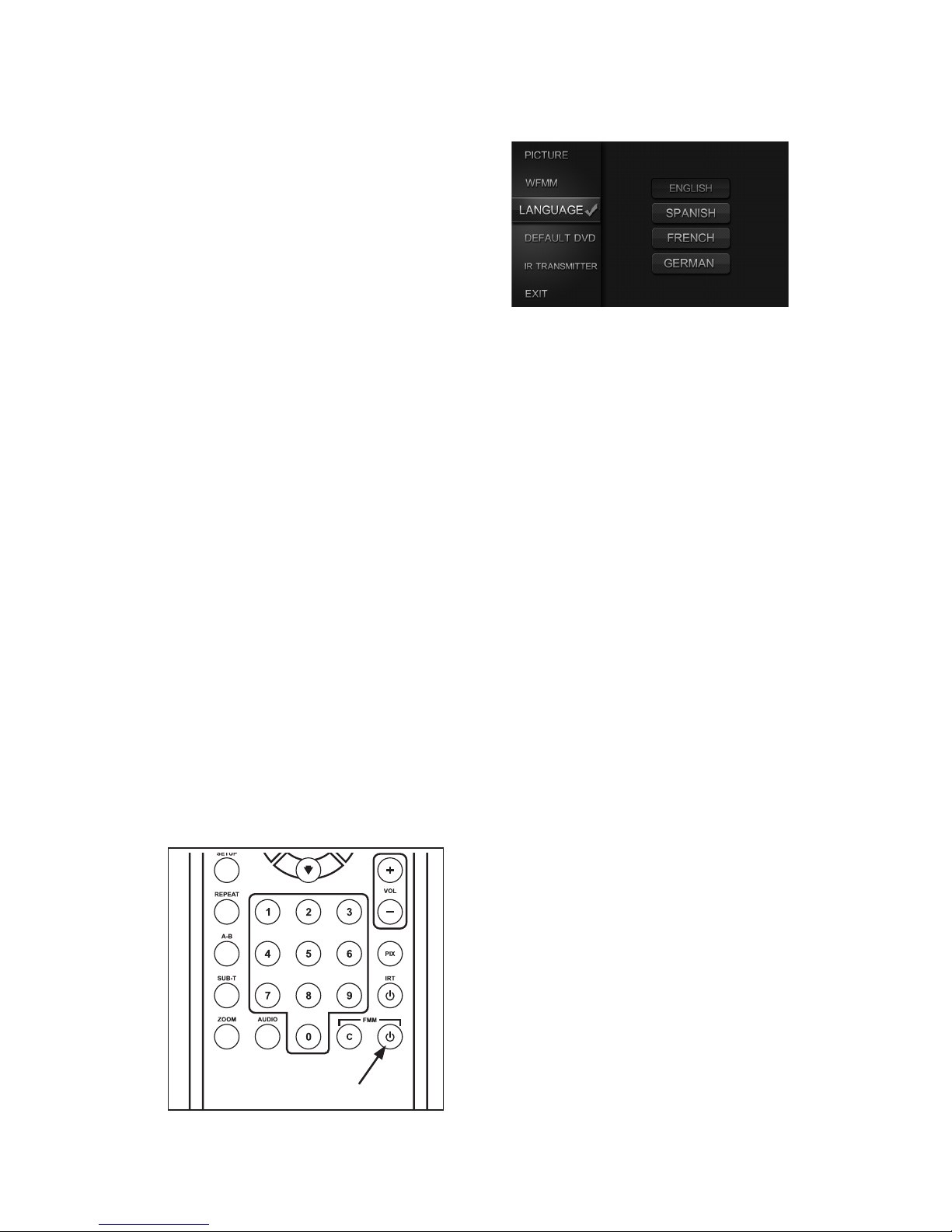

Figure 15
Language Sub-Menu
Figure 14
FMM ON/OFF BUTTON

17
HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
IR TRANSMITTER ON/OFF
IR Transmitter ON/OFF from the Front
Panel:
1. Press and hold the HOME / MENU
SELECT button on the front panel of the
unit to show the MAIN MENU.
2. Use the UP and DOWN direction
buttons to select IR TRANSMITTER ON
or OFF and press the ENTER button to
enter the sub-menu. (Figure 17)
3. Use the UP and DOWN direction buttons
to select IRT ON or OFF and press the
Enter button to enter selection. When
ON is selected, IRT ON will be displayed
on the SYSTEM MENU screen. When
OFF is selected, IRT OFF will be
displayed on the SYSTEM MENU screen.
IR Transmitter ON/OFF from the Remote
Control:
1. Select“M1”or“M2”on theRemoteControl.
2. Press the SYSTEM MENU button then
use the UP and DOWN direction buttons
to select IR TRANSMITTER and press the
ENTER button to enter the sub-menu.
3. Use the UP and DOWN direction buttons
to turn the IR TRANSMITTER ON or OFF
and press the ENTER button to enter
selection. When ON is selected, IRT will be
displayed on the SYSTEM MENU screen.
When OFF is selected, IRT OFF will be
displayed on the SYSTEM MENU screen.
DEFAULT DVD ON/OFF
With the “Default DVD ON” feature selected,
the monitor will default to DVD Mode each
time the system is turned ON. For example,
if the user is playing a game and the system
is turned OFF, the next time the system is
turned ON, it will power up in DVD Mode.
Default DVD ON/OFF from the Front Panel:
1. Press and hold the HOME / MENU
SELECT button on the front panel of the
unit to show the MAIN MENU.
2. Use the UP and DOWN direction
buttons to select DEFAULT DVD ON/
OFF and press the ENTER button to
enter the sub-menu. (Figure 16)
3. Use the UP and DOWN direction
buttons to select DEFAULT DVD ON
or OFF and press the ENTER button to
enter selection.
Default DVD ON and OFF from the Remote
Control:
1. Select “M1” or “M2” on the Remote
Control.
2. Press the SYSTEM MENU button then
use the UP and DOWN direction buttons
to select DEFAULT DVD ON/OFF and
press the ENTER button to enter the
sub-menu.
3. Use the UP and DOWN direction buttons
to select DEFAULT DVD ON or OFF and
pressthe OKbuttontomaketheselection.

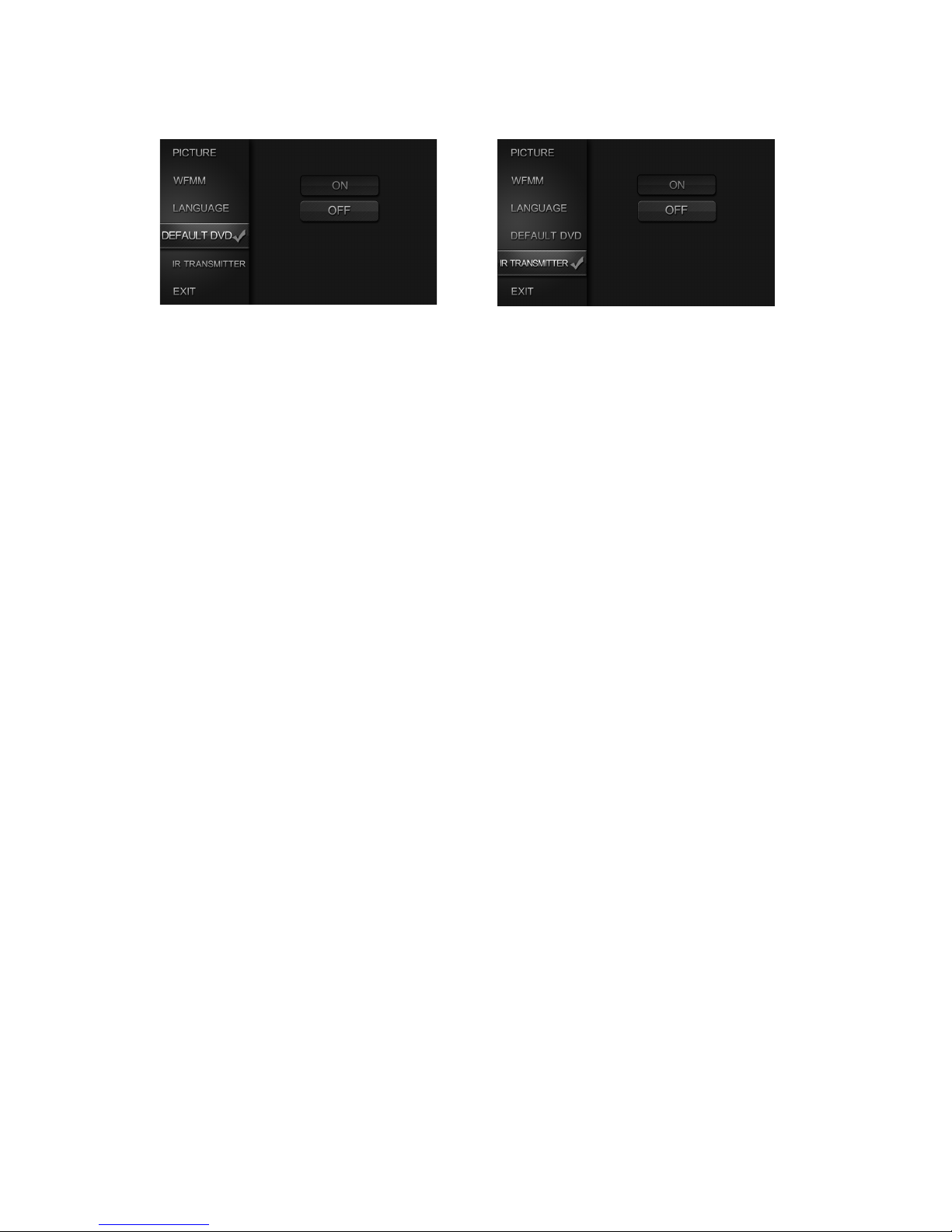

SYSTEM SETUP MENUS (continued)
IR Transmitter Sub-Menu
Figure 17
Default DVD Sub-Menu
Figure 16

18
HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
SCREEN SAVER
This option allows the operator to set the
Screen Saver mode. (Figure 19)
ON - Screen saver will appear
OFF - Screen saver will not appear
NOTE: The DVD player will enter Screen
Saver mode if the unit is inactive for
approximately 2 minutes.
Figure 19
SYSTEM SETUP
TV SYSTEM
TV TYPE
PASSWORD
RATING
OFF
ON
DEFAULT
SCREEN SAVER
TV TYPE
The TV TYPE setup allows you to set the
screen aspect ratio. (Figure 20)
SYSTEM SETUP
TV SYSTEM
SCREEN SAVER
4:3PS
4:3LB
16:9
PASSWORD
RATING
DEFAULT
TV TYPE
Figure 20
4:3 PS (Pan Scan)
The left and right sides of the screen are cut
o and displays the central portion of the
16:9 screen.
4:3 LB (Letter Box)
Displays the content of the DVD title in 16:9
aspect ratio. The black bars will appear at the
top and bottom of the screen.
16:9
Displays a wide picture with black bands on
the upper and lower portion of the screen.
The bandwidth will vary, depending on the
aspect ratio of the disc.
DVD PLAYBACK SETTINGS AND ADJUSTMENTS
Using the Setup Menu
1. Press the SETUP button on the remote
control. The Setup Menu appears on
the screen as shown in Figure 18. There
are 2 icons on the left side of the Setup
Menu. Each icon represents a page for:
SYSTEM SETUP
LANGUAGE SETUP
2. Highlight the desired option using the
UP or DOWN direction buttons and
press select to open the sub menu that
contains the dierent options available.
3. Press the UP or DOWN direction buttons
to highlight the desired option, and
press ENTER to conrm the selection.
4. Repeat steps 2 and 3 to set the options
that reside on the same Setup Page.
5. To change to another Setup page, press
the LEFT direction button to position
the highlight back on the icon side of
the setup page. Then, repeat steps 2
through 4.
SYSTEM SETUP
TV SYSTEM
The TV SYSTEM setup allows the user to
select television standard which
corresponds to your TV. (Figure 18)
• NTSC - Select this TV type for NTSC TV
• PAL - Select this TV type for PAL TV
• AUTO - Select this TV type if the
connected screen is multi-system.
The output format of the video signal
will be in accordance with the video
signal of the disc.
SYSTEM SETUP
TV SYSTEM
SCREEN SAVER
TV TYPE
PASSWORD
RATING
NTSC
PAL
AUTO
DEFAULT
Figure 18
The Setup Menu contains features and options that lets you customize your DVD player. For
example, you can set screen display or a language for the on-screen display or prevent DVD
playback of certain DVD discs (for example PG-13 or R Rated) for children.
