VTC Pro Audio DLMS4080 User manual

OWNER’S MANUAL
MANUEL DE L’UTILISATEUR
4080

The exclamation point within an equilatereal triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
Le point d’exclamation à l’intérieur d’un triangle équilatéral
est prévu pour alerter l’utilisateur de la présence
d’instructions importantes dans la littérature accompag-
nant l’appareil en ce qui concerne l’opération et la
maintenance de cet appareil.
This lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user to
the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
Ce symbole d’éclair avec tête de flèche dans un triangle
équilatéral est prévu pour alerter l’utilisateur de la présence d’un
« voltage dangereux » non-isolé à proximité de l’enceinte du
produit qui pourrait être d’ampleur suffisante pour présenter
un risque de choque électrique.
IMPORTANT SAFETY INSTRUCTIONS
safety-4v7 • May 7/2008
CAUTION:TO REDUCETHE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICINGTO QUALIFIED
SERVICE PERSONNEL.
FOLLOW ALL INSTRUCTIONS SUIVEZTOUTES LES INSTRUCTIONS
Instructions pertaining to a risk of fire,
electric shock, or injury to a person
Read Instructions: The Owner’s Manual should be read and understood before operation
of your unit. Please, save these instructions for future reference and heed all warnings.
Clean only with dry cloth.
Packaging: Keep the box and packaging materials, in case the unit needs to be
returned for service.
Warning: To reduce the risk or fire or electric shock, do not expose this apparatus to rain or
moisture. Do not use this apparatus near water!
Warning: When using electric products, basic precautions should always be followed,
including the following:
Power Sources
Your unit should be connected to a power source only of the voltage specified in the
owners manual or as marked on the unit. This unit has a polarized plug. Do not use
with an extension cord or receptacle unless the plug can be fully inserted. Precau-
tions should be taken so that the grounding scheme on the unit is not defeated. An
apparatus with CLASS I construction shall be connected to a Mains socket outlet with
a protective earthing ground. Where the MAINS plug or an appliance coupler is used
as the disconnect device, the disconnect device shall remain readily operable.
Hazards
Do not place this product on an unstable cart, stand, tripod, bracket or table. The
product may fall, causing serious personal injury and serious damage to the product.
Use only with cart, stand, tripod, bracket, or table recommended by the manufacturer
or sold with the product. Follow the manufacturer’s instructions when installing the
product and use mounting accessories recommended by the manufacturer. Only use
attachments/accessories specified by the manufacturer
Note: Prolonged use of headphones at a high volume may cause
health damage on your ears.
The apparatus should not be exposed to dripping or splashing water; no objects
filled with liquids should be placed on the apparatus.
Terminals marked with the “lightning bolt” are hazardous live; the external wiring
connected to these terminals require installation by an instructed person or the use of
ready made leads or cords.
Ensure that proper ventilation is provided around the appliance. Do not install near
any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
Power Cord
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.The AC supply cord should be routed so that it is unlikely that it will be
damaged.Protect the power cord from being walked on or pinched particularly at plugs. If
the AC supply cord is damaged DO NOT OPERATETHE UNIT. To completely disconnect
this apparatus from the AC Mains, disconnect the power supply cord plug from the AC
receptacle.The mains plug of the power supply cord shall remain readily operable.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Service
The unit should be serviced only by qualified service personnel.Servicing is required
when the apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
AVIS: AFIN DE REDUIRE LES RISQUE DE CHOC
ELECTRIQUE, N’ENLEVEZ PAS LE COUVERT (OU LE
PANNEAU ARRIERE) NE CONTIENT AUCUNE PIECE
REPARABLE PAR L’UTILISATEUR.
CONSULTEZ UN TECHNICIEN QUALIFIE
POUR L’ENTRETIENT
Instructions relatives au risque de feu,
choc électrique, ou blessures aux personnes
Veuillez Lire le Manuel: Il contient des informations qui devraient êtres comprises avant
l’opération de votre appareil.Conservez.Gardez S.V.P. ces instructions pour consultations
ultérieures et observez tous les avertissements.
Nettoyez seulement avec le tissu sec.
Emballage: Conservez la boite au cas ou l’appareil devait être retourner pour réparation.
Avertissement: Pour réduire le risque de feu ou la décharge électrique, n'exposez pas
cet appareil à la pluie ou à l'humidité. N’utilisez pas cet appareil près de l’eau!
Attention: Lors de l’utilisation de produits électrique, assurez-vous d’adhérer à des
précautions de bases incluant celle qui suivent:
Alimentation
L’appareil ne doit être branché qu’à une source d’alimentation correspondant au
voltage spécifié dans le manuel ou tel qu’indiqué sur l’appareil.Cet appareil est équipé
d’une prise d’alimentation polarisée. Ne pas utiliser cet appareil avec un cordon de
raccordement à moins qu’il soit possible d’insérer complètement les trois lames. Des
précautions doivent êtres prises afin d’eviter que le système de mise à la terre de
l’appareil ne soit désengagé. Un appareil construit selon les normes de CLASS I
devrait être raccordé à une prise murale d’alimentation avec connexion intacte de mise
à la masse. Lorsqu’une prise de branchement ou un coupleur d'appareils est utilisée
comme dispositif de débranchement, ce dispositif de débranchement devra demeurer
pleinement fonctionnel avec raccordement à la masse.
Risque
Ne pas placer cet appareil sur un chariot, un support, un trépied ou une table instables.
L’appareil pourrait tomber et blesser quelqu’un ou subir des dommages importants.
Utiliser seulement un chariot, un support, un trépied ou une table recommandés par le
fabricant ou vendus avec le produit. Suivre les instructions du fabricant pour installer
l’appareil et utiliser les accessoires recommandés par le fabricant. Utilisez seulement
les attachements/accessoires indiqués par le fabricant
Note: L'utilisation prolongée des écouteurs à un volume élevé peut
avoir des conséquences néfastes sur la santé sur vos oreilles. .
Il convient de ne pas placer sur l’appareil de sources de flammes nues, telles que
des bougies allumées.
L’appeil ne doit pas être exposé à des égouttements d’eau ou des éclaboussures
et qu’aucun objet rempli de liquide tel que des vases ne doit être placé sur l’appareil.
Assurez que lappareil est fourni de la propre ventilation.Ne procédez pas à
l’installation près de source de chaleur tels que radiateurs, registre de chaleur, fours
ou autres appareils (incluant les amplificateurs) qui produisent de la chaleur.
Les dispositifs marqués d’une symbole “d’éclair” sont des parties dangereuses
au toucher et que les câblages extérieurs connectés à ces dispositifs de
connection extérieure doivent être effectivés par un opérateur formé ou en utilisant
des cordons déjà préparés.
Cordon d’Alimentation
Ne pas enlever le dispositif de sécurité sur la prise polarisée ou la prise avec tige de
mise à la masse du cordon d’alimentation. Une prise polarisée dispose de deux lames
dont une plus large que l’autre. Une prise avec tige de mise à la masse dispose de
deux lames en plus d’une troisième tige qui connecte à la masse. La lame plus large ou
la tige de mise à la masse est prévu pour votre sécurité. La prise murale est désuète si
elle n’est pas conçue pour accepter ce type de prise avec dispositif de sécurité. Dans
ce cas, contactez un électricien pour faire remplacer la prise murale. Évitez
d’endommager le cordon d’alimentation. Protégez le cordon d’alimentation.Assurez-
vous qu’on ne marche pas dessus et qu’on ne le pince pas en particulier aux prises.
N’UTILISEZ PAS L’APPAREIL si le cordon d’alimentation est endommagé. Pour
débrancher complètement cet appareil de l’alimentation CA principale, déconnectez le
cordon d’alimentation de la prise d’alimentation murale. Le cordon d’alimentation du
bloc d’alimentation de l’appareil doit demeurer pleinement fonctionnel.
Débranchez cet appareil durant les orages ou si inutilisé pendant de longues périodes.
Service
Consultez un technicien qualifié pour l’entretien de votre appareil. L'entretien est
nécessaire quand l'appareil a été endommagé de quelque façon que se soit. Par exemple
si le cordon d’alimentation ou la prise du cordon sont endommagés, si il y a eu du liquide
qui a été renversé à l’intérieur ou des objets sont tombés dans l'appareil, si l'appareil a été
exposé à la pluie ou à l'humidité, si il ne fonctionne pas normalement, ou a été échappé.
S2125A

1
VTC DLMS4080
Welcome to the VTC Pro Audio family. The DLMS4080 System is one of the most advanced and easiest
to manage loudspeaker processor in the audio industry. The DLMS4080 features 40-bit floating point
processors and high performance 24-bit analog converters which achieves the highest quality of sound
reproduction. Using a high-bit DSP prevents noise and distortion that usually gets introduced by truncation
errors that are common when 24-bit fixed-point devices are used.
Designed for touring or fixed sound installations, the DLMS4080 is the digital control center for the VTC
Pro Audio Elevation loudspeaker array systems. The four inputs and eight outputs can be configured easily
– in real-time, directly from the front control panel. It can also be controlled remotely using a PC using USB,
RS-232 or Ethernet. RS-232, Ethernet and USB ports are included to provide unprecedented options for
setting up your system.
The DLMS4080 has a comprehensive set of system control parameters. Each input’s level and
compression can be set individually. Output parameters include delay, polarity, limiting, an 8-band parametric
and a 31-band graphic EQ per channel. Precise 1Hz precision resolution allows you to contour your system
with pin-point accuracy.
Additionally, the software included on the included CD has been developed with an intuitive graphical
user interface which makes setup a snap, even when setting up complex systems. Up to 32 separate setups
can be stored in the onboard memory module. The DLMS4080 also features an onboard lockout for full
system security when used in permanent installation applications.
Note: Software upgrades for internal CPU and DSP are enabled via a PC
connection which keeps the device current with newly developed algorithms
and functions (when available).
Check http://www.vtcproaudio.com for updates.
Features
• Flexible routing between Inputs and Outputs
• 40-bit oating point DSP (Highly accurate digital processing)
• High Performance 24-bit A/D and D/A Converters
• Accurate 1 Hz Frequency Resolution
• 8 Parametric Equalizers for each Input and Output
• 31-Band Graphic Equalizer for each input channel
• Multiple Crossover types with Full-Function Compressors on Input Channels and Limiters
on Output Channels
• Precision Level, Polarity and Delay control
• CPU and DSP upgrade via PC
• Individual Channel Push-Buttons with the capability of Linking channels together for programming
• Backlit 2-Line x 16 Character LCD Display
• Full 5-segment LEDs on every Input and Output
• Storage of up to 30 Program Setups. The DLMS4080 comes preprogrammed for VTC Pro
Audio Elevation Systems
• USB, RS232 and Ethernet Interfaces for PC Control and Conguration
• Expandable for future updates, upgrades and options
• Security Lock
v1.01
VTC PRO AUDIO
MAINS: 90 ~240VAC 50/60Hz 20VA
FUSE: T2.5A-250V
A-DLMS4080/2v1
POWER
OUTPUTS INPUTS
123412345678
Ethernet
RJ45
Data
RS-232
USB
MANUFACTURED FOR YORKVILLE SOUND
TORONTO, CANADA • MODEL TYPE: YS1072 - V1
4080
INPUT
1234
OUTPUT
Mute Mute Mute Mute Mute Mute Mute Mute
Mute Mute Mute Mute
-3dB
-6dB
Limit
-12dB
Signal
-3dB
-6dB
Limit
-12dB
Signal
-3dB
-6dB
Limit
-12dB
Signal
-3dB
-6dB
Limit
-12dB
Signal
12345678
Enter/SysExit
Menu
Cursor
MADE IN CHINA

2
Configuration
Connectors
The DLMS4080 can be set up and configured with a computer using USB, RS-232 or Ethernet.
Tech Note: Do Not plug your DLMS4080 into a computer until the proper drivers are
installed!! The proper device drivers are located on the included CD.
i. USB Connector
1
– Located on the front panel, the Universal Serial Bus (USB) connector is a standard
Type B USB connector.
ii. RS-232
2
– Located on the front panel below the USB connector is the standard DB-9 connector for
use with a standard RS-232 DB-9 serial cable connected directly to your computer.
iii. Ethernet
13
– Located on the rear panel, beside the IEC power receptacle is a standard RJ45 Ethernet
connector. This can be used to remotely control and program the DLMS4080.
User Tip: a wireless hub can be used to more easily interface with the DLMS4080.
Mute Push-Buttons
3
Each channel features its own Mute push-button. When muted, a red LED will illuminate signifying the channel is muted.
User Tip: The push-button is also used to select individual and multiple channels when
programming (described below, Channel Selection and Linking for Programming).
Channel Selection and Linking for Programming
4
When either Menu push-button is held down, select the channel to be modied by using the Mute pushbutton;
a green LED below the push-button will illuminate signifying your selection. The last modication menu will be
displayed on the LCD. To select multiple channels for linking and programming similar parameters, hold down
either Menu Control and choose the channels to be linked (or unlinked) by pressing their corresponding Mute push-
button. To exit these menus press the Exit push-button.
Note: Input channels cannot be linked with output channels.
Signal, Peak Level and Limit LEDs
5
When a signal is present, the Signal LED will illuminate on the corresponding Input channel’s LED display bar. The
LEDs marked as Limit also act as Peak LEDs which indicate the current peak level of the Signal. These LEDs indicate
the DLMS4080’s maximum headroom and also reference the threshold of the compressor/limiter.
v1.01
VTC PRO AUDIO
MAINS: 90 ~240VAC 50/60Hz 20VA
FUSE: T2.5A-250V
A-DLMS4080/2v1
POWER
OUTPUTS INPUTS
123412345678
Ethernet
RJ45
Data
RS-232
USB
MANUFACTURED FOR YORKVILLE SOUND
TORONTO, CANADA • MODEL TYPE: YS1072 - V1
4080
INPUT
1234
OUTPUT
Mute Mute Mute Mute Mute Mute Mute Mute
Mute Mute Mute Mute
-3dB
-6dB
Limit
-12dB
Signal
-3dB
-6dB
Limit
-12dB
Signal
-3dB
-6dB
Limit
-12dB
Signal
-3dB
-6dB
Limit
-12dB
Signal
12345678
Enter/SysExit
Menu
Cursor
MADE IN CHINA
4080
INPUT
1234
OUTPUT
Mute Mute Mute Mute Mute Mute Mute Mute
Mute Mute Mute Mute
-3dB
-6dB
Limit
-12dB
Signal
-3dB
-6dB
Limit
-12dB
Signal
-3dB
-6dB
Limit
-12dB
Signal
-3dB
-6dB
Limit
-12dB
Signal
12345678
11
12
2
3
9
6
1
4
5
7
8
13
14
15
10

3
LCD Display
6
Necessary information and settings for the DLMS4080 are displayed on the LCD Display. The display is 2-Line by
16 Characters LCD backlit display.
Menu Keys
7
8
10
There are 6 menu keys identied as: Menu (menu back), Menu (menu forward), Cursor, Cursor , Enter/
Sys, and Exit.
Data Wheel
9
The rotary thumb wheel changes parameter data values and settings. This data wheel is travel velocity sensing, which
makes it easy when large incremental data modifications are needed, simply rotate faster for accelerated changes.
Power Switch
11
The rear mounted power switch turns the main power to the DLMS4080 On or Off.
XLR Input and Outputs
14
15
Individual balanced XLR jacks are used for each audio input and output. All I/O connectors have pin 1 as ground
(shield), pin 2 as (+) and pin 3 as (-).
Main Power Receptacle and Fuse
12
AC power connects using a standard IEC socket, operable voltage is 90-250VAC, 50-60Hz. A compatible power cord
is supplied with the unit.
Main Fuse: T2.5A 250V Slowblo
Enter/SysExit
Menu
Cursor
Menu
Previous menu screen
Menu
Next menu screen
Cursor
Previous sub-menu item in
the menu screen
or move curser Left
Cursor
Next sub-menu in the
menu screen
or move curser Right
Enter/Sys
Enter is used only in the System
Menu to proceed with selected
actions, Sys enters the System
Menu from the main menu.
Exit
Exit to the Main Menu
Data

4

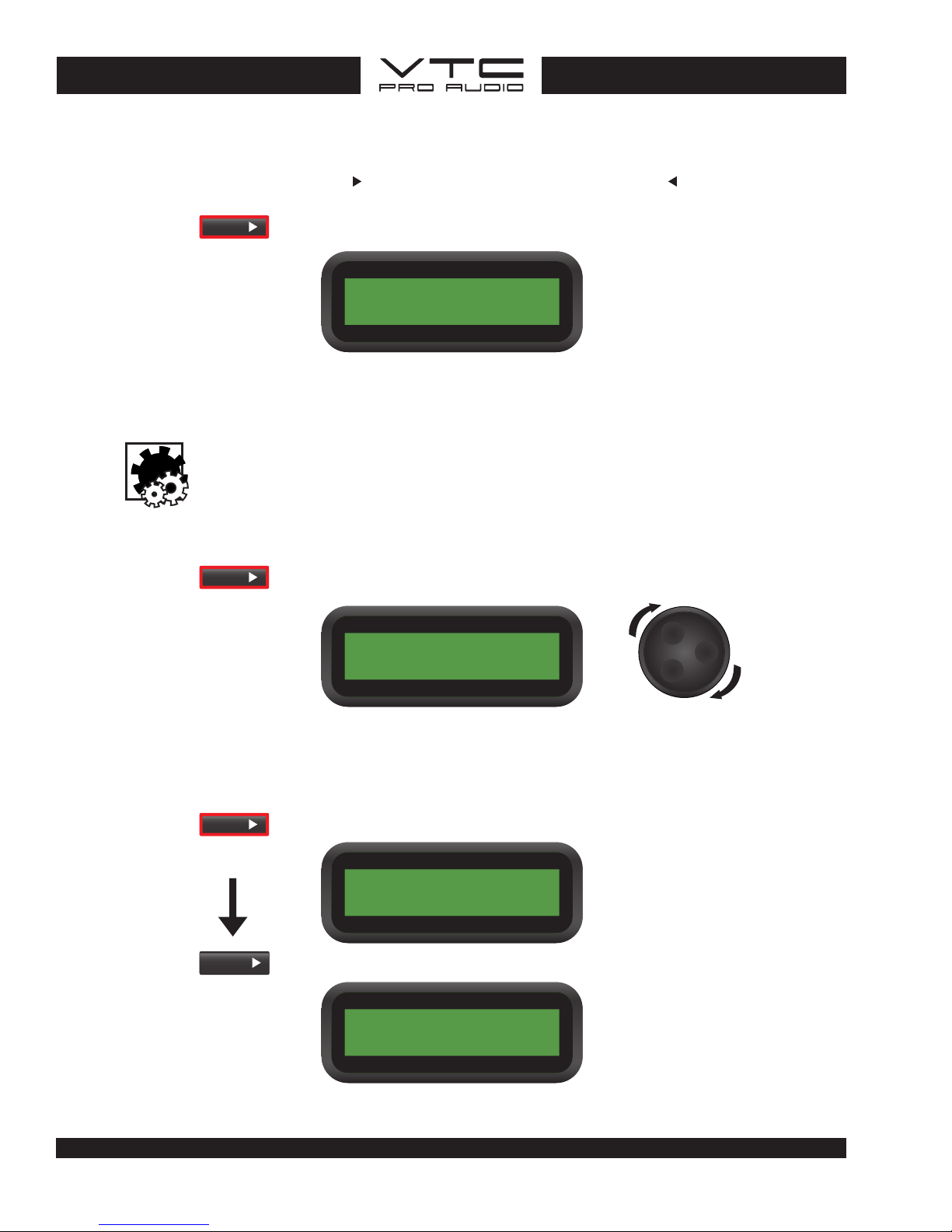

Powering Up the DLMS4080
When the DLMS4080 is powered up, the initialization process begins and takes about 8-seconds. During that
period, the display shows the model and firmware version currently loaded into the DLMS4080.
Once the initialization process is finished, the DLMS4080 displays the current program number and program name
assigned to the unit. If the 2 fields are empty, it means that no program is assigned, the last data before previous
power down is recalled instead.
The DLMS4080 is ready to operate.
V1.01
VTC PRO AUDIO
P:1 ____________
VTC PRO AUDIO
INPUT SIGNAL CHAIN
OUTPUT SIGNAL CHAIN
Gain Delay PEQ+GEQ IIR
Crossover
Compressor Mute
GainMixer Delay PEQ+GEQ IIR
Crossover
Limiter Mute

5

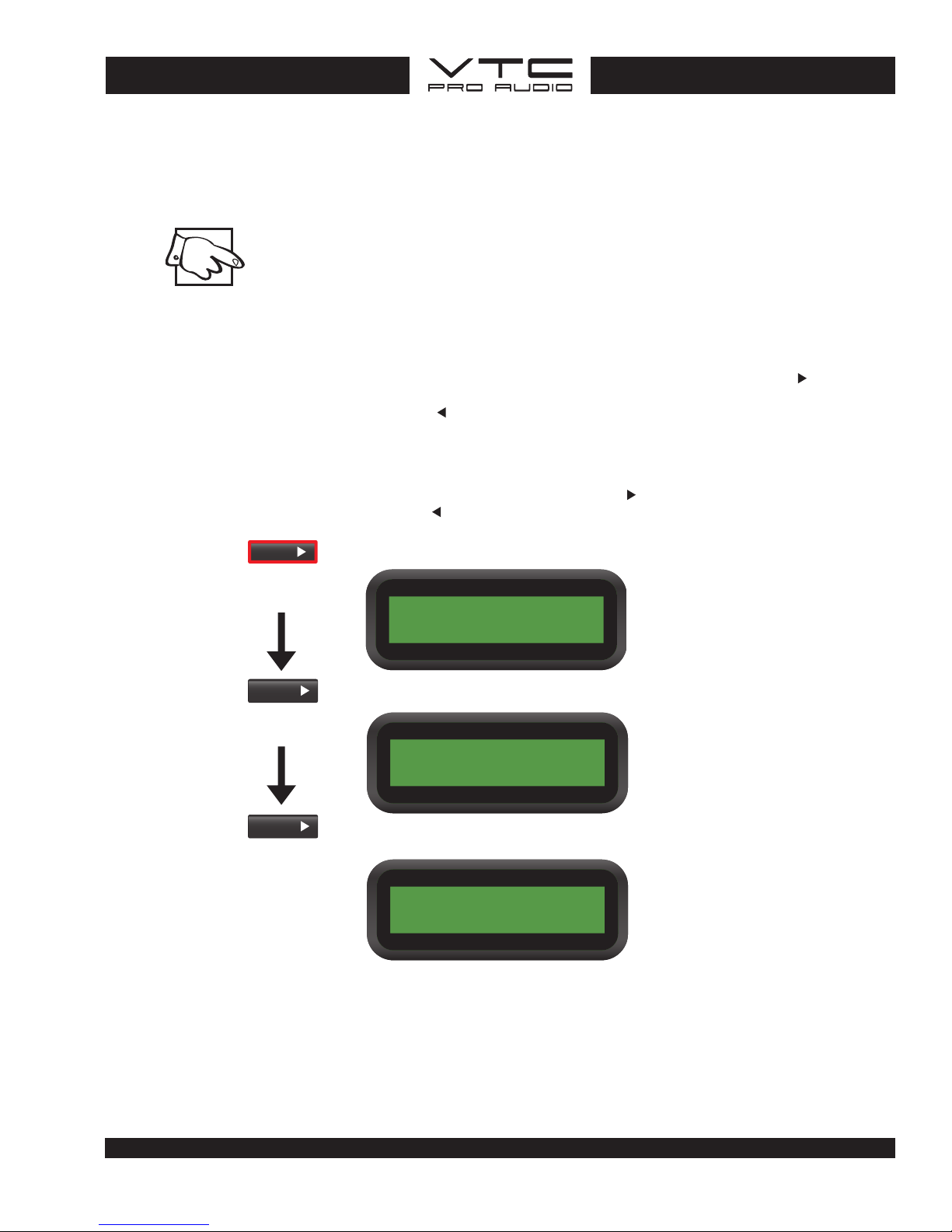

Operating the DLMS4080
User Tip: Channel Linking Selection – While holding down a Menu key, more than
1 channel from the same group (Input or Output group) can be selected to link the
channels together. The green LEDs below the Mute buttons are illuminated for the
linked channels. Modification of the parameters for the selected channel will be
applied to the linked channels as well. To cancel the linking, simply deselect the
desired channel while the Menu key is still held down. If the Menu Control key is
already released, press the Exit key to exit.
Input Menus
When an Input channel is selected for modication (To link channels together see Channel Selection and
Linking for Programming) the Input menu parameters can be accessed by pressing the Menu push-button
to advance from the SIGNAL Menu, EQ Menu, 31-Band EQ Menu, the Xover Menu, and finally the
Compressor Menu. (Use the Menu push-button to go backward from the Compressor Menu, the XOver
Menu, 31-Band EQ Menu, the EQ Menu and then finally back to the SIGNAL Menu). Use the Data wheel to
change the parameter’s settings.
1. Signal Menu (Signal)
Input channel signal menus can be selected by pressing the Cursor push-button to advance from LEVEL to POL
and finally to DELAY. (Use the Cursor push-button to go backward from DELAY to POL then to LEVEL). Use the
Data wheel to change the parameter’s settings.
LEVEL – Gain can be set from -40.00dB to +15.00dB in 0.25dB steps.
POL – Polarity, can be normal, (+) 0-degrees or inverted (-) 180-degrees.
DELAY – Delay in 21 user steps. Can be displayed in ms, ft or m. The system time unit of the delay can
be changed in the System menu. The maximum delay permitted is 4,800 steps (100ms).
LEVEL:0.00dB
I1:______ Signal
POL:+
I1:______ Signal
DELAY:000.000ms
I1:______ Signal
Menu
Cursor
Cursor

6

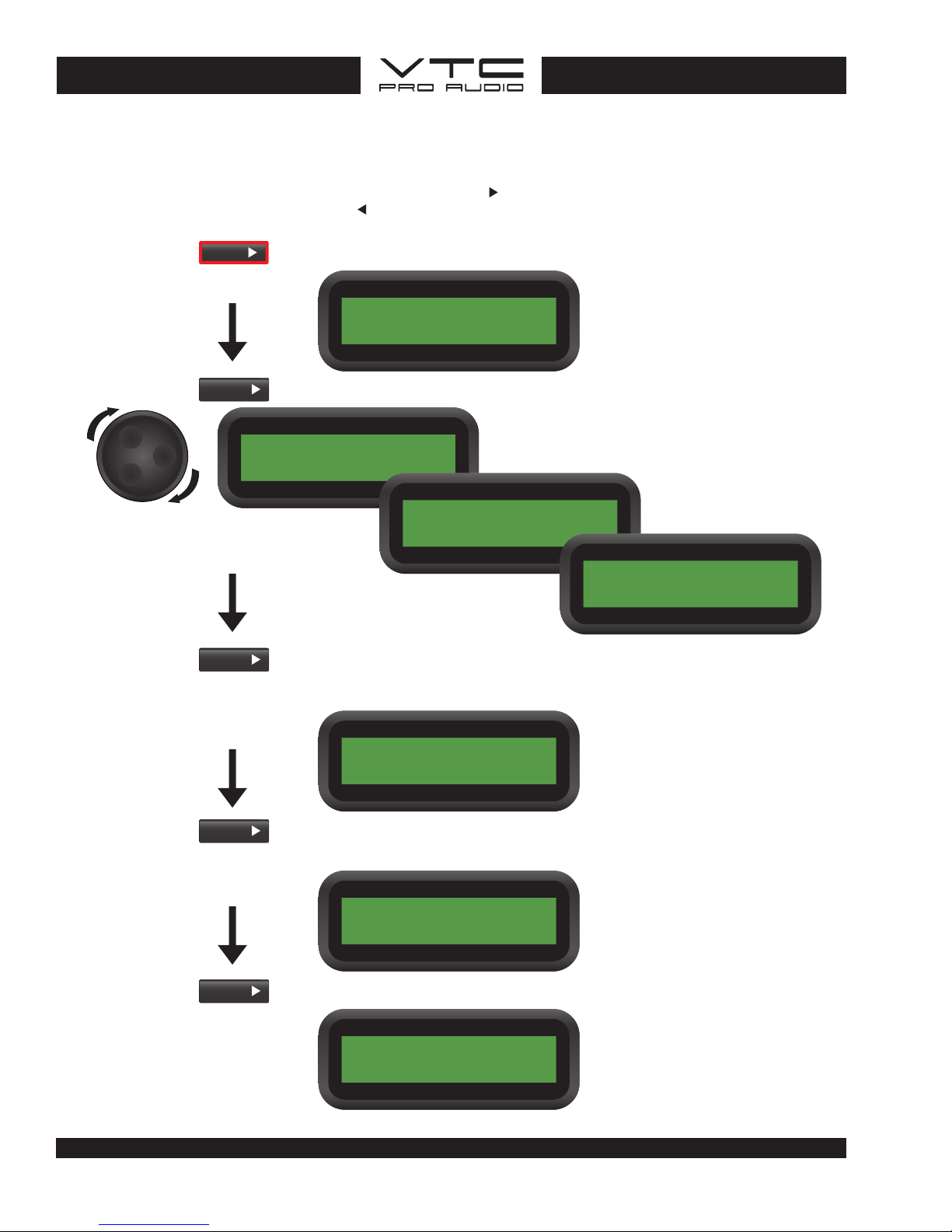

2. Equalizer Menu (EQ_)
EQ parameters can be set by pressing the Cursor push-button to advance from EQ# to Type, Freq, BW and
finally to Level. (Use the Cursor push-button to go backward from Level to BW, Freq, Type then to EQ#). Use
the Data wheel to change the parameter’s settings.
EQ# - Selects one of the 8 available Equalizers.
TYPE – The types of equalization can be set to parametric (PEQ), Lo-shelf (LO-SHF) or Hi-shelf (HI-SHF).
FREQ – EQ center frequency; the equalizer’s centered frequency can be set anywhere within the range
from 20 to 20,000Hz, in either 1Hz steps or 1/36 octave steps. The sampling rate and the frequency steps
can be selected in the System Menu.
BW – EQ Bandwidth. The equalizer’s bandwidth ranges from 0.02 to 2.50 octaves and can be set in 0.01
octave steps for PEQ (see EQ TYPE). For LO-SHF or HI-SHF, it is either 6 or 12dB/Octave.
LEVEL – EQ level gain. The EQ level can be set from -30.00dB to +15.00dB in 0.25dB steps.
EQ#:1
I1:______ EQ1
TYPE:PEQ
I1:______ EQ1
TYPE:LO-SHF
I1:______ EQ1
TYPE:HI-SHF
I1:______ EQ1
FREQ:1000Hz
I1:______ EQ1
BW:0.33OCt
I1:______ EQ1
LEVEL:0.00dB
I1:______ EQ1
Cursor
Cursor
Cursor
Cursor
Menu
Data

7
3. 31-Band Graphic Equalizer Menu (GEQ_)
Graphic EQ parameters can be set by pressing the Cursor push-button to advance from GEQ# to Level. (Use
the Cursor push-button to go backward from to Level to GEQ#). Use the Data wheel to change the parameter’s
settings.
GEQ# – Selects one of the 31 available Equalizers bands. The frequency for each band is displayed
LEVEL – Graphic EQ level gain. The EQ level can be set from -30.00dB to +15.00dB in 0.25dB steps.
4. XOver Menu
Crossover parameters can be set by pressing the Cursor push-button to advance from TYPL to FRQL, SLPL,
TYPH, FRQH and nally to SLPH. (Use the Cursor push-button to go backward from SLPH to FRQH, TYPH,
SLPL, FRQL, then to TYPL). Use the Data wheel to change the parameter’s settings.
TYPL – Choose between Butterworth, Linkwitz-Riley or Bessel crossover Filter Types for the low
frequency crossover point (high pass).
FRQL – Filter cut-off Frequency of low frequency crossover point (high pass). Ranges from 20 to 20,000Hz
in either 1 Hz steps or 1/36 octave steps. The frequency steps can be selected in the System Menu.
GEQ#:1 f=20
I1:______ GEQ1
LEVEL:0.00dB
I1:______ GEQ1
TYPL:Off
I1:______ XOver
TYPL:Link-Riley
I1:______ XOver
TYPL:Butterworth
I1:______ XOver
TYPL:Bessel
I1:______ XOver
FRQL:1000Hz
I1:______ XOver
Cursor
Cursor
Menu
Menu
Data

8

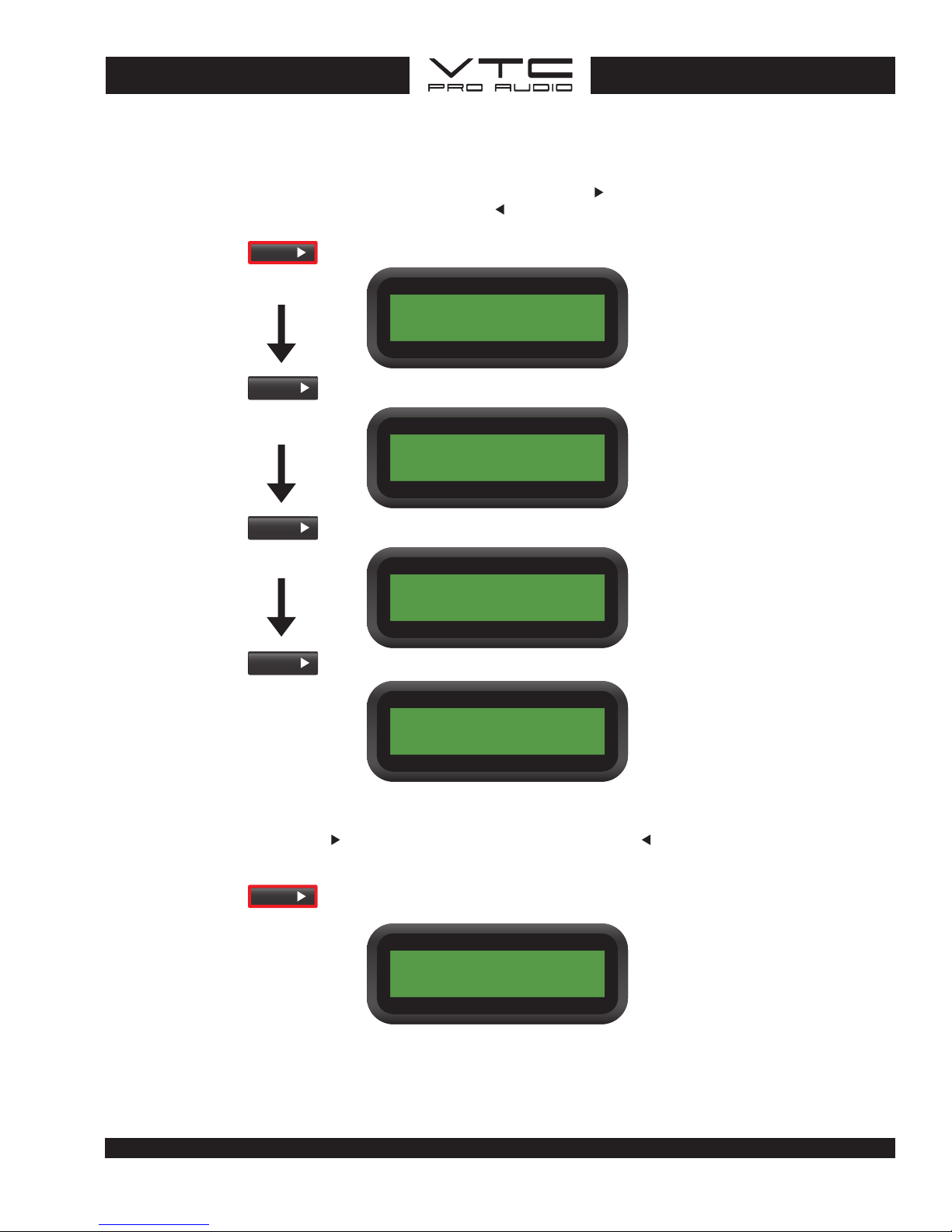

SLPL – Filter Slope of low frequency crossover point (high pass). Ranges from 6 to 48dB/octave. If the
selected Filter Type is Linkwitz-Riley, the available slopes are 12 / 24 / 36 / 48 dB/octave.
TYPH – Filter Type of high frequency crossover point (low pass).
FRQH – Filter cut-off Frequency of high frequency crossover point (low pass).
SLPH – Filter Slope of high frequency crossover point (low pass).
SLPL:24dB
I1:______ XOver
TYPH:Off
I1:______ XOver
FRQH:1000Hz
I1:______ XOver
SLPH:24dB
I1:______ XOver
Configuration Graph
None Off Off dB
freq
High Pass TYPL (ON) TYPH (OFF)
Low Pass TYPL (OFF) TYPH (ON)
Band Pass TYPL (ON) TYPH (ON)
CROSSOVER FILTER CONFIGURATIONS
Low
Crossover Point
High
dB
freq
FRQL
FRQH
dB
freq
dB
freq
FRQL FRQH
Cursor
Cursor
Cursor
Cursor

9

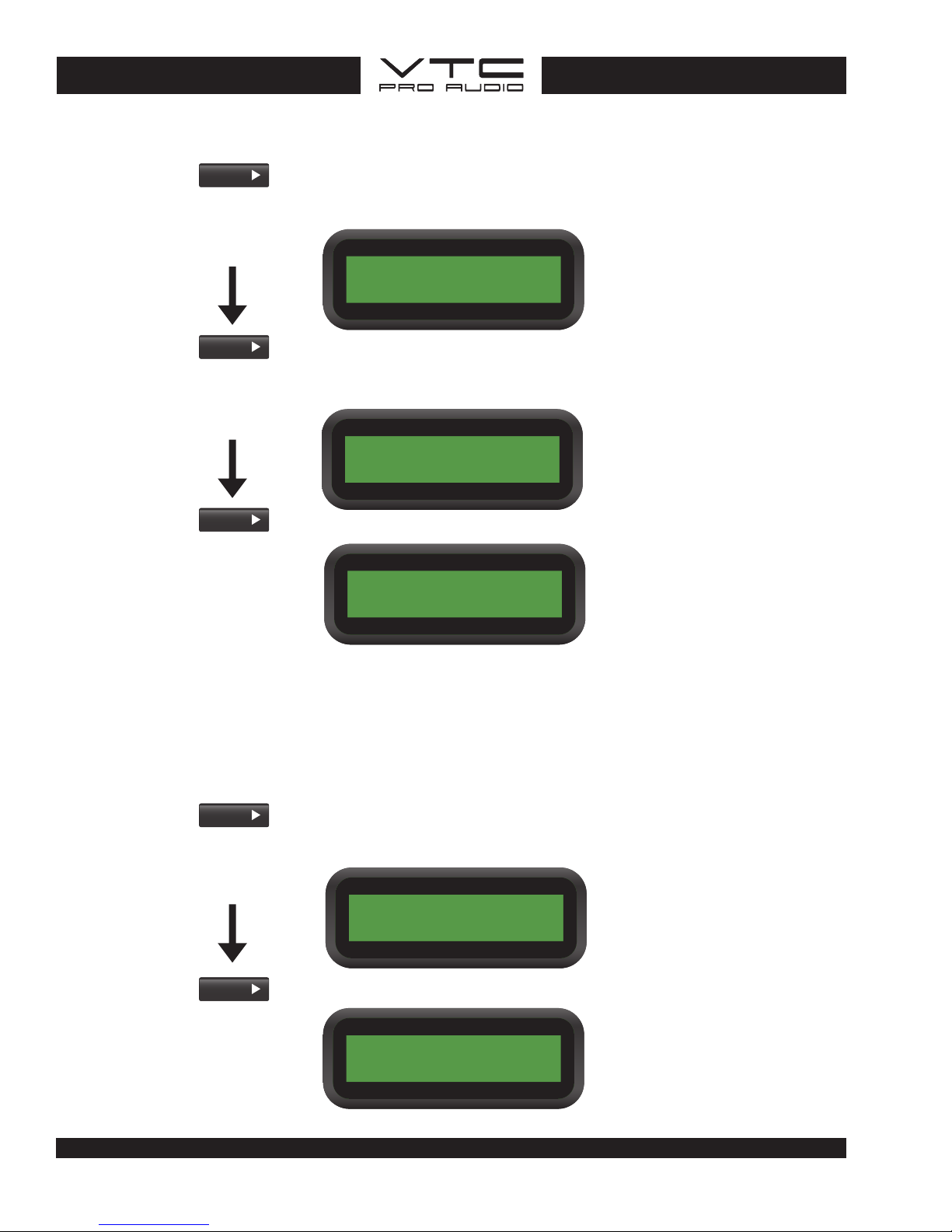

5. Compressor Menu
Compression parameters can be set by pressing the Cursor push-button to advance from THRESH to ATTACK,
RELEASE and finally to RATIO. (Use the Cursor push-button to go backward from RATIO to RELEASE,
ATTACK then to THRESH). Use the Data wheel to change the parameter’s settings.
THRESH – Limit Threshold. Ranges from -20 to +20dBu in 0.5dB steps.
ATTACK – Attack time. Ranges from 0.3 to 1ms in 0.1ms steps, then ranges from 1 to 100ms in 1 ms steps.
RELEASE – Release time. Can be set at 2X, 4X, 8X, 16X or 32X the attack time.
RATIO – Slope in which the signal is compressor. Ranges from 1/40 to 40/40.
6. Name
All channels can be named to help identify the channel or function. The Input Channel Name can be set by pressing
the Cursor push-button to advance to the next character. (Use the Cursor push-button to go backwards). Use
the Data wheel to change the character on the display.
NAME – Channel name. A maximum of 6 characters in length.
THRESH:+20.0dB
I1:______ Comp
ATTACK:10ms
I1:______ Comp
RELEASE:8XAtck
I1:______ Comp
RATIO:40/40
I1:______ Comp
NAME:______
I1:______ Name
Cursor
Cursor
Cursor
Menu
Menu

10
Output Menus
When an Output Channel, or channels are selected for modication (see Channel Selection and Linking for
Programming) the Output menu parameters can be accessed by pressing the Menu push-button to advance from
the SIGNAL Menu to the EQ Menu and finally the XOver Menu. (Use the Menu push-button to go backward
from the XOver Menu to EQ Menu then finally the SIGNAL Menu). Use the Data wheel to change the parameter’s
settings.
1. Signal Menu
Output channel signal menus can be chosen by pressing the Cursor push-button to advance from LEVEL to POL
and finally to DELAY. (Use the Cursor push-button to go backward from DELAY to POL then to LEVEL). Use
the Data wheel to change the parameter’s settings.
LEVEL – Gain, -40.00dB to +15.00dB in 0.25dB steps.
POL – Polarity, can be normal (+) or inverted (-).
DELAY – Delay settings are displayed in ms, ft or m. The time unit of the delay can be changed in the
System menu. The maximum delay permitted is 4,800 steps (100ms).
LEVEL:0.00dB
O1:______ Signal
POL:+
O1:______ Signal
DELAY:000.000ms
O1:______ Signal
Cursor
Cursor
Menu

11
2. EQ Menu
EQ parameters can be set by pressing the Cursor push-button to advance from EQ# to LEVEL, Freq, EQ BW
and finally to EQ Type. (Use the Cursor push-button to go backward from EQ Type to EQ BW, EQ Freq, EQ
Level then to EQ#). Use the Data wheel to change the parameter’s settings.
EQ# – Selects one of the 8 available Equalizers.
TYPE – The types of equalization can be set to parametric (PEQ), low-shelf (LO-SHF), high-shelf (HI-SHF),
and two all-pass options (AP-1 and AP-2) . All-pass EQ Types use slightly different options, instead of
using bandwidth (BW) and level (LEVEL) you can change the phase angle (Deg).
See description of different EQ TYPE options on next page!
EQ#:1
O1:______ EQ1
Cursor
Menu
TYPE:PEQ
O1:______ EQ1
TYPE:LO-SHF
O1:______ EQ1
Data
TYPE:HI-SHF
O1:______ EQ1
TYPE:AP-1
O1:______ EQ1
TYPE:AP-2
O1:______ EQ1

12
EQ Types Options for PEQ, LO-SHF and HI-SHF
FREQ – EQ center frequency; the equalizer’s centered frequency can be set anywhere within the range
from 20 to 20,000Hz, in either 1Hz steps or 1/36 octave steps. The sampling rate and the frequency steps
can be selected in the System Menu.
BW – EQ Bandwidth. The equalizer’s bandwidth ranges from 0.02 to 2.50 octaves and can be set in 0.01
octave steps for PEQ (see EQ TYPE). The Q value is automatically displayed beneath the octave value. For
LO-SHF or HI-SHF, it is either 6 or 12dB/Octave.
LEVEL – EQ level gain. The EQ level can be set from -30.00dB to +15.00dB in 0.25dB steps.
EQ Types Options for AP-1 and AP-2
The all pass filters AP1, AP2 have two setting variables. One is a centre frequency, and the other is the
amount of phase shift at that frequency.
Use the all pass filter to compensate for driver phase mismatch where you do not want to select the
polarity reversal (180 degrees) across the entire frequency band, but only within a limited frequency band. For
example if the frequency chosen is 1000hz, and the phase chosen is 30 degrees, then from 300hz to 1000hz the
phase will change from 0 degrees to 30 degrees at 1000hz, changing back to 0 degrees at 3000hz.
FREQ – EQ center frequency; the equalizer’s center frequency can be set anywhere within the range from
20 to 20,000Hz, in either 1Hz steps or 1/36 octave steps. The sampling rate and the frequency steps can
be selected in the System Menu.
DEG – Set the Deg to compensate for driver phase mismatch.
Cursor
Cursor
Cursor
LEVEL:0.00dB
O1:______ EQ1
FREQ:1000Hz
O1:______ EQ1
DEG:16.5 deg
O1:______ EQ1
Cursor
FREQ:1000Hz
O1:______ EQ1
BW:0.33OCt
O1:______ EQ1
Cursor

13
3. CROSSOVER (XOver)
Crossover parameters can be set by pressing the Cursor push-button to advance from TYPL to FRQL, SLPL,
TYPH, FRQH and finally to SLPH. (Use the Cursor push-button to go backward from SLPH to FRQH, TYPH,
SLPL, FRQL, then to TYPL). Use the Data wheel to change the parameter’s settings.
TYPL – Filter Type of low frequency crossover point (high pass). Types can be Butterworth,
Linkwitz-Riley or Bessel.
FRQL – Filter cut-off Frequency of low frequency crossover point (high pass). The cut-off frequency
ranges from 20 to 20,000Hz in either 1 Hz steps or 1/36 octave steps. The frequency steps can be
set in the System Menu.
SLPL – Filter Slope of low frequency crossover point (high pass). Ranges from 6 to 48 dB/octave. If the
selected Filter Type is Linkwitz Riley, the available slopes are 6 /12 / 24 / 36 / 48 dB/octave.
TYPL:Off
O1:______ XOver
TYPL:Butterworth
O1:______ XOver
TYPL:Link-Riley
O1:______ XOver
TYPL:Bessel
O1:______ XOver
FRQL:1000Hz
O1:______ XOver
SLPL:24dB
O1:______ XOver
Cursor
Cursor
Menu
Data

14
TYPH – Filter Type of high frequency crossover point (low pass).
FRQH – Filter cut-off Frequency of high frequency crossover point (low pass).
SLPH – Filter Slope of high frequency crossover point (low pass).
FRQH:1000Hz
O1:______ XOver
SLPH:24dB
O1:______ XOver
TYPH:Off
O1:______ XOver
TYPL:Butterworth
O1:______ XOver
TYPL:Link-Riley
O1:______ XOver
TYPL:Bessel
O1:______ XOver
Configuration Graph
None Off Off dB
freq
High Pass TYPL (ON) TYPH (OFF)
Low Pass TYPL (OFF) TYPH (ON)
Band Pass TYPL (ON) TYPH (ON)
CROSSOVER FILTER CONFIGURATIONS
Low
Crossover Point
High
dB
freq
FRQL
FRQH
dB
freq
dB
freq
FRQL FRQH
Cursor
Cursor
Cursor
Data

15
4. Limiter
Limiter parameters can be set by pressing the Cursor push-button to advance from THRESH to ATTACK
and finally to RELEASE. (Use the Cursor push-button to go backward from RELEASE to ATTACK then to
THRESH). Use the Data wheel to change the parameter’s settings.
THRESH – Limit Threshold. Ranges from -20 to +20dBu in 0.5dB steps.
ATTACK – Attack time. Ranges from 0.3 to 1ms in 0.1ms steps, then ranges from 1 to 1 00ms in 1 ms steps.
RELEASE – Release time. Can be set at 2X, 4X, 8X, 1 6X or 32X the attack time.
5. Source Menu
Use the Cursor push-buttons to select the Input channel for the current selected output channel. Use the Data wheel
to change the Source parameter settings. The parameters can be set in 0.25 increments from 0.00 to -40.00; the
Input can also be turned Off.
In1, In2, In3, In4 – The LCD displays the Input channel source for the current output channel. This
feature can be used to mix the input source or disable it (Off). If more than one input sources are enabled,
they will be summed together as the source for the current output channel.
THRESH:0.0dBu
O1:______ Limit
ATTACK:10ms
O1:______ Limit
RELEASE:8XAtck
O1:______ Limit
In1:-14.00
O1:______ Source
In2:0.00
O1:______ Source
In3:Off
O1:______ Source
In4:Off
O1:______ Source
The example above shows sample settings for Output Channel 1. Input 1 has been set -14.00 units) relative to Input
2 which is at a nominal (0) setting. Inputs 3 and 4 are set to Off.
Cursor
Cursor
Cursor
Menu

16
6. Name
All output channels can be named to help identify the channel or function. The output channel Name can be set
by pressing the Cursor push-button to advance to the next character. (Use the Cursor push-button to go
backwards). The Data wheel changes the individual characters.
NAME – Channel name. 6 characters in length.
System Menus
The System menu allows system-level settings. This menu allows modifications to parameters that are related to
system behavior and general operation of the DLMS4080. The System menu can be accessed by pressing the
Enter/Sys key on the menu keypad (when no Input/Output or other System Menu is activated).
Note: All System Menus require the Enter/Sys key to be pressed for the selected
action to be activated.
1. Recall Menu – Program memory bank recall
The DLMS4080 has a built in non-volatile memory that can store up to 30 different program setups. A program
previously saved to memory can be recalled using this menu.
PROG – Program Number to be recalled. Use the Data Wheel to advance to the next program, press
Enter twice to confirm selection.
2. Store Menu – Program memory bank
The DLMS4080 has built-in non-volatile memory that can store up to 30 different program setups. The
current programs settings can be stored using this menu. The old program with the same program number
will be overwritten. Once the program is stored in the flash memory, it can be recalled at a later time, even
after powering down or power failure.
PROG – Program Number for the current data to be stored.
NAM – Program Name, allows a maximum length of 12 characters.
NAME:______
O1:______ Name
P:1 ____________
SYSTEM Recall
P:1 ____________
SYSTEM Store
NAM:____________
SYSTEM Store
Cursor
Menu
Menu
Menu
Data

17
3. Config – Device Configuration
MODE – configures the mode of operation.
The DLMS4080 assigns the Input source for the corresponding outputs when the Mode of Conguration is
selected. The crossover point parameters like the filter type, cut-off frequency and slope have to be configured
manually in the Xover Menu in each Output menu.
Note: The configuration mode configures the input sources when selected.
The user can change the source afterwards if desired. It does not keep the
configuration in memory.
4. Copy – Copy channel parameters
With this menu you can copy parameters from one channel to another; all you need to do is select the source and
the target channel. Press Enter/Sys to nalize the copy.
Note: When the source and target channels are both inputs all audio parameters will
be copied (or if they are both outputs). When the source or the target are an input
while the other is an output, only the Level, Polarity, Delay and EQ are copied.
SOURCE – Use the data wheel to choose the channel to be copied, press the Enter/Sys.
TARGET – Use the data wheel to select the channel that the parameters will be applied to, press the
Enter/Sys push-button to copy the parameters.
MODE:None
SYSTEM Config
Mode
None Any
Stereo 2-Way In1
Stereo 3-Way In1
SYSTEM MODE OF OPERATION
Out 1
Any
In1
In1
Out 2
Any
In2
In1
Out 3
Any
In2
In2
Out 4
Any
In1
In2
Out 5
Any
Any
In2
Any
Any
Any
Any
Any
Any
Stereo 4-Way In1 In1 In1 In1 In2 In2 In2 In2
Out 6 Out 7 Out 8
SOURCE:In1
SYSTEM Copy
TARGET:In1
SYSTEM Copy
Cursor
Menu
Menu

18
5. Generl – General system parameters
FREQ MODE – Selects the frequency control mode for EQ and crossover lters. Can be 36 steps/octave
or All Frequencies (1 Hz resolution).
DELAY UNIT – ms, ft or m.
6. Comm – RS232 Serial Communication parameters
These parameters include baud rate and device identification when more than one DLMS4080 is operating
on the same network.
BAUD RATE – Select the baud rate of the serial communication, choose between 1200, 2400, 4800,
9600, 19200, 38400, 57600 and 115200.
DEVICE # – Assigns the device ID from 1 to 16. This ID is useful when a network of more than 1
unit is present.
FREQ MODE:36/Oct
SYSTEM Generl
FREQ MODE:36/Oct
SYSTEM Generl
BAUD RATE:115200
SYSTEM Comm
DEVICE#:1
SYSTEM Comm
DELAY UNIT:ms
SYSTEM Generl
DELAY UNIT:ft
SYSTEM Generl
DELAY UNIT:m
SYSTEM Generl
Cursor
Cursor
Menu
Menu
Data
