W APPLIANCE Commercial Cool WUF13 Series User manual

1. READ these instructions carefully before installing and operating the
freezer. Keep them for further reference.
2. Record in the space below the “SERIAL NO.” found on the nameplate on
your freezer and retain this information for future reference.
SERIAL NO.:
Please save sales receipt for warranty.
User Manual
Upright Freezer
MODEL: WUF13**

Page 2 Page 3
CONTENTS
SAFETY INFORMATION
Important Safety Instructions
Refrigerant
Grounding Instructions
3
4
5
SET UP & USE
Installation Guide
Parts & Features
Operation Instructions
Freezer Door Reversal
6
7
8
9
12
12
12
14
TROUBLE SHOOTING & WARRANTY
Before You Call For Service
Customer Service
Troubleshooting
Limited Warranty
CLEANING & CARE
PRODUCT REGISTRATION
Thank you for purchasing our
W Appliance product. This easy-to-
use manual will guide you in getting
the best use of your freezer.
Remember to record the model
and serial numbers. They are on a
label on the rear of the freezer.
Staple your receipt to your manual.
You will need it to obtain warranty service.
Model number
Serial number
Date of purchase
11
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
1. Use this appliance only for its intended purpose as described in this
use and care guide.
2. This freezer must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions
in the installation section.
3. Never unplug your freezer by pulling on the power cord. Always
grasp the plug rmly and pull straight out from the outlet.
4. Do not operate any appliance with a damaged cord or plug. Return
appliance to the nearest authorized service facility for examination,
repair or adjustment.
5. Unplug your freezer before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly
recommend that a certied technician performs the service.
Component parts shall be replaced with like components and
servicing shall be done by factory authorized service personell, so
as to minimize the risk of possible ignition due to incorrect parts or
improper service.
6. Do not use any electrical device or any sharp instrument in
defrosting your freezer.
7. DANGER – Risk of child entrapment. Before you throw away your
old refrigerator or freezer, take off the doors and leave the shelves in
place to that children may not easily climb inside.
8. After your freezer is in operation, do not touch the cold surfaces in
the freezer compartment, particularly when hands are damp or wet.
Skin may adhere to these extremely cold surfaces.
WARNING
When using electrical appliances, basic safety precautions
should be followed, including the following
DANGER - Immediate hazards
which WILL result in severe
personal injury or death
WARNING
WARNING - Hazards or unsafe
practices which COULD result in
severe personal injury or death
DANGER CAUTION
CAUTION - Hazards or unsafe
practices which COULD result in
minor personal injury
NOTE: If the freezer has been placed in a horizontal or tilted position
for any period of time, wait 24 hours before plugging the unit
in.
MEMO 15

Page 4 Page 5
SAFETY INFORMATION
9. Do not refreeze foods that have been thawed completely. The
United States Department of Agriculture in Home and Garden
Bulletin No. 69 reads: “…You may safely refreeze frozen foods that
have thawed if they still contain ice crystals or if they are still cold-
below 40˚F.
“…Thawed ground meats, poultry, or sh that have any off-odor or
off-color should not be refrozen and should not be eaten. Thawed
ice cream should be discarded. If the odor or color of any food is
poor or questionable, discard it. The food may be dangerous to eat
… Even partial thawing and re-freezing reduce the eating quality of
foods, particularly fruits, vegetables, and prepared foods. The eating
quality of red meats is affected less than that of many other foods.
Use refrozen foods as soon as possible, to save as much of its eating
quality as you can.”
10. This freezer should not be recessed or built-in in an enclosed
cabinet. It is designed for freestanding installation only.
11. Do not operate your freezer in the presence of explosive fumes.
Risk of child entrapment. Before you throw away your old, take off the
doors. Leave the shelves in place so that children may not easily climb
inside.
DANGER
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
SAFETY INFORMATION
GROUNDING INSTRUCTIONS
REFRIGERANT
ELECTRICAL REQUIREMENTS
GAS WARNINGS
POWER SUPPLY CORD
The electrical requirements are a 115 volt 60 Hz, AC only, 15 amp. It is recommended
that a separate circuit serving only the product be provided. The product is equipped
with a 3-wire cord having a 3-prong grounding plug. It must be plugged into a wall
receptacle that is properly installed and grounded.
This appliance must be grounded. In the event of an electrical short circuit,
grounding reduces risk of electric shock by providing an escape wire for the electric
current. The cord provided with this appliance is equipped with a grounding wire and
a grounding plug. The plug must be plugged into an outlet that is properly installed
and grounded.
Avoid the use of three prong adapters or cutting off the third grounding prong in
order to accommodate a two prong outlet. This is a dangerous practice since it
provides no effective grounding for the freezer and may result in shock hazard.
1. Avoid the use of an extension cord because of potential safety hazards under
certain conditions. Have a qualied electrician or serviceman to install an outlet
near the appliance.
2. If it is absolutely necessary to use longer cord sets or an extension cord, extreme
care must be exercised.
a) Use only a grounding type 3-wire extension cord that has a 3-blade grounding
plug and a 3-slot receptacle that will accept the plug on the appliance.
b) The marked electrical rating of the cord set or extension cord must equal to
or greater than the electrical rating of the appliance. The longer cord should
be arranged so that it will not drape over the counter top or table top where it
can be pulled on by children or tripped over unintentionally.
NOTE: Neither W Appliance nor the dealer can accept any liability for damage to the product or
personal injury resulting from failure to observe the electrical connection procedures.
Consult a qualied electrician or serviceman if:
1) The grounding instructions are not completely understood.
2) You are unsure that the appliance is properly grounded.
3) You have any questions about the grounding or electrical instructions.
WARNING
Improper use of the grounding plug can result in a risk
of electric shock.
• DANGER - Risk of re or explosion. Flammable refrigerant used. DO NOT use
mechanical devices to defrost freezer. DO NOT puncture refrigerant tubing.
• DANGER - Risk of re or explosion. Flammable refrigerant used. To be repaired
only by trained service personnel. DO NOT puncture refrigerant tubing.
• CAUTION - Risk of re or explosion. Flammable refrigerant used. Consult repair
manual/owner’s guide before attempting to service this product. All safety
precautions must be followed.
• CAUTION - Risk of re or explosion. Dispose of property in accordance with
federal or local regulations. Flammable refrigerant used.
• CAUTION - Risk of re or explosion due to puncture of refrigerant tubing; Follow
handling instructions carefully. Flammable refrigerant used.

Page 6 Page 7
SET UP & USE SET UP & USE
1. After cleaning your freezer thoroughly. Wipe the outside with a soft dry cloth, the
interior with a clean moist cloth.
2. Insert the power supply cord into the socket.
3. Turn the thermostat dial to an initial setting of “6” for 15-20 minutes.
NOTE: · As the door gets pressed in during shipping, the gasket may have to be reset. This is
done to prevent the cool refrigerated air from escaping. If there is a gap between the
door gasket and the cabinet, set the gasket by gently pulling it out of the seal gap.
STARTING YOUR NEW FREEZER
• Do not install your freezer in any location where heavy moisture is present or if
the location is not properly insulated. This freezer is not designed to operate in
temperature setting below 55° Fahrenheit.
• Location for the freezer should be on a hard surface and away from direct
sunlight and heat source, e.g., radiators, baseboard heaters, cooking appliances,
etc.
1. Remove the top hinge cover.
2. Loosen the top hinge screws using a
Phillips head screwdriver.
3. Adjust the door or put a spacer in
between and then tighten the screws.
PROTECTION FROM HEAT AND MOISTURE
DOOR ALIGNMENT Door Hinge Cap
INSTALLATION GUIDE
1. Unpack your freezer by removing all packaging materials like carton, base, foams,
adhesive tape, etc.
2. Remove all accessories, internal packaging material used to hold shelves, ice tray,
etc. in place.
3. Clean the remains of all adhesive tap used and remove all printed material
supplied.
4. Install the freezer in a convenient location away from extreme heat and cold.
Allow sufcient clearance between the freezer and side wall so the door(s) will
open without obstruction. Freezer is not designed for recessed installation.
5. The oor on which the freezer should be placed must be at, hard, solid, and
even. The freezer should not be placed on any soft material such as foam, plastic,
etc.
6. To level your freezer, use the two leveling legs located on the bottom front of
your freezer. Adjust by turning the legs counter clockwise to raise or clockwise to
lower your freezer. The door will close easier if the leveling legs are extended.
7. The following are recommended minimum clearances around the freezer for
proper air circulation:
Sides:
Top:
Back:
Proper air circulation will help your freezer work at maximum efciency.
NOTE: · The appliance must be correctly connected to the power supply.
It is important to keep the power cord away from the compressor at the
back of the freezer as during operation, the compressor can reach a high
temperature and could cause serious damage to the power cord.
WARNING
3/4”
2”
2”
(19mm)
(50mm)
(50mm)
PARTS & FEATURES
Temperature
Control (not shown)
Freezer
Door
Leveling Legs
Fixed Grid
Shelf
Care should be taken during the handling moving and use of the freezer
to avoid damaging the refrigerant tubing or increasing the risk of a leak
CAUTION

Page 8 Page 9
SET UP & USE
• Foods frozen in this compartment
must be consumed within 5 days
after storage. This compartment
is not cold enough for long term
storage.
• To release frozen ice cube tray from
the bottom of the compartment,
pour warm water around it. Boiling
water should not be used as it
can damaged the interior cabinet.
Metal objects, such as, screwdrivers
or sharp knives can damage and
puncture the cooling system tubing.
Do not wash the ice cube tray in a
dishwasher; only wash in lukewarm
water.
1. Carefully tilt the shelf up and slide
forward until the shelf has been
completely removed.
2. Slide the shelf back to replace.
FREEZER COMPARTMENT
FREEZER INTERIOR SHELF
OPERATION INSTRUCTIONS
NOTE: · If the freezer has been placed in a
horizontal or tilted position for any
period of time wait 24 hours before
plugging the unit in.
• The settings of the temperature
control are "OFF, 1, 2, 3, 4, 5, 6."
Adjust the temperature control
to the setting that best suits your
needs. The setting of "3" should be
appropriate for home or of ce use.
• Turning the temperature to “OFF”
position will shut off the cooling
cycle, but does not turn off the
electrical power to the unit.
NOTE: · Wait 3-5 minutes before restarting if
you unplug the freezer. The unit may
fail to operate properly if restarted
too quickly.
· If the ambient temperature is too
high, the freezer may not reach the
desired target temperature.
· Large amounts of foods will lower the
cooling ef ciency of the appliance.
· If you choose to change the
thermostat setting, adjust thermostat
control one increment at a time.
Allow several hours for temperature
to stabilize between adjustments.
TEMPERATURE CONTROL
SET UP & USE
Before reversing the door, ensure the
appliance is unplugged and empty.
Provide additional support for the doors
while hinges are being removed. Do not
depend on the door magnets to hold
the door in place. It is recommended
that two people perform this task. DO
NOT lay the appliance completely  at as
this may damage the coolant system.

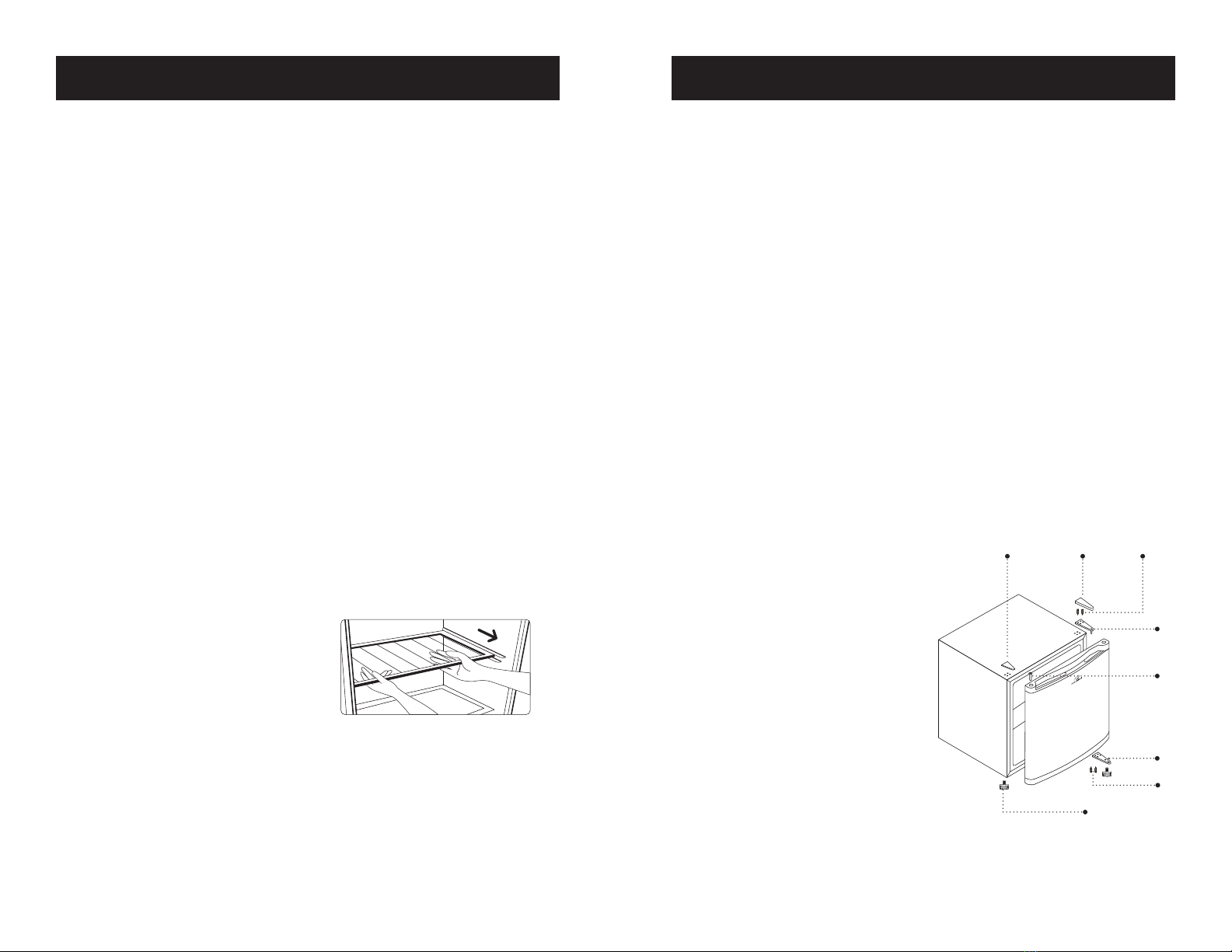

FREEZER DOOR REVERSAL
1. Remove any loose items from inside
the freezer (e.g. drip pan, ice tray,
etc.)
2. Using a  at head screwdriver
remove the top hinge cover (A).
3. Loosen and remove the two screws
(B) using a Phillips head screwdriver
while holding the upper hinge in
place.
4. Remove the upper hinge (C) and
carefully lift off the door. Place the
door safely to the side.
5. Using a  at head screwdriver
remove the screw hold plug (D)
from the opposite side and insert the
plug into the screw hole openings of
the just removed screws.
6. Carefully lay the freezer on its back
on a  at secure area.
7. Using a Phillips head screwdriver,
loosen and remove the two screws
(E) holding the bottom hinge (F) in
place. Place the hinge and screws to
the side momentarily.
8. Remove the screw-type leveling
leg (G) from the opposite side and
screw it into the exposed hole on
the side from which the bottom
hinge was removed.
9. Place the bottom hinge (F) on the
opposite side and insert and tighten
the two screws (E) securely.
10. Place the freezer in its upright
position. Remove the door plug (H)
on the top of the door and insert it
 rmly in the hole on the opposite
side. Align the hole in the door
bottom with the pin of the bottom
door hinge (F) and gently push
down until  rmly in place.
11. Holding the door in the open
position place the pin of the upper
door hinge (C) into the hole located
on the top of the door. Align the
screw holes of the upper hinge (C)
with the screw holes on the top
corner of the cabinet and insert and
tighten loosely the two screws (B).
12. Check that the door is aligned and
level and then securely tighten the
upper hinge screws.
13. Replace the upper hinge cover (A)
by gently snapping it into place
A B
C
H
E
F
D
G
