W Box Technologies WBXHDD28127P4W User manual

High-Resolution IR Camera
User Manual
If you have any questions, please
contact your ADI salesperson.
WBXHDD28127P4W(G)
WBXHDD287P4W(G)
WBXHDB28127P4W(G)
WBXHDB367P4W(G)
WBXHDD28121P4W(G)
WBXHDD281P4W(G)
WBXHDB28121P4W(G)
WBXHDB361P4W(G)

High-Resolution IR Camera
User Manual
Hardware Connection
Issue V1.0 (2018-03-20)
i
Precautions
Precautions
Fully understand this document before using this device, and strictly observe rules in
this document when using this device. If you install this device in public places,
provide the tip "You have entered the area of electronic surveillance" in an eye-
catching place. Failure to correctly use electrical products may cause fire and severe
injuries. To prevent accidents, carefully read the following context:
Symbols
This document may contain the following symbols whose meanings are described
accordingly.
Symbol
Description
It alerts you to fatal dangers which, if not avoided, may
cause deaths or severe injuries.
It alerts you to moderate dangers which, if not avoided,
may cause minor or moderate injuries.
It alerts you to risks. Neglect of these risks may cause
device damage, data loss, device performance
deterioration, or unpredictable results.
It provides a tip that may help you resolve problems or
save time.
It provides additional information.
To prevent electric shocks or other dangers, keep power plugs dry and clean.
Strictly observe installation requirements when installing the device. The
manufacturer shall not be held responsible for device damage caused by users' non-
conformance to these requirements.

Hardware Connection
High-Resolution IR Camera
User Manual
ii
Issue V1.0 (2018-03-20)
Strictly conform to local electrical safety standards and use power adapters that are
marked with the LPS standard when installing and using this device. Otherwise,
this device may be damaged.
Use accessories delivered with this device. The voltage must meet input voltage
requirements for this device.
If this device is installed in places with unsteady voltage, ground this device to
discharge high energy such as electrical surges in order to prevent the power supply
from burning out.
When this device is in use, ensure that no water or any liquid flows into the device.
If water or liquid unexpectedly flows into the device, immediately power off the
device and disconnect all cables (such as power cables and network cables) from
this device.
Do not focus strong light (such as lighted bulbs or sunlight) on this device.
Otherwise, the service life of the image sensor may be shortened.
If this device is installed in places where thunder and lightning frequently occur,
ground the device nearby to discharge high energy such as thunder strikes in order
to prevent device damage.
Avoid heavy loads, intensive shakes, and soaking to prevent damages during
transportation and storage. The warranty does not cover any device damage that is
caused during secondary packaging and transportation after the original packaging
is taken apart.
Protect this device from fall-down and intensive strikes, keep the device away from
magnetic field interference, and do not install the device in places with shaking
surfaces or under shocks.
Clean the device with a soft dry cloth. For stubborn dirt, dip the cloth into slight
neutral cleanser, gently wipe the dirt with the cloth, and then dry the device.
Do not jam the ventilation opening. Follow the installation instructions provided in
this document when installing the device.
Keep the device away from heat sources such as radiators, electric heaters, or other
heat equipment.
Keep the device away from moist, dusty, extremely hot or cold places, or places
with strong electric radiation.
If the device is installed outdoors, take insect- and moisture-proof measures to
avoid circuit board corrosion that can affect monitoring.
Remove the power plug if the device is idle for a long time.
Before unpacking, check whether the fragile sticker is damaged. If the fragile
sticker is damaged, contact customer services or sales personnel. The manufacturer
shall not be held responsible for any artificial damage of the fragile sticker.

High-Resolution IR Camera
User Manual
Hardware Connection
Issue V1.0 (2018-03-20)
iii
Special Announcement
All complete products sold by the manufacturer are delivered along with nameplates,
operation instructions, and accessories after strict inspection. The manufacturer shall
not be held responsible for counterfeit products.
This manual may contain misprints, technology information that is not accurate enough,
or product function and operation description that is slightly inconsistent with the
actual product. The manufacturer will update this manual according to product function
enhancement or changes and regularly update the software and hardware described in
this manual. Update information will be added to new versions of this manual without
prior notice.
This manual is only for reference and does not ensure that the information is totally
consistent with the actual product. For consistency, see the actual product.

Hardware Connection
High-Resolution IR Camera
User Manual
iv
Issue V1.0 (2018-03-20)
Contents
1 Hardware Connection ............................................................................................. 5
2 Eyeball Camera......................................................................................................... 6
2.1 Dimensions..................................................................................................................... 6
2.2 Device Installation.......................................................................................................... 7
3 Bullet camera .......................................................................................................... 10
3.1 Dimensions................................................................................................................... 10
3.2 Device Installation.........................................................................................................11
4 Technical Specifications....................................................................................... 14

High-Resolution IR Camera
User Manual
Hardware Connection
Issue V1.0 (2018-03-20)
5
1 Hardware Connection

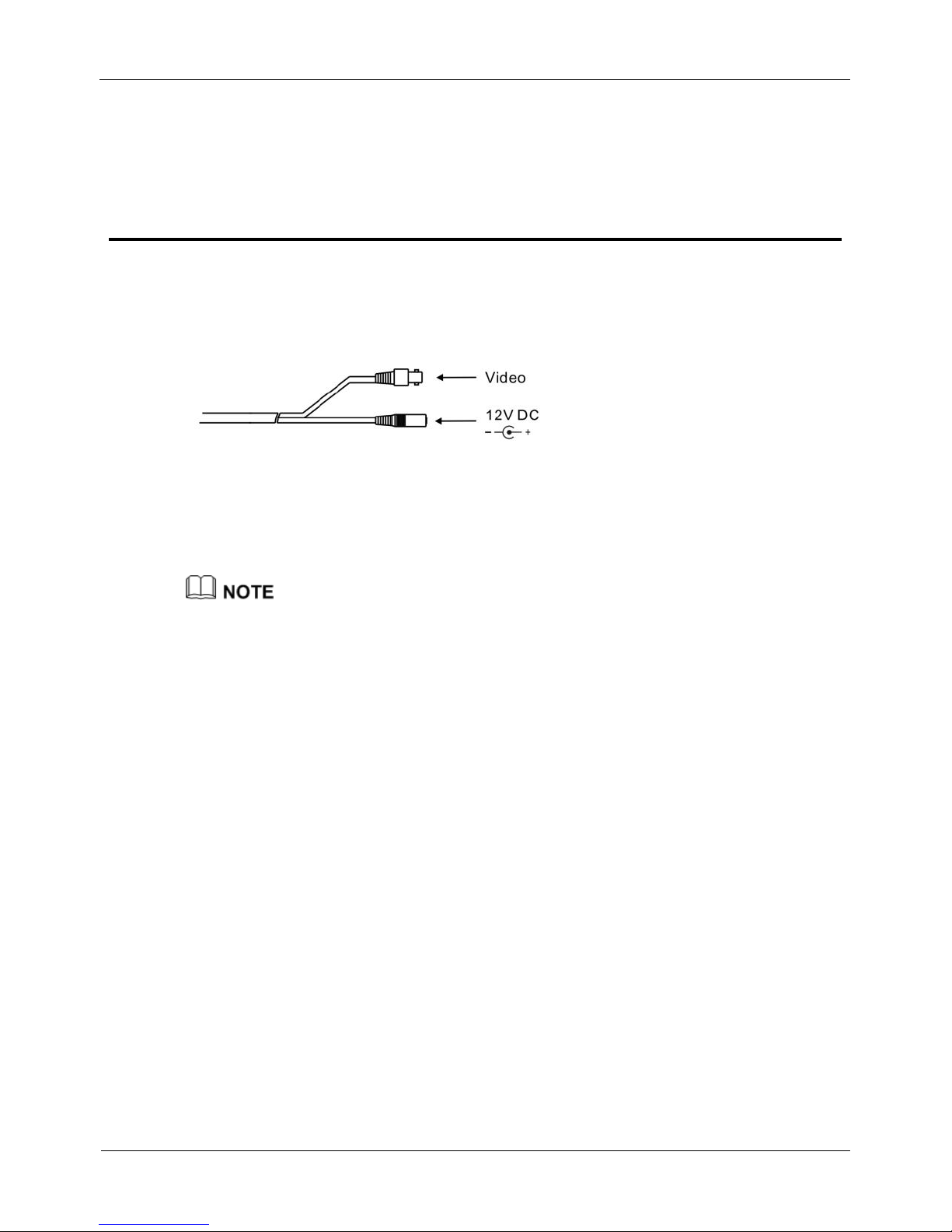

Figure 1-1 shows the power and video cables.
Figure 1-1 Power and video cables
Connect the BNC connector of the power or video cable to a video signal cable and
connect the other connector to a low-voltage power cable (12V DC). After installing
the camera, directly connect the video cable and power cable.
The BNC video output interface is used to emit composite video signals. Monitors with a
resolution of higher than 800 TVL are recommended.

Eyeball Camera
High-Resolution IR Camera
User Manual
6
Issue V1.0 (2018-03-20)
2 Eyeball Camera
2.1 Dimensions

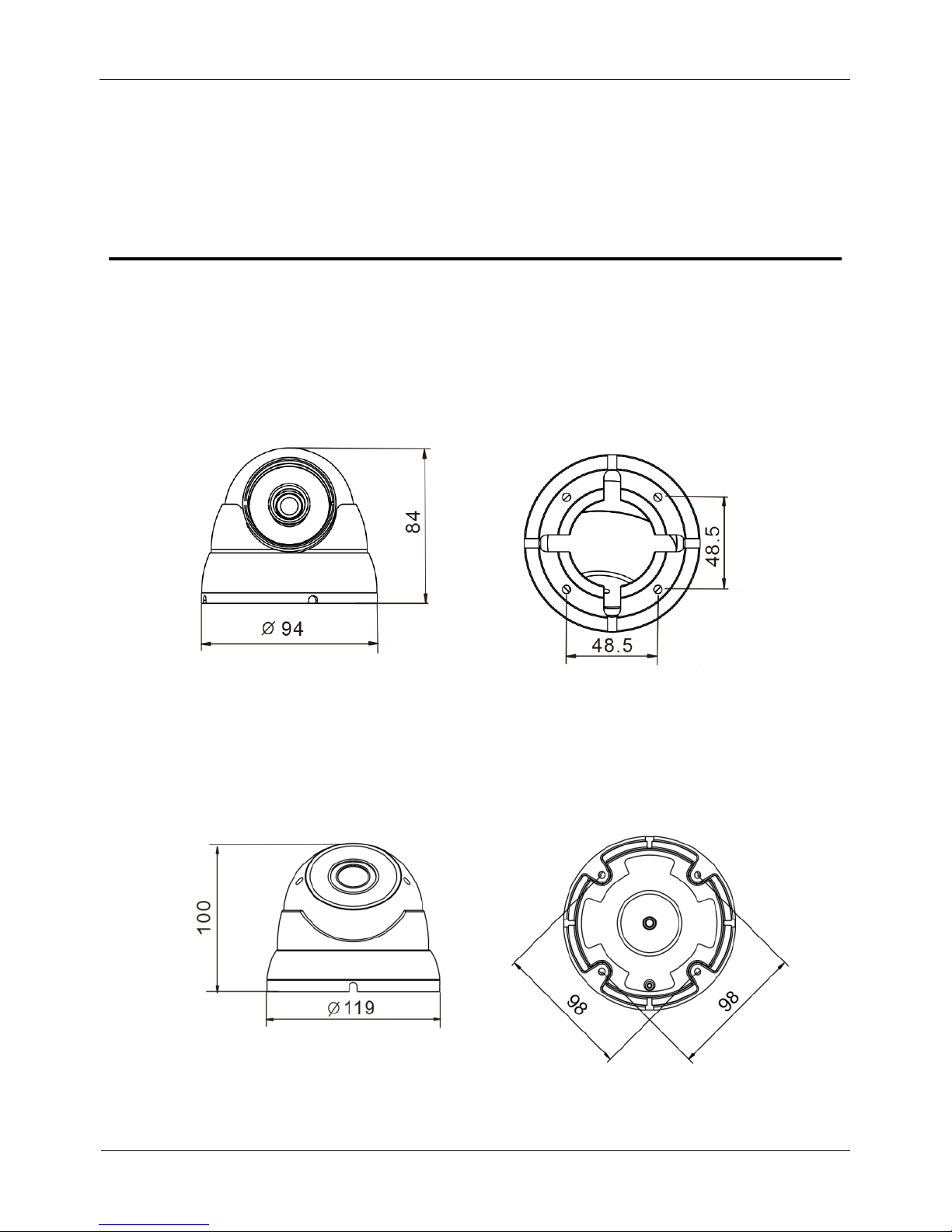

Figure 2-1 shows the camera dimensions of WBXHDD287P4W(G) and
WBXHDD281P4W(G).
Figure 2-1 Dimensions of WBXHDD287P4W(G) and WBXHDD281P4W(G) (unit: mm)
Figure 2-2 shows the camera dimensions of WBXHDD28121P4W(G) and
WBXHDD28127P4W(G).
Figure 2-2 Dimensions of WBXHDD28121P4W(G) and WBXHDD28127P4W(G) (unit:
mm)

High-Resolution IR Camera
User Manual
Eyeball Camera
Issue V1.0 (2018-03-20)
7
2.2 Device Installation
Step 1 Open a package, take out the camera, unscrew the camera compression ring, and
disassemble the camera, the camera components is shown in Figure 2-3.

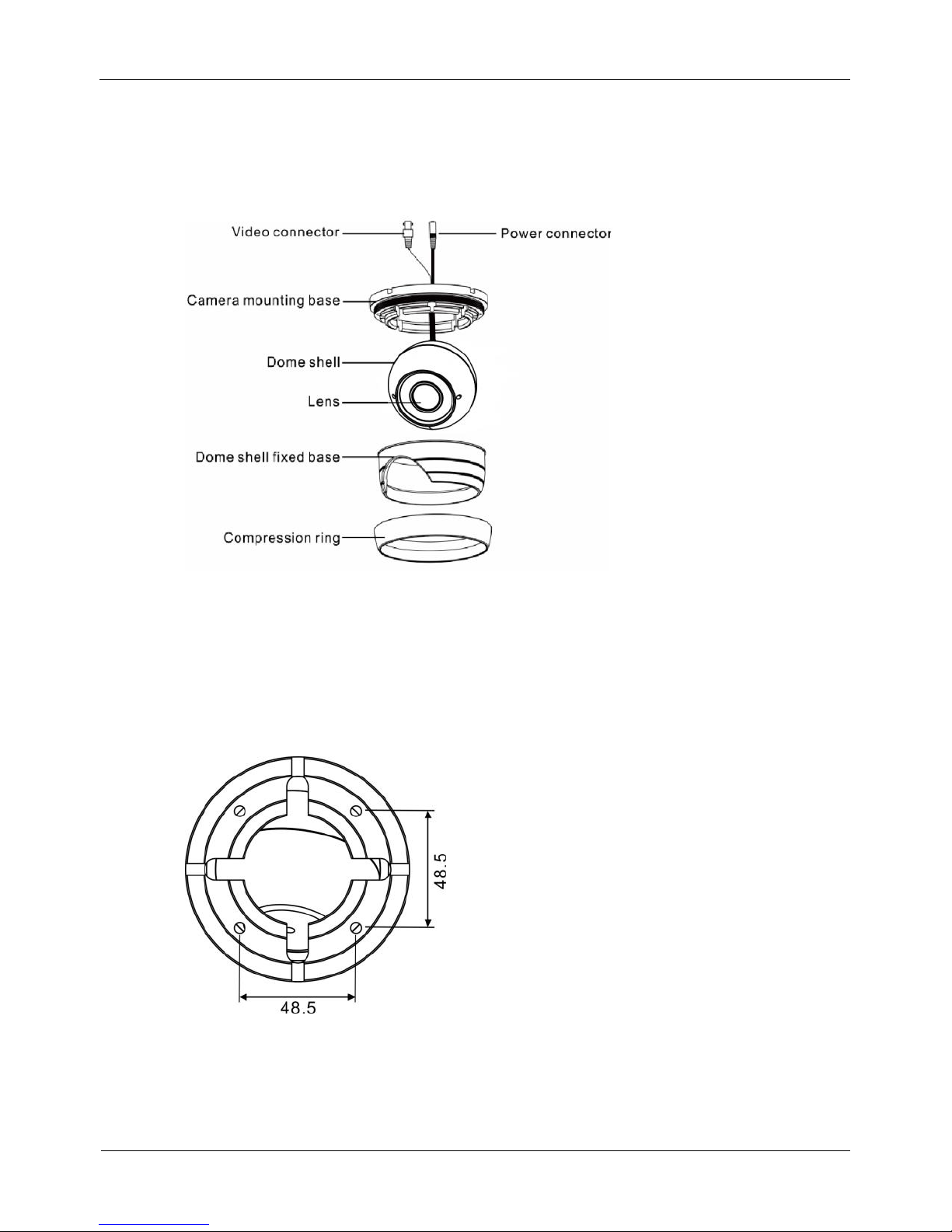

Figure 2-3 Camera components
Step 2 Use the base as drill template, drill holes on the ceiling or wall, and reserve the cable
entries of the video/power cables.
Figure 2-4 and Figure 2-5 shows the dimensions of the camera mounting base.
Figure 2-4 Dimensions of the WBXHDD287P4W(G) and WBXHDD281P4W(G)
mounting base

Eyeball Camera
High-Resolution IR Camera
User Manual
8
Issue V1.0 (2018-03-20)
Figure 2-5 Dimensions of the WBXHDD28121P4W(G) and WBXHDD28127P4W(G)
mounting base
Step 3 Nail swell plastic buttons in to drilled holes, and fix the camera mounting base to the
ceiling (or wall) by use of self-tapping screws.
Step 4 Install the compression ring, the dome shell, and the dome shell fixed base on the
camera mounting base.
Figure 2-6 shows camera installation.
Figure 2-6 Camera installation
Step 5 Turn the main body, adjust the lens direction, and note the position of the dome cover
window.

High-Resolution IR Camera
User Manual
Eyeball Camera
Issue V1.0 (2018-03-20)
9
Connect the BNC connector of the power or video cable to a video signal cable and
connect the other connector to a low-voltage power cable. After installing the camera,
directly connect the video cable and power cable.
Adjust the position of the camera by triaxial rotation: rotating horizontally, rotating up
and down, and performing lens axial rotation, and adjust the camera direction and lens
alignment target.
Figure 2-7 shows monitoring direction adjustment.

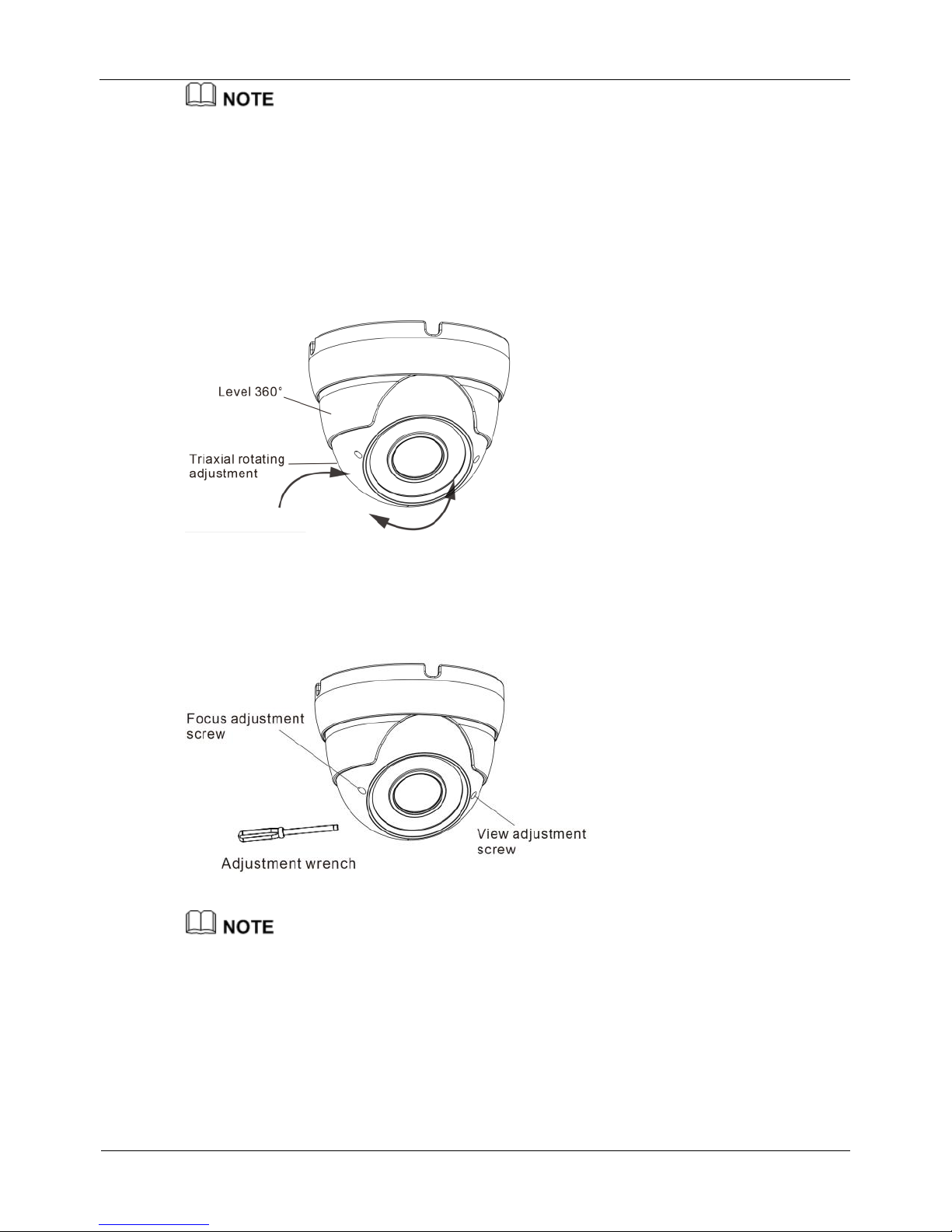

Figure 2-7 Monitoring direction adjustment
Step 6 Adjust view angle and focal length by using an adjusting tool, as shown in Figure 2-8.
( This step is only for WBXHDD28127P4W and WBXHDD28127P4G)
Figure 2-8 View angle and focal length adjustment
Set the zoom and focus value in UTC page of PTZ function of DVR user interface to adjust
the view angle and focal length when a Motorized lens camera is connected to the DVR
(Only for WBXHDD28121P4W and WBXHDD28121P4G).
Step 7 Use soft cloth to wipe the lens front glass which is likely to be soiled due to installation
for cleaning the camera, and complete product installation and debugging.
----End

Bullet camera
High-Resolution IR Camera
User Manual
10
Issue V1.0 (2018-03-20)
3 Bullet camera
3.1 Dimensions

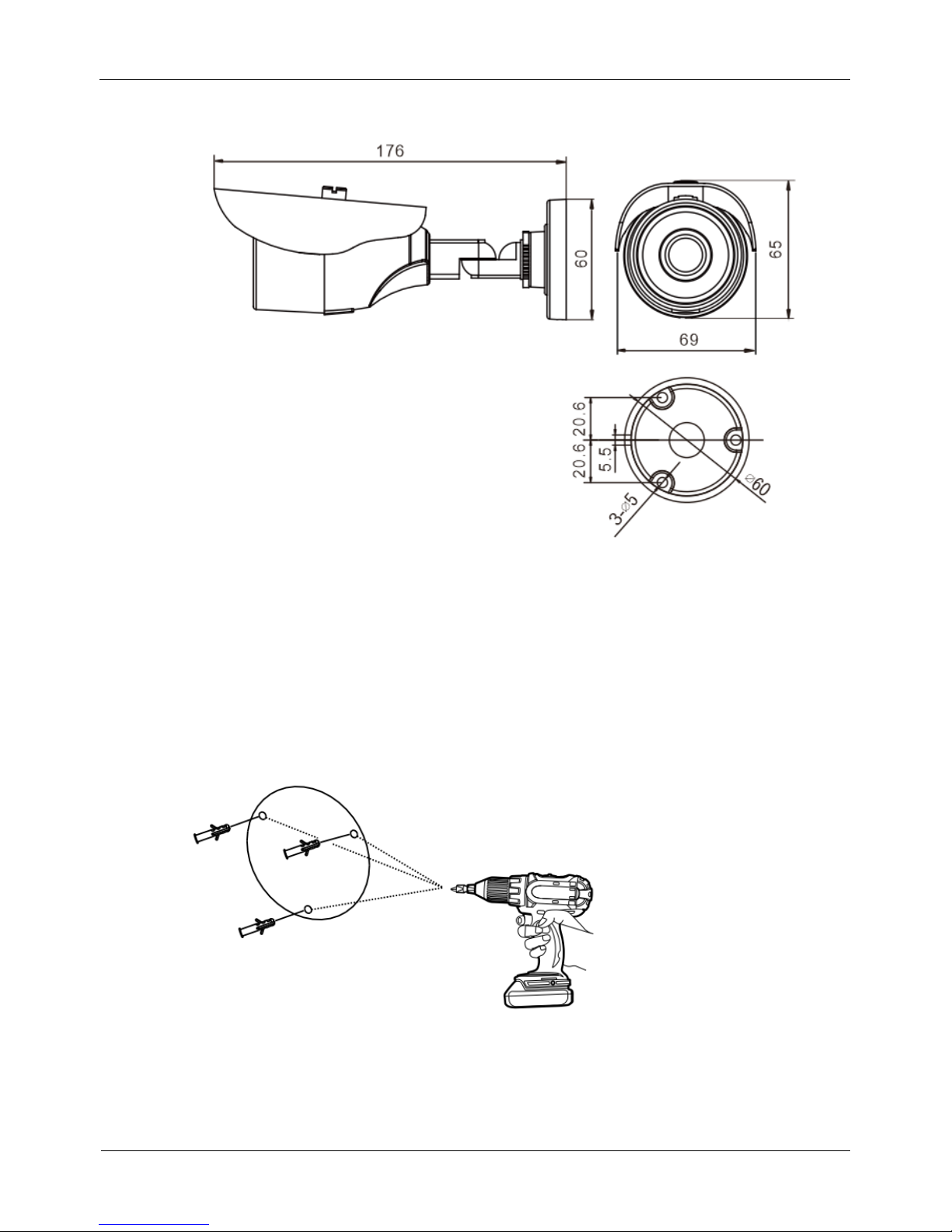

Figure 3-1 shows the dimensions of WBXHDB28121P4W(G) and
WBXHDB28127P4W(G).

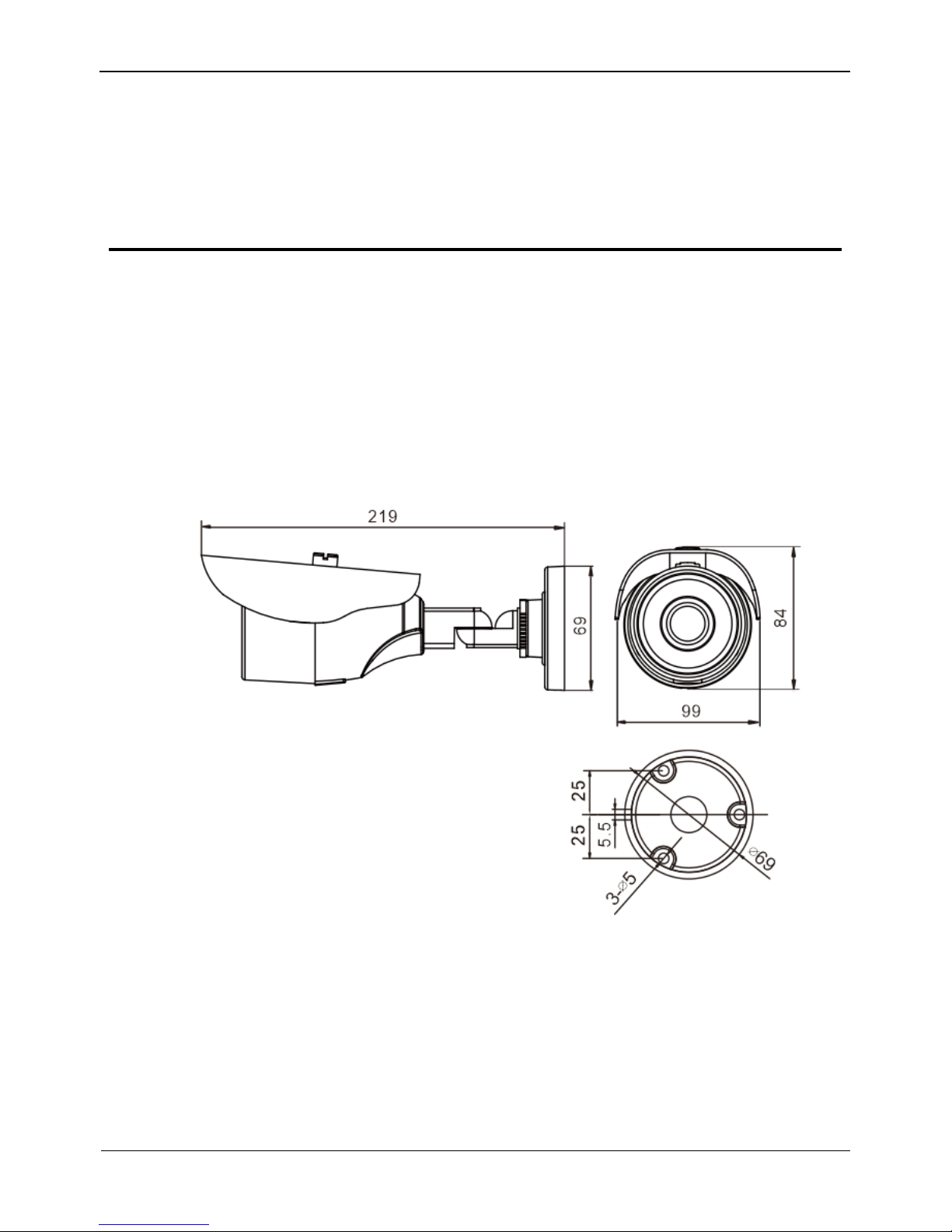

Figure 3-1 dimensions of WBXHDB28121P4W(G) and WBXHDB28127P4W(G) (unit:
mm)
Figure 3-2
Figure 3-3 shows the dimensions of WBXHDB367P4W(G) and WBXHDB361P4W
(G).

High-Resolution IR Camera
User Manual
Bullet camera
Issue V1.0 (2018-03-20)
11
Figure 3-3 dimensions of WBXHDB367P4W(G) and WBXHDB361P4W (G) (unit: mm)
3.2 Device Installation
Step 1 Stick the Installation location sticker on the ceiling or wall, Drill three holes based on
the marks on the sticker. Drive the swell plastic buttons into the holes, as shown in
Figure 3-4.
Figure 3-4 Drilling holes
Step 2 Loosen the locking screw with L-Hex Wrench and rotate the camera, then attach the
camera to the surface, as shown in Figure 3-5.

Bullet camera
High-Resolution IR Camera
User Manual
12
Issue V1.0 (2018-03-20)

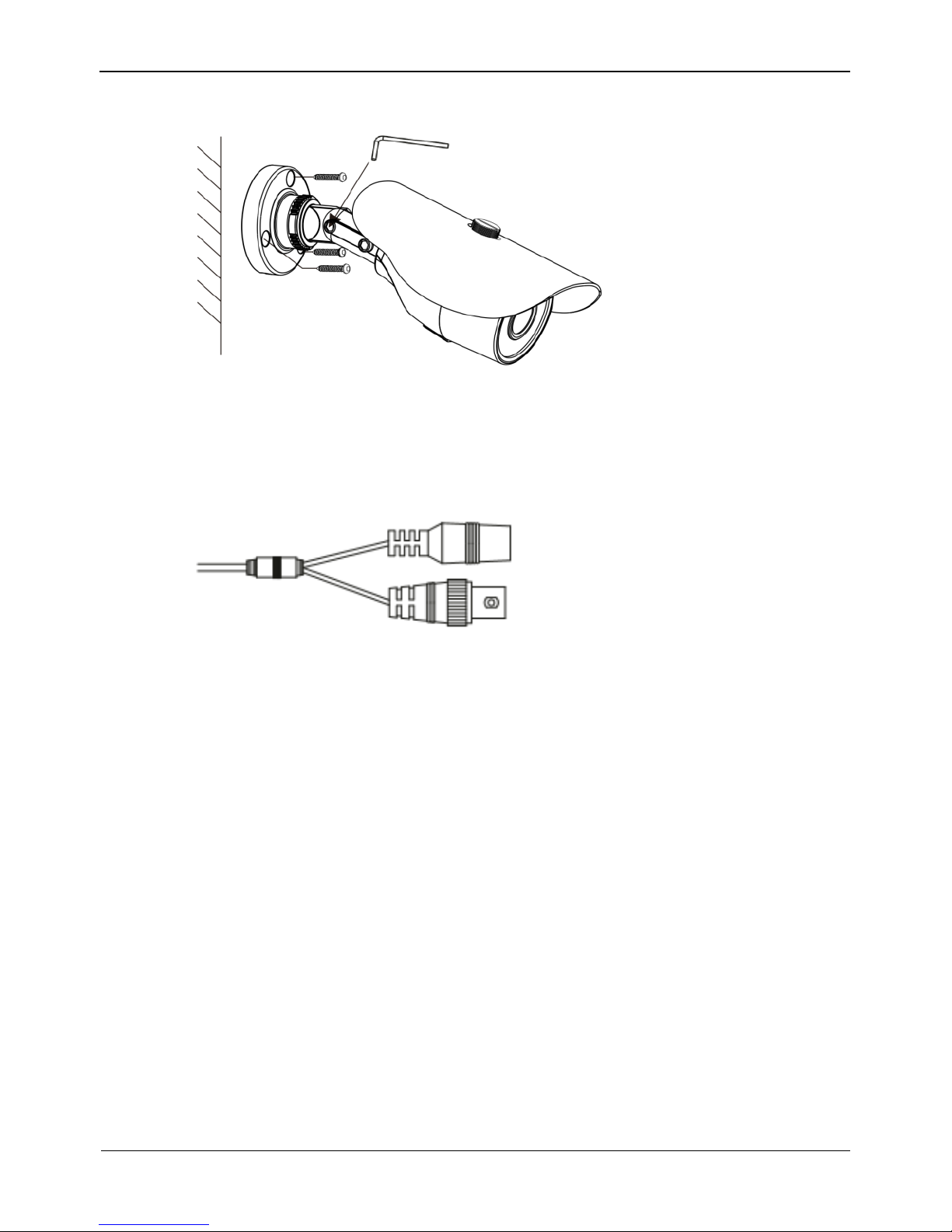

Figure 3-5 Installing camera
Step 3 Connect the Power and video cable, as shown in Figure 3-6.
Figure 3-6 Connecting cable
Step 4 Loosen the locking screw with L-Hex Wrench, rotate the camera to adjust the position
and image so that the camera faces the monitored area, then tighten the locking screw,
as shown in Figure 3-7.
To rotate the part 1 of the camera for 360°, loosen rotation lock.
To rotate the part 2 of the camera for180°, loosen screw 1.
To rotate the part 3 of the camera for 360°, loosen screw 2.

High-Resolution IR Camera
User Manual
Bullet camera
Issue V1.0 (2018-03-20)
13
Figure 3-7 Adjusting monitored area
Step 5 Adjust zoom & focus using an focusing tool, as shown in Figure 3-8. ( This step is only
for WBXHDB28127P4W and WBXHDB28127P4G)
Figure 3-8 Adjusting zoom & focus
Set the zoom and focus value in UTC page of PTZ function of DVR user interface to adjust
the view angle and focal length when a Motorized lens camera is connected to the DVR
(Only for WBXHDD28121P4W and WBXHDD28121P4G).
----End

Technical Specifications
High-Resolution IR Camera
User Manual
14
Issue V1.0 (2018-03-20)
4 Technical Specifications
Table 4-1 lists the technical specifications of the camera.
Table 4-1 Technical specifications
Specifications
WBXHDD287P4W
WBXHDD287P4G
WBXHDB367P4W
WBXHDB367P4G
CAMERA
Image Sensor
1/4”CMOS
Signal System
PAL/NTSC
Min. illumination
0.05Lux@(F1.2,AGC ON) ; ON); 0Lux@(IR LED ON)
S/N Ratio
≥50dB
Day & Night
ICR
Shutter Speed
PAL:1/50-1/50000, NTSC:1/60-1/60000
Wide Dynamic Range
dWDR
Digital Noise Reduction
2D
Lens
2.8mm
3.6mm
FOV
90°
85°
IR LED
18pcs
IR Wavelength
850nm
IR Range
20m
OSD Joystick
Support
Up the Coax
Support
Effective Resolution
1280x720
Frame
PAL:25fps ,NTSC:30fps
VIDEO OUTPUT
Max Distance
75-5 300m
Video Output
AHD/TVI/CVI/CVBS
GENERAL

High-Resolution IR Camera
User Manual
Technical Specifications
Issue V1.0 (2018-03-20)
15
Specifications
WBXHDD287P4W
WBXHDD287P4G
WBXHDB367P4W
WBXHDB367P4G
Power Supply
DC12V±10%
Power Consumption
3.5W(Max)
Operating Temperature
-25°C ~ 55°C (-13°F ~ 131°F )
Operating Humidity
0% - 85% RH
Ingress Protection
IP66
Material
Aluminium Alloy
Product Dimensions
Φ94×84mm
Φ176×60mm
Product Weight
360g
300g

Technical Specifications
High-Resolution IR Camera
User Manual
16
Issue V1.0 (2018-03-20)
Specifications
WBXHDD281P4W
WBXHDD281P4G
WBXHDD28121P4W
WBXHDD28121P4G
CAMERA
Image Sensor
1/2.9”Sony CMOS
Signal System
PAL/NTSC
Min. illumination
0.01Lux@(F1.2,AGC ON) ; 0Lux@(IR LED ON)
S/N Ratio
≥50dB
Day & Night
ICR
Shutter Speed
PAL:1/50-1/50000, NTSC:1/60-1/60000
Wide Dynamic Range
dWDR
Digital Noise Reduction
2D
Lens
2.8mm
Motorized 2.8-12mm
FOV
90°
90°-35°
IR LED
18pcs
24pcs
IR Wavelength
850nm
IR Range
20m
40m
OSD Joystick
Support
Up the Coax
Support
Effective Resolution
1920x1080
Frame
PAL:25fps ,NTSC:30fps
VIDEO OUTPUT
Max Distance
75-5 300m
Video Output
AHD/TVI/CVI/CVBS
GENERAL
Power Supply
DC12V±10%
Power Consumption
3.5W(Max)
4W(Max)
Operating Temperature
-25°C ~ 55°C (-13°F ~ 131°F )
Operating Humidity
0% - 85% RH
Ingress Protection
IP66
Material
Aluminium Alloy
Product Dimensions
Φ94×84mm
Φ119×100mm
Product Weight
360g
650g

High-Resolution IR Camera
User Manual
Technical Specifications
Issue V1.0 (2018-03-20)
17
Specifications
WBXHDB361P4W
WBXHDB361P4G
WBXHDB28121P4W
WBXHDB28121P4G
CAMERA
Image Sensor
1/2.9”Sony CMOS
Signal System
PAL/NTSC
Min. illumination
0.01Lux@(F1.2,AGC ON) ; 0Lux@(IR LED ON)
S/N Ratio
≥50dB
Day & Night
ICR
Shutter Speed
PAL:1/50-1/50000, NTSC:1/60-1/60000
Wide Dynamic Range
dWDR
Digital Noise Reduction
2D
Lens
3.6mm
Motorized 2.8-12mm
FOV
85°
90°-35°
IR LED
18pcs
24pcs
IR Wavelength
850nm
IR Range
20m
40m
OSD Joystick
Support
Up the Coax
Support
Effective Resolution
1920x1080
Frame
PAL:25fps ,NTSC:30fps
VIDEO OUTPUT
Max Distance
75-5 300m
Video Output
AHD/TVI/CVI/CVBS
GENERAL
Power Supply
DC12V±10%
Power Consumption
3.5W(Max)
4W(Max)
Operating Temperature
-25°C ~ 55°C (-13°F ~ 131°F )
Operating Humidity
0% - 85% RH
Ingress Protection
IP66
Material
Aluminium Alloy
Product Dimensions
Φ176×60mm
Φ220×69mm
Product Weight
300g
520g

Technical Specifications
High-Resolution IR Camera
User Manual
18
Issue V1.0 (2018-03-20)
Specifications
WBXHDD28127P4W
WBXHDD28127P4G
WBXHDB28127P4W
WBXHDB28127P4G
CAMERA
Image Sensor
1/4”CMOS
Signal System
PAL/NTSC
Min. illumination
Color:0.05Lux@(AGC ON) ;
B/W:0Lux@(IR LED ON)
Color:0.01Lux@(F1.2,AGC
ON) ; B/W:0Lux@(IR LED ON)
S/N Ratio
≥50dB
Day & Night
ICR
Shutter Speed
PAL:1/50-1/50000, NTSC:1/60-1/60000
Wide Dynamic Range
dWDR
Digital Noise Reduction
2D
Lens
2.8mm-12mm
FOV
90°~35°
IR LED
24pcs
IR Wavelength
850nm
IR Range
25m~35m
40m
OSD Joystick
Support
Up the Coax
Support
Effective Resolution
1280*720
1920*1080
Frame
PAL:25fps, NTSC:30fps
VIDEO OUTPUT
Max Distance
75-5 300m
Video Output
AHD/ TVI/CVI
GENERAL
Power Supply
DC12V±10%
Power Consumption
4W(Max)
4W(Max)
Operating Temperature
-25°C ~ 55°C (-13°F ~ 131°F )
Operating Humidity
0% - 85% RH
0% - 85% RH
Ingress Protection
IP66
Material
Aluminium Alloy
Product Dimensions
Φ119×100mm
Φ228×69mm
Product Weight
650g
520g
