Waitrack GPS Vehicle tracker User manual

GPS Vehicle tracker
(GPS+GSM+SMS/GPRS)
User Manual
(Version 2.6T)
www.waitrack.co.za

1. Accessories:
Please check the accessories before using. Pictures are for indication and
illustration purposes only.
2. Features:
●GSM 850/900/1800/1900 Quad band
●Wide for voltage input range: 9-36vDC
●GPS continuous positioning, GPRS timing interval
●Check location via SMS
●Built-in vibration sensor, theftproof
●ACC ignition detection
●Tele-cutoff (petrol/ electricity) function
●Three SOS numbers in maximum
●SOS alarm and burglar alarm
●Voice monitor function
●Alarm when the power supply is disconnected intentionally (with backup

battery)
●Compatible with external connection through (serial port)
●Geo-fence via sms command
2.1 Red LED (power/working status)
LED Status
Flashing (interval 0.1s)
Continuously in bright state
Slow flashing(interval 0.2s)
Continuously in dark state
Slow flashing(flash 0.1s after every 2s)
Meaning
Low battery indication
Charging
Full charge
Low battery / power off
Working normally
2.2 Green LED(GSM status indicator)
LED Status
Meaning
GSM initialization
Receive GSM signal normally
GSM conversation/Start GPRS
No GSM signal
Quick flashing (interval 0.1s)
Slow flashing(flash 0.1s after every 2s)
Continuously in bright state
Continuously in dark state
2.3 Blue LED GPS status indicatorLED（
GPSindicator）
LED Status
Flashing (interval 0.1s)
Continuously in bright state
Continuously in dark state
Meaning
Searching GPS signal
GPS located
GPS not located
2.4 Ignition detection indication
Three (blue/red/green) LEDs are in cycling flashing

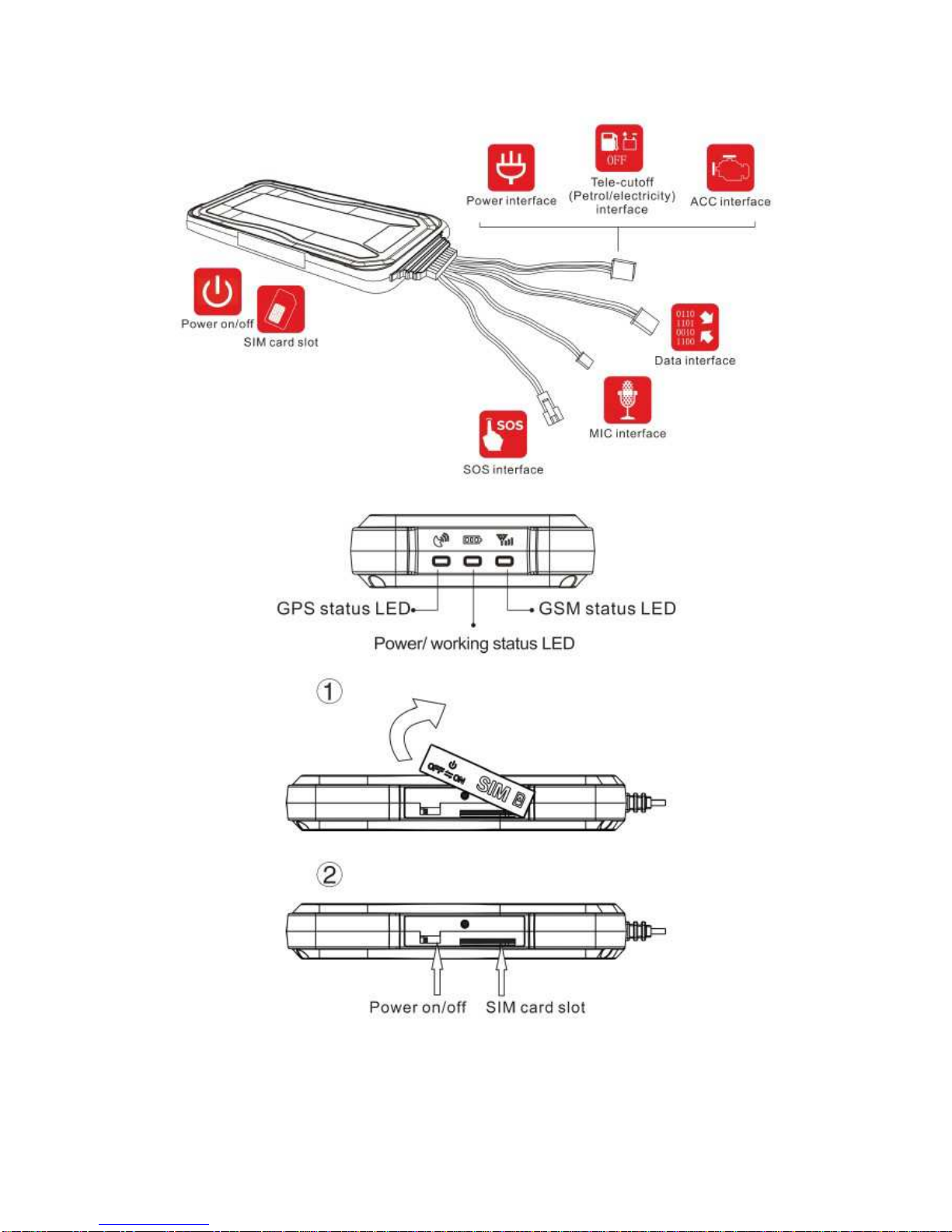

3. Interface introduction

4. Method of installation
4.1. Preparation before installation
4.1.1 Open the packing box to check whether the type of device is correct and
whether the accessories are included, or else please contact your
distributor.
4.1.2 Choose SIM card: each device needs to insert a GSM SIM card.
Please refer to the distributor’s suggestions to choose the SIM card.
4.1.3
Installing SIM card: The SIM card slot is on the right side of device.
Open the SIM card silicon seal, then insert the SIM card to the slot (do
not insert the SIM card backwards). When the SIM card is ready you will
hear a click. Or else please insert again and then replace the silicon
seal.
Note:
Please use GSM network SIM card,
Power off before installing or removing the SIM card.
The SIM card used should be enabled for GPRS.
The SIM card used should be enabled for called ID.
If there is a power on password, or pin, please cancel it;
Ensure the SIM card can send and receive SMS.
4.2 Installation
The device installation is covert. Please refer installation to an auto electrical
contractor.

NOTE:
4.2.1 To prevent theft of the device, it should be installed as covertly as
possible. Covertly installation is suggested.
4.2.2 Avoid placing the device close to higher power electrical devices, such
as reversing radar, anti-theft device or other vehicle communication
equipment;
4.2.3 The device should be fixed into position with cable ties or wide
double-side tape.
4.2.4 The device has built-in GSM antenna and GPS antenna. During
installation, please make sure the receiving side face is up, with no
metal object above the device to interfere with GPS reception. The
following places are suggested for installation:
-shelter in the decorated board below the front windshield;
-shelter around the front instrument panel (non-metallic material face);
-in the decorated board below back windshield;
Notice: if the windshield is pasted with metal thermal-protective coating or
heating coating, It may affect the receiving signal. In this case, please change
the installation place.
4.3 Device outlet specification

Line No.
1. 2
3. 4
5
6
7
8
9
10
11
Specification
Keypod
MIC-,MIC+
TX
RX
GND
MOTOR
ACC
V-
V+
Color
Orange/ orange
Grey/Brown
Green
Blue
Purple
Yellow
Orange
Black
Red
Instruction
Connect to SOS button
Connect to Microphone
Sending data (TX)/backup
Receiving data (RX)/backup
Ground wire
Connect to relay control line
Connect to ACC ignition
Vehicle 12V/24V negative storage battery
Vehicle 12V/24V positive storage battery
Notes of the relay wiring
The relay wiring of pump: oil connectors of both ends are a fine white line (85)
and a fine yellow line (86). The fine white line (85) is connected to vehicle
positive power (+12V). The fine yellow line is connected to the device relay
control line.
Cut off the positive connection line of the pump; then connect in series to the
relay N.C. contact (thick green line 87a) and the other end to relay COM
contact (thick green line 30).
Note: The standard relay is 12V and only suits the 12V car battery. Please
choose 24V relay if it is 24V car battery.

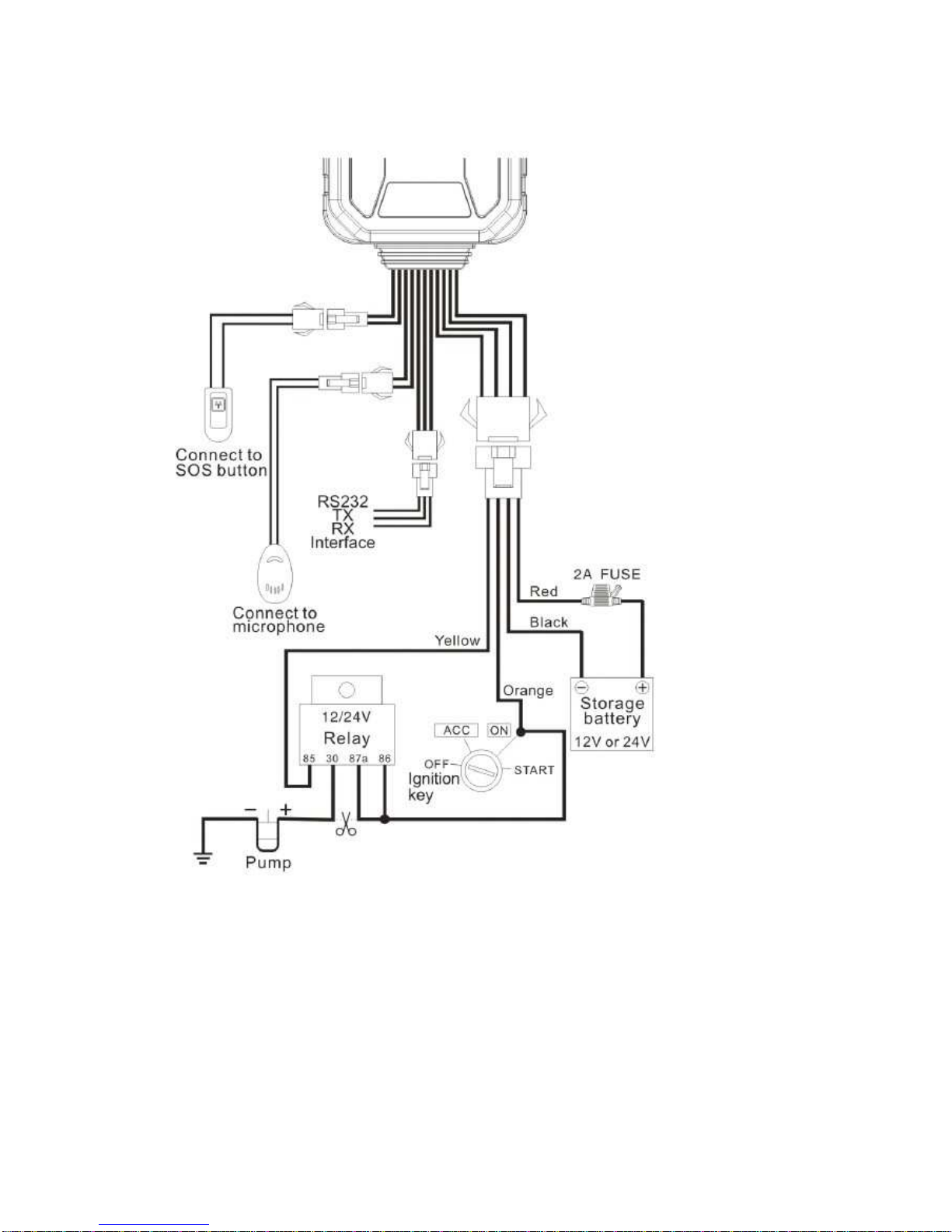

4.4 Device wiring diagram
5. Cautions of device wiring
5.1 Power/ACC/Tele-cutoff (petrol/electricity) control line (4
pin)
5.1.1 The standard voltage is 9V-36VDC. Please use the power line which
provided by the manufacturer. The red line is the positive. The black line is the

negative. The negative should earth alone or link iron during installing. Do not
connect it to other ground wire.
5.1.2 ACC line (orange) is connected to the ACC switch of the vehicle. Please
make sure to connect the ACC line. The tracker will decide whether to enter
ignition detection according to ACC status. If do not connect to ACC line, the
device will enter ignition detection status. If the vehicle vibrates when moving,
it will activate the vibration alarm. If there is no need for the theftproof function,
connect the ACC line to the positive in parallel and keep high level.
5.1.3 Tele-cutoff (petrol/ electricity) control line (yellow) is connected to pin 86
of the Tele-cutoff (petrol/ electricity) relay (equal to the yellow line of the relay
socket).
5.2 USB cable (3 pin)
Firmware updating interface/expanded function to reserve space.
5.3 MIC line (2 pin)
Externally connect to microphone for voice monitor function
5.4 SOS line (2 pin)
Externally connect to SOS switch for SOS function.
6. Parameter setting
The SMS command format is no case sensitive and it is divided by comma.
There is a reply SMS after sending the command. If set successfully, there is a
“ok” reply SMS; or else please set again.
The device will reply the corresponding information after sending the SMS
command.
Any phone numbers can send SMS command to the device as default.
6.1 APN setting
To connect default platform www.gpsyeah.com, please send the SMS command
below:
APN command format: APN,APN's Name#
E.g: APN,internet# (“internet” is the APN of carrier)
The device will reply “OK” if setting successfully.
Note: The APN of some countries have user name and password, you may
need to send SMS command as following:
APN,APN name,user name,password#
E.g: APN,internet,CLIENTE,AMENA#

6.2 DNS setting
To connect other platform, please send the two SMS commands bleow:
Command format：
APN,APN's①APN,APN's Name#
SERVER,1,DNS,Port,0#②SERVER,1,DNS,Port,0#
E.g:
APN,internet#
SERVER,1,www.gpsluckly.com,88,0# (make sure you don’t type LUKY but LUCKLY)
It will reply “OK” after set successfully.
6.3 ON /OFF GPRS
When you want to disable GPRS, you can sms command to the sim card
number which used in the device.
Command format:
GPRS ON GPRSON,1#ON：GPRSON,1#
GPRS OFF GPRSON,0#OFF：GPRSON,0#
It will reply “OK” after set successfully.
6.4 Add specific number
SMS command to the device to set the SOS number.
SOS,A,No.1,No.2,No.3#
“A” means to add new numbers, for example:
SOS,A, 13510905991,13510905992,13510905993#
If there is only one SOS number, you can appoint a specific number as SOS
number. And the null means no adding.
For example:
SOS,A,13510905991# means to set the first number as SOS number
SOS,A,,13510905992# means to set the second number as SOS number
SOS,A,,,13510905993# means to set the third number as SOS number
If set successfully, there is a “success” reply SMS.
6.6 Delete specific number6.6
Before deleting specific number, please check its corresponding code. For the
PARAM#code, please SMS “PARAM# to the device.PARAM#”
SMS command to the device to delete the number.
