WAJADTUHA WAJ400 User manual

WAJ400 Ai DASHCAM
Quick Installation Guide
&
User Manual
https://wajadtuha.com

https://waj adtuha.com
1
T hank you for purchasing WAJADTUHA. This
manual shows how to operate the device
smoothly and correctly. Make sure to read this
manual carefully before using the product.

https://waj adtuha.com
2
Contents
1. Package contents
1.1 Hardware Package
1.2 Application Package
2. Pre-requirements
3. How to use WAJADTUHA
4. Application pages
5. Activating wi-fi hotspot
6. Faults & Solutions
7. Vehicle compatibility list

https://waj adtuha.com
3
1. . Package contents
1.1 Hardware Package
Wajadtuha Tracking
Device
Engine control
Relay
User Manual
1.2 Application Package
Free Wajadtuha Application
Download from: https://wajadtuha.com/scannow
or scan the QR code to download
Available on:

https://waj adtuha.com
4
2. . Pre-requirements
S
IM Card
>A sim card from your local operator with a minimum of
200MB internet data & SMS enabled is required if the
client want to use GPS tracking feature only.
>For live video streaming from the dash cam an extend
data package with adequate internet data(depends on
the usage) is requir ed.
Note:If PIN CODE for sim card is enabled please disable
it before inserting to the device

https://waj adtuha.com
5
Mobile Data Consumption details
Category
Camera
WAJ400P
Real time
Monitoring
Front Camera
75kb/s 640x360.MP4
Inward Camera
75kb/s 640x360.MP4
Remote
Front Camera
136kb 640x360 JPG
Inward Camera
136kb 640x360 JPG
Remote
Recording
Front Camera
75kb/s 640x360.MP4
Inward Camera
75kb/s 640x360.MP4
Wajadtuha Application
A smart phone with wajadtuha application installed.
(Using link/QR code in page 3)

https://waj adtuha.com
6
How to use WAJADTUHA
Summary
Step1: Download WAJADTUHA App
Step2: Create a WAJADTUHA account
Step3: Prepare the device and Add vehicle to th e
account created in mobile apps
Step4: Install the device on the Vehicle &
Activate the vehicle
Enjoy keeping an automated record of every
movement of your vehicle

https://waj adtuha.com
7

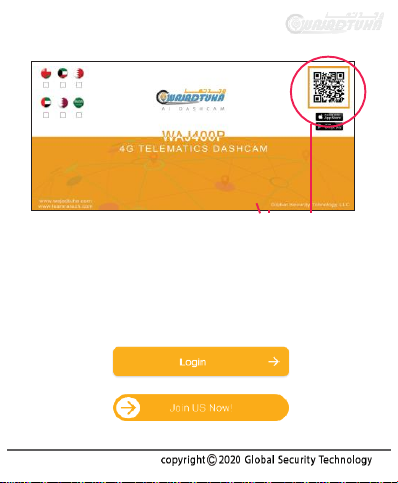

Step1: Download WAJADTUHA App
Scan the QR code on the WAJADTUHA device box to download
the app to the smart phone.
Step2: Create a WAJADTUHA account
Open WAJADTUHA application and click on “Join Us
Now!” to create your new account

https://waj adtuha.com
8
Register your account by filling out the details on
given fields on next page and click the button.

https://waj adtuha.com
9
button.
Create your login credential with a strong password
and click

https://waj adtuha.com
10

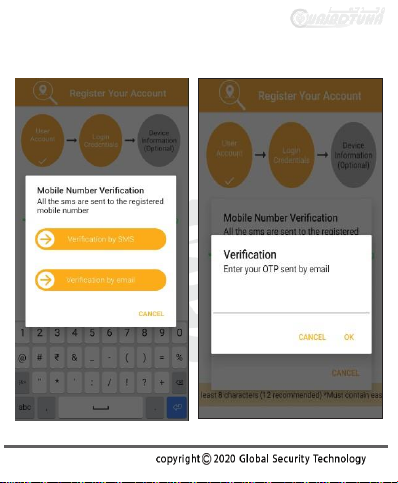

Verify your mobile number
Verification can be done either by SMS or by the OTP received
on your email. Choose the right method for you

https://waj adtuha.com
11
Step3: Prepare the device and Add vehicle to the account
created in mobile apps
>Install SIM card into the device
>Scan the QR code to add the vehicle.
Scan the QR code on top of the device using the
‘Add your car’ page in the WAJADTUHA applica- tion or
by entering the device serial numbermentioned on the
device for registering the vehicle to the WAJADTUHA
tracking server

https://waj adtuha.com
12
Go to Add vehicle page and click on button
Or you can enter the device serial number in the given filed below
the Scan Your Device button

https://waj adtuha.com
13

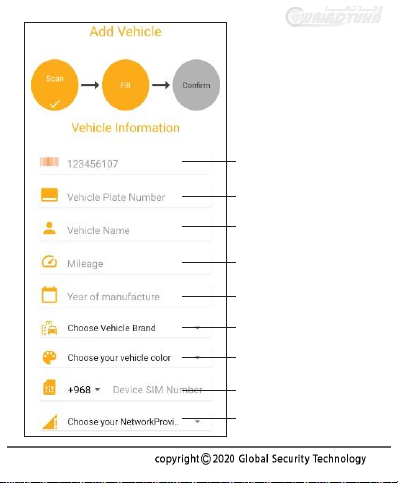

Device serial number
Vehicle registration number
A name chosen by user
Mileage at the time of installation
Vehicle’s year of manufacture
Choose from the drop down menu
Choose from the drop down menu
Must be the SIM card number
inserted to the device
SIM card provider

https://waj adtuha.com
14
Step4: Install the dashcam on the vehicle
>Locate the fuse box inside your car
Most of the car models have the
fuse box underneath or on the
side of dash board.
GND
ACC
>Identify the Battery+ and ACC fuse
Pull out the existing ones and
insert the corr esponding fuses
of the power bundle which
comes along with the dash cam
into place.
Battery+ Connect the GND connector on the
power bundle to any negative terminal
or to the body of the car.

https://waj adtuha.com
15

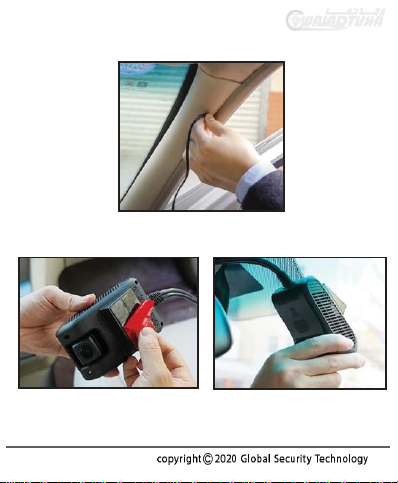

>Tuck the power bundle into trims
>Select a proper installation position on the windsheild
and wipe it clean.
>Peal off the protective film
of the 3M tape on the mount base
>Attach the device to the
front window.

https://waj adtuha.com
16
Switch on the car and ensure that the red, blue and green
indicators of the dashcam are solid on.
Congratulations!!
You have successfully installed the Dashcam and added
your vehicle to the application. Follow the same
sequence to add another vehicle as well. Multiple vehicle
management is possible from a single user account.
Once the vehicle is added and the device is showing
online on the app you will be able to do realtime tracking
and to collect multiple informations of your vehicle based
on the type of subscription.

https://waj adtuha.com
17
LED Indicator Status
Power Indicator-RED
GPS Indicator-GREEN
Solid green ACC ON & Positioning success
0.1s ON & 1s OFF Searching GPS signal
OFF ACC OFF
GSM Indicator-BLUE
Solid blue ACC ON & Connected with platform
0.1s ON & 1s OFF ACC ON & no network/SIM card
OFF ACC OFF
Solid red ACC ON & Power On
0.1s ON & 10s OFF ACC OFF
OFF Power not connected

https://waj adtuha.com
18
Wiring Diagram
External camera
(Optional)
Car extended peripheral
detection interface (Please
operate under the instruction
of a professional
OPTIONAL

https://waj adtuha.com
19

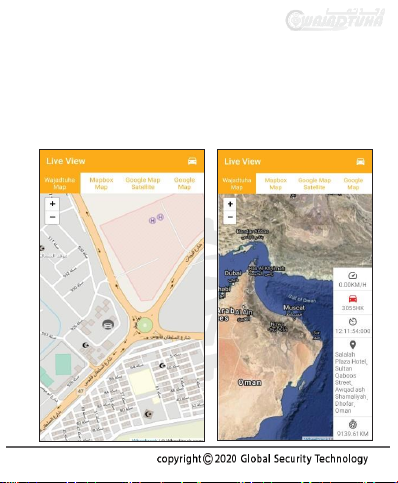

Application Pages
Live View Page
•Choose your map from the top menu
•Choose your vehicle from the car icon in the top
•Live location of the vehicle will be displayed on the
map
