Waltons 01GRA0301-V2 User manual

Contents
01GRA0301-V2
Please retain product label (Attached to your building) for reference with all future contact
Length - 580mm
Width - 991mm
Height - 2014mm
Before
commencing assembly
make sure you have a
suitable base ready to
erect your building
Fixing Kit
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand
(not supplied) including a Phillips screwdriver, Stanley knife, wood saw,
step ladder and drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather
conditions. For the duration of heavy or extended periods of rain, swelling of the
wood panels may occur. Warping of the wood may also occur during excessive
dry spells due to an interior moisture loss. Unfortunately, these processes cannot
be avoided but can be helped. It is suggested that the outdoor building is
sprayed with water during extended periods of warm sunshine and sheltered as
much as possible during rain or snow.
Our buildings are delivered pre-treated with a water based timber treatment
however this only helps to protect during transit of your garden item. To
validate your guarantee and for better protection against weathering it is
ESSENTIAL that you treat the garden building with a wood preserver within 3
months of assembly. This will need to be re-applied annually to ensure longevity
of your building. Care must be taken when constructing the garden building
that it is not touching the ground and is on a suitable base.
BUILDING A BASE
When thinking about where the building and base is going to be constructed: Ensure that there will be access to all sides for maintenance work and
annual treatment.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base dimensions, The base should be slightly
smaller than the external measurement of the building, i.e. the cladding should overlap the base, creating a run o for water. It is also recommended
that the oor be at least 25mm above the surrounding ground level to avoid ooding.
For Assistance Please
Contact Customer Care on
01636 880514
2mm Drill bit
x2
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
This building should be erected by
two people.
For ease of assembly, you must pilot
drill all screw holes and ensure all
screw heads are countersunk.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens products independently tested to EN71 level, we
cannot accept responsibility for your safety whilst erecting or using this product.
Retain Instructions for future reference 123
56
8
9

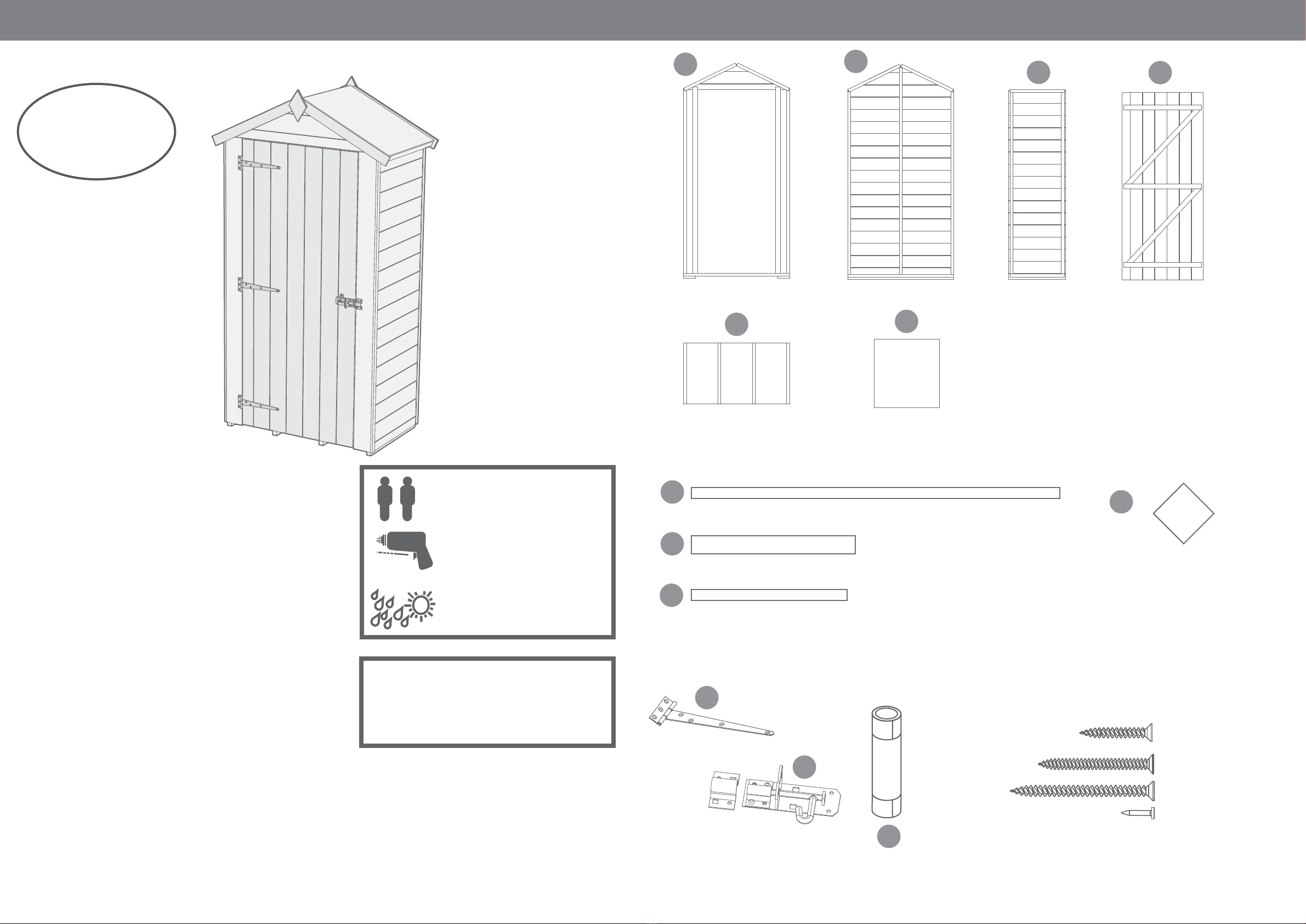

Door Gable
710
4
Plain Gable Plain Side x2 Door
Floor Roof - 610x580mm
x2
Cover Trim - 1727mm x4
Fascias - 610mm x4
Roof Eaves - 580mm x2
Diamond nial
x2
Nail Bag & Ironmongery
Felt
T-Hinge x3
Felt Tacks x30
30mm Screw x64
50mm Screw x24
40mm Screw x10
11
12
13
Pad Bolt

Assembly
Step 1
Remove transportation blocks
from the bottom of each panel
before beginning assembly. Each
Panel should have two blocks.
Step 2
Place oor on a rm and
level base, ensure base has
suitable drainage free from
areas where standing water
can collect. (see front page
on base requirements).
5
Fix the hinge to the door using 30mm
screws ensuring that the screws go
throught to the door framing.
The door can be hung on either the
left or right side.
Step 3 1
4
1mm
30mm
screw
31x30mm Screws
12
Fix Pad Bolt with 6x 30mm Black
Screws to horizontal brace to the
Door.
Then fix the pad bolt retainer to
the Door framing using 4x30mm
Screws
11
Step 4
Fix the corners with 50mm
screws as shown in diagram.
Do not secure the building to the
floor until the roof is fitted. Fix
the panels onto the floor using
50mm screws in alignment with
the floor joists
8 x 50mm screws
5
50mm
screw
23
Step 5
Fix door gable and Plain sides
using same method shown in
step 6.
Position the panels so there is
equal spacing between the oor
and cladding on all four sides.
14 x 50mm screws
3
1
50mm
screw

BUILDING A BASE
When thinking about where the building and base is going to be constructed: Ensure that there will be access to all sides for maintenance work and
annual treatment.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base dimensions, The base should be slightly
smaller than the external measurement of the building, i.e. the cladding should overlap the base, creating a run o for water. It is also recommended
that the oor be at least 25mm above the surrounding ground level to avoid ooding.
Step 6
Use 30mm screws to fix each
cover trim.
12 x 30mm screws
1
77
Step 7
20x 30mm Screws
Fix the roof panels on either side
as shown in diagram.
Fix panels into position using
30mm screws from the top of the
panel, straight into the framing.
Pre drill holes before hand.
Ensure the larger over hang on
both panels are facing each
other at the top point.
9
6
Fix the roof eaves to the roof panel
using 30mm screws. Make sure the
roof eave is ush with the edges.
Step 8
Lay the felt sheet over the roof in one
strip, making sure to leave an equal over
hang at the front and back. Leave a
50mm overhang at the sides.
Fix using felt tacks at 100mm intervals
30 x felt tacks
Felt
tacks
13
Step 9
Fix fascias and nials using
40mm screws. Pre drill holes to
avoid splitting. Ensure to trap
the felt between the fascia and
building.
8x 40mm screws
10
8
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
40mm
screw
