Osmo 1
Osmo
DEMINERALIZER
USER MANUAL
Dear Owner,
Thank you for purchasing our demineralizer Osmo.
The manufacturer is pleased to provide information concerning the use of this equipment herewith.
We remind you that in order to use the demineralizer correctly, it is necessary to read this manual carefully.
All our products comply with the current safety norms and do not involve any risk for the operator when
used according to the instructions provided.
Whilst wishing you every success in your work, please note that the reproduction of this manual is illegal
and that, due to continuous research and technological development, the equipment specifications could
change without prior notice.
W&H STERILIZATION S.r.l.

2 Osmo
TABLE OF CONTENTS
INTRODUCTION..............................................................................................................................................3
GENERAL WARNINGS................................................................................................................................3
RESIN–SECURITY PRECAUTIONS............................................................................................................4
ACTIVE CARBON FILTERS – SAFETY WARNINGS* ................................................................................4
INFORMATION ON THE WARRANTY.........................................................................................................5
PACKAGE CONTENTS...................................................................................................................................6
GENERAL NOTES ON DELIVERY..............................................................................................................6
PACKAGE SIZE AND WEIGHT....................................................................................................................6
DELIVERY CONTENT..................................................................................................................................7
INSTALLATION AND USE OF THE DEMINERALIZER.................................................................................8
SYMBOLS ON THE NAMEPLATE...............................................................................................................8
SYSTEM COMPONENTS ............................................................................................................................8
PRELIMINARY INSTALLATION INSTRUCTIONS.......................................................................................9
INSTALLATION...........................................................................................................................................10
PRIMING.....................................................................................................................................................12

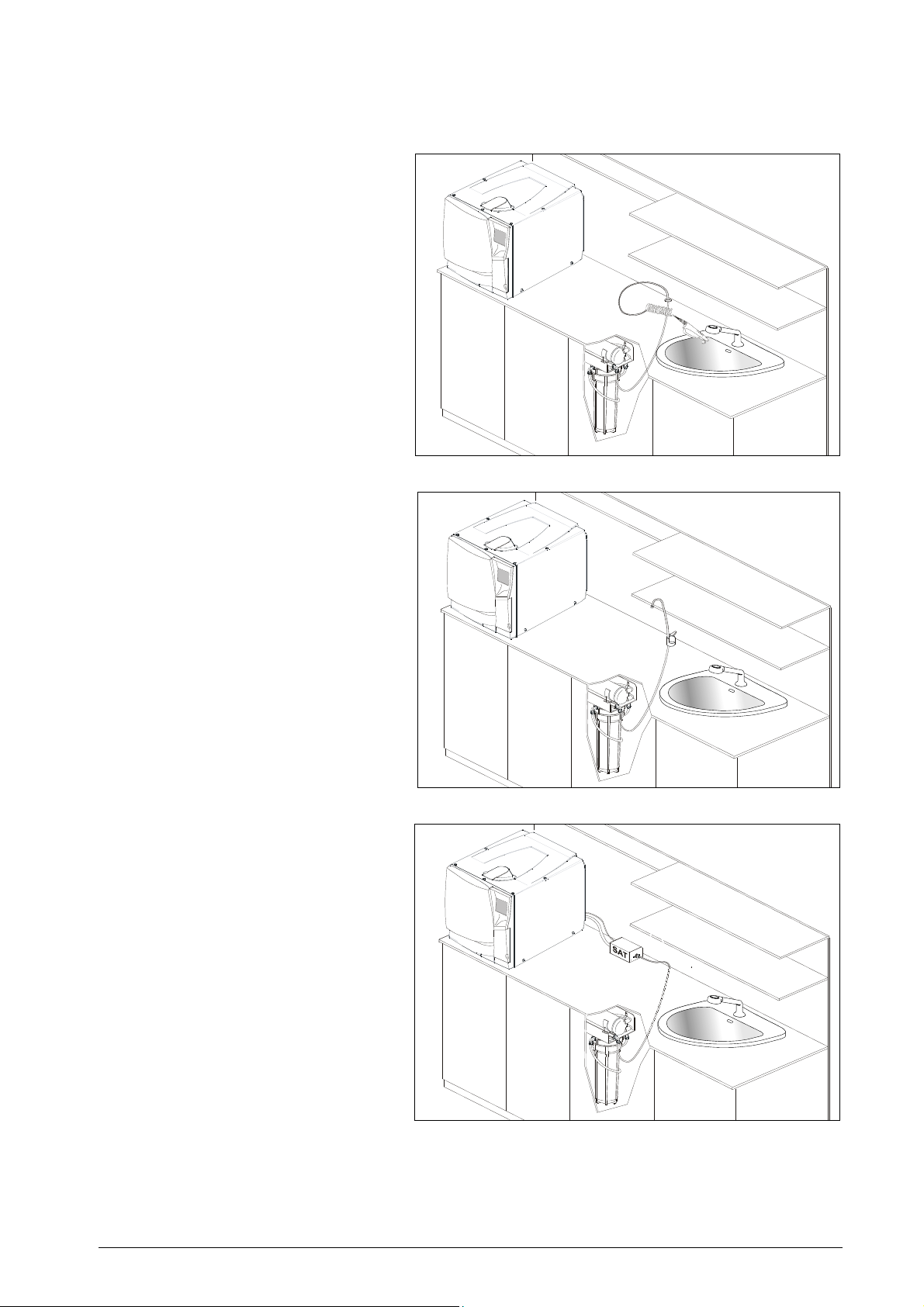

EXAMPLES OF USAGE.............................................................................................................................13
USE AND OPERATION OF THE DEMINERALIZER....................................................................................14
PRECAUTIONS TO AVOID WATER CONTAMINATION ..........................................................................14

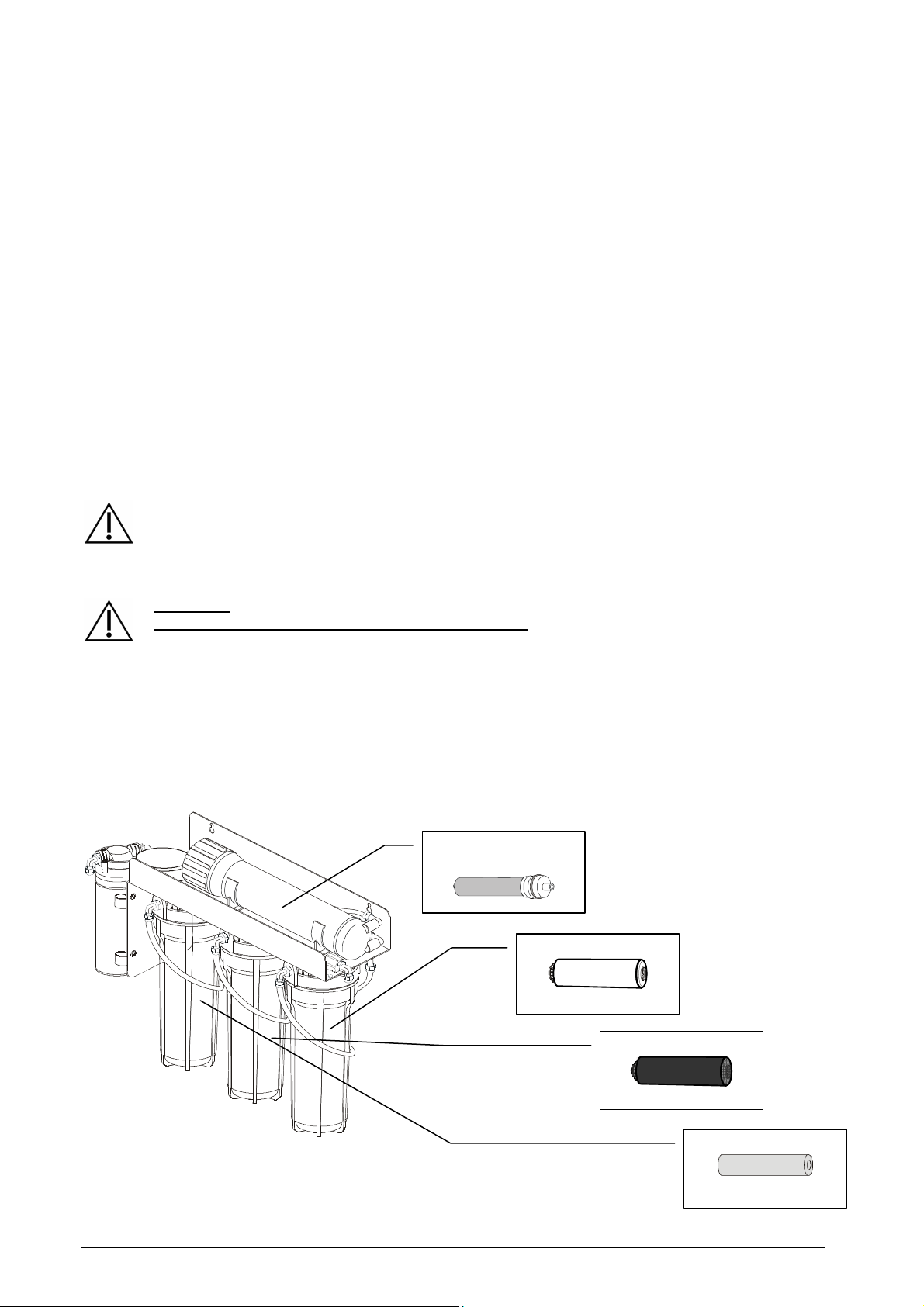

IDENTIFICATION OF THE CARTRIDGES.................................................................................................14
REPLACEMENT OF FILTER CARTRIDGES.............................................................................................15
REPLACEMENT OF THE OSMOTIC MEMBRANE...................................................................................16
MAINTENANCE.............................................................................................................................................17
EXTERNAL CLEANING..............................................................................................................................17
MAINTENANCE OF THE WATER BLOCK®AND ONE-WAY VALVE.......................................................17
SPARE PARTS...........................................................................................................................................18
TECHNICAL SPECIFICATIONS....................................................................................................................20
MAINTENANCE ISTRUCTIONS FOR THE SAFETY VALVE (WATER BLOCK®)......................................21

Osmo 3
INTRODUCTION
This manual provides instructions for:
- Safe and efficient operation of the equipment
- The correct installation
- Continuous and scheduled maintenance.
•The dimensions mentioned in this manual are subject to change without notice.
•Drawings and any other documents delivered with the equipment belong to the manufacturer, who
reserves all rights; they cannot be made available to third parties.
•The reproduction, either total or in part, of the texts and the illustrations in this manual is forbidden.
Note: If the Osmo demineralizer is used to supply sterilizers with demineralized water, it is imperative to
monitor the water quality. If the supplied sterilizers do not feature a water conductivity sensor to
monitor the water quality, we recommend using the manual water conductivity meter Primo 5.
GENERAL WARNINGS
•The equipment should be used in compliance with the procedures described in the manual and never
for purposes other than those detailed in the manual.
•The user is responsible for installing, operating and servicing the equipment in accordance with the
instructions listed in this manual.
•Only use genuine manufacturer resin cartridges dedicated for this product.
•Do not drink the water produced by Osmo.
•Do not block or crush the inlet or outlet pipes of the equipment or the sterilizer.
•If the spray gun is not used (manual filling) we recommend closing the spiral tube’s connecting
tap.
•If the equipment is not operated according to the instructions in this manual or is not properly
maintained, the manufacturer cannot be held responsible for any fault, damage or malfunctioning of the
equipment.
•If the water shows high quantities of turbidity, chlorine, iron and manganese, silicon, or a level of TDS
(Total Dissolved Solids) above 2,000 ppm, the effectiveness and above all the life-span of the osmotic
membrane will be significantly affected.
•Do not use the device with water over 20°C
•If the device is not used continuously it may emanate unpleasant smells.
Intended use: This manual is an integral part of the product and must be kept close to the equipment for
easy and quick reference. The equipment is to be used only for the purpose for which it is designed.
Osmo: Equipment designed for the demineralization of tap water

4 Osmo
RESIN–SECURITY PRECAUTIONS
Contact Hazards
Eye contact Irritation of the eyes (R36).
Skin contact Slight irritation of the skin.
First Aid procedures
Eye contact Flush immediately with large amounts of water and remove the resin
beads.
Skin contact Take off the contaminated clothes.
Remove the resin beads and flush the contaminated area with water.
Precautions in case resin material is spilled
Precautions for People Keep people away from the area of spillage.
Resin beads on the floor may cause it to be slippery. Take care not to
slip.
Cleaning methods Sweep the floor and transfer the resin beads to a plastic container for
collection or disposal according to the appropriate guidelines.
Notes for disposal
The used product is a special non hazardous waste.
The product must be disposed of in accordance with current local, regional and national regulations.
The CER number for saturated or used ion-exchange resins used for the production of drinking or service water is:
19 09 05.
ACTIVE CARBON FILTERS – SAFETY WARNINGS*
Contact hazards
Eye contact Possible temporary irritation due to the abrasive effect of the granules.
Skin contact Possible temporary irritation due to the abrasive effect of the granules.
First aid procedures
Skin contact The product cannot be absorbed by the skin. Can provoke dehydration, or
mild irritation due to the abrasive effect of the granules.
Remove contaminated clothes and wash skin with water and soap.
Consult your doctor should symptoms of dehydration appear.
Contatto gli occhi Do not rub the eyes.
Flush immediately with large amounts of water, and keep eyes open for at
least 15 minutes (so as to eliminate dust). If necessary consult your
optician.
Precautions in case of accidental spillage
Precautions for People Keep people away from the area of spillage.
Granules on the floor may cause it to be slippery. Take care not to slip..
Cleaning methods Collect using mechanical methods or a vacuum cleaner so as to avoid the
formation of dust. Use appliances that don’t create electric charges or
sparks.
Notes for disposal
If the product is unused: normal disposal is allowed
If the product has been (with presence of absorbed substances): method of disposal varies according to the nature of
the absorbed substance and to the current applicable national or regional norms. The number is CER 19 09 04.
* extracted from the safety data sheet supplied by the manufacturer. For further information, please request the safety data sheet
directly from the manufacturer of distributor of the product.

Osmo 5
INFORMATION ON THE WARRANTY
The manufacturer guarantees the quality of your product, if used in accordance with the instructions
described in this manual, for a period of 12 months for mechanical components.
The warranty starts from the date of delivery to the customer, which must be proven by returning the
warranty form duly filled in and signed.
In the case of disputes, the date on the delivery note relating to the equipment serial number will be valid.
The warranty does not cover defects or damage caused by:
•Incorrect installation
•Inadequate maintenance
•Tampering or unauthorized modifications
•Incorrect use of the equipment
•Non-compliance with the instructions included in this manual
The replacement of equipment or the extension of the warranty period because of breakdown is excluded.
Repair under warranty is carried out at the discretion of the manufacturer and does not include packing and
shipment costs.

6 Osmo
PACKAGE CONTENTS
GENERAL NOTES ON DELIVERY
Upon delivery of the equipment, check the condition of the package and keep it in case of future needs.
Open the package and check that:
- the contents correspond to the delivery note
- there is no evidence of any damage.
In the event of damage or missing items, inform the carrier and the supplier immediately.
PACKAGE SIZE AND WEIGHT
Gross weight: 18 kg
Dimensions (mm):

Osmo 7
DELIVERY CONTENT
Figure 1 – Delivery Content
Item Description
1 Complete osmotic subset with mounting brackets composed of: 3 filter cartridges, 1 osmotic
membrane, 1 pump, 1 one-way valve, 1 pressure switch and a variety of internal and external
connecting tubes and spiral tube with spray gun.
2 9 litre storage tank with a tap ( theoretic volume 13/19 litres - actual volume 9/10 litres)
3 Power Supply transformer 240Vac / 24 Vdc
4 Water Block®valve with filter and setting key with one-way valve and hydraulic system tube (5m,
Ø1/4”)
5 Special key for cartridge holders
6 drain tube installation kit
7 Dowels and screws for fixing the system to a wall
8 Drain tube for carbon block cartridge
9 Warranty certificate , CE declaration of conformity and user manual

8 Osmo
INSTALLATION AND USE OF THE DEMINERALIZER

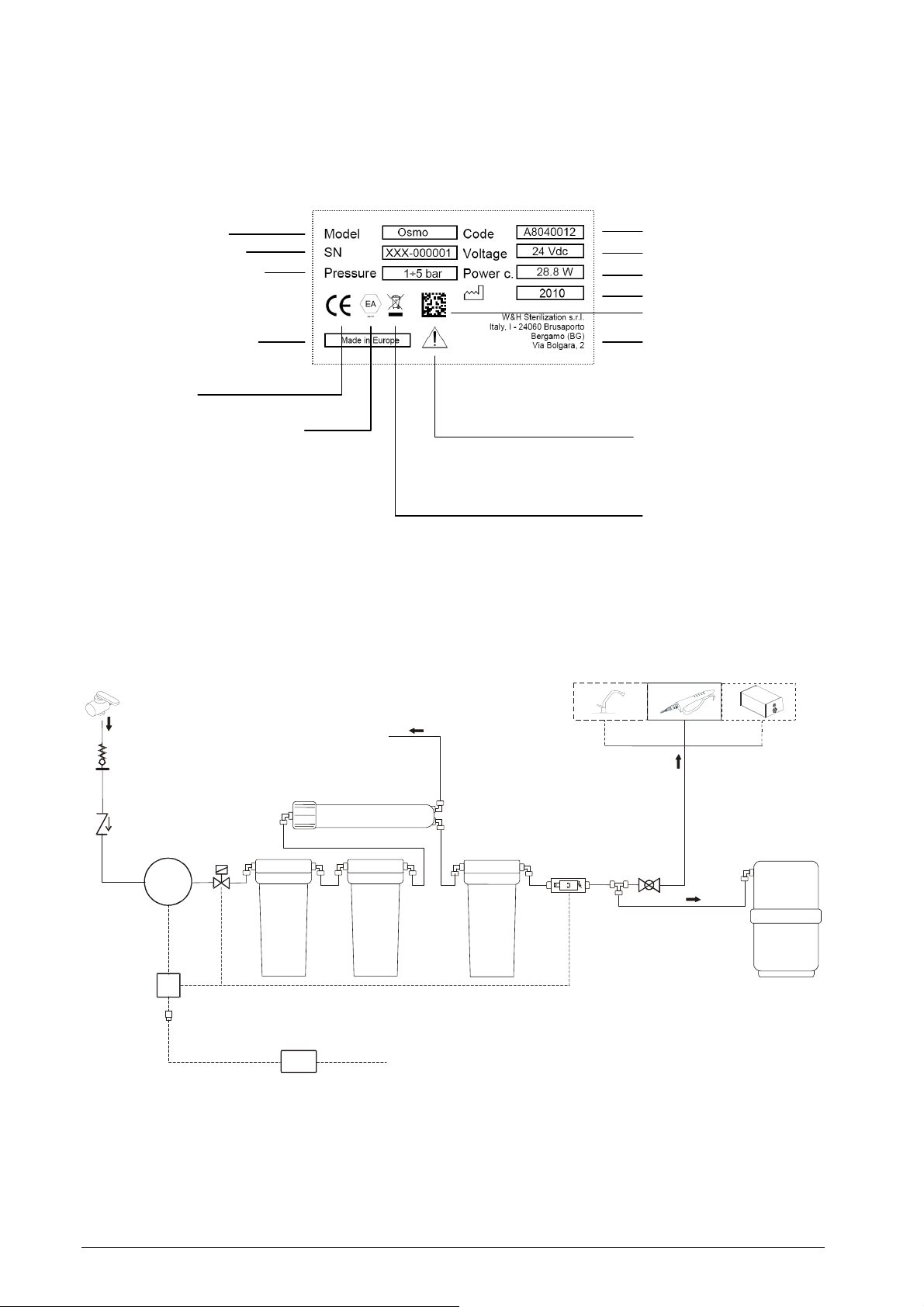

SYMBOLS ON THE NAMEPLATE
SYSTEM COMPONENTS
Figure 2 – Composition of the device
240V
a
c
24Vdc
Inlet tap
Drain water
outlet
Carbon Block filter
Outlet tap
Water Block
valve
Membrane
Pump
EV
1µm filter
cartridge
Resin filter cartridge
Pressure control switch
Storage
tank
One-way valve
Tap
(optional)
Spray
gun
SAT
(optional)
Power supply unit
Model name
Serial number
Working pressure
Country of manufacture
Read the manual carefully
Product code
Working voltage
Power consumption
Year
Serial number datamatrix
CE label
Manufacturer
Recycling
symbol
The equipment is fitted with a
protective mechanical device
allowing only one-way water
flow; in accordance with EN
1717

Osmo 9
PRELIMINARY INSTALLATION INSTRUCTIONS
Wall-mounted installation
The water demineralizer should be fitted in a vertical position either beneath a sink or in a cabinet. For
mounting, use the supplied dowels and screws. Install on the wall leaving a space of at least 10 cm from
the floor or the bottom surface so that the cartridge holders can be dismantled.
Power Supply
The unit is supplied with 240 Vac by means of a transformer which complies with the applicable electrical
safety requirements of the Standards Institutes.
The maximum power absorbed is 40W.
Hydraulic installation
Drain Install a drain nearby to dispose the wastewater discarded by the osmotic membrane
(max 1.5m)
WB Valve The safety valve (Water Block®) is fitted with a special one-way valve which prevents the
return of water into the hydraulic system and possible consequent contamination. For
this purpose, the WB valve must be fitted in a vertical position (refer to the
instructions at the end of this manual).
Charge The installation of the product with incoming water pressure above 3 bars, can
drastically reduce the lifespan of all the cartridges and especially of the osmotic
membrane. If this is the case, the installation of a reducer to bring the pressure to less
than 3 bars is recommended.
Figure 3
–
Overall dimen ion
When the storage tank is full of
water, it weighs approximately
13kg. Check that the work surface
supports this weight.

10 Osmo

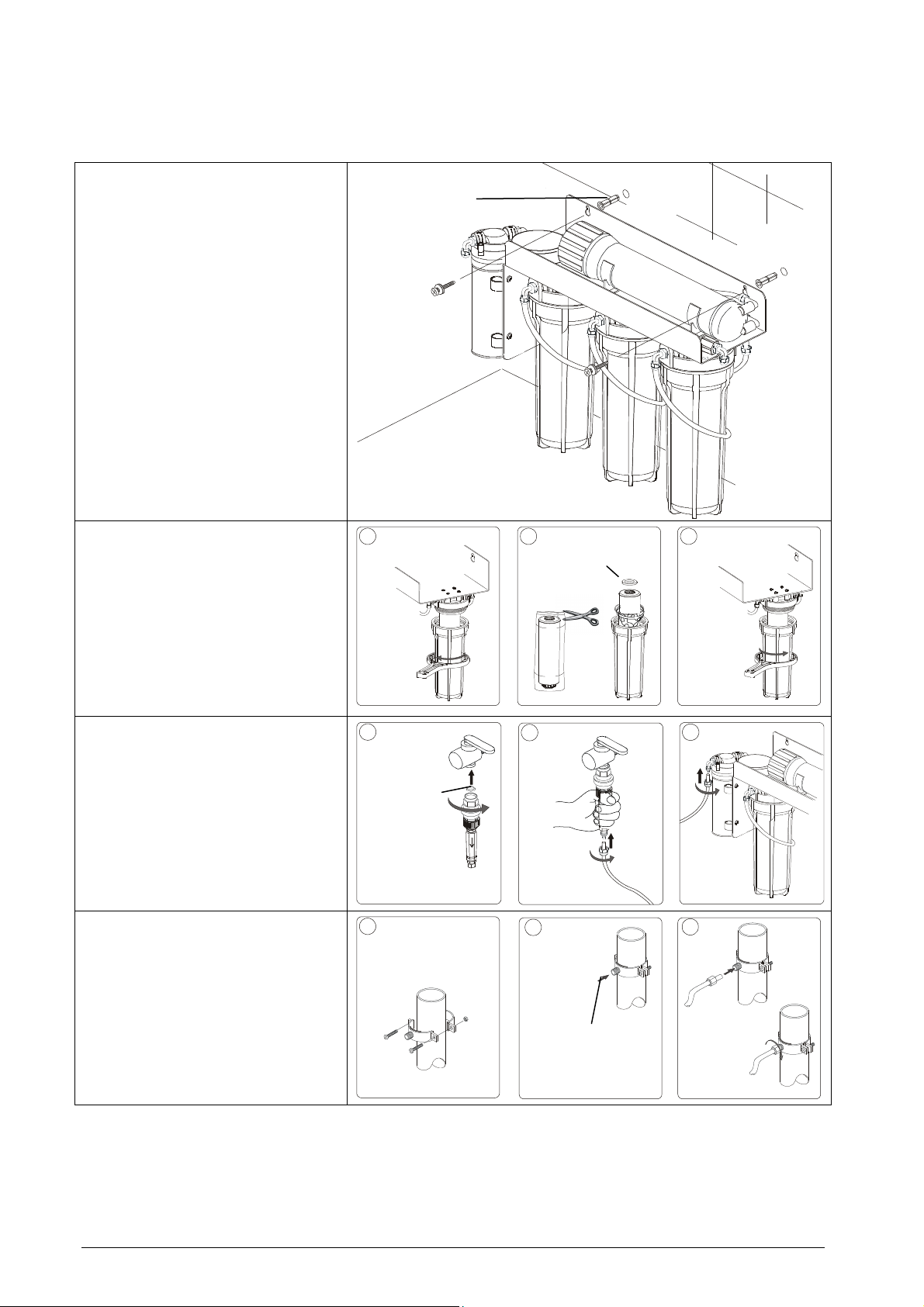

INSTALLATION

Install the osmotic group using the
supplied dowels and screws

Unscrew the cartridge holders.
Remove the cartridges and take off
the wrapping (resin and carbon
block cartridges). Reposition the
cartridges in the holder taking care
of the centring rings, the gaskets
and O-rings.
Tighten all the holders.
A B
C

Connect the water block group and
one-way valve to the water network
tap.
Insert the tube into the fitting and
tighten with a ring nut.
Connect the tube to the pump’s
inlet fitting and tighten with a ring
nut.
A
C
B


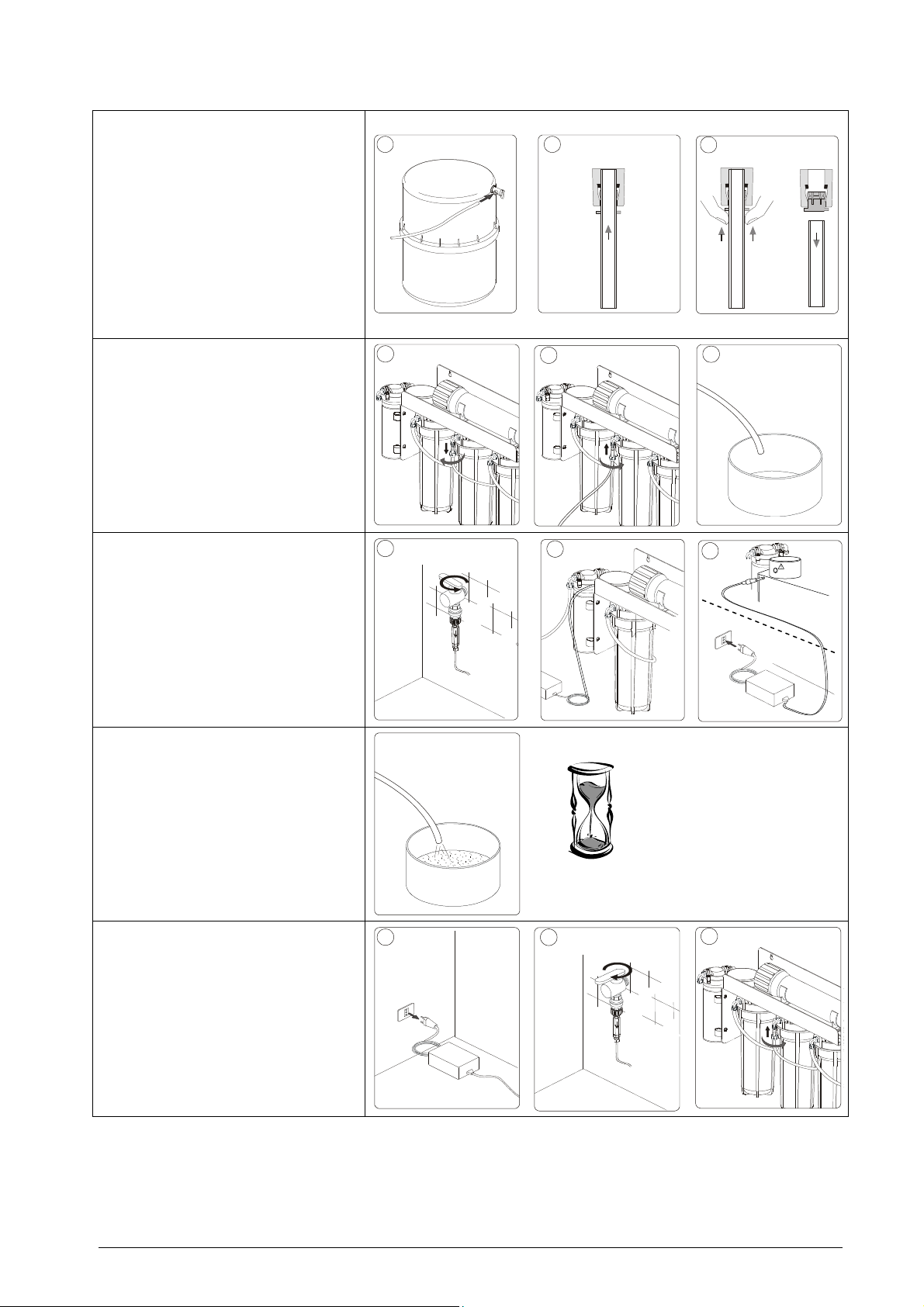

Mount the brackets from the
assembling kit on the drain tube.
Pierce the drain tube with a bit Ø
6mm.
Insert the black drain tube from
the back of the osmotic membrane
and tighten with a ring nut.
AB
C
Ø
6mm
Check that
the filter is
present
Gaskets and
O-Rings
Pierce
Ø6mm

Osmo 11

Connect the white tube from the T
fitting from the osmotic group to the
storage tank.
This is a quick-connector fitting:
insert the tube until it hits the back of
the fitting and pull slightly to check it
is correctly inserted.
To take the tube out of the fitting,
press the fitting ring with your fingers
and pull out the tube.
A B
C

Disconnect the tube from the outlet
fitting of the carbon block cartridge
head (middle holder).
Insert the supplied red draining
tube on the fitting and tighten with a
ring nut.
Position the tube in a draining sink
or a collecting basin.
A
B
C

Open the devices tap.
Connect the transformer’s 24V
outlet wire to the osmotic group’s
power supply connector.
Insert the plug into a plug hole.

Leave the water that comes out of
the active carbon filter to drain until
the water has no more black bits.

Remove the plug form the plug-
hole.
Close the device tap
Reset the original connection on the
carbon block’s cartridge head
(disconnect the red tube, reconnect
the white tube and tighten with the
ring-nut ).
AB
C
A
B
C
5÷15 min
B

12 Osmo
PRIMING
•Open the water network tap
• Insert the plug into a plug-hole
Figure 4 – Example of installation
Connection to:
Spray gun
tap (optional)
SAT (optional)
ATTENTION
After setting up the system, it takes 5
minutes to produce demineralized water
It takes approx. 140 minutes to
completely fill up the system (including
the storage tank)

Osmo 13
EXAMPLES OF USAGE
Figure 5 – Possible uses of the device
Manual use with spray gun
(standard) for manual filling of
the sterilizer tank and washing
of instruments
Automatic use to fill the
sterilizer using the SAT (option)
Manual usage with tap service
tank

14 Osmo
USE AND OPERATION OF THE DEMINERALIZER
USE OF DEMINERALIZER
Once the system has been correctly installed and connected, the demineralizer is able to immediately
supply purified and demineralized water.
If the demineralized water is used to run a sterilizer, you have the option of manually filling the sterilizer
tank with the use of the water gun, or have it filled automatically by using an external filling device (e.g. Sat)
connected to the Osmo device.
The quantity of water produced by the cartridges depends on the quality and hardness of the city water
supply in the area where you live.
The average time it takes to fill the storage tank is approximately 140 minutes (with the pressure control
switch set to 3 bar).
PRECAUTIONS TO AVOID WATER CONTAMINATION
CAUTION
In accordance with subsection 4.5 of EN1717, in order to avoid water quality degradation and
bacterial growth due to a tailback of water in the tubings, the entire system must be drained
before leaving it unused for a longer period of time.
WARNING
Re-using the system after a long period of non-use
To restart the system when it hasn’t been used for a long time or after the system has been
emptied, water needs to circulate round the entire hydraulic circuit and the water collected in the
circuit needs to be drained for a few minutes ( see chapter installation, points 6-9).
It is also recommended not to leave the storage tank filled with demineralised water for a long
period of time.
IDENTIFICATION OF THE CARTRIDGES
Mechanical filter
Active carbon filter
Resin filter
Osmotic membrane

Osmo 15
Securing
bracket
REPLACEMENT OF FILTER CARTRIDGES
Only use genuine filter cartridges as they have been specifically designed for this product.
The need to replace cartridges depends largely on the operating conditions and, above all, on the quality of
the city water in your area. Annual filter cartridge replacement is recommended for average use.
Debris Cartridge 1µm 3/6 months
Carbon Cartridge 3/6 months
Intermediate
Kit Resin Cartridge 3/6 months
Complete Kit
Osmotic membrane 2 years
Notes:
•Using the intermediate kit maintains the life-span and performance of the osmotic membrane.
•If the water has a conductivity value of over 15 µS after the intermediate kit has been replaced, also
replace the osmotic membrane
•All the cartridges can vary slightly, which in combination with unfavourable operational conditions (e.g.
high temperature, high presence of chemical particles in the water supply, high pressure) can cause a
high reduction in the performance of the product.
•In the event of unexpected contamination of the water coming into the system (for example the
presence of soil), all the cartridges can get damaged. Replace the intermediate kit and check if the
osmotic membrane also needs changing.
•The installation of the product with incoming water pressure above 3 bars, can drastically reduce the
lifespan of all the cartridges and especially of the osmotic membrane. If this is the case, the
installation of a reducer to bring the pressure to less than 3 bars is suggested.
To replace cartridges follow these steps:
1. Disconnect the power supply
2. Close the tap water inlet valve and the storage tank valve
3. Release the water pressure with the use of the water gun (or tap, if connected) and/or disconnect the
tubing leading to an external automatic filling device (e.g. Sat).
4. Unscrew the cartridge holder counter-clockwise with the use of
the supplied special tool.
5. Remove used cartridges, remove and clean the centring
rings, replace the cartridges using the rings. Make sure to
insert the cartridge in the correct holder ( if it says UP.
place the cartridge with the writing at the top).
O-R

16 Osmo
6. Retighten the cartridge holders by hand, taking care to
correctly position the gaskets and o-rings. Tighten the
cartridge holders with the use of the special tool.
7. Follow steps 6 to 9 in the “Installation” section.
8. Slowly reopen the hydraulic circuit tap.
REPLACEMENT OF THE OSMOTIC MEMBRANE
The service life of an osmotic membrane is normally over 2 years (depending on the quality of the city
water in your area) but the use in unsuitable conditions can drastically reduce this.
In order to replace the membrane, first unplug the power supply and close the water inlet and the storage
tank valve. Proceed as shown in the images below.
1
2
3
4
Figure 6 – Membrane replacement
After membrane replacement, the system needs to be primed! Refer to chapter “Priming” for further
instructions.
Unlock the coupling ring and remove the
tubing. Unscrew the cap counter-clockwise.
Extract the membrane with the help of
pliers. Insert the new membrane completely,
making
sure that the gasket is positioned correctly. Re-
tighten the cap and connect the tubing.
Gasket

Osmo 17
MAINTENANCE
EXTERNAL CLEANING
Clean with a damp cloth using non-abrasive and non-corrosive detergents (neutral pH value).
MAINTENANCE OF THE WATER BLOCK
®
AND ONE-WAY VALVE
Depending on the city water quality in your area and the frequency of use of the equipment, the valve inlet
filter should be regularly cleaned as explained in the instruction leaflet attached to the end of this manual.
CAUTION
Regular control of the Water Block and one-way valve
To ensure compliance with subsection 4.6 of EN1717, have the Water Block and the one-way
valve checked at least once a year; in case a sterilizer is attached to the system, this could be
done during the scheduled maintenance visits for the sterilizer.
It is further recommended to check all related devices fitted to the sterilizer to ensure that the
hydraulic connection between demineralizer and sterilizer corresponds to category 2, in
accordance with EN 1717.
WARNING
The Water Block serves as an anti-flooding device. Blocking only takes place if there is
considerable leakage (such as a cut in the tube between the Water Block and the demineralizer).
Blocking does not take place if there is a small leak in the product’s hydraulic system.

18 Osmo
SPARE PARTS
Ref. Description Code
1 CARTRIDGE HOLDER A812103X
2 FILTER HEAD A813005X
3 DEBRIS CARTRIDGE CPE 1µM A813015X
4
“CARBON BLOCK” CARTRIDGE A813016X
5
RESIN CARTRIDGE A813017X
6 OSMOTIC MEMBRANE 75 GPM, 95-98% REJECTION A813018X
7 O-RING A813014X
8 PLASTIC KEY FOR CARTRIDGE HOLDER A812101X
9 STORAGE TANK INCLUDING TAP A813007X
10 WATER BLOCK®VALVE (INCLUDING FILTER AND
SETTING KEY) A812005X
11 SPIRAL TUBE ¼” A812105X
12 WATER GUN A812106X
13 CENTERING RING A813006X

Osmo 19
Ref. Description Code
14 PUMP WITH TRANSFORMER 24Vdc A813024X
15 ELECTRIC-VALVE 24VDC U382016X
16 MANOSTAT AND WIRING KIT A813011X
17 ONE-WAY VALVE A812116X
18 UV KIT A813012X
19 KIT WATER TAP A813013X
20 WATER PIPE (5 m, Ø 6.35 mm) A813020X
21 PRESSURE REDUCER ¾” X ¾” 3 BAR A813025X
22
CATRIDGE KIT COMPLETE
(REF. 3+ 4 + 5+ 6 + 7x3) A813010X
23
CARTRIDGE KIT INTERMEDIATE
(REF. 3 + 4+ 5 + 7x3) A813019X

20 Osmo
TECHNICAL SPECIFICATIONS
Operating temperature +5°C ÷ +30°C
Storage temperature +5°C ÷ +35°C
Protect from sunlight or other sources of heat
Size 520x420x200 mm
Weight with cartridges (empty storage tank) 11 Kg
Use interior
Pollution degree 2
IP 21
Weight of the storage tank 3,5 kg
Tank - nominal volume 19 liters
Tank - storable volume ca. 9 liters
Electric power supply 100-240 VAC, 50/60 Hz, 1.0A
( with separate voltage transformer)
Max. absorbed power 40 W
Class of insulation III
Tap water pressure minim 1 bar (14,7 psi)
maximum 5 bar (73,5 psi)
Quantity of produced water with conductibility <
15µS
110,000 liters
1T
est conditions: T=25°C, tap water quality 450 µS and water pressure of 3 bar; with continuous flow;
