Warmington Sg sn 1250 User manual

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

GAS OPEN FIRE for outdoor covered areas

Installation Instructions into wood or block alcoves

SG/EG - SN 1250-1500

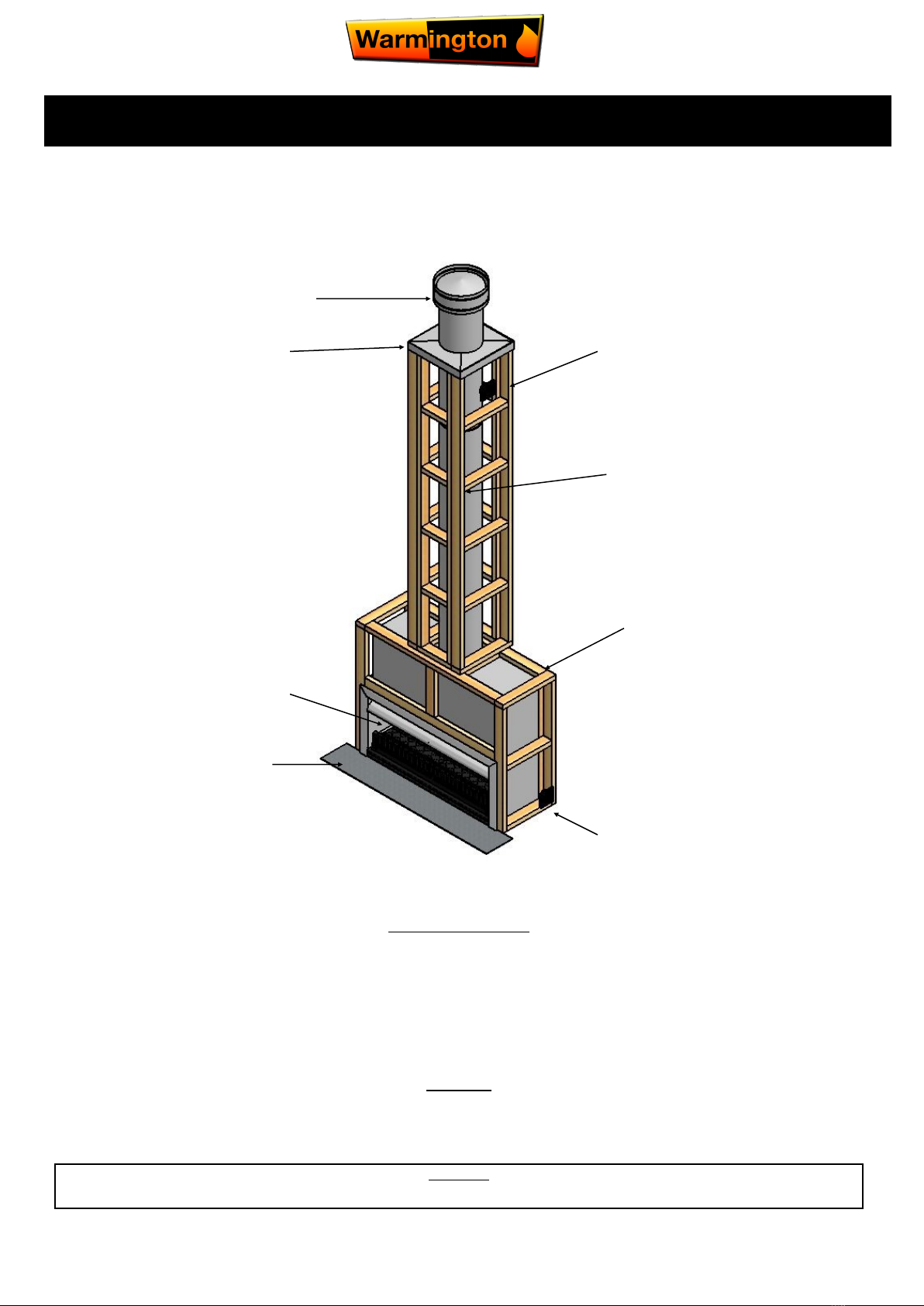

Warmington Flue System

Timber Framing

Hearth

Warm Air Outlet

Vent

Cool Air ‘Caitec

Vents’ Inlet Vent

Warmington Gas Firebox

Warmington Gas Cowl

S/S Flashing

( Top Venting can also be

through S/S Flashing .

See Flashing Detail in Spec )

The fireplace is constructed and tested to comply with NZS 4558(int):2013 ‘Decorative gas log and other fuel effect appliances’.

Keep these instructions for further reference. Ensure that you have the correct and current installation details for the Warmington fireplace.

Installation

The Warmington unit is to be installed by a certified Warmington installer or an approved NZHHA installation technician.

See www.homeheat.co.nz/members for a certified NZHHA SFAIT Installer in your area.

A licenced certified gas fitter and licenced electrician are required to run power and gas supplies as required to the unit and any commissioning as part of the

installation process.The heater must be installed according to these instructions and in compliance with all relevant building, gas fitting, electrical and other

statutory regulations.

IMPORTANT

Read all the instructions carefully before commencing the Installation. Failure to follow these instructions may result in a fire hazard and void the warranty

Related documents

Fire and flue system installation, and instructions to comply with NZS 5601.1:2013,

3645.1(Int):2010, 3645.2(Int):2010, 5266:2014, 2918:2001.

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

POINTS TO CONSIDER PRIOR TO INSTALLATION

INSTALLATION ORDER OF OPERATIONS - Prior to Construction and Installation:

Location of the Fire. Open Fires are better located at one end of a room or area, as they project the heat away from their opening .

Venting to the Cavity.

This air is to allow the Cavity to Vent the Warm Air. This Warm Air helps keep the Fire and Flue System form getting to Cold . If the Flue and Fire get to Cold the System may soot often and require cleaning.

Each Fire has different ways of venting the cavity .

The Topography of the Land .

The slope and position of the Land in relation to the Home has a bearing on how the wind will interact with the Fire and Flue System. Care needs to be taken to ensure that the Flue Termination is in the

correct position to maximise performance .

The Prevailing Wind.

Care needs to be taken to ensure that the Flue Termination is in the correct position as wind and gusts that hits the Flue and Cowl System may overcome the Cowl and draft back down the Flue into the

Home. This can be a combination of down draft and high pressure.

Hearth and Plinth:

The height of the Hearth off the Floor. The Finishing that is to be used on the hearth is to be allowed for at the design stage.

Positioning of the Flue System:

There is a maximum distance that an Offset Flue can be Installed. Reference to relevant standards.

Flue and Fire Clearance:

To be maintained to the Manufactures Instructions.

Pressure Differential, Venting & External Air into the Building :

All fires need air to burn and draw correctly, Kitchen Fans, Air Conditioning units, High Wind Zones, Naturally forming Draft spaces, can all have an effect on the pressure difference from inside the

building to the outside. A lower pressure in the building may induce a draft down the flue system and back into the building causing the fire to smoke or spill into the building. Care needs to be taken at

the design and installation stage to adequately vent the building, or some mechanical system to ensure that there is always a neutral or positive pressure at the fireplace and a negative

pressure at the flue outlet. This will ensure that the draft in the flue system is always to the outside.

‘CAITEC AIR’ the limits and requirements. See details in these Spec’s, on www.warmington.co.nz or contact your local Agent.

Wind Noise:

You may encounter wind noise in some installations. It is recommended to use an enclosed chase with a chimney pot to help reduce noise. There will always be some noise from the flue systems of all

fireplaces.

Important Notes:

1. Consult a licenced certified gas fitter for correct gas installation.

2. Install to current standards.

3. Install to manufacture’s specifications.

4. All New Installations require a permit.

5. Allow for gas supply to heat cell at R.H. rear, and power supply to L.H. rear if required (check product).

6. For special requirements concerning materials (Timber Mantle and Surrounds) within close proximity of Warmington products, please contact your

local Warmington Technical Consultant .

Stage 1: Frame Construction Procedure by Builder.

1. Mark out Flue Centre.

2. Mark out Heat Cell Clearance requirements.

3. Build Timber Framing to Heat Cell Clearances and Chimney Chase Clearance requirements.

4. Ensure that the front face of Heat Cell Clearance alcove is left open and unframed to enable Installation of the Firebox. The Chimney Chase is left

unlined for Installation of the Flue.

5. Construct Plinth only, to required height. *

Stage 2: Install Procedure by Certified ‘Warmington Installer’only.

1. Fit Fire to Plinth.(Ensure Gas Supply Line is fed through R.H. Side of Firebox.)

2. Fit Flue System.

3. Fit Cowl and Flashing System.

4. Fit Vents to Heat Cell Alcove and Chimney Chase, to cool the Heat Cell and ensure efficiency of CAITEC Technology.

5. Clean and touch paint up on the fires and cover if necessary.

Stage 3: Finishing Procedure by Builder.

1. Construct Hearth to required thickness. *

2. Finish Framing of Heat Cell Alcove.

3. Close in Heat Cell Alcove and Chimney Chase.

4. Finish Heat Cell Alcove and Hearth to customer’s requirements (e.g. paint / tiles).

5. * Note: Certified Installer can Install Hearth and Plinth.

Maintenance:

Visually Inspect Fireplace and Flue System.

Ensure that Firebox is operated according to the Manufacture’s Instructions.

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

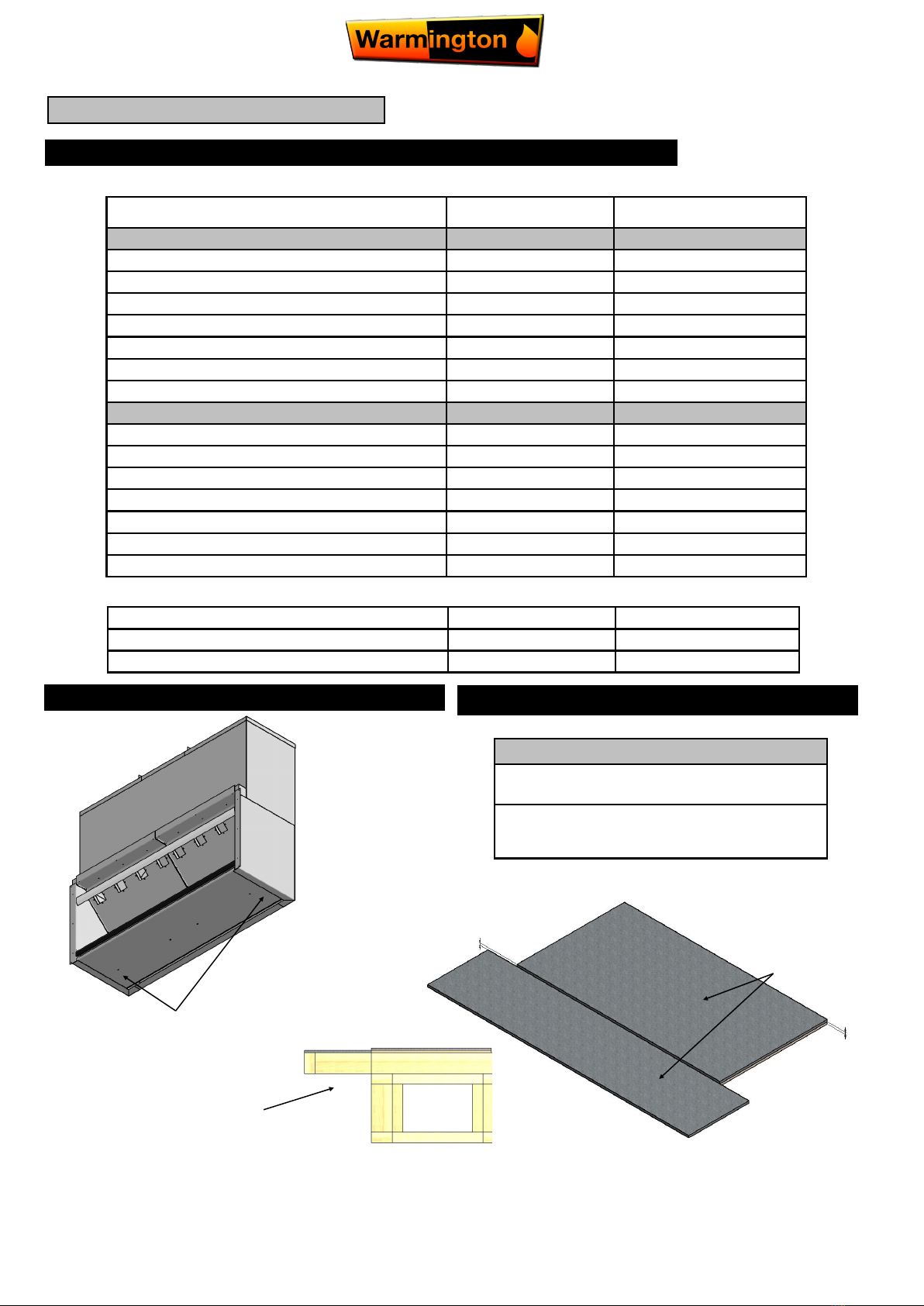

Firebox SG/EG

SN 1250

SG/EG

SN 1500

Firebox Width A1250 1405

Firebox Height B600 600

Firebox Depth C435 435

Flange Width D1350 1500

Flange Height E650 650

Insulation Kit Width F1342 1490

Insulation Kit Height G1220 1220

Insulation Kit Depth H565 565

Centre of Flue I360 360

Flue J300 300

Flue Liner K350 350

Fascia Width L1410 1560

Fascia Height M680 680

Fascia Section N80 80

Heat Output kW

Range* 9-10 10-11

*Estimated unless stated otherwise.

WARMINGTON FIREBOX DIMENSION

Minimum Flue Height

Flue Height 3600

Measured From Top of Firebox B + 3600

FIREBOX HEAT CELL CABINET

Note:

DO NOT FRAME OUT TO THESE DIMENSIONS CHECK HEAT

CELL ALCOVE ON PAGE 5 & 6.

Seismic Restraint

Secure Firebox through anchor positions provided - through

base of Fire.

Stainless Steel

Insulation Kit

Weathershield lip

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

*Note: If Solid Plastering the Heat Cell Structure, it is recommended to use a Fibreglass Mesh with a Latex

Based Plaster to minimise the chance of the Solid Plaster cracking. (See your Solid Plasterer for correct mate-

Visit the Warmington website for ‘Hebel’ instruction (PDF download) www.warmington.co.nz

SEISMIC RESTRIANTS

IMPORTANT NOTES:

* Inlet Pressure not to exceed 4.0KPa

GAS SPECIFICATIONS Tested to current gas standards

NOTE : All Test Pressures are tested by a Independent Test Lab

MODLE SG/EG SN 1250 SG/EG SN 1500

LPG

Nominal Pressure kPa 2.75 kPa 2.75 kPa

Nominal Injector Size mm 4 X 1.1mm 4 X 1.2mm

Burner Pressure High kPa 2.5 kPa 2.5 kPa

Burner Pressure Low kPa 0.75 kPa 0.75 kPa

MJ/h 60 70

Flame Effect Output Only Effect Effect

Supply Pipe Size dia—min 1/2’ 1/2’

Natural Gas

Nominal Pressure kPa 1.5 kPa 1.5 kPa

Nominal Injector Size mm 4 X 1.8mm 4 X 2.0mm

Burner Pressure High kPa 0.85 Kpa 0.5 kPa

Burner Pressure Low kPa 0.2 kPa 0.15 kPa

MJ/h 63 62

Flame Effect Output Only Effect Effect

Supply Pipe Size dia—min 1/2’ 1/2’

Lab. Test No GL 973 GL 973

Lab. Test Dates 30/ 04/2011 30/ 04/2011

ESS Declaration No:

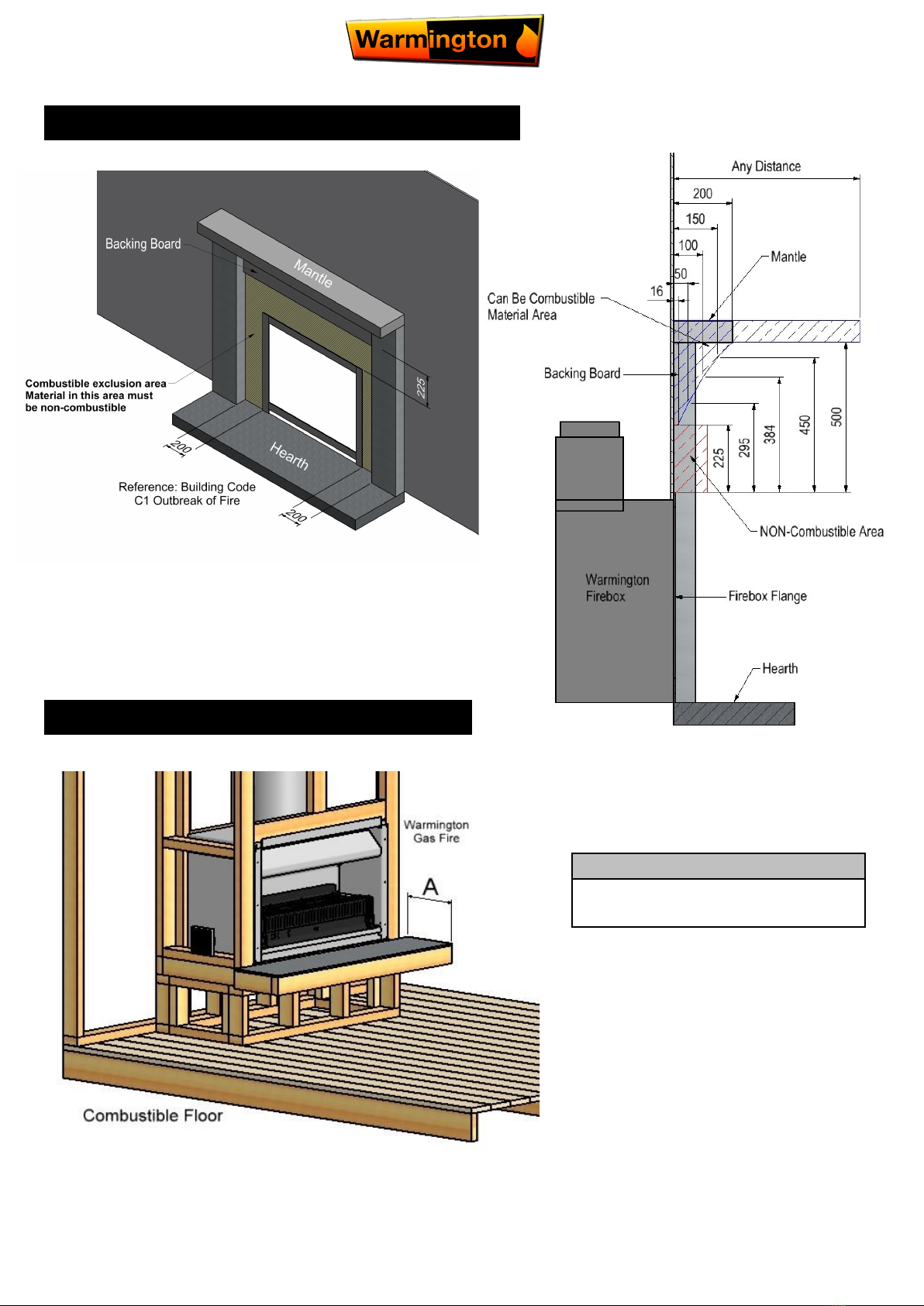

HEARTH & PLINTH CONSTRUCTION DETAILS

Note: Hearth and Plinth Construction.

Plinth to be offset above hearth by the hearth

finishing’s e.g. Tiles/Granite/Solid Plaster etc.

Raised Hearths & Plinths with cantilevered Hearths

must be adequately supported to take the weight in

accordance with the NZ Building Code.

Offset for

Hearth

finishing

Offset

This is a raised & cantilevered Hearth.

See Spec for detail.

* Hearth & Plinth Material

must be built with Non Com-

bustible Material eg. 9.5mm

Promina,

Superlux, Etapan.

Seismic Restraint

Secure Firebox through anchor points

provided.

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

TIMBER FRAMING & TRIM OUT DETAILS

Firebox SG/EG SN 1250 SG/EG SN 1500

Heat cell Clearance Width O1362 1510

Heat Cell Clearance Height P1240 1240

Heat Cell Clearance Depth Q615 615

Hearth Width R1750 1900

Hearth Projection S300 300

Chimney Chase Clearance T450 450

Window Height V660 660

Window Width W1362 1510

MINIMUM HEAT CELL ALCOVE CLEARANCES & FRAME

OUT

Note:

Centre line of flue is `NOT’ in

centre of alcove.

Note:

All framing dimensions are internal only.

Common alcove framed to 2.4 m

height

Warm Air Vent

Standard

2400mm Stud

Cool Air external

Intake Vent

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

TIMBER : PLAN, FRONT ELEVATION & CROSS SECTION

BLOCK : PLAN, FRONT ELEVATION & CROSS SECTION

Firebox SG/EG SN 1250 SG/EG SN 1500

Plinth Width OO 1610 1610

Plinth Depth QQ 600 600

Hearth Width RR 1750 1900

Hearth Projection SS 300 300

Centre of Flue II 360 360

Firebox SG/EG SN 1250 SG/EG SN 1500

Hearth Width R1750 1900

Hearth Projection S300 300

Alcove Width O1362 1510

Alcove Depth Q615 615

Centre of Flue I360 360

Chimney Chase Clearance T450 450

Note:

Centre line of flue is `NOT’ in

centre of alcove.

Note:

Centre line of flue is `NOT’ in

centre of alcove.

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

Cool Air

external

intake vent

Warm Air Vent

Cool Air

external

intake vent

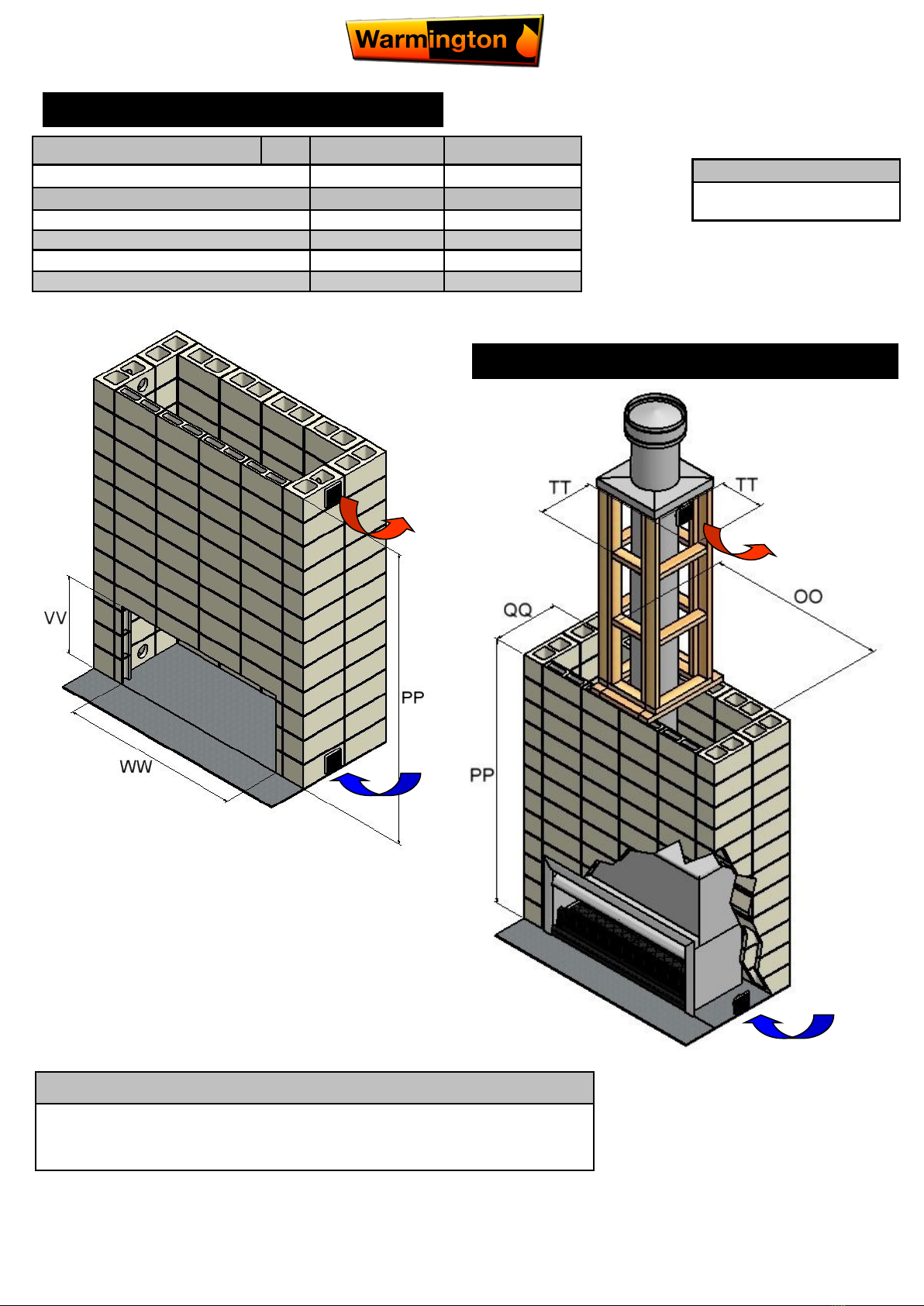

BLOCK ALCOVE & TRIM OUT DETAILS

MINIMUM HEAT CELL BLOCK ALCOVE CLEARANC-

Note:

Ensure that the Fire and Flue System is Installed before the alcove access

is blocked off.

Block modules may vary to the drawing. Please talk to you Blocklayer

Firebox SG/EG SN 1250 SG/EG SN 1500

Heat cell Clearance Width OO 1610 1610

Alcove Clearance Height PP 2400 2400

Alcove Clearance Depth QQ 600 600

Window Height VV 630 630

Window Width WW 1350 1500

Chimney Chase Clearance TT 450 450

Note:

Centre line of flue is `NOT’ in

centre of alcove.

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

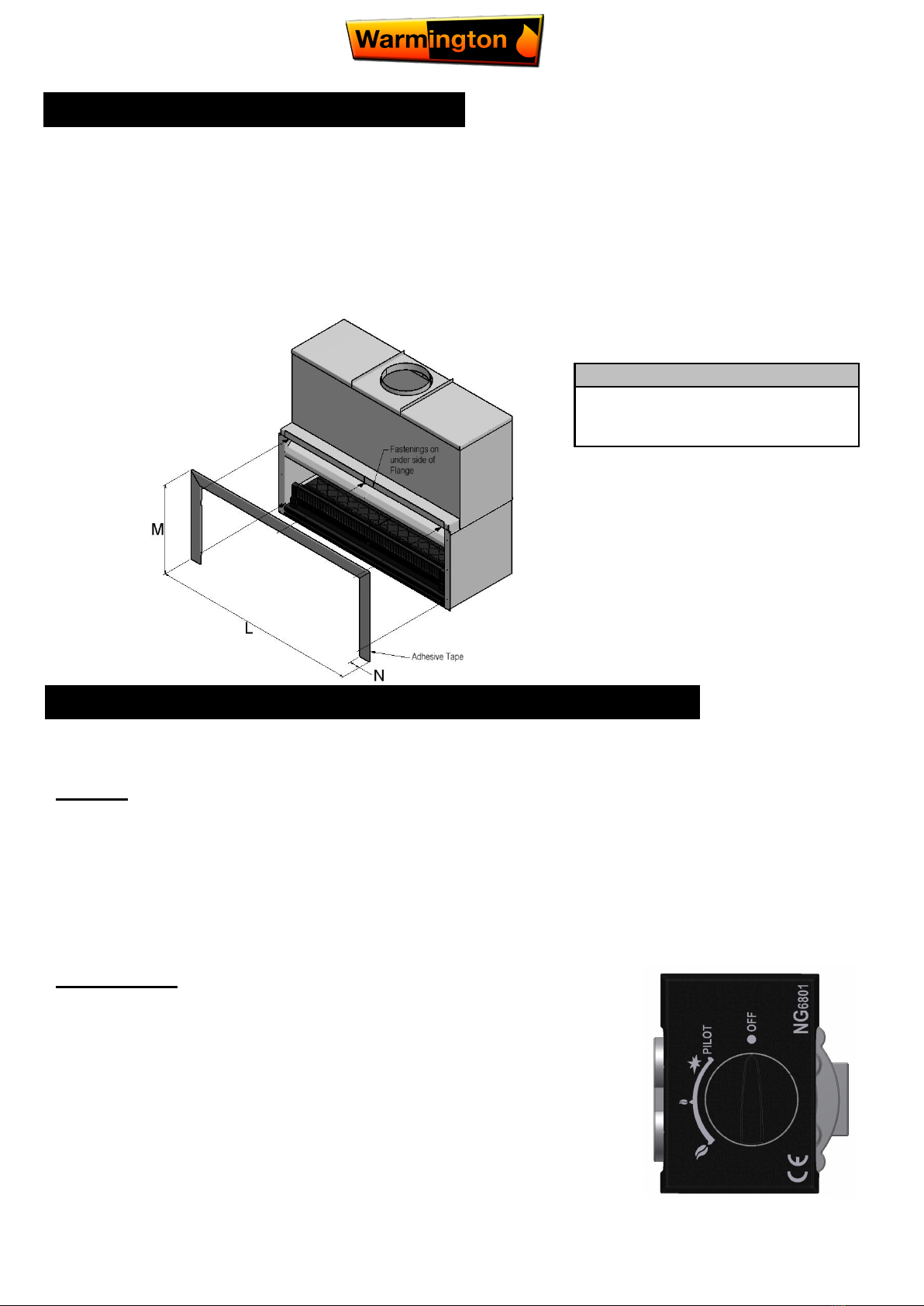

FITMENT OF THE WEATHERSHIELD

The Nouveau Gas fireplace is packaged with the weathershield fitted to the firebox and since

the fascia is not installed during shipping the weathershield cams will not fit after the firebox

is in-situ and the fascia has been installed. Because of this the cams have to be adjusted

after the firebox has been fully installed. Please see below for instructions on how this is

done.

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

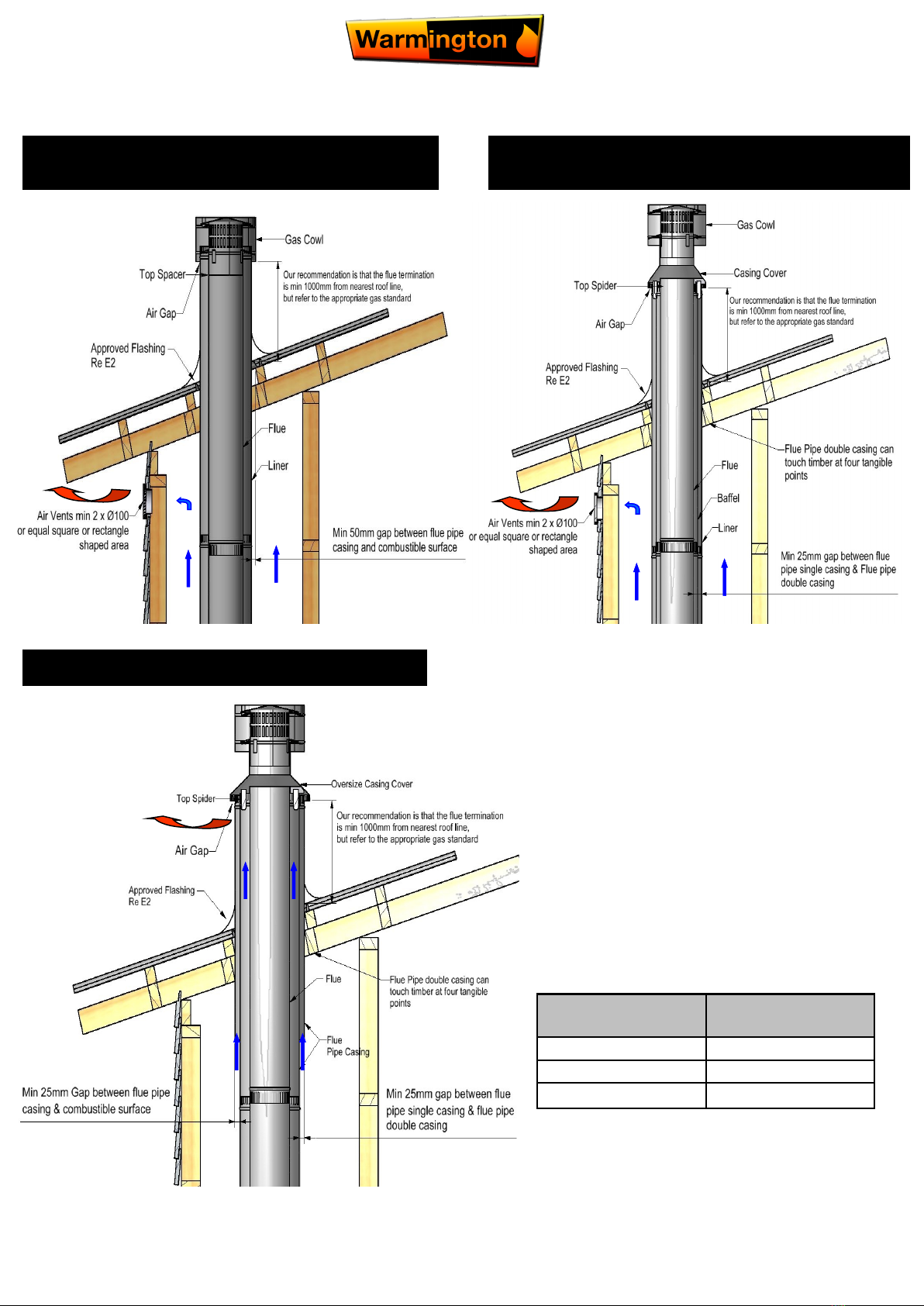

FLUE DETAILS DIMENSIONS

Minimum Flue Height

Flue height 3600

Measured from top of adaptor B + 3600

NOTE: Ensure that a Standard Tested Warmington Flue System is used on

Warmington Fires.

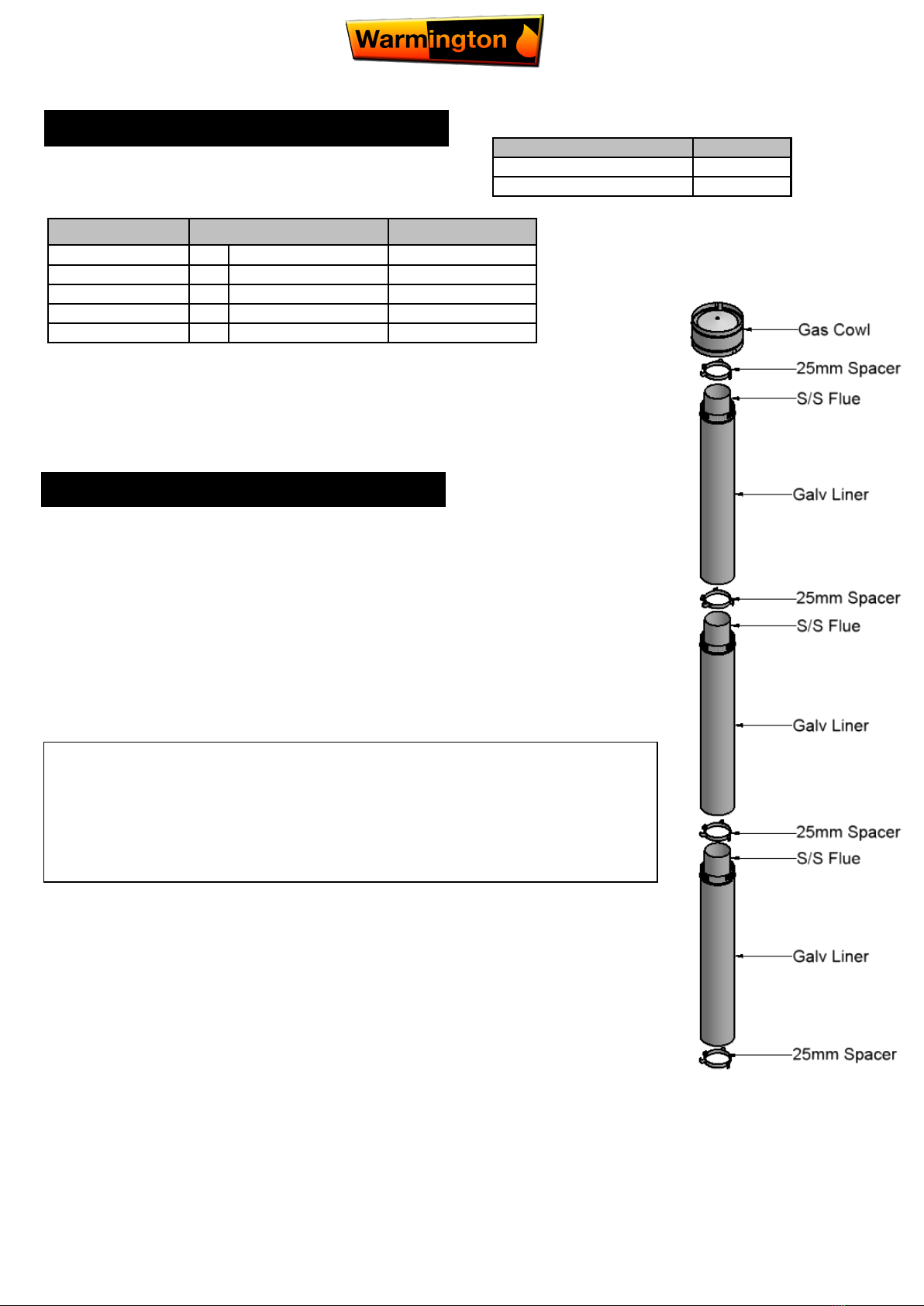

FLUE SYSTEM INSTALLATION GUIDE

Flue details No: SG/EG SN 1250 SG/EG SN 1500

Gas Cowl 1300 300

Flue Diameter 3300 300

Liner Diameter 3350 350

Spacer 3300/350 300/350

Bottom Spacer 1300/350 300/350

This is a general installation guide only – Contact a ‘NZHHA Installer’ or Gas Fitter for In-

stallation Advice.

1. Install the first length of flue pipe with the crimped end down, inside the Adaptor collar, ensure that the

flue pipe is sealed into the collar with exhaust sealant. Rivet the flue in 3 places around the Adaptor col-

lar. Place a bottom spacer around the flue pipe approximitaly150mm above the adaptor collar. Secure in

position by tightening the screw and nut.

2. Install the second length of flue pipe with the crimped end down and fit by riveting in at least 3 places

around the flue pipe joint. Ensure that the flue is sealed into position with sealant.

3. Install the first section of flue pipe liner with the Crimped end up, over the flue pipe and over the spacer

that is fixed to the flue pipe. This spacer will keep the liner concentric about the flue pipe.

4. Position flue spacer at the flue pipe joint for every length of ‘Flue pipe’ and ‘Liner’.

Repeat the Steps from 1 – 4 to the installed required height of the flue system. The flue system is to

comply with the current standards.

IF FLASHING CONE IS NEEDED:

1. NOTE: The last length of flue pipe needs to extend past the liner so that when the ‘top spider’ and the

‘Flashing cone’ are fitted, that the ‘flashing cone’ and the ‘flue pipe’ are flush, or that the ‘flue pipe’ is

5mm lower that the ‘Flashing cone’.

2. Fit the ‘Top Spider’ into position, ensure that the legs of the spider are fitted inside the liner and that the

spider is positioned hard down onto the liner and tighten with the screw and nut.

3. Place the ‘Flashing cone’ over the ‘flue pipe’ and press hard down onto the ‘Top Spider’. (Note that the

‘Flue pipe’ and the ‘Flashing Cone’ are either flush or the ‘Flue pipe’ is 5mm Lower than the ‘Flashing

cone’.) Ensure that the ‘Flashing cone’ is clear for the venting from the ‘Liner’ and the ‘flue pipe’.

4. Fit the ‘Cowl’ to the top of the flue pipe. The ‘Cowl’, ‘Flashing cone’, and the ‘Flue pipe’ can be secured

to each other with the uses of a stainless steel self tapping screw. This will allow the ‘Cowl’ to be re-

moved for cleaning.

5. Flue system may require Bird Proofing due to the installation and locations, discuss this with your install-

er for the best advice.

6. If the Flue system is installed into a ‘Chimney Chase’, allow for air vent as close to the top of the chase

as practical, or allow venting through the ‘Chimney Chase Flashing’. A ‘Venting Flashing cone’ and a

25mm gap around the Liner with a ‘Venting Flashing Cone-Spider’ can be used. Ref: to figures in page 9

& 10 in this specification.

• ‘Flue pipe’ shall extend no less than the minimum flue height supplied.

• The ‘minimum’ height of the flue system within 3m distance from the highest point of the roof shall be

600mm above that point.

• The ‘minimum’ height of the flue system further than 3m from the highest point of the roof shall be

1000mm above the roof penetration.

• No part of any building lies in or above a circular area described by a horizontal radius of 3m about

the flue system exit.

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

FLUE PENETRATION vented through alcove (single-

lined flue system)

Test Report Number Date of Report

04/1039 20th July 2004

04/1040 20th July 2004

04/1041 20th July 2004

FLUE PENETRATION vented through alcove (double-

lined flue system)

FLUE PENETRATION Vented through Top Flashing Note:

External requirements

Refer to relevant standards.

Install flue system to relevant standards.

When using a rubber or bitumen flashing (butynol,

bectite) an additional flue pipe baffle is required.

All external air vents & ceiling penetrations must

be bird proofed with permanently fixed screens.

All flashing to comply with E2.

All external air vents and ceiling penetrations are to

be vermin and rodent proof.

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

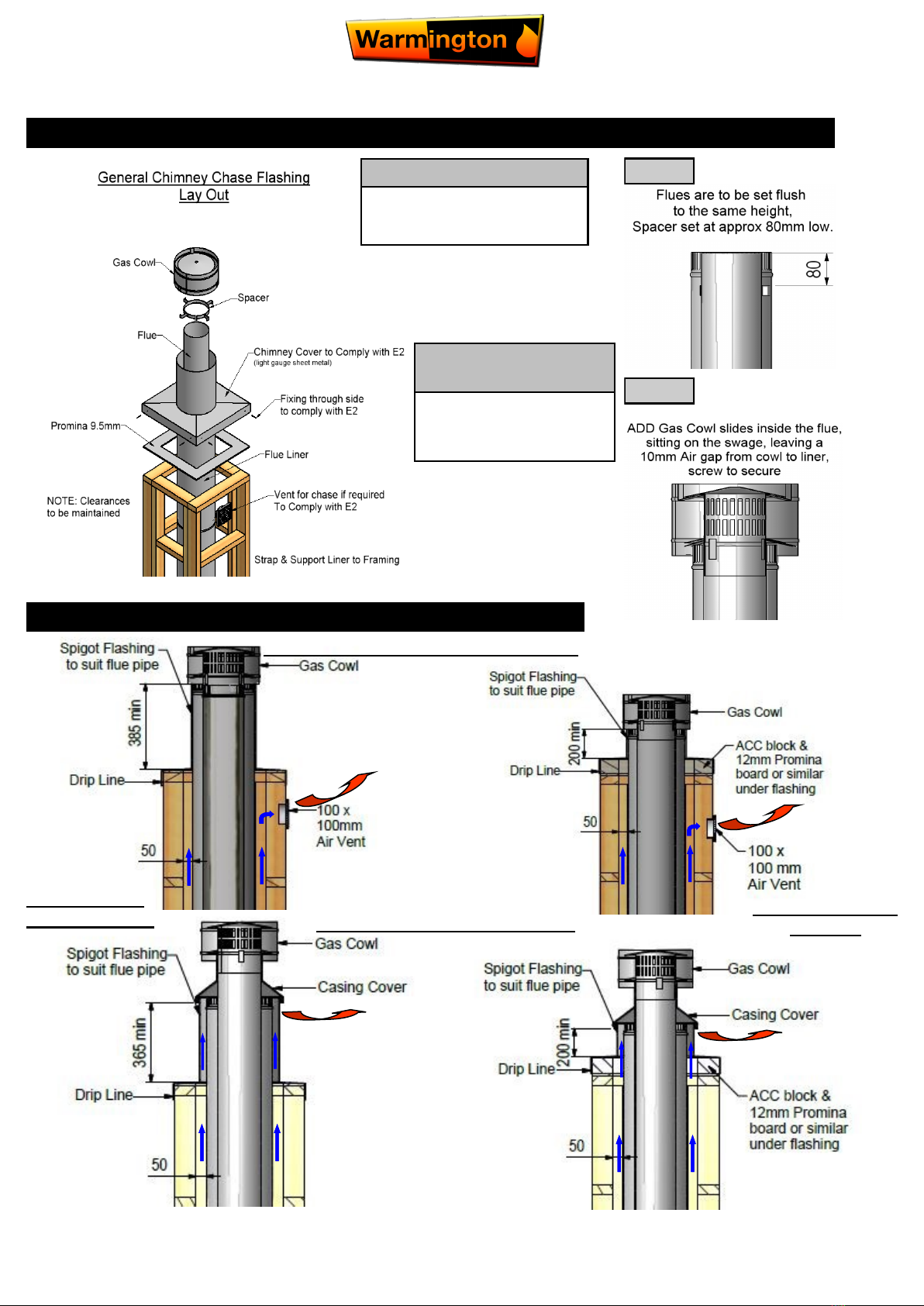

CHIMNEY CHASE FLASHING DETAILS FOR SETTING ADD GAS COWL HEIGHT

CHIMNEY CHASE FLASHING AND AIR VENTILATION OPTIONS:

VENTING THROUGH CHIMNEY CHASE

No Insulation

under flashing VENTING THROUGH FLASHING Insulation under

flashing

Note:

Flashing spigot height is determined by

the insulation that is fitted under the

flashing, see details at bottom of page.

STEP 1

STEP 2

SETTING COWL

TO FLUE

ADD Gas Cowl is to be set

as shown and is in accord-

ance with Foley’s Industries

LTD.

Note: 2x

100mm vents

in chase

Note: 2x

100mm vents

in chase

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

FLUE HEIGHT MINIMUM DETAILS

FRAME OUT AND TRIM OUT DETAILS FOR CHIMNEY CHASE

3D View

The flue exit is to comply to relevant standards.

Option Y – Double Lined Flue System

Option X – Single Lined Flue System

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

COMBUSTIBLE MANTLE CLEARANCES

Note: For Combustible Floors

Minimum Hearth of 300mm (A) must be

maintained at any given height.

RAISED HEARTH CLEARANCES

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

SG / EG SN Range: Gas Convection Fireplaces

FLUED GAS APPLIANCES: All Gas Fires requiring Warmington Flue Systems shall be Installed to the requirements of the current standards and

shall be appropriately designed and constructed to permit safe and effective use. This Appliance must be flued to the outside atmosphere. All

Warmington Fires must be Installed with a minimum of 3.6m of Approved Warmington Gas Flue and Liners .

GAS TYPE: All Gas Fires shall operate safely on the Gas Type specified on the Appliance and shall comply with the requirements of The Gas Act

1992 .

APPLIANCE SAFETY: Any gas fire appliance shall comply with the safety requirements of the current standards listed under ‘Related documents’

in this specification.

ELECTRICAL REQUIREMENTS: All Gas Fire Appliances Installed with Mains Supplied Electrical components for associated use with these Appli-

ances, must comply with The Electricity Regulations 1993.

ELECTRONIC CONTROL SYSTEMS: Any Gas Fire Appliance Installed with Manual or Programmable Electronic Control System shall be tested

and/or approved by a Recognised Person or Authority.

SEISMIC RESTRAINTS: All Fires used for Domestic and Commercial Purposes shall be firmly secured (unless defined as portable or mobile) to

prevent dislodgement from their point of fixture or Installation during Seismic Activity. Such Restraint must be of a reasonable expectation .

GAS CONNECTION: A Gas Certificate must be obtained for the Installation and Commissioning of this Appliance and Flue System. Check that

the Gas Type Specified on the Data Plate is correct for the available supply (LPG or NG).

A Copper Gas supply capable of supplying the correct MJ/h , should be brought into the rear of the Installation Cavity through the hole provided. A

Flare Nut is provided on the Burner for Gas Connection to the Appliance.

TO THE INSTALLER / GAS FITTER and ELECTRICIAN

COMMISSIONING AND TESTING OF FIREPLACE (To be carried out by Gasfitter)

Burner may be secured

to the firebox (Optional)

Gas supply pipe into fire,

by Gasfitter.

See Spec’s for pipe size.

FITMENT OF BURNER

Read all the instructions before commissioning. Install coals and logs and burner before commission.

Light appliance and check HIGH/LOW settings. Check operation of appliance and adjust to suit.

Adjust control valve setting if required. After a period of running (30min Plus) check the setting of the pilot and adjust if required. See Spec’s for details.

Extinguish appliance, remove test equipment and secure test nipple. Check for Gas Leaks.

Note* The Control Valves are factory set and should not require adjustment.

GAS FITTER TO CARRY OUT STANDARD TESTING FOR COMMISSION:

• Spill test taken at top of opening with smoke or smoke match,

• Leak testing appliance and joints,

• Correct operation of the burner and coal and log lay out,

• Test gas pressures high and low, drop test on supply line,

• 5 second light time across burner, Other testing that may be required.

• Ventilation requirements to the standards,

• Clean and or touch up paint of fire box and burner

• Hand over to client, tests and comply to relevant standards.

NOTES:

• Service annually or more if required.

• Custom built to clients requirements to relevant and current standards.

• The appliance and flue system must be installed in accordance with the relevant and current standards and the appropriate

building codes.

• The appliance and flue system must be tested in accordance with the relevant and current standards and the appropriate

building codes.

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

VERMICULITE (COARSE) - to be set by Gasfitter

COALS AND LOGS - to be set by Gasfitter

Number of Coals per Row Total CoalsNumber of Rows

Model Bottom Top Bottom Top Total

SG/EG SN 1250 16 14 2260

SG/EG SN 1500 19 16 2270

Gloves should be worn when handling Ceramic Fibre Coals & Logs: care needs to be taken when handling coals & logs, due to the carbon on the coals

which can stain the surroundings.

HELPFUL HINT: When Hot use metal Tongs.

Apply a thin layer of Vermiculite over the Burner , just enough to cover the Burner Tray only as shown above.

1: Bottom Row: assemble 2 bottom rows of coals onto the vermiculite base. 2: Top Row: assemble 2 top rows of coals onto the bottom row.

• Each Coal randomly positioned with the Torn (roughest) Face Outward. Ensure Coal positioning does not directly block the 3 Flame Pilot.

• The placement of the Coals & Logs may vary to make an even Flame Pattern.

• Logs and Twigs may be scattered to achieve best Visual Effect.

• Fit Burner Grate by sliding R & L Side Metal Pins on Grate, into Holes Located on Burner Side Plates , as shown below.

2: Top row

Slide R & LH Grate

Pins into Holes located

on the Burner Side

plates.

1: Bottom row Model SG780 Shown: Total number of coals will

General coal orientation for optimum effect.

APPLYING THE VERMICULITE: (Coarse—must be larger than the burner plates holes so not to block them).

Apply with care a thin layer of Vermiculite over the Burner, just enough to cover the Burner Tray only .

NOTE: If the burner flame is uneven, the Vermiculite may need to be changed or sifted to remove the smaller pieces that can block the burners

holes. The smaller pieces can ,cause uneven burn and the unit to run dirty.

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

Your Fire must be Installed and Tested by a suitably qualified Gasfitter prior to use.

To light :

• Open the front cover by pulling in outwards.

• Push in the ignition control switch and hold in the ‘PILOT’ position for 5-10 seconds until you can hear

the gas come through the pipe – making sure the ignition switch is pressed in firmly.

• To strike the igniter, turn anti clockwise to the * STAR position (with the ignition switch still firmly

pressed in) until you hear the pilot ignite with a ‘click’. Repeat this process 2 or 3 times if necessary.

• Once the pilot flame is lit, hold this position for 3-5 seconds, then gently let the ignition switch out, and

set the flame control to high. It may take a few seconds for the burner to light all the way across.

• Once the flame is established, adjust to the desired setting and close the cover.

To shut down :

• Open the cover by pulling it outwards.

• Turn the control ignition switch to ‘PILOT’ and the flame bed will extinguish.

• Pilot light may be left on and the pilot flame will still burn.

• To fully extinguish, turn to the ‘OFF’ position before closing the cover.

FASCIA KIT - Option of Black or Stainless Steel

• Locate the three self-tapping screws provided into the under-side of the top ledge of the firebox.

• Remove the backing tape from the adhesive Velcro pads at the bottom of each fascia side.

• Offer the fascia into position locating the three screws into their associated slots - tighten screws.

• Apply firm pressure to the bottom edges to bond the Velcro tape.

• The fascia may be removed at any time by loosening the screws and parting the Velcro.

Please refer to additional sheet for Burner Ratings and Frame-out details.

OPERATION OF YOUR WARMINGTON GAS CONVECTION FIRE (SG ONLY)

Note:

Fascia is fitted at the end of the installation

process and may be after the wall and

surroundings have been completed.

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

ADJUSTMENT OF HI - LOW PRESSURE (SG ONLY)

ADJUSTMENT OF THE PILOT—3 FLAME (BOTH SG & EG - adjustment by Gasfitter only)

Note* Control Valves are Factory Set but may require adjustment onsit .

Turn Appliance Off & Remove Front Plastic Cover on Igniter , Pull Cover to Slide off.

Unscrew Test Nipple on the Burner Manifold & fit the Test Gauge Securely - See Diagram

* To Set the High : Light the Burner & turn to High - Then Adjust the High Screw to the Desired Pressure. See Spec’s

* To Set the Low : Light the Burner & turn to Low - Then Adjust the Low Screw to the Desired Pressure. See Spec’s

Extinguish Appliance, remove Test Equipment and Secure Test Nipple.

* Check Valve & Burner for Correct Operation & check Fire for Gas Leaks.

Adjustment of High & Low Settings Must be Carried out by a Certified Gas Fitter Only.

Note: When the Base screw is removed, gas will leak from the out let, ensure that the pilot is

not adjusted or the screw is removed when the fire is burning.

• Adjustment of Pilot - 3 Flame : Unscrew Base Screw as shown in Diagram 2 .

• Insert a Screw Driver as shown in Diagram 3 and adjust the Adjustment Screw up inside

the 3 Flame Pilot to adjust the Flame Height.

• The Flame must always be passing over the Electrodes &/or File Tube on either side

• Replace the Base screw and check for leaks.

3 Flame Pilot in

Assembled State

Correct Operation of

3 Flame Pilot

Note: to Gasfitters

The 3 flame pilot may need adjust-

ment after a period of running time

on set up as the increase in heat in

the fire will induce a higher draft in

the fire, and may pull in flame away

from the File Tube causing the fire

to shut down.

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

Open windows and doors

Do not light any gas appliance

Do not use any electrical appliance or switches

Do not use the telephone in your home

Leave the building; shut off the domestic gas supply valve (beside your meter)

Call your gas supplier/gas fitter or the Fire Service for further advice.

WHAT DO YOU DO IF YOU SMELL GAS

*Lighting your gas fire using electronic or remote ignition systems may vary as per manufacturer instructions

Warmington Industries recommend annual servicing of your gas fire by an approved Warmington dealer Gas Fitter.

External surfaces should be dusted with a damp, lint-free cloth when the fire is cold.

Warmington Industries provide 12 months warranty from the date of purchase, for domestic or commercial installations

This Warranty Covers:

Replacement Parts and Labour for Gas Control Components due to Manufacturing Defects Only.

Repair or Replacement of the Burner or Firebox Components due to Manufacturing Defects Only.

Warranty cover will be considered void if the product is subject to incorrect installation, failure to operate the appliance in accordance with the

supplied instructions and specifications or is subject to damage or misuse beyond the expected conditions of normal use.

All installations and servicing must be carried out by and approved Warmington dealer or Gasfitter.

POINTS OF SAFTEY - To the Customer /Home-Owner

Your Warmington Gas Decorative Fire operates on the principle of dual radiant and convected heat. Therefore it is important to observe the

following precautions associated with any heating appliance or open fire.

• Do not cover or restrict the fireplace upper or lower vents in any way as this may result in a build-up of hazardous gases within the room.

• The fire is not intended for the drying of clothing, bedding etc.

• Avoid installing this appliance in high traffic areas, strong draughts or near drapes or furniture.

• The use of an approved fireguard is recommended for the protection of young children.

• Avoid using aerosols when the appliance is operating.

• Avoid anyone leaning against or lying directly in front of the fire while operating.

• Do not place anything objects into or against the gas fire at any stage.

• The fire may release a small amount of smoke on its first start up which may take 1or 2 hours to dissipate. This is part of the curing

process so ensure there is adequate ventilation within the room.

• Always use a registered Gas Fitter or Electrician for installing and maintenance work

• Always use certified gas cylinders that have been tested and are safe to use.

• Never modify your gas appliance or its settings from those specified by the manufacturer.

• The unit comes with a weathershield. This is for protecting the firebox and burner when not in use. NOTE: never run the burner with the

weathershield on the unit, and let the burner cool down before putting in back on.

APPLIANCE SAFETY Any gas fire appliance shall comply with the safety requirements of the current standards listed under ‘Related documents’

in this specification.

ELECTRONIC CONTROL SYSTEMS Any gas fire appliance fitted with manual or programmable electronic control systems shall be tested and/or

approved by a recognised person or authority.

SEISMIC RESTRAINTS All gas fires used for domestic and commercial purposes shall be firmly secured (unless defined as portable or mobile) to

MAINTENANCE: All burner setting, coal placement, and vermiculite is to be checked and set in accord-

ance with this specification by the service person/Gas fitter

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

ON-OFF ELECTRONIC CONTROL VALVE

Note: Any alterations to pressure are to be carried out by a certified gasfitter

• Light appliance and check the pressure to the hi kPa value in the table for maximum output.

• If adjustments are necessary, remove the dust cap on the control value. The pressure adjustment screw is on the front side of the

gas control valve and is factory set.

WARNING: Ensure that the dust cap is replaced after adjustment.

Pressure Setting:

• Turn the burner on with the switch and wait for full ignition. Using a standard screwdriver, screw the adjusting screw clockwise to

increase the outlet pressure, or screw counter clockwise to decrease the pressure to the desired settings.

• Set the pressure to the hi kPa value in the table for maximum output.

test point inlet

Modulator Harness Connections

1/2” BSPT gas outlet

SIT 840 Control Valve

test point outlet

1/2” BSPT gas inlet

adjustment

screw

• After checking the pressure, turn the unit off, remove manometer from the test point and tighten the test point screw. Ensure to

check for gas leaks.

• Turn the appliance on and off a few times to check ignition.

• When satisfied that the appliance is working correctly, fit the front panel assembly back to the gas burner.

Note : Ensure you peel the protective plastic coating from any stainless steel components if fitted.

• All burner aerations are factory preset and cannot be adjusted.

• If you are unable to get the unit to operate correctly, refer to troubleshooting before contacting your Local Service Contact.

• It may take approximately 2 hours of operation for the coals/logs or river rocks to achieve their full flame pattern and glow.

• During the initial burn period, some smoke and smell may be experienced. Because of this, run the appliance on the high position

in a well ventilated room until these dissipate.

29 March 2021

Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.

ON/OFF SWITCH (SIT 840) - WIRING DIAGRAM

This manual suits for next models

Table of contents

Popular Fireplace manuals by other brands

Baxi Fires Division

Baxi Fires Division Sonnet Plus 746 owner's guide

Warmington SG SN 1250 User manual

Popular Fireplace manuals by other brands
