WatchStar APOLLO AUTOMATON User manual
Instructions Booklet
InstructIons & Warranty
4
Contents
Welcome��������������������������������������������������������������������������������������������������������������� 5
Included in Your Watch Box���������������������������������������������������������������������������������� 6
Setting the Time ��������������������������������������������������������������������������������������������������� 8
Movements & Specications ������������������������������������������������������������������������������ 20
Sapphire or Hardened Mineral Watch Crystal with DiamondFX®Coating���������� 47
Water and Shock Resistant �������������������������������������������������������������������������������� 50
Frequently Asked Questions������������������������������������������������������������������������������� 53
Limited Warranty ������������������������������������������������������������������������������������������������ 57
Watch Repair������������������������������������������������������������������������������������������������������ 59
Service Center Request Form���������������������������������������������������������������������������� 61
Lady Star® Collection
Swiss Made
The copyrighted pictures and material herein may not be reproduced or transmitted in any form and may not
be disseminated without the express written consent of WatchStar, Inc.
5 6
Congratulations, and thank you for your purchase of a WatchStar®timepiece�
Our concept is simple: to empower our customers with authentic and aesthetically beautiful
timepieces� At WatchStar®
, we believe time is what you make of it, and greatness could be just a
few ticks away�
We never forget you have a choice and we thank you for choosing WatchStar®
�
watchstar.com
This manual contains important information regarding the operation and warranty of this timepiece�
Please retain for future reference� If you need any timepiece instructions or additional information,
please visit our website, www.watchstar.com�
• WatchStar®timepiece w/tags*
• Certicate of Authenticity**
• Large Card Description***
• Instruction and warranty booklet with cover
holder/sleeve
*Not all timepieces are labeled as “limited editions”.
**Certicate of Authenticity is included with DNA metal or material additives only, e.g. Gettysburg cannonball. Not all timepieces contain
a Certicate of Authenticity and metal or material will change with designated design or images at the sole discretion of WatchStar, Inc.
*** Large Card Description is included with DNA metal or material additives only, e.g. Africa 5000 Lunar Meteorite.
WelCome InCluded In Your WatCh Box
WARNING: Timepieces have small parts, e.g. screws,
bracelet links, metal parts and/or button cell batteries.
Please take precautions and never adjust the bracelet
or work on your timepiece around children under 7
years of age, as some of the small parts may cause a
choking hazard.
8
MOVEMENTS & COMPLICATIONS
Your WatchStar® timepiece contains one of these movement calibers. Once you have identied
your timepiece model, please carefully read the instructions for setting your timepiece�
MODEL VER. CALIBER / FEATURES PAGE
APOLLO®** 1�0 A007WS / Swiss Made; Hour & Minute Hands 43
AUTOMATON®Three (3) sub-dial automations
AMERICANSTAR®1�0 82S0 / Automatic; Three-hand; 21 Jewels 29
BELLISSIMO STAR®1�0 90S5 / Automatic; Three-hand; 24 Jewels 31
28800 vibrations per hour
DIVA STAR®1�0 656 SOPROD / Swiss Quartz; Two-hand; 4 Jewels 25
Seahorse, Crocodile, Koi No stem; Caseback electronic setting
DIVA STAR®2�0 656 SOPROD / Swiss Quartz; Two-hand; 4 Jewels 25
Stock Car, Spider No stem; Caseback electronic setting
Starsh, Golf
GETTYSBURG®** 1�0 2035 Super / Quartz; Three-hand 21
Gen. Robert E. Lee (CS), Gen. George E. Pickett (CS), Gen. J.E.B. Stuart (CS), Gen. James Longstreet (CS), Gen.
Wineld S. Hancock (US), Gen. George G. Meade (US), Gen. John F. Reynolds (US), Gen. George Armstrong Custer (US),
Colonel Joshua Chamberlain (US), Colonel William J. Covill Jr. (US)
settIng the tIme
WatchStar®is not associated or claims association with the DOD, NASA, any government agency, any
military, or any entity with regard to the authentic (DNA) metal and/or materials acquired. All trademarks,
images or description are the property of their respective owners and entities. Any usage, description and
terms are for the accurate description and reference to the specic metal or materials used in the WatchStar®
timepiece. Pictures without credit are from the National Archives.
Images or descriptions in the instructions booklet were accurate at the time of printing but we reserve the
right to add, modify, or delete any aspects of the designs or images at the sole discretion of WatchStar®. Some
images are computer generated in order to show intricate details and some parts, description or images may
have changed since the printing of this booklet.
SOURCE: NATIONAL ARCHIVES
9 10
settIng the tIme
MODEL VER. CALIBER / FEATURES PAGE
GOLF 1�0 A007WS / Swiss Made; Hour & Minute Hands 43
AUTOMATON®Three (3) sub-dial automations
HISTORIC DNA®** 1�0 2035 Super / Quartz; Three-hand 21
Titanic, 1912 Collection®
LADYSTAR®1�0 656 SOPROD / Swiss Quartz; Two-hand; 4 Jewels 25
No stem; Caseback electronic setting
LADYSTAR®2�0 610 SOPROD / Swiss Quartz; Three-hand; 4 Jewels 23
MILITARY DNA®** 1�0 TY2940 / Automatic; Chrono; 33 jewels 41
American P-51 Mustang, American B-17 Flying Fortress, British Supermarine Spitre, British Hawker
Hurricane, British Lancaster Bomber, German Dornier Do17, German Messerschmitt Me109, German
Ju87 Stuka, German Me Focke-Wulf 190A-9, Japanese A6M Zero, Japanese A6M3, Russian Ilyushin
Shturmovik
MOONWALKER®** 1�0 A007WS / Swiss Made; Hour & Minute Hands 43
AUTOMATON®Three (3) sub-dial automations
QUANTICO®** 1�0 OS10 / Quartz; Chrono; Three-hand 33
Top Secret / Blackhawk
**Certicate of Authenticity (COA) included.
settIng the tIme
MODEL VER. CALIBER / FEATURES PAGE
RED PLANET®** 1�0 A007WS / Swiss Made; Hour & Minute Hands 43
AUTOMATON®Three (3) sub-dial automations
SAMURAI 1�0 A007WS / Swiss Made; Hour & Minute Hands; 43
AUTOMATON®Three (3) sub-dial automations
SHURIKEN®1�0 TY2809 / Automatic; Three-hand; 21 Jewels 39
SUPERSTAR®1�0 TY2809 / Automatic; Three-hand; 21 Jewels 39
SUPERSTAR®2�0 TY2940 / Automatic; Chrono; 33 Jewels 41
ZENMASTER®2�0 TY2809 / Automatic; Three-hand; 21 Jewels 39
11 12
The Gettysburg Collection
Gettysburg Collection
General Meade
Scan the QR code with your
smart phone to see the
entire Gettysburg Collection
13 14
Gettysburg Address
Four score and seven years ago our fathers brought forth, on this connent, a new
naon, conceived in Liberty, and dedicated to the proposion that all men are created
equal.
Now we are engaged in a great civil war, tesng whether that naon, or any naon so
conceived and so dedicated, can long endure. We are met on a great bale-eld of
that war. We have come to dedicate a poron of that eld, as a nal resng place for
those who here gave their lives that that naon might live. It is altogether ng and
proper that we should do this.
But, in a larger sense, we can not dedicate – we can not consecrate – we can not
hallow – this ground. The brave men, living and dead, who struggled here, have
consecrated it, far above our poor power to add or detract. The world will lile note,
nor long remember what we say here, but it can never forget what they did here. It is
for us the living, rather, to be dedicated here to the unnished work which they who
fought here have thus far so nobly advanced. It is rather for us to be here dedicated to
the great task remaining before us – that from these honored dead we take increased
devoon to that cause for which they gave the last full measure of devoon – that we
here highly resolve that these dead shall not have died in vain – that this naon, under
God, shall have a new birth of freedom – and that government of the people, by the
people, for the people, shall not perish from the earth.
19 N ovember, 1863 Abraham Lincoln
SOURCE: NATIONAL ARCHIVES
15 16
SOURCE: NATIONAL ARCHIVES
“No man can put a chain about the ankle of his fellow man
SOURCE: NATIONAL ARCHIVES
17 18
Gettysburg Collection
General Lee
SOURCE: NATIONAL ARCHIVES
MoveMents & specIfIcatIons
Diva Star® Collection
Koi
Swiss Made
21 22

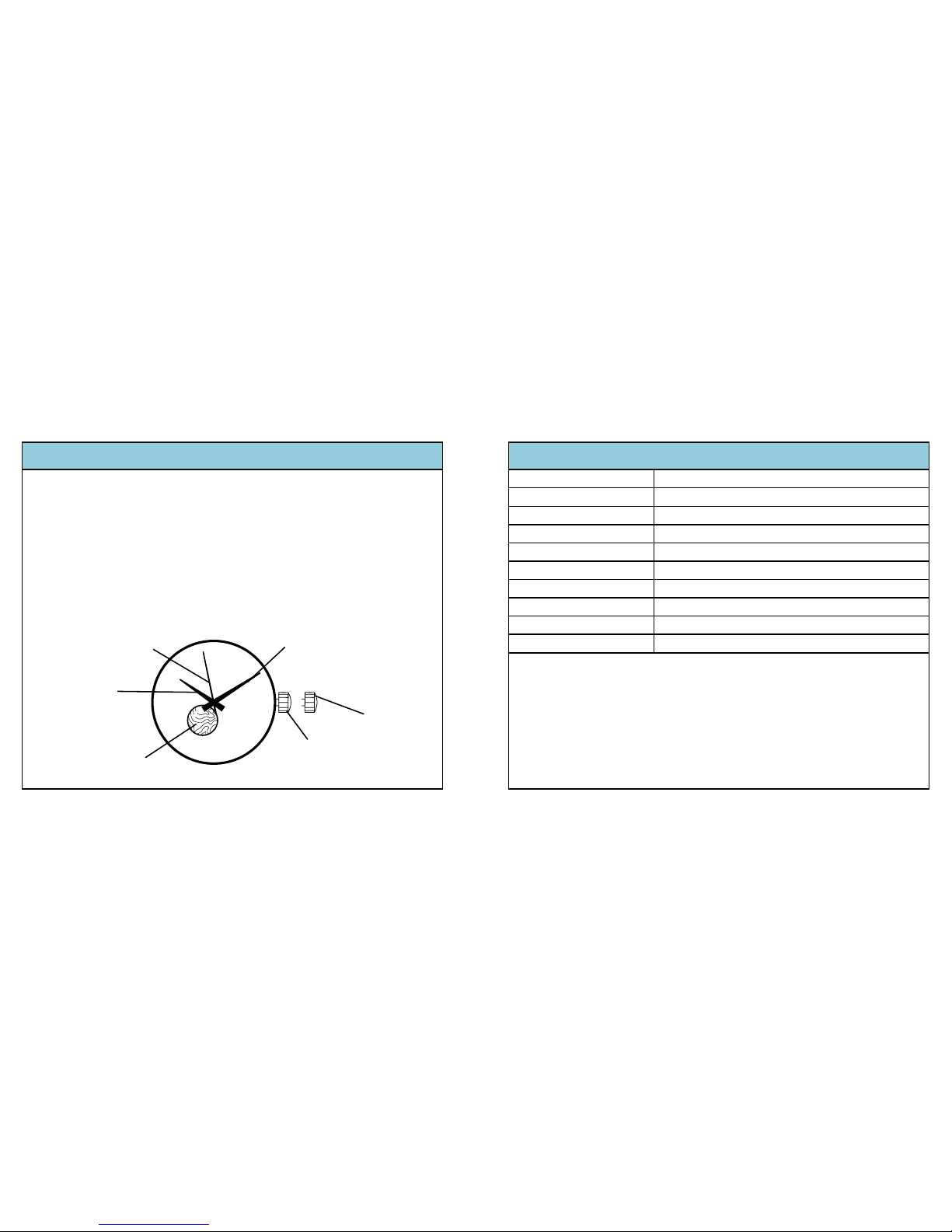

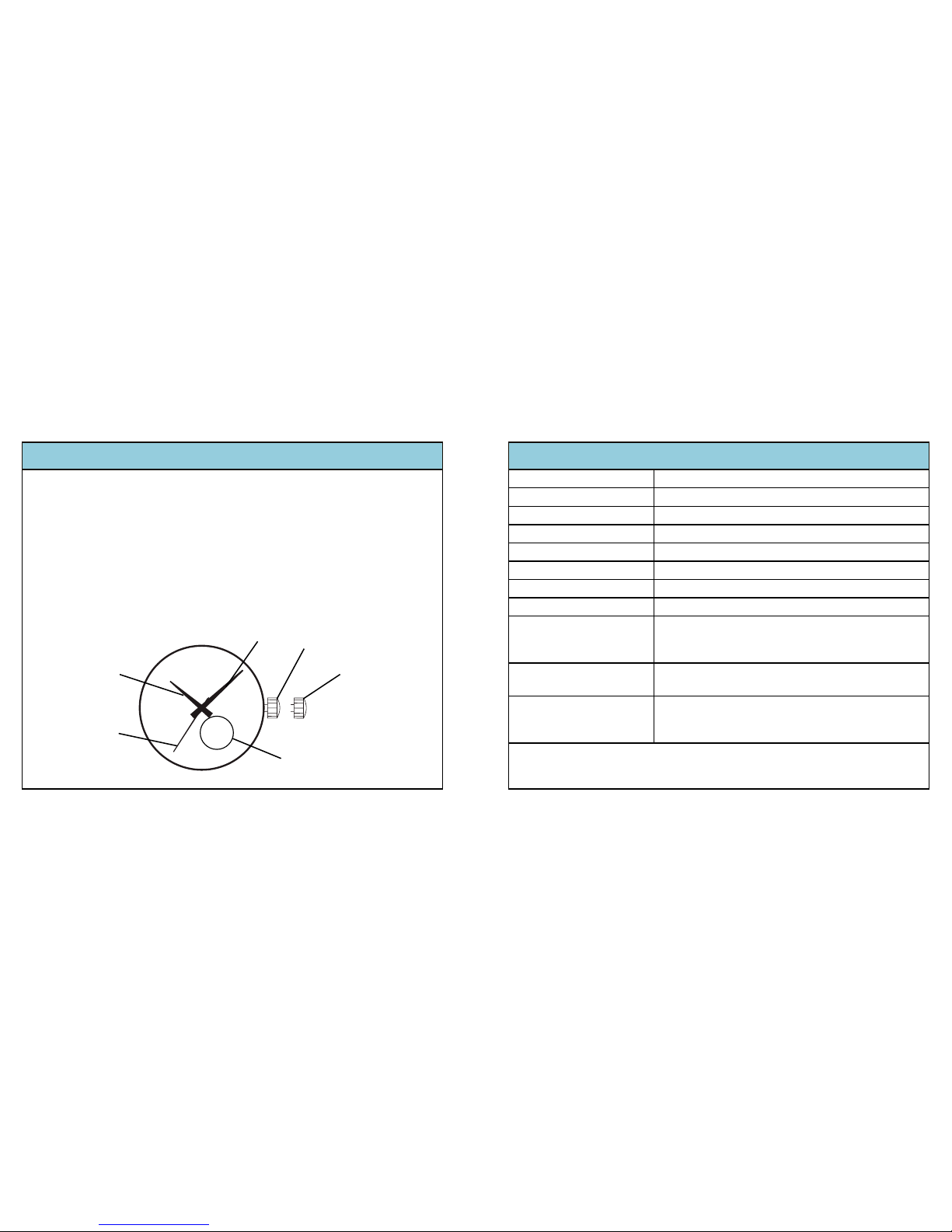

SETTING THE TIME
1� Pull the crown out to the 1st position�
2� Turn the crown to set hour and minute hands�
3� After the time has been set, push the crown back to the normal position�
Hour hand
Minute hand
Normal crown position
1st position
Seconds hand
Ligne 6-3/4x8’’’
Total Thickness 3�15mm
Hands 3 (H/M/S) at center
Vibration Frequency 32,768Hz
Accuracy ±20 seconds / month worn under normal circumstances
Battery Life 3 Years
Battery Silver oxide SR626SW or equivalent
Additional Mechanisms Two-pole stepping motor
Second hand stopping at optional position
Powercell saving reset mechanism
Over-loading compensation device
2035 SUPER caliber Instructions and Specications 2035 SUPER caliber Instructions and Specications
23 24
SETTING THE TIME
1� Pull the crown out to the 1st position�
2� Turn the crown to set hour and minute hands�
3� After the time has been set, push the crown back to the normal position�
Hour hand Minute hand
Normal crown position
1st position
Seconds hand
Movement Quartz Swiss
Ligne 10-1/2’’’
Diameter ø23�30mm
Total Thickness 2�62mm
Hands 3 (H/M/S) at center
Jewels 7
Battery 371
Theoretical Autonomy 55 months
610 SOPROD caliber Instructions and Specications610 SOPROD caliber Instructions and Specications
25 26
SETTING THE TIME
The movement has a contact stud (pusher) on the back which is used to set the time�
Please do not over-press the pusher as it could damage the movement.
1� Press one time on the pusher to advance the minute hand one step, along with the
mechanically-coupled minute hand�
2� Press and hold the pusher to make the coupled hands go forward until the pusher is
released�
Movement Quartz Swiss
Ligne 5-1/2’’’
Diameter ø15�55 x ø13�00mm
Total Thickness 2�6mm
Hands 2 (H/M) at center
Jewels 4
Theoretical Autonomy 48 months
Battery 379 Silver Oxide
Additional Mechanisms Back electronic setting
FRONT BACK
Hour hand
Minute hand
Contact stud
656 SOPROD caliber Instructions and Specications 656 SOPROD caliber Instructions and Specications
SOURCE: NATIONAL ARCHIVES
American P51 Mustang
Automatic Chronograph
29 30
SETTING THE TIME
1� Pull the crown out to the 1st position�
2� Turn the crown to set hour and minute hands�
3� After the time has been set, push the crown back to the Normal position�
WINDING THE MAINSPRING
Automatic winding watch can also be wound by turning the crown in the Normal position�
Wind a few times clockwise until seconds hand starts to move naturally�
Hour hand
Front view
skeleton
Minute hand
Normal crown
position
Crown 1st
position
Seconds hand
Ligne 11-1/2’’’
Diameter ø26�00mm
Total Thickness 5�67mm
Hands 3 (H/M/S)
Jewels 21
Vibration Frequency 21,600 per hour
Accuracy -20~+40 seconds/day
Running Time More than 40 hours
Winding Automatic & manual
Additional Mechanisms Shock-absorber for balance staff
82S0 caliber Instructions and Specications 82S0 caliber Instructions and Specications
31 32
SETTING THE TIME
1� Pull the crown out to the 1st position�
2� Turn the crown to set hour and minute hands�
3� After the time has been set, push the crown back to the Normal position�
WINDING THE MAINSPRING
Automatic winding watch can also be wound by turning the crown in the Normal position�
Wind 15 - 20 times clockwise until seconds hand starts to move naturally�
Ligne 11-1/2’’’
Diameter ø26�00mm
Total Thickness 3�90mm
Hands 3 (H/M/S)
Jewels 24
Vibration Frequency 28,800 per hour
Accuracy -10~30 seconds/day
Running Time More than 42 hours
Winding Automatic and hand winding� The mainspring becomes
fully wound by rotating the ratchet wheel 7�5 times (turn-
ing the crown 40 times)�
Automatic Winding
Structure
Winding direction:
Clockwise (looking from caseback side)
Additional Features Front view skeleton
Shock-absorber device for balance staff
Stop second device
90S5 caliber Instructions and Specications 90S5 caliber Instructions and Specications
Hour hand
Front view
skeleton
Minute hand Normal crown
position
Crown 1st
position
Seconds hand
33 34
SETTING THE TIME
1� Pull the crown out to the 2nd position�
2� Turn the crown to set hour and minute hands�
3� When the crown is pushed back to the normal position, the small seconds hand begins
to run�
Hour hand Minute hand
1
2
Normal crown
position
Chronograph
hour hand
Seconds hand Chronograph
minute hand
Button A
Button B
CalendarChronograph
seconds hand
0S10 SUPER caliber Instructions and Specications 0S10 SUPER caliber Instructions and Specications
SETTING THE DATE
1� Pull the crown out to the 1st position�
2� Turn the crown counter-clockwise to set the date�
NOTE: If the date is set between the hours of around 9:00 PM and 1:00 AM, the date
may not change on the following day.
3� After the date has been set, push the crown back to the normal position�
USING THE CHRONOGRAPH
This chronograph is able to measure and display time in 1/1 second united up to a
maximum of 11 hours 59 minutes 59 seconds� The chronograph second hand keeps
moving continuously for 11 hours 59 minutes 59 seconds after starting�
MEASURING TIME WITH THE CHRONOGRAPH
1� The chronograph can be started and stopped each time Button A is pressed�
2� Pressing Button B resets the chronograph� The chronograph seconds hand,
chronograph minute hand, and chronograph hour hand return to zero position�
35 36
Ligne 13-1/2
Diameter ø30�80mm
Total Thickness 4�13mm
Hands 3 (H/M/S) at center
Vibration Frequency 32,768Hz
Accuracy ±20 seconds / month worn under normal circumstances
Battery Life Approx� 3 years*
Battery Silver oxide SR927W or equivalent
Chronograph 1/1 sec� basis
(Up to 11 hour 59 min� 59 sec�)
Additional Features Powercell Saving Reset Mechanism (PSRM)
Over-loading Compensation Device (OLCD)
Digital Frequency Control (DFC) for time adjustment
(* 60 minutes chronograph operation per day)
0S10 SUPER caliber Instructions and Specications 0S10 SUPER caliber Instructions and Specications
CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)
This procedure should be performed when the chronograph seconds hand does not
return to zero position after the chronograph has been reset, and including after the
battery has been replaced�
1� Pull the crown out to the 2nd position�
2� Press Button A to set the chronograph second hand to the zero position� The
chronograph hand can be advanced rapidly by continuously pressing Button A�
3� Once the hands have been zeroed, return the crown to the normal position�
NOTE: Do not push crown to normal position while the chronograph seconds hand
returns to zero position. It stops on the way when crown is returned to normal position,
and its position at that time is recognized as zero position.
37 38
SOURCE: LIBRARY OF CONGRESS
This manual suits for next models
15
Table of contents
