WaveON MDH-501H User manual

1AON 5.1ch Gaming Headphone
AON Real 5.1ch Gaming HeadphoneCONTENTS
1. Content of Package
1. AON 5.1ch Headphone System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2. Specifications
2-1. AON 5.1ch Headphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2-2. AON Dolby Decoder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. Features
3-1. AON 5.1ch Headphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3-2. AON 5.1ch Headphone : Speaker Units . . . . . . . . . . . . . . . . . . . . . 4
3-3. AON 5.1ch Dolby Decoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3-4. AON IR Remote Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4. Installation and operation
4-1. Connecting AON Headphone and Decoder . . . . . . . . . . . . . . . . . . 6
4-2. Installation Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4-3. How to use AON Decoder and IR Controller. . . . . . . . . . . . . . . . . . 8
4-4. AON IR Remote Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5. FAQ & Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6. Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Thank you for your purchase of the AON 5.1ch Gaming Headphone of WaveON
Inc.
Please read this user manual before using AON and operate AON based on recom-
mended methods in this manual. Also, fill in the blank of the Product Warranty
Card and keep this card carefully for your troubleshooting.
Changes in specifications and features of AON may be made without notice or
obligation.
❖ Manufactured under License From Dolby Laboratories. "Dolby", "Pro Logic"
and the double-D symbol are trademarks of Dolby Labotatories.
Copyright©2006, WaveON Inc. All rights reserved

1. Content of Package
WaveON 2
▲ AON 5.1ch Headphone System
: MDH-501H (Headphone) + MDH-501D (Dolby Decoder)
①5.1ch Headphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1EA
②5.1ch Dolby Decoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1EA
③Optical Toslink Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1EA
④Remote Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1EA
⑤AC / DC Power Adater (220V, DC8V, 300mA) . . . . . . . . . . . . . . . . . . . .1EA
⑥User Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1EA
Copyright©2006, WaveON Inc. All rights reserved
①②③④⑤⑥

3. Features
WaveON 4
Copyright©2006, WaveON Inc. All rights reserved
▲ AON 5.1ch Headphone
①Front / Center Speaker
②Subwoofer Speaker
③Rear Speaker
④Headphone band
As a single type headband, the flexible and durable
hoop is equipped inside. The soft foam cushion
offers extremely comfortable wearing to users.
⑤Headphone ear cushion
Thin and soft material made ear cushion is designed
to cover up user's ear entirely to prevent fatigue
from the pressure of headphone.
▲ AON 5.1ch Headphone : Speaker Units

3. Features
5AON 5.1ch Gaming Headphone
Copyright©2006, WaveON Inc. All rights reserved
▲ AON 5.1ch Dolby Decoder
①PowerButton TurnsthepowerON/OFF
②VolumeUpButton AdjuststheVolumelevelup
③VolumeDownButton AdjuststheVolumeleveldown
④DualHeadphone
TerminalsConnectsthe5.1chheadphone
⑤IRLamp ReceivesIRsignalsfromIRcontroller
⑥DC-IN ConnectsthepowertoAON
⑦SPDIF-IN
ConnectstheexternalSPDIFTerminal
ofGameconsoles,DVDPlayer,and
multi-channelsoundcardetc.
⑧LEDDisplay
Displaysthestatusofsystem
• PWR:When"PWR"swithison.
• DolbyDigital:WhenDolby
Digitalsourceisplaying
• PL:whenDolbyProLogicand
2-chDolbyDigitalsource
isplaying
▲ AON IR Remote Controller
①PowerButton TurnsthepowerON/OFF
②MUTE DeletestheVolume
③TEST Testsall6chsound
④Volume Adjuststhevolume
⑤FUNCTIONButton AdujuststheDRCvalue
SelectstheStereoPCMMode

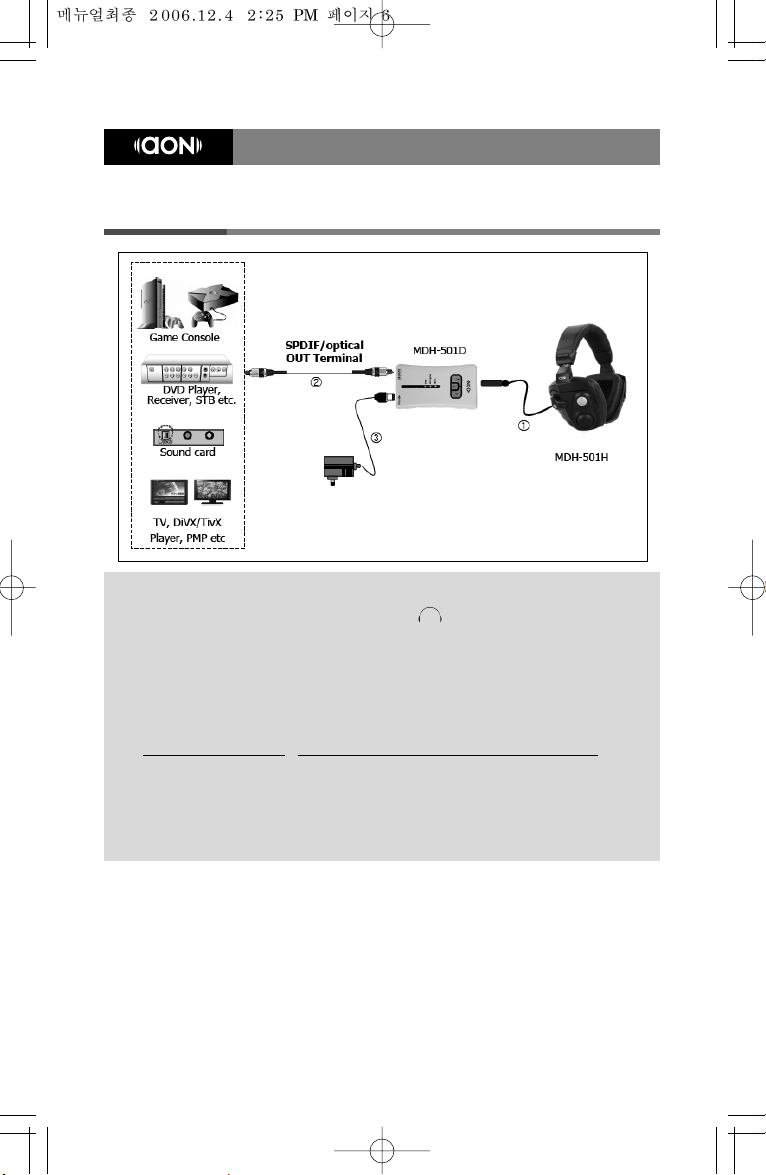

1. Connecting AON Headphone (MDH-501H) to Decoder (MDH-501D)
①Connet the cable with min-din jack to the " "terminal at the decoder.
❖ Dual mini-din jacks can accommodate two AON headphones.
2. Connecting user's device
②Connect the SPDIF (optical) jack to the "SPDIF-IN" at the decoder, then, connect
the SPDIF(optical) cable to the SPDIF/optical terminal at user's device.
❖If using the MicrosoftⓇX-BOX, the "Advanced AV Pack" is required.
3. Connecting Power
③Connect the power jack of adapter to the "DC-IN" Terminal at the decoder.
(The LEDs are once blinked and then off.)
4. Installation and operation
WaveON 6
Copyright©2006, WaveON Inc. All rights reserved
▲ Connecting AON Headphone and Decoder

4. Installation and operation
7AON 5.1ch Gaming Headphone
Copyright©2006, WaveON Inc. All rights reserved
▲ Installation Examples
• Game Console (with SPDIF / Optical OUT)
①Connect the SPDIF (optical) Jack to the "SPDIF-IN" at the decoder.
②Connect the SPDIF (optical) cable to the SPDIF-/optical OUT terminal at Game
Console.
❖If using the MicrosoftⓇX-BOX, the "Advanced AV Pack" is required.
• DVD Player, Receiver, STB etc (with SPDIF/optical OUT)
①Connect the SPDIF (optical) Jack to the "SPDIF-IN" at the decoder.
②Connect the SPDIF (optical) cable to the SPDIF-/optical OUT terminal at DVD
Player or Receiver etc.

4. Installation and operation
WaveON 8
Copyright©2006, WaveON Inc. All rights reserved
• Sound Card (with SPDIF/optical OUT)
①Connect the SPDIF (optical) Jack to the "SPDIF-IN" at the decoder.
②Connect the SPDIF (optical) cable to the SPDIF/optical OUT terminal at Sound
Card
❖In case of mini-optical terminal supported only at user's device, user needs
Toslink-mini optical converting jack/cable.
▲ How to use AON decoder and IR Contoller
①Power button : Turns the power ON/OFF
②Volume Up button : Adjusts the Volume level up
③Volume Down button : Adjusts the volume level down
④LED Display Panel : Displays the status of the source
•PWR : When power is ON
•Dolby Digital : When Dolby Digital source is playing
•PL : When Dolby Pro Logic decoding is engaged for 2-channel PCM.
•For a two-channel Dolby Digital signal, Dolby pro logic decoding
will be if active if the signal has been encoded with Dolby Surround.

4. Installation and operation
9AON 5.1ch Gaming Headphone
Copyright©2006, WaveON Inc. All rights reserved

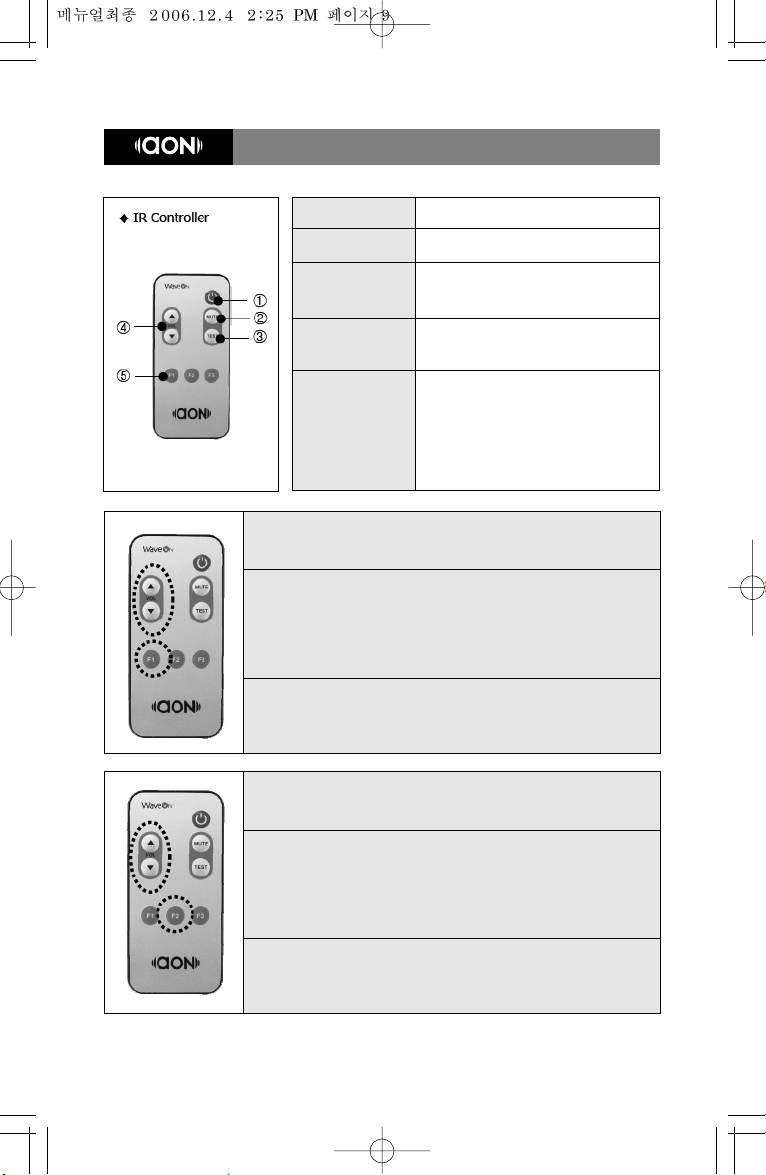

①PowerButton TurnsthepowerON/OFF
②Mute Deletesthevolume
③TEST
Testsall6chsound
• FrontLeft→ Center→ FrontRight→
RearLeft→ RearRight→ Subwoofer
④VOL
AdjuststheVolume
• DolbyDecoder'sbuttonsareblinked
asVOLisPressed.
⑤FUNCTTION
BUTTON
•F1+VOL :
AdjustsDRC(HighLevelCut)Value
•F2+VOL :
AdjustsDRC(LowLevelBoost)Value
•F3+VOL :
ChangesthecurrentmodetoStereo
PCMPressF3againtoreturntothe
currentmode
Adjusting
"DRC (Dynamic Range Compression) High Level Cut"Value
① Press F1 button →press the volume up/down button
: Dolby Digital LED is blinked two times then DRC value is
increased or decreased as volume up and down button
pressed. When DRC value reaches maximum or minimum,
Dolby Digital and PL LEDs are blinked by turns.
② Press F1 button again
: The adjusted DRC value is saved and returns to the nor-
mal mode.
Adjusting
"DRC (Dynamic Range Compression) Low Level Boost"Value
① Press F2 button →press the volume up/down button
: Dolby Digital LED is blinked two times then DRC value is
increased or decreased as volume up and down button
pressed. When DRC value reaches maximum or minimum,
Dolby Digital and PL LEDs are blinked by turns.
② Press F2 button again
: The adjusted DRC value is saved and returns to the nor-
mal mode.

5. FAQ & Troubleshooting
WaveON 10
Copyright©2006, WaveON Inc. All rights reserved
❖When the product is unplugged , DRC is restored to the default setting value.
❖Turning off the product by power button on IR controller and decoder conserves
the changed values.
Q) What do " Dolby Digital" and " PL" mean?
▲ FAQ & Troubleshooting
A) “Dolby Digital” means Dolby Digital which supports up to 5.1 channels (center,
front left, front right, subwoofer, rear left, rear right) of discrete surround sound.
When the sources (movie, music or game) outputs a Dolby Digital bitstream, the AON
decoder detects this and reproduces the sound through the six speakers of the AON
headphones.
A) “PL” means Dolby Pro Logic, which decodes a 2-channel signal into 4 channels.
(center, front left, front right, rear). When the source is 2-channel, the AON decoder
uses Dolby Pro Logic to expand the sound to play through the four speakers of the
AON headphone. A two-channel Dolby Digital bitstream can also be expanded to four
channels using Dolby Pro Logic.
A) The status LED’s on the front panel show which type of decoding is active.
Q) “I can’t hear any sound from headphone after correct connecting the system when
my game console is ON. What is wrong?”
A) Please check the optical cable and headphone cable are stably connected.
A) Please check the decoder is ON.
A) Please check the volume of decoder and all other connected devices is at proper
level.
Q) Can two people use this AON system at the same time?
A) Yes. you can plug another AON headphone into one decoder, but you have to buy
one more headphone additionally.
Q) I have a different type of optical terminal at my device, from enclosed optical cable.
What can I do?
A) In case your device has min- optical terminal, you need to purchase toslink-mini
optical converting jack.
❖Please always use the power adapter in AON package or use the another power
adapter which has the same specification, when lost.
❖Please unplug the power adapter when you’re not using AON for a long time.

6. Safety Information
11 AON 5.1ch Gaming Headphone
Copyright©2006, WaveON Inc. All rights reserved
This Safety Information presents important information for safe and effective use
for AON. Please read carefully and observe the guidelines.
❖Symbols are indicating their level of importance as below ;
Warning : Violation of this symbol results in serious damages to AON and users.
Caution : Violationof this symbol causes the minor damages to AON and users.
Warning
• Never attempt to repair and dismantle AON yourself.
• Place use AON away from the children and babies.
• Keep AON away from the moisture and humidity. Also, AON needs to be avoided
the excessive temperature, over 35°C and below -5 °C.
• Unplug and call instantly to AON service center for advice when AON produces
fire, fume and strange odor.
• Be sure to use the enclosed power adapter. Connection to an improper power
adapter may cause fire.
• Do not pull the cable connected to AON headphone.
• Do not spill water or other liquid into AON. It may lead to fire.
• Do not allow external objects to cover or insert into air-ducts and other space of
AON headphone.
• Do not allow external objects to cover or insert into air-ducts at the bottom of
AON decoder and other unused jacks.
• Replace the battery when IR controller is not working. Be sure to use the same
specification of the battery which is 3V lithium battery.
• Do not use enclosed power adapter with other devices.
• Do not directly see the red light, inside of the enclosed optical cable during operation.
• Be sure to unplug the power adapter when cleaning AON. Wipe gently the sur
face of AON with dried and smooth cloth. Do not use benzol, thinner, alcohol,
lubricant andother hazardous liquid for AON decoder.
CONDITIONS
AON Headphone
AON Decoder/etc.

Caution
• Minimize or adjust the volume on the connected devices to proper level when you
use AON in order to protect ears.
• Do not use AON at inappropriately high volume level. This may cause damages on
your hearing.
• Do not pull the plug of power adapter and unplug AON before leaving it unused
for an extended period.
• Do not throw, drop, put pressure and place heavy objects on the top of AON.
These causes breakage and misoperation.
• Place AON on the firm, stable and horizontal surface. AON may be broken or
injured if dropped.
• Do not drop AON headphone and extend head band excessively.
• Do not use the sharp objects with headphone. Ear pad, head band and head
phone body can be damaged.
• Do not press the surface of AON decoder excessively during operation.
These causes breakage and misoperation.
• Do not use AON decoder with other devices.
• Do not fold the optical cable and protect it from impact.
• Press the buttons of AON decoder with proper pressure and do not operate two
or more buttons together.
6. Safety Information
WaveON 12
Copyright©2006, WaveON Inc. All rights reserved
CONDITIONS
AON Headphone
AON Decoder/etc.

7. Warranty
Copyright©2006, WaveON Inc. All rights reserved
▲ Product Warranty
①Warranty period of the product is 1(one) year after your purchase.
②During this warranty period, the product which has damages, breakdown and
malfunction under user’s fair operation in accordance with the guidelines defined
and implied in this manual will be covered by product warranty policy, therefore,
the product can be replaced by new and/or repaired one under maker’s expense.
However, this expense of repair and/or replace should be under user’s expense
when warranty period is expired.
③Although the warranty period is valid, user should bear all expenses (including
transportation charges) of repair and / or replace, in case of followings :
• Damages, breakdown, Malfuntion by,
- the act of God
- user's negligence and misoperation.
- dismantlement, disassembly, transformation, modification, replacement of
the components and/or any operations that prohibited and unrecomended.
WARRANTY CARD
Please keep this card carefully. You may be requested to present this card for your
troubleshooting and this card cannot be issued again.
Product Name AON REAL 5.1CH GAMING HEADPHONE
Model Name MDH-501H MDH-501D Serial No.
Purchase Date YY / MM / DD
Warranty
Period 1 YEAR AFTER PURCHASE
Customer's Info
NAME TEL
ADDRESS
Purchase Info NAME OF
STORE TEL
13 AON 5.1ch Gaming Headphone

CAUTION: Changes or modifications not expressly approved by the manufacturer
responsible for compliance could void the user’s authority to operate the equipment
WARNING
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
INFORMATION TO USER:
This equipment has been tested and found to comply with the limit of a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation; if this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
1. Reorient / Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit difference from that to which
the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help
