Waversasystems WSmartHUB User manual

WSmartHUB
Owner’s Manual

Important Notice
1. Read these instruction manual
2. Keep the manual
3. Keep remind all warnings
4. Follow all instructions
5. Do not use this equipments near water or moisture
6. Clean only with dry cloth
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions
8. Do not use near any heat sources such as radiators, stoves or heat registers
9. Use grounding-type plug
10. Use only attachments/accessories specified by the manufacturers
11. Unplug this equipmentduring lightning storms or when unused for long periods of time
12. Refer all servicing to qualified service personnel. Servicingis required when the
equipment has been damaged inany way, such as power-supply cord or plug is
damaged,liguidhas been spilled or objects have fallen into the equipment, the equipment
has been exposed to rain or moisture, does not operate normally, or has been dropped.
Manufacturer does not take any responsibility for repairing due to misused operation
13. Do not put any liquidmaterial onto the equipment
14. Remove plug after checking the equipment power is off. Otherwise, it may cause
equipment failure.
WARNING: Unqualified personnel are not able to repair this equipments.
To reduce the risk of electric shock, do not open bottom cover on purpose.
WSmartHUB Owner’s Manual 01

About Waversa Systems
Thanks for choosing
Waversa Systems’ WSmartHUB.
Recent development of innovative IT/ Digitaltechnology brings
vast changes in concept and environment of old Analog based
High-end Audio market.
Waversa Systems is leading
New High-end Audio paradigm combining world top class IT with
digital technology under the goal of developing sophisticated
sound and design.
Waversa Systems is
Happy with your purchasing equipments and promises to become
best partners for your audio life.
CEO Junho Shin
WSmartHUB Owner’s Manual 02

- Front
①Power button (Auxiliary Power Control)
②IR remote sensor
③LCD Panel
④Menu/Select buttion
- Rear
①4 Port Ethernet Hub
②USB Hub A Port
③USB Hub B Port
④DC Input : 9V /2A recommended
WSmartHUB Owner’s Manual 03
Front/Rear Description
④
①② ③
④
① ② ③

DC Power On / DC Power Off / Auxiliary Power
WSmartHUB Owner’s Manual 04
•DC Power On
•Turn on bottom batteryswitch and then plug DC connector
•If user plug DC connector whilebattery switched off then
screen display “WAIT” until battery switch turned on.
•DC Power Off
•Unplug DC connector and turn off bottom battery switch
•Auxiliary Power On/Off
•When user press power button then it will turn off non-
battery operated parts(HUB function will keep working)
•However if WSmartHUB need to be charged then it will
automaticallyturned on.

Normal Operation
WSmartHUB Owner’s Manual 05
•Battery Status
•B1 : Battery Bank 1
•B2 : Battery Bank 2
•Active Bank : Upper side
•Charging Bank : Lower left
•USB Voltage Monitor
•Show USB BUS Power voltage
ex) B1 discharging and current voltage is 7.83V, B2 is charging and
current voltage is 8.20V. USB VBUS voltage is 5.01V.

How to Force Charging when Fully Discharged
WSmartHUB Owner’s Manual 06
•When fully discharged then LCD indicate “WAIT” or “CHARGE”
•Then turn off battery switch and plug DC connector for about 6
hours.
•Unplug DC connector and turn on battery switch.
•Plug DC connector and check battery voltage for each bank
•Normal range is 7.5V ~ 8.4V
NOTICE : Do not leave unplugDC connector while battery switch
turned on. It will cause fullydischarge and battery performance will
be degraded.

Menu Description
- Charge Mode
WSmartHUB Owner’s Manual 07

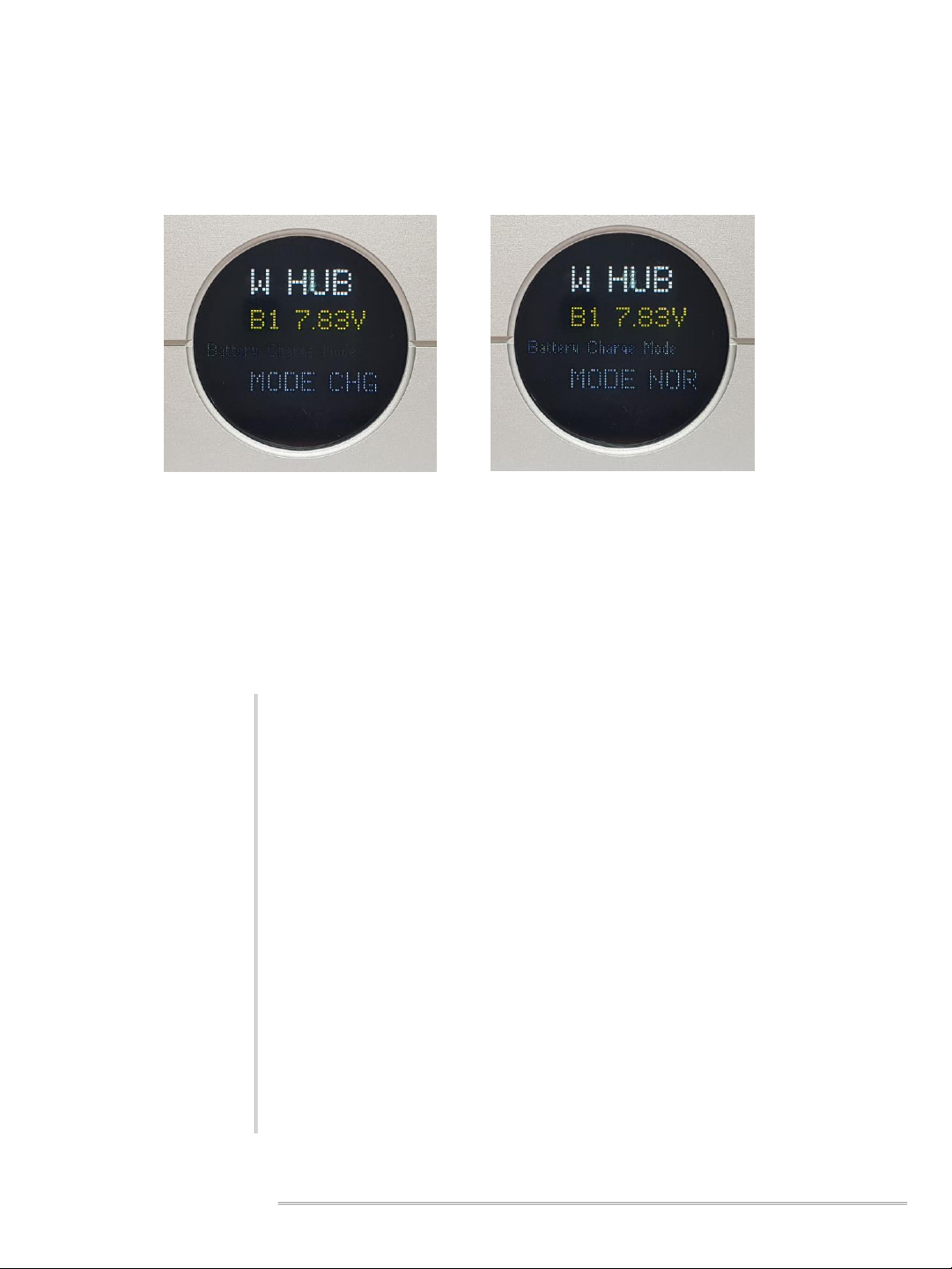

Battery Charge Mode
1. MODE CHG : Charge Priority Mode
1. This mode does not wait until fullydischarged and switch to
the other battery bank.
2. If user uses heavy load then CHG mode is recommended.
2. MODE NOR : Discharge Priority Mode
1. This mode wait for fully discharged and switch to the other
battery bank.
2. If user uses minimum load then NOR mode is
recommended.

Menu Description
- Battery Switch Threshold
WSmartHUB Owner’s Manual 08
Battery Switch Threshold
1. SW 3.3V : Ethernet Only Mode
1. If user uses Ethernet only then this mode is recommended.
2. This mode does not care about 5V USB VBUS.
2. SW 5V
1. If user uses USB then it is stronglyrecommended
2. This mode care about stable 5V USB VBUS.

Menu Description
- Screen On/Off
WSmartHUB Owner’s Manual 09
Screen On/Off
Automatic screen turn off control when SCR OFF. It will turn on when
user wants enter menu or check status by pressing buttons.

Menu Description
- Main Screen Off Timeout
WSmartHUB Owner’s Manual 10
Main Screen(including charging system) Off Timeout
1. TMR OFF : Does not turn off
2. TMR 60m ~ 90m : Turn off when the specified time elapsed.
1. Turn off all Non-battery operated part will be turn off
2. If WSmartHUB need to be charged while turned offed then
it will automatically turned on.

Menu Description
- Update Firmware
WSmartHUB Owner’s Manual 11
Update Firmware
Press “select” then WSmartHUB will connect to Waversa Update
server and update to new firmware if exist.
NOTE : Internet should be connected. And please unplugand plug DC
connector before update firmware(reboot).

Menu Description
- Force Battery Switch
WSmartHUB Owner’s Manual 12
Force Battery Switch
Press “select” then WSmartHUB will switch battery to the other
battery bank. This menu is useful for identify actual battery voltage of
each bank.

Rear Connection
- Ethernet / USB / Power Supply
WSmartHUB Owner’s Manual 13
①Router, DAC, NAS can be connected to Ethernet Port
②USB A port is for USB DAC –USB DAC should not use 5V
VBUS power. If5V output is used by external DAC then
battery bank will be depleted.
③USB B port is for PCor Network Player

Specification for the WSmartHUB
WSmartHUB Owner’s Manual 14
OS
Main System Clock
Battery
Power Supply
DC Supply
Dimension
Weight
NOTES: All specifications are accurate at the time of printing.
Waversa Systems reserves the right to adjust specifications without
notice.
Linux 2.8 with 400MHz ARM9 Processor
Quad 2000mAh Lithum-polymer Battery.
W 180 x L 150 x H 37 (Spike 7 mm)
2 Kg
Precision MEMS Clock for Processor, Ethernet Switch and USB Hub.
All linear power supply system inside of WSmartHUB
DC 9V / 2A Adapter 90~120 VAC / 180~240 VAC @ 50~60Hz

403, 10-9, Hwangsaeul-ro 258beon-gil,Bundang-gu,
Seongnam-si,Gyeonggi-do, Republic of Korea
http://www.waversa.com
email: jun[email protected]
Copyright 2017 Waversa Systems
