Sunricher SR-ZG2833PAC-S4 User manual

09.ZG2833PACS4.04839
Function introduction
Important: Read All Instructions Prior to Installation
Product Data
Product Description
The Zigbee push-button coupler for scene control is a 4-channel push-button interface for simple wall/flush type box
installation. You can continue to use existing switches, irrespective of the manufacturer. It is a wireless transmitter that
communicates with Zigbee light device that supports Green Power feature. The coupler adopts AC100-240V power input
to power a built-in transmitter. This transmitter sends wireless radio signals that are used to remotely control compatible
devices.
It enables to learn and control Zigbee light devices that supports Green Power feature and control 4 scenes for the
paired light devices with 4 push buttons.
Compatible With
Zigbee Green Power (included in Zigbee 3.0)
Zigbee Push-button Coupler for Scene Control
43.00 mm
49.81 mm
100-240VAC Power Input
4 channels push button interface
15.15 mm
COM
K1
K2
K3
K4
L N
In-wall
Remote Control
Made in China
Green Power Device
• DO NOT install the device with power applied.
• DO NOT expose the device to moisture.
Safety & Warnings
Wiring Diagram
Notes for the diagrams:
L - terminal for live lead input
N - terminal for neutral lead input
K1, K2, K3, K4 -
COM - common
terminals for push buttons
terminal for grounding to the push buttons connected to the coupler
PUSH
Button 2
PUSH
Button 3
PUSH
Button 1
PUSH
Button 4
L
N
COM
K1
K2
K3
K4
L N
In-wall
Remote Control
Made in China
Green Power Device
Note: 1) Number of push buttons connected can be 1/2/3/4.
2) Supported switch types: 1-gang 1 way, 2-gang 1 way, 3-gang 1 way, 4-gang 1 way.
Switch Type
Transmission Range
Radio Frequency
Power Supply
Power Consumption
Number of Push Buttons
Connector Type
Wire Size
Dimensions
Operating Temperature
Working Humidity
Waterproof Grade
Warranty
Scene
10-30m (typical)
2.4GHz
100-240VAC, 50/60Hz
Less than 0.5W
4
Push-In
0.2 - 1.5mm2 (AWG28 - AWG14)
49.8x43x15.1mm
-20 ℃ ~ +45 ℃
10% ~ 95% RH non-condensing
IP20
5 years

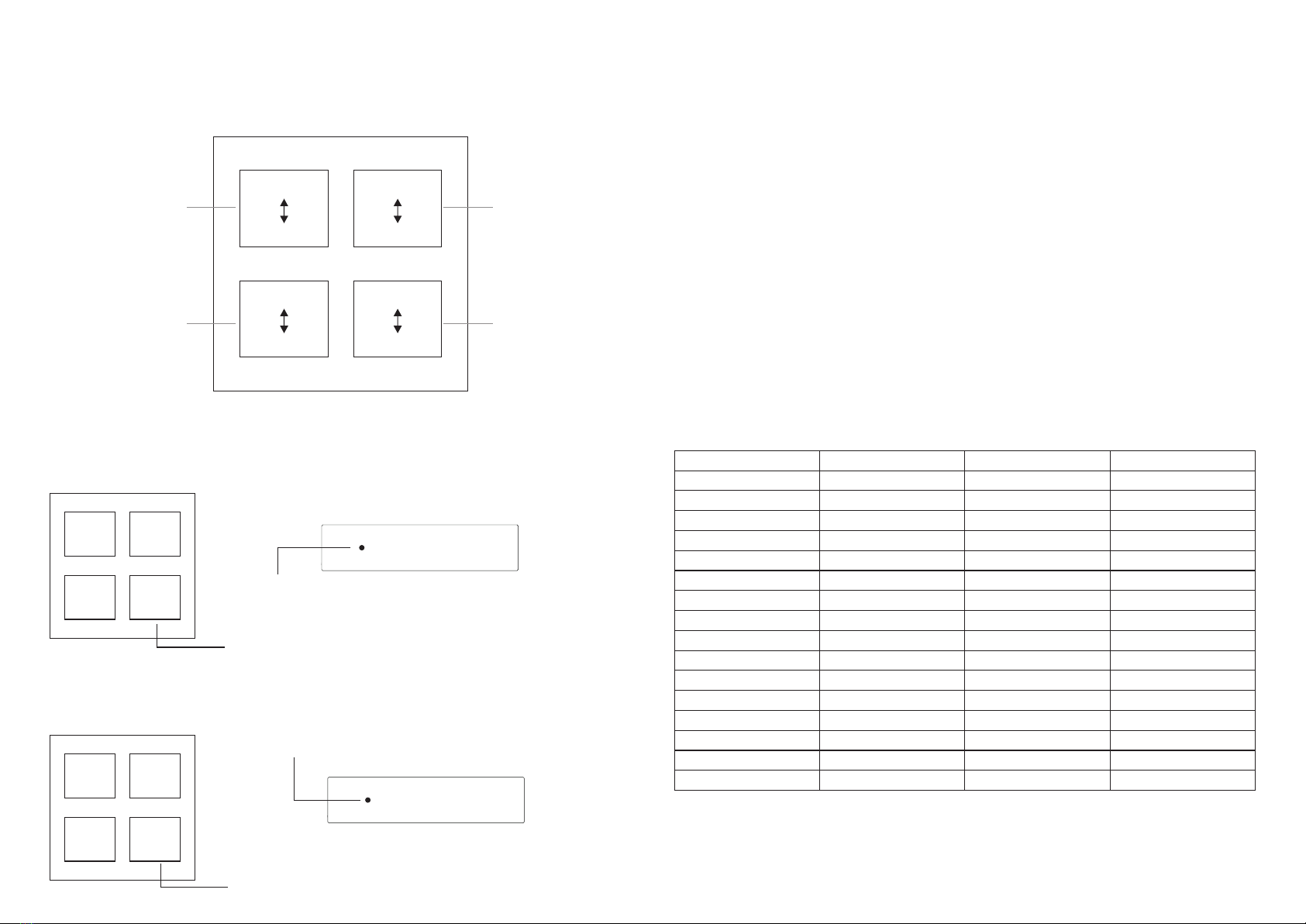

Corresponding button functions of the 4 connected push buttons
Push button wiring as follows:
Push Button 1 connecting to terminal K1
Push Button 2 connecting to terminal K2
Push Button 3 connecting to terminal K3
Push Button 4 connecting to terminal K4
PB 3
PB 4
PB 1
PB 2
Scene 1
Scene 2
Press and hold until light
devices flash to save a
scene to scene 1, short
press to recall the saved
scene
Press and hold until light
devices flash to save a
scene to scene 2, short
press to recall the saved
scene
Press and hold until light
devices flash to save a
scene to scene 3, short
press to recall the saved
scene
Press and hold until light
devices flash to save a
scene to scene 4, short
press to recall the saved
scene
Scene 3
Scene 4
Note: a Zigbee gateway or another remote switch is required to select RGB color, CCT, brightness for the scenes.
Operations
Pairing GP Switch to a Compatible Zigbee Light Device(Easy Mode):
Delete Pairing to a Paired Zigbee Light Device(Easy Mode):
Step 3: Click any of the 4 buttons on the GP switch 4 times continuously, e.g. button
PB 4. LED lights connected with the device flicker twice means the light device is
paired to the GP switch successfully.
Note: one light device can be paired with max. 20 GP switches.
Step 1: Do wiring the Zigbee light device according to wiring diagram(please refer
to the instruction of the light device that you would like to pair to)
Step 2: Click the “Prog.” or “Reset” button on the light device 4 times continuously to
set it into pairing to GP switch mode
Prog.
Zigbee Light Device
PB 3
PB 4
PB 1
PB 2
Step 2: Click any of the 4 buttons of the paired switch 4 times continuously, e.g.
button PB 4. LED lights connected with the device flicker 4 times means the pairing to
the switch is deleted successfully.
Step 1: Click the “Prog.” or “Reset” button on the light device 3 times continuously to
set it into delete pairing to GP switch mode
Prog.
Zigbee Light Device
PB 3
PB 4
PB 1
PB 2
Pairing GP Switch to a Compatible Zigbee Light Device(Standard Mode):
Step 1: activate learning to GP switch mode of the compatible light device (generally our light devices will enter the
mode by short pressing “prog.” or “reset” button 4 times, or by resetting power 4 times), please refer to the manual of
corresponding light device.
Step 2: put the GP switch into learning mode.
To enter into learning mode, start by selecting one button on the switch. (Use the same button for the entire sequence,
pressing any other button will exit the learning mode.)
Next, execute the following sequence:
1. Press and hold the selected button for over 10 seconds, and then release it.
2. Short press the button once, and then release it.
3. Press and hold the button again for over 10 seconds, and then release it
The switch has now entered learning mode.
Wait for approximate 1 second to check whether there is indication on the light device for successful pairing, generally
our light device will blink twice to indicate successful pairing.
Exit learning mode on the switch by pressing any other button on the switch after pairing successfully. Just
ignore step 3.
If there is no indication, please continue executing step 3.
Step 3: Cycle through the sixteen Zigbee channels
A radio signal needs be sent from the switch to the compatible light device on the correct Zigbee channel, the light device
uses one of the sixteen possible channels, automatically set the device. Using the switch, a signal will be sent on each
channel until the channel used by the light device is found.
Upon entering learning mode, the signal will be sent by the switch on default channel 11. Please refer to the following
chart of the Zigbee channels and the corresponding radio frequencies (in MHZ).
Channel ID
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Lower Frequency
2404
2409
2414
2419
2424
2429
2434
2439
2444
2449
2454
2459
2464
2469
2474
2479
Center Frequency
2405
2410
2415
2420
2425
2430
2435
2440
2445
2450
2455
2460
2465
2470
2475
2480
Upper Frequency
2406
2411
2416
2421
2426
2431
2436
2441
2446
2451
2456
2461
2466
2471
2476
2481
If there is no indication on the light device for successful pairing, the signal sent by the switch is not on the correct
channel, we need to change the switch’s channel.
To change the switch’s channel, short press the selected button to move from default channel 11 to the next
one. For each such button press, the switch transmits on the next channel.

Installation
1
L
N
L
N
Zigbee
PBC
2
Zigbee
PBC
3
After each such button press, please wait for approximate 1 second to check whether there is indication on the light
device for successful pairing.
If pairing successfully, please exit learning mode on the switch. If channel 26 has been reached, but there is still no
indication, it might because the switch has not entered learning mode yet since the very start. We have to repeat the step
2 to put it into learning mode.
Delete Pairing to a Paired Zigbee Light Device(Standard Mode):
Step 1: activate delete learning to GP switch mode of the paired light device (generally our light devices will enter
the mode by short pressing “prog.” or “reset” button 3 times, or by resetting power 3 times), please refer to the manual of
corresponding light device.
Step 2: put the GP switch into learning mode.
To enter into learning mode, start by selecting one button on the switch. (Use the same button for the entire sequence,
pressing any other button will exit the learning mode.)
Next, execute the following sequence:
1. Press and hold the selected button for over 10 seconds, and then release it.
2. Short press the button once, and then release it.
3. Press and hold the button again for over 10 seconds, and then release it
The switch has now entered learning mode.
Wait for approximate 1 second to check whether there is indication on the light device to indicate that pairing is deleted,
generally our light device will blink 4 times, which means the pairing is deleted successfully.
Exit learning mode on the switch by pressing any other button on the switch after pairing deleted. Just ignore
step 3.
If there is no indication, please continue executing step 3.
Step 3: Cycle through the sixteen Zigbee channels
If there is no indication on the light device to indicate that pairing is deleted, the signal sent by the switch is not on the
correct channel, we need to change the switch’s channel.
To change the switch’s channel, short press the selected button to move from default channel 11 to the next
one. For each such button press, the switch transmits on the next channel.
After each such button press, please wait for approximate 1 second to check whether there is indication on the light
device to indicate that pairing is deleted.
If pairing deleted successfully, please exit learning mode on the switch. If channel 26 has been reached, but there is still
no indication, it might because the switch has not entered learning mode yet since the very start. We have to repeat the
step 2 to put it into learning mode.
Signal Repeating Function of the Compatible Light Devices
The compatible light devices can repeat the received wireless signal from the switch, only when all light devices are
added to the same Zigbee network can they repeat the received signal. There are 3 different situations as follows:
1. If you have a gateway controller and light devices, please add all light devices to the gateway first, then pair the GP
switch to all light devices one by one.
2. If you have only light devices and battery/AC powered Zigbee remote, please set up a Zigbee network using the light
devices and Zigbee remote, then pair the GP switch to all light devices one by one.
3. If you only have light devices, please use a light device to set up a Zigbee network first, then add other light devices to
the network (please refer to the light device manual), then pair the GP switch to other light devices one by one.
