WeatherSpy WS1066 User manual

Wireless Weather Station with Outdoor Sensor
WS1066

WIRELESS WEATHER STATION
INSTRUCTION MANUAL
MODEL: WS1066
Page
1 INTRODUCTION..........................................................................................................................................- 4 -
1.1 PACKAGE CONTENTS..............................................................................................................................- 4 -
1.2 FEATURES..................................................................................................................................................- 4 -
2. OVERVIEW.....................................................................................................................................................- 5 -
2.1BASE UNIT-LCD .........................................................................................................................................- 5 -
2.2 WEATHER FORCASTING DISPLAY ： .....................................................................................................- 5 -
3. OPERATE DESCRIPTION ...........................................................................................................................- 5 -
3.1 POWER ON RESET ....................................................................................................................................- 5 -
3.2 TIME MODES DISPLAY.............................................................................................................................- 6 -
3.3 CLOCK ALARM MODES............................................................................................................................- 7 -
3.4 BAROMETRIC PRESSURE MODES..........................................................................................................- 9 -
3.5 AMBIENT TEMPERATURE&HUMIDITY ALARM MODES ...................................................................- 10 -
3.6 DATE MODES:.........................................................................................................................................- 13 -

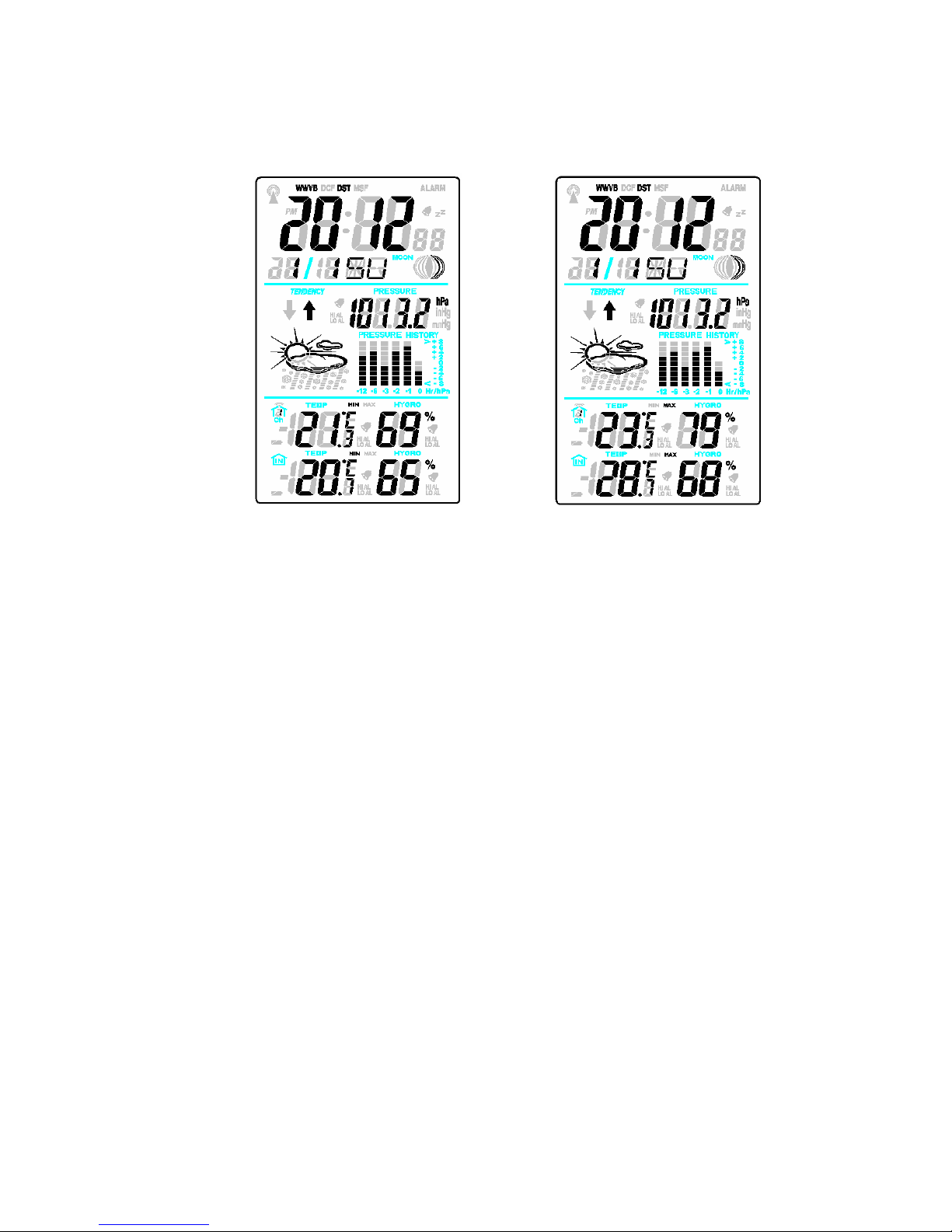

3.7 MIN/MAX VIEW MODES:........................................................................................................................- 15 -
3.8 RCC MODES.............................................................................................................................................- 16 -

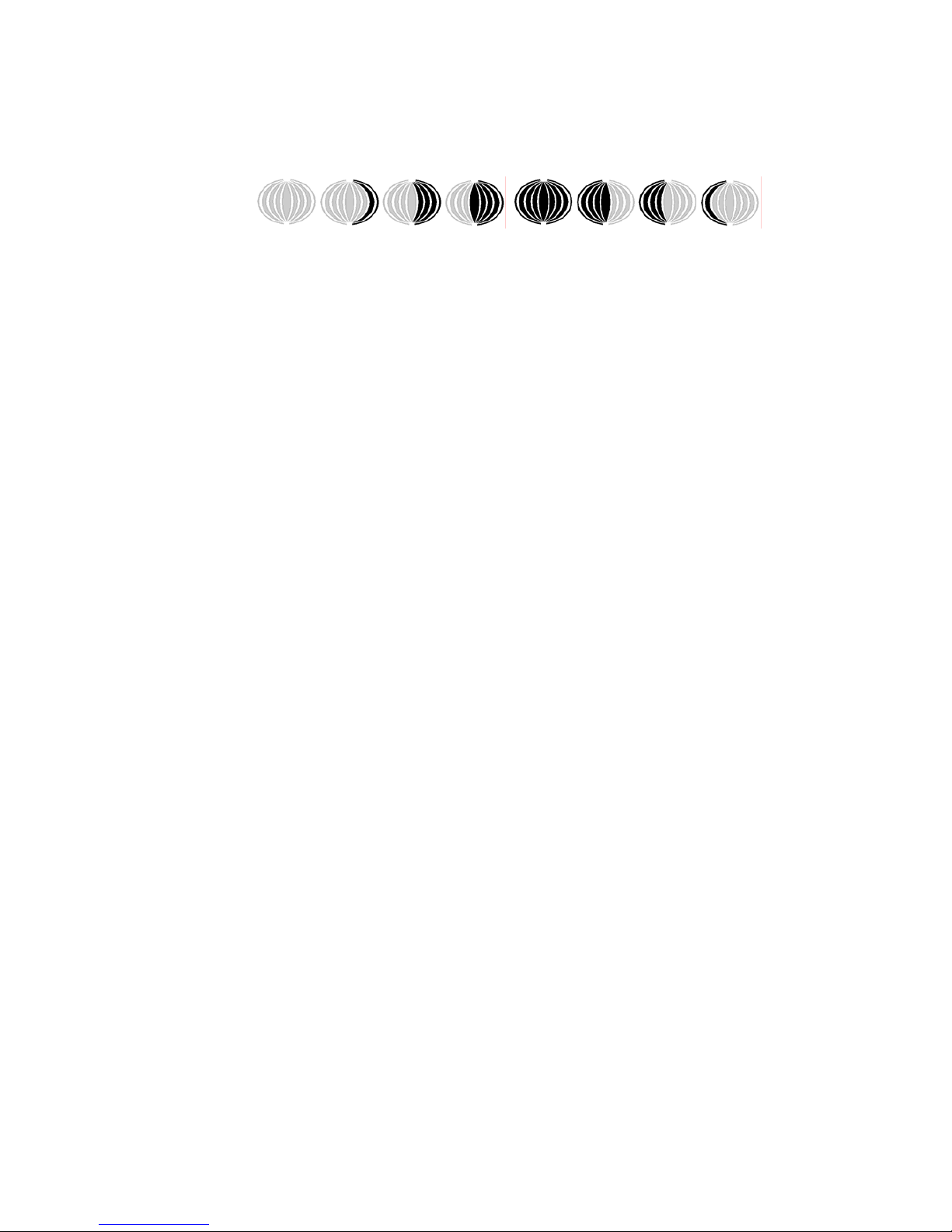

3.9 MOON PHASE..........................................................................................................................................- 17 -
4 .DEFAULT VALUE ........................................................................................................................................- 17 -
5.TROUBLESHOOTING.................................................................................................................................- 19 -
6.TX4041 Transmitter.......................................................................................................................................- 19 -
6.1 FEATURES................................................................................................................................................- 19 -
6.2 Operation ..................................................................................................................................................- 20 -
6.3 POWPER SUPPLY....................................................................................................................................- 20 -

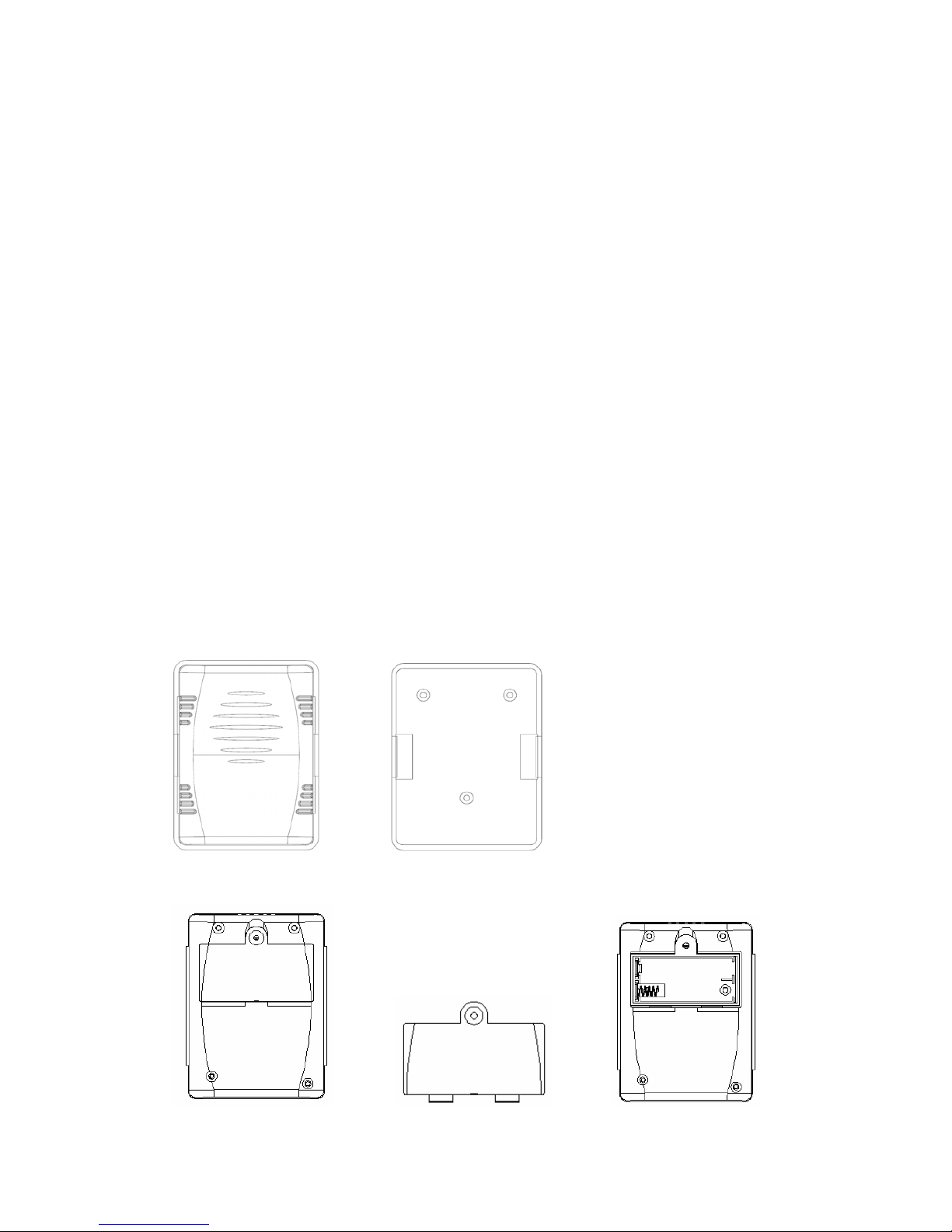

6.4 ASSEMBLY SKETCH ................................................................................................................................- 20 -
6.5 ATTENTION..............................................................................................................................................- 21 -

1. INTRODUCTION
Thank you for purchasing WS1066 wireless weather station. Designed for everyday use, the
weather station will prove to be an asset of great value for your personal use in the home or
office. Please read this instruction manual thoroughly to fully understand the correct operation
of your weather station and benefit from its unique features.

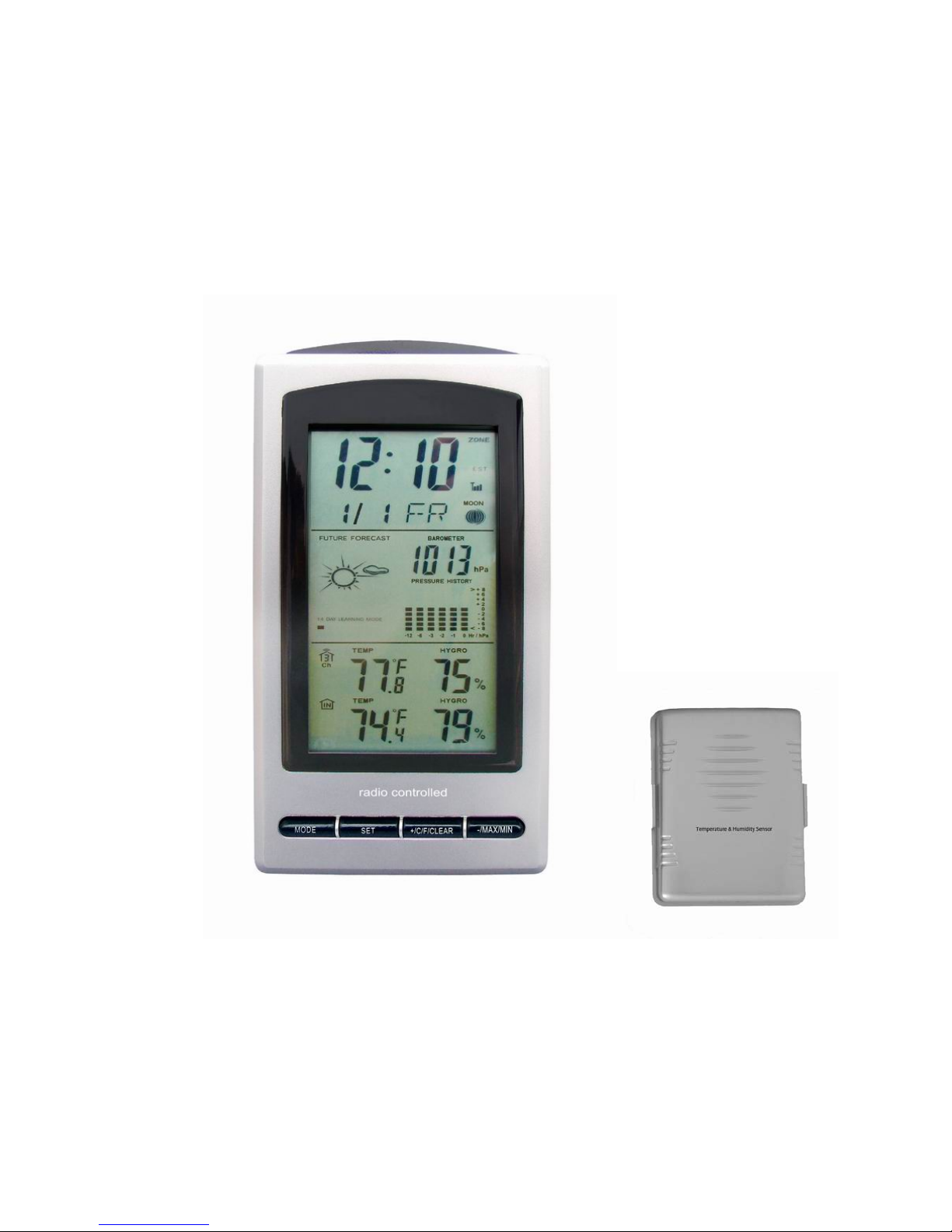

1.1PACKAGE CONTENTS
·1x weather station base unit
·1x remote sensor with mounting bracket
·Mounting Screws
·Instruction manual
1.2 FEATURES
1) MCU power pressure 3V
2) MCU frequency : 32.768Khz and 3.58MHz（fast frequency）
3) LCD driver: 1/3Bias、1/8Duty、driver pressure 4.5V
4) 5 keys operation
5) Perpetual calender,clock alarm,snooze
6) Clock（clock format: 12/24H）
7) Wireless temperature and humidity outdoor receiving ,switch channel automatically and
manually.
8) Indoor temperature range 0 ~70 ,accuracy ±1°C. Display 0 and 70 when out of℃℃ ℃ ℃
low/high temperature range. Sensor error display --.-℃.
9) Indoor humidity range 20%~95%,accuracy ±5%.Display 20% and 95% when out of low/high
humidity. Sensor error display --%
10) Outdoor temperature range -40 ~70 ,accuracy ±1°C. Display℃℃ -40 and 70 when out℃℃
of low/high temperature range. Sensor error display --.-℃.
11) Outdoor humidity range 20%~95%,accuracy ±5%.Display 20% and 95% when out of
low/high humidity. Sensor error display --%
12) High/low and in/out door temperature and humidity alarm.
13) Wireless RF transmission with three channels. You can choose first;second or third
channel, distance transmission about 100 meters in open outdoor.
14) Maximum/minimum record of in/out temperature and humidity. Clear max/min record by
manual.
15) RCC—Radio Clock Controlled. (WWVB;DCF;MSF;NO RCC), default value depends on
nations and regions.
16) Moon phase.
17) Barometric pressure range: 300hpa-1100hpa, accuracy ±5hpa
18) High/low barometric pressure alarm
19) Weather forecast tendency indicator
20) Low voltage indication with icon flash.

21) Valid keypad tone
22) Back light, press【CHANNEL/LIGHT/SZ】illumines the LCD screen for 10 seconds
2. OVERVIEW
2.1 BASE UNIT-LCD
The base station has five keys for easy operation:
●MODE
●SET
●+/C/F/CLEAR
●-/MAX/MIN
●CHANNEL/LIGHT/SZ
2.2 WEATHER FORCASTING DISPLAY：
1.Sunny, 2.Cloudy, 3.Mixture of Sun and Cloudy,4. Mixture of cloudy and rain (no flash as light
rain) ;5. Mixture of cloudy and rain (rain flash as rainstorm) 6. Mixture of cloudy and snow (no
flash as light snow);7, Mixture of cloudy and snow (flash as heavy snow)
3. OPERATE DESCRIPTION
3.1 POWER ON RESET
When the base station is powered up, full display 3 seconds,a short beep will sound then enter
into RF receiving 3 minutes.Press any keys (except 【CHANNEL/LIGHT/SZ】) close RF
receiving and enter into RCC mode automatically, any keys for closing RCC receiving, enter
into normal mode.

All below instruction examples are 12 hours format.
zTime: AM 12:00 00，Tuesday ,1st Jan. 2013, (12/24 format depend on RCC)
zClock alarm: AM 12:00，clock alarm, snooze closed
zTemperature unit: default value ℃or ℉( up to RCC)
3.2 TIME MODES DISPLAY
Operations:
zPress【MODE】enter into clock alarm mode
zPress【SET】for 2 seconds to enter into the time setting mode, and then set
time, date, alarm and time zone in correct order
zPress 【+/C/F/CLEAR】switch temperature C/F; when inquiry Max/Min
temperature, you can clear MIN,MAX data
zPress【-/MAX/MIN】,inquiry Max/Min temperature , MINÆMAXÆexit
zPress【CHANNEL/LIGHT/SZ】,back light;switch wireless channel receiving
1Æ2Æ3Ærepeat
Time setting
DST setting Time zone setting 12/24Hr

Hr/Min/sec setting Barometric pressure unit setting
Keys function
zPress【MODE】,exit time setting, enter into clock alarm mode.
zPress【SET】, DSTÆZONEÆ12/24HrÆHrÆMinutesÆSecondsÆbarometric
pressure unitÆexit
zPress 【+/C/F/CLEAR】,short press add 1,long press more than 2 seconds
would be a progressive increase 8Hz, press this key you can ON/OFF alarm
status.
zPress 【-/MAX/MIN】,short press reduce 1, long press more than 2 seconds
have a progressive decrease 8Hz, press this key you can ON/OFF alarm
status.
zPress 【CHANNEL/LIGHT/SZ】, back light
Notes:
1.The setting mode will return to normal display mode while key idle 60s.
2.The setting value flash with 1Hz.
3.The clock alarm will not sound while setting.
3.3 CLOCK ALARM MODES

Operation:
zPress 【MODE】enter into date mode
zPress 【SET】,long press 2 seconds enter into clock setting mode
zPress 【+/C/F/CLEAR】invalidity
zPress 【-/MAX/MIN】,ON/OFF clock alarm
zPress 【CHANNEL/LIGHT/SZ】, back light
3.3.1 Clock alarm setting
Hr. setting Min. setting
Key function:
zPress【MODE】,exit clock alarm setting, enter into barometric pressure alarm
setting
zPress 【SET】,switch setting values: AL Hr.ÆAL Min.Æexit
zPress 【+/C/F/CLEAR】,short press add 1,long press more than 2 seconds
would be a progressive increase 8Hz, press this key you can ON/OFF alarm
status.
zPress 【-/MAX/MIN】,short press reduce 1, long press more than 2 seconds
have a progressive decrease 8Hz, press this key you can ON/OFF alarm
status.
zPress 【CHANNEL/LIGHT/SZ】, back light
Notes:
z1.The setting mode will return to normal display mode while key idle 60s.
z2.The setting value flash with 1Hz.
z3.The clock alarm will not sound while setting.
z4. When time alarm is triggered, the alarm will sound “BiBi”for 60seconds,the
alarm icon flash with 1Hz, press any key to mute the alarm. Press
【CHANNEL/LIGHT/SZ】or no operation will enter into snooze function again
5 minutes later; The user can repeat snooze function for at most 4 times.
z5. Any ringing alarm is subject to the latter one.

3.4 BAROMETRIC PRESSURE MODES

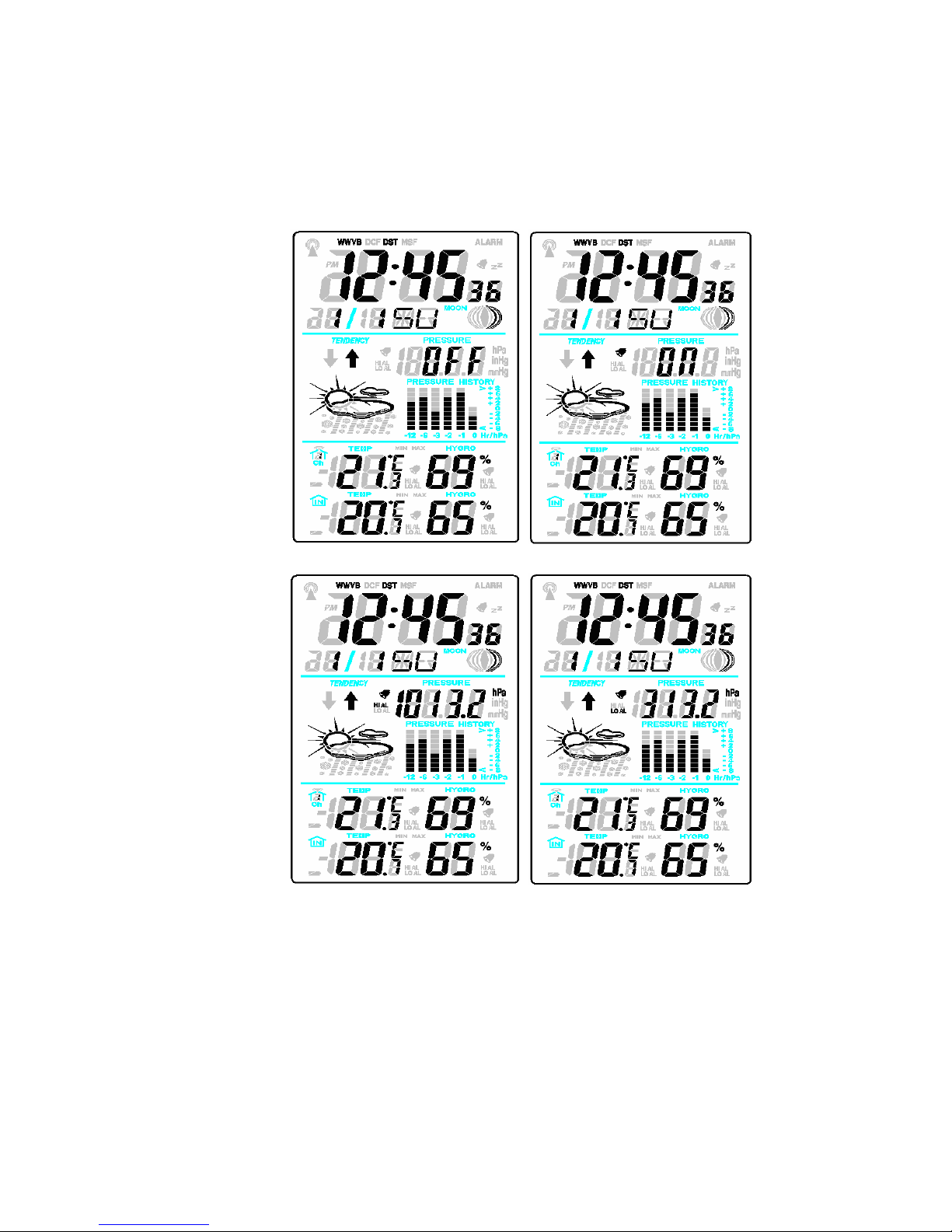

3.4.1 High/Low barometric pressure alarm setting
Barometric pressure alarm status（OFF）Barometric pressure alarm status(ON）
High barometric pressure data setting Low barometric pressure data setting
Key function:
zPress 【MODE】,exit barometric pressure alarm setting, enter into outdoor
high/low temperature alarm mode
zPress 【SET】,switch setting values: high barometric pressure alarm ON
ÆHigh kbÆHigh hundredsÆHigh decadeÆHigh unitÆHigh decimal place
ÆLow barometric pressure alarm ONÆLow kb ÆLow hundredsÆLow
decadeÆLow unitÆLow decimal placeÆexit
zPress 【+/C/F/CLEAR】,short press add 1,long press more than 2 seconds

would be a progressive increase 8Hz, press this key you can ON/OFF alarm
status.
zPress 【-/MAX/MIN】,short press reduce 1, long press more than 2 seconds
have a progressive decrease 8Hz, press this key you can ON/OFF alarm
status.
zPress 【CHANNEL/LIGHT/SZ】, back light
Note:
1.The setting mode will return to normal display mode while key idle 60s.
2.The setting value flash with 1Hz.
3.When barometric alarm is triggered, the alarm will sound“BiBiBi”for
60seconds,the alarm icon and alarm character will flash with 1Hz, press any key
to mute the alarm, show alarm icon and high/low alarm character accordingly on
LCD.
4. Any ringing alarm is subject to the latter one.
5. The high/low alarming only once, alarm character will flash with 1Hz afterwards
and the alarming will not triggered. It will clear the high/low alarm value every 3
hours.
3.5 AMBIENT TEMPERATURE&HUMIDITY ALARM MODES

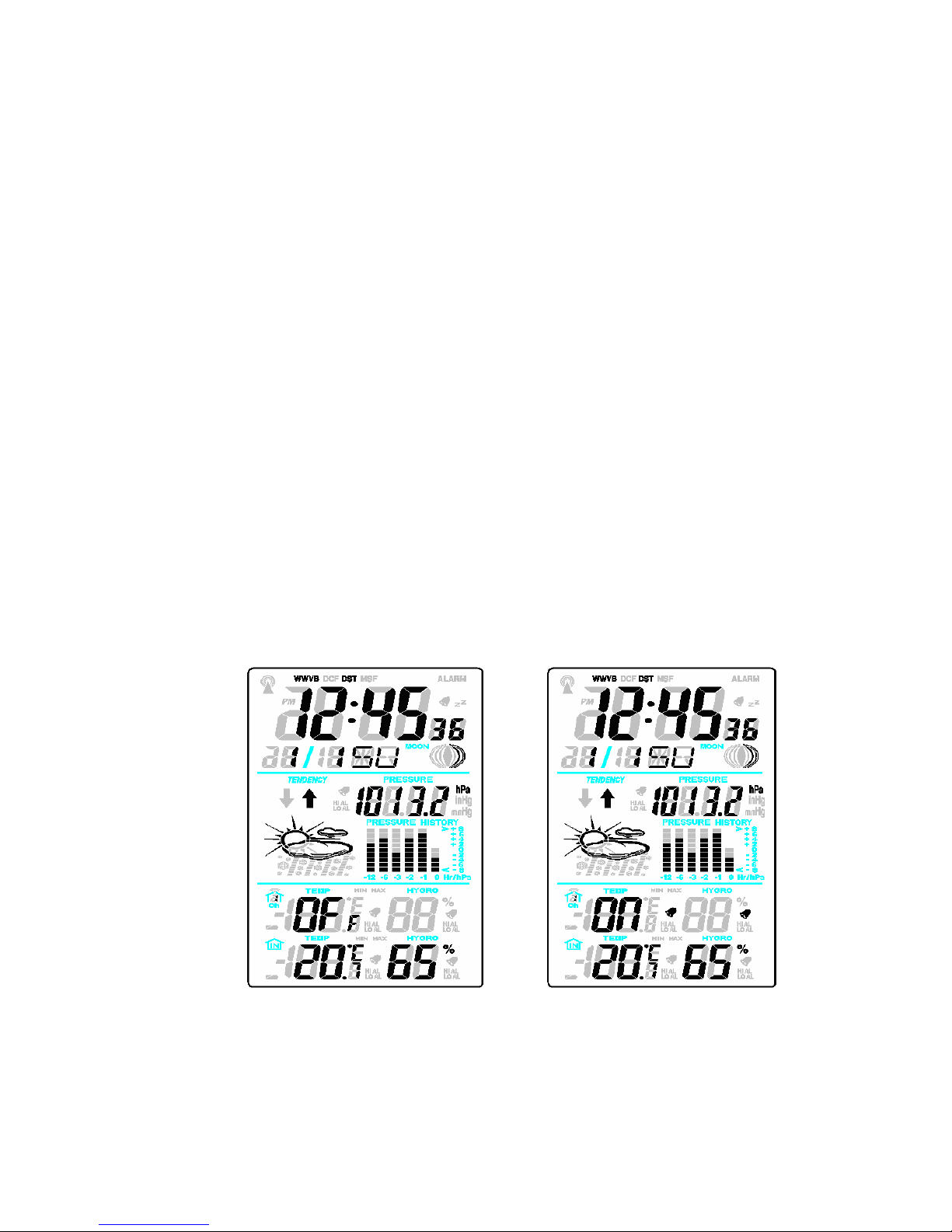

3.5.1 Temperature&humidity outdoor alarm setting
Temperature&Humidity alarm status(OFF) Temperature&Humidity alarm status(ON)

High temperature&humidity data setting Low temperature&humidity data setting
Key function:
zPress 【MODE 】,exit high/low temperature&humidity outdoor alarm
setting,enter into high/low temperature&humidity indoor alarm mode.
zPress 【SET】,switch setting values:1 high temperature outdoor ON Æ1 high
temperature outdoor alarm valueÆ1 low temperature outdoor alarm ON Æ1
low temperature outdoor value Æ1 high humidity outdoor alarm ON Æ1 high
humidity outdoor alarm valueÆ1 low humidity outdoor alarm ONÆ1 low
humidity outdoor alarm value Æ2 outdoorÆ3 outdoorÆexit
zPress 【+/C/F/CLEAR】,short press add 1,long press more than 2 seconds
would be a progressive increase 8Hz
zPress 【-/MAX/MIN】,short press reduce 1, long press more than 2 seconds
have a progressive decrease 8Hz
zPress 【CHANNEL/LIGHT/SZ】, back light
Note:
1.The setting mode will return to normal display mode while key idle 60s.
2.The setting value flash with 1Hz.
3.When barometric alarm is triggered, the alarm will sound “BiBiBi”for
60seconds,the alarm icon and alarm character will flash with 1Hz, press any key
to mute the alarm, show alarm icon and high/low alarm character accordingly on
LCD.
4. Any ringing alarm is subject to the latter one.
5. The high/low alarming only once, alarm character will flash with 1Hz afterwards
and the alarming will not triggered. It will clear the high/low alarm value every 3
hours.

3.5.2 Temperature&humidity indoor alarm setting
Temperature&Humidity alarm status(OFF) Temperature&Humidity alarm status(ON)
High temperature&humidity data setting Low temperature&humidity data setting
Key function:
zPress 【MODE】,exit High/low temperature&humidity indoor alarm setting,
enter into date mode
zPress 【SET】,switch setting value: high/low temperature&Humidity indoor
alarm (OFF) Æhigh temperature indoor alarm valueÆhigh humidity indoor
alarm valueÆlow temperature indoor alarm valueÆlow humidity indoor
alarm valueÆexit
zPress 【+/C/F/CLEAR】,short press add 1,long press more than 2 seconds
would be a progressive increase 8Hz
zPress 【-/MAX/MIN】,short press reduce 1, long press more than 2 seconds
have a progressive decrease 8Hz

zPress 【CHANNEL/LIGHT/SZ】, back light
Note:
1.The setting mode will return to normal display mode while key idle 60s.
2.The setting value flash with 1Hz.
3.When barometric alarm is triggered, the alarm will sound “BiBiBi”for
60seconds,the alarm icon and alarm character will flash with 1Hz, press any key
to mute the alarm, show alarm icon and high/low alarm character accordingly on
LCD
4. Any ringing alarm is subject to the latter one.
5. The high/low alarming only once, alarm character will flash with 1Hz afterwards
and the alarming will not triggered. It will clear the high/low alarm value every 3
hours.
3.6 DATE MODES:
Operation:
zPress 【MODE】,enter into time mode.
zPress 【SET】, long press 2 seconds enter into date setting.
zPress 【+/C/F/CLEAR】invalidity
zPress 【-/MAX/MIN】invalidity
zPress 【CHANNEL/LIGHT/SZ】, back light, start RF receiving 3 minutes.
Date setting

Setyear Setmonths Setdays
Key function
zPress 【MODE】, exit date setting,enter into time mode
zPress 【SET】,switch setting value:YearÆMonthsÆDayÆexit
zPress 【+/C/F/CLEAR】,short press add 1,long press more than 2 seconds
would be a progressive increase 8Hz
zPress 【-/MAX/MIN】,short press reduce 1, long press more than 2 seconds
have a progressive decrease 8Hz
zPress 【CHANNEL/LIGHT/SZ】, back light
Note:1.The setting mode will return to normal display mode while key idle 60s.
2.The setting value flash with 1Hz.
3.When barometric alarm is triggered, the alarm will sound “BiBiBi”for
60seconds,the alarm icon and alarm character will flash with 1Hz, press
any key to mute the alarm, show alarm icon and high/low alarm character
accordingly on LCD.

3.7 MIN/MAX VIEW MODES:
In/out MIN temperature/humity In/out MAX temperature/humidity
Operation:
zPress 【MODE】,time modeÆclock alarmÆdate modeÆrepeat
zPress 【SET】, enter into all modes setting
zPress 【+/C/F/CLEAR】,switch temperature C/F;clear MIN,MAX temperature
and humidity values when view.
zPress 【-/MAX/MIN】, view the MIN,MAX temperature and humidity values,
MINÆMAXÆexit
zPress【CHANNEL/LIGHT/SZ】,back light; switch wireless channels receiving
1Æ2Æ3Ærepeat
Note:
1.The setting mode will return to normal display mode while key idle 60s.

3.8 RCC MODES
RCC function instruction:
The conditions for the radio controlled time reception :
a) Wait 3 minutes or until the outdoor temperature is displayed in the weather
station.
b) The receiver attempt to receive RCC signals on 12:00am, 1:00am, 2:00am and
3:00am. If it receives a valid signal on 12:00 am, it will stop receiving signal until
12:00 am next day. If it cannot receive valid signal on 12:00 am, it will receive
again on 3:00 am; if it receives valid signal on 3:00 am, then it will stop receiving
signal until 1:00 am next day; if it can not receive valid signal on 1:00 am, it will
receive again on 2:00 am, and so on. If the receive cannot receive signals indoor,
the user can set the clock time manually. Also moon phase data collection will not
update when just receiving RCC signal, it will update one hour later.
The conditions for the radio controlled time retreating:
a) Press any key
b) No signals reception in 3 minutes
c) Receiving up to 8 minutes.
d) Receiving successfully
RCC icon
The RCC icon flash every 0.5second when RCC has signals,the icon flash every
1second when no signals.If receiving successfully, the antenna icon show on the
LCD;if not, no icon on LCD. There is no antenna icon while setting change time
manually.

3.9 MOON PHASE
1 2 3 4 5 6 7 8
1、New Moon(First day of the Lunar month ）：0 degree；
2、Waxing Crescent（Second night of the Lunar month--Seventh day）:0 degree---90
degree；
3、First Quarter（The 8th day of the Lunar month）：90 degree；
4、Waxing Gibbous（The 9th day of the Lunar month----14th day）：90 degree----180
degree；
5、Full Moon（The 15th or 16th day of the Lunar month ）：180 degree；
6、Waning Gibbous（The 16th day of the Lunar month ---23th day）：180 degree---270
degree；
7、Last Quarter（The 23th day of the Lunar month）：270 degree；
8、Waning Crescent（The 24th day of the Lunar month ----the end of month）：270
degree-----360 degree；
4 .DEFAULT VALUE
A、RCC parameter depend on the nations and regions
EU (DCF, MSF) Version:
Clock：2000-1-1，0:00:00Æ2099-1-1，23:59:59 (default value: 2013-1-1，0:00:00)
Time zone：-12 Æ+12 (MSF: default: 0, DCF: default value: 1)
12/24Hr format (default value: 24Hr)
Temperature unit :C,F(default value:℃)
Barometric pressure unit: default hPa, it can be setting manually
USA (WWVB) Version (Difference with EU version):
Clock：2000-1-1 ，0:00:00Æ2099-1-1，23:59:59 (default value: 2013-1-1，AM
12:00:00)
Time zone：-12 Æ+12 (WWVB: default value: -5)
12/24Hr format (default value: 12Hr)
Temperature unit :C,F(default value:℉)
DST:ON/OFF(default value：ON)
Barometric pressure unit: default inHg, it can be setting manually

No RCC function:
Clock：2000-1-1 ，0:00:00Æ2099-1-1，23:59:59 (default value: 2013-1-1，AM
12:00:00)
No time zone and DST function
12/24Hr format (default value: 12Hr)
Temperature unit :C,F(default value:℉)
Barometric pressure unit: default hPa, it can be setting manually
B、Default parameter
1.Temperature&humidity indoor measuring: view one time every 30s
2.Temperature&humidity outdoor measuring:receiving 15seconds every 75s., the
transmitter will transmit every 10s.
3.Low voltage: measuring one time power on, measuring once every 1hr.The icon will
flash when low voltage appear.
1. Unit switch：F=1.8*C+32
1hpa=0.75mmhg =0.02953inhg
1inhg = 25.4mmhg = 33.86hpa
1mmh g =0.03937inhg =1.333hpa
C、Default parameter alarming
High barometric pressure alarm value: 1050hpa/787.5mmhg/30.93inhg
Low barometric pressure alarm value：600pha/450mmhg/17.71inhg
Alarm value setting range: 300---1100hpa
8.86—32.48inhg
225---825mmhg
High alarm value channel 1 for out temperature：35℃/95℉Low alarm value channel 1 for out temperature：5℃/41℉
High alarm value channel 1 for out humidity：75% Low alarm value channel 1 for out humidity：35%
High alarm value channel 2 for out temperature：40℃/104℉Low alarm value channel 2 for out temperature：0℃/32℉
High alarm value channel 2 for out humidity：80% Low alarm value channel 2 for out humidity：30%
High alarm value channel 3 for out temperature：45℃/113℉Low alarm value channel 3 for out temperature：-5℃/23℉
High alarm value channel 3 for out humidity：85% Low alarm value channel 3 for out humidity：25%
High alarm value for indoor temperature：30 /86℃℉
Low alarm value for indoor temperature：10 /50℃℉
High alarm value for indoor humidity：80% Low alarm value for indoor temperature：30%
Note: It could be setting by yourself for above alarm parameter.
Attention：
a. Possible interference from other sources, the RCC can not receiving signals. In this

situation, you can adjust time and date manually.
b. To able ensure the data accuracy pls change the battery in time while low voltage icon
appear.
c. The wireless weather station can receive up to 3 temperature sensors.However, it should
have three sensors work and each one only transmit one channel data, the channels for
transmitter is setting by factory or users can stir the switch on battery compartment by
selves.Besides, ensure that you leave 10 seconds in between the reception of the last
sensor and the set-up of the following sensor, enable to 3 transmitters match code with
receiver. If you want to use several sets of weather station in same place, pls ensure
leave some seconds between next one power-on so that no interference reception.
d. In the process of transmission, if battery change happened on remote sensor side, then
the base station must be power up again or start RF receiving with 3 minutes manually
to relearn the transmitter.
5.TROUBLESHOOTING
Q 1. No signal from remote sensor
A There can be many reasons for this, the following steps should help you troubleshoot this
problem.
1.1 Make sure that the batteries in the remote sensor are not depleted.
1.2 Reduce the distance between transmitter and receiver.
1.3 Remove the batteries from the base station and the remote sensor and reset the weather
station in the right order as described in section of this manual.
1.4 This problem could also be a result of radio interference in your neighborhood, try
relocating the sensor and the base station.
Q 2 Temperature,humidity or the pressure is incorrect
A Check / Replace the batteries. Also make sure that the remote sensor is not place near
objects that can act as sources of heat or cold. Adjust the relative air pressure value
from a reliable source such as TV or radio.
Power supply : 3*1.5V AA alkaline batteries
6.TX4041 TRANSMITTER
6.1 FEATURES
1) MCU power pressure 3V
2) MCU frequency : 32.768Khz and 4MHz（fast frequency）
3)Temperature range: -40 ~+70 ,accuracy +/℃℃ -1 , Display℃-40 and℃70 when out of℃
low/high temperature range. Sensor error display --.- on receiver.℃
4) Humidity range: 20%~95%, accuracy ±5%.Display 20% and 95% when out of low/high

humidity. Sensor error display --% on receiver.
5) Low voltage indication with flash icon show on receiver.
6) Max/Min value of temperature and humidity show on receiver.
7) 3 channel transmission.(factory setting or users can stir the switch on battery compartment
by selves)
6.2 Operation
1.When the sensor powered up, it will enters into transmission mode after all LCD segments
light up for about 2 seconds
2.The sensor will transmit weather data every 10s while enter into normal learning mode.
3.Low voltage indication: view once when power-on,then one time every hour.
4.All transmission data will setting and show on receiver’s LCD.
6.3 POWPER SUPPLY
1、2*1.5V AAA alkaline batteries
6.4 ASSEMBLY SKETCH
1. Take down the bottom case from the transmitter base station,using PA3*16mm screw and
ABS sleeve fix the bottom case in the place you wanted.
2. Detach the two PM3*8mm screw off the battery cover and install batteries, then mount one
PM3*8mm screw in the battery cover to fix in base station

3. Put the receiver base station into the bottom case and make the ventage down.
6.5 ATTENTION
1、To able ensure the data accuracy and keep distance pls change the battery in time while low
voltage icon appear.
2、Assembly as the order and instruction of above sketch.
3、The wireless weather station can receive up to 3 temperature sensors.However, it should
have three sensors work and each one only transmit one channel data, the channels for
transmitter is setting by factory or users can stir the switch on battery compartment by selves .
4、The channel setting by factory or user can switch the transmit channels which located on the
bottom of battery cover.
Warning: You should not dispose of this device with your household waste.
A selective collection system for this type of product is implemented by your local
authorities.Please contact your local authorities to find out how and where collection
takes place.These restrictions apply because electric and electronic devices contain
dangerous substances that have harmful effects on the environment or on human health
and must be recycled.
This symbol indicate the electrical and electronic devices are collected selectively.The
symbol shows a waste container crossed out with an X symbol.
