Installation and Operation Manual
for
Six-inches dome P/T
Please read the operation manual carefully
before installing and using this unit

Operation Manual for Intelligent Speed Dome Camera
I. Points forAttention
1. Please read the operation manual carefully before installing and operating the product.
2. The product takes power supply of AC24V. The rated input voltage of the camera is
marked on the base or other corresponding place.
3. During the course of transportation, storage and installation, the product should be avoided
from incorrect operations such as heavy pressing, strong vibration etc., which can cause
damage of product as there are sophisticated optical and electronic devices inside the
machine.
4. Do not attempt to disassemble the camera. In order to prevent electric shock, do not
remove screws or covers. There are no user-serviceable parts inside.
5. Always follow all electrical standards for safety when it is in operation. Adopt the
particular power supply which is provided with the unit. RS-485 and video signal should
keep enough distance with high voltage equipments and cables when they are in
transmission. Precautions for anti-lightning and anti-surging should be taken if necessary.
6. Do not operate it in case temperature, humidity and power supply are beyond the limited
stipulations.
7. Do not let the camera aim at the sun or the object with extreme light whatsoever it is
switched on or not. Do not let the camera aim at or monitor bright and standstill object for
a long time.
8. Do not use aggressive detergent to clean the main body of the camera. Wipe dirt with dry
cloth. If needed, mild detergent can be used suitably.

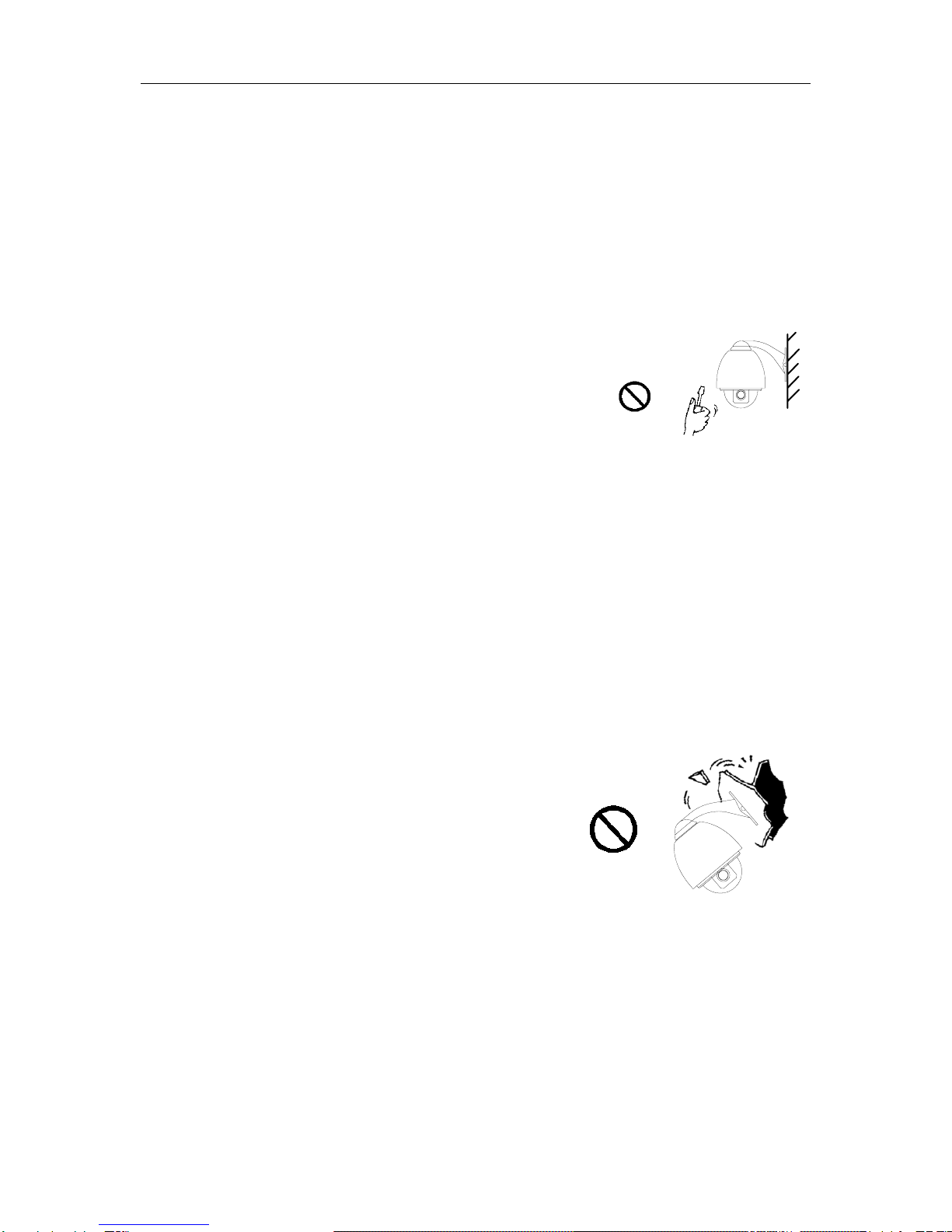

9. Operate the intelligent speed dome camera with great care to avoid shock or vibration. It
operate incorrectly, the Speed Dome could be damaged
10. Be careful to avoid to crash, Never mount the unit on a ceiling that cannot support its
weight.
11. If necessary, use a commercial lens cleaning paper to clear the lens windows. Gently wipe
the lens window until clean.
1

Operation Manual for Intelligent Speed Dome Camera
II. Description of Functions
The intelligent dome camera is a hi-tech CCTV product which incorporates high-clarity
color camera, panoramic speed-variable PAN/TILT, multifunctional decoder, CPU processor,
memory chip into a whole. It can largely reduce connection and installation processes of
components in the system, rise up reliability of the system and facilitate installation and
maintenance. Therefore it has advantages of beautiful appearance, compact structure and easy
operation.
1. Integrated Multi-Protocol Decoder
a. With integrated decoder and multi-protocol, it can integrate 16 kinds of
communication protocols in maximum. As its baud rate of communication can be
adjusted, it is compatible with many normal systems by easy setup inside the dome
camera, so it has stronger versatility.
b. RS485 serial control: addresses of camera 1-1023.
2. Integrated speed-variable PAN/TILT
a. Turning 360 ºhorizontally and continuously with unlimited positions and an
adjustable speed from 0.2 - 15rad/s; turning 0 - 90ºvertically with a speed up to 15 rad/s.
Constant speed dome camera PAN/TILT speed: 15rad/s fixed.
b. Running stably at low speed with super lower noise. Pictures have no shaking.
c. the location precision up to ±0.2°.
3. High Intelligent Degree
a. As much as 64 preset positions can be preset with powerless memory;
b. The camera can scan horizontally between two points and scan speed can be modified.
The positions of linear scan are optional and the dome camera can scan the range
larger or smaller than 180° between any two points with adjustable speed;
c. Six sets of programmable tour locus with 16 position each set. The running speed and
the detention time are adjustable respectively;
d. The Integrated Multi-Protocol. Multiple communication protocols are integrated
inside the dome camera with selectable baud rate from 2400 bps to 9200 bps.
4. Functions of the 18×ZOOM Camera (icons can be displayed on the screen when the
option DISPLAY of the camera is ON)
a. Description of the Focus Control Mode: the user can adjust the focus of the camera
manually. When the camera is on near focus, the icon appears on the screen;
when on the nearest state, the icon appears while on the far focus, the icon
appears.
b. Description of Backlight Compensation: when the object to be shot is dark and
looks dim, the user can open the backlight compensation according to actual need and
the icon appears on the screen.
c. Description of White Balance: when the image has color distort on the screen, the
user can set different modes by orders. There are 6modes for options: ①Indoor
Mode ②Outdoor Mode ③Touch Mode ④Automatic Trace of White
Balance ATW ⑤Manual WB-MAN ⑥Automatic Mode.
d. Description of ZOOM Control: user can “pull near” or “push far” the lens according
to actual conditions, and the symbol appears on the screen in which
the front part means optical multiplication while the rear part means digital
multiplication.
e. Description of Electronic Shutter: it is fixed on 1/50 sec after initialization when the
camera is switched on, and the figure 50 appears on the screen.
f. Setup of Image Effect: the camera works on OFF state under normal condition and
no image effect symbol appears on the screen. When “B&W” appears on the screen, it
means the camera is on black and white state.
g. AE Mode: setup of Manual/Automatic.
2

Operation Manual for Intelligent Speed Dome Camera
h. Zero Illuminance: it is used only when the external brightness is extremely low.
Normally the camera works on the automatic state. In case the external brightness is
lower than 1Lux, the camera can be switch to the Zero Illuminance state automatically
and icon appears on the screen. You can also set the Zero Illuminance state
manually.
Ⅲ. Setup of the Dome Camera
1. Connection of the System
1) The Systematic Drawing of the Dome Camera
Power Adapter
AC24V OUT
AD Matrix
BSW RS232
BSW
Philips Matrix
Protocol Adapter Protocol Adapter Code Converter
RS-485 RS-485 RS-485 RS-485
Matrix
AC90～AC260V Input
Multiplexer
RS-485
Power IN
VIDEO OUT
C
V
Monitor
Dome Camera
Figure 1
2) Address / Protocol Coding Switch Drawing
ON
1234 5 6
SW2
ON
1234 5 6
78 910
SW1
Protocol Set Address Set
Bracket for fixed camera
SW2: DIP1--DIP4 Select Protocol
SW2: DIP5--DIP6 Select Baud Rate
JP
31 2
31 2
JP
120Ω term inal resistor is
opened forR S485 bus
1 2 0 Ω te rm in a l re s is to r is
connected on R S 485 B us
Figure 2
2. Setup of Coding Switch of Dome Camera. As shown in Figure 2, SW1 is used to set
address of the dome camera from 1 – 1023. The ID-CODE from DIP-10 to DIP-1 are
equivalent to a 10-bit binary digit. DIP-10 is MSB while DIP-1 is LSB. The state “ON” of
each bit means 1 while “OFF” means 0. Following table shows states of coding switches
of some addresses. ID-CODE StatusDome
Address DIP-1 DIP-2 DIP-3 DIP-4 DIP-5 DIP-6 DIP-7 DIP-8 DIP-9 DIP-10
1 ON OFF OFF OFF OFF OFF OFF OFF OFF OFF
2 OFF ON OFF OFF OFF OFF OFF OFF OFF OFF
3

Operation Manual for Intelligent Speed Dome Camera
3 ON ON OFF OFF OFF OFF OFF OFF OFF OFF
4 OFF OFF ON OFF OFF OFF OFF OFF OFF OFF
5 ON OFF ON OFF OFF OFF OFF OFF OFF OFF
6 OFF ON ON OFF OFF OFF OFF OFF OFF OFF
7 ON ON ON OFF OFF OFF OFF OFF OFF OFF
8 OFF OFF OFF ON OFF OFF OFF OFF OFF OFF
9 ON OFF OFF ON OFF OFF OFF OFF OFF OFF
10 OFF ON OFF ON OFF OFF OFF OFF OFF OFF
11 ON ON OFF ON OFF OFF OFF OFF OFF OFF
12 OFF OFF ON ON OFF OFF OFF OFF OFF OFF
13 ON OFF ON ON OFF OFF OFF OFF OFF OFF
14 OFF ON ON ON OFF OFF OFF OFF OFF OFF
15 ON ON ON ON OFF OFF OFF OFF OFF OFF
16 OFF OFF OFF OFF ON OFF OFF OFF OFF OFF
17 ON OFF OFF OFF ON OFF OFF OFF OFF OFF
18 OFF ON OFF OFF ON OFF OFF OFF OFF OFF
……………………………
1023 ON ON ON ON ON ON ON ON ON ON
Table 1
For Example:
Speed Dome Address=1
ON
1234 5 6
78910
Speed Dome Address=2
ON
1234 5 6
78910
Speed Dome Address=3
ON
1234 5 6
78 910
Speed Dome Address=4
ON
1234 5 6
78910
Speed Dome Address=18
ON
1234 5 6
78910
Speed Dome Address=1023
ON
1234 5 6
78 910
3. Setup of the Protocol and the Default Baud Rate. As shown in Figure 2, SW2 is used
to set the protocol of communication and the baud rate used by the dome camera. DIP-4
to DIP-1 of SW2 is used to select protocols and 16 different protocols can be selected in
maximum. Following table shows states of coding switches of protocols selected by the
dome camera in which ●means the protocol has been integrated while ○means the
protocol is temporarily vacant.
Selection of Protocols Normal Baud Rate
Type of Protocols DIP-1 DIP-2 DIP-3 DIP-4 DIP-5 DIP-6 Integrated
Protocol
Minking A01 OFF OFF OFF OFF ON OFF ●
Minking B01 ON OFF OFF OFF OFF ON ●
Santachi OFF ON OFF OFF OFF ON ●
PELCO-D ON ON OFF OFF OFF OFF
●
PELCO-P/4800 ON OFF
PELCO-P/9600 OFF OFF ON OFF OFF ON ●
PANASONIC ON OFF ON OFF OFF ON ○
Longcomity OFF ON ON OFF OFF ON
●
HUNDA600 ON ON ON OFF OFF ON
●
LILIN OFF OFF OFF ON ON OFF
○
VICON ON OFF OFF ON ON OFF
○
MOLYNX OFF ON OFF ON OFF ON ○
KALATEL ON ON OFF ON ON OFF ○
VCL OFF OFF ON ON OFF ON ○
DAIWA ON OFF ON ON OFF ON ○
4

Operation Manual for Intelligent Speed Dome Camera
ALEC OFF ON ON ON OFF ON ○
Utralk ON ON ON ON OFF ON
○
Table 2
Some protocols and the states of the coding switches of normal baud rate of these
protocols are shown as follows:
PELCO-P/4800Bps
ON
1234 56
PELCO-P/9600Bps
ON
1234 56
ON
1234 56
PELCO-D/2400Bps
ON
1234 56
Minking B01/9600Bps
4. Setup of the Baud Rate of Communication. As shown in Figure 2, SW2 is used to set
the protocol of communication and the baud rate used by the dome camera. DIP-6 and
DIP-5 of SW2 are used to select the baud rate of communication and 4 different baud
rates can be selected in maximum. If the controller adopts non-standard baud rate, you
can adjust it to be identical with that of the controller as per the following table.
Setup of Baud Rate
Baud Rate of Communication DIP-1 DIP-2 DIP-3 DIP-4 DIP-5 DIP-6
2400bps OFF OFF
4800bps ON OFF
9600bps OFF ON
19200bps ON ON
5. Selection of the Terminal Resistor of the Dome Camera. As shown in Figure 2, JP is
the select switch of the 120 Ωterminal resistor on the bus RS485, on which
only one terminal resistor of the dome camera at the farthest end can be connected, while
the terminal resistors of other devices should be opened.
6. Special function control. Some special protocol such as “Santachi”,”PELCO-D” and
“PELCO-P” without the command of control some especial functions, in order to use the
special functions of dome, so we changed the command of calling/setting NO.51 preset to
NO.64 preset to control them. Keyboard control
N Object of control Call the N position Preset the N position
51 Auto scan（low speed）Auto cruise
52 Auto scan（middle speed）Set the start point of scan
53 Auto scan Auto scan（high speed）Set the end point of scan
54 Camera power Power on Power off
55 Back light * On Off
56 ICR shor On Off
57
OSD (Some cameras have it’s
own menu, to open/close the
menu by the command “turn on
the OSD”, and use the command
“turn off the OSD” to
open/close the OSD)
On Off
58 Digital Zoom On Off
59 FOCUS Auto Manual
60 IRIS Auto Manual
61 White Balance Mode Auto Manual
5

Operation Manual for Intelligent Speed Dome Camera
62 Indoor Outdoor
63 ATW One Push WB
64
Ⅳ. The Installation of the System
1. The style of the Installation

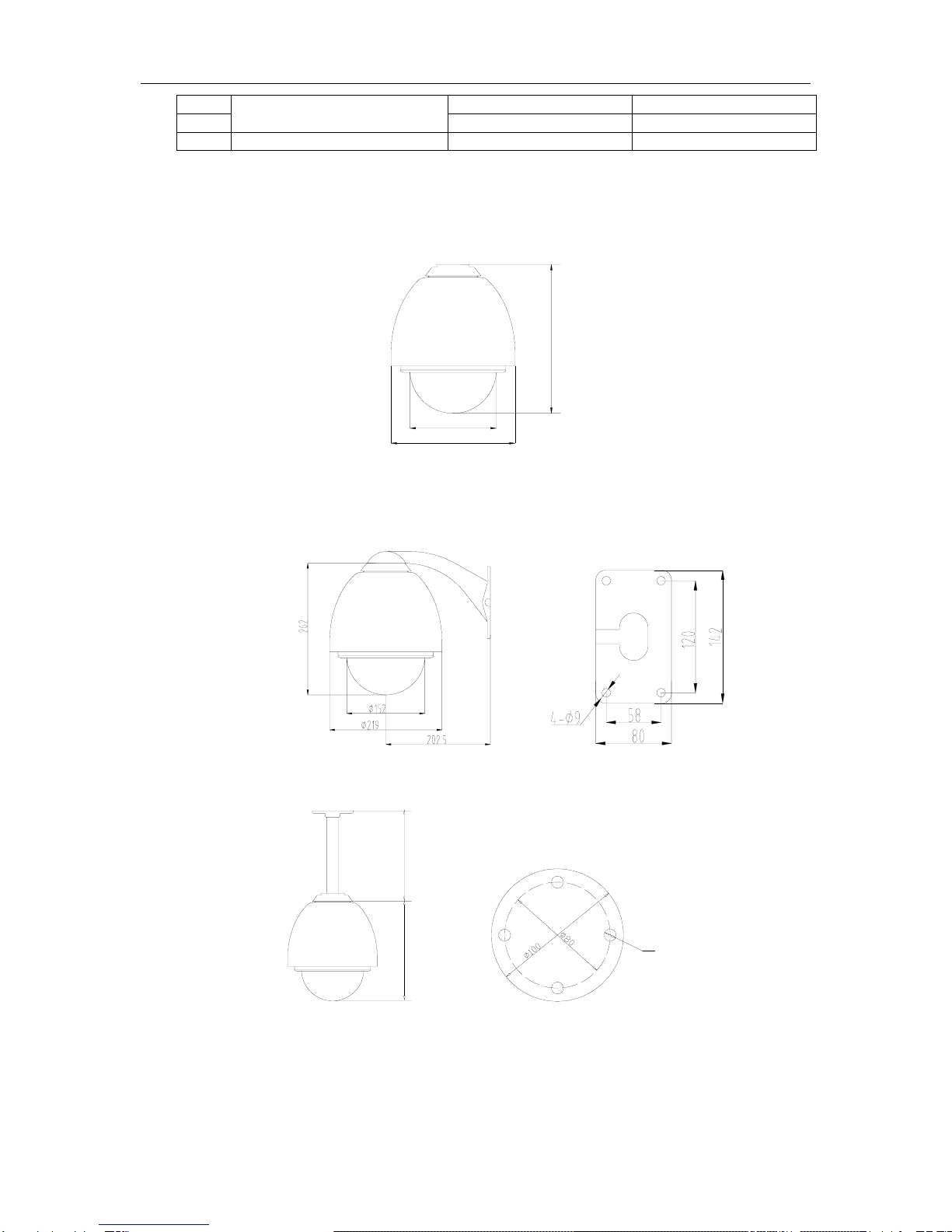

1) Dimension of the Product
Φ152
Φ219
262
Figure 3
2) The Style of Installation
a) Wall Installation
Figure 4
b) In-Ceiling Installation
262 300
Φ7
Figure 5
2. Steps of Installation (taking wall-mounting as example)
1. Unpacking the carton and carefully take out the dome camera and its attachments.
2. Rotate the vitreous cover counterclockwise and take out it. (see Figure 6) Note: It can be
6

Operation Manual for Intelligent Speed Dome Camera
ignored the steps 2,3,4,5 while the protocol and address are matching with the controller.
3. Take out the black liner. (Figure 7)
4. Based on the ID-CODE shown as Figure 2, set up the protocol used by the camera and the
baud rate as per the state according to Table 1. Check the address of the camera to see if it
is matched with that you need. If not, set the address of the dome camera at corresponding
position as per Table 1.
Takedown the
black liner
Open
Figure6 Figure7
5. Fix the black liner (see Figure 8).
Fixed the
black liner
Figure 8
6. Take out the cover of the wall-mounting bracket (see Figure 9).
7. Fix the bracket on the wall (see Figure 10).
8. Drill the system control wires through the bracket (see Figure 11).
Figure9 Figure10 Figure11
9. Install the aluminum alloy ball on the bracket (Figure 12).
10. Rotate the vitreous cover clockwise and mount it（Figure 13）.
7

Operation Manual for Intelligent Speed Dome Camera
Close
Figure12 Figure13
11. Connect the control wires of the system as per Figure 14.
RED
BLACK
ORANGE
YELLOW
VIDEO
RED: AC24V IN
BLACK: AC24V IN
ORANGE: RS485+
YELLOW: RS485-
VIDEO: VIDEO OUT
Figure 14
3. To ensure a smooth and successful installation, you must:
1. Have electrical work comply with latest national electrical code, national fire code,
and all applicable local codes and ordinances.
2. Coordinate work with other trades to avoid interference.
3. Verify existing site conditions and coordinate with owner’s representative and
appropriate utilities as required.
4. Obtain copies of all related plans, specifications, shop drawings and addenda to
schedule and coordinate related work
5. Thoroughly review the project to ensure that all work meets or exceeds the above
requirements. Bring alleged discrepancies to the attention of the CCTV Project
Coordinator.
Ⅴ. Technical data table
Image inductor 1/4″color CCD
pixels 752H×582V（440000pixels）PAL
in-phase system in-phase inside
Video out 1.0Vp-p/75Ω
White balance Auto/manual
Power supply AC24V±10% 1.25A
Power consumption 30VA(including the pan/heater devicer)
weight 4Kg
Installation Wall mounting
Opposite humidity 10-75%
spec
Environment temp 0℃~40℃
8

Operation Manual for Intelligent Speed Dome Camera
Scan system 15.625KHz(H) 50Hz(V)
horizontal 480 horizontal
Signal-to-Noise > 48db
shutter 1/3～1/10000sec
Camera
function
Sensitivity 0.01～1Lux(F1.6)
Zoom rate 18x optical 12x digital
iris Auto / manual
Lens
parameter focus Auto / manual
Pan speed 0～15°/s (Fixed 15rad/s for constant dome)
Tilt speed 0～15°/s (Fixed 15rad/s for constant dome)
Preset 64presets(max)
Dome
Function
Auto cruise At best 6 cruises
Ⅵ. Troubleshooting
Problem Probable cause Solution
Power supply fault Replace
Bad connection of the
power Make correction
On power no action
Transformer damaged Replace
Mechanical failure Repair
Camera incline Reinstall
On power cannot
self-check have image but
have motor noise Power supply not enough Replace
Video signal fault Reinstall
Bad connection of the video Press to full connect
Self-check ok, but have
no image Camera damaged Replace
RS485 Bus bad connection Check the RS485 connection
Dome id setting is wrong Reselect
Self-check ok but cannot
control Protocol setting is wrong Reset and on power again
Bad connection of the video Press to full connect
Vague image Power supply not enough Replace
Self check error On power again
Bad connection of control Press to full connect
On power cannot control Bad control of matrix On power again
9
