Welbilt Multiplex FreshBlender User manual

Service Manual
This manual is updated as new information and models are released. Visit our website for the latest manual www.welbilt.com
Part Number REV00 04/08/2020
FreshBlender™
Integrated Beverage Systems

Safety Notices
As you work on Welbilt equipment, be sure to pay close
attention to the safety notices in this manual. Disregarding
the notices may lead to serious injury and/or damage to the
equipment.
Throughout this manual, you will see the following types of
safety notices:
nWarning
Text in a Warning box alerts you to a potential personal
injury situation. Be sure to read the Warning statement
before proceeding, and work carefully.
,Caution
Text in a Caution box alerts you to a situation in which
you could damage the equipment. Be sure to read
the Caution statement before proceeding, and work
carefully.
Procedural Notices
As you work on Manitowoc equipment, be sure to read the
procedural notices in this manual. These notices supply
helpful information which may assist you as you work.
Throughout this manual, you will see the following types of
procedural notices:
Important
Text in an Important box provides you with information
that may help you perform a procedure more efficiently.
Disregarding this information will not cause damage or
injury, but it may slow you down as you work.
NOTE: Text set off as a Note provides you with simple, but
useful, extra information about the procedure you are
performing.
Read These Before Proceeding
,Caution
Proper installation, care and maintenance are essential
for maximum performance and trouble-free operation
of your equipment. Visit our website www.welbilt.com
for manual updates, translations, or contact information
for service agents in your area.
Important
Routine adjustments and maintenance procedures
outlined in this manual are not covered by the warranty.
nWarning
Read this manual thoroughly before operating, installing
or performing maintenance on the equipment. Failure
to follow instructions in this manual can cause property
damage, injury or death.
nWarning
Do not use electrical appliances or accessories other
than those supplied by Manitowoc for your ice machine
model.
nWarning
Two or more people or a lifting device are required to lift
this appliance.
nWarning
This equipment contains high voltage electricity and
refrigerant charge. Installation and repairs are to be
performed by properly trained technicians aware of
the dangers of dealing with high voltage electricity and
refrigerant under pressure. The technician must also be
certified in proper refrigerant handling and servicing
procedures. All lockout and tag out procedures must be
followed when working on this equipment.
nWarning
Do not damage the refrigeration circuit when installing,
maintaining or servicing the unit.

nWarning
Do not operate equipment that has been misused,
abused, neglected, damaged, or altered/modified
from that of original manufactured specifications. This
appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision concerning use of the
appliance by a person responsible for their safety. Do
not allow children to play with this appliance.
nWarning
All covers and access panels must be in place and
properly secured, before operating this equipment.
nWarning
Do not obstruct machine vents or openings.
nWarning
Do not store gasoline or other flammable vapors or
liquids in the vicinity of this or any other appliance.
nWarning
Do not clean with water jet.
nWarning
It is the responsibility of the equipment owner to
perform a Personal Protective Equipment Hazard
Assessment to ensure adequate protection during
maintenance procedures.
nWarning
When using electric appliances, basic precautions must
always be followed, including the following:
a. Read all the instructions before using the
appliance.
b. To reduce the risk of injury, close supervision
is necessary when an appliance is used near
children.
c. Do not contact moving parts.
d. Only use attachments recommended or sold by
the manufacturer.
e. Do not use outdoors.
f. For a cord-connected appliance, the following
must be included:
• Do not unplug by pulling on cord. To unplug,
grasp the plug, not the cord.
• Unplug from outlet when not in use and
before servicing or cleaning.
• Do not operate any appliance with a
damaged cord or plug, or after the appliance
malfunctions or is dropped or damaged in
any manner. Contact the nearest authorized
service facility for examination, repair, or
electrical or mechanical adjustment.
g. Follow applicable lock out tag out procedures
before working on equipment.
h. Connect to a properly grounded outlet only.

THIS PAGE INTENTIONALLY LEFT BLANK

Table of Contents
Part Number REV00 04/08/2020 5
Section 1
General Information
Model & Serial Numbers ....................................................................................................9
How to Read a Model Number..........................................................................................................9

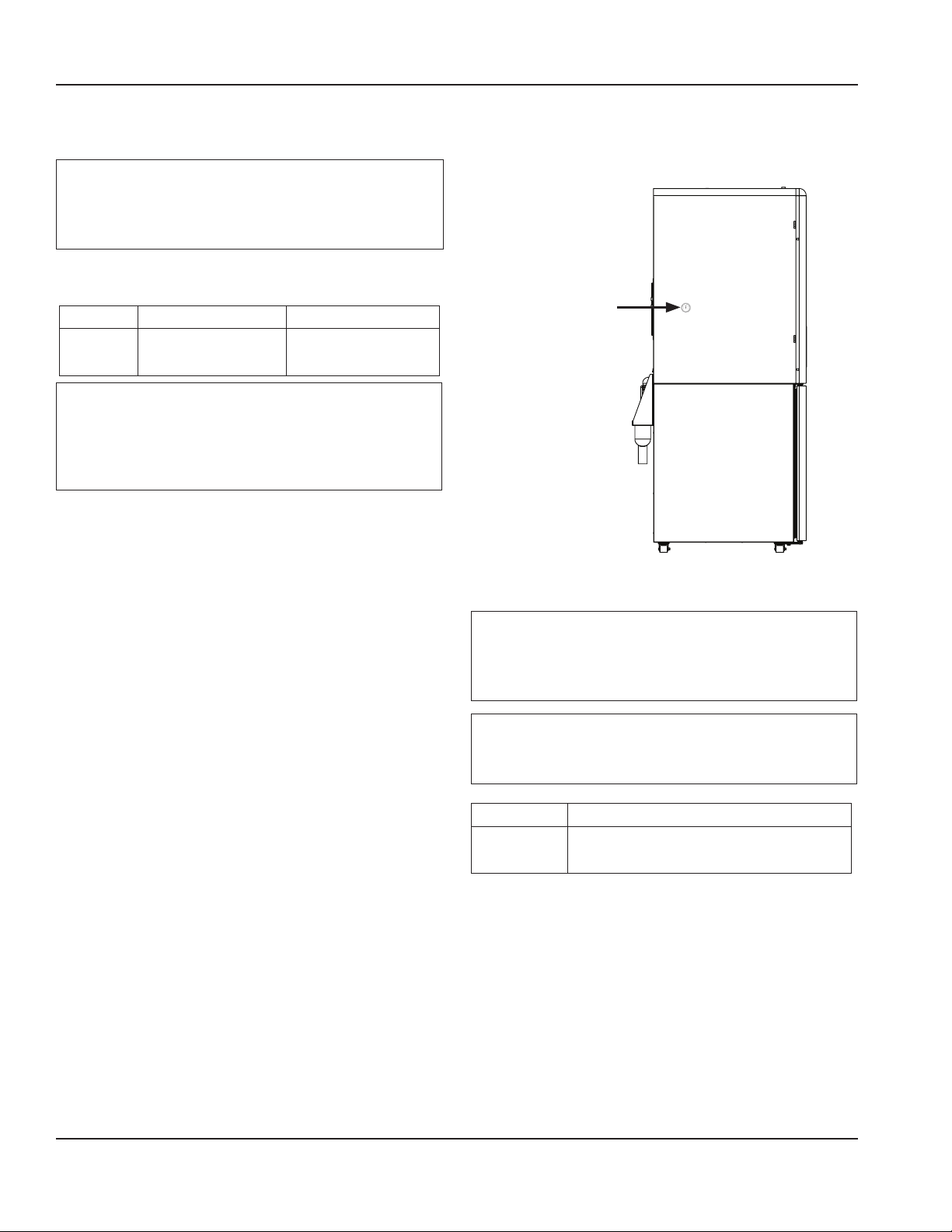

Serial Number Location .......................................................................................................................9
Warranty Information ........................................................................................................9
Specifications ...................................................................................................................10

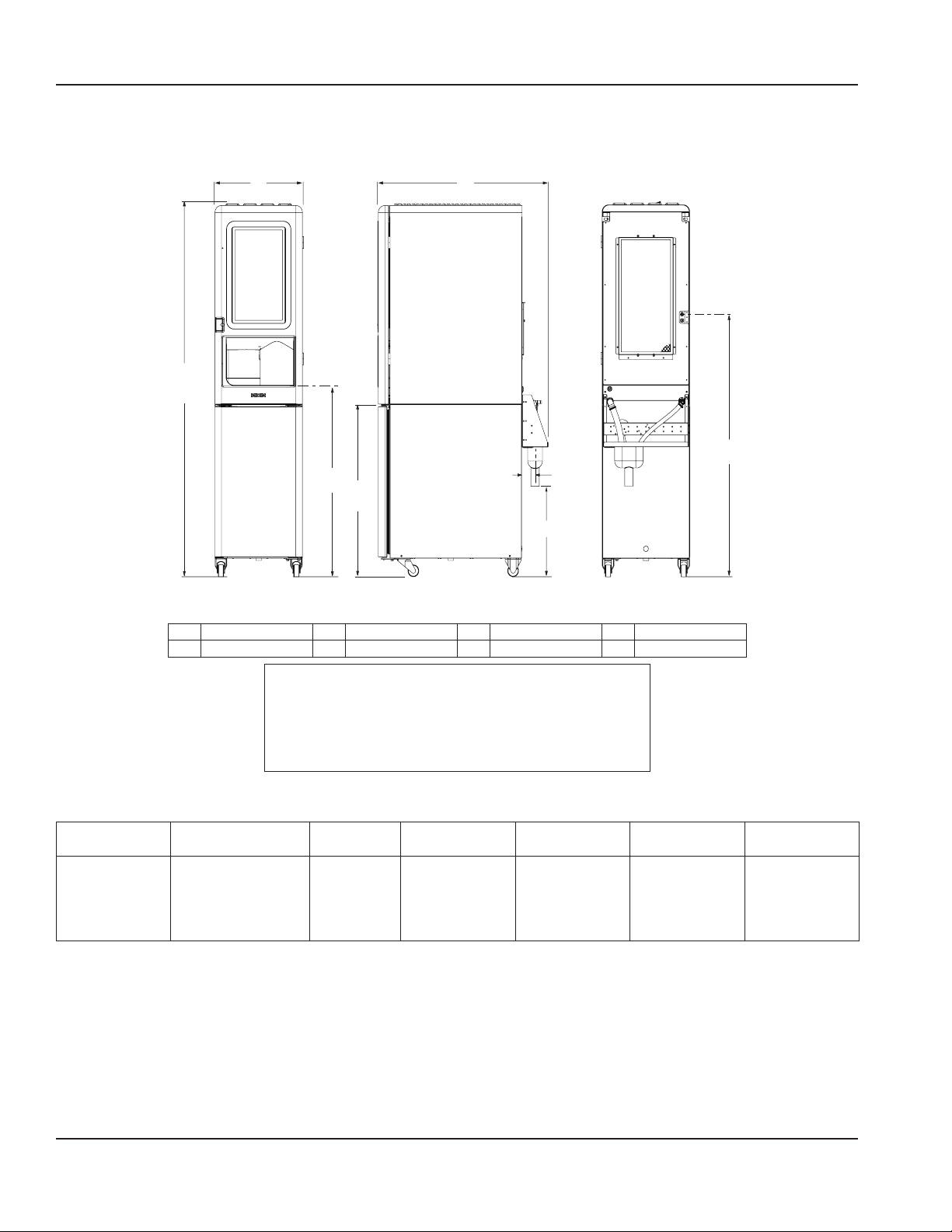

Dimensions............................................................................................................................................ 10
Capacity & Weight............................................................................................................................... 10
Product Delivery Location...............................................................................................11
Electrical............................................................................................................................12
Drain Connections .............................................................................................................................. 13
Water Requirements ........................................................................................................13
Supply Connections ........................................................................................................................... 13
Hard Water ............................................................................................................................................. 13
System Pressures ................................................................................................................................. 14
Regulator Settings & Location........................................................................................................ 14
Section 2
Installation
Installation & Start-up Overview ....................................................................................15
Pre-installation Checklist.................................................................................................................. 15
Connections .......................................................................................................................................... 16
Software.................................................................................................................................................. 17
Start-up & Cleaning ............................................................................................................................ 17
Post Installation Checklist ................................................................................................................ 18
Section 3
Operation
External Component Identification ................................................................................19
Sequence of Operation....................................................................................................19
Normal Operation ............................................................................................................................... 19
Product Dispense Operation........................................................................................................... 20
Operation............................................................................................................................................... 20
Ice Making.............................................................................................................................................. 20
Refrigerated Cabinet Operation .................................................................................................... 22
Normal Operations...........................................................................................................22
Evaporator & Condenser Fan Motor Operation........................................................................ 22
Operation in the Clean/Sanitize Cycle ......................................................................................... 22
Adaptive Defrost.................................................................................................................................. 22
High Temp Alarm................................................................................................................................. 22
Fault Conditions ...............................................................................................................23
Low Water shutdown ........................................................................................................................ 23
Low Refrigerant Pressure shutdown ........................................................................................... 23
Power interruption ............................................................................................................................ 23
Rotation shutoff .................................................................................................................................. 23
Thermistor Failure ............................................................................................................................... 23

6 Part Number REV00 04/08/2020
Table of Contents (continued)
Section 4
Maintenance
General Maintenance.......................................................................................................25
Daily, Weekly, Monthly ...................................................................................................................... 25
Quarterly & Biannual.......................................................................................................................... 25
Annual, Shutdown & Start-up......................................................................................................... 25
Door Gasket Maintenance ............................................................................................................... 26
Refrigerators.......................................................................................................................................... 26
Stainless Steel Care & Cleaning ...................................................................................................... 26
Doors/Hinges........................................................................................................................................ 27
Preventing Corrosion......................................................................................................................... 27
Cleaning Kits ......................................................................................................................................... 27
Other Monthly Tasks........................................................................................................................... 27
Daily Cleaning - Zone 1....................................................................................................28
Weekly Cleaning - Zone 2 ................................................................................................29
Ice Maker Sanitizing & Descaling - Zone 3 & 4 ...............................................................29
Annual Planned Maintenance.........................................................................................30
Section 5
Troubleshooting
Store Manager Level ........................................................................................................31
Before Calling For Service Checklist ............................................................................................. 31
Technician Level ...............................................................................................................33
This troubleshooting is to be used only by qualified service technicians. .................33
Error Log Messages..........................................................................................................33
Control System..................................................................................................................................... 34
Ice System Troubleshooting ............................................................................................................ 35
Installation/Visual Inspection Checklist ...................................................................................... 35
Water System Checklist..................................................................................................................... 36
REFRIGERATION SYSTEM CHECKLIST............................................................................................ 36
Ice Production & Quality Check...................................................................................................... 36
Discharge Pressure High Checklist................................................................................................ 37
Discharge Pressure Low Checklist................................................................................................. 37
Suction Pressure High Checklist .................................................................................................... 37
Suction Pressure Low Checklist...................................................................................................... 37
Blender Controls Flowchart............................................................................................................. 38
Blender Controls Flowchart (Continued).................................................................................... 39
Ice Machine Troubleshooting Flowchart .................................................................................... 40
Control Board Test Mode .................................................................................................40
Refrigerated Cabinet........................................................................................................41
Refrigerated Cabinet Flowchart..................................................................................................... 41
Ice Machine Electrical Flowchart ................................................................................................... 43
Reach-in Temperature Out of Range............................................................................................ 45
High Product Temperature .............................................................................................................. 46
Refrigeration System Diagnostics ..................................................................................47
Refrigeration System Checklists..................................................................................................... 47
Installation/Visual Inspection Checklist ...................................................................................... 47
Analyzing Discharge Pressure or Temperature......................................................................... 47
Analyzing Suction Pressure or Temperature ............................................................................. 48
Water System Checklist....................................................................................................48

Part Number REV00 04/08/2020 7
Table of Contents (continued)
Section 6
Controls
Touch Screens...................................................................................................................49
Main Select to Start Screen.............................................................................................................. 49
Drink Selection Screen ...................................................................................................................... 50
Flavor Selection Screen..................................................................................................................... 51
Confirmation Screen .......................................................................................................................... 52
Size Screen............................................................................................................................................. 53
Employee, Managers, & Service Menu Screens........................................................................ 55
Product Inventory Screen................................................................................................................. 56
Assigning Flavors................................................................................................................................. 57
Product, Ice, & Water Calibration ................................................................................................... 59
Shuttle Calibration.............................................................................................................................. 60
Cleaning Instructions Screen.......................................................................................................... 61
Other Operations .............................................................................................................62
Loading New Menu Recipes............................................................................................................ 62
Manual Lockout ................................................................................................................................... 62
Usage Stats ............................................................................................................................................ 62
Service Inputs ....................................................................................................................................... 63
Service Outputs ................................................................................................................................... 63
Machine ID............................................................................................................................................. 63
Settings................................................................................................................................................... 63
Logs.......................................................................................................................................................... 64
Subsystem Version Info..................................................................................................................... 64
Section 7
Component Check Procedures
Control System .................................................................................................................65
ON/OFF Rocker Switch...................................................................................................................... 65
Power Relay ........................................................................................................................................... 65
Fan Cycle Control................................................................................................................................. 66
Ice Chute Switch .................................................................................................................................. 66
Blender Control Board....................................................................................................................... 67
Beverage Components ....................................................................................................68
Blender Step Motor ............................................................................................................................ 68
Blender Motor....................................................................................................................................... 68
Home Position Switch........................................................................................................................ 69
Door Switches....................................................................................................................................... 69
Ice Chute Switch .................................................................................................................................. 70
Low water Float Switch ..................................................................................................................... 70
Low Pressure Control ......................................................................................................................... 71
High Pressure Cutout (HPCO) Control..........................................................................................71
Gear Motor Rotation Sensor............................................................................................................ 72
Fan Cycle Control................................................................................................................................. 72
Gear Motor Assembly ........................................................................................................................ 73
Evaporator Assembly......................................................................................................................... 74
Compressor Electrical Diagnostics................................................................................................ 74
Diagnosing Start Components....................................................................................................... 75
Compressor Electrical Diagnostics................................................................................................ 75
Compressor Drawing Locked Rotor.............................................................................................. 76
Diagnosing Capacitors ...................................................................................................................... 76
Filter-Driers ............................................................................................................................................ 76
Refrigerated Cabinet........................................................................................................77

8 Part Number REV00 04/08/2020
Table of Contents (continued)
Temperature Thermistor - Nozzle & Cabinet probes only..................................................... 77
Duct Fan Motor .................................................................................................................................... 78
Condenser Fan Motor ........................................................................................................................ 78
Refrigerant Recovery/Evacuation...................................................................................78
Self-Contained Model Procedure .................................................................................................. 78
System Contamination Clean-Up....................................................................................81
General.................................................................................................................................................... 81
Determining Severity Of Contamination.................................................................................... 81
Cleanup Procedure ............................................................................................................................. 82
Replacing Pressure Controls ........................................................................................................... 83
Section 8
Charts
Total System Refrigerant Charge ....................................................................................85
24-Hour Ice Production/ Refrigerant Pressure Charts...................................................85
FB081TF R404A Refrigerant Chart................................................................................................. 86
FB081TP R290 Refrigerant Chart ................................................................................................... 86
Nominal Operating Voltage ............................................................................................87
Nominal Operating Voltage for Loaded Electrical Components........................................ 87
Nominal Operating Voltage for Sensors ..................................................................................... 87
Section 9
Diagrams
Power Distribution Wiring Diagram ............................................................................................. 89
Interconnect Wiring Diagram ........................................................................................................ 90
Plumbing Diagram.............................................................................................................................. 91
Ice Machine Refrigeration tubing Schematic............................................................................ 92

Part Number REV00 04/08/2020 9
Important
Only a qualified service technician must perform
installation, start-up, and service of this equipment. This
includes all instructions and procedures in this document.
Model & Serial Numbers
This manual covers the following models:
FreshBlender Beverage Systems
FB081TF
HOW TO READ A MODEL NUMBER
Platform Flavors Mixers Plug Refrigerant Hinge Optional
FB
(FreshBlender)
08
(8 Flavors)
06
(8 Flavors)
1
(1 Mixer)
2
(2 Mixer)
T
(115V
60hz)
F
(R-404A)
P
(R-290)
R
(Right)
L
(Left)
Used for
Build
Specific
Info
B
(220V
60hz)
Z
(Bare
Lead)
E
(Euro
16
Amp)
U
(UK 13
Amp)
SERIAL NUMBER LOCATION
The FreshBlenders beverage system serial number is listed on
the serial tag affixed to the inside left and rear left of the unit.
Sample Serial Tag
NOTE: Once the unit is registered online during the startup
procedure the serial number can also be found in the
Service Screen under Subsystem Versions after the machine
has been properly registered and a Machine ID assigned.
Warranty Information
Consult your local Service Agent or Representative for terms
and conditions of your warranty. Your warranty specifically
excludes all general adjustments, cleaning, accessories and
related servicing.
Your warranty should be activated at the time of
installation/registration or a card must be returned to
activate the warranty on this equipment. If either method
is not completed, the warranty period can begin when the
equipment leaves the Welbilt factory.
No equipment may be returned to Welbilt without a written
Return Materials Authorization (RMA). Equipment returned
without an RMA will be refused at Welbilt’s dock and
returned to the sender at the sender’s expense.
Please contact your local distributor for return procedures.
Section 1
General Information

10 Part Number REV00 04/08/2020
General Information Section 1
Specifications
DIMENSIONS
D
E
B
C
A
F
G
H
Front View Rear ViewSide View
A 20.26" (52 cm) C 40.13" (102 cm) E 38.79" (99 cm) G 3.08" (8 cm)
B 78.53" (200 cm) D 35.73" (91 cm) F 19.04" (48 cm) H 54.35" (138 cm)
nWarning
To avoid instability the installation area must be capable
of supporting the weight of the equipment and a full
bin of ice. Additionally the equipment must be level side
to side and front to back.
CAPACITY & WEIGHT
Drink Making Ice Capacity Ice Compressor
HP
Max Product
BinLoad
Shipping
Weight
Empty Weight Full Operating
Weight
1 drink in less
than 2 minutes. 30
per hour up to 2
consecutive peak
hours
* Up to 250 lbs
(113 kg)/24 hr.
Bin Storage
30 lbs (14 kg)
1/3 19.8 lbs
(9 kg)
520 lbs
(236 kg)
Crated
400 lbs
(181kg)
Unpacked
No Ice/
Product
560 lbs
(254kg)
WithIce/
Product
* Ice Capacity and Production depends on Air / Water Temperatures and Refrigerant, See 24-Hour Ice Production/ Refrigerant
Pressure Charts page 85

Part Number REV00 04/08/2020 11
Section 1 General Information
Product Delivery Location
The location selected for the FreshBlender Beverage System
must meet the following criteria.
• The air temperature must be at least 40°F (4°C), but
must not exceed 90°F (32°C), climate class 4.
• The location must not be near heat-generating
equipment or in direct sunlight and must be protected
from weather.
• Plain Inlet Water Temperature:
min/max = 40°F / 90°F (4°C / 32°C).
• Always use the water supply line supplied when
installing this appliance. Never reuse an old supply line.
• Verify floor of install location is level front to back, side
to side.
• Keep equipment area clear of combustible material.
Clearances
Top 18" (46 cm)
Sides 0" (0 cm)
Back 6" (15 cm)
Front 24" (61 cm)
nWarning
Do not obstruct machine vents or openings.
Heat of Rejection
Model System BTU
FB081TF 2300 BTU/hr (average)

12 Part Number REV00 04/08/2020
General Information Section 1
Electrical
nWarning
All wiring must conform to local, state and national codes.
Minimum Circuit Ampacity
The minimum circuit ampacity is used to help select the
wire size of the electrical supply. (Minimum circuit ampacity
is not the FreshBlender Beverage System’s running amp
load.) The wire size (or gauge) is also dependent upon
location, materials used, length of run, etc., it must be
determined by a qualified electrician.
Voltage
A dedicated electrical circuit is required, a power cord
is provided with all units. Some models are available in
different voltages and may be equipped with a different
plug. Refer to Fresh Blends Beverage System Model/Serial
Plate for voltage/amperage specifications.
Minimum Circuit Amperage Chart
Important
Due to continuous improvements, this information is
for reference only. Please refer to the serial number tag
to verify electrical data. Serial tag information overrides
information listed on this page.
Model Voltage/Cycle/
Phase
Total Amps Breaker Size
(Min/Max)
FB081TF 120/60/1 16 20A

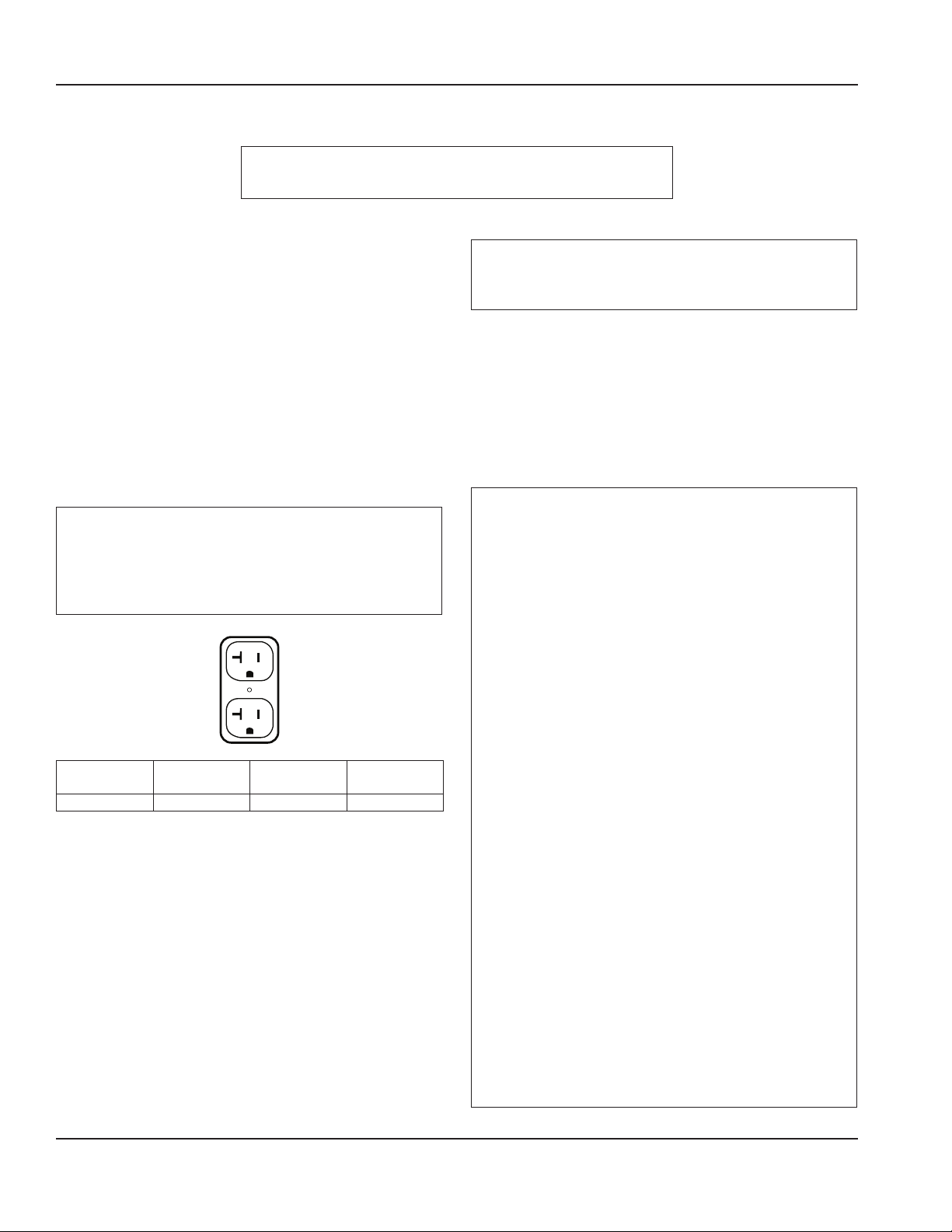

• Dedicated 120V 20 Amp Circuit
• Non GFI Outlet that accepts NEMA5 – 20 plug
• Outlet within 3’ (92 cm) of machine
NOTE: Supplied Cord length is 78” (198 cm).
Grounding Instructions
nWarning
The machine must be grounded in accordance with
national and local electrical codes.
This appliance must be grounded. In the event of
malfunction or breakdown, grounding provides a path
of least resistance for electric current to reduce the
risk of electric shock. This appliance is equipped with a
cord having an equipment-grounding conductor and
a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
nWarning
When using electric appliances, basic precautions must
always be followed, including the following:
A. Read all the instructions before using the
appliance.
B. To reduce the risk of injury, close supervision
is necessary when an appliance is used near
children.
C. Do not contact moving parts.
D. Only use attachments recommended or sold by
the manufacturer.
E. Do not use outdoors.
F. For a cord-connected appliance, the following
must be included:
• Do not unplug by pulling on cord. To unplug,
grasp the plug, not the cord.
• Unplug from outlet when not in use and
before servicing or cleaning.
• Do not operate any appliance with a
damaged cord or plug, or after the appliance
malfunctions or is dropped or damaged in
any manner. Contact the nearest authorized
service facility for examination, repair, or
electrical or mechanical adjustment.
G. Follow applicable lock out tag out procedures
before working on equipment.
H. Connect to a properly grounded outlet only. See
Grounding Instructions.

Part Number REV00 04/08/2020 13
Section 1 General Information

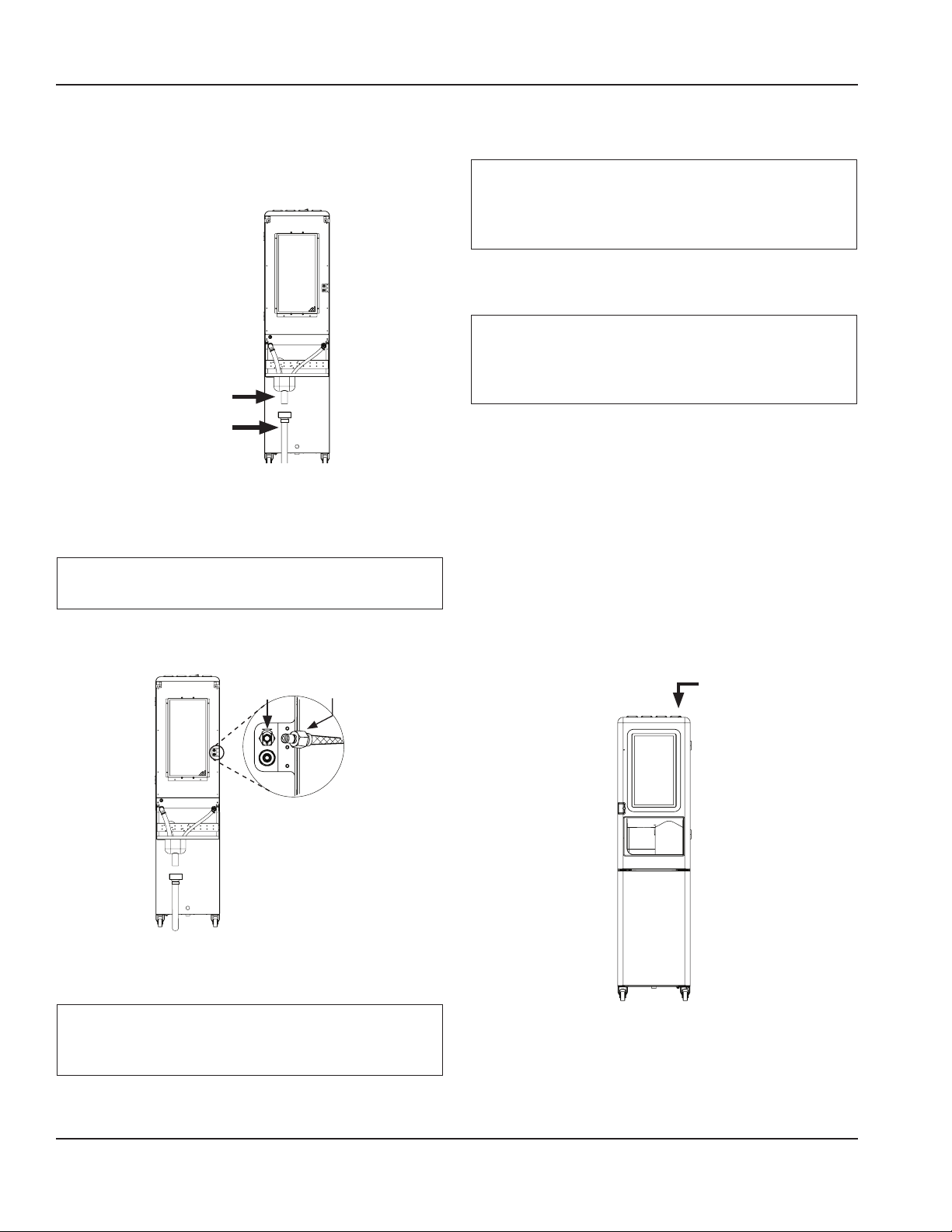

DRAIN CONNECTIONS
Models FB081TF
Drain OUT
(1½ NPS Male)
PVC Drain with
Air Gap
Drain Requirements
• Drain lines must have a 1.5 inch drop per 5 feet of run
(2.5 cm per meter), and must not create traps.
• The floor drain must be large enough to accommodate
drainage from all drains.
• An air gap is required and built in to the unit for back
flow prevention.
NOTE: If a PVC configuration is used a second air gap will be
created.
• Always plumb to local code.
PVC DRAIN CONFIGURATION
• 4” PVC coupling to minimum 1 ½“ PVC.
FLEXIBLE DRAIN LINE CONFIGURATION
• Flexible drain line connected to the 1 ½” NPS drain sink
with service loop.
Water Requirements
nWarning
Connect to a potable filtered water supply only.
SUPPLY CONNECTIONS
Plain Water IN
Quick Connect PN: WBL-96-087
Rear of the Unit
• Use the supplied male quick connect (PN: WBL-96-087) and
6’(1.8 m) of ⁄”beverage tubing to the plain water inlet on
the rear of the unit for the water supply connection.
NOTE: The 6’ (1.8 m) of tubing for the water line is for a service
loop to allow the unit to be serviceable if pulled out of place.
• Do not connect water to a hot water supply. Be sure all
hot water restrictors installed for other equipment are
working. (Check valves on sink faucets, dishwashers, etc.)
• Install a water shut-off valve in the water line at the rear
of the machine.
• Insulate water inlet lines if condensation is an issue.
• Equipment to be installed with adequate back flow
protection that meets all applicable national, state, and
local codes.
HARD WATER
All source water must be filtered. In areas where the
water is highly concentrated with minerals the water
should be tested by a water treatment specialist, and the
recommendations of the specialist regarding filtration and/or
treatment should be followed.

14 Part Number REV00 04/08/2020
General Information Section 1
SYSTEM PRESSURES
Water Supply to the Unit
nWarning
Do not supply more than 80 psi (0.551 MPa , 551 kPa,
5.51 bar) Plain or CarbonatedWater to the unit, excessive
pressure to product pumps may cause failure.
This table shows the Minimum / Maximum supply of Water
required at the rear of the machine at no flow conditions.
MINIMUM MAXIMUM
Plain Water
Supply
40 psi
(0.276 MPa , 276 kPa, 2.76 bar)
80 psi
(0.552 MPa, 552 kPa, 5.52 bar)
Important
Minimum water pressure supplied to the machine needs
to be greater than the 35 psi (0.241 MPa , 241 kPa, 2.41
bar) required during flowing conditions for pressure to
be regulated properly.
REGULATOR SETTINGS & LOCATION
Models FB081TF
NOTE: The regulator is located behind the left side panel.
Plain Water
Regulator
35 psi
(0.241 MPa , 241
kPa, 2.41 bar)
Flowing
Regulator Settings
Important
Water requires the pressure measurement to be taken
only when rinse water is spraying or dispensing (flowing
conditions).
Important
Water pressure affects the blender area cleaning, a
water booster may be required if pressure is too low.
