Welcare WNBP100 Instruction Manual

Wearable Electric
Breast Pu mp
Model: WNBP100
Instruction Manual & Warranty Information
Read Instructions Carefully Before Use

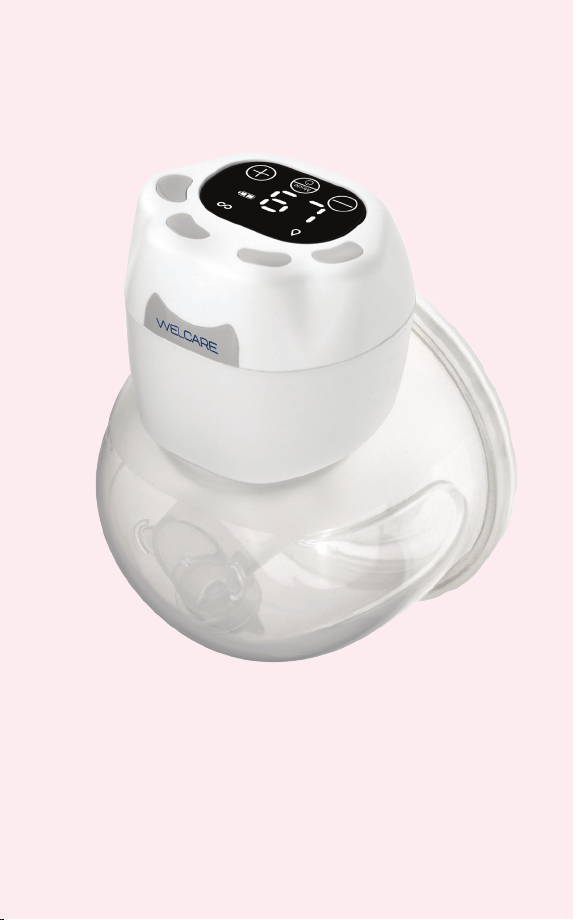

Thank you for purchasing this Welcare Nurture
Wearable Electric Breast Pump.
Please keep this instruction manual in a safe place where it is
readily available.
Note: The illustrations in this manual may differ slightly from the product itself.
2 Welcare Nurture Wearable Electric Breast Pump

Contents
Important Safety Information .................... 4
Contraindications ............................ 4
Safety Warnings ............................. 5
Features .................................. 6
Anti-Backow Function ........................ 6
Package Contents ............................ 6
Breast Pump Components ..................... 7
Wearable Electric Breast Pump Display ............ 7
Adjustable Modes ............................ 8
Operating Display ............................ 8
Running Time Display ......................... 8
Funnel Inserts ............................... 9
Before Using the Electric Breast Pump ............. 9
Assembling the Electric Breast Pump ............. 10
Charging the Electric Breast Pump ............... 12
Using the Electric Breast Pump ................. 13
Storage of Breast Milk ........................ 16
Cleaning and Maintenance .................... 16
Storage .................................. 17
Troubleshooting............................. 18
Replacement Accessories (sold separately) ......... 19
Symbol Explanation .......................... 20
Technical Data ............................. 21
Product Warranty Information................... 22
Warranty Form ............................. 25
Instruction Manual & Warranty Information 3

Important Safety Information
Read this section thoroughly before using the product.
Please ensure you observe the safety instructions to avoid
accidents, injury, and damage.
Intended Purpose
The Welcare Nurture Wearable Electric Breast Pump is intended to be used
to express and collect milk from the breast. The device is intended for single
person use.
Limitations
• DO NOT use this product for anything other than its intended purpose
and only use as described in this manual.
• The Welcare Nurture Wearable Electric Breast Pump is a non-professional
appliance designed for private use.
This product is not a therapeutic device. Do not use as a substitute for
medical attention.
Contraindications
• DO NOT use the product with any electronic medical devices e.g.,
implants such as pacemakers; life support systems; or devices
attached to the body such as ECG machines, as the product may cause
the devices to malfunction which could result in death or serious injury.
• This product is NOT intended for use by persons with limited physical,
sensory, or mental abilities or lacking experience and/or knowledge,
unless they are supervised by a person responsible for their safety or
have received and understand the instructions/ safety warnings for use
of the product from this person in advance.
• DO NOT leave the product unsupervised while it is connected.
4 Welcare Nurture Wearable Electric Breast Pump

Safety Warnings
• Keep the product and its components out of reach of children.
DO NOT let children play with the product.
• Keep children away from the packaging material.
• This is a single-user product. Use by more than one person may
present a health risk.
• If you become pregnant while breastfeeding or breast pumping, consult
with a licensed healthcare professional before continuing.
• There should be no pain when using your breast pump. If you feel pain,
try using the pump on a lower suction level or stop using and talk to
your healthcare professional.
• Do not continue to use the pump once your milk has stopped owing.
• Wash all parts that come into contact with your breast and breast milk
after every use.
• DO NOT drop or put heavy objects on the product.
• Never immerse the Pump Motor into water or drop into other liquids.
• DO NOT use the device while charging.
• DO NOT expose the product to temperatures of over 40°C while in use.
• DO NOT use while driving.
• DO NOT allow the product to come into contact with any sharp objects,
as this could cause damage to the product.
• DO NOT use while bathing or showering.
• DO NOT run water over the pump unit.
Instruction Manual & Warranty Information 5

Features
• 3 Modes: Massage, Suction &
Expression
• Adjustable Suction Levels
(9 levels)
• *Anti-Backow Function
• Rechargeable Lithium Battery
• LED Screen
• USB Recharging
• Ultra Quiet Operation
• Easy Cleaning
• Auto Shut-off
• Capacity to hold up to 150mL
of milk
*Anti-Backow Function
The anti-backow protection system prevents milk from owing back into
the pump motor maintaining the hygiene of the breast milk.

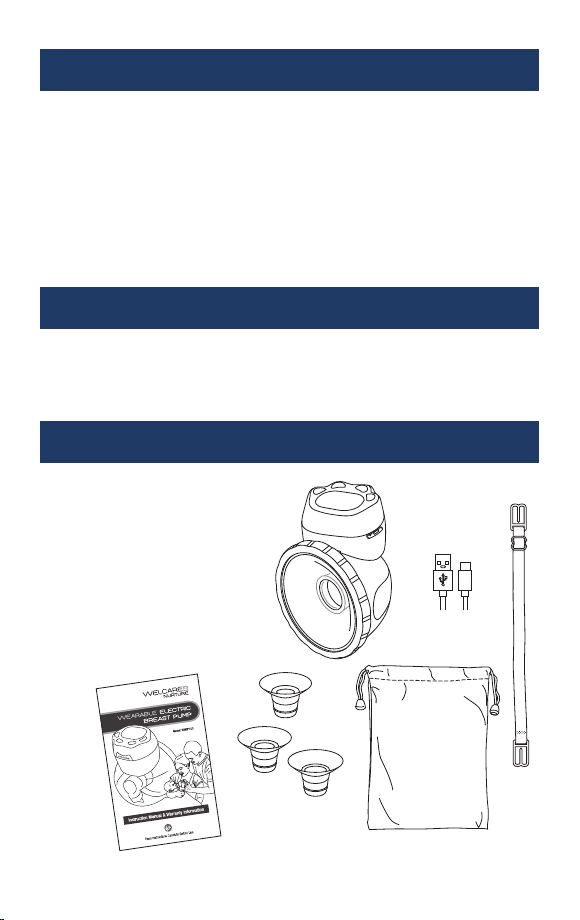

Package Contents
1 x Breast Pump
3 x Funnel Inserts (3 sizes)
1 x Type-C USB Charging Cable
1 x Storage Bag
1 x Bra Strap
1 x Instruction Manual &
Warranty Information
6 Welcare Nurture Wearable Electric Breast Pump

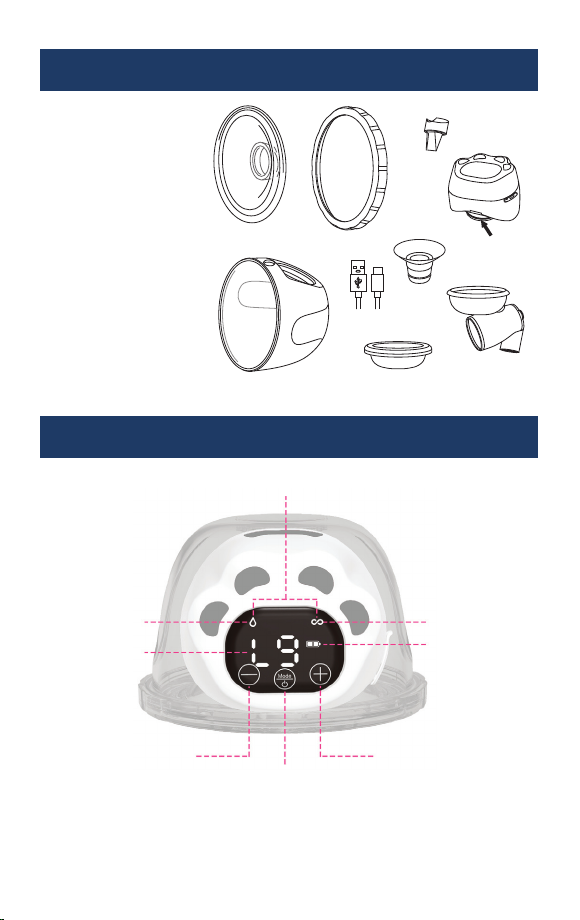

Breast Pump Components
A. Breast Shield
B. Lock Ring
C. Silicone Valve
D. Pump Motor
E. Silicone Seal
F. Milk Collector
G. USB Charging Cable
H. Funnel Insert
I. Silicone Diaphragm
J. Linker
Wearable Electric Breast Pump Display
Expression
ON/Off /
Mode Button
Massage
Battery Status
Suction
Level Display /
Operation Time
Suction Level Button –
Decrease (Minimum 1)
Suction Level Button –
Increase (Maximum 9)
AB
C
D
G
H
J
I
E
F
Instruction Manual & Warranty Information 7

Adjustable Modes
Massage: A gentle and rapid pumping rhythm to encourage
milk ow.
Suction: Once the milk starts owing, the pumping frequency
decreases.
Expression: The pumping frequency alternates between fast and
slow, starting with a massaging technique to promote rapid milk ow.

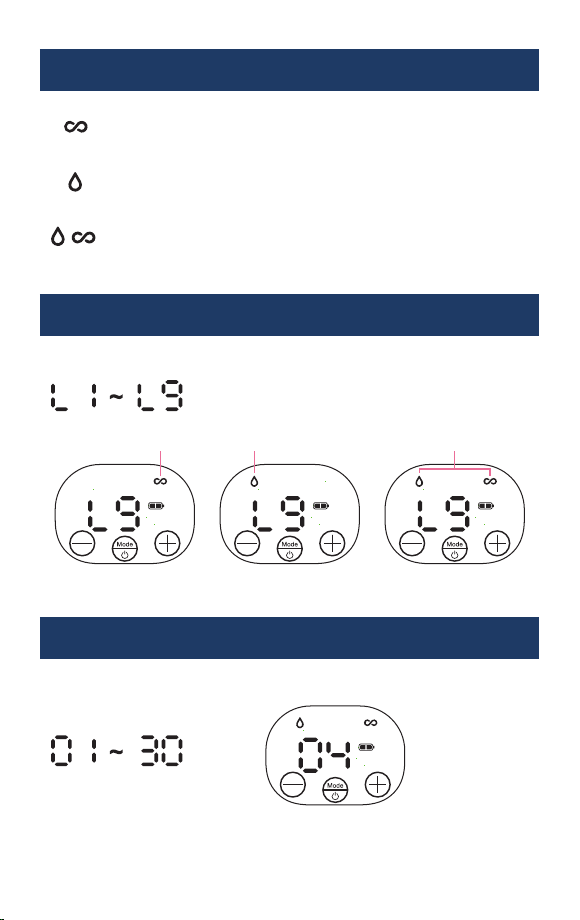

Operating Display
Suction Levels
Running Time Display
The display shows the running time between 01 to 30 minutes.
Massage Level 9
Massage Suction
Suction Level 9 Expression Level 9
Expression
8 Welcare Nurture Wearable Electric Breast Pump

Funnel Inserts

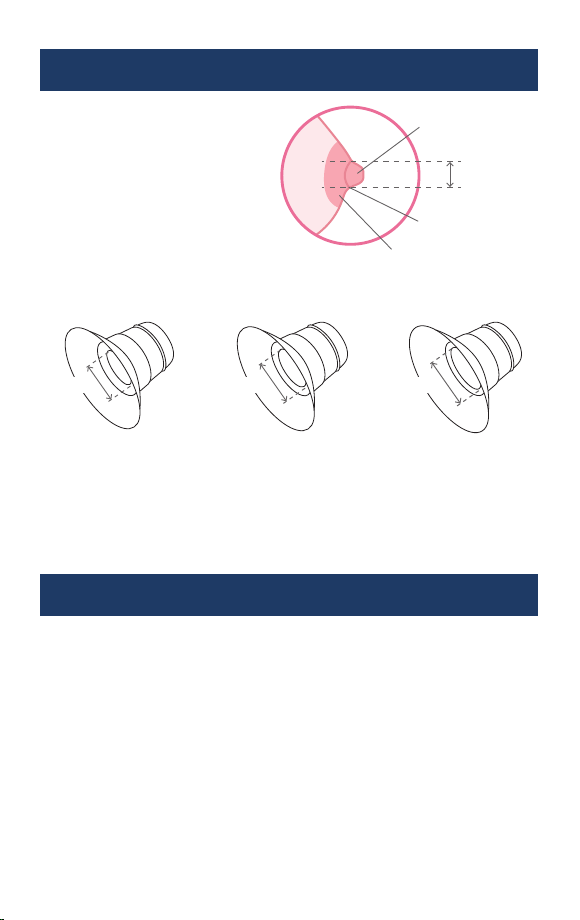

A mother’s nipple can vary in
size. Choose the appropriate
Funnel Insert according to your
nipple size.
For the correct sizing, measure
the diameter of your nipple.
Select the funnel insert that is slightly larger than your nipple.
19mm 21mm 24mm
Small Medium Large
Note: If the funnel insert is too large for the nipple, leakage may occur.
If the funnel is too small for the nipple, a tingling sensation may be felt
and a less amount of milk may be extracted.
Before Using the Electric Breast Pump
• Carefully remove all packaging materials and keep the enclosed
documents in a safe place.
• Keep the packaging, product, and its components out of reach
of children.
• Check the product is intact. DO NOT use if broken.
If any abnormalities are detected, please contact our service centre:
In Australia - 1800 807 464 In New Zealand - 0800 523 583
Nipple
Nipple Base
Areola
Measure
Instruction Manual & Warranty Information 9

Assembling the Electric Breast Pump
Wash and sterilise the breast pump before use. Refer pages 16–17.
Before assembling the pump, please ensure all
parts are dry.
3. Place the assembled
Linker into the
internal slot of the
Milk Collector (F).
4. Gently press to
ensure the Linker is
secure.

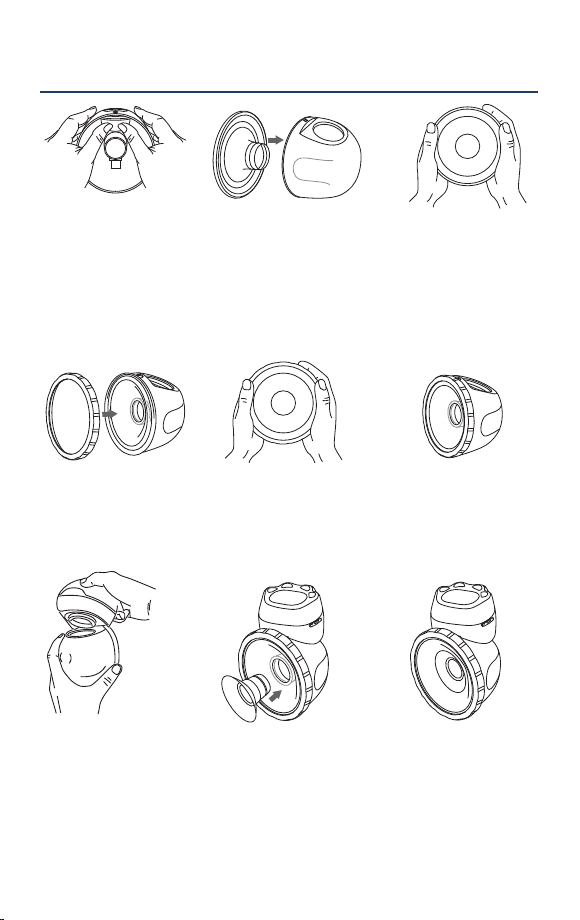

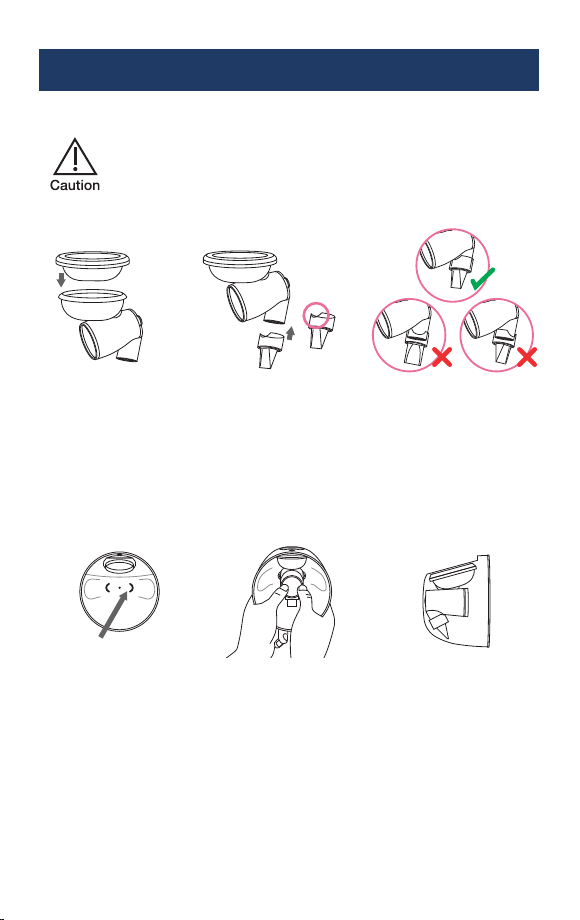

1. Place the Silicone
Diaphragm (I)
into the Linker (J). Gently
press around the edges
of the Diaphragm to seal
completely.
2. Place the
Silicone Valve (C)
securely to the base
of the Linker.
Please note the
correct Valve
position.
Internal Slot
Note: Ensure the
Valve is facing
downwards.
10 Welcare Nurture Wearable Electric Breast Pump

Assembling the Electric Breast Pump (cont’d)
5. Gently press
the assembled
Linker ensuring the
Diaphragm is rmly
sealed within the
Milk Collector.
6. Attach the Silicone
Breast Shield (A) onto
the Milk Collector.
8. Place the Lock
Ring (B) on the
Milk Collector.
9. Gently press the
Lock Ring to ensure
the Milk Collector is
secured.
10. The Milk Collector
is now assembled.
7. Gently press the
edges of the Silicone
Breast Shield to
ensure they are
securely sealed.
11. Press the Pump
Motor (D) onto the
Milk Collector to
ensure a secure t.
12. Choose the
preferred Funnel
Insert (H) according
to your nipple size.
(Refer size guide pg 9)
13. The Breast Pump
is now fully assembled.
Instruction Manual & Warranty Information 11

Charging the Electric Breast Pump
Please ensure that the product is fully charged prior to use.

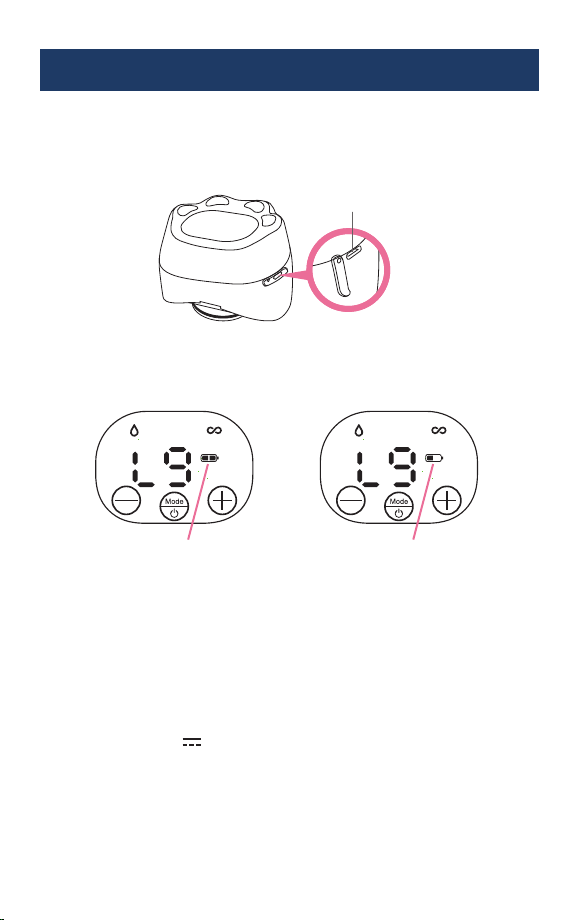

1. Unplug the dust plug and connect the charging cable to the pump
charging port.
2. Plug the charging cable into a USB power adaptor or port.
3. During charging, the battery indicator will ash continuously.
Battery Fully Charged Battery Low
• When the battery indicator shows 1 bar battery power is low.
• When the battery symbol ashes, the battery power is extremely low
and needs to be re-charged.
• When the battery indicator shows 2 bars the battery is fully charged.
• The battery will take approximately 3 hours to fully charge.
Note: This product is not supplied with a power adaptor. The adaptor
output requires 5V 1A to charge.
Charging Port
12 Welcare Nurture Wearable Electric Breast Pump

Using the Electric Breast Pump
• Wash your hands thoroughly with soap and water before use.
• Before starting, it is recommended to either gently massage the breast
with your hands or apply a warm, moist towel to the breast for a few
minutes to help promote milk ow.
• Clean the breast and nipple with clean cotton balls or a wet cloth before
using the product.
Note: For the most comfortable use, please wear a nursing bra when
using the product.
1. Ensure the Breast Pump is clean and assembled correctly (refer to
pages 10 – 11). Use the appropriate Funnel Insert according to your
nipple size, as indicated in the size guide on page 9.

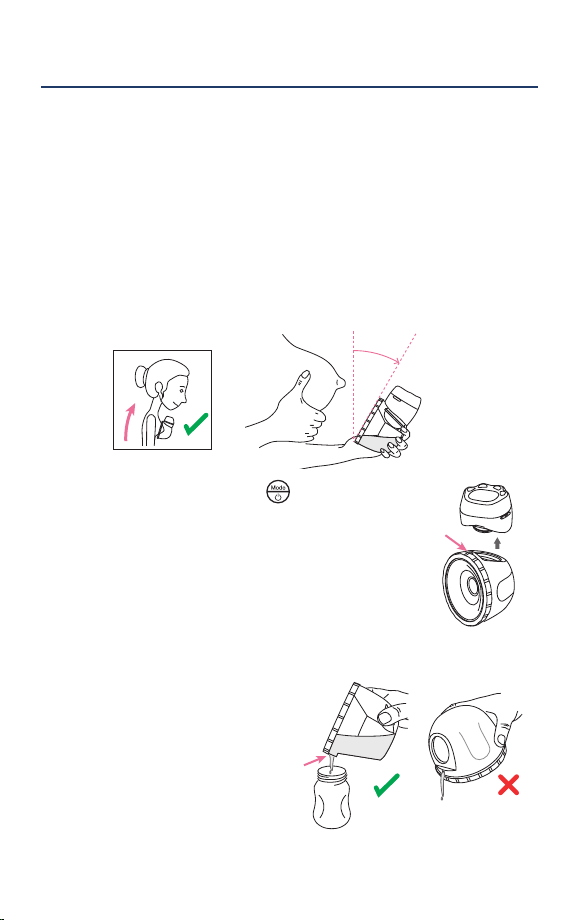

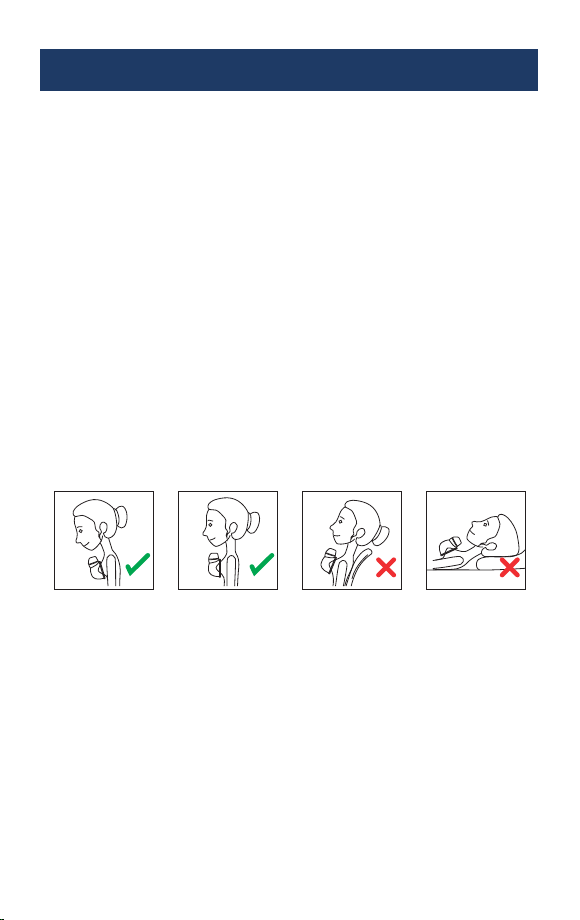

2. Place the Breast Pump comfortably over the breast with the nipple
centred in the opening of the shield creating a vacuum seal.
Note: Ensure the product is placed in the correct position by leaning
your upper body slightly forward.
Adjustable Bra Strap
• If required, use the adjustable bra strap to connect with your nursing
bra and then adjust the length accordingly.
• Place one end of the Adjustment Bra Strap on the inside buckle of the
nursing bra.
• The length of the bra strap can be adjusted by changing the nursing
bra buckle on the other end of the Bra Adjustment Buckle.
Instruction Manual & Warranty Information 13

Adjustable Bra Strap (cont’d)
Adjusting the length of bra straps will make suction more comfortable.
Using the Breast Pump
1. Press ON/OFF button to turn the breast
pump on. The device will automatically start
on Massage Mode .
2. After 2 minutes, the breast milk will ow
freely, and the breast pump will switch
automatically to the Suction Mode .
Note: If your milk starts owing earlier
you can switch the Mode selection button
at any time.
3. When milk is owing freely, you can use
either Suction Mode or press ON/OFF
to choose Expression Mode .
Suction Levels
Use the Level Up to increase Suction Levels and Level Down
to decrease Suction Levels to your preferred level.
The higher the Suction Level, the stronger the suction.
Note: The Suction Level will default to the last used suction level
(or Level 1 when used for the rst time).
Using the Electric Breast Pump (cont’d)
14 Welcare Nurture Wearable Electric Breast Pump

Completing Expression
The Breast Pump will automatically switch off after 30 minutes. Turn back
on if needed.
The Milk Collector will hold up to 150mL of milk.
When expression is complete:
1. To avoid leakage, lean forward and keep pumping for a few seconds
after completion. This ensures the remaining breast milk from the
channel is captured in the milk collector.
30º
2. Press, and hold the ON/OFF button
for 2 seconds to turn the power off.
3. Remove the Breast Pump from the breast
and keep the breast shield facing up.
4. Remove the motor from the top of the
product.
Please note: Keep the spout in the upright position to avoid any spillage.
5. Transfer the breast milk
through the spout, directly
into your preferred storage
container.
Note: To avoid spillage, please
ensure you pour the milk from
the correct position.
Using the Electric Breast Pump (cont’d)
Keep the
spout upright
Spout
Instruction Manual & Warranty Information 15

Storage of Breast Milk
Method of storing milk Use within REMEMBER
Room temperature <25ºC 6 hours • Never defrost or heat in a
microwave
• Never refreeze breast milk
• Once defrosted, the milk
should be kept in the fridge
and used within 12 hours
• Do not boil breast milk
• Throw away any leftover
milk after a feed
Refrigerated at 5-10ºC 3 days
Refrigerated at 0-4ºC 6 days
Refrigerated before freezing 24 hours
Once frozen 6 months
Defrost before feeding 12 hours
• Stored milk separates out into layers. Shake to remix thoroughly before
feeding.
• When freezing milk, allow space at the top of the bottle for expansion.
• Thaw frozen milk in the fridge or by standing the bottle in lukewarm
water until it has reached body temperature.
• If expressed milk is to be taken out with you, make sure it stays cold or
frozen until needed.
Cleaning and Maintenance
Always wash the product immediately after use to remove milk residue.
• Remove the Pump Motor before cleaning.
• Disassemble all components.
• Use a soft, dry cloth to clean the display and exterior of the Pump
Motor.
• DO NOT submerge the Pump Motor in water. The Pump Motor cannot
be washed or sterilised.
16 Welcare Nurture Wearable Electric Breast Pump

• The Milk Collector and all its components can be cleaned using the
following options. Before sterilisation, wash all items to be sterilised
in warm soapy water and rinse thoroughly in clean water.
Steam Sterilisation
1. Use a steam steriliser to clean and disinfect thoroughly. Follow the
manufacturer’s instructions.
Boiling
1. Boil all components in boiling water for 5 minutes. Ensure the parts
do not touch the side of the pan to avoid deformation.
2. Allow to air dry before next use.
DO NOT clean with solvents or harsh chemicals.
DO NOT put in the dishwasher.
DO NOT use a dry heater or dry steriliser.
Storage
• Wipe away any dirt or dust from the product.
• Turn off using the ON/OFF button and store inside the supplied
carry bag.
• Store in a safe, cool, dry place away from children as per Safety
Warnings.
Cleaning and Maintenance (cont’d)
Instruction Manual & Warranty Information 17

Troubleshooting
Fault Problem Solution
Weak suction The components are wet Dry all parts
Components have not
connected well
Check all the connection
parts and reassemble all
the components
The battery is low on
power
Recharge the battery for
3 hours
There are cracks on the
Breast Shield
Replace the Breast Shield
The Breast Shield spout
or the Milk Collector has
not sealed tightly
Check whether the spout
is aligned and sealed
tightly
The Breast Shield is not
attaching securely to the
breast
Ensure the Breast Shield
is placed as closely as
possible to the breast
No suction No Silicone Valve has
been used or the Silicone
Valve is damaged
Reassemble or replace
with a new Silicone Valve
No Silicone Diaphragm
has been used or the
Silicone Diaphragm is
damaged
Reassemble or replace
with a new Silicone
Diaphragm
The Silicone Diaphragm
and the Linker has not
connected securely
Ensure the Linker inside
the internal slot of the
Milk Collector and the
diaphragm is sealed with
the Milk Collector tightly
The Funnel Insert used
may be too small
Choose a larger sized
Funnel Insert
18 Welcare Nurture Wearable Electric Breast Pump

Fault Problem Solution
The product is
not turning on
The battery has run out
of power
Recharge the battery for
3 hours
Milk leakage The Funnel Insert used
may be too large
Choose a smaller sized
Funnel Insert
Tingling nipple The Funnel Insert used
may be too small
Choose a larger sized
Funnel Insert
Troubleshooting (cont’d)
If the problem is not solved by the troubleshooting guide or you have any
queries, please contact our service centre:
In Australia: 1800 807 464 In New Zealand: 0800 523 583
DO NOT attempt to open or repair the product yourself.
Replacement Accessories (sold separately)
Part Name Part No. Part Name Part No.
Lock Ring WNBP-01 Funnel Insert - Sm WNBP-07
Silicone Valve WNBP-02 Funnel Insert - Med WNBP-08
Pump Motor WNBP-03 Funnel Insert - Lg WNBP-09
Milk Collector WNBP-04 Linker WNBP-10
USB Cable WNBP-05 Silicone Diaphragm WNBP-11
Silicone Seal WNBP-06 Breast Shield WNBP-12
Replacement accessories can be purchased online or by contacting us
directly:
Australia: 1800 807 464 or www.welcare.com.au
New Zealand: 0800 523 583 or www.jadavey.co.nz
Instruction Manual & Warranty Information 19

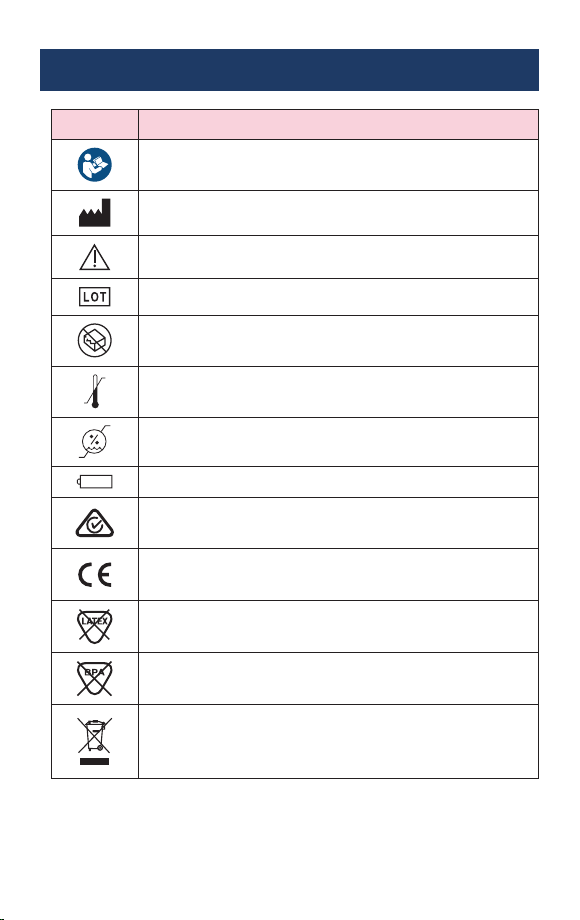

Symbol Explanation
Symbol Description
The instruction manual/booklet must be read.
Manufacturer.
Caution is necessary.
Batch or lot code.
Do not use if package is damaged.
Temperature limit.
Humidity limitation.
Battery, general.
Australian Communications Media Authority (ACMA)
Regulatory Compliance Mark (RCM).
Product is compliant with all applicable European Union
Directives for health, safety, performance and environment.
Product does not contain natural rubber latex.
Product does not contain Bisphenol A.
Separate collection for electrical and electronic waste.
Do not dispose of battery in household waste. CONTAINS
LITHIUM BATTERY.
20 Welcare Nurture Wearable Electric Breast Pump
