Well RADIO-CAR-SHOW-WL User manual
INSTRUCTION MANUAL
CAR RADIO MP3 PLAYER
Thank you for choosing WELL. Please read carefully the following instructions and keep them
within reach.
Reorder No: RADIO-CAR-SHOW-WL

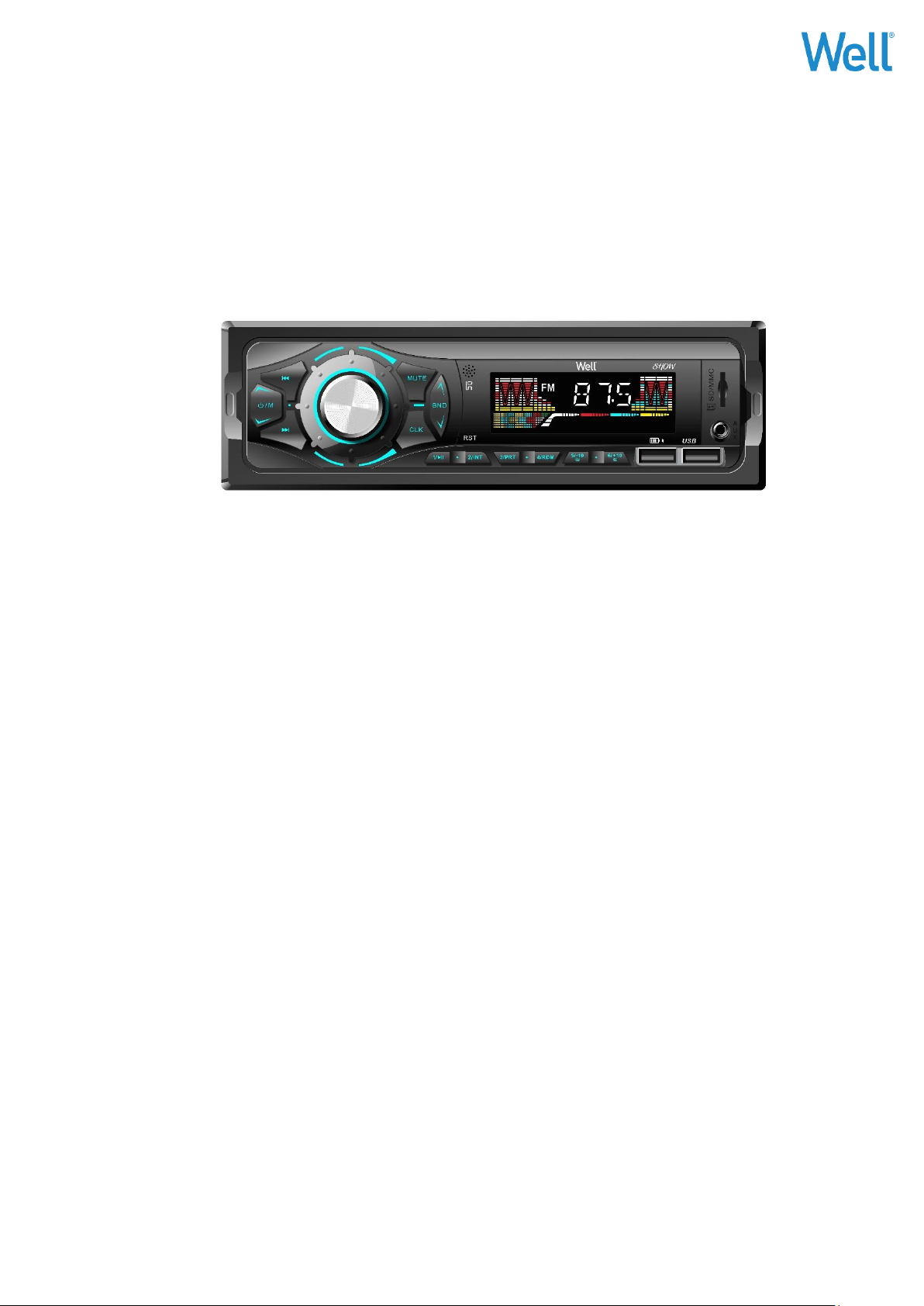

1. Power ON/OFF Function Selector (Radio/USB/SD/AUX-IN/BT) & End call
2. Auto Seek Search Tuning (AMS)
3. Band Button (FM1-FM2-FM3) & Answer call
4/5 Track Skip/ Search Forward/Backward, Manual Auto Search Radio
6. Memory Station 1-6 for Radio and Play/pause Function for MP3/WMA
7. Intro Function for MP3/WMA
8. Repeat Function for MP3/WMA
9. Random Function for MP3/WMA
10 -10 Function for MP3/WMA
11.+10 Function for MP3/WMA
12.TF Card Slot
13.Aux In Jack
14.USB Port
15.USB charging Port
16. LCD Display
17. Volume/Select Control
18. Reset Button
19. CLK Button
Bluetooth: Search for Bluetooth devices on your phone. Pair to device using the
password "0000". Some phone automatically connect to the search.
OPERATING INSTRUCTIONS
1. POWER ON/OFF
Short press turn on, long press three seconds turn off.
MODE--FUNCTION SELECTOR
Push this button repeatedly and the LCD will display the following sequence: RADIO—> USB
—>SD—>AUX-IN—>BT. In Bluetooth mode, short press to end call.
2. AUTO SEEK SEARCH TUNING(AMS)
In radio mode, short press for the browser, long press to automatically save the station.
In playback mode, the function is to choose the song.
3. BAND BUTTON
In radio mode, each band is toggled cyclically by pressing the key FM1-FM2-FM3.
In Bluetooth mode, short press to answer call.
4/5.BUTTON
Track skip in MP3 player mode(USB/SD/MMC)/ radio search: Press the button during playback
to go to the desired track; Press to search to the desired radio station.
6. 1 / BUTTON
Memory station 1-6 for radio control the playback of your music coming through the USB or
SD/MMC external device by pressing once to start playback. During "play" repress the button to
pause playback. Press the button once more to resume play.
7. 2/INT BUTTON
When the button is pressed. ‘INT’indication is displayed and the first several seconds of each
track is played. Press again to stop intro and listen to track.
8. 3/RPT BUTTON
When this button is pressed, ‘RPT’indication is displayed and the selected track will be
continually repeated until the track repeat mode is cancelled by pressing the ‘RPT’button again.
9. 4/RDM BUTTON
When this button is pressed, ‘RDM’indication is displayed and the tracks are played in random
instead of normal progression. To cancel random mode, press the ‘RDM’button again.
10. 5/-10 BUTTON
In playback mode, short press to -10, long press to choose a folder.
11. 6/+10 BUTTON
In playback mode, short press to +10, long press to choose a folder.
12. SD CARD SLOT
Insert the SD/MMC card in the slot by pushing it gently inward. Select SD with the mode
selector. The music starts to play automatically. *Support music file format: MP3, WMA.
13. AUX IN JACK
Insert your portable player into the jack, in any playing mode, audio will come through the car
speak.
14. USB PORT
Use a USB cable (not included) if necessary, to connect your portable mp3 player.
15. USB CHARGING PORT
16. LCD DISPLAY
The LCD display show the actual reception and function.
17. VOLUME/SELECT CONTROL
Rotate the volume knob to control the volume. To select other function, Press the select button
shortly until the desired function is shown on the display. *volume (rotate knob) —> select
(Push down) —> bass—> treble balance —> fader —> loud —> EQ (flat-pop-classic-rock)
18. RESET BUTTON
Restore factory defaults
19.CLK BUTTON
Electronic clock button
Remote control
1. : Power on/off button.
2. MODE: Mode switch.
3. VOL+: Volume plus.
4. VOL -: Volume reduction.
5. SEL: Multi-function and sound settings.
6. 1/ : Numeric keys 1, play paused.
7. 2/INT: Numeric keys 2, browse play.
8. 3/RPT: Numeric keys 3, loop play.
9. 4/RDM: Numeric keys 4, random play.
10. 5/-10: Numeric keys 5, folder selection -.
11. 6/+10: Numeric keys 6, folder selection +.
12. MTE: Mute switch.
13. APS: Radio search storage station.
14. EQ: Electronic sound control
15. : Scan down, the next song selection.
16. : Scan up, the previous song.
17. BAND: Band selection.
18. CLOCK: Time display
19. LOUD: Other loudness adjustment.
20. MO / ST: Mono and stereo.
21. STOP: Stop button
Operating Voltage: 12V DC
Frequency Range: FM 87. 5-108MHz
A1: Empty
A2: Empty
A3: Empty
A4: Back-up Memory (Yellow)
A5: Antenna Source (Blue)
A6: Empty
A7: ignition Switch (Red)
A8: Ground (Black)
B1: Right Rear Speaker + (Purple)
B2: Right Rear Speaker - (Purple & Black)
B3: Right Front Speaker + (Grey)
B4: Right Front Speaker - (Grey & Black)
B5: Left Front Speaker + (White)
B6: Left Front Speaker - (White & Black)
B7: Left Rear Speaker + (Green)
B8: Left Rear Speaker - (Green & Black)
SPECIFICATIONS
FM TUNER
Frequency Range: 87.5~108.0 MHz
Sensitivity: 12dB uV
I.F. Frequency: 10.7 MHz
Frequency Response: 40 Hz ~15 KHz (± 3dB)
Stereo Separation: > 28dB
S/N Ratio: > 50dB
GENERAL
Power Supply Voltage: 12V DC, Negative Ground
Max Current Consumption: 5A
Max Output Power: 4 x 60W
Note: specifications and the design are subject to possible modification without notice due to
improvement.
