Westinghouse LD-3235 User manual

TABLE OF CONTENTS
i
English
TABLE OF CONTENTS
TABLE OF CONTENTS.................................................... i
DIGITAL TELEVISION TRANSITION NOTICE .................. 1
IMPORTANT INFORMATION .......................................... 2
Warnings.................................................................... 2
NOTICES ................................................................... 3
FCC COMPLIANCE STATEMENT ............................... 4
IMPORTANT SAFETY INSTRUCTIONS ....................... 5
Circuit Overload ......................................................... 6
Power Cord Protection ................................................ 6
Ventilation .................................................................. 6
WARNINGS AND PRECAUTIONS ............................... 7
ANTENNA INSTALLATION SAFETY ............................ 8
Lightning .................................................................... 8
Power lines ................................................................ 8
CLEANING THE LED TV ............................................. 9
Dolby-Digital Notice .................................................... 9
SRS Trademark Information: ....................................... 9

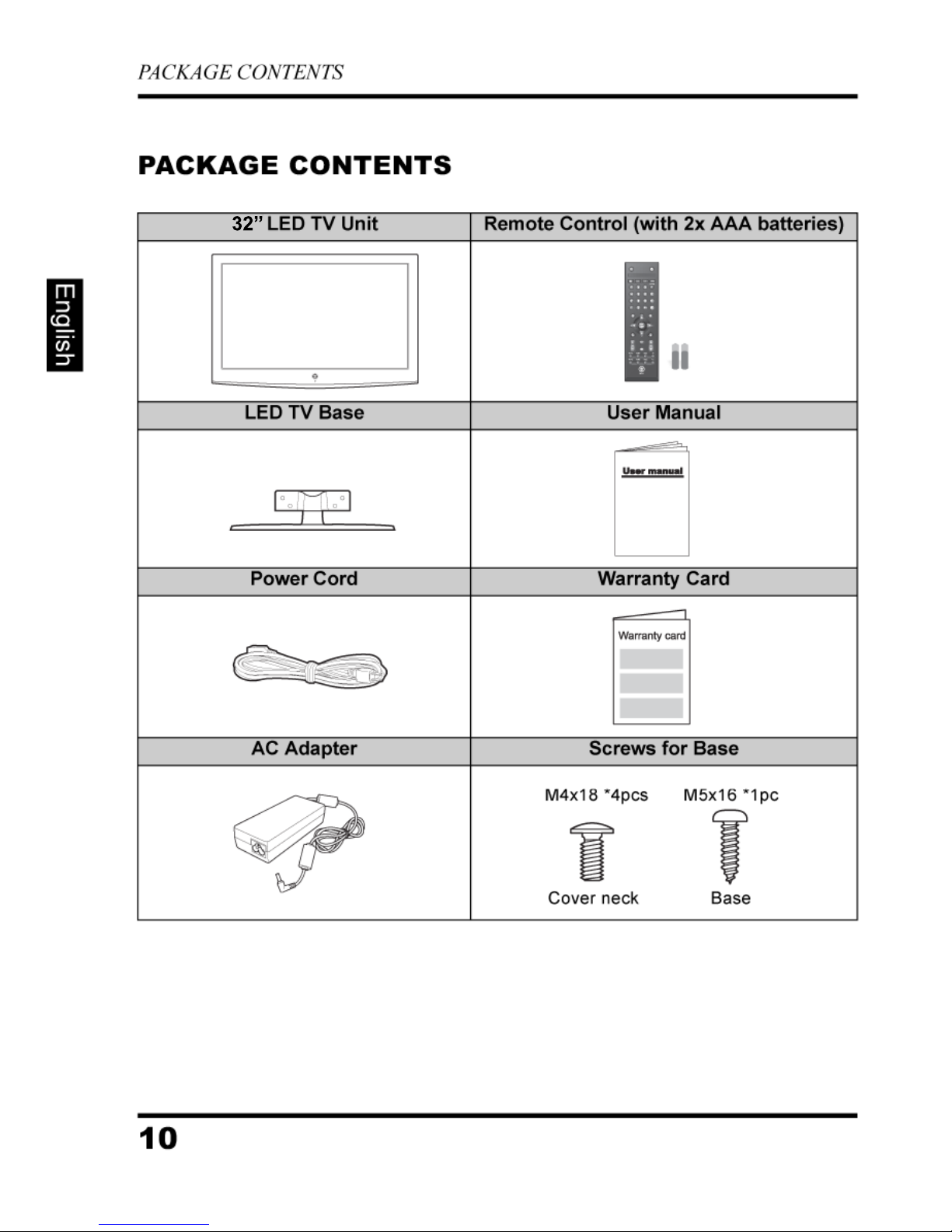

PACKAGE CONTENTS ................................................. 10
CONTROL PANEL ........................................................ 11
TERMINALS ................................................................. 12
REMOTE CONTROL..................................................... 13
REMOTE CONTROL OPERATION ................................ 14
INSTALLING THE REMOTE CONTROL BATTERIES.. 14
REMOTE CONTROL TRANSMISSION RANGE .......... 14
LED TV BASE .............................................................. 15
INSTALLING THE LED TV BASE .............................. 15
REMOVING THE LED TV BASE ................................ 16
ANTENNA CONNECTION ............................................. 17
OUTDOOR ANTENNA CONNECTION ....................... 17
CABLE TV (CTV/DTV) CONNECTION ....................... 17
EXTERNAL DEVICE CONNECTIONS ............................ 18
POWER CONNECTION ................................................ 20

USER’S MANUAL
MANUEL DE L’UTILISATEUR
MANUAL DEL USUARIO
LD-3235

DIGITAL TELEVISION TRANSITION NOTICE
1
English
DIGITAL TELEVISION TRANSITION NOTICE
This device contains a digital television tuner, so it should receive digital over the air
TV programming, with a suitable antenna, after the end of full-power analog TV
broadcasting in the United States on June 12, 2009. The nationwide switch to digital
television broadcasting will be complete on June 12, 2009, but your local television
stations may switch sooner. After the switch, analog-only television sets that receive
TV programming through an antenna will need a converter box to continue to receive
over-the-air TV. Watch your local stations to find out when they will turn off their
analog signal and switch to digital-only broadcasting.
For more information, call the FCC at 1-888-CALL-FCC (1-888-225-5322) or see
www.DTV.gov. For information on the TV Converter program, and on government
coupons that may be used toward the purchase of one, see www.dtv2009.gov, or call
the NTIA at 1-888-DTV-2009.

IMPORTANT INFORMATION
2
English
IMPORTANT INFORMATION
Warnings
To reduce the risk of fire or electric shock:
• Do not expose this product to rain or moisture.
• Do not remove the rear cover. There are no user-serviceable parts inside.
Refer all servicing requirements to qualified service personnel.
• The plug should be connected to a mains socket outlet with a protective
earthing connection.
The lightning flash with arrowhead inside an equilateral
triangle symbol is intended to alert the user to the presence
of uninsulated dangerous voltage within the product's
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock.
The exclamation inside an equilateral triangle symbol is intended to
alert the user to related operating and maintenance instructions in
the user documentation accompanying the product.
WARNING!
This device must be operated with the original power supply.
WARNING!
To prevent injuiry, this apparatus must be securely attached to the floor/wall in
accordance with the installation instructions.
CAUTION:
The power supply outlet should be located near the LED TV and should be easily
accessible.
Always use the appropriate AC cord that is certified for your specific country.
Some examples are listed below:
•USA–UL
• Canada – CSA
• Japan – Electric Appliance Control Act

IMPORTANT INFORMATION
3
English
NOTICES
Important Notices Concerning Power Cord Selection
The specific power cord for this LED TV is enclosed and has been selected
according to the country of destination. Use the enclosed power cord to prevent
electric shock. Observe the following guidelines if it is necessary to replace the
original cord set, or if there is no cord set enclosed. The female receptacle of the
cord set must meet IEC-60320 requirements and should look like Figure A1 below:
For the United States and Canada
In the United States and Canada the male plug is a NEMA5-15 style (Figure A2),
UL-listed, and CSA-labeled. For LED TVs that are to be placed on a desk or table,
type SVT or SJT cord sets may be used. For LED TVs that are to be placed directly
on the floor, only SJT type cord sets may be used. The cord set must be selected
according to the current rating for the LED TV. Consult the table below for the
selection criteria of power cords used in the United States and Canada.
Cord Type Size of Conductor in Cord Maximum Unit Current Rating
SJT
18 AWG
16 AWG
14 AWG
10 Amps
12 Amps
12 Amps
SVT 18 AWG
17 AWG
10 Amps
12 Amps
Figure A1 Figure A2

IMPORTANT INFORMATION
4
English
FCC COMPLIANCE STATEMENT
This equipment has been tested and complies with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy, and may cause
harmful interference to radio communications if not installed and used in accordance
with the instructions. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the LED TV and the receiver.
• Connect the LED TV to an outlet on a circuit separate from to which the
receiver is connected.
• If the interference persists even after performing the above measures,
consult the Westinghouse Service Center or an experienced radio/TV
technician for assistance.
FCC Warning
To assure continued FCC compliance, use a grounded power supply cord and the
provided shielded video interface cable with bonded ferrite cores. If a BNC cable is
used, use only a shielded BNC (5) cable. Also, any unauthorized changes or
modifications not expressly approved by the manufacturer will void the user's
authority to operate this device.

IMPORTANT INFORMATION
5
English
IMPORTANT SAFETY INSTRUCTIONS
Make sure to note and follow all warnings and instructions marked on the LED TV.
Observe the following safety instructions.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long
periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.

IMPORTANT INFORMATION
6
English
Circuit Overload
Do not overload wall outlets, extension cords, or power strips. This can result in a fire
or electronic shock.
Power Cord Protection
Power supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them. Periodically inspect the cords for
damage. Install the LED TV near a wall socket outlet where the power cord can be
readily accessed.
Ventilation
The slots and openings on the cabinet are provided for necessary ventilation. To
ensure reliable operation of the LED TV and to protect it from overheating, these
slots and openings must never be blocked or covered.
Never cover the slots and openings with a cloth or other materials.
Do not block the openings by placing the LED TV on a bed, sofa,
rug or other similar surface.
Do not place the LED TV in a built-in installation such as a
bookcase or a rack unless proper ventilation is provided or the
manufacturer’s instructions have been adhered to.

IMPORTANT INFORMATION
7
English
WARNINGS AND PRECAUTIONS
• Do not orient the LED TV towards direct sunlight to reduce glare.
• If the LED TV will not be used for a long period of time, unplug the unit and
remove the batteries from the remote control.
• Avoid touching the display screen by hand or any object.
• Never remove the rear cover. The LED TV interior contains high-voltage
parts. You may be seriously injured if you touch them.
• Always handle the LED TV with caution when moving it.
• Do not install the LED TV in airtight compartments, or in areas where it can
be exposed to water or high temperature.
• Ensure that the area around the LED TV is clean and free of moisture.
• Do not place anything on the LED TV that can hinder heat dissipation.
• Do not place naked flame sources, such as lighted candles, on or near the
LED TV.
• Do not place anything on the LED TV that can cause liquid to splash on it
(e.g. flower vase).
• Do not place heavy objects on the LED TV, audio/video cables, or power
cord.
• If the LED TV emits smoke, abnormal noise, or a strange odor, immediately
turn it off and contact the Westinghouse Service Center by:
– Logging on to www.wde.com.
– Contacting the Westinghouse Customer Service at [phone].
– E-mailing us at [email protected].

IMPORTANT INFORMATION
8
English
ANTENNA INSTALLATION SAFETY
Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the LED TV, be sure the
antenna or cable system is grounded to prevent voltage surges and built-up static
charges. Article 810 of the National Electrical Code, ANS/NFPA 70, provides
information on proper grounding of the mast and supporting structure, grounding of
the lead-in wire to an antenna discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode.
Lightning
Power lines
For added protection for the LED TV during a lightning storm, or
when it is left unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the antenna or cable
system. DO NOT disconnect the antenna or the power cord during
a heavy storm—lightning may strike while you are holding the
cable cord, causing serious injury. Turn off the LED TV and wait for
the weather to improve.
An outside antenna system should not be located in the vicinity of
overhead power lines or other electric light or power circuits, or
where it can fall into such power lines or circuits. When installing an
outside antenna system, extreme care should be taken to keep
from touching such power lines or circuits as contact with them
might be fatal.
Antenna Grounding According to the National
Electrical Code, ANSI/NFPA 70
Antenna lead in wire
Antenna discharge unit
(NEC Section 810-20)
Grounding Conductors
(NEC Section 810-21)
Grounding clamps
Power service grounding
electrode system
(NEC Art 250 part H)
Grounding clamps
Electric service
equipment
NEC: National Electrical Code
Z
Z
Z

IMPORTANT INFORMATION
9
English
CLEANING THE LED TV
To clean the screen:
1 Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other
particles.
2If it is still not clean, apply a small amount of non-ammonia, non-alcohol
based glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen.
To clean the case:
1 Wipe the case with a soft, dry cloth.
2If it is still not clean, apply a small amount of non-ammonia, non-alcohol
based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then
wipe the surface.
Dolby-Digital Notice
Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are registered trademarks of Dolby Laboratories.
SRS Trademark Information:
• TruSurround HD, SRS and the symbol are trademarks of SRS Labs, Inc.
• TruSurround HD technology is incorporated under license from SRS Labs, Inc.
SRS TruSurround HD™ creates a truly immersive surround sound experience with
rich bass and clear dialog from only two speakers.
• Make sure the LED TV is turned off and the power cord is
disconnected from the power outlet.
• Never spray or pour any liquid directly onto the screen or the
case.

IMPORTANT INFORMATION
Open Source License
This product includes software code developed by third parties, and
may include software code that is subject to open source software
license such as the GNU General Public License (GPL) or the GNU Lesser
General Public License (LGPL).
Open source licenses ensure users’ freedom to run, copy, distribute,
study, change and improve the software. Any such open source code is
subject to the copyrights of one or more authors.
The terms of the GPL and LGPL, and access to any GPL Code, LGPL Code,
or other open source code used in this product, are available to you
at: http://westinghousedigital.com/compliance/.
Any open source software used in this product and licensed under the
GPL, LGPL, or other open source license is distributed WITHOUT ANY
WARRANTY and WITHOUT ANY SUPPORT by Westinghouse Digital.
___________________________________________________________
ENGLISH

CONTROL PANEL
11
English
CONTROL PANEL
Item Description
1. MENU Displays the LED TV setup screen.
2. Volume +/- • Adjusts the volume during playback.
• Selects an item on a menu screen.
3. Channel +/- • Switches the channel during TV viewing.
• Selects an item on a menu screen.
4. INPUT • Selects the video input source.
• Executes a command on a menu screen.
5. Power Toggles the power on and off.
L
R
AV2
USB
L
R
2
3
1
4
5
MENU INPUTVOL CH

TERMINALS
12
English
TERMINALS
Item Function
1. DC in Connects the AC adapter from this outlet to a
power source.
2. HDMI 1/2 Connects to an external AV device such as a
VCR, DVD player, set-top box, or game system.
3. VGA Connects to a computer or other device with a
VGA output using a 15-pin VGA cable.
4. Audio in Connects to the audio out port of a computer.
5. Component input
(Video)
Connect to an external AV device such as a VCR,
DVD player, set-top box, or game system.
6. Component input
(Audio)
Connect to an external AV device such as a VCR,
DVD player, set-top box, or game system.
7. Audio out Connect to an audio output device.
8. USB Service port For service only.
9. TV tuner Connects the LED TV to an antenna or cable
service.
10. S-Video input Connect to an external AV device such as a VCR,
DVD player, set-top box, or game system.
11. Composite input
(Video)
Connect to an external AV device such as a VCR,
DVD player, set-top box, or game system.
12. Composite input
(Audio)
Connect to an external AV device such as a VCR,
DVD player, set-top box, or game system.
USBANT.S-VIDEO
Y
-
Pb
-
Pr
R
-
L
-
AV
VGA OUT
R
-
L AUDIO
IN
AUDIO
HDMI 2HDMI 1DC IN
1 3 4 7
8
9
10
11
12
256

REMOTE CONTROL
13
English
REMOTE CONTROL
Item Description
1. Mute Mutes the sound. Press again to toggle
the sound back on.
2. Power Toggles the TV power on or off.
3. Backlight Adjusts the LED screen backlight.
4. MTS Toggles the Multichannel Television
Sound options.
5. CC Toggles the closed caption display on or
off.
6. Sleep zZzSets the sleep timer for the LED TV to
turn off automatically.
7. Channel keys Use to key in the channel number.
8. Favorite
Switches to the favorite channels (for
details on how to save a new favorite
channel, see page 29).
9. Enter ENT Executes a channel entry.
10. Menu Accesses the LED TV setup menus.
11. Return Switches to the last selected channel.
12. Arrow keys Navigate through the on-screen menus.
13. Enter Executes a command.
14. G
Displays the Electronic Program Guide
(EPG). It contains the program
information for the channel you’re
watching.
15. Info
Displays the input source or channel
information as well as the system date
and time.
16. Input Selects the video input source.
17. Vol +/- Ajusts the system volume.
18. Ch / Switches to other TV channels.
19. Aspect ratio Selects the video display format.
20. YPbPr1 Selects VGA-Component as the input
source.
21. TV Selects TV or HDTV as the input
source.
22. HDMI1 Selects HDMI1 as the input source.
23. Video1 Selects the Composite AV device as the
input source.
24. YPbPr2 Not supported.
25. PC Selects VGA as the input source.
26. HDMI2 Selects HDMI2 as the input source
27. Video2 Not supported.
Favorite
MTS
ZZZ C.C.
TVVideo1HDMI1YPbPr1
PCVideo2HDMI2YPbPr2
ENT D
A
B
C
Vol
Input
Ch
Enter
RMT-11
1
7
10
14
17
3
5
2
4
6
20
22
21
23
24
26
25
27
9
19
13
16
8
11
12
15
18

REMOTE CONTROL OPERATION
14
English
REMOTE CONTROL OPERATION
INSTALLING THE REMOTE CONTROL BATTERIES
1 Remove the battery cover.
2Insert the batteries. Make sure the (+) and (–) marks on the batteries match
those inside the compartment.
3Re-attach the battery cover.
REMOTE CONTROL TRANSMISSION RANGE
Transmission range depends upon the reception angle. The range of coverage is 20°
horizontal/vertical at a distance of 10 feet from the LED TV.
CAUTIONS:
• Only use AAA batteries.
• Do not mix new and old batteries. This may result in cracking or leakage,
which may pose a fire risk or lead to personal injury.
• Insert batteries according to the (+) and (-) markings. Inserting the
batteries incorrectly may result in cracking or leakage, which may pose a
risk of fire or lead to physical injury.
• Dispose of used batteries in accordance with local laws and regulations.
• Keep batteries away from children and pets.
• When the remote control will not to be used for an extended period,
remove the batteries.
Favorite
MTS
ZZZ C.C.
A
B

LED TV BASE
15
English
LED TV BASE
INSTALLING THE LED TV BASE
1 Open the LED TV carton box.
2Remove the LED TV base.
3Remove the plastic bag.
4Remove the two top carton stabilizers from the LED TV.
5Remove the protective plastic covering the LED TV.
6Grasp the two sides of the LED TV and then pull it out of the carton box.
7Remove the two bottom carton stabilizers from the LED TV.
8Lay the LED TV on a clear, flat, and stable surface.
9Align the base to the bottom side of the LED TV and use four M4 x 18 screws
to secure it.
10 Carefully orient the LED TV in an upright position.
11 Use one M5 x 16 screw to fix the stand base and LED TV on the desk.
CAUTION:
The LED TV unit may be too heavy for one person to lift. If this is the case,
make sure to ask for assistance in handling the LED TV to prevent
physical injury and/or damage to the unit.
