Westinghouse VR-4085DF User manual

10
11
11
10
9
9
12
12
Power Cord Connection
COAX Connection
AV Connection
YPbPr(component) Connection
VGA(PC) Connection
Antenna Connection
HDMI Connection
Service Port Function
2
4
5
1
5
35
36
Remote control instructions in TV mode
Remote control setup 14
13
15
16
25
28
30
Select Input Source
Setup Menu
Basic Operation
Picture Menu
Sound Menu
Channel Menu
Parental Control
23
Other Menu
Picture Menu
31
20
16
17
Setup Wizard
TABLE OF CONTENTS
English
4
1
6
7
8
5
9
11
10
I M P O R TA N T
INFORMATION
SPECIFICATIONS
2HOW TO INSTALL
THE STAND
3PREFACE
Troubleshooting
SAFETY
PRECAUTIONS
FRONT/BACK
CONNECTIONS
OF LCD TV
REMOTE CONTROL
TV INSTALLATION
DRAWINGS
IN THE CARTON
Menu Operation
7
8

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of un-insulated dangerous voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric to persons.
The exclamation point within an equilateral triangle is interded to aler the user to the
presence of important operating and maintenance (servicing) instruction the literature
accompanying the appliance.
CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce
the risk of electric shock, do not perform any servicing other than that contained in the operating
instructions unless you are qualified to do so.
Refer to service manual for servicing instructions.
Important Safety Instructions
Note:
1.Read these instructions.
2.Keep these instructions.
3.Heed all warnings.
4.Follow all instructions.
5.Do not use near water.
6.Clean only with dry cloth.
7.Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
2
IMPORTANT INFORMATION
English

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11.Only use attachments / accessories specified by the manufacturer.
12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.
13.Unplug this apparatus during lightning storms or when unused for long periods of time.
14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15.Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, suchas vases, shall be
placed on the apparatus.
16.WARNING:To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
17.Mains plug or appliance coupler is used as the disconnect device, shall be readily operable.
3
IMPORTANT INFORMATION
English

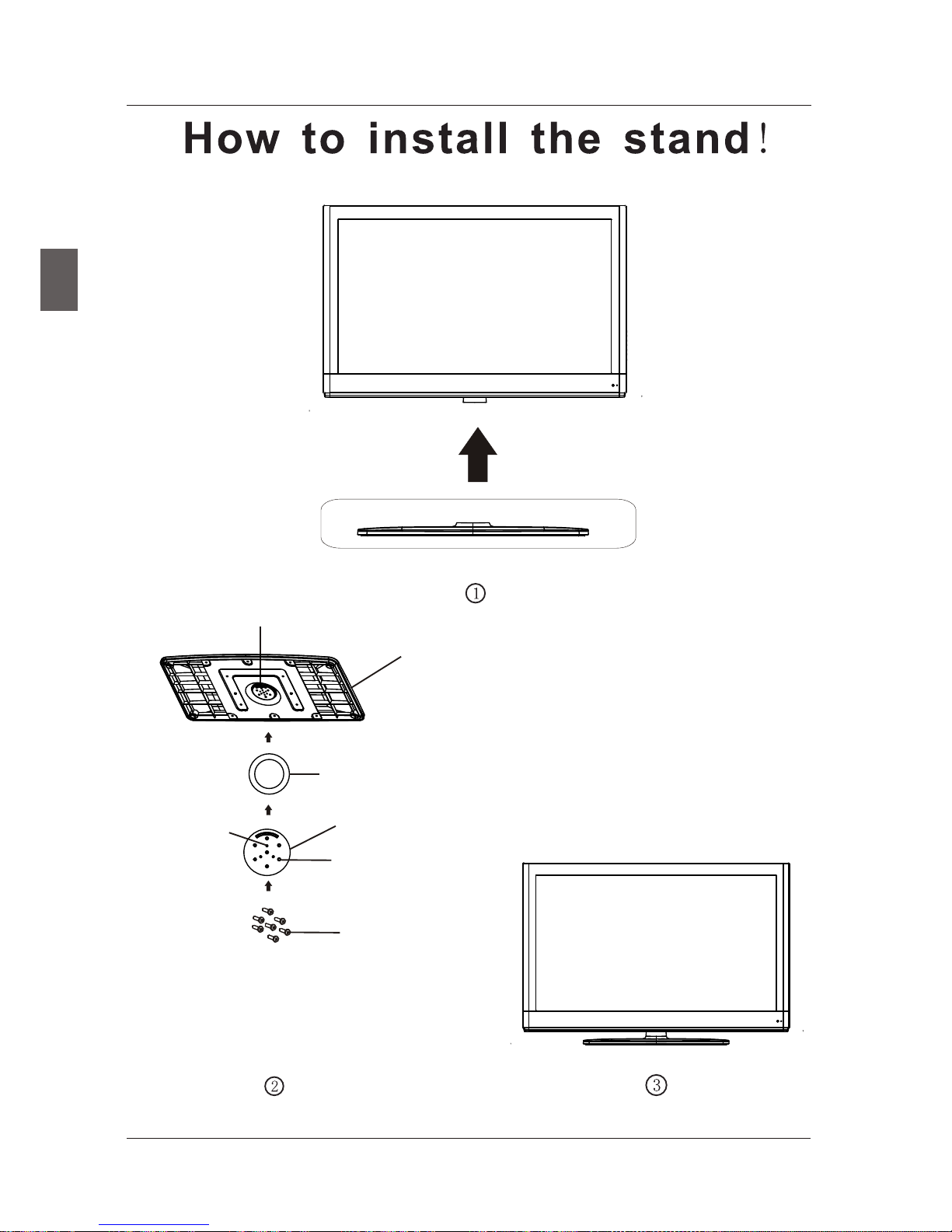

Fixed-ring base
Rotating base fixed plate
Screw holes
Base cover
Limit
First, fix the base cover to the fixed-ring base;
then, let the rotating base fixed plate align the
three limit pillar; Last, fix it with the screws.
Hole spacing
Screws
HOW TO INSTALL THE STAND
English
4

5
3. PREFACE
Thank you for buying this Please read this manual thoroughly before operating the TV.
Make sure the TV was not damaged in transit. Should the TV be damaged, do not install it and
contact your dealer. Check that you have all the accessories according to the model.
TV!

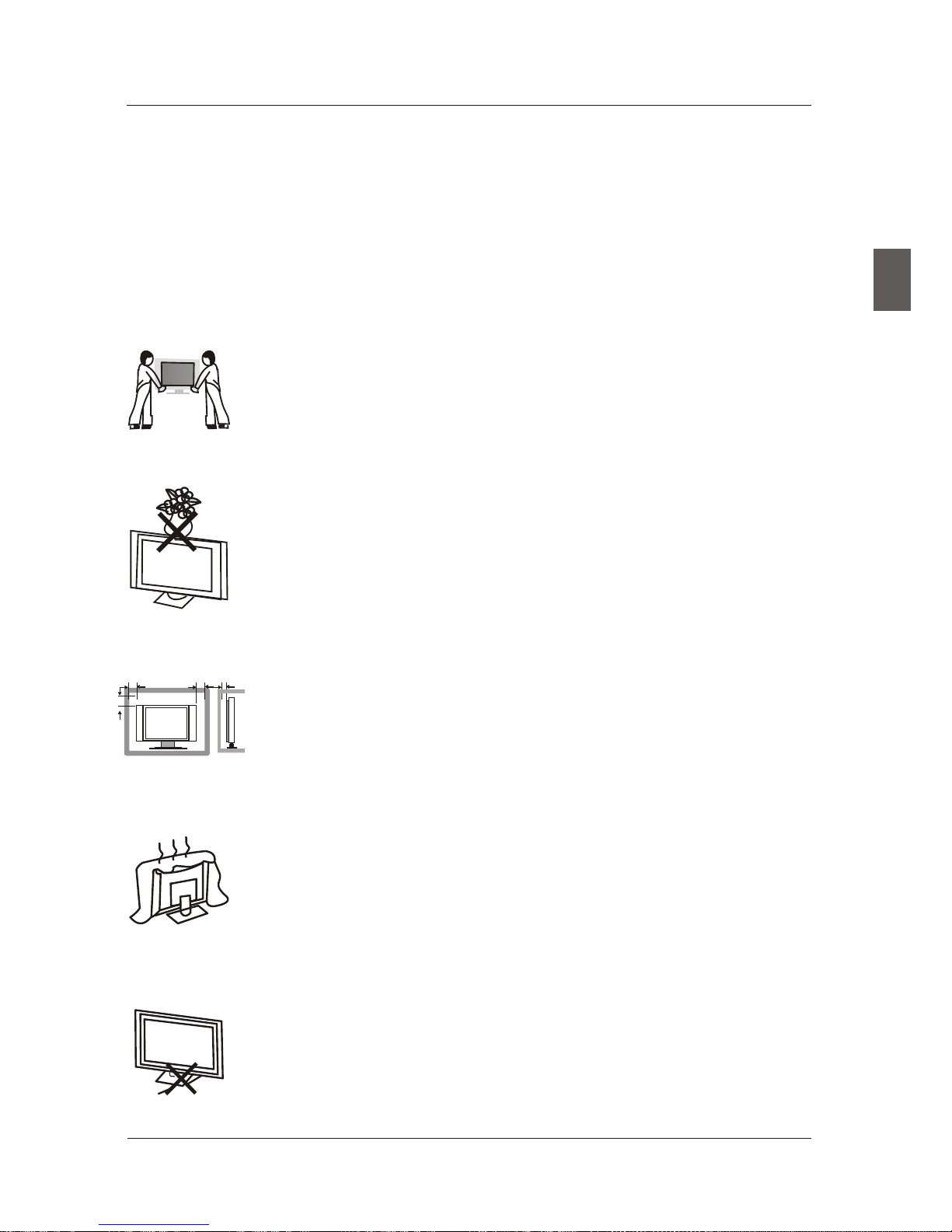

4. SAFETY PRECAUTIONS
Power cord and cables must be properly routed and protected to prevent
people from stepping on them and causing the TV to fall.
Minimum distances
10cm
20cm
10cm 5cm
Put the TV on a stable surface.
Do not place any material on the TV.
Do not block or cover the ventilation openings on the TV.
If you have a wall mount, check that it is steady.
Do not use the TV with fixtures other than those provided or
suggested by the manufacturer.
English
PREFACE

6

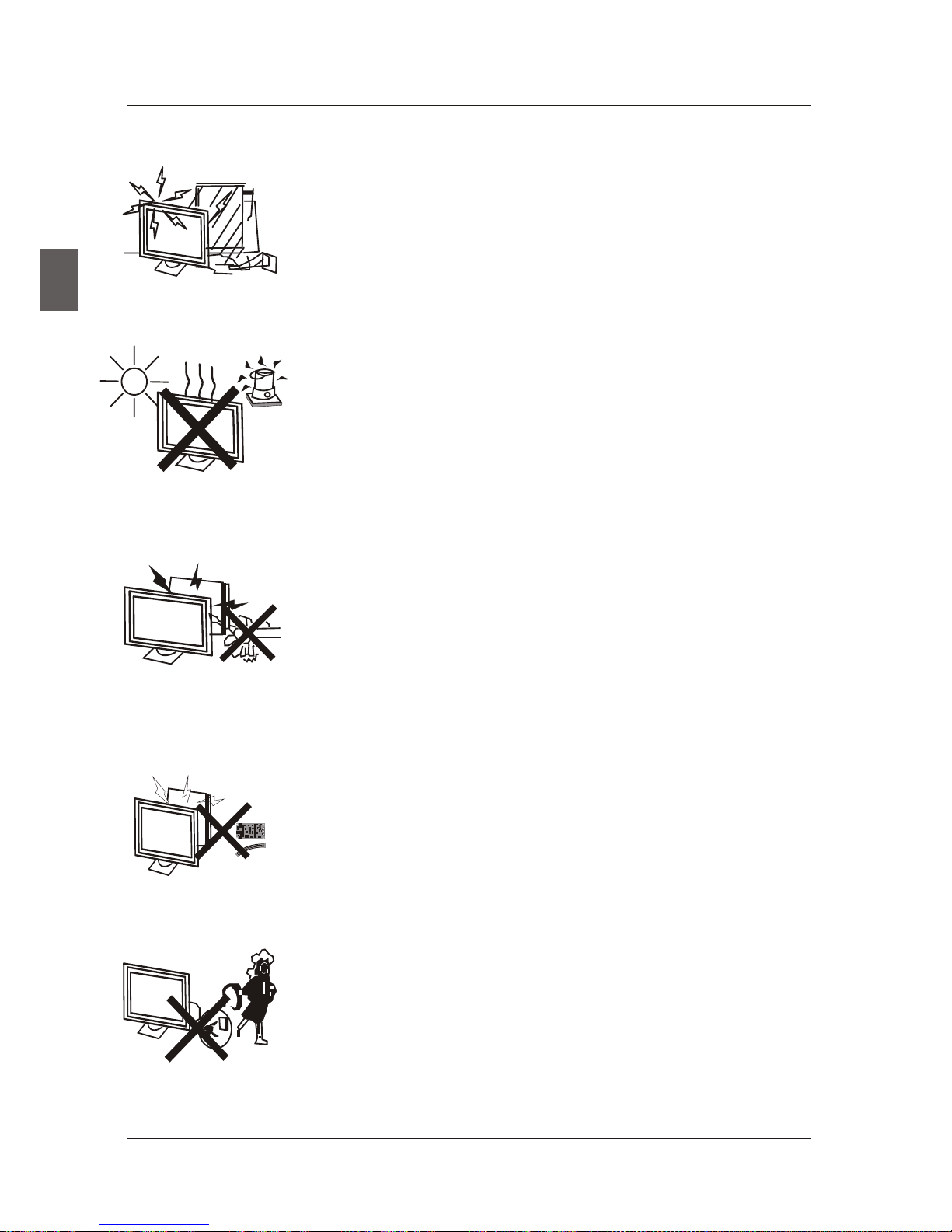

Keep the TV dry and away from humidity.
Keep the TV away from heat sources.
Unplug the TV before cleaning it. Do not use solvent or liquid to clean
the TV.
Only clean the TV with a soft and dry cloth.
In case of troubleshooting, do not use spare parts other than those
suggested by the manufacturer. Using inadequate spare parts can
lead to electric shocks, short-circuits, fire or other incidents.
Unplug the TV during lightning storms or when unused for long periods
of time.
English
SAFETY PRECAUTIONS

DISP LAYDISP LAY
OK
ENTE R
OK
ENTE R
ASPE CTASPE CT
MENUMENU EXITEXIT
SLEEPSLEEP SO URCESOURCE
POWE RPOWE R MUTEMUTE
MTSMTS
FAVFAVCCCC
LISTLIST
7
5. IN THE CARTON
Remote Control
1.5V
1.5V
AAA Batteries
LCD TV SET
Power Cable
USER'S MANUAL
English
IN THE CARTON
Quick Connect Guide
Quick Connect Guide
Warranty Card Small cover for back cover
Warranty Card

5

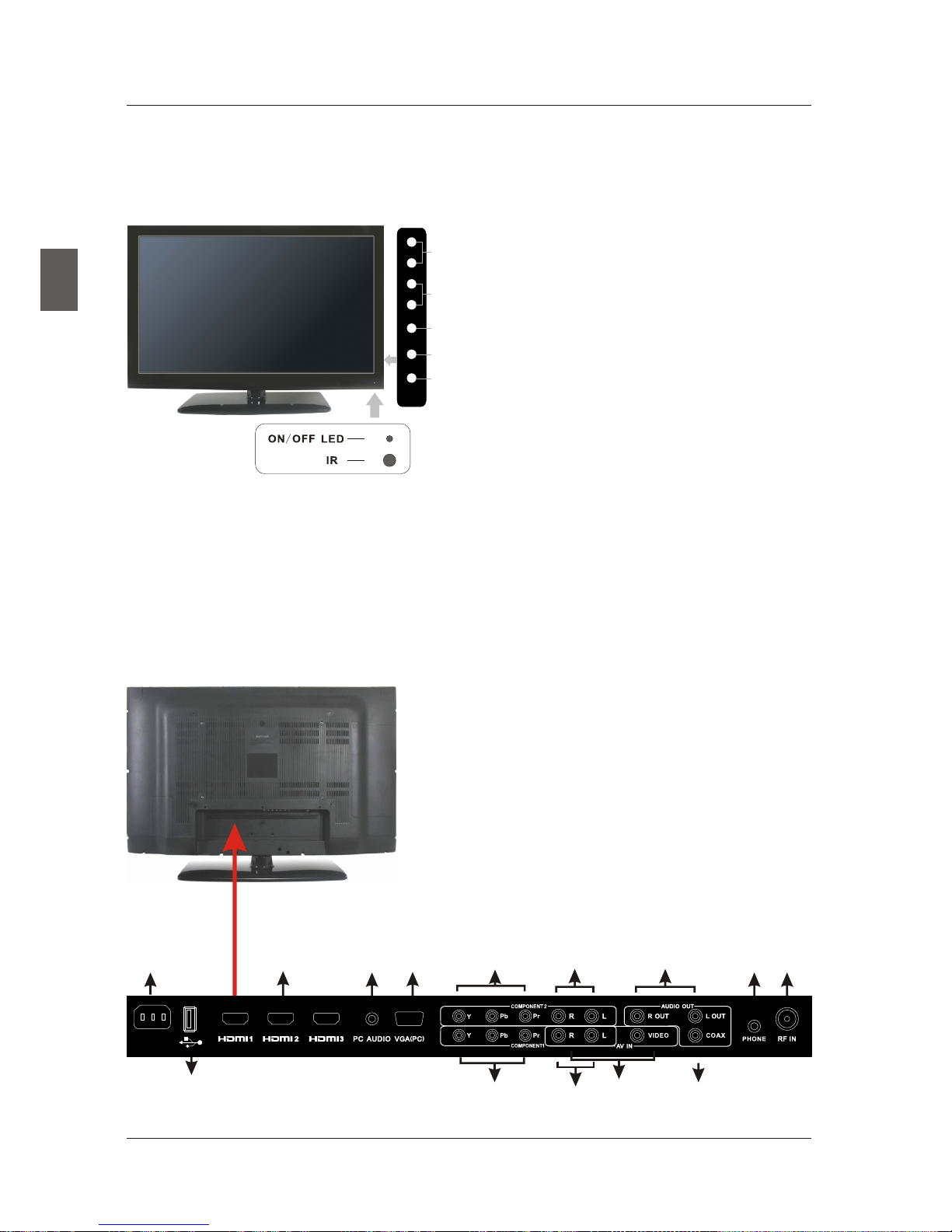

Front View
6. FRONT/BACK CONNECTIONS OF LCD TV
Back View and Control Connections
7. VIDEO: Connect the Video input jack of DVD or VCR.
8. AUDIO OUT: Connect to the audio equipment.
9. PHONE: Connect the headphone.
10.RF IN: Connect the antenna.
12. COAX out: Connect the COAX receiver.
11. USB SERVICE: USB Port for Factory Use Only.
2. HDMI1/HDMI2/DMI3: Connect the HDMI output
jack of DVD.
5. YPbPr1/YPbPr2: Connect the YPbPr output jack of DVD or VCR.
6. Y-L/R1,Y-L/R2: For YPbPr audio.
1. AC IN: Main power input.
3. PC AUDIO: Connect the Audio output jack of PC.
Y1 Pr1
VIDEO
18 4 95
7
6
L/R: For VIDEO audio.
12
Pb1
COAX
Y-R1 Y-L1
56
4. VGA(PC): Connect the PC-RGB output jack of PC.
3
11
2
1. Press“SOURCE”to select the input source.
2. Press “MENU”to bring up the main menu on
the screen.
3. Press“CH+”or “CH-”to scan through channels.
4. Press“VOL+”or “VOL-”to increase or decrease
the volume.
5. Press“POWER” button to turn the TV on or off.
6. POWER INDICATOR: amber in standby mode.
amber or blue when your TV is switched on.
7. REMOTE SENSOR: infrared sensor for the
remote control.
Shows
Shows
SOURCESOURCE
MENUMENU
CH-CH-
CH+CH+
VOL-VOL-
VOL+VOL+
POWERPOWER
1
2
3
4
5
6
7
English
FRONT/BACK CONNECTIONS OF LCD TV
AC IN
8
10

9

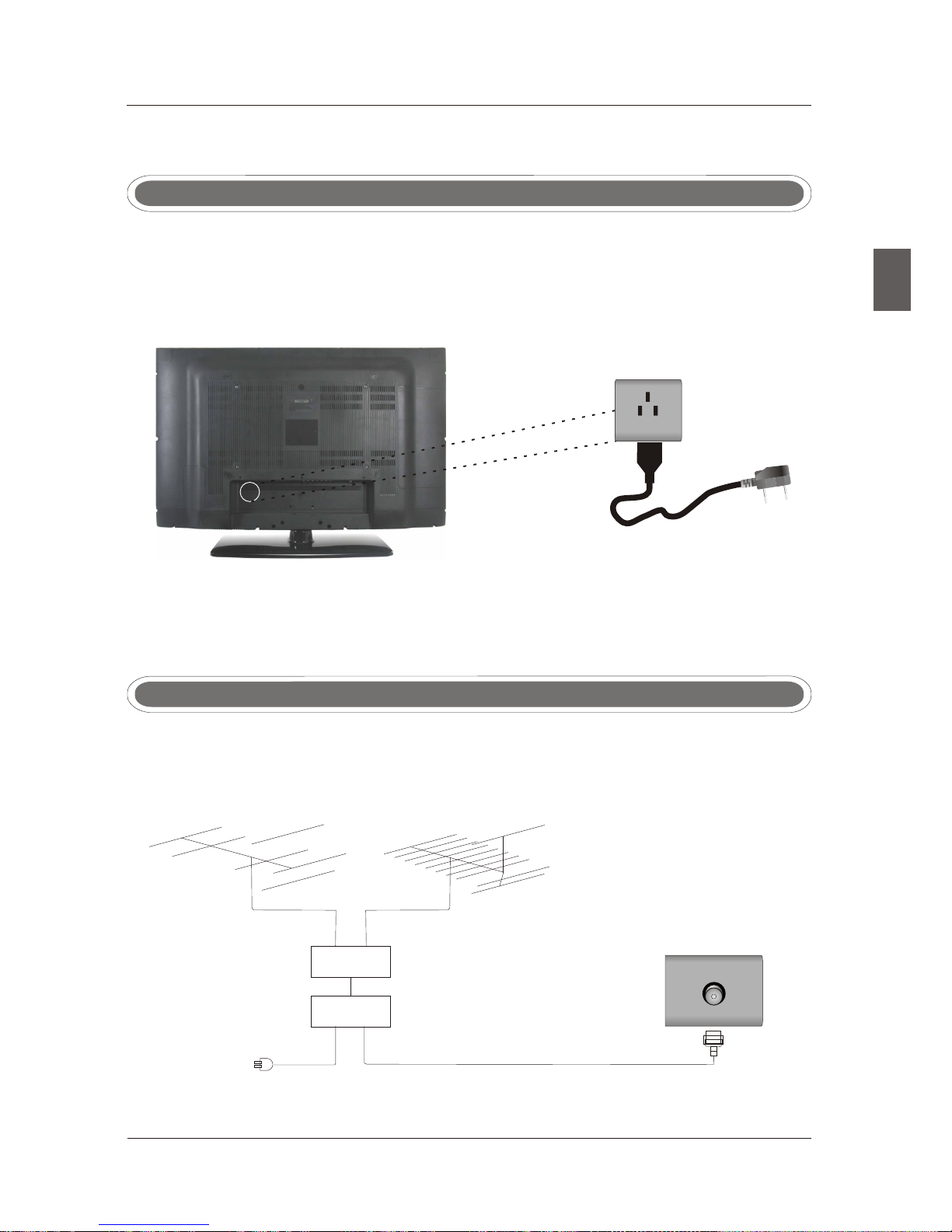

Power Cord Connection
7. ATV INSTALL TION DRAWINGS
To ensure good picture and sound, TV antenna system needs to be installed. The antenna system as
shown can be sourced from TV equipment shops, which will provide service for correct installation
and connection. After installation, insert the 75-ohm antenna plug into the antenna jack as shown.
Antenna Connection
75 OHM
ANTENNA
PLUG
POWER PLUG OF
ANTENNA
AMPLIFIER
OUTDOOR
ANTENNA
AMPLIFIER
VHF ANTENNA UHF ANTENNA
INDOOR
ANTENNA
AMPLIFIER
- Connect the power cord correctly as shown.
- Press the POWER switch of your LCD TV to switch on the LCD TV. The power indicator
on the front panel lights up in amber or blue.
AC IN
RF IN
English
TV INSTALL TION DRAWINGSA

5
Y1 Pr1
Pb1 Y-R1 Y-L1
10

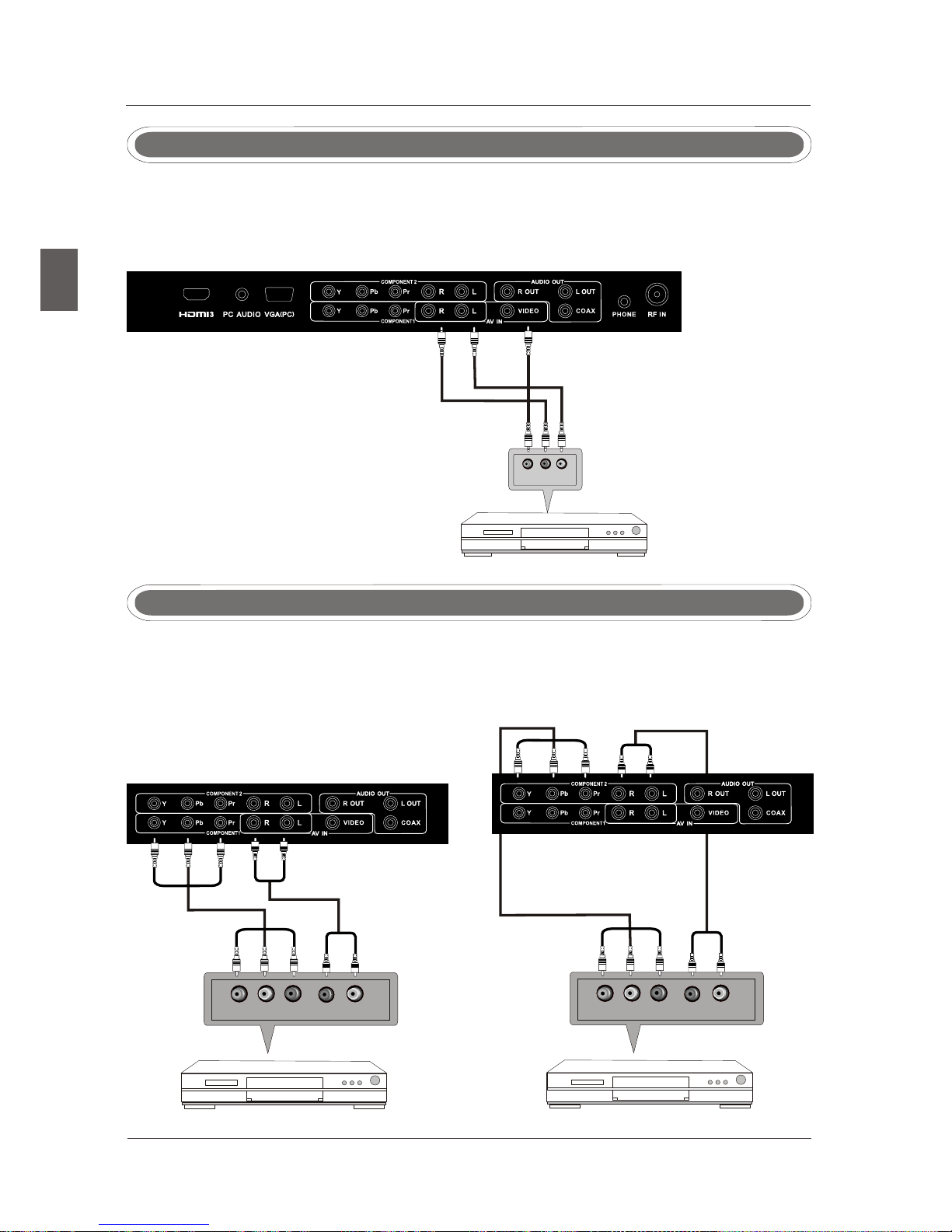

YPbPr Connection(Component)(Component)
Connect the YPbPr output of the DVD or VCR to the YPbPr input on the set. The picture quality is
improved; compared to connecting a regular VCR to the video input. Connect the Audio output of
the DVD or VCR to the Audio input jacks on the set using the RCA cable.
Match the jacks colors :Y is green,Pb is blue,Pr is red,Audio left is white and Audio right in red.
Select component input source using the SOURCE button on the remote control.
Connect the VIDEO and AUDIO output jack of the DVD or VCR to the VIDEO jacks on the set using
the RCA cable. Match the jack colors: Video is yellow, Audio left is white, and Audio right is red.
Select the AV input source using the SOURCE button on the remote control.
AV Connection
Video Cable
VID EO R L VID EO R L
DVD or VCR
DVD or VCR Back
DVD or VCR
DVD or VCR Back
YPbPr cable
AUDIO cable
YPb Pr LR
DVD or VCR
DVD or VCR Back
YPbPr cable
AUDIO cable
YPb Pr LR
TV Back TV Back
TV Back
English
TV INSTALL TION DRAWINGSA

5
5
11

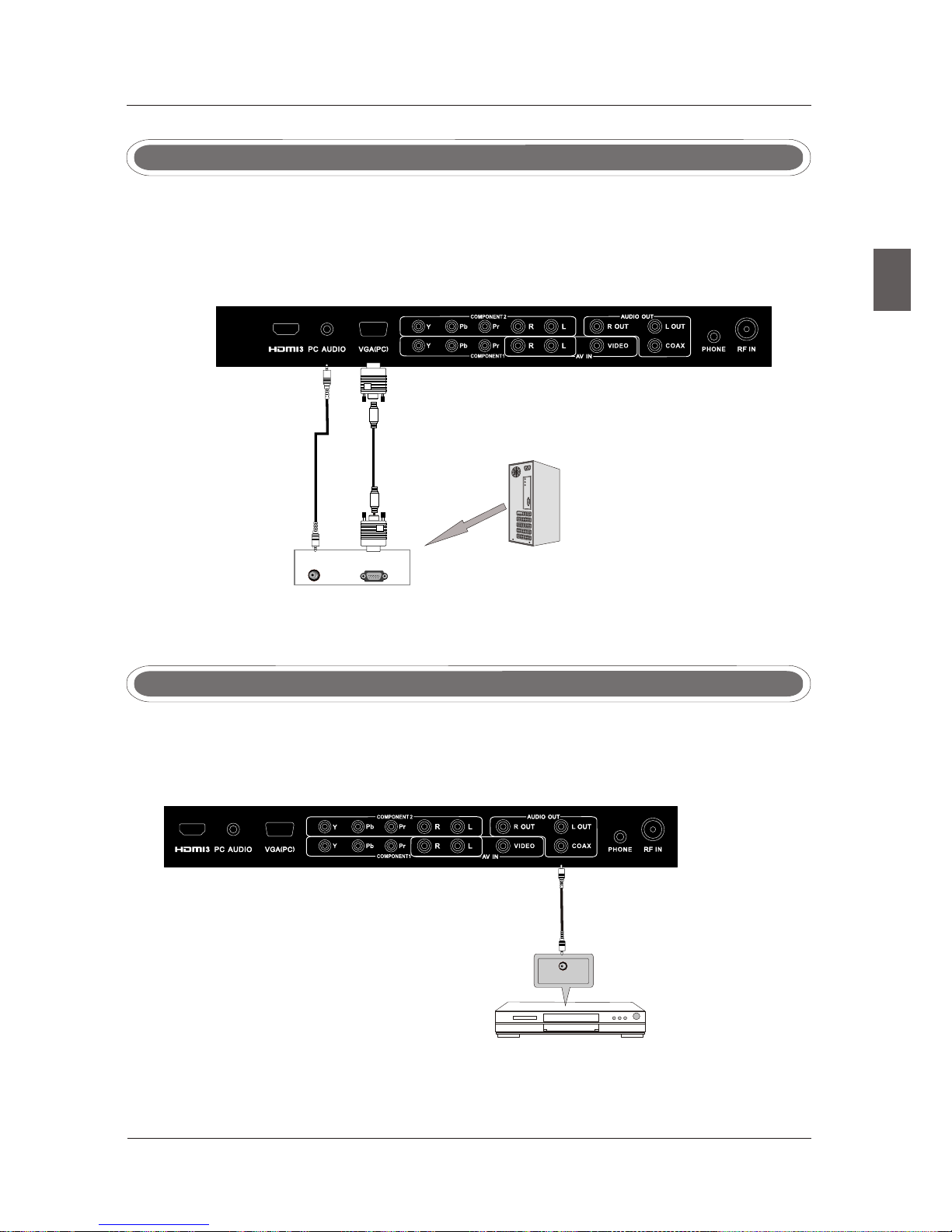

VGA(PC) Connection
Connect the RGB output of the PC to the jack on the set. Connect the AUDIO output ofVGA(PC)
The PC to the PC AUDIO jack on the set. Select the RGB input source with using SOURCE button
on the remote control.
COAX Cable
COAXCOAX the audio amplifier back
Audio amplifier
Connect to Audio Amplifier device to the COAX output jack on the TV.
COAX Connection
TV Back
VGA Cable
Audio Cable
AUDIO RGB-PC OUTPUT
TV Back
English
TV INSTALL TION DRAWINGSA

5
12

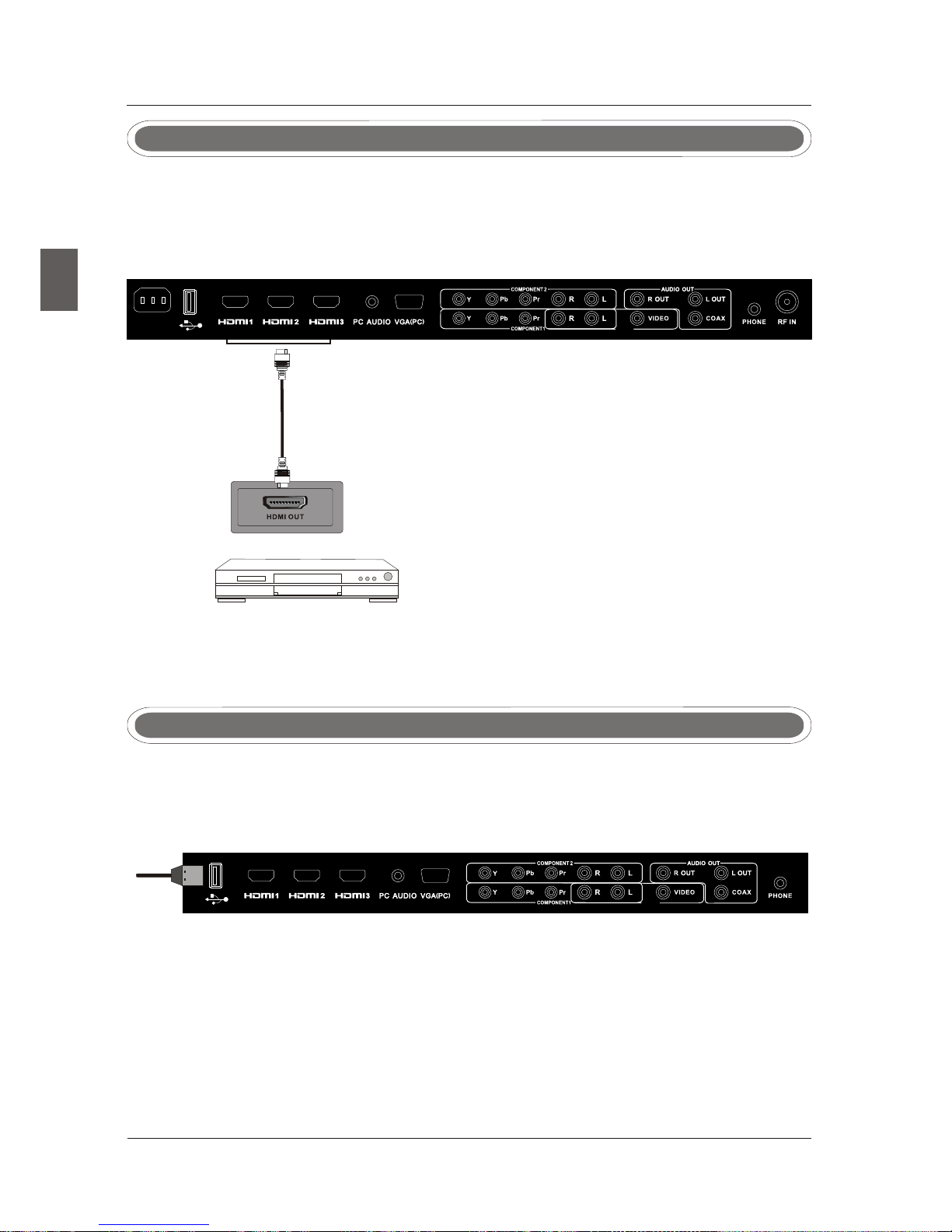

HDMI Connection
HDMI plug which replaces the HDMI connection allows transfer of all audio/video/control
signals through one cable only. These signals are transferred in digital.
DVD Back
TV Back
Service port: (For factory uses only.)
TV Back
USB Cable
HDMI Cable
Service Port Function
English
TV INSTALL TION DRAWINGSA
5
AC IN

13

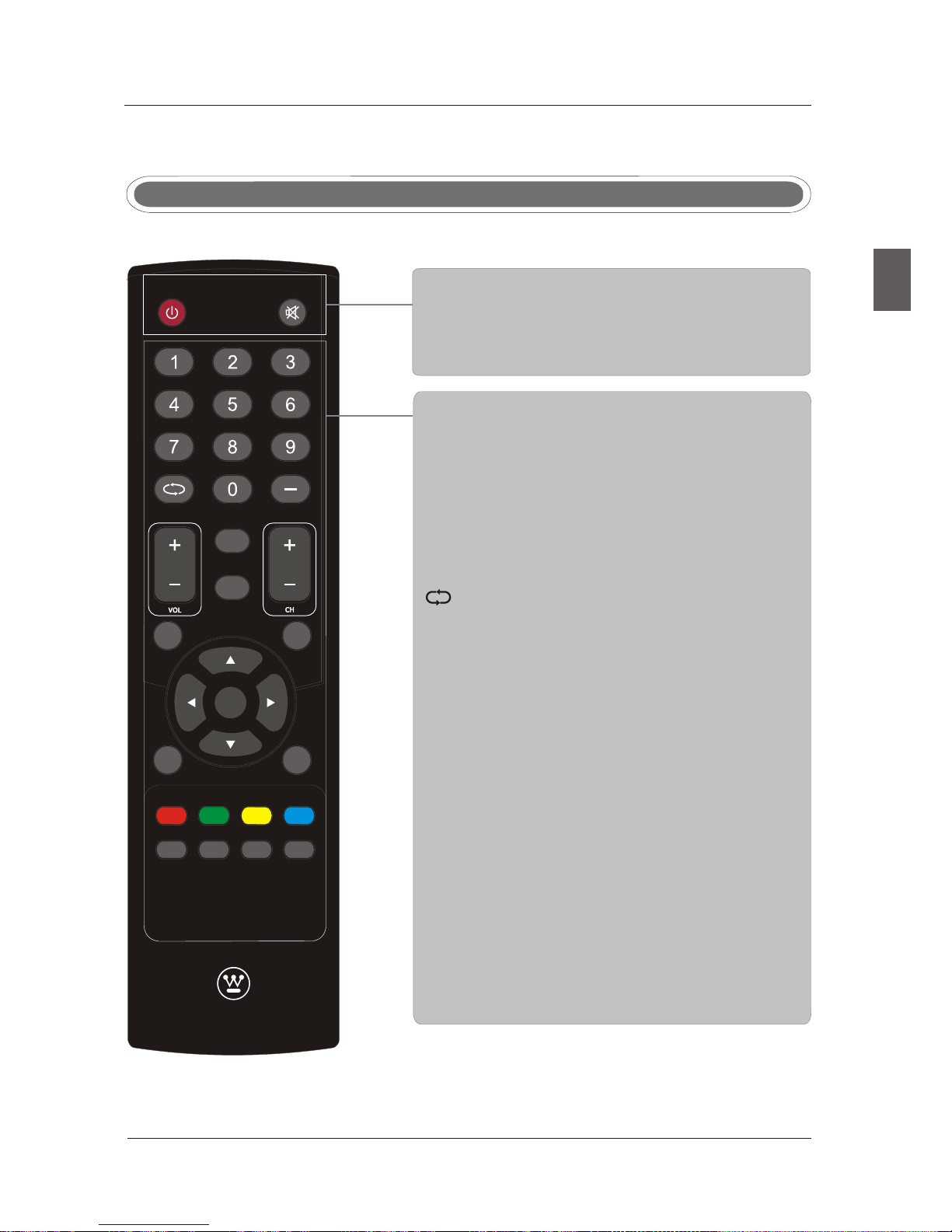

8 REMOTE CONTROL.
Remote control instructions in TV mode
Return to the previous channel viewed.
POWER
Turn the LCD TV ON or OFF.
MUTE
Press to mute the sound. Press again or press VOL+ to
un-mute the TV.
SOURCE
Press SOURCE to display the OSD input source,
,
press ▲▼to select an input source and then press
OK to confirm.
-
Press this button to enter a program number for
multiple program channel such as 2-1,etc.
NUMBER BUTTONS
Press 0-9 to directly change the TV channel.
DISPLAY
Press to display the source and channel's information.
EXIT
Exit the main TV menu to the screen.
MENU
Brings up the main TV menu to the screen.
DISPLAYDISPLAY
OK
ENTER
OK
ENTER
ASPECTASPECT
MENUMENU EXITEXIT
SLEEPSLEEP SOURCESOURCE
POWERPOWER MUTEMUTE
MTSMTS
FAVFAV
CCCC
LISTLIST
ASPECT
Press to select Aspect Ratio.
THUMBSTICK( ▲/ ▼/◄ / ►/ OK )
Allows you to navigate the on-screen menus and adjust the
system settings to your preference.
VOL+/VOL-
Press to increase / decrease the sound level.
CH+/CH-
Press to scan through channels.
CC
Press to display the closed caption.
LIST
Press to display the TV program list.
FAV
Press to display the TV favourite program list.
English
REMOTE CONTROL

14
Remote control setup
1. Open the cover.
2. Uses three A size batteries.When inserting the batteries, make sure correct polarities “+”and “-”
marks on the batteries line up correctly with compartment markings .
3. Replace the battery cover.
To prevent battery leakage which may result in bodily injury or damage to the remote:
1. Install all batteries correctly, and as marked on the remote control.
2. Do not mix batteries:(OLD and NEW or CARBON and ALKALINE, etc)
Remove batteries when the remote is not used for a long period of time.
.
English
REMOTE CONTROL

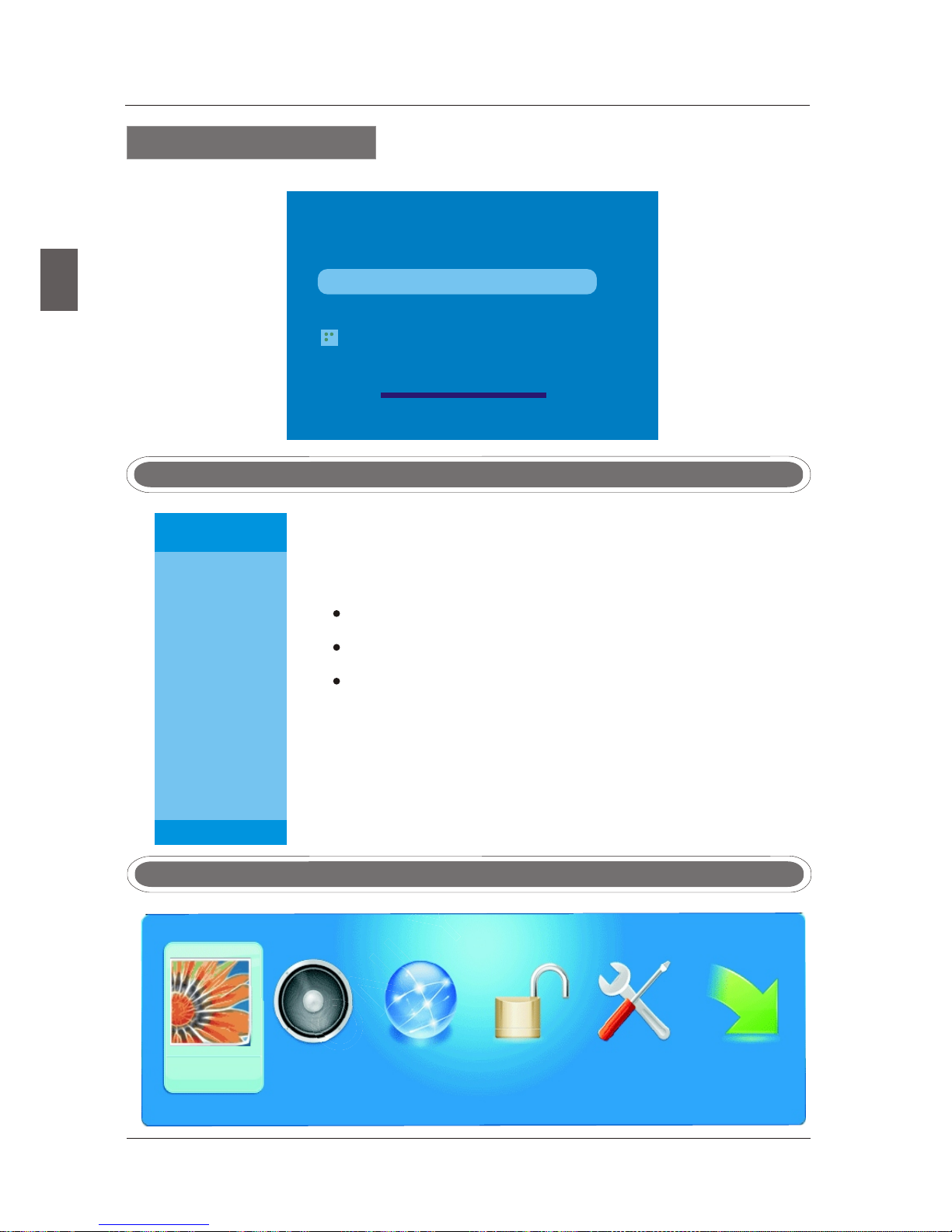

Select Language
Follow this guide to help you set up your TV. Use the Up and
Down arrows on your remote control and select the Language
you want to use for menus and message screens.
English Enter
French
Spanish
Enter
Enter
:Return :Select Menu :Press to Execute
MENU
15
SETUP WIZARD
Next
Time zone
Time zone
Eastern
:Select Menu :Change Setting
Time zone
Select Language
Channel Scan
Please choose what type of device to set up If you want to set
up a DVD,Game Console or Computer please choose other and
select what connection you are using.
Air Enter
Cable Enter
:Return :Select Menu :Press to Execute
MENU
Choose what type of device to set up.
CHANNEL SCAN
English
9.Menu Operation
MENU OPERATION
Use the left or right key to select on your time zone.

16
AUTO CHANNEL SEARCH - Air
Now Searching... Please Wait
Return
Analog Channels Found: 0
Digital Channels Found: 0
0%
Channel Scanning
Press SOURCE button to display the input source list.
Press button to select the input source you want to watch.▼/▲
Press OK button to enter the selected source.
Source Select
TV
AV
YPbPr1
YPbPr2
HDMI1
HDMI2
HDMI3
PC
SELECT INPUT SOURCE
PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS
BASIC OPERATION
English
MENU OPERATION

17
Press MENU button to display the MAIN OSD MENU.
Press ◄/► button to select the MENU you want.
Press OK button to enter the sub menu.
Press ▼/▲ button to select the option and then press ◄/► to adjust the value in the sub menu.
You can press MENU button to go back to the upper menu or EXIT button to close the OSD.
Color Temperature Normal
Advanced Picture Settings
Picture Settings
Screen Settings
PC Settings
MENU ENTER
:Return :Select Menu :Go to Next Menu
1.Press ENTER when the Picture Settings item is highlighted. Then you will go to the sub-menu
as following.
2.Press ▼/▲ to select the desired menu item. Press ENTER to proceed if necessary.
3.Press ◄/► to the desired level.
4.When you have changed the settings, you can exit from the menu by pressing MENU.
PICTURE MENU
PICTURE SETTINGS
Picture Mode User
Brightness
Contrast
Color
Tint
Sharpness
:Return :Select Menu :Change Setting
MENU ENTER
Press ▼/▲ button to select Picture Mode, then press ◄/► button to adjust. Only in the User mode,
the detail options as following can be adjusted. Available picture mode: User, Dynamic, Standard,
Movie .
Picture Mode
Picture Settings
English
MENU OPERATION

18
Brightness
25
Contrast
25
Press ▼/▲ button to select Brightness,
then press ◄/► button to adjust.
Brightness
Contrast
Press ▼/▲ button to select Contrast,
then press ◄/► button to adjust.
Color
27
Sharpness
27
Tint
27
Color
Sharpness
Tint
Press ▼/▲ button to select Color,
then press ◄/► button to adjust.
Press ▼/▲ button to select Sharpness,
then press ◄/► button to adjust.
Press ▼/▲ button to select Tint,
then press ◄/► button to adjust.
1.Press ENTER when the Screen Settings item is highlighted. Then you will go to the sub-menu
as following.
2.Press to select the desired menu item. Press ENTER to proceed if necessary▼/▲.
3.Press ◄/► to adjust the item to the desired level.
4.When you have changed the settings, you can exit from the menu by pressing MENU.
Screen Size Standard
Auto Wide
SCREEN SETTINGS
Screen Size
Press ▼/▲ button to select Screen Size, then press ◄/► button to adjust. Available Screen Size:
Standard, Fill, Over, Scan.
Screen Settings
MENU :Return :Select Menu :Change Setting
ENTER
English
MENU OPERATION
