Whalen Barkston Lane Desk SPLS-BKLD User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2020-03-16 Rev. 0001-B
Barkston Lane Desk
Model # SPLS-BKLD
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASED: / /

2
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: Barkston Lane Desk (SPLS-BKLD)
MADE IN CHINA
SPECIAL NOTE
Please read the instruction sheets completely before assembly. Examine all packaging
material before discarding carton. Remove any remaining staples from the carton before
discarding. Remove all parts from carton and separate into groups as indicated on part
list. Please ensure all parts are included prior to assembly. Use of power tools to
complete assembly is not recommended.
M A X I M U M R E C O M M E N D E D W E I G H T L O A D S
THIS UNIT IS INTENDED FOR USE ONLY WITH THE MAXIMUM
WEIGHTS INDICATED. USE WITH LOAD HEAVIER THAN THE MAXIMUM
WEIGHTS INDICATED MAY RESULT IN INSTABILITY, CAUSING POSSIBLE INJURY.
MAXIMUM LOAD 30 lb. (13.6 kg)
MAXIMUM LOAD 200 lb. (90.7 kg)
MAXIMUM LOAD 10 lb. (4.5 kg)

3
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Desk Top (1)
B- Left Leg (1) C- Right Leg (1)
(1) M6 x 35 mm Bolt (2) Lock Washer (3) Flat Washer
(20+1 extra) (20+1 extra) (20+1 extra)
(4) Wood Dowel (10+1 extra) (5) Knob (4) (6) 25 mm Knob Bolt (4)
Glue (1) Hex Wrench (1)
Tools required: Hex wrench (provided) and Phillips screwdriver (not provided).

4
Assembly Instructions
NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled,
go back and fully tighten all bolts. This will make the assembly easier.
1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a
carpeted floor or the empty carton to avoid any scratch.
2. Attach the Knobs (5) to the front side of drawers using the provided Knob Bolts (6) and tighten with a
Phillips screwdriver.
3. Pull the side drawers all the way out, then push the plastic release lever of the ball bearing slide up on one
side and down on the other side, and then pull the both side drawers completely out.
NOTE: You must remove the both side drawers to attach the legs (B and C).
6
5
6
5
A
6
6
5
5

5
Assembly Instructions

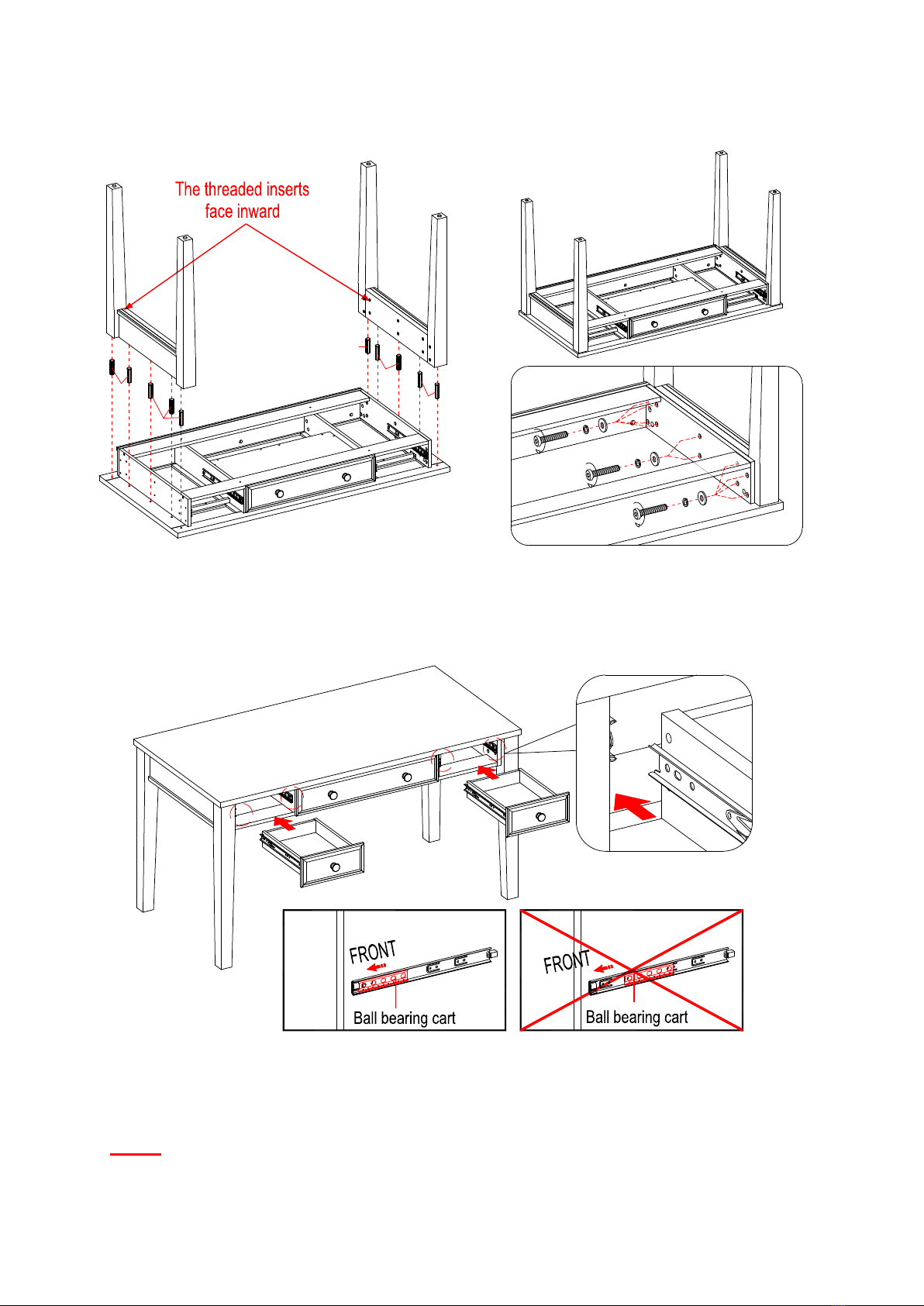

4. Turn the Desk Top (A) upside down as shown.
5. Attach the Left and Right Legs (B and C) to the Desk Top (A) by using the Wood Dowels (4).
6. Insert the 35 mm Bolts (1) with the Lock Washers (2) and Flat Washers (3) from inside of desk apron
through the pre-drilled holes and screw into threaded inserts in the Legs (B and C). As shown.
7. Ask for assistance to stand the unit upright and position it at the desired location.
8. Now, insert the removed side drawers into Desk Top (A) to finish the assembly. To place the drawer
back, simply push the ball bearing cart all the way to the end of the slides (on both sides), and align the
slide runners on the drawers with the slides track on the unit. Push it carefully inside until it stops.
NOTE: If the drawer does not go smoothly, please take it out and repeat the step.
A
C
B
4
4
4
4
4
A
C
B
123
123
123B/C
A

6
Care and Maintenance
 Use a soft, clean cloth that will not scratch the surface when dusting.
 Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area.
 Using solvents of any kind on your furniture may damage your furniture’s finish.
 Never use water to clean your furniture as it may cause damage to the finish.
 Always use coasters under beverage glasses and flowerpots.
 Liquid spills should be removed immediately. Using a soft, clean cloth, blot the spill gently. Avoid rubbing.
 Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create
spotting within the furniture finish.
 Stains or marks from crayons or ink markers will be difficult to remove.
 In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a
professional to repair your furniture.
 Check bolts/screws periodically and tighten them if necessary.
Further Advice about Wood Furniture Care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and humidity
changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from
direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful
tips will enhance your furniture as it ages.
We hope you enjoy your purchase for many years.
Thank you for your purchase!
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will repair or
replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet
your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state
(province to province).
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.whalenfurniture.com
