OPERATINGMANUALANDUSERGUIDE
502USB
802USB
1002FX / USB
1202FX / USB

OPERATINGMANUALANDUSERGUIDE
1
TABLEOFCONTENTS
IMPORTANT WARNINGS & SAFETY INSTRUCTIONS ....................................................2
INTRODUCTION ................................................................................................................4
ABOUT THE CONNECT MIXERS ......................................................................................4
FEATURES .........................................................................................................................5
USB INTERFACE ...............................................................................................................6
FX INTERFACE ..................................................................................................................6
WALKTHOUGH—CONNECT 502USB ..............................................................................7
WALKTHOUGH—CONNECT 802USB ..............................................................................8
WALKTHOUGH—CONNECT 1002FX/USB (also for 1202) ..............................................9
WALKTHROUGH—REAR PANEL ...................................................................................10
WIRING DIAGRAM ...........................................................................................................10
DIMENSIONAL DRAWING ...............................................................................................11

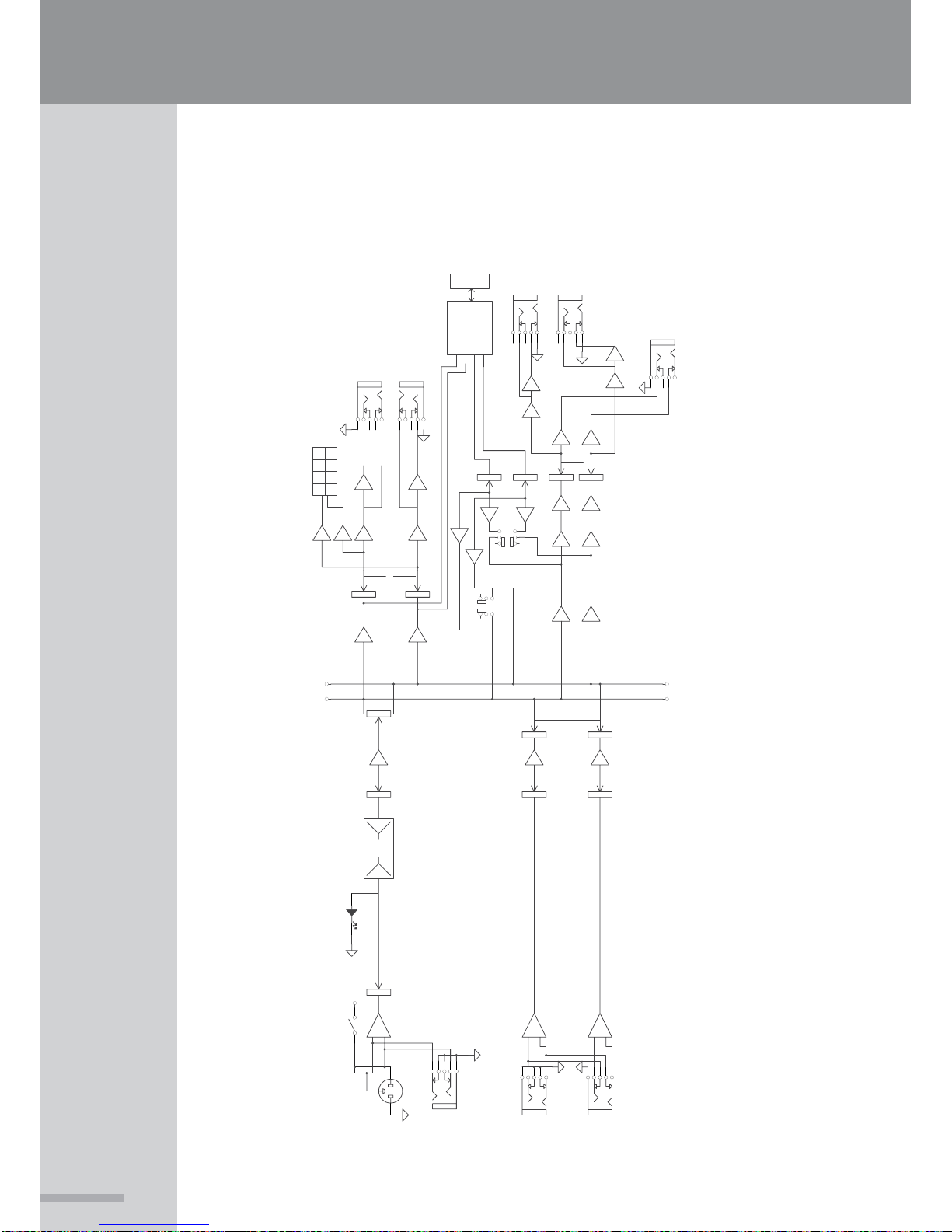

BLOCK DIAGRAM ............................................................................................................13
SPECIFICATIONS ............................................................................................................17

CONNECT SERIES
2
IMPORTANTWARNINGS&SAFETYINSTRUCTIONS
1. Read these instructions.
2. Follow all instructions.
3. Keep these instructions.
4. Heed all warnings.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarised or grounding-type plug. A polarised plug
has two blades with one wider than the other. A grounding plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided
plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer (such as the exclusive supply
adapter, battery etc).
12. Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with
the apparatus. When a cart or rack is used, use caution when moving the cart and apparatus
combination to avoid injury from tip-over.
13. Unplug the apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied personnel. Servicing is required when the apparatus has been
damaged in any way including but not limited to power supply cord or plug damage, liquid
ingress, foreign objects in the chassis, exposure to rain/moisture or impact damage. In addition
the unit must be serviced when you experience any abnormal operation.
15. CAUTION: These servicing instructions are for use by qualified service personnel only. To
reduce the risk of electric shock, do not attempt to perform any servicing other than that
contained in the operating instructions unless you are qualied to do so. In addition opening the
casing will result in your warranty becoming null and void.
16. Do not install this apparatus in a conned space such as a book case or similar unit. Good
ventilation should be maintained around the apparatus and any vents, air-inlets or fans should
not be obstructed by objects such as paper, table-cloths, curtains etc.
17. WARNING: To reduce the risk of re or electric shock, do not expose the apparatus to rain or
moisture. The apparatus should not be exposed to dripping or splashing and objects lled with
liquids, such as vases, should not be placed on the apparatus.
18. WARNING: The mains plug is used as a disconnect device, the disconnect device shall remain
readily operable.

OPERATINGMANUALANDUSERGUIDE
3
ATTENTION: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
19. This lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the
user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that
may be of sufcient magnitude to constitute a risk of electric shock.
Warning: To reduce the risk of electric shock, do not remove the cover (or back) as there are no
user-serviceable parts inside. Refer servicing to qualied personnel.
The exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance instructions in the literature accompanying the
appliance.
20. This equipment is a Class II or double insulated electrical appliance. It has been designed
in such a way that it does not require a safety connection to electrical earth.
21. Correct Disposal of this product. This marking indicates that this product should not be
disposed with other household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To return your used device, please use
local return and collection systems or contact the retailer where the product was purchased.
They can take this product for safe environmentally friendly recycling.

CONNECT SERIES
4
Congratulations on the purchase of your CONNECT series mixer. CONNECT series mixers are
the result of many years of experience in the use, design and manufacture of professional audio
equipment. We take great pride in engineering and building every Wharfedale Pro product and wish
to thank you for entrusting us with your sound.
From the time Gilbert Briggs built his rst loudspeaker in 1932, to the present day, Wharfedale have
maintained the same standard of quality in components, workmanship and performance.
Please take the time to read this manual completely in order to ensure that you get the most from
your CONNECT mixer.
INTRODUCTION
The CONNECT mixers from Wharfedale Pro are high quality compact mixers that are suitable for a
wide range of applications.
Professional big mixer features such as Phantom powered, balanced XLR microphone inputs give
you full functionality and great sound in an ultra compact and cost effective package that is ideal for
live sound, home studio recording and xed installations. The Microphone pre-ampliers use the
same high quality components and construction methods that are employed in our agship mixers.
All CONNECT mixers feature an intuitive, ergonomically designed user interface that is excellent for
beginners and professionals alike. Comprehensive connectivity ensures that a CONNECT mixer will
t into any situation you need.
ABOUTTHECONNECTMIXERS
COMMONFEATURES
• High quality microphone preamplifiers, with switchable global +48V phantom power
• Balanced XLR Mic/Mono inputs with input gain control
• Stereo Channels with Balanced/Unbalanced ¼" TRS Inputs
• Pan/Balance controls for all channels
• Clip LED for all mono channels
• Separate Main Mix and Phones outputs with level controls
• Stereo 4 segment LED meters
• Stereo 1/4” Headphones outputs
• Full duplex 16 bit/48 kHz USB interface, with destination switches

OPERATINGMANUALANDUSERGUIDE
5
CONNECT502USBFEATURES
• 1 Mono Mic/Line Channel and 2 Stereo Channels
• 2 Band EQs for mono channel
CONNECT802USBFEATURES
• 2 Mono Mic/Line Channels and 2 Stereo Channels
• 3 Band EQs for all channels
CONNECT1002FX/USBFEATURES
• 2 Mono Mic/Line Channels and 8 Stereo Line Channels
• 3 Band EQs and switchable high pass filter for all mono channels
• Built-in 56 effects digital FX with LED display
• Control room, FX Send/AUX and Headphones outputs
CONNECT1202FX/USBFEATURES
• 4 Mono Mic/Line Channels and 8 Stereo Line Channels
• 3 Band EQs and switchable high pass filter for all mono channels
• Built-in 56 effects digital FX with LED display
• Control room, FX Send/AUX and Headphones outputs

CONNECT SERIES
6
USBINTERFACE
The USB connector enables computers with USB connectivity to interface directly with the
CONNECT mixer for full duplex recording and playback. In recent years the introduction of USB
connectivity has ushered a new appreciation of the capabilities of computer audio, helping to fuse
both digital and analogue and open up endless possibilities for the recording musician.
The internal AD (Analogue to Digital) and DA (Digital to Analogue) converters are 16-bit/48KHz
enabling recording and playback above CD quality, ensuring that recordings that you make with a
CONNECT mixer have outstanding quality.
The CONNECT mixer is fully class compliant and requires no drivers when used with modern
operating systems. Mac OSX, Windows XP, Vista and 7 will require no additional driver software.
WindowsWIN7Installation
Simply choose the device in the following location: Start > Control Panel > Hardware and Sound >
Sound > Manage Audio Devices
MacOSXInstallation
Simply select as an input and output device using the "Audio MIDI Setup" page, you can nd this
easily using the spotlight function.

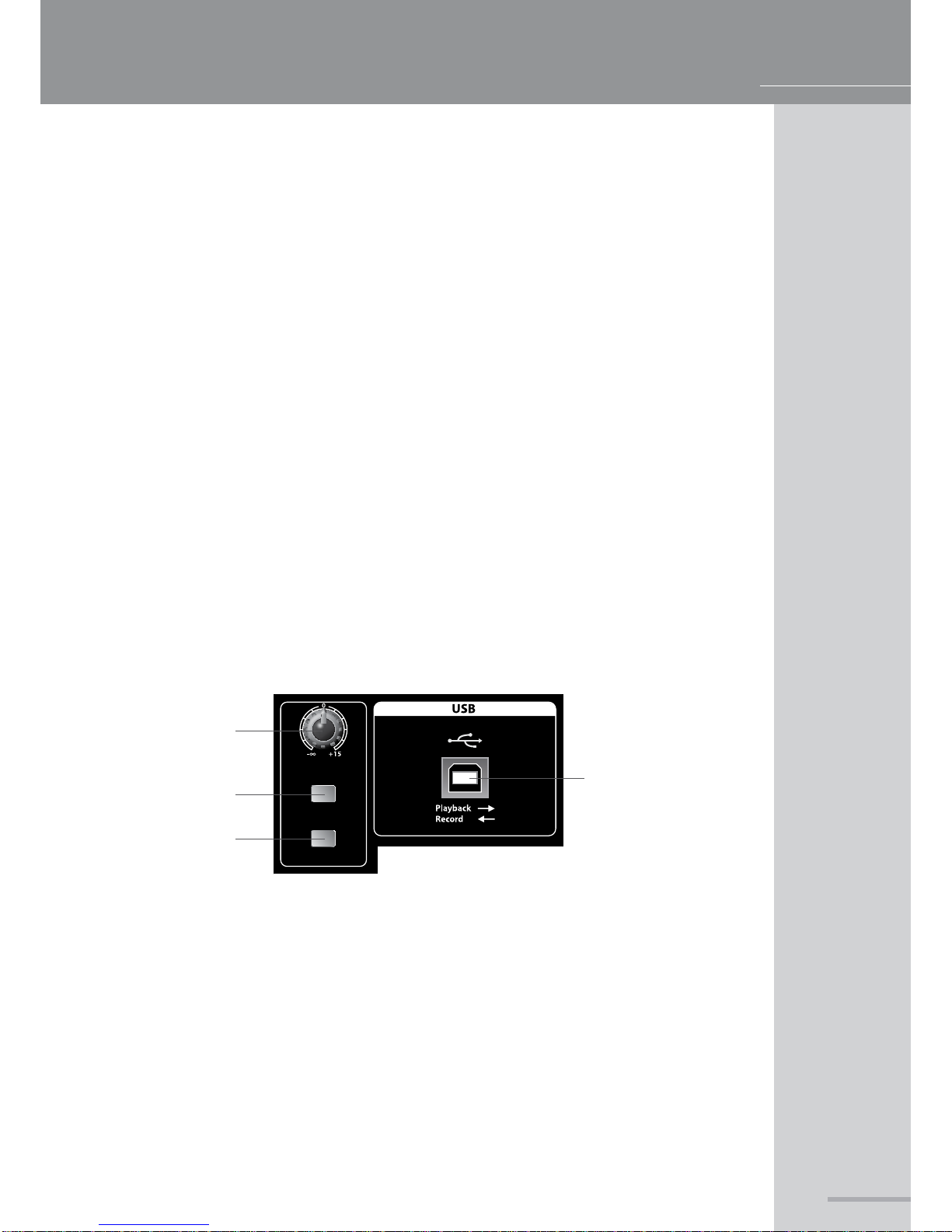

1. USB Connector for Class Compliant Interfacing with a PC or Mac.
2. Controls the level of the USB inputs.
3. Sends the USB input signal to the headphone outputs.
4. Sends the USB input signal to the main mix bus.
USB In
USB to Phones
USB to Main
2
4
31

OPERATINGMANUALANDUSERGUIDE
7
You have a choice of 56 different effects, from Reverb to
Flanging to Delay. You can send them to the main mix
outputs.
1. Shows the code of the selected effect
2. Shows when the FX bus is overloaded
3. Turns the FX processor on or off
4. Selects the effect algorithm as listed below the control
5. Sends the output of the FX processor to the main mix bus
FXInterface
ROOM
PLATE
HALL
GATED REVERB
CHORUS
FLANGER
ROTARY SPEAKER
DELAY
r1 Closet, r2 Small ambient room,
r3 Small bathroom, r4 Medium bathroom,
r5 Large bathroom, r6 Small empty room,
r7 Medium empty room, r8 Large empty room.
P1 - P5
h1 Medium hall 1, h2 Medium hall 2,
h3 Medium hall 3, h4 Large hall 1,
h5 Large hall 2, h6 Large hall 3,
h7 Church, h8 Cathedral.
g1 - g3
c1 - c4 Chorus 1-4,
c5 - c8 Chorus with reverb 1-4.
F1 - F6 Flanger 1-6,
F7 - F9 Flanger with reverb 1-2.
S1 - S7
d1 - d9
1
2
3
4
5

CONNECT SERIES
8
WALKTHOUGH—CONNECT502USB
Line In
Mic 1
L
(Mono)
L
(Mono)
Bal
or
Unbal
Bal
or
Unbal
Bal
or
Unbal
Balanced
L
Main OutLine In 4/5Line In 2/3
R R R
Level
USB to Main
USB to Phones
USB In
+48V
L R
4 / 51
Power
Level
000
+15-+15- Max
-
+15
-
+15
-
Clip
6
0
-20
Phones
EQ
High
12KHz
Gain
Clip
Balance
Level
Balance
Low
80Hz
Pan
L R L R
L R
+15
-
Mic:0
Line:-20
+50dB
+30dB
502USB
Phones Main Mix
1. Balanced XLR input for microphone
2. Balanced/Unbalanced TRS input for line level sources (for the STEREO channel)
3. Balanced/Unbalanced TRS input for line level sources
4. Clip LED lit when the signal is overloaded
5. Gain control for calibrating sources and applying correct gain structure
6. High EQ centred at 12KHz
7. Low EQ centred at 80Hz
8/11. Pan/Balance used to spatially place the channel within the stereo eld
9/10. Set the amount of signal to the main mix bus
12. Set the amount of signal to the headphones output
13. Control the master level of the main outputs.
14. Display the realtime level present at the main output bus
15. Indicates +48v phantom power activity
16. Indicates AC power supply
17. To connect headphones
18. Balanced/unbalanced TRS main outputs
1
2
3
4
5
6
7
8
9
1011 12
13
14
15
16
17
18

OPERATINGMANUALANDUSERGUIDE
9
WALKTHOUGH—CONNECT802USB
1
2
3
4
5
6
7
8
9
10 12
11
13
14
15
1. Balanced XLR input for microphone
2. Balanced/Unbalanced TRS input for line level sources (for the STEREO channel)
3. Balanced/Unbalanced TRS input for line level sources
4. Clip LED lit when the signal is overloaded
5. Gain control for calibrating sources and applying correct gain structure
6. High EQ centred at 12kHz
7. Mid EQ centred at 1kHz
8. Low EQ centred at 80Hz
9. Pan/Balance used to spatially place the channel within the stereo eld
10. Set the amount of signal to the main mix bus
11. Set the amount of signal to the headphones output
12. Controls the master level of the main outputs
13. Displays the realtime level present at the main output bus
14. To connect headphones
15. Balanced/unbalanced TRS main outputs

CONNECT SERIES
10
Logic
TM
00
0
0
00
0 0 0 0
0
0
-15 +15
0
-15 +15
0
-15 +15
0
-15 +15
0
-15 +15
0
0
+15-15
USB In
USB to Phones
USB to Main
WALKTHOUGH—CONNECT1002FX/USB(alsofor1202)
1
2
3
4
5
6
7
8
9
10
18
13
19
20
11
23 22 21
12 14 15 16 17
1. Balanced XLR input for microphone
2. Balanced/Unbalanced TRS input for line level sources
3. Gain control for calibrating sources and applying correct gain structure
4. High EQ centred at 12kHz
5. Mid EQ centred at 1kHz
6. Low EQ centred at 80Hz
7/12. Set the amount of signal to the internal FX processor and AUX output path
8/13. Pan/Balance used to spatially place the channel within the stereo eld
9. Clip LED lit when the signal is overloaded
10/14. Sets the amount of signal sent to the main mix bus
11. Activate the high pass lter with 80Hz cut-off point
15. Select the sensitivity for the different level sources.
16. Set the amount of signal to the headphones output
17. Controls the master level of the main outputs
18. Display the realtime level present at the main output bus
19. To connect headphones
20. Send the signal out to the external effector or the external AUX instrument
21. Send the signal out for the control room monitoring
22. Balanced/unbalanced TRS main outputs
23. Balanced/Unbalanced TRS input for line level sources (for the STEREO channel)

OPERATINGMANUALANDUSERGUIDE
11
Phantom +48V
On Off On Off
AC Input
AC17V
2x1000mA 35W
WALKTHROUGH—REARPANEL
1
2
3P1
Phantom +48V
On Off On Off
AC Input
AC17V
2x1000mA 35W
P2 P3
Power
P1-P2: 17V~
P3-P2: 17V~
1. Turn the Connect Mixer on or off
2. AC power supply receptacle
CAUTION:
USE THE POWER ADAPTER AUTHORISED BY Wharfedale Pro ONLY!
3. Switch the global +48V phantom power on or off
WIRINGDIAGRAM
INPUT TO
GRAPHIC EQUALISER
OUTPUTS FROM GRAPHIC
EQUALISER TO CROSSOVER
INPUTS TO CROSSOVER
INPUTS TO AMPLIFIER(S) SEPARATE
LOW
SPEAKER
OUTPUT TO
LOW
FREQUENCY
SPEAKER
FROM
AMPLIFIER
SEPARATE
HIGH/MID
SPEAKER
OUTPUT TO
HIGH/MID
SPEAKER
FROM
AMPLIFIER
= SIGNAL (SHIELDED) CABLE
= LOUDSPEAKER (NON-SHIELDED) CABLE
MIXER
OUTPUT
SEPARATE
HIGH/MID
AND LOW
OUTPUTS TO
AMPLIFIER(S)
FROM
CROSSOVER
SIGNAL INPUT
MIC,CD etc.TO CONNECT MIXERS

CONNECT SERIES
12

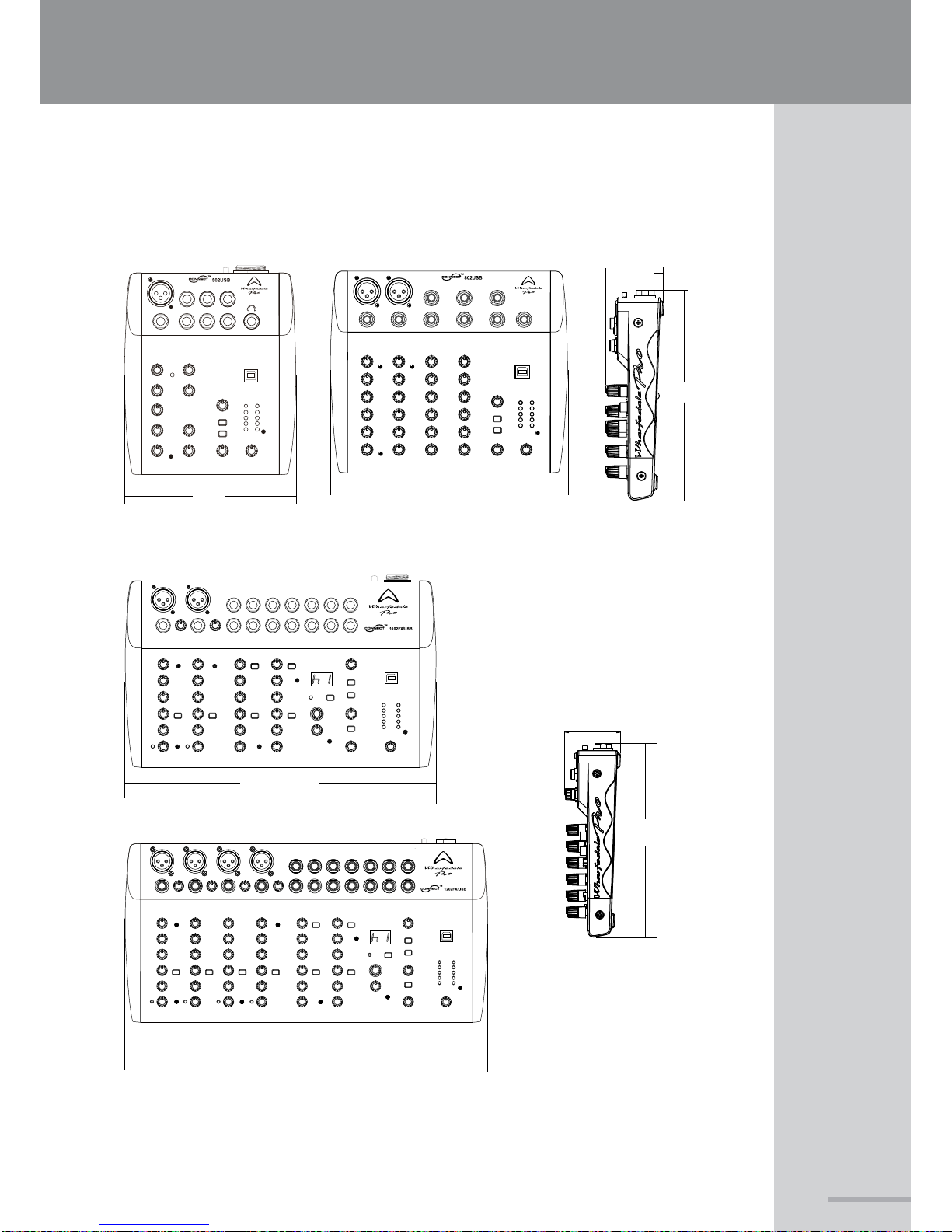

DIMENSIONALDRAWING
208.0mm
50.9mm
151mm
183.8mm
293.9mm
360.2mm
183.8mm
52.8mm

OPERATINGMANUALANDUSERGUIDE
13

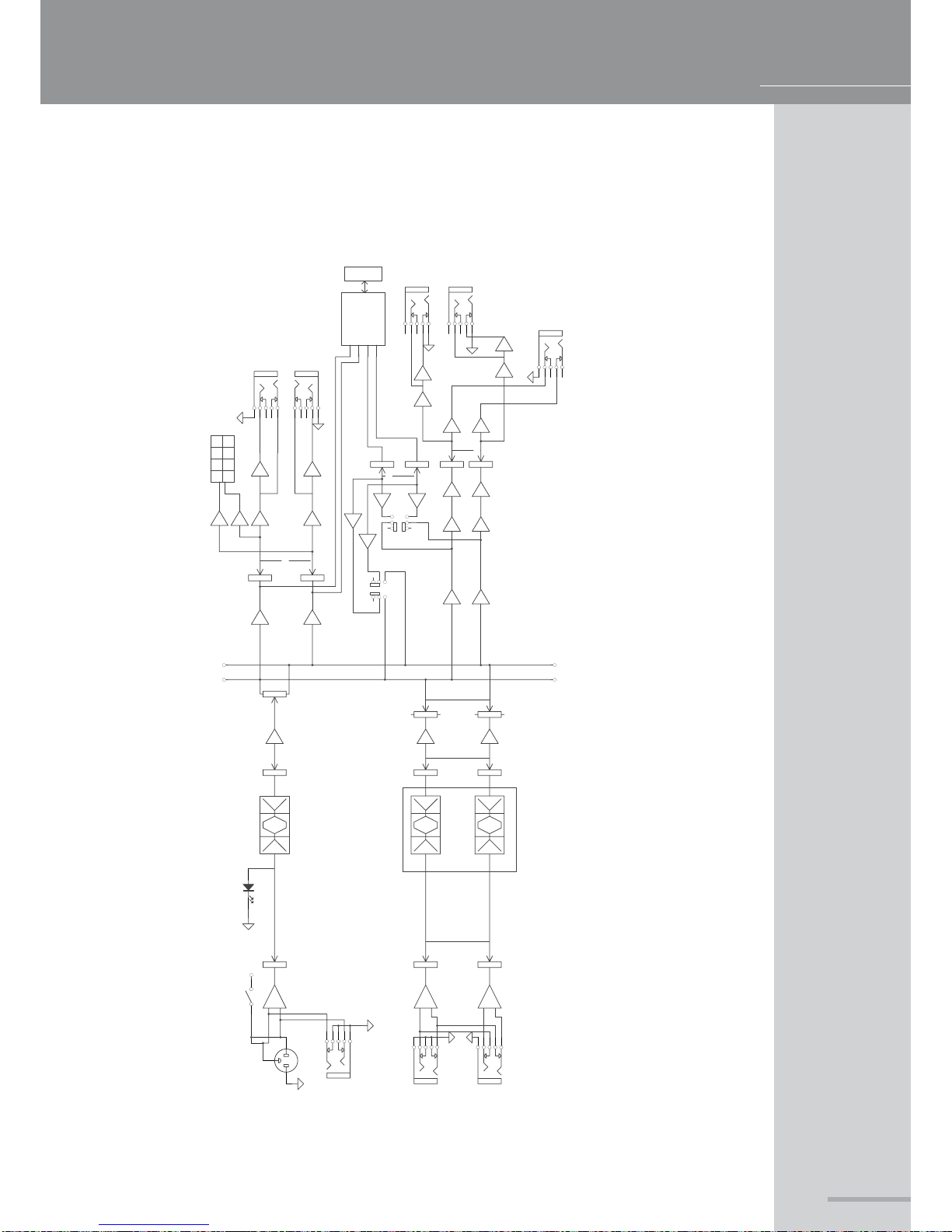

BLOCKDIAGRAM—CONNECT502USB
LINE IN
MIC IN
-
+
48V
GAIN
CLIP LED LO HI
LEVEL
EQ PAN
L R
MASER LEVEL
MAIN OUT L
MAIN OUT L
L RMONITOR
-20dB 0dB 6dB CLIP
MONO INPUT CHANNEL1
STEREO INPUT CHANNEL(3-6)
L R
PHONES
CR OUT L
CR OUT R
USB
USB IN L USB IN R
USB OUT L USB OUT R
PHONES
USB IN
USB TO PHONES
USB TO MAIN
LEVEL PAN

CONNECT SERIES
14
BLOCKDIAGRAM—CONNECT802USB
LINE IN
MIC IN
-
+
48V
GAIN
CLIP LED LO MID HI
LEVEL
EQ PAN
L R
MASER LEVEL
MAIN OUT L
MAIN OUT L
L RMONITOR
-20dB 0dB 6dB CLIP
MONO INPUT CHANNEL(1-2)
STEREO INPUT CHANNEL(3-6)
L R
PHONES
CR OUT L
CR OUT R
USB
USB IN L USB IN R
USB OUT L USB OUT R
PHONES
USB IN
USB TO PHONES
USB TO MAIN
GAIN
LO MID HI
GAIN LEVEL PAN
LO MID HI

OPERATINGMANUALANDUSERGUIDE
15
BLOCKDIAGRAM—CONNECT1002FX/USB
LINE IN
MIC IN
-
+
48V
GAIN
HPF
CLIP LED LO MID HI
LEVEL
EQ
PAN
FX/AUX L R FX/AUX
MASER LEVEL
MAIN OUT L
MAIN OUT L
L RMONITOR
-20dB 0dB 6dB CLIP
LINE IN LINE IN
LEVEL
PAN
FX/AUX
MONO INPUT CHANNEL(1-2)
STEREO INPUT CHANNEL(3/4-9/10)
+4/-10dB
L R FX/AUX
FX SEND TO CONTROL
1
23
FX
FX Send/AUX
PHONES
CR OUT L
CR OUT R
USB
USB IN L USB IN R USB OUT L USB OUT R

CONNECT SERIES
16
BLOCKDIAGRAM—CONNECT1202FX/USB
LINE IN
MIC IN
-
+
48V
GAIN
HPF
CLIP LED LO MID HI
LEVEL
EQ
PAN MASER LEVEL
MAIN OUT L
MAIN OUT L
L RMONITOR
-20dB 0dB 6dB CLIP
LINE IN LINE IN
LEVEL
PAN
MONO INPUT CHANNEL(1-4)
STEREO INPUT CHANNEL(5/6-11/12)
+4/-10dB
FX SEND TO CONTROL
1
23
FX
PHONES
CR OUT L
CR OUT R
USB
USB IN L USB IN R USB OUT L USB OUT R
FX Send/AUX
FX/AUX L R FX/AUX FX/AUX
L R FX/AUX

OPERATINGMANUALANDUSERGUIDE
17
SPECIFICATIONS-502USB/802USB
Model CONNECT 502USB CONNECT 802USB
Maximum Balanced
Output Level
(1%T.H.D. at 1kHz )
Main 1/4" Jack Balanced out +21dBu
+/-1dBu
Headphones output 150mw +/-5mw @
32ohms
Main 1/4" Jack Balanced out +21dBu
+/-1dBu
Headphones output 150mw +/-5mw @
32ohms
THD+N <0.025% @ + 14dBu +/-0.5dBu <0.025% @ + 14dBu +/-0.5dBu
Frequency Response 20Hz~20kHz +/-2dB 20Hz~20kHz +/-2dB
Hum and Noise 20Hz-
20Khz(150R)
-127dBu +/-5dBu Mic Pre Equivalent
Input Noise
-85dBu +/-5dBu Residual Noise
-127dBu +/-5dBu Mic Pre Equivalent
Input Noise
-85dBu +/-5dBu Residual Noise
S/N >78dB+-5dB @ pot max >78dB+-5dB @ pot max
FFT < -62dBv+/-5dBv @ gain pot max < -62dBv+/-5dBv @ gain pot max
CMRR 62dB+/-5dB @ 1kHz 62dB+/-5dB @ 1kHz
Maximum Input Level Mic: +4dBu +/-1dBu
Stereo Line: +21dBu +/-1dBu Mic: +4dBu +/-1dBu Stereo Line: +21dBu +/-1dBu
Mic: Balanced 6Kohms, Unbalanced
3Kohms +/-200ohms Mic: Balanced 6Kohms, Unbalanced 3Kohms +/-200ohms
Impedances Line: Balanced 22Kohms, Unbalanced
11 Kohms +/-2kohms Line: Balanced 22Kohms, Unbalanced
11 Kohms +/-2kohms
All other Unbalanced outputs:60
ohms,Balanced outputs: 120ohms All other Unbalanced outputs:60
ohms,Balanced outputs: 120ohms
Mono Input Channel
Gain 50dB Variable MIC(0~50dB) Line(- 20dB~+30dB) 50dB Variable MIC(0~50dB) Line(- 20dB~+30dB)
Input Channel EQ High (+/-15dB)+/-1.5dB 12kHz Shelving
Low (+/-15dB)+/-1.5dB 80Hz Shelving
High (+/-15dB)+/-1.5dB 12kHz Shelving
Mid (+/-15dB)+/-1.5dB 1kHz Shelving
Low (+/-15dB)+/-1.5dB 80Hz Shelving
Level Meter 4-Segment LEDx2 (output of +4dB = 0)
Main L/R 4-Segment LEDx2 (output of +4dB = 0) Main L/R
AC POWER 120V, 60Hz; 220V, 50Hz; 230V, 50Hz;
240V, 50Hz 120V, 60Hz; 220V, 50Hz; 230V, 50Hz; 240V, 50Hz
Dimensions (H x W x D) 50.9*151*183.8 mm (2.0*5.9*7.2 in.) 50.9*208*183.8 mm (2.0*8.2*7.2 in.)
Weight (Net/Gross) 0.64kg /1.62kg 0.92kg /1.9kg

CONNECT SERIES
18
SPECIFICATIONS-1002USB/1202USB
Model CONNECT 1002FX/USB CONNECT 1202FX/USB
Maximum Output Level
(1%THD at 1kHz )
Main 1/4" Jack Balanced out +26dBu ±
1dBu, Unbalanced out +21dBu ±1dBu
Headphones output 150mw±5mw @
32ohms
Main 1/4" Jack Balanced out +26dBu ±
1dBu, Unbalanced out +21dBu ±1dBu
Headphones output 150mw±5mw @
32ohms
THD+N <0.019% @ + 14dBu ±0.5dBu <0.025% @ + 14dBu ±0.5dBu
Frequency Response 20Hz~20kHz±1dB 20Hz~20kHz±1dB
Hum and Noise 20Hz-
20Khz(150R)
-127dBu ±5dBu Mic Pre Equivalent
Input Noise
-85dBu ±5dBu Residual Noise
-127dBu ±5dBu Mic Pre Equivalent
Input Noise
-85dBu ±5dBu Residual Noise
S/N 82dB ±5dB @ fader max 78dB ±5dB @ fader max
FFT -62dBv ±5dBv @ gain fader max -62dBv ±5dBv @ gain fader max
CMRR 60dB±5dB @ 1kHz 62dB±5dB @ 1kHz
Maximum Input Level Mic: +4dBu ±1dBu
Channel Line: +25dBu±1dBu
Stereo Line: +25dBu ±1dBu
Mic: +4dBu ±1dBu
Channel Line: +25dBu±1dBu
Stereo Line: +25dBu ±1dBu
Mic: Balanced 6 Kohms, Unbalanced
3Kohms ±500ohms Mic: Balanced 6 Kohms, Unbalanced 3Kohms ±500ohms
Impedances Line: Balanced 44 Kohms, Unbalanced
22Kohms ±2kohms Line: Balanced 44 Kohms, Unbalanced 22Kohms ±2kohms
All other Unbalanced outputs:100
ohms,Balanced outputs: 200ohms All other Unbalanced outputs:100
ohms,Balanced outputs: 200ohms
Mono Input Channel
Gain 50dB Variable MIC(0~50dB) Line(- 20dB~+30dB) 50dB Variable MIC(0~50dB) Line(- 20dB~+30dB)
Input Channel EQ High (+/-15dB)±2dB 12kHz Shelving
Mid (+/-15dB)±2dB 1kHz Shelving
Low (+/-15dB)±2dB 80Hz Shelving
High (+/-15dB)±2dB 12kHz Shelving
Mid (+/-15dB)±2dB 1kHz Shelving
Low (+/-15dB)±2dB 80Hz Shelving
Effect Out
56 effects:
1.(ROOM=r1-r8);
2.(PLATE=P1-P5);
3.(HALL=h1-h8);
4.(GATED REVERB=g1-g3);
5.(CHORUS=c1-c8)
6.(FLANGRE=f1-f8);
7.(ROTARY SPEAKER=s1-s7);
8.(DELAY=d1-d9).
56 effects:
1.(ROOM=r1-r8);
2.(PLATE=P1-P5);
3.(HALL=h1-h8);
4.(GATED REVERB=g1-g3);
5.(CHORUS=c1-c8)
6.(FLANGRE=f1-f8);
7.(ROTARY SPEAKER=s1-s7);
8.(DELAY=d1-d9).
Level Meter 4-Segment LEDx2 (output of +4dBu = 0)
Main L/R 4-Segment LEDx2 (output of +4dBu = 0) Main L/R
AC Power 120V, 60Hz; 220V, 50Hz; 230V, 50Hz;
240V, 50Hz 120V, 60Hz; 220V, 50Hz; 230V, 50Hz; 240V, 50Hz
Dimensions(HxWxD) 52.8*293.9*183.8mm (2.1*11 .6*7.3 in.) 52.8*360.2*183.8mm (2.1*14.2*7.3 in.)
Weights(Net/Gross) 1.37kg/3.0kg 1.69kg/3.3kg
Ver: A01 2014.5

Wharfedale Professional
IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK
www.wharfedalepro.com
Wharfedale Professional reserves the right to alter or improve specications without notice.
All rights reserved © 2014 Wharfedale Pro. Wharfedale Pro is a member of the IAG Group.
Wharfedale Pro Connect Series products are warranted of manufacturing or material defects for
a period of one year from the original date of purchase. In the event of malfunction, contact your
authorized Wharfedale Pro dealer or distributor for information.
*Be aware that warranty details may differ from country to country. Contact your dealers or
distributor for information. These terms do not infringe your statutory rights.
WHARFEDALE PRO LIMITED WARRANTY
