Wharfedale Pro EZ-M mini-mixer 10x2 User manual

EZ-m mini-mixer 10x2
OWNER’S MANUAL

Table of Contents
Page
1Introduction / Features / Back Panel diagram
2Important Safety & Warranty Information
3Detailed Features of the EZ-m 10x2 – Mic/Line Input Channel
4Mono Mic/Line Channel
- Low Impedance (Low Z) MIC Input
- LINE IN
- GAIN Control
- CLIP LED
5 -Mono Channel EQ Section
- Mono Channel PAN and LEVEL
6 Stereo Channel Inputs
- BALANCE & LEVEL
7 MASTER Section
- POWER LED & Signal Metering
8 - 2TK IN
- 2TK OUT
- MAIN OUT ¼” L/R Outputs
- PHONES
9 -POWER Switch On/Off
- AC Power Cable Connector
-CONNECTION WIRING DETAILS
- MIC Inputs
- LINE Inputs
- MAIN MIX Outputs
- Stereo 2 Track Inputs and Outputs (2TK IN / 2TK OUT)
- Headphone Outputs (PHONES)
10 SPECIFICATIONS
11 BLOCK DIAGRAM
Back Cover - Contact Information

Introduction
Thankyou forpurchasing aWharfedalePro EZ-mmini-mixer. The WharfedalePro EZ-m Series
mixersaredesigned foreaseof useand qualityaudioperformance. Pleaseread thismanual
completelytoensureproperunderstanding ofthe featuresand operation of yourmixer.
FEATURES
EZ-m10x2
-1Mono balanced /unbalanced mic/line inputchannelwith2Band equalization
-1variableinput GAIN control on channel1
- CLIP LEDon channel1
-2Stereo channelswithbalanced / unbalanced ” Tip-Ring Sleeve(TRS) jacks
- “2Track”stereo inputsand outputswith1/8”stereo anddualRCAjacks
- “2Track”assignableswitches(2TKTO MAINS, 2TKTO PHONES)withlevel control
-Separate MAINMIX, and PHONES outputswithlevelcontrols
-4segment, stereo bar-graph LEDmeters
- Convenient1/8”stereo jacksfor 2TKIN, 2TKOUT and PHONES
1

Important Safety & Warranty Information
1. Power Supply
This EZ-m Series mini-mixer is supplied with an external power supply unit. Use only the power
supply provided with your mixer. Use of any other power supply could cause damage to the mixer
and other equipment. Connect the power supply to the mixer BEFORE connecting it to the power
source outlet. Be sure to allow for free airflow around the mixer, as it may become warm during
long periods of operation. The mixer is shipped with the correct power supply for the country in
which it is to be used. This can be verified by checking the label on the power supply.
2. Packing
The exterior and interior packaging has been designed protect the mixer during transit.
If any shipping damage has occurred, consult your dealer and the shipping provider.
3. Safety
Avoid exposing your EZ-m Series mixer to excessive heat, humidity and dust. Store and
operate the mixer away from locations where it is likely to be exposed to these conditions.
Also, avoid placing your EZ-m Series mixer in locations which may be subject to excessive
vibration/physical shocks that could cause mechanical damage to the mixer.
WARNING: REFER ALL MAINTENANCE, REPAIRS AND MODIFICATIONS TO QUALIFIED
SERVICE PERSONNEL! THIS PRODUCT CONTAINS NO USER-SERVICEABLE PARTS!
For the protection of the mixer and other audio equipment, always turn off the power on the mixer
and other system components before connecting or disconnecting audio cables. Be aware that
excessive volume levels are possible from the output of this mixer. Protect your hearing
accordingly.
4. WARRANTY
The EZ-m Series mixers are covered by a limited warranty, against any defects in workmanship
for a period of one year from the date of purchase. This warranty is non-transferable and applies
only to the original purchaser. If any warranty related issues occur, contact your dealer. Proof of
purchase may be required.
2

DETAILED FEATURES OF THE EZ-m 10x2
Mono Mic / Line Input Channel
3

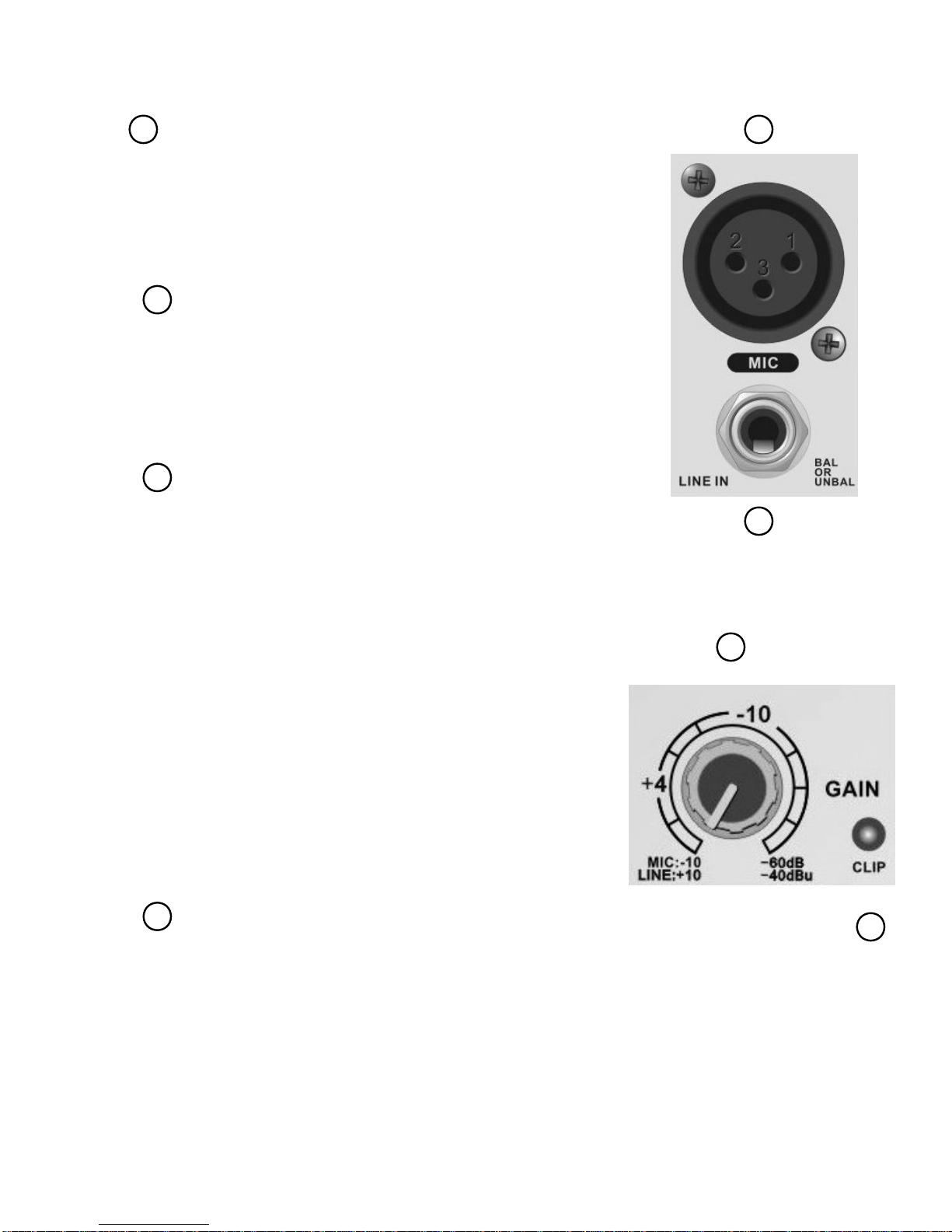

Low Impedance (Low Z) MIC Input
The low noise, high headroom “Low Z” MIC input is for
use with balanced, low impedance dynamic microphones.
NOTE: Condenser microphones will not work on this
mixer.
LINE IN
This ¼” Tip, Ring, Sleeve (TRS) jack is designed to be
connected with (-10 to +4dBu) balanced or unbalanced line
level sources.
GAIN Control
In order to achieve the best signal to noise ratio and
adequate dynamic range, the input preamp level of the
Mic/Line channel is adjusted with a GAIN control on channel
1. Set the GAIN control by watching the LED bar-graph
meters—above the MAIN MIX level control in the Master
section of the mixer—while the signal source for that channel
is active (whether it be a microphone or an instrument
connected to the LINE IN of the channel). The ideal level is
between 0dB and +6dB on the bar graph meters.
If the CLIP LED on the channel lights up consistently, the
GAIN control is set too high. It is acceptable for the CLIP
LED to flash periodically especially with loud instruments like
drums or during peak sound levels during loud portions of a
performance.
CLIP LED
The CLIP LEDs (on channel 1) will light up when the input
signal is driven too high. This indicates that the signal is
overloading the preamp and causing distortion.
4
11
2
3
2
3
44

EQ Section
Channel 1 on the EZ-m 10x2 mixer
features a two band Equalization (”EQ”) section.
Each band is chosen from the prime frequencies
for most musical applications, and allows up to
15 decibels of boost (increase) or cut (decrease)
of the signal in the tone range for which it
controls. The HIGH EQ control is centered at
12kHz and the LOW EQ control is centered at
80Hz. In the center-detent position (0), the
equalizer is bypassed (flat) and the control has
no effect on the tonal characteristics of the
signal.
Pan and Level
Pan Control:
On Channel 1, the PAN control adjusts
the left/right balance of the mono signal being
sent to the left and right MAIN MIX outputs.
The Channel 1 LEVEL Control
The Channel 1 LEVEL knob allows for
control of the level of the signal that is being
sent to the MAIN MIX master volume control.
Adjust each channel level control to acquire the
best “mix”, or balance of signals, from each
input.
5
55
6
6
7
7

Stereo Channel Inputs
Each of the stereo channels on the EZ-m 10x2
(2/3 and 4/5) feature two line level inputs with ¼”
Tip/Ring/Sleeve (TRS) jacks for both balanced
and unbalanced left and right input signals.
These inputs can accommodate both stereo and
mono inputs. When using a mono source,
connect the cable to the LEFT (MONO) input
only. Stereo Channels 2 /3, 4/5 have two inputs
with left and right ¼” Tip/Ring/Sleeve (TRS)
input jacks.
LEFT (MONO) input: When only one plug is
inserted into the LEFT jack, the channel
operates as a mono channel.
BALANCE and LEVEL
BALANCE Control
On a stereo channel, with a stereo input
connected, turning the BALANCE control to the
left will cause the right input’s signal level to
decrease. Turning the BALANCE control fully
right on a stereo channel will cause the left
input’s signal level to decrease. If a mono input
is connected to a stereo channel, the BALANCE
control will function as a PAN control by
adjusting the left/right balance of the mono
signal being sent to the left and right MAIN MIX
outputs.
Stereo Channel Level Control
The stereo channel level control knob
allows for volume control of both the left and
right signals being sent to the MAIN MIX master
volume control. If a mono input is connected to
a stereo channel, the channel functions like a
mono channel.
6
8
8
9
9

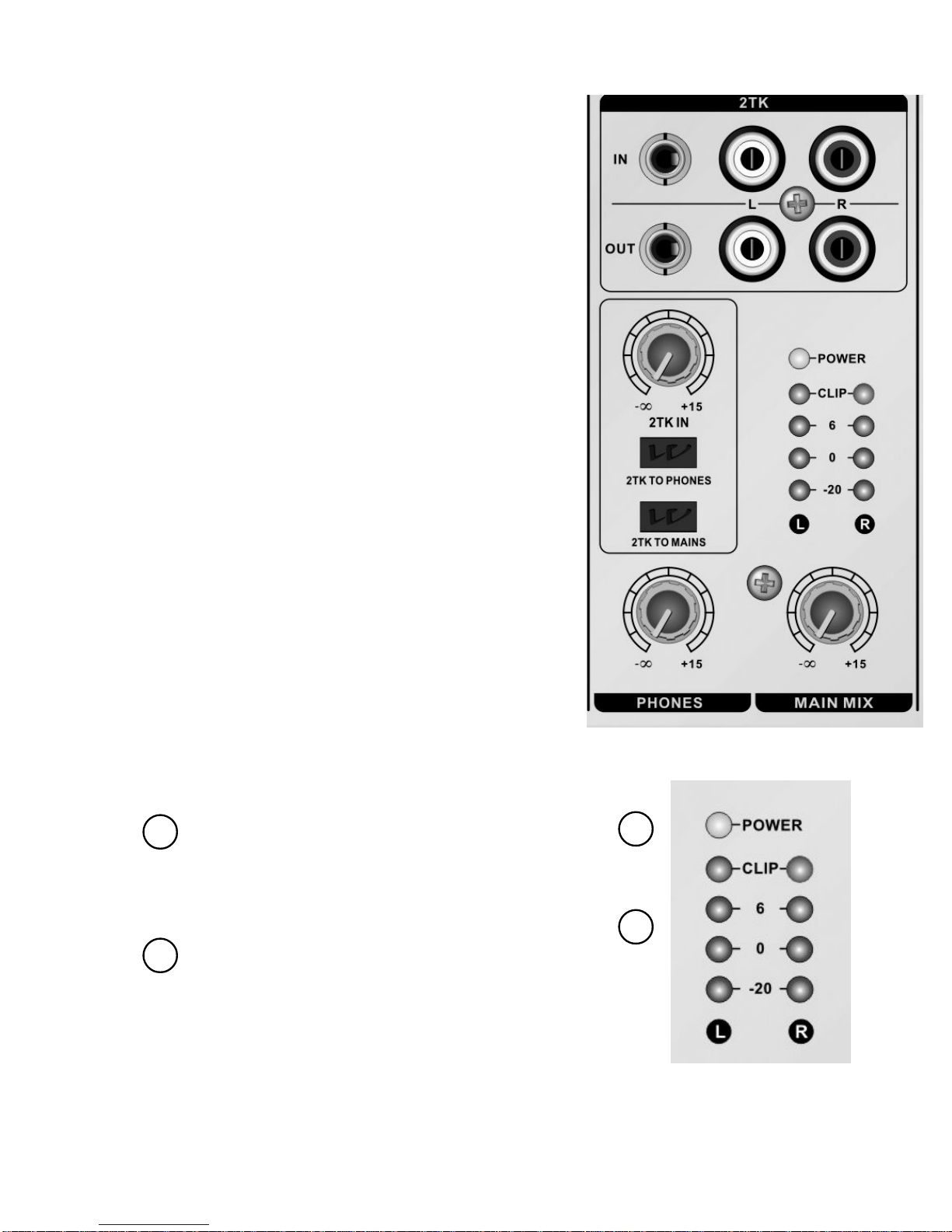

Master Section
The master section on the right side of the mixer
controls the final gain stage of the mixed signals
from the input channels. The MAIN MIX control
allows for the adjustment of the overall output
level of the EZ-m mixer.
POWER LED & Signal Metering
POWER LED
This amber LED lights indicating power is on for
the mixer.
Level Meters
The signal level of the MAIN MIX output
is displayed on the 4 segment LED bar-graph
meters. Levels shown are -20, 0, 6and CLIP.
7
10
10
10
11
11

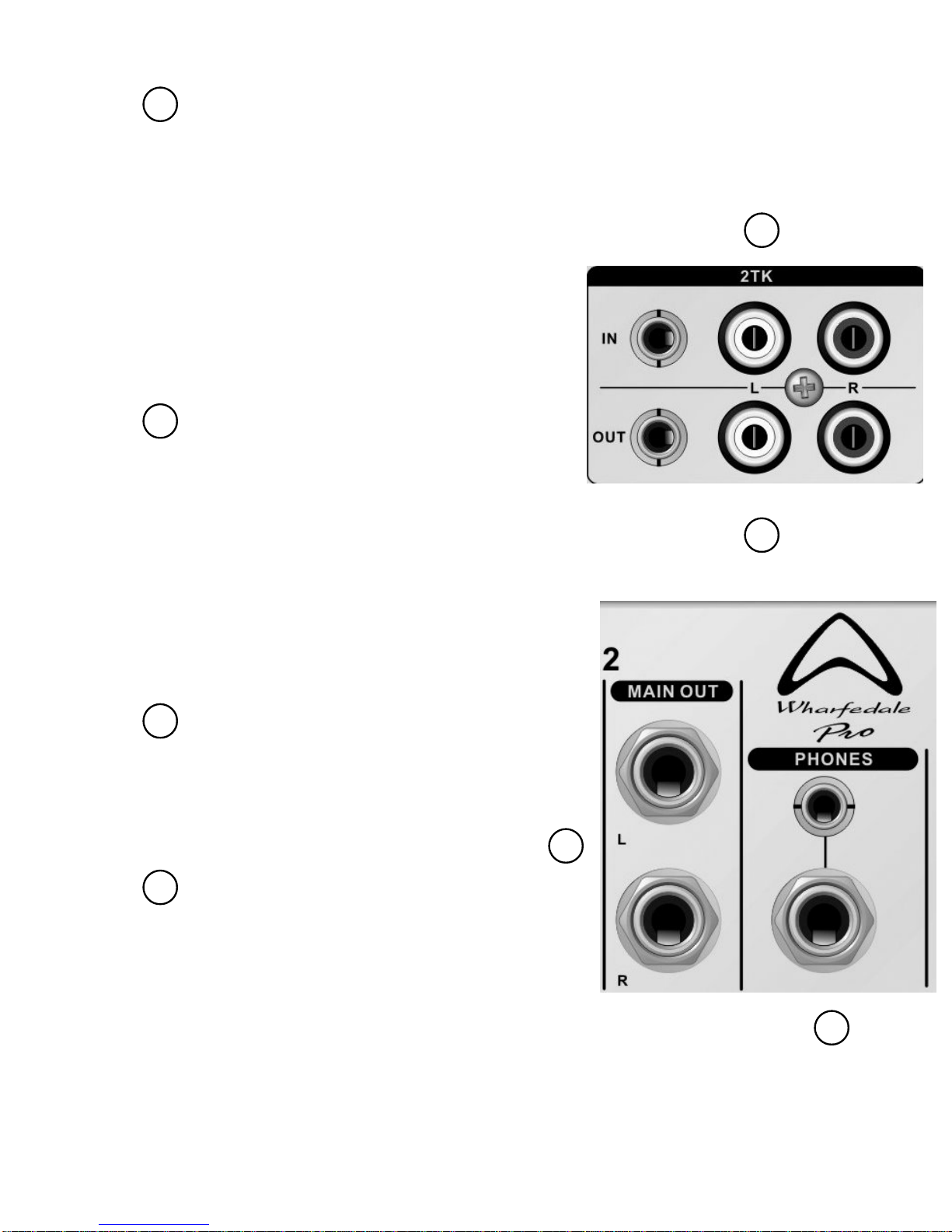

2TK IN
This section consists of two sets of three
input jacks. The top rows of jacks are the “2TK
IN” input, which includes a 1/8” stereo jack and
left and right RCA jacks. These inputs allow for
an external stereo signal into the mixer. This
signal is controlled by the 2TK IN volume control
and the 2TK TO PHONES switch as well as the
2TK TO MAINS switch. When the 1/8” 2TK IN
jack is used, it takes priority over the RCA 2TK
IN jacks.
12
12
ing,
2TK OUT
This section also consists of two sets of
three output jacks. The bottom row of jacks in
the “2TK OUT” section feature a 1/8” stereo
jack, and left and right RCA jacks. These
outputs allow for the routing of MAIN MIX stereo
signal out of the mixer. This signal level is
controlled by the MAIN MIX volume control.
When the 1/8” 2TK OUT jack is used, it takes
priority over the RCA 2TK OUT jacks.
MAIN OUT ¼” L/R Outputs
Left and Right balanced, TRS (Tip, R
Sleeve) ¼” output jacks for connection to
amplifier inputs or recorder inputs. Unbalanced
connections can also be used at these jacks.
Phones
This is a standard ¼” Tip-Ring-Sleeve
(TRS) amplified stereo headphone output jack.
A parallel connection to a convenient 1/8” mini
stereo headphone jack is also included, allowing
for portable headphones and ear buds. Volume
is set with the PHONES level control. Be aware
that very high volume levels are possible
from this output! Make sure the level is set all
the way down before connecting headphones.
8
13
13
14
14
15
15

16

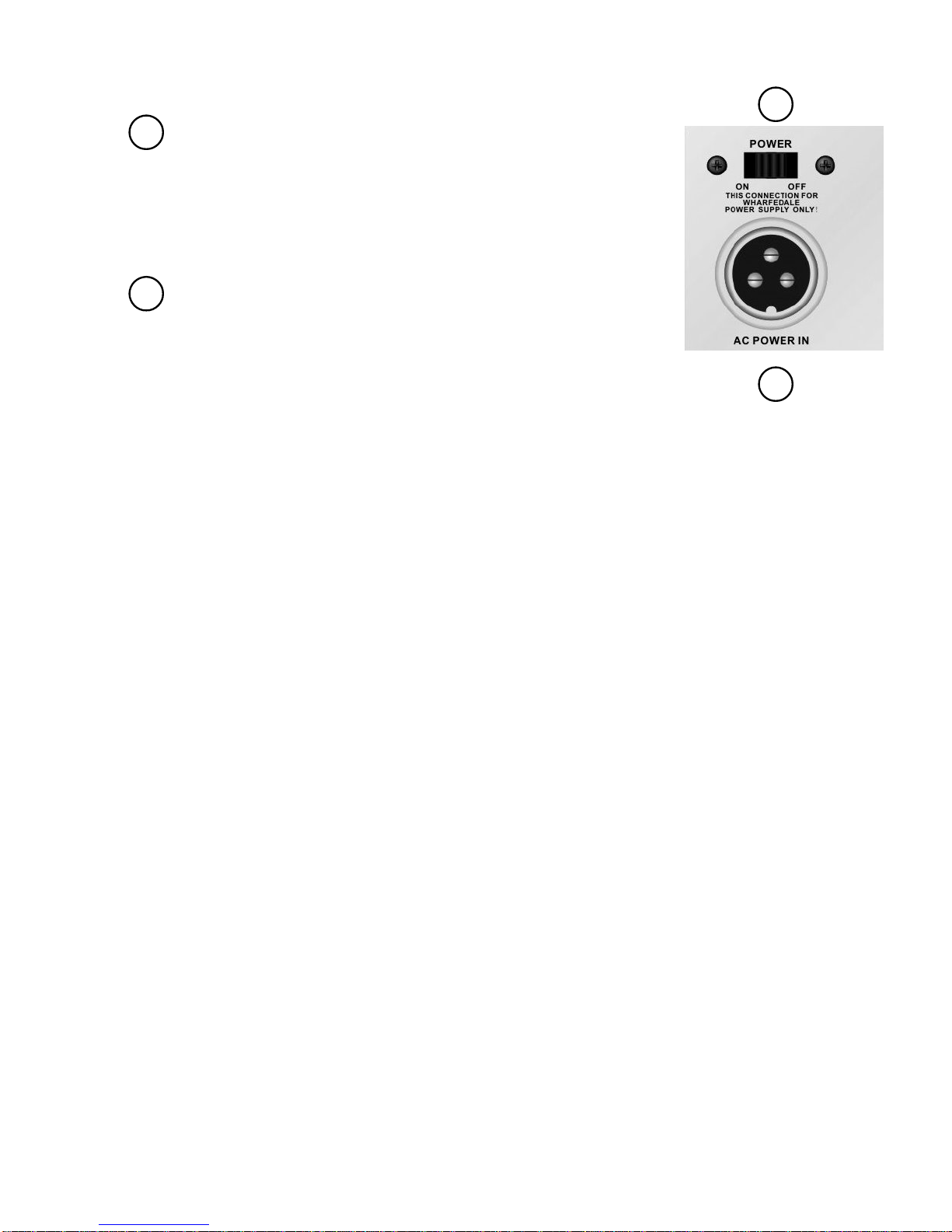

16 POWER Switch – On/Off
This slide switch turns the unit on and off.
Always power down the EZ-m when it is not in use.
Be sure to turn off all system amplifiers or powered
speakers before turning off the mixer.
17 AC Power Cable Connector
The included power adaptor connects here. Use only the power adaptor
supplied with the mixer. 17
CONNECTION WIRING DETAILS
MIC Inputs (Microphone)
The microphone (MIC) jack is a female XLR connector wired balanced with:
Pin 1 = ground, Pin 2 = hot (+) and Pin 3 = cold (-).
Line Inputs
The mono and stereo LINE inputs are wired with ¼” Tip Ring Sleeve jacks, wired balanced with:
¼” - Tip = hot (+), Ring = cold (-), Sleeve = ground, although standard ¼” unbalanced phone plugs
can also be used, wired Tip = hot (+), Sleeve = ground.
MAIN MIX Outputs
The MAIN MIX outputs are wired with ¼” Tip Ring Sleeve jacks, wired balanced with:
¼” - Tip = hot (+), Ring = cold (-), Sleeve = ground, although standard ¼” unbalanced phone plugs
can also be used wired, Tip = hot (+), Sleeve = ground.
Stereo 2 Track Inputs and Outputs (2TKIN / 2TK OUT)
The Stereo 2 Track Inputs and Outputs (2TK IN / 2TK OUT) are wired with RCA phono plugs and 1/8”
stereo jacks. RCA jacks are wired unbalanced as:
Tip = hot (+), Sleeve = ground (-).
1/8” stereo jacks are wired as:
Tip = Left, Ring = Right, Sleeve = Ground.
Headphone Outputs (PHONES)
The Headphone output is wired with both 1/8” and ¼” Tip Ring Sleeve jacks which are wired as follows:
¼” - Tip = Left, Ring = Right, Sleeve = ground
.
9

SPECIFICATIONS
EZ-m mini-mixer 10X2 Specifications
Maximum Output Level
(1%T.H.D. @ 1kHz) +22dBu over 130mw (headphone) @ 32 ohms
THD+N% <0.01% @ +15dBu
Frequency Response 20Hz-20kHz +0/-1dB
Hum and Noise -127dB Mic Pre Equivalent Input Noise
'-90dBu Residual Noise
Maximum Input Levels Mic In: '+10dBu
Line In: '+20dBu
2TK In: '+20dBu
Mono Input Channel
Gain 50dB Variable (-60~-10dB) (-40dB~+10dB)
Input Channel EQ High (+/- 15dB) 12kHz Shelving
Low (+/_15dB) 80Hz Shelving
Level Meter 4-Segment LEDx2 (output of '+4dBu = MAIN L/R
Clip Indicator Turns on approx +16dBu
AC Power options AC100V/120V/230V/240V, 50 Hz/60Hz
Dimensions 253mm x 77mm x 226mm / 9.96" x 3.03" x 8.89"
Weight 1.44kg / 3.16 lbs
Details, features and specifications subject to change without notice.
10

BLOCK DIAGRAM
11

Wharfedale International LTD.
IAG HOUSE
Sovereign Court, Ermine Business Park,
Huntingdon, Cambs,
PE29 6XU, England
www.wharfe alepro.com
IAG Professional reserves the right to a improve specifications without notice.
All rights reserved © harfedale Pro
Wharfedale Pro is a member o onal Audio Group
d
lter or
2007 W
fthe Internati
