Quick Start – 1
WheatNet-IP/ Apr 2009
Before Getting Started
The purpose of this document is to aid in the quick setup of your new Wheatstone
WheatNet-IP product. The WheatNet-IP product comes with a setup wizard that will
walk you through the setup process. This wizard is designed to help you get the system
up and running quickly with little effort. If you have any issues during the setup process
please contact Wheatstone Technical Support for further assistance at [phone].
Theguideassumesthatconnectivitywilltakeplacebyoneofthefollowingmethods.
Isolated Network
ItisrecommendedthatconnectivityoftheWheatNet-IPbemadethroughanisolated
Gigabit Ethernet switch.
House Network
Careful planning should be done if the WheatNet-IPsystem will integrate into your
housenetwork.AseparateVLANorotherisolationmethodmustbedeployedtocontain
themulticasttraffic.ThisguideassumesthenetworkisequippedwithaGigabitnetwork
switch or router capable of handling this type of configuration. Consult your IT
department for more information.
Snake Mode
ThisconnectionmethodassumestherewillbetwoBLADEsconnectedbacktoback
viaa crossovercable toprovide apoint-to-pointaudio link.See “Snake”in Chapter2of
thismanual.
Network Setup
BLADE ID

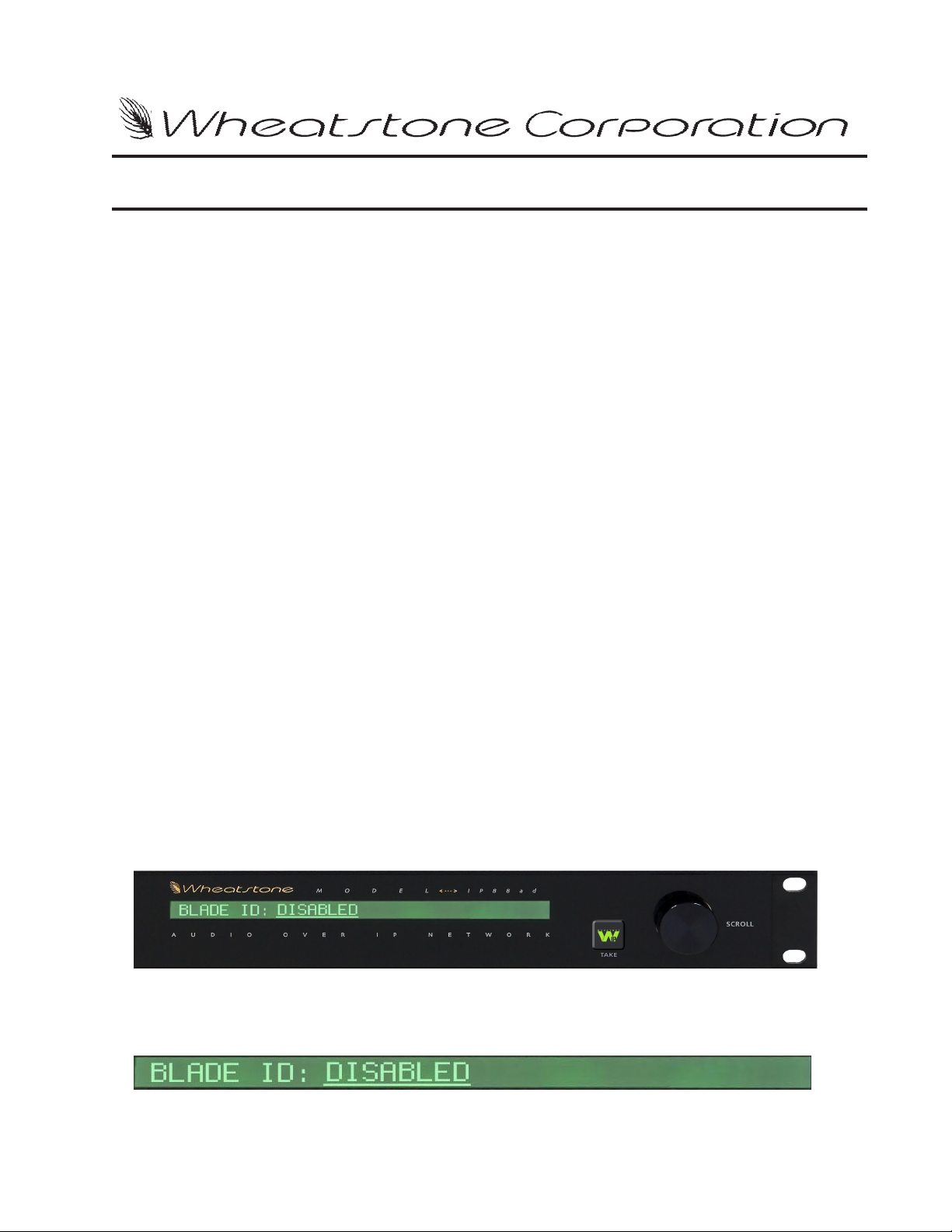

Once power is applied the BLADE Quick Setup wizard will start automatically,
assuming this is a first-time startup, and the front panel display should read as follows.
Rotate the encoder knob to the desired BLADE ID and press the TAKE button.
WheatNet-IP Quick Start Setup Guide
WheatNet-IP/ Jan 2010

Quick Start – 2
WheatNet-IP/ Apr 2009
Consideration should be given to the ID selection as no two BLADEs in the system
may have the same ID. The ID should be chosen based on system topology and should
reflect how the system will ultimately be configured.
Wheatstone recommends assigning ID “1” to the first BLADE you power up on the
network,ID“2”tothesecond,etc.Thenumbershavenorealsignificance,onlythatthey
must be unique.
IP Address
Based on the BLADE ID selected the wizard will recommend an IP address. The
defaultIPaddresswillbeinthe192.168.87.XXXscheme.Pressthe TAKEbuttonifthis
addressiscorrectforyournetworkschemeandthewizardwillautomaticallyadvanceto
“Signal Setup” section.
Consult the manual or Wheatstone Support if you cannot accept this IP Address.
Sample Rate
The WheatNet-IP system operates at 44.1kHz or 48kHz sample rates. Here you will
select the default sample rate at which the system will operate. It is a good idea to pick
a sample rate that your entire facility will adopt and stick with it. If 3rd party gear is
operatingatadifferentsampleratetheWheatNet-IPsystemiscapableofreceivinginputs
from 32kHz up to 96kHz and will up or down convert accordingly to the WheatNet-IP
sample rate.
Signal Setup
Now that the Network Setup is complete the wizard will assist with creating audio
signalsifdesired.TheWheatNet-IPunitisequippedwithsignaltemplatestoaidinquick
setup. These templates are standard signal setups that may be a good starting point,
dependingon theapplication. TheWheatNet-IP 88a, 88d,and 88adhave three template
layouts. Choose from Custom, Stereo I/O, and Mono I/O templates. The 88m has two
available templates, Mono_Mic and Stereo_Mic. The WheatNet-IP 88cb has three
template layouts. Choose from Custom, Console_Stereo_In, and Console_Mono_In
templates.
To select a template rotate the encoder knob to the desired template and press Take.
Custom Template
This template creates no signals. Instead the user will create the signals using the
Navigator GUI.
Stereo I/O Template
Thistemplatecreateseight Stereo Inputsandeight Stereo Outputs. Signalnames are
assignedbasedontheBLADEIDandwillhavea“BLxx_yy”namingconvention,where
“xx” is the BLADE ID and “yy” is source (or destination) 01 through 08.
Mono I/O Template
This template creates 16 Mono Inputs and 16 Mono Outputs. Signal names are
assignedbasedontheBLADEIDandwillhavea“BLxx_yy”namingconvention,where
“xx” is the BLADE ID and “yy” is source (or destination) 01 through 16.
WheatNet-IP/ June 2010

Quick Start – 3
WheatNet-IP/ Apr 2009
Stereo Mic I/O Template
This template creates eight Mono Microphone inputs and four Stereo outputs.
SignalnamesareassignedbasedontheBLADEIDandwillhavea“BLxx_yy”naming
convention, where “xx” is the BLADE ID and “yy” is source 01 through 08 or
destination 01 through 04.
Mono Mic I/O Template
This template creates eight Mono Microphone inputs and eight Mono outputs.
SignalnamesareassignedbasedontheBLADEIDandwillhavea“BLxx_yy”naming
convention,where“xx”istheBLADEIDand“yy”issourceordestination01 through 08.
Console I/O Template
This template creates and maps all connections needed to run your E-1 control
surface. This includes the four Program busses, along with the Headphone, Cue, and
Studio outputs. All surface output mixes are automatically routed to the Console
Blade’s rear panel connectors to help speed up the installation process.
ConnectionStatus
After completing the setup process the BLADE will attempt to join the network.
During this process a “Connecting...” message will appear on the display.
Once the BLADE has successfully joined the network the front panel will display:
To access the Main Menu rotate the encoder and select the desired option by
pressing “Take.”
Things To Look For In The Wizard
If an online BLADE is detected with the same ID the wizard will display the
following
“IP ALREADY IN USE! VERIFY SETUP”
Thismessage willbe displayeduntil the useracknowledges bypressing the TAKE
button. The wizard will then start over. Simply change the BLADE ID to a unique ID
and advance through the options.
Ifreplacing a failedBLADE onthe networkand youwish toassume theidentity of
the failed BLADE, select the ID previously used. This will place the new BLADE on
the network in a default configuration. Once online you may restore the previous
configuration from a backup copy using the WheatNet-IP Navigator GUI or the
BLADE Web Interface. For more information on backing up and restoring BLADE
configuration please refer to the WheatNet-IPNavigator GUI section of the manual.
WheatNet-IP/ June 2010

Quick Start – 4
WheatNet-IP/ Apr 2009
Surface Setup
IfyouhaveanMixEngineBlade,itcanbeusedwithaWheatstoneE-Seriessurface
toprovidemixingcapability. In order to be used in a BLADE system, thesurfacemust
first be properly configured.
Network Settings
When the E-Series surface is powered up the first time it will display a dialog box
stating that no network file was found (See Figure 1).
To configure the network settings for the E-Series surface select “YES” from the
dialogbox.ThesurfacewillnowdisplaytheOptionsTab(SeeFigure2).Hereyouwill
settheBLADEIDandIPaddressoftheEnginetowhichthesurfacewillconnect,along
with the Surface IP Address, Subnet Mask, and Gateway. If Automatic mode is
selected,entertheBLADEIDoftheMixEngineBladetobeassociatedwiththesurface
andremainingsettingsareconfiguredforyou.Youcanmanuallyenterthisinformation
byturningoffAutomaticmodeandusingthenumberedkeypadonthescreen.Pressing
NEXTwilladvancetothenextfield.WhendonesimplypressAPPLYtofinalizethese
settings and the surface will request a reboot (See Figure 3).
Figure 1

Quick Start – 5
WheatNet-IP/ Apr 2009
Figure 2
For convenience, Wheatstone uses the following convention for IP Addressing in the
WheatNet-IP system:
1. The IP Address of a BLADE is equal to the BLADE ID plus 100; i.e.
BLADE 3 = 192.168.87.103
2.TheIP Address ofan E-6 controlsurface is equalto the EngineBLADE ID plus200;
i.e. Engine BLADE = 5, Surface IP Address = 192.168.87.205
AConfiguration
Mode This is where you select the Configuration mode desired. The choices are
Automatic or Manual.
BMix Engine
ID This is where the ID of the Mix Engine Blade that will be associated with
the surface is assigned. One Mix Engine Blade supports a single surface.
CBlade
Status
ThisistheBladeconnectionstatus.Ifproperlyconfiguredandconnectedto
an Engine, status will be “CONNECTED.” If improperly configured the
status will read “DISCONNECTED.”
WheatNet-IP/ June 2010

Quick Start – 6
WheatNet-IP/ Apr 2009

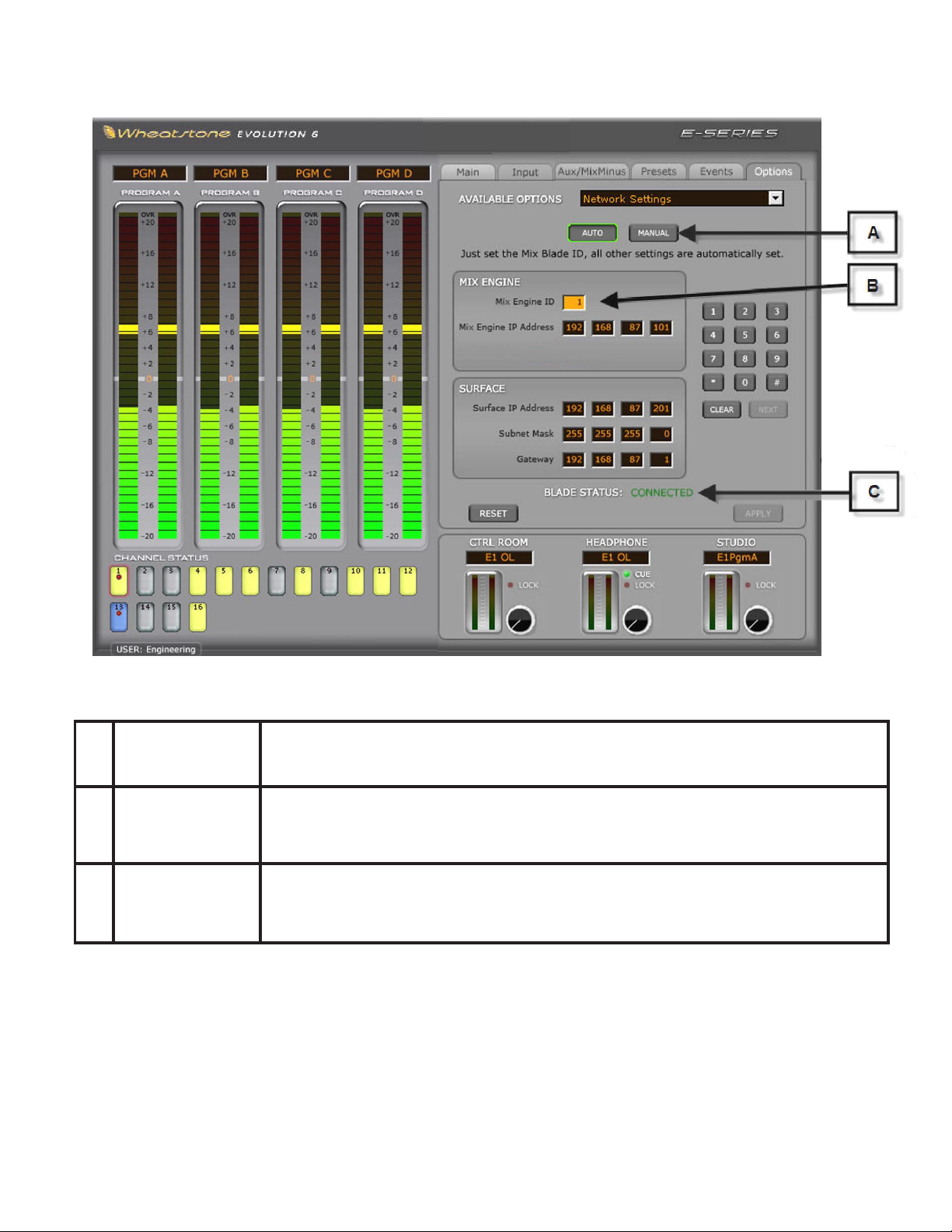

SelectYESfromthedialogbox and the surface willreboot.Oncethesurface has been
rebooted navigate to the Options Tab and select Network Settings from the drop down
menu. If all information was entered properly the BLADESTATUS will display “CON-
NECTED” (See Figure 4). The E-Series surface has been successfully configured.
Figure 3
WheatNet-IP/ June 2010

Quick Start – 7
WheatNet-IP/ Apr 2009
Figure 4

page Contents – 1
WheatNet-IP / Aug 2011
CONTENTS
CONTENTS
Table of Contents
Introduction....................................................................................1-3
Rack Mounting...............................................................................1-4
Installation Tips ..........................................................................................................1-4
Energizing ......................................................................................1-5
A Word About Nomenclature .......................................................1-5
WheatNet-IP System Description.................................................1-7
Model 88a - Analog BLADE .......................................................................................1-8
Model 88d - Digital BLADE ........................................................................................1-8
Model 88ad - Analog/Digital BLADE ..........................................................................1-9
Model 88m - Microphone BLADE .............................................................................1-10
Model 88cb, 88cbe - Console BLADE ......................................................................1-10
Model e - Mix Engine DSP ........................................................................................1-11
Model Aura8ip - Vorsis Embedded BLADE...............................................................1-12
Signal Conguration...............................................................................................1-12
Model MADI - Multichannel Audio Digital BLADE.....................................................1-13
Model M4IP - Microphone Processing BLADE.........................................................1-13a
Model LIO-48 - Multiple Port Logic I/O BLADE .......................................................1-13b
Network Switches ....................................................................................................1-13b
CAT-5e Wiring............................................................................................................1-14
AoIP Driver ................................................................................................................1-14
Software Tools...........................................................................................................1-14
Audio Devices ...........................................................................................................1-14
I/O Connections............................................................................1-15
Model 88a..................................................................................................................1-15
Inputs......................................................................................................................1-15
Outputs...................................................................................................................1-17
Models 88d................................................................................................................1-19
Inputs......................................................................................................................1-19
Outputs...................................................................................................................1-20
Model 88ad ...............................................................................................................1-21
Inputs......................................................................................................................1-21
Outputs...................................................................................................................1-23
Model 88m ................................................................................................................1-24
Inputs......................................................................................................................1-24
Outputs...................................................................................................................1-25
Model 88cb, 88cbe ...................................................................................................1-26
Inputs......................................................................................................................1-26
Outputs...................................................................................................................1-27
Model Aura8ip ...........................................................................................................1-29
Inputs......................................................................................................................1-29
Outputs...................................................................................................................1-30
Wheatstone WheatNet-IP System
Chapter 1 - General Information
WheatNet-IP / Mar 2014

page Contents – 2
WheatNet-IP / Aug 2011
CONTENTS
CONTENTS
Model MADI...............................................................................................................1-32
Digital Audio Connections......................................................................................1-32
Optical Fiber Interface............................................................................................1-32
Model M4IP ...............................................................................................................1-33
Inputs......................................................................................................................1-33
Outputs..................................................................................................................1-33a
Logic Ports - All Models (except LIO-48) ..................................................................1-34
LIO-48 Logic Ports ....................................................................................................1-34
Simplied Blade Logic I/O........................................................................................1-34b
Input Logic ............................................................................................................1-34b
Output Logic..........................................................................................................1-34b
Analog 88a - Input/Output Pinout Drawing...............................................................1-35
Digital 88d - Input/Output Pinout Drawing................................................................1-36
Analog/Digital 88ad - Input/Output Pinout Drawing..................................................1-37
Analog MIC 88m - Input/Output Pinout Drawing ......................................................1-38
Console Blade 88cb, 88cbe - Input/Output Pinout Drawing ....................................1-39
Engine e - Input/Output Pinout Drawing ...................................................................1-40
Vorsis Embedded BLADE Aura8ip - Input/Output Pinout Drawing...........................1-41
Multichannel Audio Digital BLADE - Input/Output Pinout Drawing...........................1-42
Microphone Processing BLADE M4IP - Input/Output Pinout Drawing .....................1-43
LIO-48 Multiple Port Logic I/O BLADE - Input/Output Pinout Drawing ....................1-44
Stand Alone....................................................................................2-2
Snake..............................................................................................2-6
Network ..........................................................................................2-8
WheatNet-IP Front Panel Menu Diagram....................................2-13
WheatNet-IP Networks and What They Do.................................2-14
Overview.........................................................................................3-2
Gigabit Ethernet Technology .......................................................3-2
Choosing Ethernet Switches........................................................3-2
Switch Feature Considerations ..................................................................................3-2
Unmanaged vs. Managed Switches...........................................................................3-3
Rules of Thumb ..........................................................................................................3-3
What’s on the Wire? ...................................................................................................3-4
Designing the WheatNet-IP Network ...........................................3-5
Where to Start ............................................................................................................3-5
Cabling .......................................................................................................................3-5
GbE Network Cabling Guidelines............................................................................3-6
1000BASE-T vs. 1000BASE-TX ..............................................................................3-6
Wireless Connectivity .................................................................................................3-6
Conguring the Network ............................................................................................3-6
Managed Switch Conguration...............................................................................3-6
Default LAN Parameters......................................................................................3-7
BLADE Conguration ..............................................................................................3-7
Surface Conguration .............................................................................................3-8
Chapter 2 - WheatNet-IP System Operational Modes
Chapter 3 - Ethernet Networks and Switches
WheatNet-IP / Mar 2014

page Contents – 3
WheatNet-IP / Aug 2011
CONTENTS
CONTENTS
PC Conguration....................................................................................................3-10
Network Interface Card (NIC) .............................................................................3-10
Typical Small Network Block Diagram ......................................................................3-11
Typical Medium Network Block Diagram ..................................................................3-12
Typical Large Network Block Diagram ......................................................................3-13
Network Troubleshooting............................................................3-14
Useful ICMP Commands...........................................................................................3-14
Software Tools...........................................................................................................3-14
Simple Network Management Protocol (SNMP) .......................................................3-15
Hardware Status Indicators.......................................................................................3-15
Error Logs..................................................................................................................3-16
PC GUI Log ............................................................................................................3-16
Web Interface Log ..................................................................................................3-17
Alarms ....................................................................................................................3-17
Description.....................................................................................4-3
Using the Navigator GUI ...............................................................4-4
An Important Point About WheatNet-IP Systems and System Master.................4-13
Navigator GUI System Windows in Detail ..................................4-14
System Crosspoint Tab .............................................................................................4-14
System Crosspoint Details Menu..........................................................................4-15
Choose View ....................................................................................................4-15
Destinations Sort By.........................................................................................4-15
Sources Sort By ...............................................................................................4-15
Show ................................................................................................................4-16
Destination Details Menu ......................................................................................4-16
Choose View ....................................................................................................4-16
Destinations Sort By.........................................................................................4-17
Show ................................................................................................................4-17
Rename Signal .................................................................................................4-17
Modify Signal....................................................................................................4-18
Lock Signal.......................................................................................................4-20
Source Details Menu .............................................................................................4-20
Choose View ....................................................................................................4-20
Sources Sort By ...............................................................................................4-21
Show ................................................................................................................4-21
Rename Signal .................................................................................................4-21
Modify Signal....................................................................................................4-22
System Salvos/Macros Tab.......................................................................................4-24
System Info Tab.........................................................................................................4-26
Clock Master Info ..................................................................................................4-26
Set Date and Time.................................................................................................4-27
Web Access...........................................................................................................4-28
Front Panel Passcode ...........................................................................................4-28
GUI Access Passcode Window.............................................................................4-28
System 3rd Party Devices Tab .................................................................................4-28a
System LIO Properties Tab........................................................................................4-29
System Cong Manager Tab .....................................................................................4-31
Cong Folder.........................................................................................................4-32
Backup System Conguration ..............................................................................4-32
Restore System Conguration ..............................................................................4-32
Chapter 4 - WheatNet-IP Navigator GUI
WheatNet-IP / Feb 2014

page Contents – 4
WheatNet-IP / Aug 2011
CONTENTS
CONTENTS
System Preferences Tab............................................................................................4-33
Default View...........................................................................................................4-33
Default Grid Labels................................................................................................4-33
Default Sort Order .................................................................................................4-34
Colors ....................................................................................................................4-34
A Final Word About Colors...............................................................................4-37
System Log Tab.........................................................................................................4-38
Navigator GUI BLADE Windows in Detail ..................................4-40
BLADE Sources Tab ..................................................................................................4-41
Source Signals ......................................................................................................4-41
Free Resources .....................................................................................................4-42
Meters ...................................................................................................................4-44
BLADE Destinations Tab ...........................................................................................4-45
Destination Signals................................................................................................4-45
Free Resources .....................................................................................................4-46
Meters ...................................................................................................................4-48
BLADE Visibilities Tab................................................................................................4-49
BLADE LIO Info Tab...................................................................................................4-51
BLADE Silence Detect Tab ........................................................................................4-52
Destination Signals................................................................................................4-53
Settings .................................................................................................................4-54
Status ....................................................................................................................4-55
Logic......................................................................................................................4-55
Utility Mixer Tab.........................................................................................................4-56
Network Info Tab .......................................................................................................4-57
Version Manager Tab.................................................................................................4-58
Cong Manager Tab ..................................................................................................4-59
A Word About Backup and Restore ......................................................................4-60
More on System Pane ..................................................................4-61
WheatNet-IP / Mar 2015

page Contents – 5
WheatNet-IP / Aug 2011
CONTENTS
CONTENTS
WheatNet-IP Set Up Wizard ......................................................... A-3
WheatNet-IP Front Panel Menus ................................................. A-4
Configuring Control Surfaces for Use in WheatNet-IP Systems A-9
Cisco 2960G Configuration for WheatNet-IP ............................ A-15
Overview....................................................................................................................A-15
Privileged EXEC Mode ..............................................................................................A-16
Global Conguration Mode .......................................................................................A-16
Conguring the VLAN Interface..............................................................................A-16
IGMP Snooping Querier Conguration ................................................................... A-16.1
Conguring Gigabit Ports Connecting to WheatNet-IP I/O Blades
and PC Drivers ........................................................................................................ A-16.1
Conguring Gigabit Ports Connecting to WheatNet-IP Control Surfaces,
GP Panels, and XY Controllers................................................................................ A-16.2
Conguring Ports for Linking to Other Network Switches ...................................... A-16.2
Checking and Saving the Switch Conguration...................................................... A-16.3
Cisco 3750G and 3560G Configuration for WheatNet-IP ........ A-16.4
Overview.................................................................................................................. A-16.4
Privileged EXEC Mode ............................................................................................ A-16.6
Global Conguration Mode ..................................................................................... A-16.5
Conguring the VLAN Interface............................................................................ A-16.5
IGMP Snooping Querier Conguration ................................................................... A-16.6
Conguring Gigabit Ports Connecting to WheatNet-IP I/O Blades
and PC Drivers ........................................................................................................ A-16.6
Conguring Gigabit Ports Connecting to WheatNet-IP Control Surfaces,
GP Panels, and XY Controllers................................................................................ A-16.7
Conguring Ports for Linking to Other Network Switches ...................................... A-16.7
Checking and Saving the Switch Conguration...................................................... A-16.8
HP Procurve 2810 Configuration for WheatNet-IP .................. A-16.9
Overview.................................................................................................................. A-16.9
Privileged EXEC Mode ........................................................................................... A-16.10
Global Conguration Level..................................................................................... A-16.10
Conguring the VLAN Interface........................................................................... A-16.10
IGMP Querier Conguration................................................................................... A-16.11
Conguring Gigabit Ports Connecting to WheatNet-IP I/O Blades
and PC Drivers ....................................................................................................... A-16.11
Conguring Gigabit Port Connecting to WheatNet-IP Navigator PC..................... A-16.12
Conguring Gigabit Ports Connecting to WheatNet-IP Control Surfaces,
GP Panels, and XY Controllers............................................................................... A-16.12
Conguring Ports for Linking to Other Network Switches ..................................... A-16.12
Checking and Saving the Switch Conguration..................................................... A-16.12
Appendix 2
Appendix 3
WheatNet-IP / Feb 2013
Appendices
Appendix 1

page Contents – 6
WheatNet-IP / Aug 2011
CONTENTS
CONTENTS
WheatNet-IP Logic Functions and Examples........................... A-18
Category 1: Direct Logic ......................................................................................... A-18
VDip Function....................................................................................................... A-18
Programmable Buttons ........................................................................................ A-21
Category 2: Audio Associated Logic....................................................................... A-26
Category 3: Discrete Logic..................................................................................... A-29b
Category 4: Action Logic......................................................................................... A-33
External Controllers ................................................................... A-35
WheatNet-IP WDM Driver Installation .........................................A-37
Hardware Requirements............................................................................................A-37
Software Requirements .............................................................................................A-37
Installation .................................................................................................................A-37
Conguration.............................................................................................................A-41
System Parameters ...................................................................................................A-41
Other Controls...........................................................................................................A-41
Uninstalling the Drivers .............................................................................................A-42
IP-MTR64 METERS GUI................................................................A-45
Adding Devices To The 3rd Party Tab .......................................................................A-45
Introduction To IP-MTR64 Meters GUI ....................................................................A-46
IP-MTR64 Meters GUI Overview............................................................................A-46
IP-MTR64 Meters GUI Features.............................................................................A-46
Installation .................................................................................................................A-47
Requirements .........................................................................................................A-47
Performing The Install ............................................................................................A-47
Program Operation - Getting Started........................................................................A-49
License Key ...........................................................................................................A-49
First Time Operation...............................................................................................A-51
Network Setup ...................................................................................................A-51
“Discovering” The System Components............................................................A-53
Setting Up Meters .....................................................................................................A-55
Conguring A Meter Cell ........................................................................................A-55
Conguring The Analysis Window..........................................................................A-56
Using The Analysis Window ...................................................................................A-57
Changing The Meter Layout...................................................................................A-57
Conguring Silence Detect Alarms ........................................................................A-58
Security Settings .......................................................................................................A-60
Setting The Password ............................................................................................A-60
Operating With Security .........................................................................................A-60
Making The Security Settings ................................................................................A-60
Appendix 6
Appendix 5
WheatNet-IP / Mar 2014
Appendix 4
Appendix 7

page Contents – 7
WheatNet-IP / Aug 2011
CONTENTS
CONTENTS
WheatNet-IP / Mar 2015
Menus........................................................................................................................A-61
View........................................................................................................................A-61
Layout.....................................................................................................................A-61
WheatNet-IP System..............................................................................................A-61
Setup ......................................................................................................................A-61
Additional Popup Menus........................................................................................A-62
Summary ...................................................................................................................A-62
WheatNet-IP Scheduler................................................................A-65
Introduction To Wheatnet-IP Scheduler ....................................................................A-65
Events And Signals ................................................................................................A-65
Connect Event....................................................................................................A-65
Disconnect Event ...............................................................................................A-66
Salvo Event.........................................................................................................A-66
ACI Event............................................................................................................A-66
Installation .................................................................................................................A-66
Begin Installation....................................................................................................A-66
Accept The License................................................................................................A-66
Finish The Installation.............................................................................................A-67
Uninstalling The Program .......................................................................................A-67
First Time Operation..................................................................................................A-68
If You Are Not Connected To A System..................................................................A-68
Default Signal Warning .......................................................................................A-68
License Warning.................................................................................................A-68
License Key Entry ..............................................................................................A-69
Main Screen ......................................................................................................A-69
If You Are Connected To A System ........................................................................A-70
Set IP Address....................................................................................................A-70
Day to Day Operation ...............................................................................................A-71
System ..................................................................................................................A-71
Set IP Address....................................................................................................A-71
Dene Devices....................................................................................................A-72
Signals....................................................................................................................A-73
Request Signals From Connected Blade ...........................................................A-73
Load Signals From File.......................................................................................A-75
Save Signals To File ...........................................................................................A-76
Events.....................................................................................................................A-76
Load Events From File........................................................................................A-76
Save Events To File ............................................................................................A-76
Create Events .....................................................................................................A-76
View Events ........................................................................................................A-78
Edit Events .........................................................................................................A-80
Schedule Events.................................................................................................A-80
Delete Events .....................................................................................................A-81
Schedule Management ..........................................................................................A-81
Moving Items......................................................................................................A-82
Deleting Items ....................................................................................................A-82
Enabling and Disabling Items.............................................................................A-82
The AutoSchedule Feature.................................................................................A-83
Appendix 8
