Whirlpool MIcrowave Ovens User manual

Model MW8750XP
<. 1
Freezers Relrlgerator-Freezers Ice Makers Dishwashers Bullt-In Ovens and Surtace Units. Ranges. MIcrowave Ovens. Trash Compactors. Room Air Condllloners Oehumldlfl

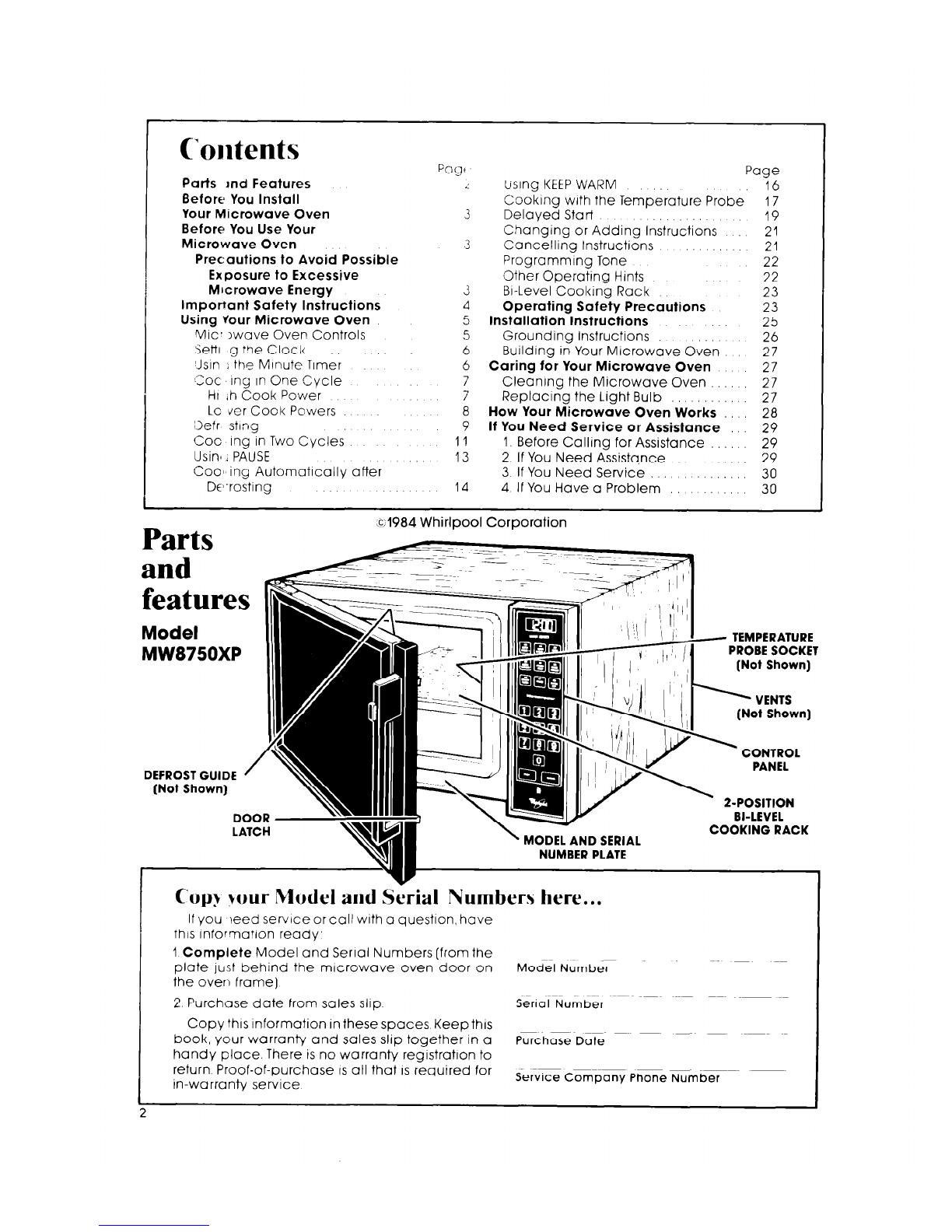

Contents %P
Parts Ind Features Page
L Using KEEPWARM 16
Before You Install Cooking with the Temp’erature Probe 17
Your Microwave Oven 3 Delayed Start 19
Before You Use Your Changing or Adding Instructions 21
Microwave Oven 3 Cancelling Instructions 21
Precautions to Avoid Possible Programming Tone 22
Exposure to Excessive Other Operating Hints 22
MIcrowave Energy 3 Bi-Level Cooklng Rack 23
Important Safety Instructions 4 Operating Safety Precautions 23
Using Your Microwave Oven 5 Installation Instructions 25
WC! Iwave Oven Controls 5 Grounding Instructions 26
Setll g t’7e Clock 6 Building in Your Microwave Oven 27
‘Jsin ; the Minute Timer 6 Caring for Your Microwave Oven 27
!Coc ing in One Cycle 7 Cleaning the Microwave Oven 27
HI ,h Cook Power 7 Replacing the Light Bulb 27
Lc ver Cook Powers 8 How Your Microwave Oven Works 28
;Iefr sting 9 If You Need Service or Assistance 29
Coo Ing In Two Cycles 11 I. Before Calling for Assistance 29
Usin’ _PAUSE 13 2 If You Need Assista.nce 29
Cool ing Automatically after 3 If You Need Service 30
De-rostlng 14 4 If You Have a Problem : : : : : : : 30
4-n A,.,I-:_,- - -8 A -..- ---I:--
Parts
,c,wu4 wnlrlpool Lorporarlon
MW8750XP
DEFROSTGUIDE
(Not Shown)
/ TEMPERATURE
CONTROL
PANEL
Bl-LEVEL
\ - COOKING RACK
MODEL AND SERIAL
NUMBER PLATE
- -
C’opy your Model and Skial Numbers here...
IfYou jeed service or call with a question, have
this InformatIon ready,
1 Complete Model and Serial Numbers (from the
plate just behind the mlcrowave oven door on
Model Number
the oven frame)
2 Purchase date from sales slip
Serial Number
Copy this information in thesespaces Keepthls
book, your warranb and sales slip together in a ~ ~ ~~ ~ ~ _ ~
Purchase Dale
handy place. There is no warranty registration to
return Proof-of-purchase ISall that IS required for ~~
in-warranty sewice Service
Company Phone Number
2

Fill out and return the “Microwave Registration Card” attached to the oven door. If the card is
missing, please send the model number of your microwave oven, with your name and address to...
WhIrlpool Corporation
Microwave Reglstratlon Department
Adminlstratlve Center
2000 US 33 North
Benton Harbor, Michigan 49022
This informatton WIII help us reach you If there ISever a need to pass along information about your
mlcrowave oven
Before you install your microwave oven
Read and carefully follow the “INSTALLATION INSTRUCTIONS”
found on page 2501 this “Use & Care Guide!’
Before you use your microwave oven
Read this “Use & Care Guide” carefully for important use and safety information
Store In a conventent place for future use
It is your personal responsibility and obligation to be sure your microwave oven:
l Has been Installed where it ISprotected from the elements The microwave
oven should be at a temperature above 50°F (10°C) for proper operation.
l Has been Installed on a surface strong enough to support Its weight
l Has been properly connected to electrical supply and grounded,
(See “Installation Instructions:‘)
l Is not used by children or anyone unable to operate it properly,
l Is properly maintained.
l Is used only for jobs expected of a home microwave oven.
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY...
DO NOT attempt to oper-
ate this oven with the door
open since open-door op-
eration can result in harm-
ful exposure to microwave
energy. It is important not to
defeat or tamper with the
safety interlocks.
DO NOT place any object
between the oven front
face and the door or allow
soil or cleaner residue
to accumulate on sealing
surfaces.
DO NOT operate the
oven if it is damaged. It is
particularly important that
the oven door close
properly and that there is
no damage to the
[I) Door (bent),
[2) Hinges and latches
(broken or loosened),
(3) Door seals and sealing
surfaces.
DO NOT operate the mi-
crowave oven if the door
glass is broken.
The microwave oven
should be checked for
microwave leakage by
qualified service personnel
after a repair is made.
The oven should not be
adjusted or repaired by
anyone except properly
qualified service
personnel.
DO NOT operate the
microwave oven with
the outer cabinet removed.
3

MicmJwave ovens have been used successfully in homes for a number of years.
They are thoroughly tested for safe and efficient operation. However, as with
any appliance, there are special installation and safety precautions which must
be followed to ensure safe and satisfactory operation and prevent damage to
the uni+
WARNING - To reduce the risk of burns. electnc shock,
fire. injury to persons or exposure to excessive microwave energy
1. Ciea. ,Ccli nstrui‘!lons before using
appllar :e
2. Reac ana follow the specific “PRECAU-
TIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY” found
on page, 3
3. This capllance must be grounded. Con-
nect onli to properly grounded outlet. See
“GROUNDING INSTRUCTIONS” found on
page 2c
4. lnstal or locate this appliance only in
accordance with the provided “INSTALLA-
TION INSTRUCTIONS” found on page25
5. Some products such as whole eggs and
sealed containers - for example, closed
glass jars - may explode and should not
be heated in this oven.
6. Use this appliance only for its Intended
use as described In this manual
7. As with any appliance, close supervl-
sion ISnecessary when used by children.
8. Do not operate this appliance if it has a
damaged cord or plug, if it is not working
properly, or if it has been damaged or
dropped. Electric shock, fire or other haz-
ards may result.
9. This appliance should be serviced only
by qualified service personnel. Call a
Whirlpool authorized TECH-CARE - Service
Company for examination, repair or
adjustment.
10. Do not cover or block any opening on
the appliance, for fire may result.
11. Do not use outdoors for damage to the
oven or electric shock may result.
12. Do not immerse cord or plug in water for
electric shock may result.
13. Keep cord away from heated surfaces
for electric shock may result.
14. Do not let cord hang over edge of table
or counter for electric shock may result.
15. See door surface cleaning instructions
on page 27
16. To reduce the risk of fire in the oven
cavity:
a. Do not overcook food. Carefully attend
appliance if paper, plastic, or other com-
bustible materials are placed inside the
oven to facilitate cooking. Paper can char
or burn, and some plastics can melt if used
when heating foods.
b. Remove wire twist-ties from paper or
plastic bags before placing bag in oven.
Cooking in metal containers can damage
the oven. So can containers with hidden
metal [twist-ties, foil-lining, staples, metallic
glaze or trim]. Testdinnerware or cookware
before using. See page23.
c. If materials inside the oven should ignite,
keep oven door closed, turn oven off, and
disconnect the power cord, or shut off
power at the fuse or circuit breaker panel.
17. Read and follow “OPERATING SAFETY
PRECAUTIONS” starting on page 23,
SAVE THESE INSTRUCTIONS
4

Using your microwave oven
The Control Panel ON/OFF switch must be in the “ON” position to cook. See page 7.
Microwave oven controls
There are three parts In the control section
-The Digital Drsplay! Clock,
-Command Pads and Slgnal Lights
- Number Pads
Instructions for each control are covered on the
following pages. Read them carefully.
When You first plug In the oven, the Display
will show 88 88 If after You set the Clock
Control Panel ON /OFF Switch
(page 6), the Display again shows all 8’s. It
means your electricity was off for a while
Reset the Clock
One note The Command and Number
Pads are not buttons. You don’t have to
push them just touch them 1
Digital display/clock
m When you are not
using the mlcrowave
oven, this IS on accu-
rate dtgital clock
When You are ustng the microwave oven
this displays time settings and shows You
what number pads You touched
Command pads and signal lights
Touch Com-
mand Pads to tell
the mrcrowave
oven what to do
and in what order
A few examples
-CLOCK SETtells
See page 22 for tnformation on the tone you
hear when touching any pad
Each Command Pad [except STARTand
CANCEL) lights a Signal Light.The Signal Light
comes on when you touch the Command Pad.
While the oven IS running, a Signal Light
(or lights) will be on to show what the oven
is doing
Number pads
q H q Z$tPower,
m
temperature

Setting the clock
When the oven is first plugged in, the Display shows 88:88. If the electric power ever
goes off the Display will also show all 8’s when the power comes back on.
You can cook or use the Minute Timer without setting the clock, but the display will be
blank after cooking The oven door must be closed before setting the clock.
1.
2.
3.
DO THIS... THIS HAPPENS...
q
The Signal Light on the CLOCK SETpad WIII
. come on Start touchrng number pads for the
desired trme within 5 seconds The Display
WIII show a “0 ”
Touch CLOCK SET.
The Display will show what numbers you
touched in the order you touched them.
This example shows 3:25.
Touch Number Pads for
the correct time of day.
Touch START.
The Clock ISset when the CLOCK SETSignal
Light goes off
The Display will flash on and off if you have
touched in an incorrect time such as 12:65
Using the minute timer
TheMlnute~merdoesnotstartorstopcooking;itworksIikea kitchentimer.Setin
minutesorsecondsandyouwill heara beepwhenthesettime isup.Theovendoor
must be closed before setting the Minute Timer.
1.
2.
3.
DO THIS...
Eli!
Touch MINUTE TIMER.
q mm
Touch Number Pads for
minutes and seconds.
m
Touch START.
THIS HAPPENS...
d
count
own
gEE
P
The MINUTE TIMER Signal Light WIII come on
and the Display will show a “0 ” Within 5
seconds start touching number pads for
the desired time
The Display will show what numbers you
touched in the order you touched them.
This example shows 1 minute, 45 seconds.
The MINUTE TIMER Signal Light WIII stay on to
show that the Minute Timer IS running
The Display counts down the seconds to
show how much time IS left on the Minute
Timer
When the set time ISup, you will hear a long
beep and the Display will show the time of
day

Use the Minute Timer alone or while the oven IS in use Opening the oven door does
not stop the Minute rimer countdown; however, It does stop any cooking or defrosting
Close the door and touch START to continue cooking or defrosting
Changing the minute timer Cancelling the minute timer
Touch MINUTE TIMER, number pods to set the Touch MINUTE TIMER, then CANCEL at any
time, and START New instructions cancel the time. Touch CANCEL again to erase all
old ones cooking instructions.
The control panel ON/OFF switch
Just inside the microwave oven door, on the
control panel frame, ISa switch The switch IS
designed to keep “busy little fingers” from
using the oven
When the switch ISOFF,the Clock and
Minute nmer wtll work, but the QUICK DEFROST
and COOK CYCLES can’t be used The switch
must be ON to cook In the microwave oven
Cooking in one cycle
Follow these steps to cook at one Dower level
High cook power
DO THIS...
1.
2.
3.
4.
THIS HAPPENS...
Put food in the oven and
close the door.
The COOK CYCLE 1 Signal Light will come
on and the Display will show four O’s
Touch COOK CYCLE 1.
Touch Number Pads for
the cooking time you
want.
Touch START.
The Display will show the numbers you
touched in the order you touched them.
This example shows 1 minute, 30 seconds.
The oven will automatically cook at high Cook Power.
The COOK CYCLE 1 Signal Light will stay on
to show that the oven IScooking in the first
cycle
(continued on page 8) 7

count
The Display counts down the time to show
d
own how much cooking time is left in the first
cycle
E@tP
When the cooking time ends You will hear
4 beeps (You con stop the beeping by
%&P
opening the oven door or touchrng CAN-
CEL ) When the beeping stops, the Display
will show the time of day
Changing the cooking time
YOU can change the cooking time anytime during the cycle.
1 Touch COOK CYCLE 1
2 Touch numbers for new time
3 Touch START
COOK CYCLE 1 will continue cooking for the new time
lower cook powers
For best results, some recipes toll for lower Cook Powers. The lower the Cook Power,
the slower the cooking. Each Number Pad on your microwave oven stands for a
different percentage of Cook Power. Many recipes in your MICRO MENUS* Cookbook
tell you, by number, which Cook Powerto use. Recipes in other books and magazines
may tell you by name (HI, MED, LO,etc.] or percentage (IO’%,50%, 80%, etc.)
The following char-t gives you the percentage of Cook Power each Number Pad
stands for, and Cook Power name usually used.
.lmk
automatic 100% of full power HIGH 4 ~~ 40% of full power
9 9046 of full power 3 30% of full power MED-LOW
8 80% of full power 2 20% of full power
7 70% of full power MED-HIGH 1 ~~ 10% of full power LOW
6 60% of full power 0 ~ no power (fan and light
5 50% of full power MED will be off]
1.
2.
3.
4.
8
DO THIS... THIS HAPPENS...
Put food in the oven and
close the door.
Touch COOK CYCLE 1.
Touch Number Pads for
the cooking time you
want.
Touch COOK POWER.
The COOK CYCLE 1 Signal Light will come
on and the Display will show four O’s
The Display will show the numbers you
touched in the order you touched them.
This example shows 7 minutes, 30 seconds
The COOK POWER Signal Light will come on
and the Display will show two O’s

The display will show what you touched
This example shows 50% of full power.
Touch a Number Pad for
the Cook Power you
want.
Touch START.
d
count
own
Changing cook powers
l Cook Power can be changed at any time during
-Touch COOK POWER
The COOK CYCLE 1 and COOK POWER Slg-
nal Lights WII stay on to show that the oven
is cooklng in the first cycle at a Cook
Power other than high
The Display counts down the time to show
how much cooking time IS left In the flrsl
cycle
For 2 of every 10 seconds, the Display WIII
show the Cook Power you selected
When the cooklng time ends. you will hear
4 beeps (You can stop the beeping by
opening the door or by touching CANCEL )
When the beeping stops, the Display WIII
show the time of day
the cooking cycle
-Touch a number for the new Cook Power
-Touch START The cycle will cook at the new Cook Power for the original time
OR...
-Touch COOK POWER twice If you want to change a lower Cook Power to high
-Touch START
Defrosting
-
Use QUICK DEFROST to thaw frozen food before cooktng For suggested defrost times, see
the guide on the Inside of the oven door or the chart in your MICRO MENUS* Cookbook
1.
2.
3.
l Tmk
DO THIS...
Put frozen food in the
oven and close the
door.
Touch QUICK DEFROST.
Touch Number Pads for
the defrosting time you
want.
THIS HAPPENS...
The QUICK DEFROST Signal Light will come
on and the Display will show four O’s
The Display will show the numbers you
touched in the order you touched them.
This example shows 2 minutes, 30 seconds
(continued on page 10) 9

4. Touch START.
The QUICK DEFROST Signal Light will stay on
to show that the oven is in the QUICK
DEFROST Cycle.
d
count
The Display counts down the time to show
own how much defrosting time is left.
When the defrost time ends, you will hear 4
beeps. [You can stop the beeping by
opening the oven door or touching
CANCEL.) When the beeping stops, the
Dtsplay will show the time of day
Standing time
For best results, allow the food to stand for a while after defrosting. This helps equalize
the temperature of the food to provide more even defrosting.
When COOK CYCLE 1 follows QUICK DEFROST,the oven automatically provides a
standing time equal to the time touched in for QUICK DEFROST.COOK CYCLE 1will
begin after the automatic standing time
For a different standing time:
1 Touch QUICK DEFROST and desired time
2 Touch COOK CYCLE 2.
3 Touch numbers for desrred standing time
4 Touch COOK POWER.
5 Touch “0” for zero Cook Power
6 Touch START
When the QUICK DEFROST is over, the oven will shut off. The Display will count down
the time for COOK CYCLE 2 at zero Cook Power. You will hear 4 beeps when the
standing time ISover
About the “QUICK DEFROST” Cycle
The microwave oven automatically divrdes the time set for the QUICK DEFROST
Cycle into three equal parts
- Frrst part 80% of full Cook Power,
-Second part 50% of full Cook Power;
-Third part 20% of full Cook Power.
This automatic step-down in Cook Power is an important’part of the QUICK DEFROST
Cycle It helps defrost food quickly and completely
Changing or adding defrost time
You can change the time setting any time while the QUICK DEFROST Cycle is
operating.
1 Touch QUICK DEFROST.
2 Touch numbers for the new time
3 Touch START.
Any new time settlng made while QUICK DEFROST is operating will continue the
defrostlng only at 20% ot full Cook Power.
The best time to change the setting is near the end of the QUICK DEFROST Cycle,
1 Open the door.
2 Check the food with long-tined fork; if center area is hard frozen, set additional
time Remember that standing time will further defrost the food.
3. Close the door and touch STARTto continue the cycle if no additional time is
needed.
4. Or, touch in new instructions if additional time is needed.
