Whirlpool WM010009 User manual

W10474403A
1
MICROWAVE
OVEN
Use & Call,_eGuide
For questions about features, operation/performance,
parts, accessories or service, call: 1-800-253-1301.
In Canada, call: 1-800-807-6777
or visit our website at...
www.whirlpool.com or www.whirlpool.ca
FOUR A MICRO-
ONDES
Guide d'uti_isation
et d ellll@t_e_Nen
Au Canada, composez le 1-800-807-6777.
ou visitez notre site web &
www.whirlpool.ca
Table of Contents/Table des matieres ........ 2
Model/ModUle WM010009

TABLE OF CONTENTS
MICROWAVE OVEN SAFETY ........................................................ 3
INSTALLATION INSTRUCTIONS .................................................. 4
Unpacking .................................................................................... 4
Location Requirements ................................................................ 4
Electrical Requirements ............................................................... 5
PARTS AN D FEATU RES................................................................ 5
Turntable ...................................................................................... 5
MICROWAVE OVEN CONTROL .................................................... 6
Display .......................................................................................... 6
Start .............................................................................................. 6
Add 30 Seconds ........................................................................... 6
Pause/Cancel ............................................................................... 6
Clock ............................................................................................ 7
Timer ............................................................................................. 7
Tones ............................................................................................ 7
Control Lock ................................................................................. 7
Language ...................................................................................... 7
Weight Entry Mode ...................................................................... 7
MICROWAVE OVEN USE .............................................................. 8
Food Characteristics .................................................................... 8
Cooking Guidelines ...................................................................... 8
Cookware and Dinnerware .......................................................... 8
Aluminum Foil and Metal ............................................................. 9
Microwave Cooking Power .......................................................... 9
Manual Cooking ......................................................................... 10
Cooking in Stages ...................................................................... 10
Preset Cooking ........................................................................... 10
Weight Defrost/Timed Defrost ................................................... 11
MICROWAVE OVEN CARE .......................................................... 12
General Cleaning ........................................................................ 12
TROUBLESHOOTING .................................................................. 13
ASSISTANCE OR SERVICE ......................................................... 14
In the U.S.A................................................................................ 14
In Canada ................................................................................... 14
Replacement Parts ..................................................................... 14
WAR RANTY .................................................................................. 15
TABLE DES MATII RES

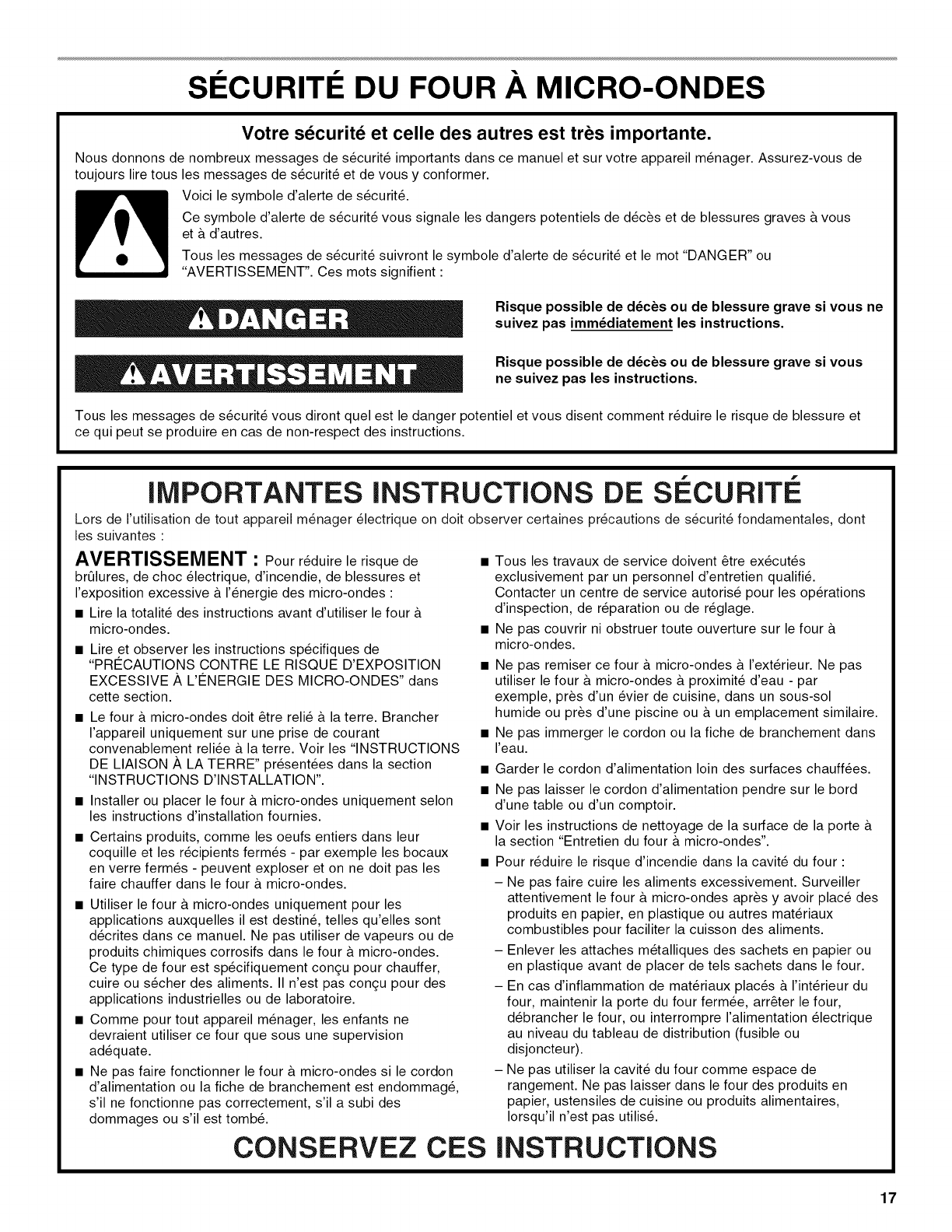

SI_CURITI_ DU FOUR .&,MICRO-ONDES .................................... 17
INSTRUCTIONS D'INSTALLATION ............................................. 19
Deballage .................................................................................... 19
Exigences d'emplacement ......................................................... 19
Specifications electriques .......................................................... 19
PII_CES ET CARACTI_RISTIQUES .............................................. 20
Plateau rotatif ............................................................................ 20
TABLEAU DE COMMANDE DU FOUR .&MICRO-ONDES .......21
Affichage ..................................................................................... 21
Start (mise en marche) ............................................................... 21
Add 30 Seconds (ajouter 30 secondes) ..................................... 21
Pause/Cancel (pause/annulation) .............................................. 22
Horloge ....................................................................................... 22
Minuterie ..................................................................................... 22
Signaux sonores ......................................................................... 22
Verrouillage des commandes ..................................................... 22
Langue........................................................................................ 22
Systeme utilise pour le poids ..................................................... 22
UTILISATION DU FOUR .&,MICRO-ONDES ............................... 23
Caracteristiques des aliments .................................................... 23
Guide de cuisson ........................................................................ 23
Ustensiles de cuisson et vaisselle .............................................. 24
Papier d'aluminium et metal ....................................................... 24
Puissance de cuisson des micro-ondes .................................... 25
Cuisson manuelle ....................................................................... 25
Cuisson par etapes .................................................................... 25
Cuisson prereglee ...................................................................... 26
Decongelation au poids/Decongelation minutee ....................... 27
ENTRETIEN DU FOUR .&MICRO-ONDES ................................. 28
Nettoyage general ...................................................................... 28
DI_PANNAGE ................................................................................. 29
ASSISTANCE OU SERVICE ......................................................... 30
Au Canada .................................................................................. 30
Pieces de rechange .................................................................... 30
GARANTIE ..................................................................................... 31
2

MICROWAVE OVEN SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances basic safety precautions should be followed, including the following:
WARNING: To reduce the risk of burns, electric shock,
fire, injury to persons, or exposure to excessive microwave
energy:
• Read all instructions before using the microwave oven.
• Read and follow the specific "PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY" found in this section.
• The microwave oven must be grounded. Connect only to
properly grounded outlet. See "GROUNDING
INSTRUCTIONS" found in the "INSTALLATION
INSTRUCTIONS" section.
• Install or locate the microwave oven only in accordance
with the provided Installation Instructions.
• Some products such as whole eggs in the shell and
sealed containers - for example, closed glass jars - are
able to explode and should not be heated in the
microwave oven.
• Use the microwave oven only for its intended use as
described in the manual. Do not use corrosive chemicals
or vapors in the microwave oven. This type of oven is
specifically designed to heat, cook, or dry food. It is not
designed for industrial or laboratory use.
• As with any appliance, close supervision is necessary
when used by children.
• Do not operate the microwave oven if it has a damaged
cord or plug, if it is not working properly, or if it has been
damaged or dropped.
• The microwave oven should be serviced only by qualified
service personnel. Call an authorized service company for
examination, repair, or adjustment.
• Do not cover or block any openings on the microwave oven.
• Do not store this microwave oven outdoors. Do not use the
microwave oven near water - for example, near a kitchen
sink, in a wet basement, near a swimming pool, or similar
locations.
• Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do not let cord hang over edge of table or counter.
• See door surface cleaning instructions in the "Microwave
Oven Care" section.
• To reduce the risk of fire in the oven cavity:
- Do not overcook food. Carefully attend the microwave
oven when paper, plastic, or other combustible materials
are placed inside the oven to facilitate cooking.
- Remove wire twist-ties from paper or plastic bags before
placing bags in oven.
- If materials inside the oven ignite, keep oven door closed,
turn oven off, and disconnect the power cord, or shut off
power at the fuse or circuit breaker panel.
- Do not use the cavity for storage purposes. Do not leave
paper products, cooking utensils, or food in the cavity when
not in use.
SAVE THESE INSTRUCTIONS

iMPORTANT SAFETY iNSTRUCTiONS
• Liquids, such as water, coffee, or tea are able to be
overheated beyond the boiling point without appearing to be
boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present.
THIS COULD RESULT IN VERY HOT LIQUIDS
SUDDENLY BOILING OVER WHEN THE CONTAINER IS
DISTURBED OR A SPOON OR OTHER UTENSIL IS
INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
- Do not overheat the liquid.
- Stir the liquid both before and halfway through heating it.
- Do not use straight-sided containers with narrow necks.
- After heating, allow the container to stand in the microwave
oven for a short time before removing the container.
- Use extreme care when inserting a spoon or other utensil
into the container.
SAVE THESE iNSTRUCTiONS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open
since open-door operation can result in harmful exposure
to microwave energy. It is important not to defeat or
tamper with the safety interlocks.
(b) Do not place any object between the oven front face and
the door or allow soil or cleaner residue to accumulate on
sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly
important that the oven door close properly and that there
is no damage to the:
(1) Door (bent),
(2) Hinges and latches (broken or loosened),
(3) Door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone
except properly qualified service personnel.
I This device complies with Part 18 of the FCC Rules. I
INSTALLATION INSTRUCTIONS
1. Empty the microwave oven of any packing materials.
2. Clean the inside with a soft, damp cloth.
3. Check for damage, such as:
• a door that is not lined up correctly
• damage around the door, or
• dents on the interior or exterior of the microwave oven.
If there is any damage, do not operate the microwave oven
until a designated service technician has checked it and
made any needed repairs.
NOTE: To avoid damage to the microwave oven, do not remove
microwave inlet cover. See "Parts and Features."
Location Requirements
• Place the microwave oven on a cart, counter, table or shelf
that is strong enough to hold the microwave oven and the
food and utensils you place inside it.
• The microwave oven should be at a temperature above 50°F
(10°C) for proper operation.
• Do not block the exhaust vents or air intake openings. Allow
a few inches of space at the back and side of the microwave
oven where the exhaust vents are located. Blocking the
exhaust vents could cause damage to the microwave oven,
as well as poor cooking results.
• Make sure the microwave oven legs are in place to ensure
proper airflow. Ifvents are blocked, a sensitive thermal device
may automatically turn the microwave oven off. The
microwave oven should work properly once it has cooled.

Electrical Requirements
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Observe all governing codes and ordinances.
Required:
• A 120 volt, 60 Hz, AC only, 15- or 20-amp electrical supply
with a fuse or circuit breaker.
Recommended:
• A time-delay fuse or time-delay circuit breaker.
• A separate circuit serving only this microwave oven.
GROUNDING INSTRUCTIONS
[] For all cord connected appliances:
The microwave oven must be grounded. In the event of
an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric
current. The microwave oven is equipped with a cord
having a grounding wire with a grounding plug. The plug
must be plugged into an outlet that is properly installed
and grounded.
WARNING: Improper use of the grounding plug can
result in a risk of electric shock. Consult a qualified
electrician or serviceman if the grounding instructions are
not completely understood, or if doubt exists as to whether
the microwave oven is properly grounded.
Do not use an extension cord. If the power supply cord is
too short, have a qualified electrician or serviceman install
an outlet near the microwave oven. A short power supply
cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
SAVE THESE INSTRUCTIONS
PARTS AND FEATURES
This manual may cover several different models. The model you
have purchased may have some or all of the features shown here.
The appearance of your particular model may differ slightly from
the illustrations in this manual.
B C D E
K J I H G F
A. Door handle (on models
without push button open)
B. Window
C. Cooking guide label
D. Microwave oven light
E. Display
F. Control panel
G. Microwave inlet cover
H. Removable turntable support
I. Glass turntable
J. Model and serial number plate
K. Door lock system
B
C
D
A. Turntable
B. Hub
C. Support
D. Shaft
The turntable can rotate in either direction to help cook food
more evenly. For best cooking results, do not operate the
microwave oven without having the turntable in place. See
"Assistance or Service" to reorder any of the parts.
To Install:
1. Place the support on the microwave oven cavity bottom.
2. Place the turntable on the support.
Fit the raised, curved wedges in the center of the turntable
bottom between the three spokes of the hub. The rollers on
the support should fit inside the turntable bottom ridge.

MICROWAVE OVEN CONTROL
eeoeoeoeoeoeoeeeeeeeeeeeeeeeeeeeeeeeeeoe
Potato Popcorn Pizza i
:Keneat :
• oooeooeoooeooeooeeooeooeoooeooeoooeooeo •
:°
: R....... Frozen Dinner :
: -=v_,aU_ Entree Plate i
ooeoeoeoeoeoeoeoeoeoeoeoeoeoeoeoeoeoaoe
4
3
56
89
Clock 0 Timer
eeeeeee eeoeeeeee
[_ .'p ;% : : add
ause
hold • " • Start _30
3sec-Cancel: " ... sec
eeOoeeOe e°e_oeeO
When power is first supplied to the microwave oven, "1:01" will
appear in the display. If the "1:01" appears in the display at any
other time, a power failure has occurred. Reset the clock if
needed. See "Clock" section.
NOTE: The display language may be set to French, and the
weight entry mode may be set to metric. See "Language" and
"Weight Entry Mode" sections.
When the microwave oven is in use, the display will show cook
time remaining. When the microwave oven is not in use, the
display will show the time of day (if the clock is set) or Timer
countdown (if the Timer is set).
The START control begins any function. If cooking is interrupted
by opening the door, touching START will resume the cycle.
NOTE: To avoid unintentional operation of the microwave oven,
a cooking function cannot be started if the microwave oven door
has been closed for about 5 minutes. The word "door" will
appear in the display until the door is opened and closed.
Add 30 Seconds
The ADD 30 SEC control (START pad) automatically starts the
microwave oven at 100% power for 30 seconds, and adds
30 seconds of cook time, up to 10 minutes, with each additional
touch of the control.
Time may be added to any manual cooking cycle in 30-second
increments, up to 10 minutes, at the current power level, by
touching ADD 30 SEC during cooking.
NOTE: To avoid unintentional operation of the microwave oven,
a cooking function cannot be started if the microwave oven door
has been closed for about 5 minutes. The word "door" will
appear in the display until the door is opened and closed.
The PAUSE/CANCEL control clears any incorrect command, and
pauses and/or cancels any program during cooking. The first
touch pauses a cooking cycle, and the second touch cancels the
cycle. It will not erase the time of day.
The microwave oven will also pause when the door is opened.
Close the door and touch START to resume the cycle.
The PAUSE/CANCEL control is also used to lock and unlock the
control panel. See "Control Lock."
6

This is a 12- or 24-hour clock.
To Set:
The microwave oven must be off.
1. Touch CLOCK once for 12-hour setting, or twice for 24-hour
setting.
2. Touch number pads to enter correct time of day.
3. Touch CLOCK.
Contro) Lock
The Control Lock disables the control panel pads to avoid
unintended use of the microwave oven.
To Lock/Unlock Control: The microwave oven must be off.
Touch and hold PAUSE/CANCEL for 5 seconds until the tone
sounds and the LOCK icon appears in the display. Repeat to
unlock and clear the display.
If any cook function control is touched while the Control Lock is
active, a tone will sound.
NOTE: The Timer does not start or stop the microwave oven.
Cook functions may be used while the Timer is counting down.
When the cook function is active in the display, touch TIMER to
see the Timer count down.
To Set:
1. Touch TIMER.
2. Touch number pads to enter desired time.
3. Touch START.
When the set time ends, the end-of-Timer tone will sound.
4= While the Timer countdown is active in the display, touch
PAUSE/CANCEL to cancel the Timer.
If a cook function countdown is active in the display, touch
TIMER to show the Timer countdown, then touch
PAUSE/CANCEL to cancel the Timer. Touching
PAUSE/CANCEL while a cook function countdown is active in
the display will cancel the cook function, not the Timer.
The default display language is English, but may be set to
French. Two display messages are affected: "End" (English) or
"Fin" (French), and "door" (English) or "PrtE" ("porte" - French).
To Set Language to French: With the microwave oven door
open, touch and hold POWER LEVEL for about 5 seconds, until a
tone sounds. To change back to English, disconnect power, then
reconnect power to microwave oven.
Weight Entry Mode
The default weight entry mode for Weight Defrost is imperial
(pounds), but may be set to metric (grams). This setting does not
affect any other program besides Weight Defrost. See "Weight
Defrost/Timed Defrost" section.
To Set Weight Entry to Metric: With the microwave oven door
open, touch and hold number pad 0 for about 5 seconds, until a
tone sounds.
Tones are audible signals that can be turned off.
To Turn Off/On Reminder Tones: With the door open, touch and
hold number pad "6" for 5 seconds, until a tone sounds. Repeat
to turn tones back on.
To Turn Off/On All Tones: With the door open, touch and hold
number pad "5" for 5 seconds. Repeat to turn tones back on
(a tone will sound).
These tones indicate the following:
One tone
• Valid entry
• Control lock activated or deactivated
Two tones
• End of stage in multistage cooking
• Reminder
• During Defrost cycle, reminder to check, turn, rearrange, or
separate food
Three tones
• End of Timer countdown
Four tones
• End of cycle

MICROWAVE OVEN USE
A magnetron in the microwave oven produces microwaves which
reflect off the metal floor, walls and ceiling and pass through the
turntable and appropriate cookware to the food. Microwaves are
attracted to and absorbed by fat, sugar and water molecules in
the food, causing them to move, producing friction and heat
which cooks the food.
• To avoid damage to the microwave oven, do not lean on or
allow children to swing on the microwave oven door.
• To avoid damage to the microwave oven, do not operate
microwave oven when it is empty.
• Baby bottles and baby food jars should not be heated in
microwave oven.
• Clothes, flowers, fruit, herbs, wood, gourds, paper, including
brown paper bags and newspaper, should not be dried in
microwave oven.
• Paraffin wax will not melt in the microwave oven because it
does not absorb microwaves.
• Use oven mitts or pot holders when removing containers from
microwave oven.
• Do not overcook potatoes. At the end of the recommended
cook time, potatoes should be slightly firm. Let potatoes
stand for 5 minutes. They will finish cooking while standing.
• Do not cook or reheat whole eggs inside the shell. Steam
buildup in whole eggs may cause them to burst, requiring
significant cleanup of microwave oven cavity. Cover poached
eggs and allow a standing time.
Food Characteristics
When microwave cooking, the amount, size and shape, starting
temperature, composition and density of the food affect cooking
results.
Amount of Food
The more food heated at once, the longer the cook time needed.
Check for doneness and add small increments of time if
necessary.
Size and Shape
Smaller pieces of food will cook more quickly than larger pieces,
and uniformly shaped foods cook more evenly than irregularly
shaped food.
Starting Temperature
Room temperature foods will heat faster than refrigerated foods,
and refrigerated foods will heat faster than frozen foods.
Composition and Density
Foods high in fat and sugar will reach a higher temperature, and
will heat faster than other foods. Heavy, dense foods, such as
meat and potatoes, require a longer cook time than the same size
of a light, porous food, such as cake.
Cooking Gu[de)[nes
Covering
Covering food helps retain moisture, shorten cook time and
reduce spattering. Use the lid supplied with cookware. If a lid is
not available, wax paper, paper towels or plastic wrap approved
for microwave ovens may be used. Plastic wrap should be turned
back at one corner to provide an opening to vent steam.
Condensation on the door and cavity surfaces is normal during
heavy cooking.
Stirring and Turning
Stirring and turning redistribute heat evenly to avoid overcooking
the outer edges of food. Stir from outside to center. If possible,
turn food over from bottom to top.
Arranging
If heating irregularly shaped or different sized foods, arrange the
thinner parts and smaller sized items toward the center. If
cooking several items of the same size and shape, place them in
a ring pattern, leaving the center of the ring empty.
Piercing
Before heating, use afork or small knife to pierce or prick foods
that have a skin or membrane, such as potatoes, egg yolks,
chicken livers, hot dogs, and sausage. Prick in several places to
allow steam to vent.
Shielding
Use small, flat pieces of aluminum foil to shield the thin pieces of
irregularly shaped foods, bones and foods such as chicken
wings, leg tips and fish tail. See "Aluminum Foil and Metal" first.
Standing Time
Food will continue to cook by the natural conduction of heat even
after the microwave cooking cycle ends. The length of standing
time depends on the volume and density of the food.
Cookware and Dinnerware
Cookware and dinnerware must fit on the turntable. Always use
oven mitts or pot holders when handling because any dish may
become hot from heat transferred from the food. Do not use
cookware and dinnerware with gold or silver trim. Use the
following chart as a guide, then test before using.
MATERIAL RECOMMENDATIONS
Aluminum Foil, See "Aluminum Foil and Metal" section.
Metal
Browning Dish Bottom must be at least 3/16" (5 mm)
above the turntable. Follow manufacturer's
recommendations.
Ceramic Glass, Acceptable for use.
Glass
China, Follow manufacturer's recommendations.
Earthenware
8

MATERIAL RECOMMENDATIONS
Melamine Follow manufacturer's recommendations.
Paper: Towels, Use nonrecycled and those approved by
Dinnerware, the manufacturer for microwave oven use.
Napkins
Plastic: Wraps, Use those approved by the manufacturer
Bags, Covers, for microwave oven use.
Dinnerware,
Containers
Pottery and Clay Follow manufacturer's recommendations.
Silicone Follow manufacturer's recommendations.
Bakeware
Straw, Wicker, Do not use in microwave oven.
Wooden
Containers
Wax Paper Acceptable for use.
To Test Cookware or Dinnerware for Microwave Use:
1. Place cookware or dinnerware in microwave oven with
1 cup (250 mL) of water beside it.
2. Cook at 100% cooking power for 1 minute.
Do not use cookware or dinnerware if it becomes hot and the
water stays cool.
A uminum Foi and Meta
Always use oven mitts or pot holders when removing dishes from
the microwave oven.
Aluminum foil and some metal can be used in the microwave
oven. If not used properly, arcing (a blue flash of light) can occur
and cause damage to the microwave oven.
OK for Use
Racks and bakeware supplied with the microwave oven (on some
models), aluminum foil for shielding, and approved meat
thermometers may be used with the following guidelines:
• To avoid damage to the microwave oven, do not allow
aluminum foil or metal to touch the inside cavity walls,
ceiling or floor.
• Always use the turntable.
• To avoid damage to the microwave oven, do not allow
contact with another metal object during microwave cooking.
Do Not Use
Metal cookware and bakeware, gold, silver, pewter, non-
approved meat thermometers, skewers, twist ties, foil liners
such as sandwich wrappers, staples and objects with gold or
silver trim or a metallic glaze should not be used in the
microwave oven.
Microwave Cooking Power
Many recipes for microwave cooking specify which cooking
power to use by percent, name or number. For example,
70%=7=Medium-High.
Use the following chart as a general guide for the suggested
cooking power of specific foods.
PERCENT/NAME NUMBER USE
100%, High 10
(default setting)
90% 9
8O%
Quick heating convenience
foods and foods with high
water content, such as soups,
beverages and most
vegetables.
Cooking small, tender pieces
of meat, ground meat, poultry
pieces and fish fillets.
Heating cream soups.
Heating rice, pasta or stirrable
casseroles.
Cooking and heating foods
that need a cook power lower
than high. For example, whole
fish and meat loaf.
70%, 7 Reheating a single serving of
Medium-High food.
60% 6 Cooking sensitive foods such
as cheese and egg dishes,
pudding and custards.
Cooking non-stirrable
casseroles, such as lasagna.
50%, Medium 5 Cooking ham, whole poultry
and pot roasts.
Simmering stews.
40% 4 Melting chocolate.
Heating bread, rolls and
pastries.
30%, Medium- 3 Defrosting bread, fish, meats,
Low, Defrost poultry and precooked foods.
20% 2 Softening butter, cheese, and
ice cream.
10%, Low 1 Taking chill out of fruit.

Manua Cooking
NOTE: To cook at 100% power, begin by touching number pads
to enter cook time, then touch START.
To Use:
1. Place food on the turntable and close the door.
2. Enter length of time to cook in minutes and seconds
or
Touch COOK TIME, then enter the length of time to cook.
If cooking with 100% power, skip Step 3.
3. Touch POWER LEVEL, then enter the desired power level.
See "Microwave Cooking Power."
4. Touch START.
When the cycle ends, "End" will appear in the display, and the
end-of-cycle tones will sound.
5. Touch PAUSE/CANCEL or open the door to clear the display.
Cooking in Stages
The microwave oven can be set to cook at different cooking
powers for various lengths of time, up to 3 stages.
To Cook in Stages:
1. Place food on the turntable, and close the door.
2. Touch STAGE COOK, then enter length of time to cook in
minutes and seconds.
3. Touch POWER LEVEL, then enter the desired cooking power
for the first stage. See "Microwave Cooking Power."
4. Touch STAGE COOK, then repeat steps 2 and 3 for the
second and third stages.
5. Touch START.
Two tones will sound between stages.
When the cycle ends, "End" will appear in the display, and the
end-of-cycle tones will sound.
6. Touch PAUSE/CANCEL or open the door to clear the display.
Preset Oooking
The microwave oven has been programmed with common
microwavable foods, their quantities, cook powers and cook
times.
NOTE: During Popcorn function, as with all microwave cooking
functions, the microwave oven should be attended at all times.
Listen for popping to slow to 1 pop every 1 or 2 seconds, then
stop the cycle.
Use the following chart as a guide for preset cooking.
FOOD SERVING SIZE INSTRUCTIONS
Potato 1,2, 3 or 4 Pierce each one several times
medium, 8-10 oz with a fork. Place on paper
(227-283 g) towel, around turntable
each, similar in edges, at least 1" (2.5 cm)
size apart. Let stand 5 minutes
after cooking.
Popcorn* 3.3 oz (94 g)
Pizza 1,2 or 3 slices,
Reheat 4 oz (113 g) each
(refrigerated)
Beverage 1 or 2 cups, 8 oz
(250 mL) each
Pop only one package at a
time. For bag sizes not listed
in this section, follow
directions on package.
Place on paper towel or
paper plate in the center of
the turntable.
Do not cover. The diameter of
the cup's opening will affect
how the liquid heats.
Beverages in cups with
smaller openings may heat
faster.
Frozen "8" (7-9 oz [198-
Entree 255 g]) or
"11" (10-12 oz
[283-340 g])
Remove from package.
Loosen cover on 3 sides. If
entree is not in microwave-
safe container, place on
plate, cover with plastic wrap
and vent. Let stand
2-3 minutes after cooking.
Dinner Plate 1 serving, about Place food on plate, cover
(refrigerated) 10 oz (283 g) with plastic wrap and vent.
*To avoid damage to the microwave oven, do not use regular
paper bags or glassware. For best cooking results, do not try to
pop unpopped kernels. Use fresh bags of popcorn for optimal
results. Cooking results may vary by brand and fat content. If
using a microwave popcorn popper, follow manufacturer's
instructions.
To Use Preset Cooking:
1. Place food on the turntable and close the door.
2. Touch the desired food pad.
The display will show first programmed serving size. Touch
the pad again to change quantity. See chart for available
serving sizes.
3. Touch START.
The display will count down the cook time.
When the cycle ends, "END" will appear in the display, and
the end-of-cycle tones will sound.
4. Touch PAUSE/CANCEL or open the door to clear the display.
10

Weight ©ef ostf')°imed ©ef ost
The automatic Weight Defrost feature can be used or the manual
Timed Defrost feature can be used.
• Unwrap foods and remove lids (for example, from fruit juice
containers) before defrosting.
• Shallow packages will defrost more quickly than deep blocks.
• Separate food pieces as soon as possible during or at the
end of the cycle for more even defrosting.
• Use small pieces of aluminum foil to shield parts of food such
as chicken wings, leg tips and fish tails. See "Aluminum Foil
and Metal" first.
Timed Defrost
To Use Timed Defrost:
1. Place food, uncovered, on the turntable and close the door.
2. Touch TIMED DEFROST.
"0:00" will appear in the display.
3. Enter the time in minutes and seconds.
4. Touch START.
The display will count down the defrost time.
Weight Defrost
The Weight Defrost feature uses weight input. Itshould not be
used for food that has been left outside the freezer for more than
20 minutes, or for frozen ready-made food.
During defrosting, 5 tones will sound. These tones indicate it
is time to check, turn, rearrange, or separate food. Open
door, turn food if necessary, close door, and touch START to
resume defrosting.
When the cycle ends, "End" will appear in the display, and the
end-of-cycle tones will sound.
To Use Weight Defrost:
1. Place food, uncovered, on the turntable and close the door.
2. Touch WEIGHT DEFROST.
3. Enter the weight in pounds and tenths of a pound. Two digits
must be used. (For example, enter "05" for 0.5 Ib, or "43" for
4.3 Ibs.)
Weight can be set from 0.1 Ib to 6.5 Ibs (45 g to 2.9 kg).
5. Touch PAUSE/CANCEL or open the door to clear the display.
To Defrost Manually: Follow direction in "Manual Cooking"
section, and use 30% cooking power. See "Microwave Cooking
Power" chart.
4. Touch START.
The display will count down the defrost time.
During defrosting, 2 tones will sound. These tones indicate it
is time to check, turn, rearrange, or separate food. Open
door, turn food if necessary, close door, and touch START to
resume defrosting.
When the cycle ends, "END" will appear in the display, and
the end-of-cycle tones will sound.
5. Touch PAUSE/CANCEL or open the door to clear the display.
11

MICROWAVE OVEN CARE
Gene a) O)eanin 9
IMPORTANT: Before cleaning, make sure all controls are off and the microwave oven is cool. Always follow label instructions on
cleaning products.
Soap, water and a soft cloth or sponge are suggested unless otherwise noted.
MICROWAVE OVEN CAVITY MICROWAVE OVEN DOOR AND EXTERIOR
To avoid damage to the microwave oven cavity, do not use soap-
filled scouring pads, abrasive cleaners, steel-wool pads, gritty
washcloths or some recycled paper towels.
To avoid damage to stainless steel models, rub in direction of
grain.
The area where the microwave oven door and frame touch when
closed should be kept clean.
Average soil
• Mild, nonabrasive soaps and detergents:
Rinse with clean water and dry with soft, lint-free cloth.
Heavy soil
• Mild, nonabrasive soaps and detergents:
Heat 1 cup (250 mL) of water for 2 to 5 minutes in microwave
oven. Steam will soften soil. Rinse with clean water and dry
with soft, lint-free cloth.
Odors
• Lemon juice or vinegar:
Heat 1 cup (250 mL) of water with 1 tbs (15 mL) of either
lemon juice or vinegar for 2 to 5 minutes in microwave oven.
Microwave Inlet Cover
To avoid arcing and microwave oven damage, the microwave
inlet cover (see "Parts and Features") should be kept clean.
• Wipe with wet cloth.
The area where the microwave oven door and frame touch when
closed should be kept clean.
• Mild, nonabrasive soaps and detergents:
Rinse with clean water and dry with soft, lint-free cloth.
• Glass cleaner and paper towels or nonabrasive plastic
scrubbing pad:
Apply glass cleaner to towel, not directly to surface.
Stainless Steel (on some models)
To avoid damage to microwave oven door and exterior, do not
use soap-filled scouring pads, abrasive cleaners, steel-wool
pads, gritty washcloths or some paper towels. Rub in direction of
grain.
• Stainless steel cleaner (not included):
See "Assistance or Service" section to order.
• Liquid detergent or all-purpose cleaner:
Rinse with clean water and dry with soft, lint-free cloth.
• Vinegar for hard water spots
CONTROL PANEL
Sponge or soft cloth and water:
Dampen sponge with water and wipe panel. Dry with soft
cloth.
To avoid damage to the control panel, do not use chemical or
abrasive cleansers.
TURNTABLE
Replace turntable immediately after cleaning. Do not operate the
microwave oven without the turntable in place.
• Mild cleanser and scouring pad
• Dishwasher
12

TROUBLESHOOTING
Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.
Nothing will operate
Has a household fuse blown, or has a circuit breaker
tripped?
Replace the fuse or reset the circuit breaker. If the problem
continues, call an electrician.
Microwave oven will not operate
•Is the magnetron working properly?
Try to heat 1 cup (250 mL) of cold water for 2 minutes at
100% cooking power. If water does not heat, try the steps in
the bullets below. If microwave oven still does not operate,
call for service. See "Assistance or Service" section.
•Is the door completely closed?
Firmly close door.
• Is a packaging spacer (on some models) attached to the
inside of the door?
Remove packaging spacer, then firmly close door.
• Is the electronic microwave oven control set correctly?
See "Microwave Oven Control" section.
•Is the Control Lock set?
See "Control Lock" section.
•Does "door" appear in the display?
Open and close the microwave oven door, and then touch
START. See "Start" section.
Microwave oven makes humming noise
• This is normal and occurs when the power supply in the
magnetron cycles on.
Microwave oven door looks wavy
• This is normal and will not affect performance.
Turntable will not operate
Is the turntable properly in place?
Make sure turntable is correct side up and is sitting securely
on the turntable support. See "Turntable" section.
Is the turntable support operating properly?
Remove turntable. Remove and clean turntable hub and
support. Replace hub, support and turntable. Place 1 cup
(250 mL) of water on the turntable, then restart microwave
oven. If it still is not working, call for service. See "Assistance
or Service" section. Do not operate the microwave oven
without turntable and turntable support working properly.
Turntable alternates rotation directions
• This is normal and depends on motor rotation at beginning of
cycle.
Display shows messages
Is the display showing "1:01"?
There has been a power failure, or the Clock time has been
turned off. See "Display" section to clear display. See "Clock"
section to reset or turn on Clock.
Display shows time countdown, but the microwave oven
is not operating
•Is the Timer in use?
See "Timer" section.
Cooking times seem too long
•Is the cooking power set properly?
See "Microwave Cooking Power" section.
•Are large amounts of food being heated?
Larger amounts of food need longer cooking times.
• Is the incoming voltage less than that specified in
"Electrical Requirements?"
Have a qualified electrician check the electrical system in the
home.
Interference with radio, TV, cordless phone, etc.
•Is the microwave oven plugged into the same outlet?
Trya different outlet for the electronic device.
•Is the radio or TV receiver near the microwave oven?
Move the receiver away from the microwave oven, or adjust
the radio or TV antenna.
Are the microwave oven door and sealing surfaces clean?
Make sure these areas are clean.
Is the cordless phone frequency 2.4 GHz?
Some 2.4 GHz-based cordless phones and home wireless
networks may experience static or noise while the microwave
oven is on. Use a corded phone or a different frequency
cordless phone, or avoid using these items during microwave
oven operation.
13

ASSISTANCE OR SERVICE
Before calling for assistance or service, please check
"Troubleshooting." It may save you the cost of a service call. If
you still need help, follow the instructions below.
When calling, please know the purchase date and the complete
model and serial number of your appliance. This information will
help us to better respond to your request.
If you need replacement parts
If you need to order replacement parts, we recommend that you
use only FSP® replacement parts. FSP®replacement parts will fit
right and work right because they are made with the same
precision used to build every new WHIRLPOOL ® appliance.
To locate FSP®replacement parts in your area, call us or your
nearest Whirlpool designated service center.
)n Canada
Call the Whirlpool Canada LP Customer eXperience Centre toll
free: 1-800-807-6777.
Our consultants provide assistance with:
• Features and specifications on our full line of appliances.
• Use and maintenance procedures.
• Accessory and repair parts sales.
• Referrals to local dealers, repair parts distributors, and
service companies. Whirlpool Canada LP designated service
technicians are trained to fulfill the product warranty and
provide after-warranty service, anywhere in Canada.
)n the UoSoAo
Call the Whirlpool Customer eXperience Center
toll free: 1-800-253-1301.
Our consultants provide assistance with:
Features and specifications on our full line of appliances.
Installation information.
Use and maintenance procedures.
Accessory and repair parts sales.
Specialized customer assistance (Spanish speaking, hearing
impaired, limited vision, etc.).
Referrals to local dealers, repair parts distributors and service
companies. Whirlpool designated service technicians are
trained to fulfill the product warranty and provide after-
warranty service, anywhere in the United States.
To locate the Whirlpool designated service company in your
area, you can also look in your telephone directory Yellow
Pages.
For further assistance
If you need further assistance, you can write to Whirlpool
Corporation with any questions or concerns at:
Whirlpool Brand Home Appliances
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022-2692
For further assistance
If you need further assistance, you can write to Whirlpool
Canada LP with any questions or concerns at:
Customer eXperience Centre
Whirlpool Canada LP
200 - 6750 Century Ave.
Mississauga, Ontario L5N 0B7
Please include a daytime phone number in your correspondence.
Rep)acement PaAs
Glass Turntable Turntable Hub
Part Number W10551236 Part Number W10552108
Turntable Support and Rollers
Part Number W10551237
Cleaning Supplies
affresh®Kitchen Appliance
Cleaner
Part Number W10355010
affresh®Stainless Steel
Cleaner
Part Number W10355016
affresh®Stainless Steel Wipes
Part Number W10355049
Heavy Duty Degreaser
Part Number 31552A
Please include a daytime phone number in your correspondence.
14

WHIRLPOOL CORPORATION COUNTERTOP
MICROWAVE LIMITED WARRANTY
ONE YEAR LIMITED WARRANTY
For one year from the original date of purchase, when this microwave is installed, operated and maintained according to instructions
attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter "Whirlpool") will, at its sole option,
either pay for factory specified parts and repair labor to correct defects in materials or workmanship or replace the product. If replaced,
the unit will be covered by the remaining one-year limited warranty of the original unit. See service instructions below.
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THE LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AT
OUR DISCRETION AS PROVIDED HEREIN. Service must be provided by a Whirlpool designated service company. This limited
warranty is valid in the United States or Canada and applies only when the microwave is used in the country in which it was purchased.
This limited warranty is effective from the date of the original consumer purchase. Proof of original purchase date is required to obtain
service or replacement under this limited warranty.
ITEMS EXCLUDED FROM WARRANTY
1. Service calls to correct the installation of your microwave, to instruct you how to use your product, to replace or repair house fuses,
reset circuit breakers or to correct house wiring or plumbing.
2. Service calls to repair or replace light bulbs. Consumable parts are excluded from warranty coverage.
3. In-home service. Your microwave must be shipped to a Whirlpool designated service company.
4. Repairs or replacement when your microwave is used for other than normal, single-family household use or when it is used in a
manner contrary to published user or operator instructions and/or installation instructions.
5. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in
accordance with electrical or plumbing codes, or use of consumables or cleaning products not approved by Whirlpool Corporation.
6. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your microwave, unless such damage results
from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.
7. Any food loss due to microwave product failure.
8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
9. Microwaves with original model/serial numbers that have been removed, altered or cannot be easily determined. This warranty is
void if the factory applied serial number has been altered or removed from your appliance.
The cost of repair or replacement under these excluded circumstances shall be borne by the customer.
If you reside in the United States and your Whirlpool ®Countertop Microwave should cease to operate within the first year of
ownership:
1. Call our Customer eXperience Center at 1-800-253-1301 (toll-free).
2. Give the consultant your model, serial number and shipping address.
3. The consultant will advise whether the microwave qualifies for repair or replacement.
4. In the event of repair, you may be directed to forward the product to a Whirlpool designated service center. You are responsible for
insurance and freight to the designated service center. Please include your name and address on a piece of paper, along with a
copy of the proof of purchase (register receipt, charge slip, etc.). The microwave should be properly packaged to avoid damage in
transit as we will not be responsible for any such damage.
5. Whirlpool will return the repaired unit or, at our option, an identical or comparable microwave to your door free of charge.
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces
do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This
warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THE LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AT
OUR DISCRETION AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations may not
apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province
to province.
Outside the 50 United States and Canada, this warranty does not apply. Contact your authorized Whirlpool dealer to determine if
another warranty applies.
If you need service, first see the "Troubleshooting" section of the Use & Care Guide. Additional help can be found by checking the
"Assistance or Service" section or by calling Whirlpool. In the U.S.A call 1-800-253-1301. In Canada call 1-800-807-6777. 9/12
15

Keep this book and your sales slip together for future
reference. You must provide proof of purchase or installation
date for in-warranty service.
Write down the following information about your major appliance
to better help you obtain assistance or service if you ever need it.
You will need to know your complete model number and serial
number. You can find this information on the model and serial
number label located on the product.
Dealer name
Address
Phone number
Model number
Serial number
Purchase date
16

SI CURITI DU FOUR .&.MICRO-ONDES
Votre securite et celle des autres est tres importante.
Nous donnons de nombreux messages de s_curit_ importants dans ce manuel et sur votre appareil m_nager. Assurez-vous de
toujours lire tous les messages de s_curit_ et de vous y conformer.
Voici le symbole d'alerte de s_curit&
Ce symbole d'alerte de s_curit_ vous signale les dangers potentiels de d_c_s et de blessures graves &vous
et &d'autres.
Tousles messages de s_curit_ suivront le symbole d'alerte de s_curit_ et le mot "DANGER" ou
"AVERTISSEMENT". Ces mots signifient •
Risque possible de d_ces ou de blessure grave si vous ne
suivez pas imm_diatement les instructions.
Risque possible de d_ces ou de blessure grave si vous
ne suivez pas les instructions.
Tous les messages de s_curit_ vous diront quel est le danger potentiel et vous disent comment r_duire le risque de blessure et
ce qui peut se produire en cas de non-respect des instructions.
IMPORTANTES iNSTRUCTiONS DE SECURITi
Lors de I'utilisation de tout appareil m6nager 61ectrique on doit observer certaines pr6cautions de s6curit_ fondamentales, dont
les suivantes "
AVERTISSEMENT :Pour r_duire le risque de
brQlures, de choc _lectrique, d'incendie, de blessures et
I'exposition excessive & I'_nergie des micro-ondes :
• Lire la totalit_ des instructions avant d'utiliser le four &
micro-ondes.
• Lire et observer les instructions sp_cifiques de
"PRECAUTIONS CONTRE LE RISQUE D'EXPOSITION
EXCESSIVE/_, L'I2NERGIE DES MICRO-ONDES" dans
cette section.
• Le four & micro-ondes doit 6tre reli_ & la terre. Brancher
I'appareil uniquement sur une prise de courant
convenablement reli_e & la terre. Voir les "INSTRUCTIONS
DE LIAISON/_, LA TERRE" pr6sent_es dans la section
"INSTRUCTIONS D'INSTALLATION".
• Installer ou placer le four & micro-ondes uniquement selon
les instructions d'installation fournies.
• Certains produits, comme les oeufs entiers dans leur
coquille et les r_cipients ferm_s - par exemple les bocaux
en verre ferm_s - peuvent exploser et on ne doit pas les
faire chauffer dans le four & micro-ondes.
• Utiliser le four & micro-ondes uniquement pour les
applications auxquelles il est destin6, telles qu'elles sont
d_crites dans ce manuel. Ne pas utiliser de vapeurs ou de
produits chimiques corrosifs dans le four & micro-ondes.
Ce type de four est sp_cifiquement congu pour chauffer,
cuire ou s6cher des aliments. II n'est pas congu pour des
applications industrielles ou de laboratoire.
• Comme pour tout appareil m_nager, les enfants ne
devraient utiliser ce four que sous une supervision
adequate.
• Ne pas faire fonctionner le four & micro-ondes si le cordon
d'alimentation ou la fiche de branchement est endommag_,
s'il ne fonctionne pas correctement, s'il a subi des
dommages ou s'il est tomb&
Tous les travaux de service doivent 6tre executes
exclusivement par un personnel d'entretien qualifi&
Contacter un centre de service autoris_ pour les operations
d'inspection, de r_paration ou de r_glage.
Ne pas couvrir ni obstruer toute ouverture sur le four &
micro-ondes.
Ne pas remiser ce four & micro-ondes & I'ext_rieur. Ne pas
utiliser le four & micro-ondes & proximit_ d'eau - par
exemple, pros d'un _vier de cuisine, dans un sous-sol
humide ou pros d'une piscine ou & un emplacement similaire.
Ne pas immerger le cordon ou la fiche de branchement dans
I'eau.
Garder le cordon d'alimentation loin des surfaces chauff_es.
Ne pas laisser le cordon d'alimentation pendre sur le bord
d'une table ou d'un comptoir.
Voir les instructions de nettoyage de la surface de la porte &
la section "Entretien du four & micro-ondes".
Pour r_duire le risque d'incendie dans la cavit_ du four :
- Ne pas faire cuire les aliments excessivement. Surveiller
attentivement le four & micro-ondes apr_s y avoir plac_ des
produits en papier, en plastique ou autres mat_riaux
combustibles pour faciliter la cuisson des aliments.
- Enlever les attaches m_talliques des sachets en papier ou
en plastique avant de placer de tels sachets dans le four.
- En cas d'inflammation de mat_riaux places & I'int_rieur du
four, maintenir la porte du four ferm_e, arr6ter le four,
d_brancher le four, ou interrompre I'alimentation _lectrique
au niveau du tableau de distribution (fusible ou
disjoncteur).
- Ne pas utiliser la cavit_ du four comme espace de
rangement. Ne pas laisser dans le four des produits en
papier, ustensiles de cuisine ou produits alimentaires,
Iorsqu'il n'est pas utilis&
CONSERVEZ CES INSTRUCTIONS
17

IMPORTANTES INSTRUCTIONS DE SI CURITI
• Les liquides tels que I'eau, le caf_ ou le th_ peuvent trop
chauffer - au-del& du point d'_bullition - sans sembler
bouillir. II n'y a pas toujours des bulles ou une _bullition
Iorsqu'on retire le r6cipient du four &micro-ondes. A CAUSE
DE CECI, DES LIQUIDES TRES CHAUDS POURRAIENT
DI2BORDER LORSQU'ON BOUGE LE RI2CIPIENT OU
QUE L'ON UTILISE UNE CUILLERE OU UN AUTRE
USTENSILE POUR LE REMUER.
Pour r_duire le risque de blessures corporelles :
- Ne pas trop faire chauffer le liquide.
- Remuer le liquide avant et pendant le chauffage.
- Ne pas utiliser de r_cipients & parois droites avec des
ouvertures _troites.
- Une fois chaud, laisser le r_cipient dans le four & micro-
ondes un moment avant de le retirer.
- Faire tr_s attention Iorsqu'on utilise une cuill@e ou un
autre ustensile dans le r6cipient.
CONSERVEZ CES INSTRUCTIONS
PRI CAUTIONS CONTRE LE RISQUE D'EXPOSITION
EXCESSIVE .&.L'I NERGIE DES MICRO-ONDES
(a) Ne pas tenter de faire fonctionner ce four Iorsque la porte
est ouverte, car ceci pourrait susciter une exposition
dangereuse & I'_nergie des micro-ondes. II est important
de ne pas entraver le fonctionnement correct du dispositif
de verrouillage de s_curit&
(b) Ne pas placer d'objet entre la surface avant du four et la
porte, et ne jamais laisser des souillures ou r_sidus de
produits de nettoyage s'accumuler sur les surfaces
d'_tanch_it&
(c) Ne pas faire fonctionner le four Iorsqu'il est endommag& II
est particuli@ement important que la porte du four ferme
convenablement et que les composants suivants ne soient
pas endommag_s :
(1) Porte (d_formation),
(2) Charni@es et dispositif de verrouillage (bris_s ou
desserr_s),
(3) Joints de porte et surfaces d'_tanch6it&
(d) Seul un personnel d'entretien qualifi_ est habilit_ &
ex_cuter des r_parations ou r_glages sur cet appareil.
ICe dispositif est conforme & la section 18 des reglements FCC. I
18

INSTRUCTIONS D'INSTALLATION
1. Oter du four a micro-ondes tousles materiaux d'emballage
divers.
2. Nettoyer I'interieur du four avec un chiffon doux humide.
3. Verifier I'absence de dommages tels que :
• porte qui n'est pas alignee correctement
• dommages autour de la porte, ou
• bosses a I'interieur ou & I'exterieur du four a micro-ondes.
En cas de dommage quelconque, ne pas faire fonctionner le
four & micro-ondes avant qu'un technicien de service design6
n'ait verifi6 le four et ait effectu6 les reparations necessaires.
REMARQUE • Pour eviter d'endommager le four a micro-ondes,
ne pas retirer le couvercle d'entree micro-ondes. Voir la section
"Pieces et caracteristiques".
Exigences d°emp acement
• Placer le four a micro-ondes sur un chariot, un plan de travail,
une table ou une tablette suffisamment solide pour supporter
le four a micro-ondes ainsi que les aliments et ustensiles
places a I'interieur.
• Le four a micro-ondes dolt se trouver a une temperature
superieure a 50°F (10°C) pour un fonctionnement correct.
• Ne pas obstruer les conduits d'evacuation ou les ouvertures
de prise d'air. Laisser quelques centimetres & I'arriere et sur le
c6te du four a micro-ondes a I'emplacement des conduits
d'evacuation. L'obstruction des conduits d'evacuation peut
entrainer des dommages au four a micro-ondes, de m_me
que de mediocres resultats de cuisson.
• Veiller ace que les pieds du four & micro-ondes soient bien
en place pour assurer un flux d'air appropri& Si les conduits
sont obstrues, un dispositif de securite thermique sensible
peut commander I'extinction automatique du four & micro-
ondes. Le four a micro-ondes devrait fonctionner
correctement une fois refroidi.
Sp6cifications 6 ectdques
Risque de choc _lectrJque
Brancher sur une prise a3alv_oles reli_e a Jaterre.
Ne pas enlever la broche de liaison ala terre.
Ne pas utiliser un adaptateur.
Ne pas utiliser un cable de rallonge.
Le non=respect de ces instructions peut causer
un d_c_s, un incendie ou un choc _lectrique.
Observer les dispositions de tousles codes et reglements en
vigueur.
N_cessaire :
• Une alimentation electrique de 120 volts, 60 Hz, CA
seulement, 15 ou 20 amperes, protegee par fusibles ou
disjoncteur.
Recommand_ :
• Un fusible temporise ou un disjoncteur temporis&
• Un circuit distinct exclusif a ce four a micro-ondes.
INSTRUCTIONS DE LIAISON
A LA TERRE
[] Pour tout appareil m_nager connect_ par un cordon
de courant _lectrique :
IIfaut que le four & micro-ondes soit reli_ & la terre. En
cas de court-circuit _lectrique, la liaison & la terre r_duit le
risque de choc _lectrique car le courant _lectrique
dispose d'un itin@aire direct d'acheminement & la terre.
Le four & micro-ondes est dot_ d'un cordon de courant
_lectrique qui comporte un fil de liaison & la terre, avec
broche de liaison & la terre. On doit brancher la fiche sur
une prise de courant convenablement install_e et reli_e &
la terre.
AVERTISSEMENT :L'utilisation incorrecte du
dispositif de liaison & la terre peut susciter un risque de choc
_lectrique. L'utilisateur qui ne comprend pas bien les
instructions de liaison & la terre, ou qui n'est pas certain que
le four & micro-ondes soit convenablement reli_ & la terre,
devrait consulter un _lectricien ou un technicien qualifi&
Ne pas utiliser un c&ble de rallonge. Si le cordon de
courant _lectrique est trop court, demander & un _lectricien
ou un technicien qualifi_ d'installer une prise de courant &
proximit_ du four & micro-ondes. Le cordon d'alimentation
fourni est court pour r_duire le risque de s'emp_trer ou de
tr_bucher. CONSERVEZ CES
INSTRUCTIONS
19

PII CES ET CARACTI RISTIQUES
Ce manuel peut couvrir differents modeles. Le four que vous
avez achete peut avoir certaines ou toutes les caracteristiques
enumerees. L'apparence des caracteristiques illustrees ici peut
ne pas correspondre exactement _ celle de votre modele.
D E
A. Poign#e de porte (sur les
modeles sans bouton-
poussoir pour ouvrir)
B. Hublot
C. Etiquette du guide de cuisson
D. Lampe du four a micro-ondes
E. Affichage
F. Tableau de commande
G. Couvercle -orifice
d'introduction des micro-ondes
H. Support amovible du plateau
rotatif
I. Plateau rotatif en verre
J. Plaque signal#tique des
num#ros de modele et de s#rie
K. Systeme de verrouillage de la
porte
Plateau rotatif
A........
B,-,-,,-,,,,,..............
D
A. Plateau rotatif
B. Axe
C. Support
D. Arbre
Le plateau rotatif tourne dans les deux sens pour permettre une
cuisson plus uniforme. Pour les meilleurs resultats de cuisson, ne
pas faire fonctionner le four & micro-ondes sans que le plateau
rotatif ne soit en place. Voir "Assistance ou service" pour passer
une nouvelle commande de pieces.
Installation :
1. Placer le support sur le fond de la cavite du four a micro-
ondes.
2. Placer le plateau rotatif sur le support.
Inserer les protuberances arrondies au centre du dessous du
plateau rotatif entre les trois rayons de I'axe. Les roulettes sur
le support devraient se Ioger a I'interieur du pourtour crante
du dessous du plateau rotatif.
2O
