WASHERINSTALLATIONINSTRUCTIONS
Table of Contents
WASHER SAFETY............................................ 1
INSTALLATIONREQUIREMENTS.................2
Teelsand Par_s.............................................2
LocatienRequirements.................................2
DrainSystem.................................................3
ElectricalRequirements................................3
INSTALLATION INSTRUCTIONS ...................4
BeforeYou Star_............................................4
RemoveShipping Materials..........................4
Connect DrainHose......................................5
Connectthe InletHoses...............................6
Securethe Drain Hose..................................7
Levelthe Washer...........................................7
Complete Installation ....................................8
WASHERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
W10096749

INSTALLATIONREQUIREMENTS
Gather the required tools and parts before starting installation.
The parts supplied are in the washer basket.
Tools needed for connecting the drain hose and water
inlet hoses:
•Pliersthat open to • Flashlight (optional)
3.95 cm (1%6")
• Flat-blade screwdriver
Parts supplied:
A B
E
C D
F G H
A. Water inlet hose (2)
B. Drain hose form
C. Drain hose extension
D. Drain hose coupling
E. Large flat washer (4)
FSmall flat washer (2)
G. Inlet hose adapter
H. Hose clamp (2)
Alternate Parts
Your installation may require additional parts. For information on
ordering, please refer to the toll-free phone numbers on the front
page of the Washer User Instructions.
If You Have: You Will Need to Buy:
Laundry tub or Sump pump system (if not already
standpipe taller available)
than 2.4 m (96")
Overhead sewer Standard 76 L (20 gal.) 99 cm (39") tall
drain tub or utility sink, sump pump and
connectors (available from local
plumbing suppliers)
Floor drain Siphon break kit, Part Number 280129;
additional drain hose,
Part Number 3357090
Water faucets 2 longer water fill hoses:
beyond reach of fill 1.8 m (6 ft) Part Number 76314,
hoses 3.0 m (10 ft) Part Number 350008
Drain hose too Drain hose kit, Part Number 280131
short
Lint clogged drain Drain protector, Part Number 367031
Tools needed for securing the drain hose and leveling
the washer:
• Adjustable or open end • Wood block
wrench 14 mm (%6") • Ruler or measuring tape
• Level
Parts supplied:
A B
A. Beaded tie strap
B. Front leveling feet with nuts (2)
Selecting the proper location for your washer improves
performance and minimizes noise and possible washer "walk."
Your washer can be installed in a basement, laundry room, closet,
or recessed area. See "Drain System."
IMPORTANT: Do not install or store the washer where it will be
exposed to the weather.
Proper installation is your responsibility.
You will need:
• A water heater set to deliver 49°C (120°F) water to the washer.
• An earthed electrical outlet located within 1.2 m (4 ft) of where
the power cord is attached to the back of the washer. See
"Electrical Requirements."
• Hot and cold water faucets located within 90 cm (3 ft) of the
hot and cold water fill valves, and water pressure of
34.5-690 kPa (5-100 psi). Washers with triple dispensers
require 138-690 kPa (20-100 psi) for best performance.
• A level floor with a maximum slope of 2.5 cm (1") under entire
washer. Installing the washer on carpeting is not
recommended. Ventilation openings in the base must not be
obstructed by carpet.
• A sturdy floor to support the washer weight (washer, water
and load) of 143 kg (315 Ibs).
Do not store or operate your washer in temperatures at or below
0°C (32°F). Some water can remain in the washer and can cause
damage in low temperatures. See "Washer Care" in the Washer
User Instructions for winterizing information.

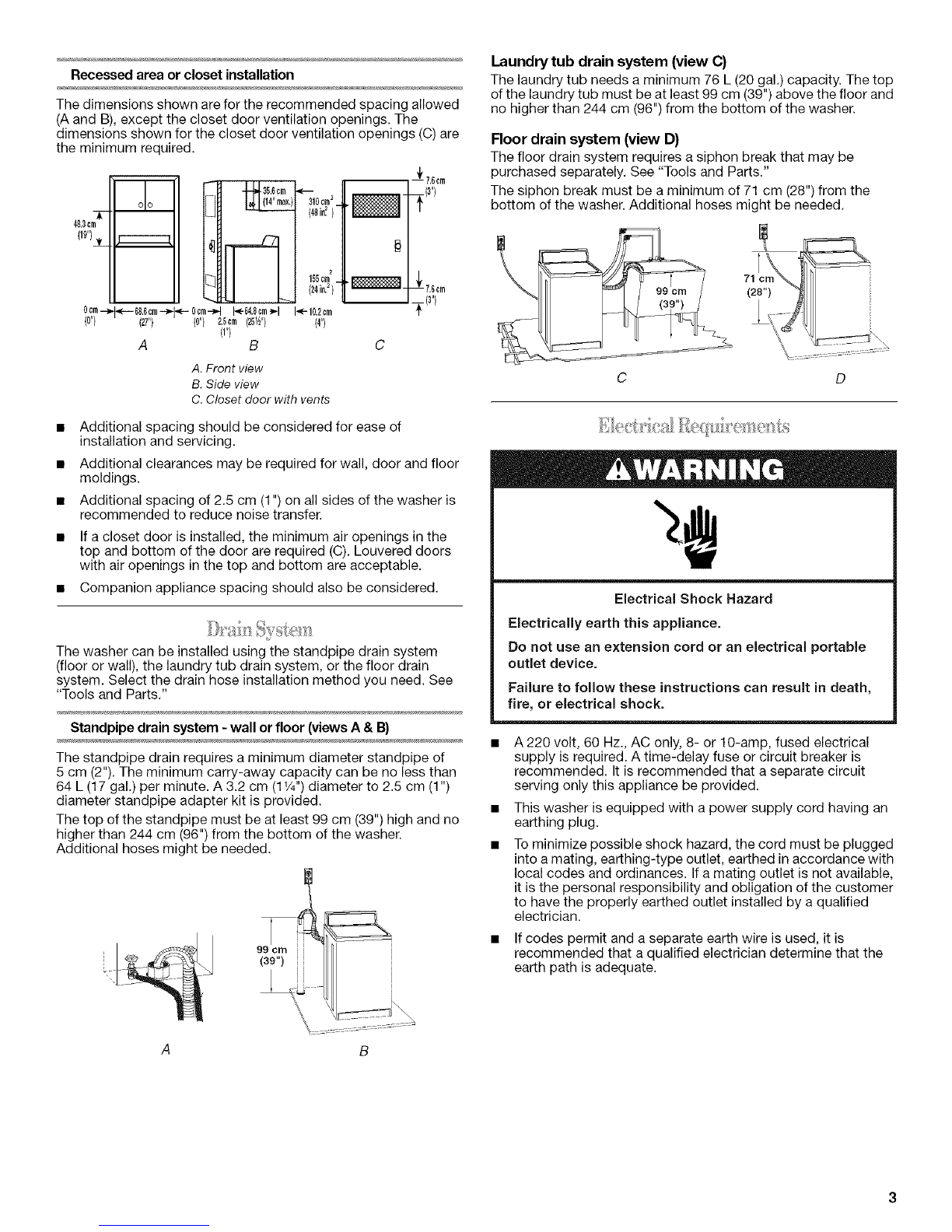

Recessed area or closet installation
The dimensions shown are for the recommended spacing allowed
(A and B), except the closet door ventilation openings. The
dimensions shown for the closet door ventilation openings (C) are
the minimum required.
olo
48.3c_
(_9"I_LEZZZZZZ_ ===Z21
0 cm--_-= 68.6crn-_1,_ 0cm-_1 I<- 64.8crn_ <--10.2crn
(0") 27" 0" 2.5cm 251/2' (4")
A B
A. Front view
B.Side view
C.Closet door with vents
-- _ 7,6cm
310cm_ IJ
(48in_I_ _- _(3'/
155crn 11
(24in.'}_ _- JL7.6crn
__ _- (3"1
C
•Additional spacing should be considered for ease of
installation and servicing.
• Additional clearances may be required for wall, door and floor
moldings.
• Additional spacing of 2.5 cm (1") on all sides of the washer is
recommended to reduce noise transfer.
If a closet door is installed, the minimum air openings in the
top and bottom of the door are required (C). Louvered doors
with air openings in the top and bottom are acceptable.
Companion appliance spacing should also be considered.
The washer can be installed using the standpipe drain system
(floor or wall), the laundry tub drain system, or the floor drain
system. Select the drain hose installation method you need. See
"Tools and Parts."
Standpipe drain system -wall or floor (views A & 13}
The standpipe drain requires a minimum diameter standpipe of
5 cm (2"). The minimum carry-away capacity can be no less than
64 L (17 gal.) per minute. A 3.2 cm (11/4")diameter to 2.5 cm (1")
diameter standpipe adapter kit is provided.
The top of the standpipe must be at least 99 cm (39") high and no
higher than 244 cm (96") from the bottom of the washer.
Additional hoses might be needed.
A
99 cm
(39")
Laundry tub drain system (view C}
The laundry tub needs a minimum 76 L (20 gal.) capacity. The top
of the laundry tub must be at least 99 cm (39") above the floor and
no higher than 244 cm (96") from the bottom of the washer.
Floor drain system (view D)
The floor drain system requires a siphon break that may be
purchased separately. See "Tools and Parts."
The siphon break must be a minimum of 71 cm (28") from the
bottom of the washer. Additional hoses might be needed.
Electrical Shock Hazard
Electrically earth this appliance.
Do not use an extension cord or an electrical portable
outlet device.
Failure to follow these instructions can result in death,
fire, or electrical shock.
• A 220 volt, 60 Hz., AC only, 8- or 10-amp, fused electrical
supply is required. A time-delay fuse or circuit breaker is
recommended. It is recommended that a separate circuit
serving only this appliance be provided.
• This washer is equipped with a power supply cord having an
earthing plug.
• To minimize possible shock hazard, the cord must be plugged
into a mating, earthing-type outlet, earthed in accordance with
local codes and ordinances. If a mating outlet is not available,
it is the personal responsibility and obligation of the customer
to have the properly earthed outlet installed by a qualified
electrician.
If codes permit and a separate earth wire is used, it is
recommended that a qualified electrician determine that the
earth path is adequate.

• Donotearthtoagaspipe.
• Checkwithaqualifiedelectricianifyouarenotsurethe
washerisproperlyearthed.
• Donothaveafuseintheneutralorearthcircuit.
EARTHING INSTRUCTIONS
For an earthed, cord-connected washer:
This washer must be earthed. In the event of a malfunction
or breakdown, earthing will reduce the risk of electrical
shock by providing a path of least resistance for electric
current. This washer is equipped with a cord having an
equipment-earthing conductor and an earthing plug. The
plug must be plugged into an appropriate outlet that is
properly installed and earthed in accordance with all local
codes and ordinances.
WARNING: Improper connection of the equipment-
earthing conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in
doubt as to whether the appliance is properly earthed.
Do not modify the plug provided with the appliance - if it will
not fit the outlet, have a proper outlet installed by a qualified
electrician.
For a permanently connected washer:
This washer must be connected to an earthed metal,
permanent wiring system, or an equipment earthing
conductor must be run with the circuit conductors and
connected to the equipment-earthing terminal or lead on the
appliance.
INSTALLATIONINSTRUCTIONS
Excessive Weight Hazard
Use two or more people to move and install washer.
Failure to do so can result in back or other injury.
NOTE: To avoid floor damage, set the washer onto cardboard
before moving across floor.
2 ......
Removing the shipping material is necessary for proper operation.
If the s.hippin.g material is not removed, the washer will make
excessive noise.
1. Move the washer to within approximately 90 cm (3 ft) of its
final location.
2. The washer must be in the upright position and not tilted
before removing the shipping material.
3. Locate the yellow shipping materials on the rear of the
machine, near the bottom. Follow the steps for your particular
model, either the one with the straight power cord and cord
restraint or the looped power cord version.
Straight power cord
2=
I
I
Straightpower cord
Remove power plug and yellow strap from machine base to
release the rear leveling system.
Firmly grasp the power cord and pull to completely remove
the power cord, cord restraint, and pin from the rear panel.
3. Confirm that the power cord restraint (A), and pin (B) are
removed.
S
A. Power cord restraint B. Pin
4. To remove the power cord from the cord restraint, push the
power cord in, press TAB, and then pull the power cord out.

Looped power cord
Looped power cord
Firmly grasp the yellow shipping strap and pull until both ends
are completely removed from washer.
J
2. Check that two (2) cotter pins were removed with the shipping
strap.
Proper connection of the drain hose protects your floors from
damage due to water leakage. Read and follow these instructions.
The drain hose is connected to your washer and is stored inside
the washer cabinet.
Remove drain hose from washer cabinet
Gently pull the corrugated drain hose out of the washer from the
top of the hose. Continue to pull the hose until the end emerges.
Do not force excess drain hose back into the rear of the washer.
\
Laundry tub drain or standpipe drain
Connecting the drain hose form to the corrugated
drain hose
A. Drain hose reliefs
1. Feed end of drain hose into one end of form. Place end of
drain hose form into the drain hose relief.
2. Bend the hose over the top of the form and feed into the other
end of the form.
If drain hose does not fit into standpipe or if placing over
the edge of a laundry tub:
• Place coupling on end of drain hose. Use a screwdriver to
install hose clamp.
• Then slide the second hose clamp onto coupling. Insert end of
adapter into coupling. Use a screwdriver to install second
hose clamp over coupling.
To keep drain water from going back into the washer:
• Do not force excess drain hose into standpipe. Hose should
be secure but loose enough to provide a gap for air.
• Do not lay excess hose on the bottom of the laundry tub.
Floor drain
Do not install the drain hose form on to the corrugated drain hose.
You may need additional parts. See Floor drain under "Tools and
Parts."
