Whistler WIC-3509P User manual

WHISTLER
Technology for the Way You Live
User Manual
Wireless Inspection Camera
with .Recording Color LCD Monitor
The Whistler Group Corporate Headquarters
3604 NW Frontage Rd.· Bentonville,
AR 72712
Tel [phone] • Fax [phone]
Customer Return Center
551 N. 13th St.· Rogers, AR 72756
Customer Service
Tel [phone]
www.whistlergroup.com
Version No.:
1.0
Please read this User Manual carefully before using the product!

CONTENTS
Welcome 1
Packing List················ 2
Component/Controls . .. . .. . .. .. .. .. . .. . .. .. .. . .. .. .. .. .. .. ..... 3
Installation····················· 4
Operation 7
Basic Operation .. ...... .. .... .. . .. .. .. .. .. .. ..... .. ..... .. ....... .. ........... 7
Other Operations & Settings For Monitor 8
Record Video 8
Take Photo 9

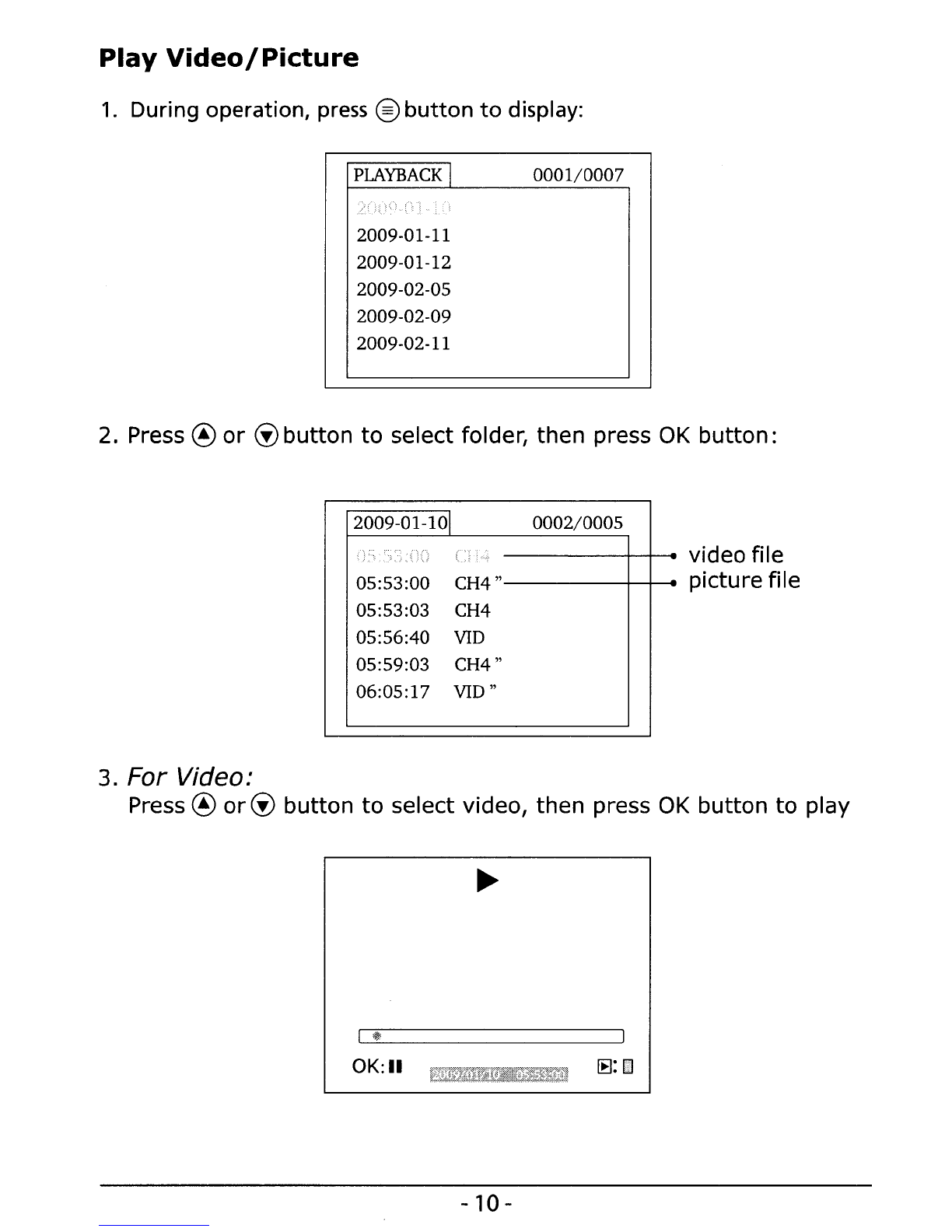

Play Video/Feature 10

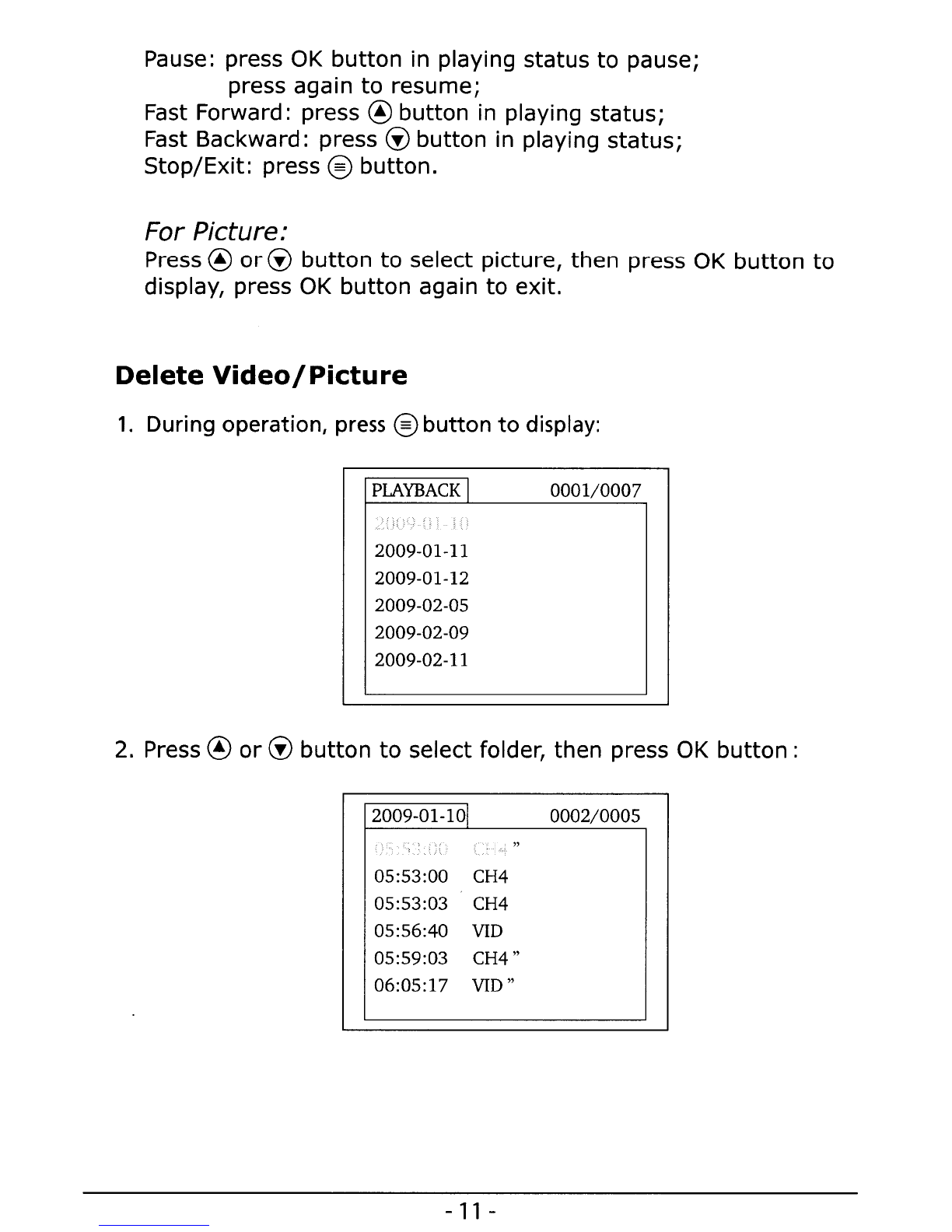

Delete Video/Feature 11
Delete Folder 12

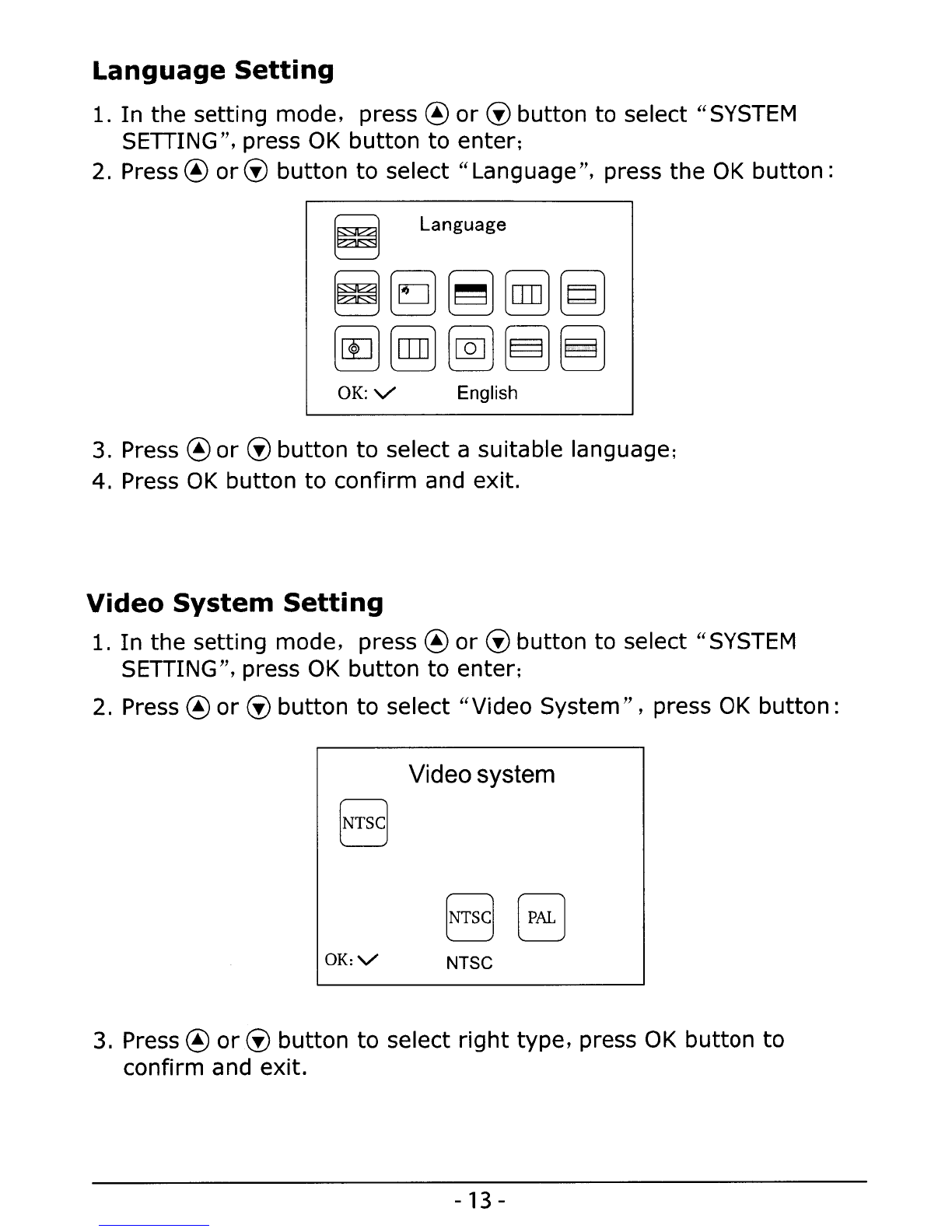

Language Setting 13
Video System Setting 13
Format 14
Default Setup 14
View Version Information 15
Frame Rate Setting 15
Time Stamp Setting 15

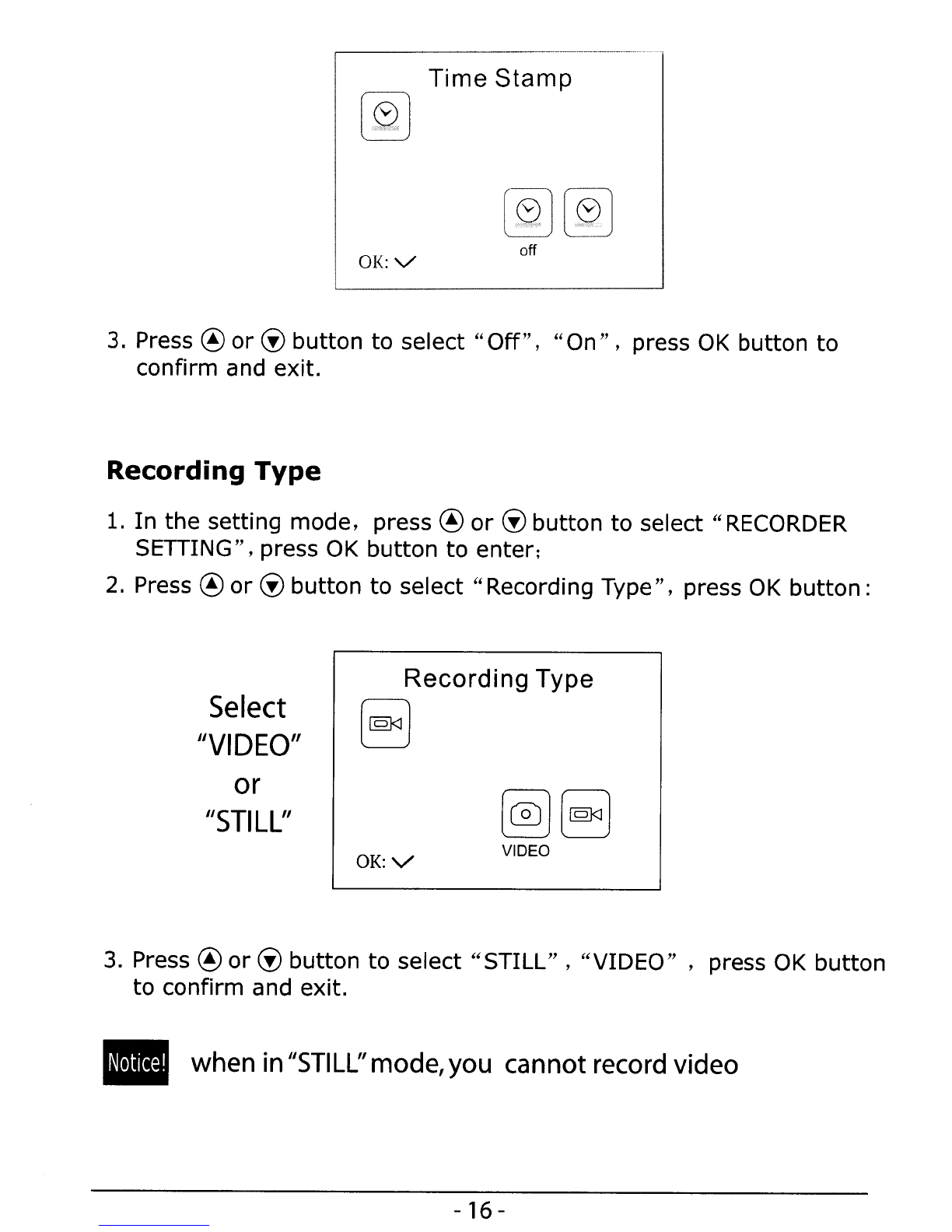

Recording Type 16

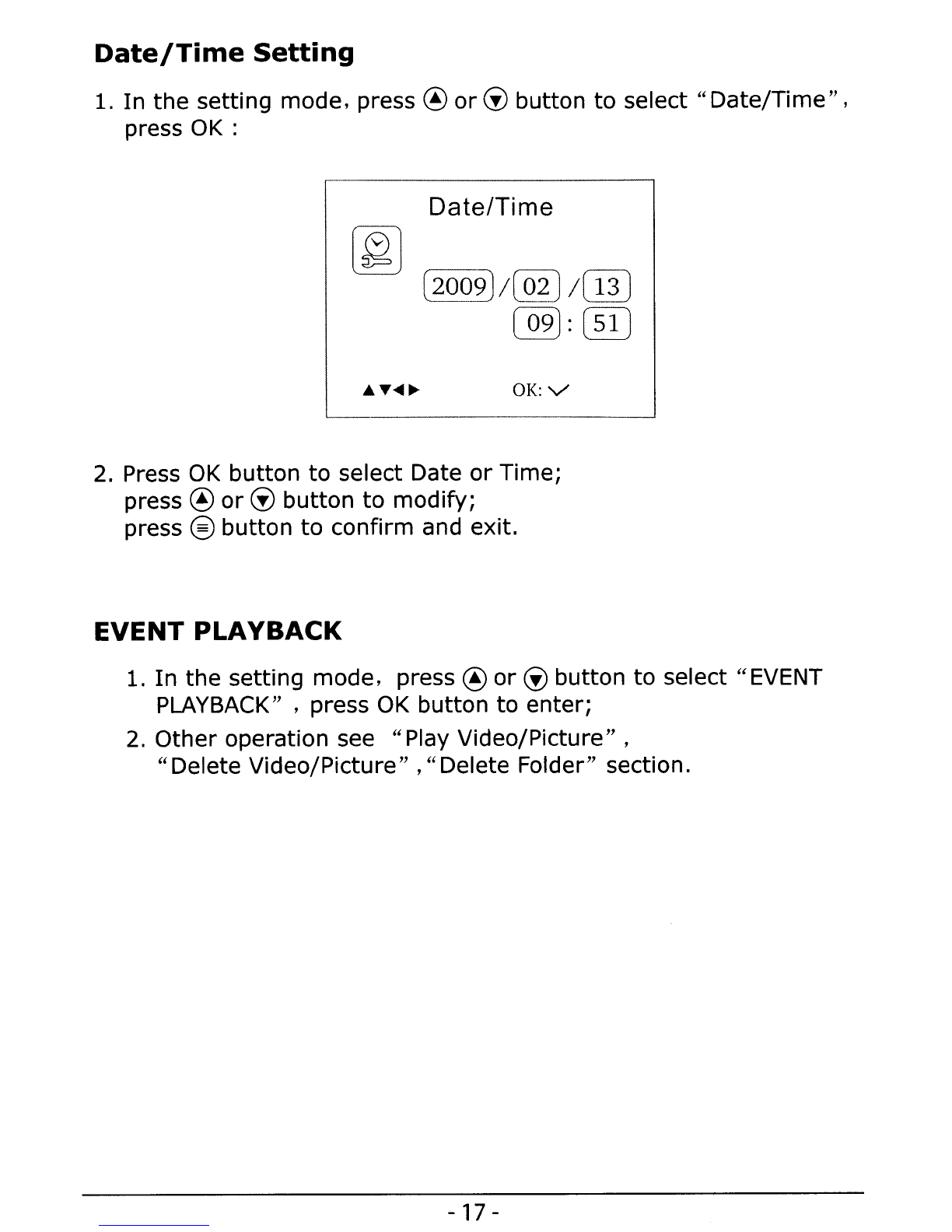

DatelTime Setting 17
Event Playback 17

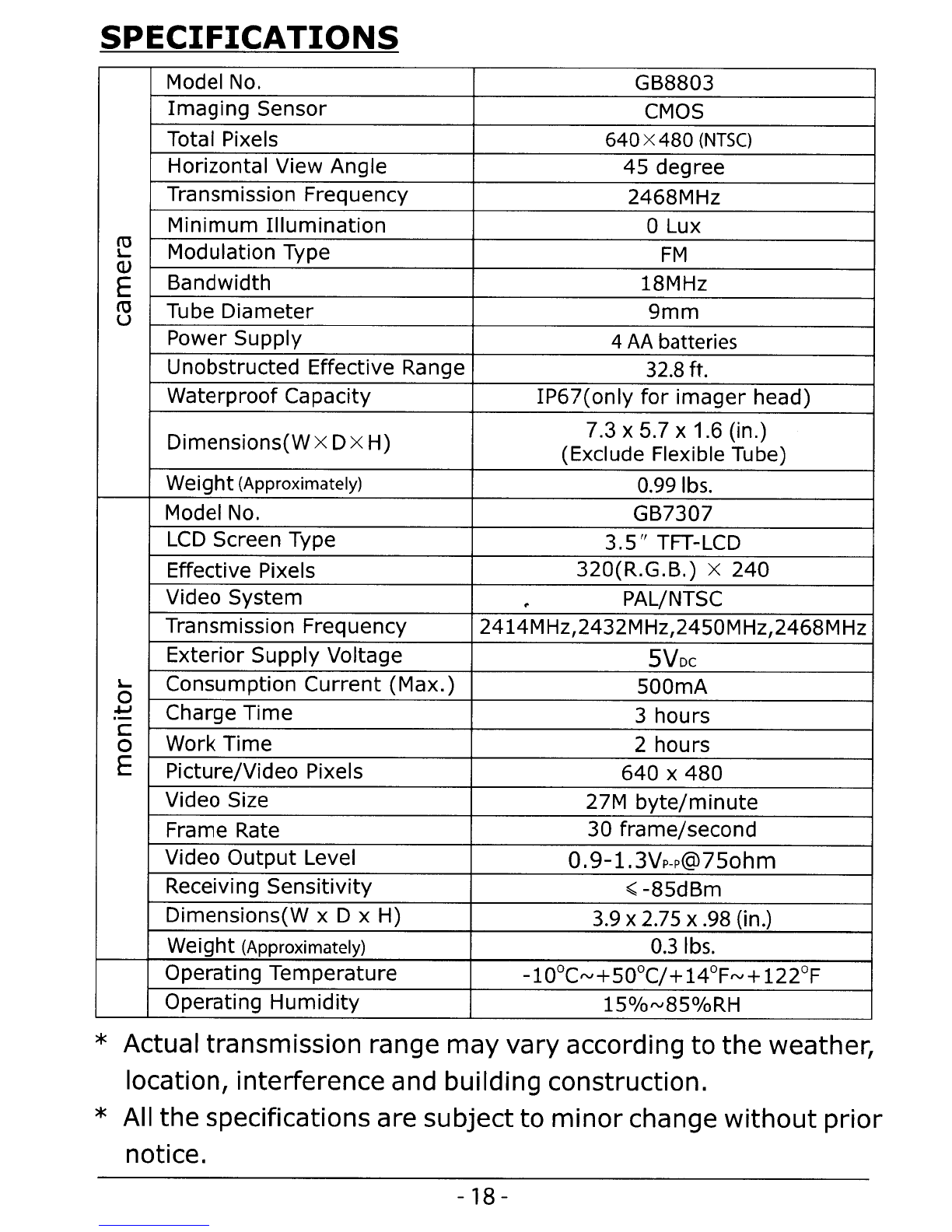

Specifications 18
Caution 19
Warranty· 20
Accessories .................................................................... 21
FCC Information Back Cover

WELCOME
Thank you for choosing our wireless inspection camera. Please read the
user manual carefully before using this product. This
product is designed
as aremote inspection device. It can be used to look into tight spots and
wirelessly transmit real-time video
to the monitor. Typical applications
include
HVAC, automotive inspection, cable routing, etc.
Customer Service
1-800-531-0004
Monday-
Friday· 8:00 am -5:00 pm CT
or visit our website:
www.whistlergroup.com
Ifyou have questions concerning
the operation of this Whistler product,
please call:
Please keep the receipt in asafe place. You may register your product online at
www.whistlergroup.com.
For warranty verification purposes, acopy of your dated
store receipt must accompany any
unit sent in for warranty work. If the unit
is returned without adated store receipt, an out of warranty service charge
applies. Note: Your warranty period begins at the
time of purchase. The
warranty
is validated only by dated store receipt! Please record the serial
numbers (located on
the back of the monitor and inside the grip's battery
compartment door) in
the space provided in the warranty section of the manual.
Enjoy yourWhistler Inspection Camera.
Sincerely,
The Whistler Group, Inc.
- 1-

PACKING LIST
Handheld Grip
9mm Camera with
3ft. tube
3.5 in. LCD Monitor
_-----0
--
Mirror Accessory
Clip
Accessory Collar
Magnetic Swivel
Mount
Magnet Accessory
Clip
Adapter Cable
- 2-
Hook Accessory
Clip
Power Adapter

COMPONENTS/CONTROLS
Camera
Power Indicator
Flexible
Tube
Monitor
OK
Up
Menu
Down
Power
ON/OFF
LED Brightness
Adjustment
Camera Lens and LEOs
Power ON/OFF
Power Indicator
USB Socket
Video Output
SD Card Socket
Power Supply Socket
Reset
Signal
Input
- 3 -
Signal Output

INSTALLATION
Install the batteries,camera tube, and micro SO card (optional)
before using product.
Install Batteries
1. Using ascrewdriver, remove screw and cover.
\, t
2. Remove battery compartment and insert four new AA batteries into
the proper slots in the battery compartment. Proper battery
orientation
is indicated on the battery compartment.
3. Reinstall batterycompartment,cover, and screw.
_Dry your hands before installation or replacing batteries.
Install the Camera with Flexible Tube
When connecting the camera tube to the handheld unit,make sure the keyed
ends
are properly aligned.Once they are lined up, finger tighten the knob to
hold the connector in place.
Engage Camera Tube Plug
and Grip Socket
-4-
Finger tighten the knurled knob

Installed
successfully
Slide
the
monitor
downward
Install Monitor for Wired Use
The product also supports wired use by connecting the monitor to the camera.
(f!!j
Install the Magnetic Swivel Mount
The magnetic swivel mount can be used to secure the monitor to ametal object
Install the bracket
as shown below.
To Install Accessory
The three included accessories (mirror, hook, and magnet) all attach
to the camera (image head) in the same manner. Slide the accessory
through the plastic holder, aligning it with the notch in holder.
Engage the "hook" on
the accessory end with hole in the camera head.
Slide
the plastic holder onto the camera head until it clicks to lock.
Engage hook into hole
A1cessory /Notch Hole
~
/
/Image head
Plastic Holder Slide Plastic Holder
~
onto image head
Accessory Installed
- 5-

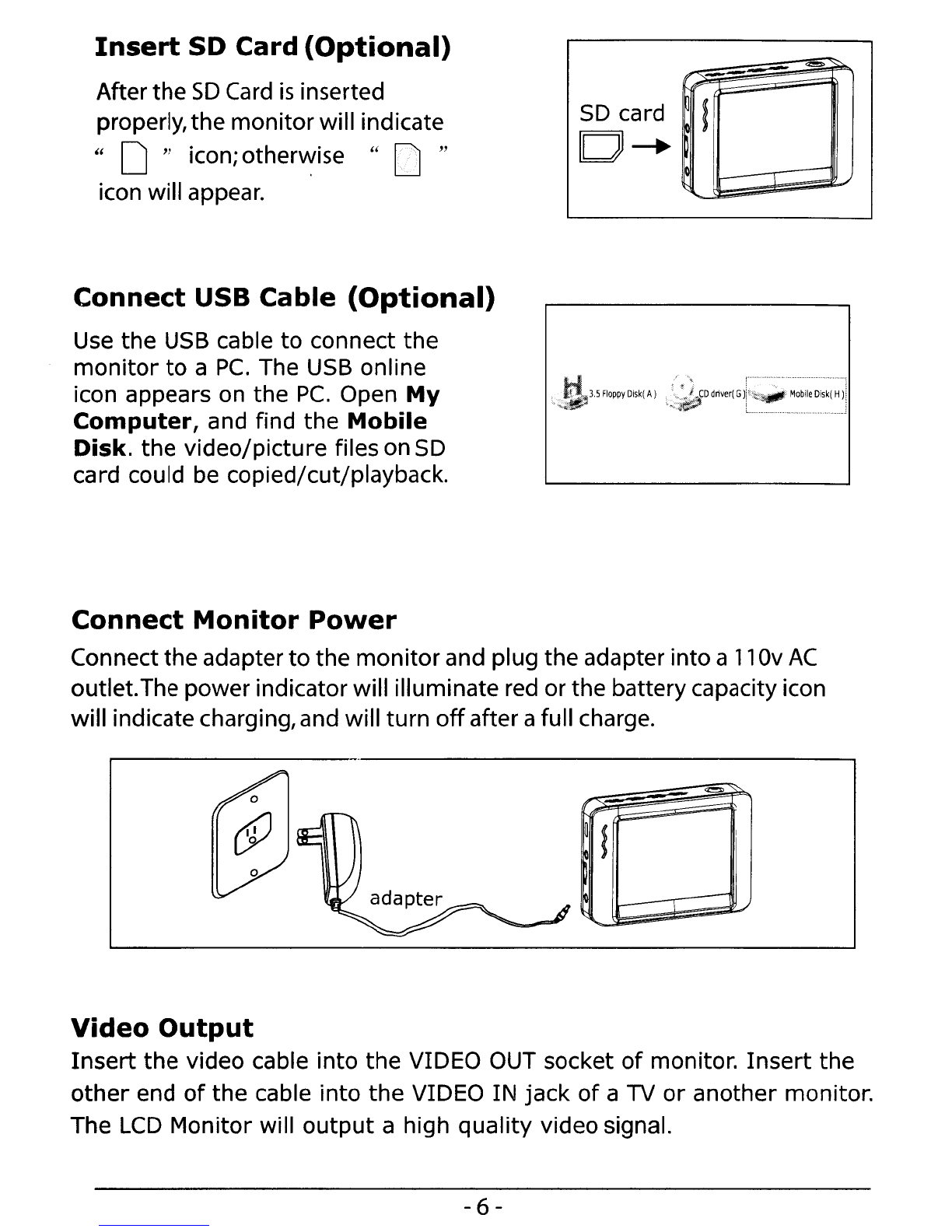

Insert SO Card (Optional)
After the SO Card is inserted
properly,the monitorwill indicate
" D " icon; otherv~dse "D "
icon will appear.
Connect USB Cable (Optional)
Use the USB cable to connect the
monitor to a PC. The USB online
icon appears
on the PC. Open My
Computer, and find the Mobile
Disk. the video/picture files on
SD
card could be copied/cut/playback.
SD card
0-.
3.5 Floppy Disk( A)
~--~
'=
:>;;..
,po
~
,.-
Connect Monitor Power
Connect the adapter to the monitorand plug the adapter into a 11 Ov AC
outlet. The power indicator will illuminate red or the battery capacity icon
will indicate charging, and will turn
off after afull charge.
~
=
~
F"
ij ~
,....
l-
I=
-
Video Output
Insert the video cable into the VIDEO OUT socket of monitor. Insert the
other end of the cable into the VIDEO IN jack of a TV or another monitor.
The
LCD Monitor will output ahigh quality video signal.
-6-

FourLEDs
provide lighting

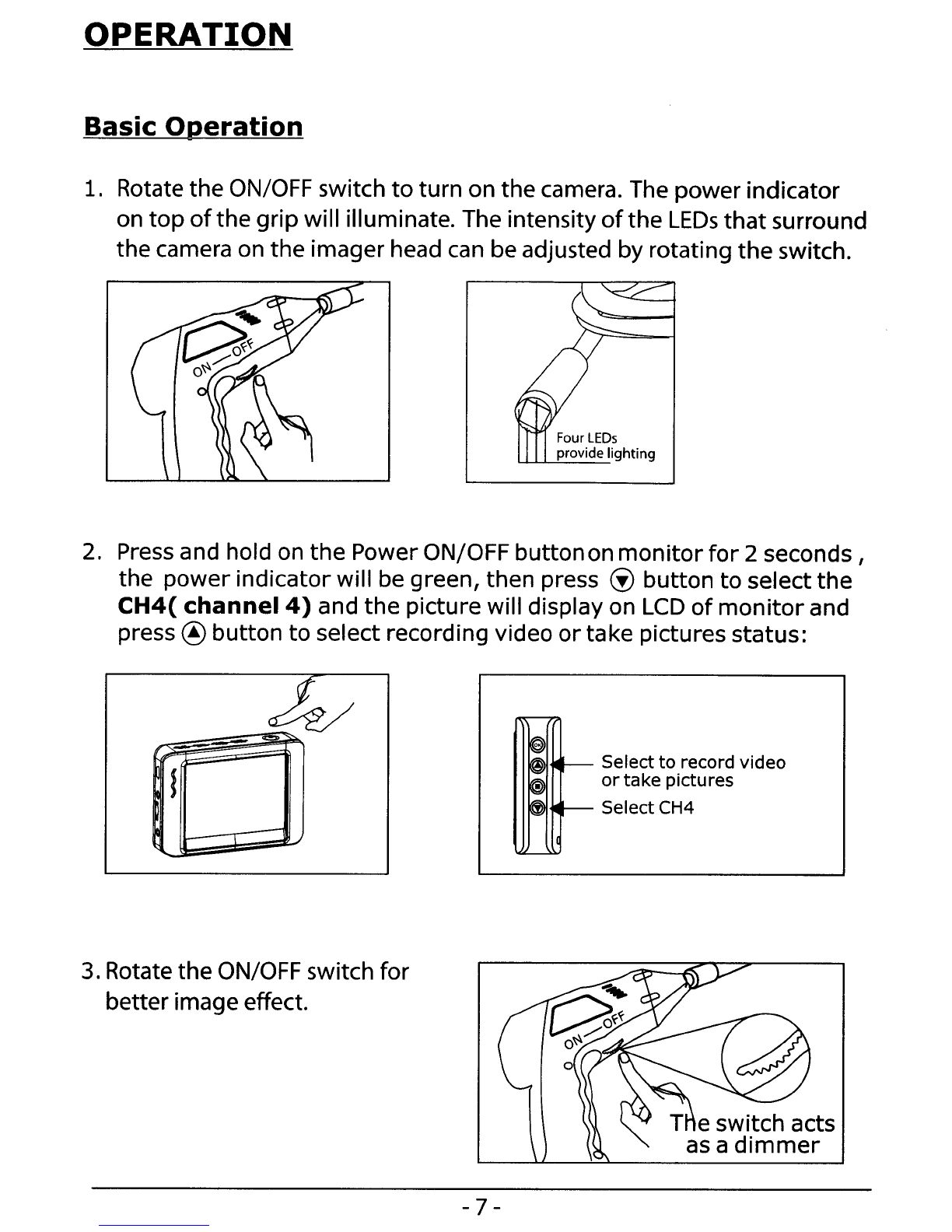

OPERATION
Basic Operation
1. Rotate the ON/OFF switch to turn on the camera. The power indicator
on
top of the grip will illuminate. The intensity of the LEOs that surround
the camera on the imager head
can be adjusted by rotating the switch.
2. Press and hold on the Power ON/OFF buttonon monitor for 2seconds,
the power indicator will be green, then press
<!) button to select the
CH4( channel 4) and the picture will display on LCD of monitor and
press @button to select recording video
or take pictures status:
........,::~~
-=..
1!f!"
I-
-
3. Rotate the ON/OFF switch for
better image effect.
-
I~
:iD,--- Select to record video
~ or take pictures
~ SelectCH4
-
T e switch acts
as a dimmer
-7-

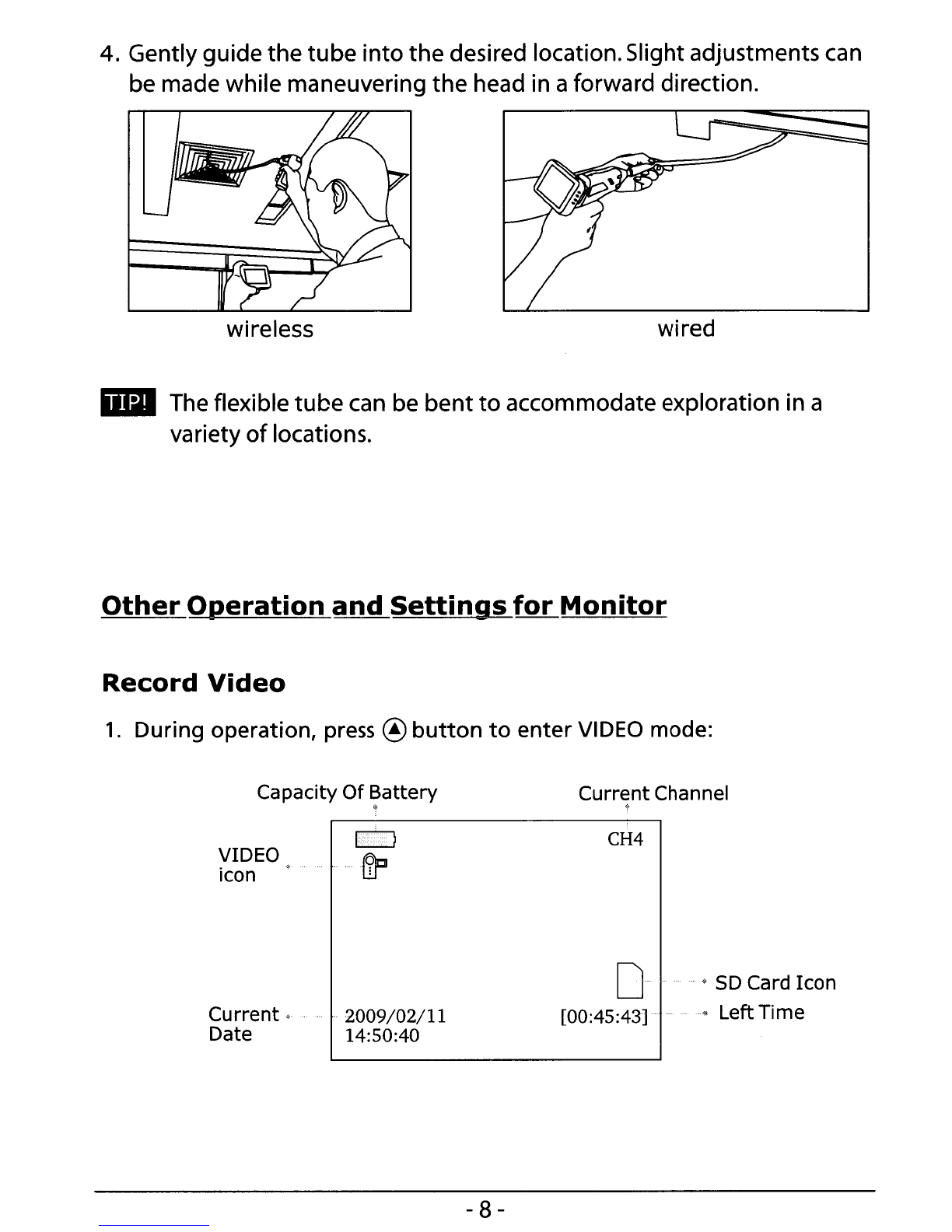

4. Gently guide the tube into the desired location.Slight adjustments can
be made while maneuvering
the head in aforward direction.
wireless wired
mil The flexible tube can be bent to accommodate exploration in a
variety
of locations.
Other Qperation and Settings for Monitor
Record Video
1. During operation, press @ button to enter VIDEO mode:
Capacity Of Battery
~.
Current Channel
t
VIDEO
icon .~
Current 0
Date
2009/02/11
14:50:40
-8-
CH4
o
[00:45:43]
*SD Card Icon
"LeftTime
