Operation Manual
lz1 Hcrpyrcqilfl no eKCnfl yar aqtAt

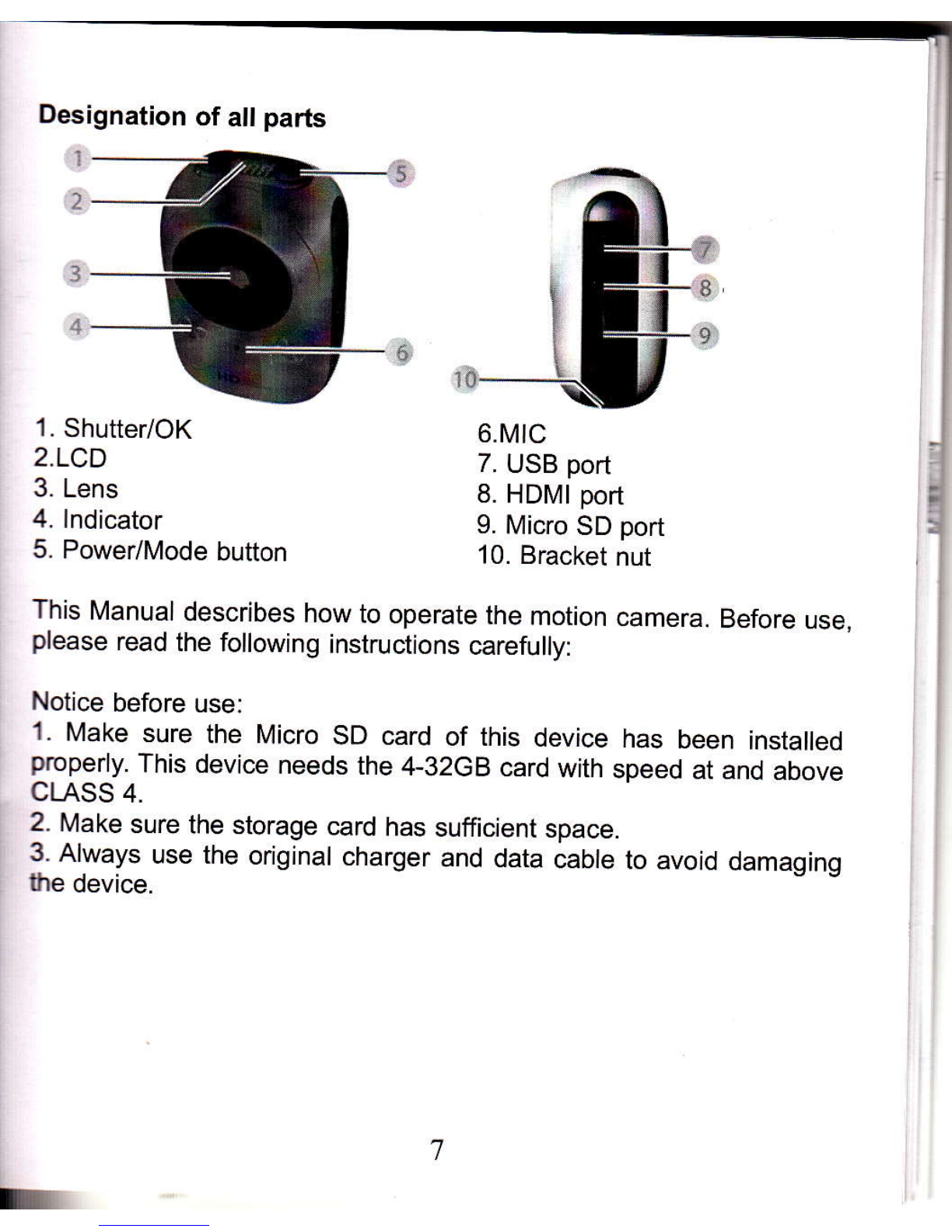

Designation of all parts a
. ra-:
lrr:
,*-ry
6.MIC
7. USB port
8. HDMI port
9. Micro SD port
10. Bracket nut
This Manual describes how to operate the motion camera. Before use,
please read the following instructions carefully:
Notice before use:
1. Make sure the Micro SD card of this device has been installed
properly. This device needs the 4-32G8 card with speed at and above
CLASS 4.
2. Make sure the storage card has sufficient space.
3. Always use the original charger and data cable to avoid damaging
the device.
1. Shutter/OK
2.LCD
3. Lens
4. lndicator
5. Power/Mode button
E

Basic lnformation
Power-on/off:
The camera uses the SDHC card with speed at and above CLASS 4.
lnsert the SDHC card into the Micro SD card slot, press the Power key
once, then the LCD screen will display the icon of the card and the
buzzers has one sound. Then the camera in default enter the 1080@
30fps mode (green LED).
lf the camera is always in the idle state for 3 minutes, it will
automatically switch off. But wifi mode does not automatically shut
down.
Mode Setup
WIFI e: I Wireless wifi signal icon
Batterv Displav the oower caDacitv
Photo Mode ln Dholo mode
SD card The icon will flicker continuously when the SD
card is unidentiflable,
720 mode ln 720p@60 frame/s video mode
1080 mode ln 1080of430 frame/s video mode
Mode Switching
When the camera is switched on, the default mode is 1,080@30
frames/s and the LED indicator is in green. To switch modes, press
the Mode key once. Press the Power/Mode key to circulate modes in
the following order: 720P60, Photo, Back and 1080P30.
1080p@30fps Mode-Green LED
When the cameE is switched on, the default mode is 1080@30
fames/s. ln the preview mode, press the Shutter button once again,
the camera will start to,take videos. ln the process of videoing, the
green LED indicator will flicker; press the Shutter button again to stop,
then the green LED indicator will keep in solid green.
720P@60fps Mode-Blue LED
Press the Shutter button once. ln the preview mode, the camera will
start to take videos. ln the process of videoing, the blue LED indicator
will flicker; press the Shutter button again to stop, then the blue LED
indicator will keep in solid green.
Photo Mode-Red LED
ln '1080P30 mode, press the MODE key to switch to photo mode;
press the Shutter button to take photos with the red LED in solid green
When the camera is in the standby mode, to take single photo, press
the Shutter button, then you will hear the sound from the buzzet and
see the red LED indicator flickers once, and thus one photo has been
taken.
Wifi mode - Orange LED
WlFl function is turned off by default, to start the WlFl function, simply
press the shutter button for 5 seconds, you will hear a beep, LCD
display will show a fixed WlFl symbol, orange LED flashes. At this
point has entered the wifi mode. WlFl is activated, press and hold the
record button for 5 seconds to turn it off.
When you activate the camera after the wifi mode, follow the steps
below to connect your phone to the camera:
AP software installed on the phone, ispo.APK for android mobile
phones, ispo.ipa for the iphone mobile phones,
Open the phone wifi function,
From the available wireless networks found in the camera's device
name: eg "a5-A000001"
Wifi camera default password is "1234567890", enter the correct
password the phone and the camera will form a point to point
connection, the connection is successful Orange LED changes to

steady the camera.
Open the Start ispo software installed, you can see on the screen
from the phone camera's vievvfinder window and control the camera to
take pictures, video, and memory card from the camera to download
pictures and video files to the phone memory finest related I
operations. I
Note: The camera is connected to a phone is 1to-1 relationship,
when connected to a phone, can not connect to other phones, such
as the need to connect the other hand will be connected before
machine disconnect that phone, and supports android2. 3 or above
with ios version of the phone.
LCD Screen
lf there is no Micro SD card is inserted; after the camera is switched
on, the SD card icon will flicker.
lf the Micro SD card has been inserted into the camera, then the SD
card icon on the LCD screen will always appear.
ln DV mode, the LCD screen of the camera will display the
information as shown in P-0'1.
After the reproduction card is inserted and the file is upgraded to the
root directory of the Micro SD card; press the MODE key to start to
upgrade FW. The information on the LCD screen is as shown in P-02.
The work indicator will flicker until the upgrade is over.
information on the LCQ screen is as shown in P-04 below. lf the power
is always low, the buzzer will give three sounds and then the camera
will switch off. lf this happens in the recording process, the video file
will be saved the portion before power outage and generally can be
played.
Yy
(r431
xz
When the camera is connected with a PC with USB cable, it will be
used as a mobile disc with the information shown as P-05. ln such
case, you may access or move the photo and video files in the
camera to the PC. ln such case, the battery is being charged. Press
the MODE key to enter the PCCAM mode with the information as
shown in P-06.
When the camera is connected with a TV via HDMI cable, press the
Shutter button to play and stop the current video and press the MODE
key to switch to the next segment.
Tip:
ln video photo mode, enter HDMI to browse video files; in photo mode,
enter the HDMI to browse photos.
t cnt
lEl
t Li|
*IP{41 US, Mo3! fC ffode
tP{st irsl
*-@-l
zzo EL
lll,:lLl I
@lI
LITJ]
.Av Ts."dd
{a"02)
I
i
Tip of Low Power
When the capacity of the battery is low, in video mode, the information
on the LCD screen is as shown in P-03 below. lf in Photo mode, the
t1
5I
Ll
10

Gharge
When the camera is being charged, the battery icon will continuously
flicker on the screen. When the battery is fully charged, the screen will
display a full stlll battery icon. This device has the function of
recording while being charged, i.e. the camera can work as usual
while is being charged.
Date/Time Setup
ln PC, use TIMESET.TXT to set date/time in the format for example
01 00 00 06 01 2012, meaning, Hour/Minute/Second/ Month/Day/year.
Copy TIMESET.TXT into the Micro SD card. When the camera has
the Micro SD with TIMESET.TXT set properly; after the camera is
switched on, the camera will automatically copy the set time into the
camera.
Description:
The HD motion DV with waterproof shell and flexible bracket allows
you to use it in various situations.
Disclaimer:
Although we have tried our best to ensure the accuracy and integrity
of the information in this Manual, we will not be liable for any enor or
omission herein. We should reserve the right to modify the hardware
and software of the device at any time without further notice.
I
l
t
Sensor 2 Meqaoixels sensor
Lens Ft2.8
Angle of view 120"
Foils 0.4m-infinite
HDMI Mini TvDe D HDMI
Bafterv oower 3.7V lithium batteru
Switch on One buzzer sorrnd
Button action One buzzer sound
10800 30 video mode Green LED indicator flickerino
720p 60 video mode Blue LED indicalor flickerino
Photo mode Red LED indicator flickerino
Low power capacity Red LED indicator flickering with
buzzer sound
s
Items Specs
Video resolution 1080p @30 frames/s
720o @.3O frames/s
Video format H.264 MOV
Sound Yes, one-channel
Photo resolution 5.0 Meqapixels
Photo formal JPEG
lnternal memory Micro SDHC Class4+ up to32GB
