Wido WD010110350 Maintenance and service guide

350W
Electric drill
WD010110350

W
D010110350
Thank you for purchasing a WIDO product. We are confident that you will appreciate the quality
of the product and you will be entirely satisfied with your purchase. Please read carefully the
user safety and operating instruction on how to operate this product correctly within safety
norms and regulations.

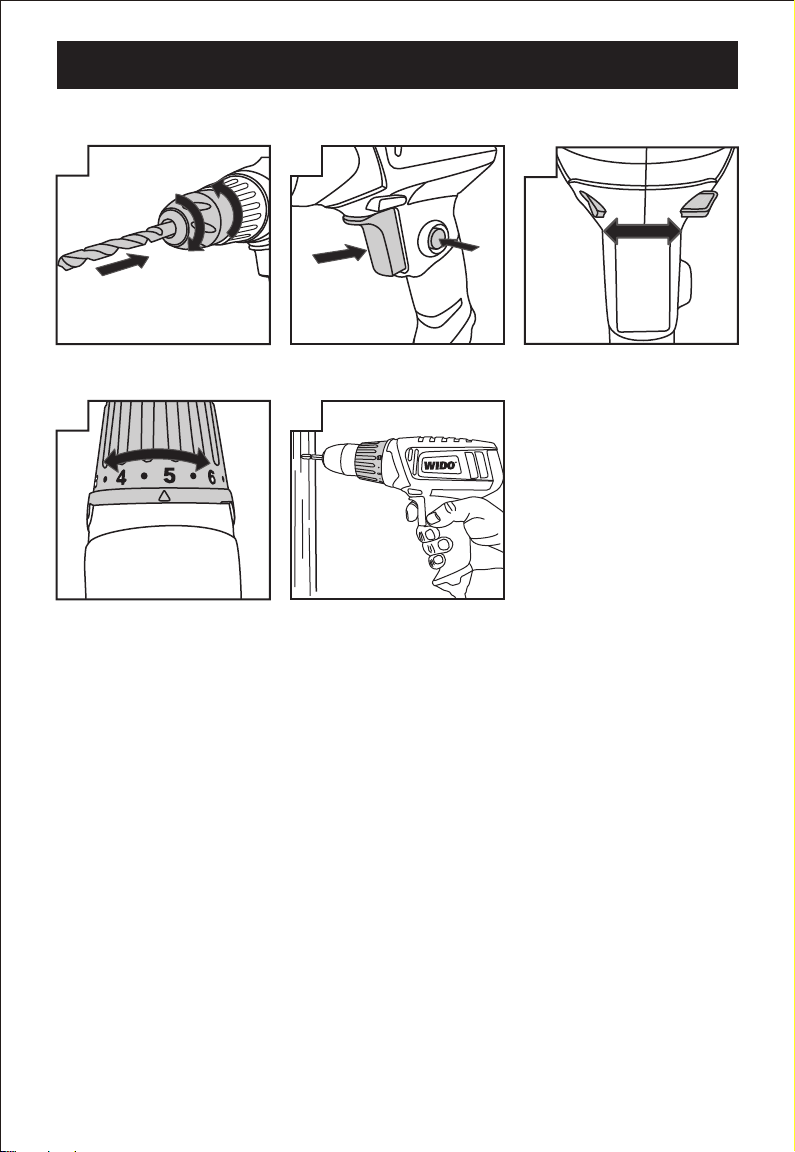

2

3
12
3
4
5
WD010110350

L R
WD010110350
4
3
2 1
5 4

350W ELECTRIC DRILL ENG
COMPONENT LIST
1) Keyless chuck
2) Torque adjustable ring
3) Lock-on switch
4) Variable speed trigger switch
5) Forward and reverse rotation control lever
NORMAL ACCESSORIES
1) Spare carbon brush: 1set
We recommend that you purchase your accessories from the same store that sold you the tool.
Use good quality accessories marked with a well-known brand name. Choose the type according to the
work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can
assist you and offer advice.
5

350W ELECTRIC DRILL ENG
GENERAL POWER TOOL SAFETY WARNINGS
Warning: Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructionsfor future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.Distractions can cause you
to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.Use
of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication.A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power toolmayresult inpersonal injury.
6

350W ELECTRIC DRILL ENG
e) Do not overreach. Keep proper footing and balance at all times.This enables better control of
the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.The correct
power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off.Any power tool that cannot
be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in the
hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused bypoorlymaintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power tool
for operations different from those intended could result in a hazardous situation.
5) Battery tool use and care
a) Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack
into power tools that have the switch on may be invites accidents.
b) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one
type of battery pack may create a risk of fire when used with another battery pack.
c) Use power tools only with specifically designated battery packs.Use of any other battery packs
may create arisk of injury and fire.
d) When battery pack is not in use, keep it away from other metal objects like paper clips, coins,
keys, nails, screws, or other small metal objects that can make a connection from one terminal
to another. Shorting the battery terminals together may cause burns or a fire.
e) Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
7

350W ELECTRIC DRILL ENG
ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR POWER TOOL
1) Wear ear protectors with power tool. Exposure to noise can cause hearing loss.
2) Wear safety goggles or eye protection when using this power tool. Use a dust mask or respirator for
applications which generate dust.
3) Hold power tool by insulated gripping surfaces when performing an operation where the cutting
accessory may contact hidden wiring or its own cord. Cutting accessory contacting a ‘live’ wire will
make exposed metal partsof the power tool‘live’ and could give the operator an electric shock.
4) Use clamps or other practical way to secure and support the workpiece to a stable platform, if
possible. Holding the work by hand or against your body is unstable and may lead to loss of control.
5) Always use the correct shape and size of screwdriver bit that matches the head of the screw.
6) Do not use worn or damaged screwdriver bits. Worn or damaged screwdriver bits will not drive the
screw properlyand mayjump out of the screw head, causing possible injury.
7) Make sure bit are tightened securely in chuck.
8) Be sure no one is below when using the tool in high locations.
9) After long working periods, external metal parts and accessories could be hot.
10) Before you laydown the power tool, make sure that all moving parts have come to a stop.
11) When an extension cord is required you must ensure it has the correct ampere rating for your
power tool and that it is in a safeelectrical condition.
12) Fullyunwind extension cords to avoid potential overheating.
SYMBOLS
To reduce the risk of injury, user must read instruction manual
Double insulation
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice
8

350W ELECTRIC DRILL ENG
TECHNICAL DATA
OPERATING INSTRUCTIONS
Note: Before using the tool, read the instruction manual carefully.
1. Intended use
The machine is intended for drilling in wood, metal and plastic. Machines with electronic control and
right/left rotation are also suitable for screwdriving and thread-cutting.
2. Before using your power tool
1) Be careful of hidden electrical lines or gas and water pipes. Check the working area, e.g., with a
metal detector.
2) Ensure that the power switch is in the off position. If the plug is connected to a power receptacle
while the power switch is in the on position, this power tool will start operating immediately, inviting
serious accident.
3. Inserting the tool into chuck
To insert the tool into chuck, rotate the front section of the chuck anticlockwise viewing from chuck end
while holding the rear section of the chuck, and open chuck jaws to approximate driver bit or drill bit
diameter. Insert a clean bit in to the chuck. Finally, close the chuck by rotating the two sections of the
chuck and securely tighten by hand (See Fig 1).
Warning: Before installing tool, remove mains plug from mains supply.
053011010DWledoM
CAV042-022CAV021-011egatloV
zH06-05zH06-05ycneuqerF
W053W053tupnirewoP
No load speed 0-750/min 0-750/min
Max. capacity
Steel 3/8″Φ10mm
Wood 1″Φ25mm
Wood screw ST5.5X60mm ST5.5X60mm
m.N51m.N51euqroT.xaM
Torque control ring 16+1 positions 16+1 positions
Chuck capacity 1/32″- 3/8″Φ0.8 -10mm
ssalcnoitcetorP
gk53.1gk53.1thgiewenihcaM
9

350W ELECTRIC DRILL ENG
4. Operating the switch
1) To start the power tool, simply press the switch trigger. The power tool speed is increased by
increasing pressure on the switch trigger. Release the switch trigger to stop your power tool.
2) If you wish to use the power tool continuously, press switch trigger then lock on button, release
switch trigger first and lock on button second (See Fig 2). Your switch is now locked on for continuous
use. To turn off your power tool just press and release the switch trigger. The switch will return to "off"
position automatically.
5. Forward/reverse rotation selector switch
This power tool has a forward and reverse selector switch to change the direction of rotation. For
drilling and screwdriving use forward rotation marked “R” (selector switch is moved to the left of power
tool). Only use reverse rotation marked “L” (selector switch is moved to the right of power tool) to
remove screws or release a jammed drill bit (See Fig 3).
Note: Never move the forward and reverse rotation selector switch whilst the power tool in operation or
theon/off switch is locked as this will damage your power tool.
6. Torque adjustable ring
1) The fastening torque can be adjusted in 16+1 steps by turning the torque adjustable ring so that its
graduations are aligned with the pointer on the power tool body. The fastening torque is minimum when
the number 1 is aligned with the pointer, and maximum when the“ ”marking isaligned with the pointer
(See Fig 4).
2) The clutch will slip at various torque levels when set at the number 1 to 16. The clutch is designed
not to slip at the “ ” marking.
3) Before actual operation, drive a trial screw into your material or a piece of duplicate material to
determine which torque level is required for a particular application.
7. Drilling operation
First, turn the torque adjustable ring so that the pointer points to the “ ” marking. Then proceed as
follows：
1) Drilling in wood
When drilling in wood, the best results are obtained with wood drills equipped with a guide screw. The
guide screw makes drilling easier by pulling the bit into the workpiece.
2) Drilling in metal
To prevent the bit from slipping when starting a hole, make an indentation with a center-punch and
hammer at the point to be drilled. Place the point of the bit in the indentation and start drilling. Use a
cutting lubricant when drilling metals. The exceptions are iron and brass which should be drilled dry.
Note:
•Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressure will only
serve to damage the tip of your bit, decrease the tool performance and shorten the service life of the
tool.
•There is a tremendous force exerted on the tool / bit at the time of holes break through. Hold the tool
firmlyand exert care when the bit begins to break through the workpiece.
10

350W ELECTRIC DRILL ENG
8. Screwdriving operation
Place the point of the driver bit in the screw head and apply pressure to the power tool. Start the power
tool slowly and then increase the speed gradually. Release the switch trigger as soon as the clutch cuts
in (See Fig 5).
Note: Make sure that the driver bit is inserted straight in the screw head , or the screw and /or bit
may be damaged.
WORKING HINTS FOR YOUR POWER TOOL
1 Drilling steel
Turn the torque adjustable ring so that the pointer points to the “ ” marking. HSS drill bits should
always be used for drilling steel.
2 Drilling wood
Turn the torque adjustable ring so that the pointer points to the “ ” marking. Wood drill bits should
always be used for drilling wood.
3 Screw driving
Always use the correct type of screwdriver bit. If screws are difficult to tighten, try applying a small
amount of washing liquid or soap as a lubricant.
4 Pilot holes
1) When drilling a large hole in tough material (i.e. steel), we recommend drilling a small pilot hole first
before using a large drill bit.
2) Before screwing larger, longer screws into hard materials, we recommend drilling a small pilot hole
with the core diameter of the thread to approx. 2/3 of the screw length.
5 Cool the motor
If your power tool becomes too hot, set the speed to maximum and run no load for 2-3 minutes to cool
themotor.
MAINTENANCE
Warning: Remove the plug from the socket before carrying out any adjustment, servicing
or maintenance.
1. Keep the power tool ventilation slots clean and free from obstructions. If available, blow compressed
air into the vents to clear any internal dust (safety goggles must be worn when undertaking this
process).
2. Never use water or chemical cleaners to clean yourpower tool. Wipe clean with a dry cloth.
3. Your power tool requires no additional lubrication.
4. Always store your power toolina dry place.
5. If you see some sparks flashing in the ventilation slots, this is normal and will not damage your power
tool.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
TROUBLESHOOTING
1. If your power tool will not operate, check the power at the mains plug, or check the carbon brushes.
11

350W ELECTRIC DRILL ENG
2. If the drill doesn’t work properly, check the drill bit for sharpness, replace drill bit if worn. Check that
the drill is set to forward rotation for normal use.
3. If a fault can’t be rectified,return the power tool to an authorized dealer for repair.
ENVIRONMENT PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice.
12

350W ELECTRIC DRILL ENG

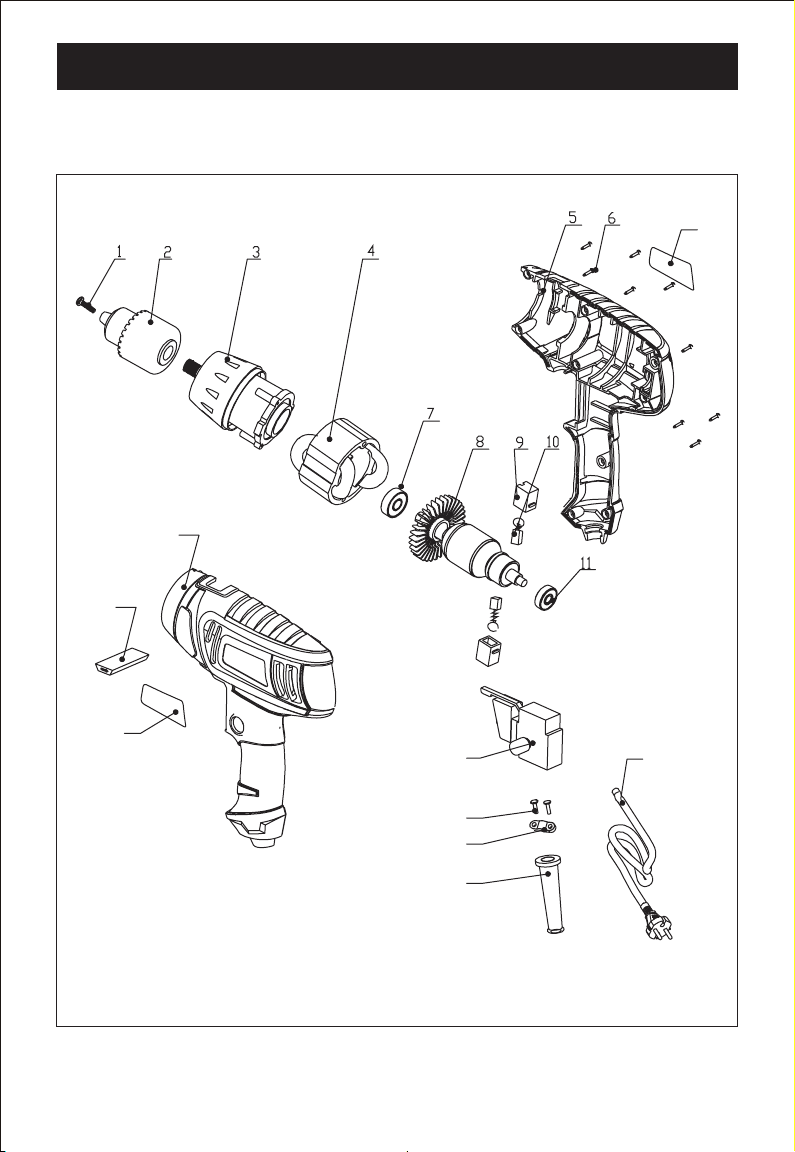

EXPLOSIVE VIEW
13
12
13
14
15
16
17
19
18
20

350W ELECTRIC DRILL ENG
PART LIST
NO DESCRIPTION Q’TY NO DESCRIPTION Q’TY
1gniraeB111wercsdaehtfeL1
1hctiwS211kcuhcsselyeK2
2wercS311xobraeG3
1pmalcelbaC411rotatS4
5 Right housing 1 15 Cable protector 1
1gulpdnaelbaC619wercS6
1revellortnocnoitatoR711gniraeB7
1lebaL811rotoR8
9 Brush holder 2 19 Left housing 1
10 Carbon brush 2 20 Nameplate 1
14

WD010110350
15

MADE IN CHINA
Copyright @ WIDO Machinery Co., Ltd. All rights reserved. www.widopt.com
