Wisenet SCD-6025R User manual

High Resolution Camera
User Manual
SCD-6025R
SCO-6025R

High Resolution Camera
User Manual
Copyright
©2020 Hanwha Techwin Co., Ltd. All rights reserved.
Trademark
Each of trademarks herein is registered. The name of this product and other trademarks
mentioned in this manual are the registered trademark of their respective company.
Restriction
Copyright of this document is reserved. Under no circumstances, this document shall be
reproduced, distributed or changed, partially or wholly, without formal authorization.
Disclaimer
Hanwha Techwin makes the best to verify the integrity and correctness of the contents in
this document, but no formal guarantee shall be provided. Use of this document and the
subsequent results shall be entirely on the user’s own responsibility. Hanwha Techwin
reserves the right to change the contents of this document without prior notice.
Design and specifications are subject to change without prior notice.

English_3
●SAFETY INFORMATION
safety information

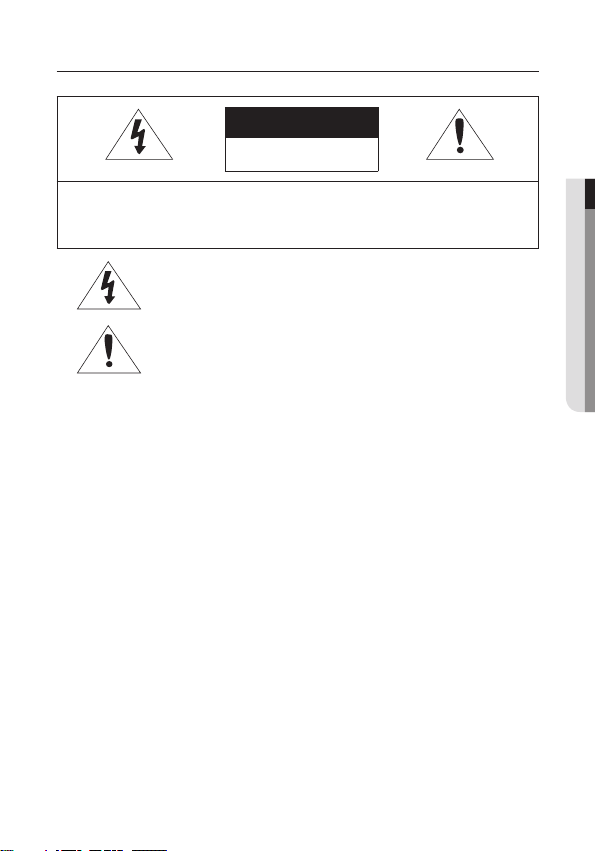

CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a risk of electric
shock is present within this unit.
This exclamation point symbol is intended to alert the user to the
presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING
• To prevent damage which may result in fire or electric shock hazard, do not expose this
appliance to rain or moisture.
• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance
with the installation instructions.
WARNING
1. Be sure to use only the standard adapter that is specified in the specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to the product.
2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire,
electric shock, or damage to the product.
3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause
abnormal heat generation or fire.
4. Securely plug the power cord into the power receptacle. insecure connection may
cause fire.
5. When installing the camera, fasten it securely and firmly. The fall of camera may cause
personal injury.

4_ safety information
safety information
6. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers
filled with water on top of the camera. doing so may cause personal injury due to fire,
electric shock, or falling objects.
7. Do not install the unit in humid, dusty, or sooty locations. doing so may cause fire or
electric shock.
8. If any unusual smells or smoke come from the unit, stop using the product. in such case,
immediately disconnect the power source and contact the service center. continued use
in such a condition may cause fire or electric shock.
9. If this product fails to operate normally, contact the nearest service center. never
disassemble or modify this product in any way. (Hanwha Techwin is not liable for
problems caused by unauthorized modifications or attempted repair.)
10. When cleaning, do not spray water directly onto parts of the product. doing so may
cause fire or electric shock.
CAUTION
1. Do not drop objects on the product or apply strong shock to it. Keep away from a
location subject to excessive vibrationor magnetic interference.
2. Do not install in a location subject to high temperature (over 55°C), low temperature
(below -10°C(SCO-6025R: -30°C)), or high humidity. Doing so may cause fire or electric
shock.
3. If you want to relocate the already installed product, be sure to turn off the power and
then move or reinstall it.
4. Remove the power plug from the outlet when then there is a lightning. Neglecting to do
so may cause fire or damage to the product.
5. Keep out of direct sunlight and heat radiation sources. It may cause fire.
6. Install it in a place with good ventilation.
7. Avoid aiming the camera directly towards extremely bright objects such as sun, as this
may damage the CMOS image sensor.
8. Apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.
9. The Mains plug is used as a disconnect device and shall stay readily operable at any time
10. Do not expose the camera to radioactivity. Radioactivity exposure may damage the
CMOS.

English_5
●SAFETY INFORMATION
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be
disposed of with other household waste at the end of their working life. Where marked, the chemical symbols
Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC
Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health
or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste
and recycle them through your local, free battery return system.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their
working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
please separate these items from other types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local
government office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

6_ important safety instructions
important safety instructions
Other Notes
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong is provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer.
12.Use only with cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus.
13.Unplug this apparatus when a card is used. Use caution when moving
the cart/ apparatus combination to avoid injury from tip-over.
14.Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as powersupply cord or
plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
15.
If you use excessive force when installing the product, the camera may be damaged and
malfunction.
If you forcibly install the product using non-compliant tools, the product may be
damaged.

English_7
●IMPORTANT SAFETY INSTRUCTIONS
16.Do not install the product in a place where chemical substances or oil mist exists or may
be generated. As edible oils such as soybean oil may damage or warp the product, do
not install the product in the kitchen or near the kitchen table.
This may cause damage to the product.
17.When installing the product, be careful not to allow the surface of the product to be
stained with chemical substance.
Some chemical solvents such as cleaner or adhesives may cause serious damage to the
product’s surface.
18.If you install/disassemble the product in a manner that has not been recommended, the
production functions/performance may not be guaranteed.
Install the product by referring to “Installation & connection” in the user manual.
19.Installing or using the product in water can cause serious damage to the product.
Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus
WARNING
• To prevent damage which may caused by IR LED, don't stare at operating lamp.
for below models only.
SCO-6025R* / SCD-6025R*
Risk Group 1
WARNING IR emitted from this product.
Do not stare at operating lamp.
Product tested against IEC 62471
Hanwha Techwin cares for the environment at all product manufacturing
stages, and is taking measures to provide customers with more
environmentally friendly products.
The Eco mark represents Hanwha Techwin's devotion to creating
environmentally friendly products, and indicates that the product satisfies the
EU RoHS Directive.

8_ contents
contents
INTRODUCTION
9
9Features
10 Components and Accessories
12 Component names and
functions
INSTALLATION
14
14 Before installation

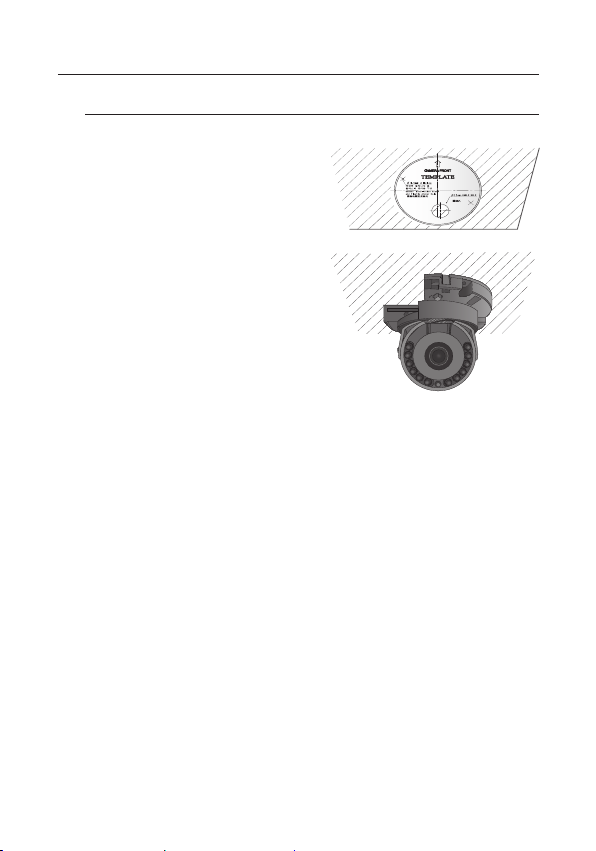

15 Installation(SCD-6025R)
17 Adjusting the monitoring
direction for the camera
(SCD-6025R)
CONNECTION
18

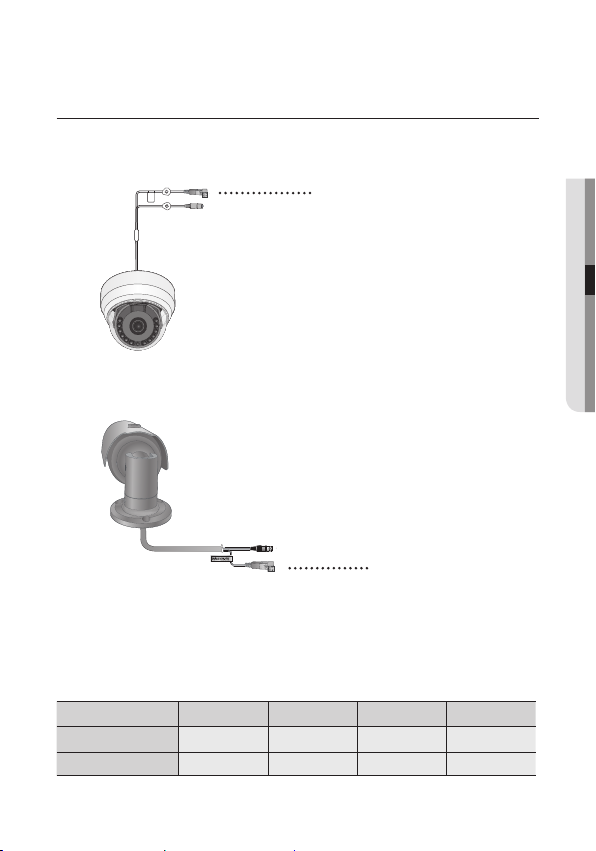

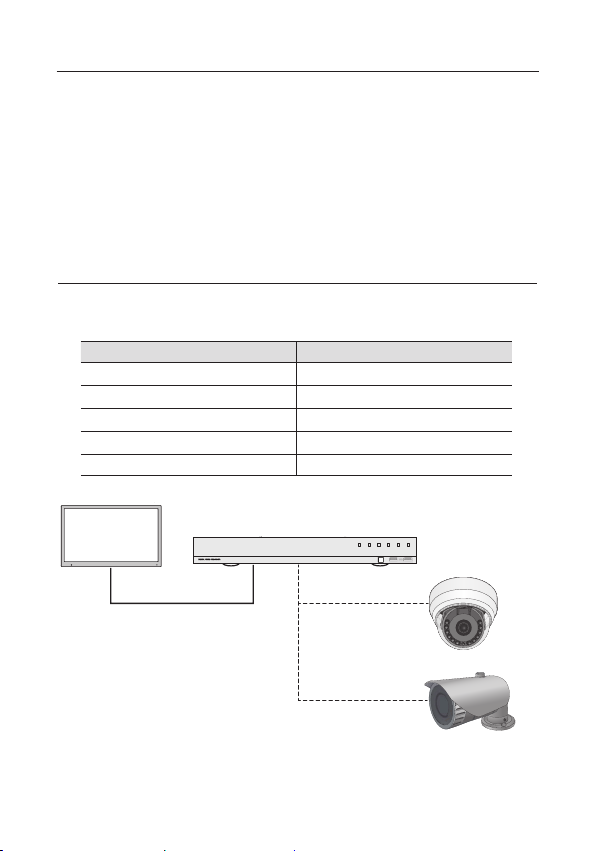

18 Connecting to Monitor
19 Connecting to Power
20 Using Coaxial Communications
CAMERA OPERATION
22
22 Menu Conguration
22 Menu Setup
TROUBLESHOOTING
35
35 Troubleshooting

English_9
●INTRODUCTION
introduction
FEATURES
yHigh Resolution
Use of a 2 mega pixel CMOS device provides clear pictures with a resolution of 1945x1097.
yExcellent Sensitivity
<SCD-6025R>
-
Color : 0.17Lux (F1.6, 1/30 sec)
B/W : 0Lux(IR LED on)
<SCO-6025R>
-
Color : 0.11Lux (F1.6, 1/30 sec)
B/W : 0Lux(IR LED on)
ySSNR4 Function
High performance DSP Chip removes noises of GAIN resulting from the low light level
and shows a vivid, high defnition video even in the dark place.
yDay&Night
This camera has a function that automatically selects the mode that is appropriate
for daytime or night-time conditions. The COLOR mode operates in daytime condi-
tions to provide optimum colors, and B/W mode operates in night-time conditions
to enhance the defnition of the image.
yPROFILE
You can set a mode according to the camera installation conditions.
- BASIC, DAYNIGHT, BACKLIGHT, ITS, INDOOR, USER
yDWDR
By adopting a proprietary high performance DSP chip, the camera delivers clear,
high quality pictures even in backlight, by increasing exposure in dark areas while
decreasing it in bright areas; a corrected image with clear details results.
yMiscellaneous Functions
HLC(High Light Compensation), REVERSE , SHARPNESS and PRIVACY functions are
provided.
yCommunication
Coaxial communication methods are supported.
- Coaxial communication : ACP(AHD), Pelco-C(CVBS)

10_ introduction
introduction
COMPONENTS AND ACCESSORIES
Check if the following items are included in the product package.
<SCD-6025R>
High Resolution Camera
User Manual
SCD-6025R
SCO-6025R
Camera User Manual
Tapping Screw Template

English_11
●INTRODUCTION

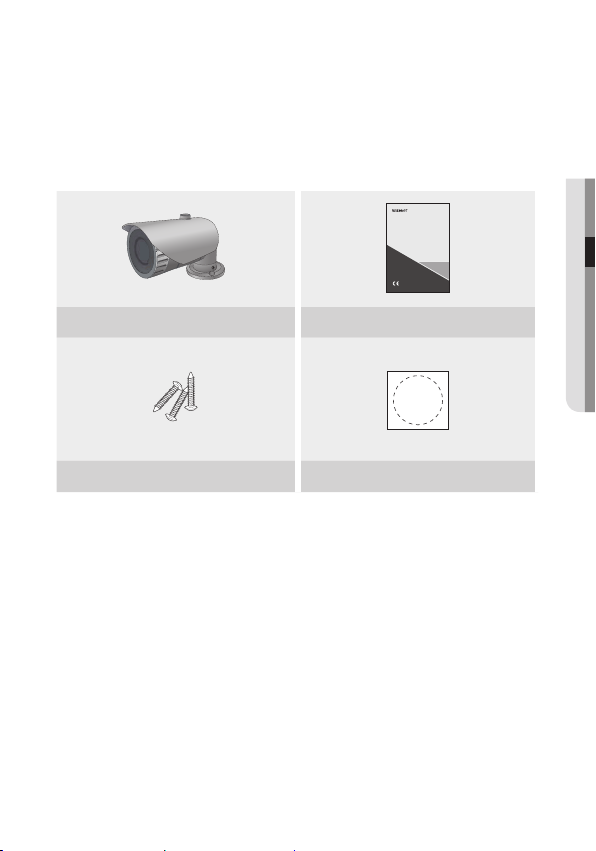

<SCO-6025R>
High Resolution Camera
User Manual
SCD-6025R
SCO-6025R
Camera User Manual
Tapping Screw Template

12_ introduction
introduction

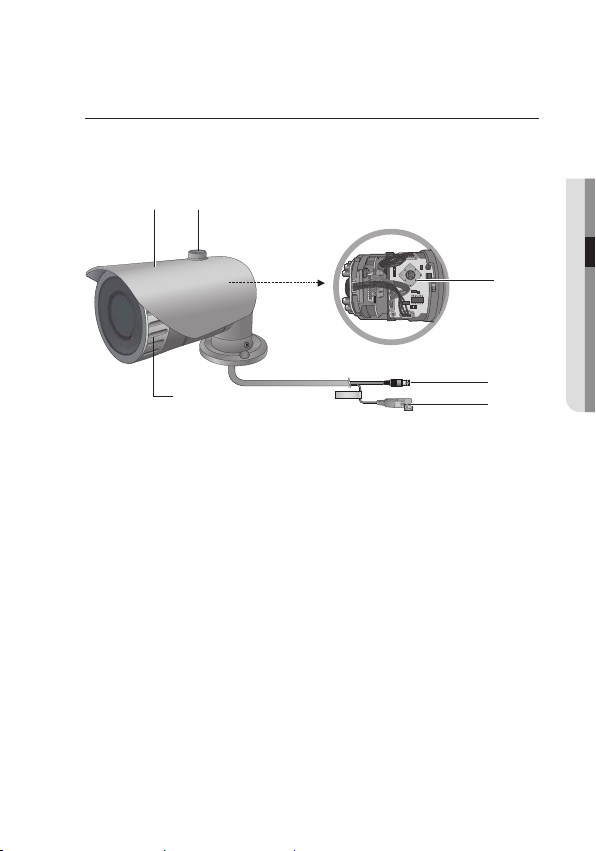

COMPONENT NAMES AND FUNCTIONS
SCD-6025R
1 Dome Cover
2 Rotate base : control rotating angle of camera.
➌ Lens Module
➍ Function Setup switch : Display the menu on the screen and move the cursor to four
directions to confirm status or after changing a selected item.
Switching between AHD and CVBS modes: Press the SET button
for more than 5 seconds.
➎ Pan Base : Control panning angle of camera.
➏ Power Input Connector
➐ Video Output Jack : Video signals are output through this port. Connect this port to the Video
IN port of a AHD DVR.
➑ IR LED : These infrared LED’s are controlled by the illumination sensor.
➒ IIIumination sensor : Detects incoming light to control the IR LED.

English_13
●INTRODUCTION
1 Camera Sunshield
2 Knob Sunshield : Fixing the sunshield onto the camera.
➌ Front cover
➍ Function Setup Switch : Display the menu on the screen and move the cursor to four
directions to confirm status or after changing a selected item.
Switching between AHD and CVBS modes: Press the SET button
for more than 5 seconds.
➎ VIDEO OUTPUT jack : Video signals are output through this port. Connect this port to the
Video IN port of a AHD DVR.
➏ Power input terminal : Connect the power as specified for each model here.
SCO-6025R
CAUTION:
Be ware of the
RatedVoltage and Polarity
ofthe power connection.
21
➌
➎
➏
➍
M
`To ensure the weatherproof integrity is maintained, Before installation the front
cover, it’s necessary to push tight first. and then turn it clockwise to locking
indication.

14_ Installation
BEFORE INSTALLATION
Ensure you read out the following instructions before installing the camera:
yYou have to check whether the location (ceiling or wall) can bear ve times the weight of your
camera.
yDon’t let the cable to be caught in improper place or the electric line cover to be damaged.
Otherwise it may cause a breakdown or re.
yWhen installing your camera, don’t allow any person to approach the installation site.
yDo not disassemble the camera on your own.
yAlways be careful when you handle the camera.
yDo not hit the camera with your st or shake it. Be careful not to damage the camera with careless
maintenance or misoperation.
yAvoid installing the camera under direct inuence of rain or high humidity. Do not operate it in a
damp area.
yUse a clean, smooth, and dry cloth to wipe o a dirty area on the product surface. Or soak a clean
dry cloth in water, squeeze it enough to avoid water dripping, and then wipe o the dirty area.
(Avoid using detergent, cosmetics or oil substances containing alcohol, solvent, and/or surfactant
since they can cause product damage or deformation.)
yInstall the camera in a cool area with no direct sunlight.
yIf you forcibly install the product, the camera may be damaged due to misoperation.
If you forcibly assemble the product using an incompatible tool, the product may be damaged.
yDo not install the product in an area where chemical substances or oil vapors are likely to occur.
Do not install the product near kitchen or cooking table since edible oil substances (e.g. soybean
oil) can also cause product damage and deformation. They really can be the cause of product
damage.
yWhen installing the product, make sure not to leave any chemical substance on the product
surface.
Some chemical solvents, such as detergents and adhesives, can cause critical damage on the
product surface.
yInstalling and using the product under water can cause a severe malfunction to the product.
yLeaving the product in direct sunlight might cause a problem.
yThe normal working of product features and performance are not guaranteed if the product is
installed/disassembled in the manner not recommended by us.
For product installation, see the “Installation”and “Connection” sections in the Product User
Manual.
Installation

English_15
●INSTALLATION
INSTALLATIONSCD6025R
Disassembling
1. Use one hand to hold the camera’s bottom
part and turn the cover counterclockwise with
another hand to separate it.

Installation
16_ Installation
Installing the camera on a ceiling or wall
1. Attach the installation template to the
selected area and punch 2 holes as
shown in the fgure.
2. Use the 2 supplied screws to fx the
camera to the 2 punched holes.
ySet the <FRONT> mark imprinted on the
camera to face the direction of camera
monitoring.
3. Adjust the lens in a desired direction
by referring to the“Adjusting the monitoring direction for the camera”section.
4. Attach the dome cover and the shield case to the main body.
M
`Pay attention to the direction for assembly.
케이블 구멍

English_17
●INSTALLATION
Adjusting the monitoring direction for the camera(SCD-6025R)
Pan
Tilt Lens rotation
`Adjusting the monitoring direction
You can adjust the camera direction only when the camera is fxed on the ceiling.
Where, rotating the camera unit to the left or right is called Pan, adjusting the tilt is
called Tilt, and turning the lens on its axis is called Rotation.
- The eective range of pan is a total of 350 degrees.
- The eective range of rotation is a total of 355 degrees.
- The eective range of tilt is a total of 67 degrees.
`Methods of adjustment
1. After installing the camera, adjust the panning angle in consideration of the monitoring
direction.
2. Set the horizontal angle so that the image is not reversed.
3. Adjust the tilt angle so that the camera faces toward the monitoring object.

18_ connection
connection
CONNECTING TO MONITOR
Connect the Video OUT port on the rear panel of the camera to a AHD DVR.
yAs the connecting method varies with the instruments, refer to the manual supplied
with the instrument.
yOnly connect the cable when the power is turned o.
SCD-6025R
AHD DVR
AHD DVR
Monitor
SCO-6025R
Monitor
POWER
VIDEO
RE CHD DALAR M NETWOR K BACKUP POWE R
POWER
VIDEO
RE CHD DALAR M NETWOR K BACKUP POWE R

English_19
●CONNECTION
CONNECTING TO POWER
You can connect power as shown in the following figure.
Power Input Terminal
SCD-6025R
Power Input Terminal
SCO-6025R
When the resistance value of copper wire is at [20°C(68°F)]
Copper wire size (AWG) #24 (0.22mm2)#22 (0.33mm2)#20 (0.52mm2)#18 (0.83mm2)
Resistance value(/m) 0.078 0.050 0.030 0.018
Voltage Drop (V/m) 0.028 0.018 0.011 0.006

connection
20_ connection
yAs shown in the table above, voltage decreases as the wire gets longer.
Therefore use of an excessively long adaptor output line for connection to the
camera may aect the performance of the camera.
Standard voltage for camera operation : DC 12V±10%
There may be some deviation in voltage drop depending on the type of wire and the
manufacturer.
M
`Be sure to connect power only after all the installation is complete.
USING COAXIAL COMMUNICATIONS
yCoaxial Communications System
yOSD Control method
CAMERA DVR
SET MENU/ENTER
UP UP KEY
DOWN DOWN KEY
LEFT LEFT KEY
RIGHT RIGHT KEY
POWER
VIDEO
RE CHD DALAR M NETWOR K BACKUP POWE R
COAX
COAX
SCD-6025R
SCO-6025R
Coaxial Cable
Coaxial Cable
