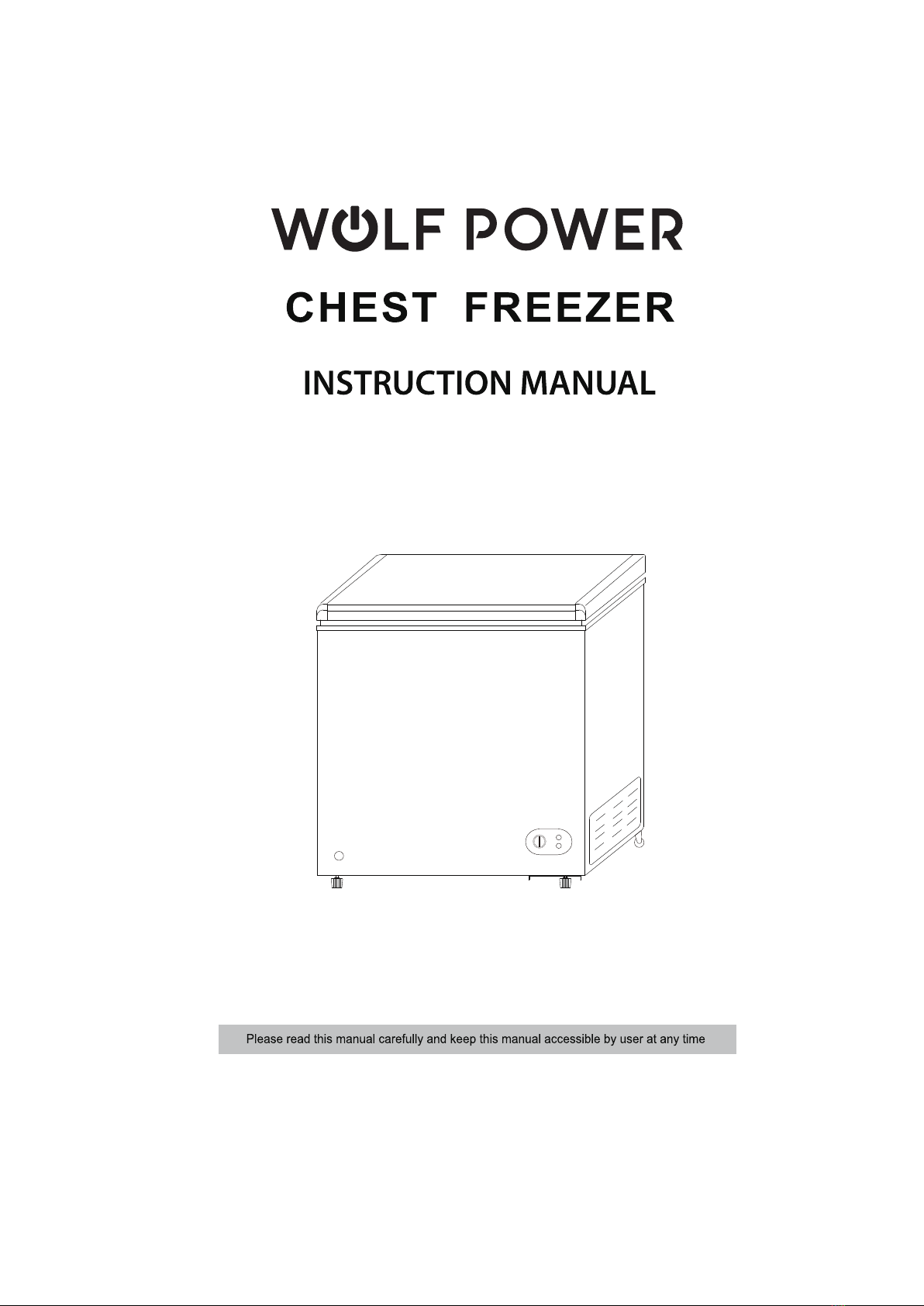

Wolf Power WCF150SD User manual
MODEL: WCF150SD
Made in China
INSTRUCTION MANUAL
SAFETY PRECAUTIONS 1
To ensure proper use. Please thoroughly study these SAFETY PRECAUTIONS before operating the Unit.
The purpose of the safety precautions in this manual is to ensure safe and correct use of the unit to minimize
risks that could cause serious damage and injury to you or other persons. The safety precautions are divided
into WARNINGS and CAUTIONS. Cases where improper handling of the unit could lead to death or serious
injury are listed under the WARNING, However, the cases adhere strictly to both types of safety
precautions.
PRECAUTIONS FOR INSTALLATION
Text set off by the exclamation mark contains information that should be strictly adhered to.
After reading the instruction manual, store ti an easily accessible place where the user(s) of this product can
easily find it.
WARNING
CAUTION
Improper handling of the unit could lead to death or serious injury.
Improper handling of the unit could lead to serious results depending on the circumstances.
WARNING
Installation should be performed only by the dealer or a qualified expert. Attempting to install the
unit yourself could result in water leakage, refrigerant leakage, electrical shock. or fire.
PRECAUTIONS FOR USE
WARNING
Don抰 tamper
Prohibited
Danger of
explosion
Never put flammable or volatile
substances into the unit as explosion
and fire could result.
All repairs, disassembly and modifications
should be performed only by qualified
technicians. Attempting to perform
these yourself could result in a fire.
Malfunction, and injury.
PROHIBITED
FLAMMABLE
ELECTRICAL
SHOCK HAZARDS
Never splash water directly onto the product
or wash with water as short-Circuit and
electrical leakage could result.
Do not damage, modify, excessively bend,
strain, twist or bundle up the power cord.
Also, placing heavy objects the power cord
or squeezing it in a tight place could damage
it, possible resulting in electrical shock or fire.
Use a dedicated wall outlet. Do not use
extension cords or convenience receptacles
as this could result in electrical shock,
overheating and a fire.
Never use flammable spray cans or leave
flammable substances near the unit.
Sparks from electrical switches could
result in explosion and fire.
-1-
INSTRUCTION MANUAL
SAFETY PRECAUTIONS 2
CAS
S
S
PROHIBITED
CAUSION AGAINST
EXPLOSION
PROHIBITED
PROHIBITED
WARNING
Do not store bottles and cans in the unit.
The contents could freeze and the
containers break and cause injury.
Ice cream, frozen foods
The unit is intended for storage of ice-cream and
frozen foods.
Storage of other items than the intended could
have an adverse affect on the items stored it the
unit.
For indoor use inly. Using the unit in a
location exposed to rain could result in
electrical leakage and electrical shock.
Never place heavy objects or items containing
water on top of the unit. Objects could fall
down and cause injury and spilled water could
deteriorate the insulation of electrical components
and result in electrical leakage.
Should the unit need temporary storage, make
sure not to store the unit in a location where
children play and take precautions so that the
door cannot be completely closed.
This will minimize the risk that a child becomes
trapped inside the compartment.
Leave disassembly and disposal of the unit
to qualified experts.
Store the unit in a location where it is not
exposed to rain. Using a unit that has
been exposed to rain could result in
electrical leakage and electrical shock.
Away from hot air sources
Cooling performance is reduced if the unit is
placed near heat sources such as hot plates
and stoves and if it is exposed to direct sunlight.
Install the unit in a location where the floor is sturdy enough
to support the load of the unit. If the floor is not sturdy enough
or installation is incorrectly performed, the unit could tip over
and falling shelves and products could cause personal injury.
If you find gas leakage please don抰 touch
the chest freezer, and close gas and open
the door for ventilation,
Gas leakage cause explosion, fire, and fire
injury.
-2-
INSTRUCTION MANUAL
SAFETY PRECAUTIONS 3
WARNING
PROHIBITED
PROHIBITED PROHIBITED
ELECTRICAL
SHOCK HAZARDS
WELL VENTILATED PLACE
Please make more than 10cm space between
Chest freezer and wall.
If there are no space, cooling capacity can drop
down.
Disconnect
power cord
plug from
wall outlet
If installation in a damp location is
unavoidable, also install an electrical
leakage circuit breaker.
If no electrical leakage circuit breaker
is installed, electrical shock could
result.
Never hang from the door or climb
onto the unit.
The unit could tip over or fall and
cause material damage or injury.
Disconnect the power cord plug from
the wall outlet before moving the unit
and make sure that the power cord is
not damaged during transport.
A damaged power cord could result in
electrical shock and/or fire.
Never touch the power cord plug,
other electrical components, or
operate the switch with wet hands.
Electrical shock could result.
Never use if the power cord or plug is
damaged or the plug cannot be firmly
seated in the receptacle sockets as
electrical shock, short-circuit and fire
could result.
Make sure that the unit does not tip
over or fall when it is moved.
A falling unit could cause serious
injury.
When disconnecting the power cord
plug from the wall outlet, hold at the
plug main body close to the outlet.
Pulling the cord could cause wire
breakage, possible resulting in
overheating and fire.
-3-
INSTRUCTION MANUAL
HOW TO USE
BEFORE USE
WAIT 5 MINUTES OR MORE BEFORE RE-STARTING
DEFROSTING
Remove shipping packaging, tape, etc, and leave lids open for ventilation for a while.
The unit is cleaned before shipment. However, clean the compartment interior once after delivery.
Following installation, refrigeration will start about 10 minutes after operation is started.
Operate for about 2 hours to cool the refrigerator compartment before placing items in the freezer.
Restarting the unit immediately after it has been turned off may cause fuses to blow and activate
the circuit-breaker, the compressor may be overloaded, and/or other damage may occur.
When 5mm frost forms in the freezer, please shave it and throw it away.
If you defrost completely, please do it as follows.
Please make inside empty. And disconnect the power cord plug.
When frost start thawing, please shave it and you will be able to defrost in the short time.
After draining, please wipe the inside, and put a rubber cap on the drain bolt and the inside drain.
WARNING
For defrosting chest freezer, don抰 usea hammer, knife,
or bottle. If you use it, it give damage to inside evaporator.
And chest freezer cannot cool, and inside goods can thaw,
pls do not destroy the freeze loop.
Pls do not storage anything others expect the manufacturer抯
recommendation.
Regulation of temperature controller and quick-frozen
position
Plug the power cord, control panel “power” indicator light on, when the “Run” indicator light shine, the compressor
start working , when the "Run" indicator light does not shine that box temperature cannot reaches set
temperature requirements, compressed machine to stop working.
Change inside temperature by temperature control knob to adjust the device the greater the control the number of
stalls inside the lower temperature, usually the case, please put "3" ~ "5" between points.
When there’s requirement of frozen items, please knob the clock wise to “Strong”, the continuous operation of the
compressor at this time, but time should not be too long, to be thoroughly frozen items, the knob should be
returned to the original stall
Temperature controller rotary knob can be arbitrary,
but not by the "Strong" point to a clockwise
rotation frozen "Stop" point
Storage and frozen food
Add a refrigerator inside the room temperature of food should not be too much, or the food will have an
impact on the effect of freezing and preservation.
Connect power, refrigeration compressor started, the full cooling box to be confirmed, the add to be frozen
food, the first time in more run-time should be longer, about 2 ~ 3 hours
Food storage, food should stay around a certain gap in order to facilitate the flow of inside air-conditioning,
Cooling evenly box at a low temperature, do not put the box below the freezing point termperature of bottled,
canned drinks, which to prevent Frost Crack.
Control panel
-4-
INSTRUCTION MANUAL
CLEANING
IN CASE OF THE FOLLOWING
2 DOOR
1 POWER FAILURE
2 WHEN NOT USED FOR ALONG PERIOD
1 EXTERIOR AND COOLER COMPARTMENT
3 WHEN NOT USED TEMPORARILY
WARNING
WARNING
To prevent any electrical shock hazards or injury by rotating circulation fan, always disconnect
the power cord plug from the wall outlet before cleaning.
WARNING: Do not splash water directly onto the cooler and do not wash with water.
Short- circuit and electrical shock could result.
Wipe with a soft, dry cloth. If very soiled, wipe with a cloth that has been moistened with a detergent.
Then wipe with a cloth that has been dipped in water.
Please stick wood between door and chest freezer so as not to close it up.
Please don’t put chest freezer in a place where children can play. If children shut
themselves up, they cannot escape from it.
Remove all the items from the compartment and disconnect the power cord plug from the wall outlet
Clean the compartment interior and wipe away all te water.
To prevent meld formation and bad smell, leave the door open to dry the compartment completely.
Sudden power failure
Keep opening and closing of the door to a minimum to prevent cold air from escaping from the
freezer compartment. Covering exterior glass surfaces with a blanket, etc. Will further help to
maintain a low temperature.
Announced power suspension
In case of a long power suspension, place dry ice in the freezer compartment.
Keep opening and colosing of the door to a minimun
Avoid placing new items in the cooler as this will raise the temperature inside the conpartment.
Detach the door and wipe clean with a dry cloth.
Clean the cooler regularly to keep it clean, Scrub brush at all times
Never use polishing powder, soap powder, benzine
oil or hot water as these will damage the painting and
plastic components.
Cleanser
Benzine
Acetic acid
Gasoline
Thinner
-5-
INSTRUCTION MANUAL
BEFORE REQUESTING SERVICE
CAUTION
Pipe
Please check the following items if you encounter problems with the unit. If the problem continues after taking
the proper remedial actions, disconnect the power cord plug from the wall outlet.
Transfer the items stored in the cooler to a box or other container. Then contact the dealer from whom you
purchased this unit and be ready to provide information as listed in REQUIRED INFORMATION?below.
To prevent any electrical shock hazards. Do not disconnect the power cord plug from
the wall outlet with wet hands.
No refrigeration
at all
Inadequate
refrigeration
Excessive noise
Condensation
on cooler
exterior
The circumference
of chest freezer
feels hot
l Is the power supply interrupted?
l Is the power cord plug disconnected from the wall outlet?
l Are the shop抯 power fuses blown and/or the circuit breaker activated?
l The temperature control did in the direction of MAX. if foo cold, turn dial
indirection of OFF?
l Is the place of installation badly ventilated?
l Is the freezer exposed to direct sunlight, placed near a heater or stove?
l Are the lids opened and closed frequently?
l Are items stocked beyond the load line?
l The temperature control dial in the direction of MAX. If too cold, tum dial
in direction of MIN?
l Much frost forms in the chest freezer?
l Is the floor underneath the freezer sturdy enough?
l Is the unit shaking and rattling?
l Is the rear panel of the unit contacting a wall, etc,?
l A container or something is behind the chest freezer?
The compressor will generate a rather loud sound for a while after operation is
started. The noise will cease together with refrigeration.
l Condensation may condense on the exterior and door during hot and humid
days or depending on the place of installation. This occurs when the humidity
is high and water particles in the air contact cold surfaces. This is normal.
Wipe away condensation with a dry cloth.
l Especially in summer or in starting running, the circumference of chest freezer
feels hot. Because chest freezer inside has a pipe for radiating and preventing
condensation.
The heat do not affect inside goods.
-6-
-7-
MODEL: WCF150SD
Made in China
MAX
OFF
MAX
min
Table of contents
Languages:
