WORKSWELL Wiris User manual

FW version: 1.2.0
User Manual

Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
Revision 1.0 EN, 22.2.2016
All pictures are only for illustration.
Real values may vary.
Workswell WIRIS is the thermal imaging system for unmanned aerial vehicles (UAVs, drones). It is a
lightweight all-in-one system equipped with a thermal imaging camera and a visible spectrum camera. The
aim of the whole system is the simple transfer, storage and processing of radiometric (temperature) data
directly from an unmanned aerial vehicle (drone) and displaying the data on the screen of the UAV remote
controller in real time. The system also offers a variety of measurement functions, colour palettes or alarm
(security) modes, which can be combined with a visible spectrum camera.
Workswell WIRIS is designed in order to allow controlling all its functions during a flight. The system has
eight digital inputs, which are fully compatible with standard RC receivers. Two inputs serve as navigation
buttons in the menu, the rest are shortcuts for the selected functions (image capturing, video recording,
palette switching, zoom, …).
The system supports a wireless video recording from a thermal imaging camera and a wireless image
making from both, thermal imaging and visible spectrum camera. Data (video or individual images) can be
saved directly using the UAV remote controller via the digital input ports on a control unit.
The system offers a digital video output with 16:9 ratio. It means that there is enough space for both live
streams (thermal imaging camera stream and visible spectrum camera stream) on screen at one time.
Introduction
Workswell WIRIS connected to a standard FPV monitor (monitor not included)

Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
Revision 1.0 EN, 22.2.2016
All pictures are only for illustration.
Real values may vary.
Legal Disclaimer
All products (software, hardware or firmware) manufactured by Workswell s.r.o. are warranted against defective materials and
workmanship for a period of twelve (12) months, provided such products have been under normal storage and use in accordance
with herein instructions.
The warranty extends only to the original purchaser and is not transferable. It is not applicable to any product which has been
subjected to misuse, neglect, accident or abnormal conditions of operation.
In the case of a defect in a product covered by this warranty the product must not be further used in order to prevent additional
damage. The purchaser shall promptly report any defect to Workswell s.r.o. or its authorized distributor or this warranty will not
apply.
Workswell s.r.o. will, at its option, repair or replace any such defective product free of charge if, upon inspection, it proves to be
defective in material or workmanship and provided that it is returned to Workswell within the said twelve-month period.
Nobody but Workswell s.r.o. is allowed to open or modify such product.
Workswell s.r.o. has no other obligation or liability for defects than those set forth above. No other warranty is expressed or
implied. Workswell s.r.o. shall not be liable for any direct, indirect, special, incidental or consequential loss or damage, whether
based on contract, tort or any other legal theory.
Copyright
© Workswell s.r.o. All rights reserved worldwide. No parts of the software including source code may be reproduced, transmitted,
transcribed or translated into any language or computer language in any form or by any means, electronic, magnetic, optical,
manual or otherwise, without the prior written permission of Workswell s.r.o.
Names and marks appearing on the products herein are either registered trademarks or trademarks of Workswell s.r.o. All other
trademarks, trade names or company names referenced herein are used for identification only and are the property of their
respective owners.

Warnings and Cautions...................................................................................................................................... 5
Package Content................................................................................................................................................ 6
User Information ............................................................................................................................................... 7
Help and FAQ..................................................................................................................................................... 8
System assembly ............................................................................................................................................... 9
Digital Inputs.................................................................................................................................................... 15
System appearance ......................................................................................................................................... 17
System Menu (Settings)................................................................................................................................... 20
USB flash disk menu ........................................................................................................................................ 33
Data transfer.................................................................................................................................................... 34
Firmware update ............................................................................................................................................. 36
Workswell CorePlayer ..................................................................................................................................... 38
Environment Conditions.................................................................................................................................. 39
Infrared camera behaviour.............................................................................................................................. 40
Maintanance.................................................................................................................................................... 41
Contents

5
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
Revision 1.0 EN, 22.2.2016
All pictures are only for illustration.
Real values may vary.
Warnings
Before using the product, please check that there is no visible damage or
malfunction. If there are any visible signs of damage or other defect on the
device, then on no account should it be installed or put into operation.
Any interference and noncertified service operations into the product leads to an
automatic loss of warranty.
Notifications
Do not use or store the device in conflict with the storage and operating
conditions laid down in this manual (only for hardware).
Do not point the infrared camera (with or without the lens cover) at
strong energy sources, for example, devices that cause laser radiation, or
the sun. This can have an unwanted effect on the accuracy of the camera.
It can also cause damage to the detector in the camera.
Do not use the Workswell WIRIS system in temperatures more than
+50°C (+122°F). High temperatures can cause damage to the camera.
Do not use the Workswell WIRIS system in temperatures less than -15°C
(+5°F). Low temperatures can cause damage to the camera.
Do not apply solvents or equivalent liquids to the cameras, the cables, or
other items. Damage to the items can occur.
Be careful when you clean the infrared lens. The lens has an anti-
reflective coating which is easily damaged. Do not use too much force to
clean the infrared lens. This can cause damage to the anti-reflective
coating.
The encapsulation rating is only applicable when all the openings on the
all components of the system are sealed with their correct covers,
hatches, or caps.
Warnings and Cautions

6
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
Revision 1.0 EN, 22.2.2016
All pictures are only for illustration.
Real values may vary.
Package
Content
Inside the Workswell WIRIS package you will find following items:
WIRIS head with chosen lens
Calibration certificate
USB Flash drive 32 GB
HDMI cable
Power supply cable
Servo cable (2x)
Software license CorePlayer
Download Card
Quick Start Guide
Hard transport case
Download Card
The Download Card gains the cardholder access to download the relevant
documents, including the user manual in electronic form, and software on the
website www.workswell.eu.
Package Content

7
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
Revision 1.0 EN, 22.2.2016
All pictures are only for illustration.
Real values may vary.
Typographic
Conventions
Following typographic conventions are used in this User Manual:
UPPER CASE is used for the names of keys, buttons and menu items
COURIERis used for filenames and paths
Italic is used for important information and document names
bold is used for the links to other sections, for function names or internet
sites
Help and
Community
Forum
For technical questions that were not answered in this User Manual feel free to
contact your dealer or visit the product website at http://www.drone-thermal-
camera.com.Try to find an answer by searching the Community Forum and if
there is not such answer please send an email on supp[email protected].
Updates
The primary aim of Workswell s.r.o. company is to supply their products in a way
to meet the current needs of its users and at the same time to remove all the
weaknesses that were found in their use as soon as possible. For this reason,
Workswell s.r.o. regularly releases updates for all their products.
Firmware
Firmware is the „internal“ control program of the device. From the user’s point of
view, only the official firmware released by Workswell s.r.o. company can be used
for update of the device.
User Information

8
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
Revision 1.0 EN, 22.2.2016
All pictures are only for illustration.
Real values may vary.
General
Instructions
While looking for a solution of any technical problem we recommend following
these steps:
try to find an answer by searching this User Manual
contact your dealer,
search Workswell s.r.o. website at http://www.drone-thermal-
camera.com,
send an email to [e-mail]
Help and FAQ

9
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
Revision 1.0 EN, 22.2.2016
All pictures are only for illustration.
Real values may vary.
General
Description
Follow these steps to commission the system:
1) Connect the system to
a wireless video link or a
display using HDMI cable
(included).
System assembly
2) Connect the system to a
standard RC receiver using
at least 2 servo cables
(included). Use input 1 and
2 in order to control the
main functions. System can
be controller also via
USB2.0 keyboard.
3) Connect the power supply
using power supply cable
(included). Red wire is +7 to
+28V DC, black wire is GND.
4) Press the on/off button.
The system will start in
about 15 seconds.
+7-28 V DC
GND
RC receiver
(not included)
2x
display
(not included)

10
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
Revision 1.0 EN, 22.2.2016
All pictures are only for illustration.
Real values may vary.
Connecting the
system to a
wireless video
link or display
The Workswell WIRIS system is equipped with a standard HDMI video output. It can be
connected to any wireless video link or a display with HDMI input that supports
resolution of 1024 x 600 pixels. It is recommended to use a display with 16:9 aspect
ratio.
Connex wireless video link (not included)
The system can be connected to a wireless video link or a display using supplied
lightweight HDMI cable.
Connecting the
system to a
standard RC
receiver
The Workswell WIRIS system is equipped with 8 digital inputs (standard servo male
connectors). These inputs allow the user to control the system remotely during the
flight.
First two digital inputs serve as a navigation buttons in the menu. There are necessary
for controlling the whole system. The rest six digital inputs are customizable and can
be used as a shortcut to selected functions of the system such as zoom, video
recording, image capturing, etc..
It is recommended to use a joystick for navigation in system menu. If connected as
recommended, then the behaviour of the joystick is as shown on the following image.
Digital Input
Function
1
Up/Down
2
OK/Cancel
3-8
Optional (shortcuts)
More information about digital inputs are in section Digital Inputs.
Up
OK/Menu
Cancel
Down

11
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
Revision 1.0 EN, 22.2.2016
All pictures are only for illustration.
Real values may vary.
USB 2.0
Keyboard
Besides the digital inputs, the Workswell WIRIS system can be controlled also via
standard USB 2.0 keyboard. Once the keyboard is connected, it can be used for
navigation in system menu, for image capturing, video recording, mode switching or
zoom.
The following table shows the behaviour of connected keyboard
Key
Function
Up
Up
Down
Down
Enter
OK/Menu
Escape
Cancel
F5
Mode switching
F6
Image capturing
F7
Video recording
+
Zoom +
-
Zoom -
Connecting the
power supply
The Workswell WIRIS system can be powered through a 7-28 V DC connector on the
back panel. The back panel DC connector is compatible with a 5.5 mm/OD (outer
diameter) and 2.5 mm/ID (inner diameter) plug, where the inner contact is +7-28V
V DC and the shell is GND.
The standard package contains appropriate 5.5x2.5mm coaxial connector with a cable
(length of 80 cm).
Warning: Failure to follow these instructions could damage the system.
GND (black wire)
+7-28V DC (red wire)
A = 5.5mm, GND
B = 2.5mm,+7 –28V DC

12
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
Revision 1.0 EN, 22.2.2016
All pictures are only for illustration.
Real values may vary.
Turning off the
system
In order to turning off the system, the on/off button must be pressed for 3 seconds.
After that, the on/off button will start blinking, which means the ongoing shutdown.
The system will turn off in about 10 seconds. Do not unplug the power supply during
that time, it may cause the data losses. Once the white LED in on/off button goes
down, the system is successfully off and the power supply can be unplugged.
Focusing the
infrared
camera
The infrared camera has adjustable focus. The focus can be set using the supplied
focus tool
In order to focus on short distance gently rotate the lens counter-clockwise. During
this movement, the lens extends from the camera body. If the lens can rotate too
easily, you probably get on the edge of the focus range. Trying to rotate the lens more
may cause the lens to fall out.
In order to focus on long distance (or infinity) gently rotate the lens clockwise. During
this movement, the lens retracts to the camera body. If the lens can rotate too hard,
you probably get on the edge of the focus range. Trying to rotate the lens more may
cause the lens to damage. Infinity focus is recommended for most of the applications.
Short distance
Long distance

13
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
Revision 1.0 EN, 22.2.2016
All pictures are only for illustration.
Real values may vary.
Mounting the
system

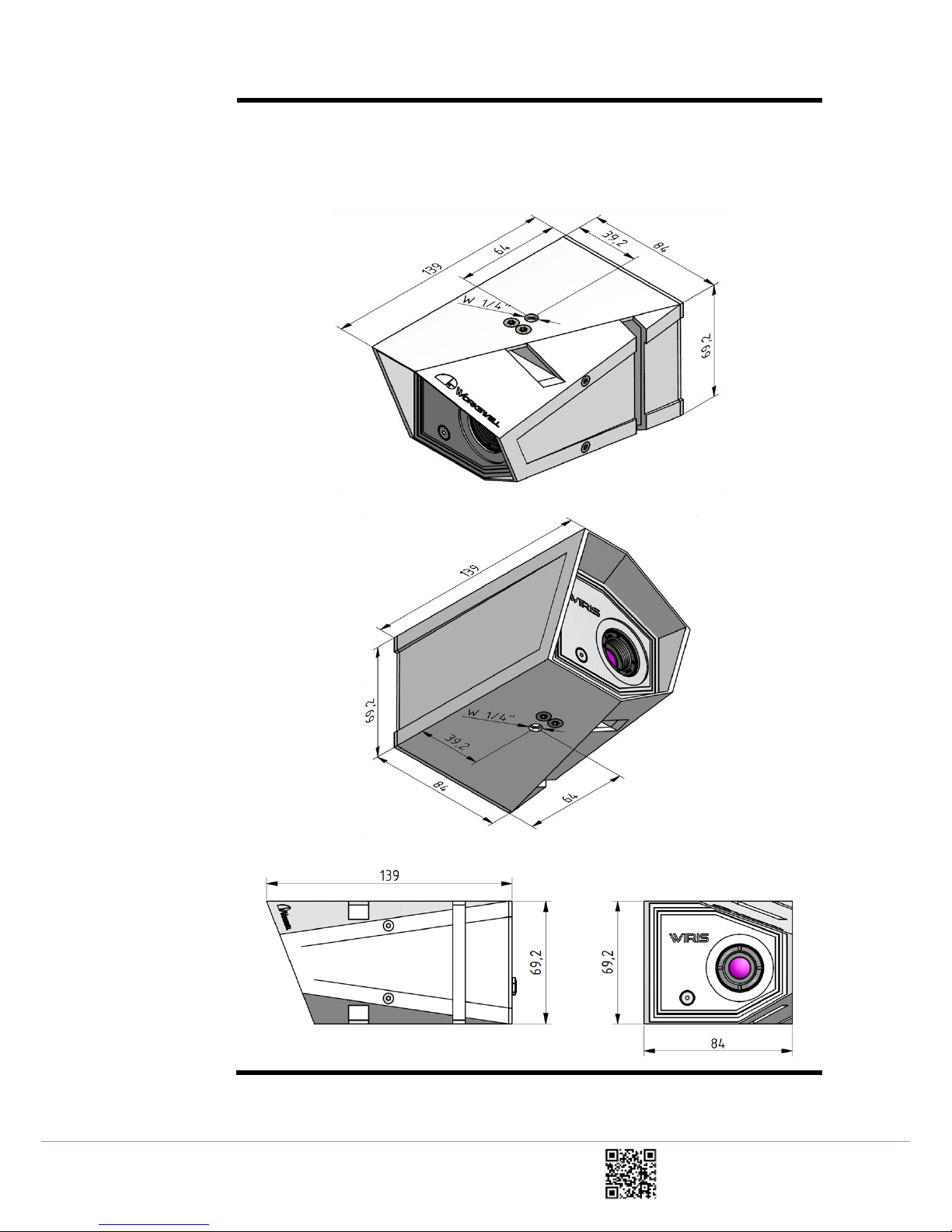

The Workswell WIRIS system can be mounted to a drone using the 1/4-20 UNC thread
(on bottom or top side).

14
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
Revision 1.0 EN, 22.2.2016
All pictures are only for illustration.
Real values may vary.
GPS and
MAVLINK
The Workswell WIRIS system is equipped with GPS/MAVLINK interface. Compatible
GPS can be connected directly or via device that supports Mavlink.
As for the physical layer, the Workswell WIRIS system is designed for operating voltage
of 5 V, although it is tolerant to 3.3 V.
GPS:
-supports standard NMEA protocol
MAVLINK:
-supports GPS (position) messages (at baud rate 9600)
Note (Pixhawk):
In order to connect Pixhawk to Workswell WIRIS system, connect TELEM1 or
TELEM2 to GPS/MAVLINK interface. Use Mission Planner to set Mavlink
messages.

15
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
Revision 1.0 EN, 22.2.2016
All pictures are only for illustration.
Real values may vary.
General
Description
The Workswell WIRIS system is equipped with 8 digital inputs. These inputs allow
the user to control the system remotely via standard RC system or control unit of
the UAV.
First 2 digital inputs are fixed and serve as a navigation in system menu. These 2
inputs work in so called PWM mode, which means, that PWM input from
standard RC receiver is expected. More information about PWM mode can be
found in section PWM mode.
The rest 6 digital inputs are fully customizable by user. These inputs can work in
PWM mode or in trigger mode (see section Trigger mode). User can select the
mode (PWM or Trigger) as well as function of each digital input via the system
menu.
Hardware
compatibility
Each digital input consists of 3 pins. These 3 pins are ground (GND), power supply
(+/not required) and control signal (s). The Workswell WIRIS system comes with 2
servo cables that can be used for connecting the system to standard RC receiver.
Note: Power supply is not required, GND and control signal are necessary.
PWM mode
PWM mode is the default mode for each digital input. It means that PWM signal
is expected on the input. PWM signal from standard RC receiver has the following
parameters:
Pulse length: 1 –2 ms (0.7 –2.3 ms)
Period: 20 ms (may vary for different receivers)
Digital Inputs

16
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
Revision 1.0 EN, 22.2.2016
All pictures are only for illustration.
Real values may vary.
In PWM mode 3 types of control elements are distinguished:
2 state element –on/off switch, button
ACTIVATED for pulse length > 1.5 ms
DEACTIVATED for pulse length < 1.5 ms
3 state element - 3 state switch
STATE 1 for pulse length < 1.25 ms
STATE 2 for 1.25 ms < pulse length < 1.75 ms
STATE 3 for pulse length > 1.75 ms
Proportional element –joystick, potentiometer
LEVEL is current pulse length. Allows the user to control some functions
proportionally.
Note: Do not use higher voltage than 5 V.
Trigger mode
If digital input is in trigger mode, the function is activated on every falling edge or
connecting to the GND. This can be used for controlling the Workswell WIRIS
system directly from UAV control unit.
Note: Do not use higher voltage than 5 V.

17
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
Revision 1.0 EN, 22.2.2016
All pictures are only for illustration.
Real values may vary.
General
Description
The Workswell WIRIS system will start in few seconds after pressing the on/off
button. Once the system is loaded, following screen will appear.
This screen consists of the following parts.
Main camera window
MAIN CAMERA WINDOW shows live stream from the selected camera (infrared or
visible spectrum). In case of infrared camera, the image from the camera with
applied color palette complements the temperature scale (legend). It is possible
to switch between infrared and visible spectrum camera during the flight.
System appearance

18
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
Revision 1.0 EN, 22.2.2016
All pictures are only for illustration.
Real values may vary.
Camera preview window
CAMERA PREVIEW WINDOW is additional live stream camera window. This
window shows live stream from the camera that is not set as a main camera
(shown in MAIN CAMERA WINDOW). In case of infrared camera, the image does
not complement temperature scale (legend). The min/max and centre crosses are
not shown in CAMERA PREVIEW WINDOW.
Temperatures window
TEMPERATURES WINDOW shows the most important temperature information
during the whole flight. It shows the maximum temperature in the scene, the
minimum temperature in the scene and also the temperature of center spot. In
addition, the maximum/minimum temperature in few last second is shown.

19
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
Revision 1.0 EN, 22.2.2016
All pictures are only for illustration.
Real values may vary.
Status bar
STATUS BAR contains all the important information about the running system such
as zoom factor (and the corresponding image resolution), time to next calibration
(NUC), GPS information (when GPS connected), temperature range, number of
captured images and minutes of recorded video and remaining free disk space.

20
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
Revision 1.0 EN, 22.2.2016
All pictures are only for illustration.
Real values may vary.
General
description
The Workswell WIRIS system offers a huge amount of options and customization.
All the configuration can be done using the SYSTEM MENU. SYSTEM MENU can be
opened by moving the joystick to right side (if connected as recommended) or by
clicking ENTER button (if standard USB keyboard connected). The MAIN MENU will
appear on the left side of MAIN CAMERA WINDOW.
Main menu
The SYSTEM MENU is divided into 5 categories:
RANGE
Automatic or manual temperature range, temperature limits
ISOTHERMS
Isotherm mode, isotherm limits
FUNCTIONS
Capture, record, switch mode, zoom, min/max/centre cross
PALETTE
14 different colour palettes
ADVANCED
Measurement, display, isotherms, inputs and system settings
System Menu (Settings)
